How to wire amber/white led pods with dual light harness with a 3-position switch

Discussion in 'Lighting' started by poundtown, Feb 13, 2016.

Post Reply

Feb 13, 2016 at 4:19 PM

#1

#1
poundtown [OP] Well-Known Member

Joined:

Oct 31, 2015

Member:

#168270

Messages:

46

Gender:

Male

Tennessee

Vehicle:

Red 2000 Tacoma TRD Offroad

So I bought Amber/White Tracker dual color pods (12Watt) from Sidetracked Offroad (http://sidetrackedoffroad.com/led-pods-and-work-lights.html) and I am having trouble on how to wire a 3 way switch which I bought on eBay. It's hard to explain, but I had to buy a dual light harness separately (from sidetracked offroad, and because it didn't come with a harness) and the switch it came with is something I do not understand. The 3 way switch that I bought from eBay has 3 wires connected while the switch that came with the harness (from sidetracked) has 4 wires connected with a ground and power??? Look at the pictures below because this shit is confusing. Do I need to start from scratch and just make my own harness?

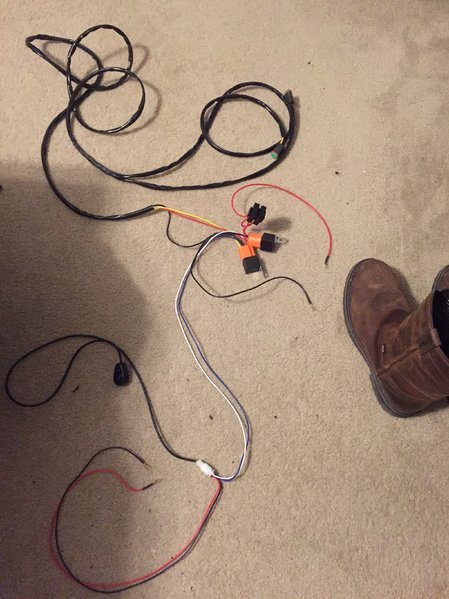

Full dual harness wiring from sidetracked offroad:

Closeup of dual relays and 5Amp fuses:

Closeup of on/off switch with a ground and power perhaps? I am confused...

3-Position Switch (one for amber and one for white light) I bought from eBay:

What the hell do I do?
