how to wire up the fx-r?

Discussion in 'Lighting' started by sick 3.4 tacoma, May 1, 2013.

  1. May 1, 2013 at 10:37 AM
    #1
    sick 3.4 tacoma

    sick 3.4 tacoma [OP] Well-Known Member

    Joined:
    Aug 16, 2010
    Member:
    #41803
    Messages:
    429
    Gender:
    Male
    First Name:
    Eric
    portland Oregon
    Vehicle:
    2003 double cab 4x4
    elite bumper, xrc8 winch, 12in sub, cb, flowmaster, deck plate mod, 3in lift.
    my question is how did you guys wire up the fx-r high beams to your 1st gen tacoma because i have been looking everywhere and cant seam to find a wiring diagram. pic's would be great if you have them thanks

  2. May 1, 2013 at 10:39 AM
    #2
    Conman117

    Conman117 AWESOME MEMBER

    Joined:
    Mar 10, 2012
    Member:
    #74659
    Messages:
    1,501
    Gender:
    Male
    First Name:
    Nathan
    BC, Canada
    Vehicle:
    98 Brap-coma
    Blue LED dash lights
    You should have the H4 harness? So you'll have a 3-pronged plug that will plug into you're old headlight plug. That will control high and low beams

  3. May 1, 2013 at 10:55 AM
    #3
    jblaze805

    jblaze805 Well-Known Member

    Joined:
    Nov 20, 2009
    Member:
    #26253
    Messages:
    1,127
    Gender:
    Male
    Ventura/Fresno, CA
    Vehicle:
    04 trd pre-runner
    2.5" king coilovers, caburg uca, magnaflow exhaust, aem intake
    [​IMG]

    if you have the same wiring harness the blue/black connects to your ballast and the two high beam wires coming from the projector goes to the red/black wires just stick the prongs into the connector, and then I just wrapped it with electrical tape. I would say contact TRS to confirm but since theyve grown its hard to get a hold of someone.

  4. May 1, 2013 at 11:04 AM
    #4
    Conman117

    Conman117 AWESOME MEMBER

    Joined:
    Mar 10, 2012
    Member:
    #74659
    Messages:
    1,501
    Gender:
    Male
    First Name:
    Nathan
    BC, Canada
    Vehicle:
    98 Brap-coma
    Blue LED dash lights

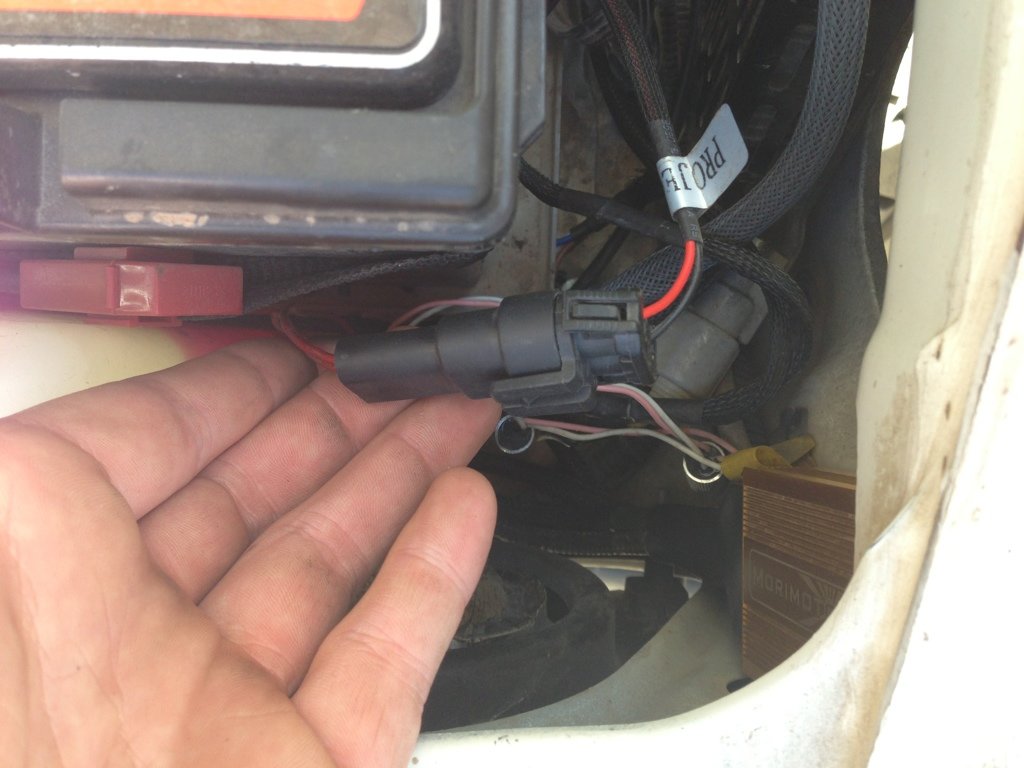

    This plug goes from the harness to the solenoid (polarity doesnt matter)

    69877038-A833-4F92-910D-F0EF744CD409-670_cd319809975c121bf44e99405ad8d2f081d6aa71.jpg

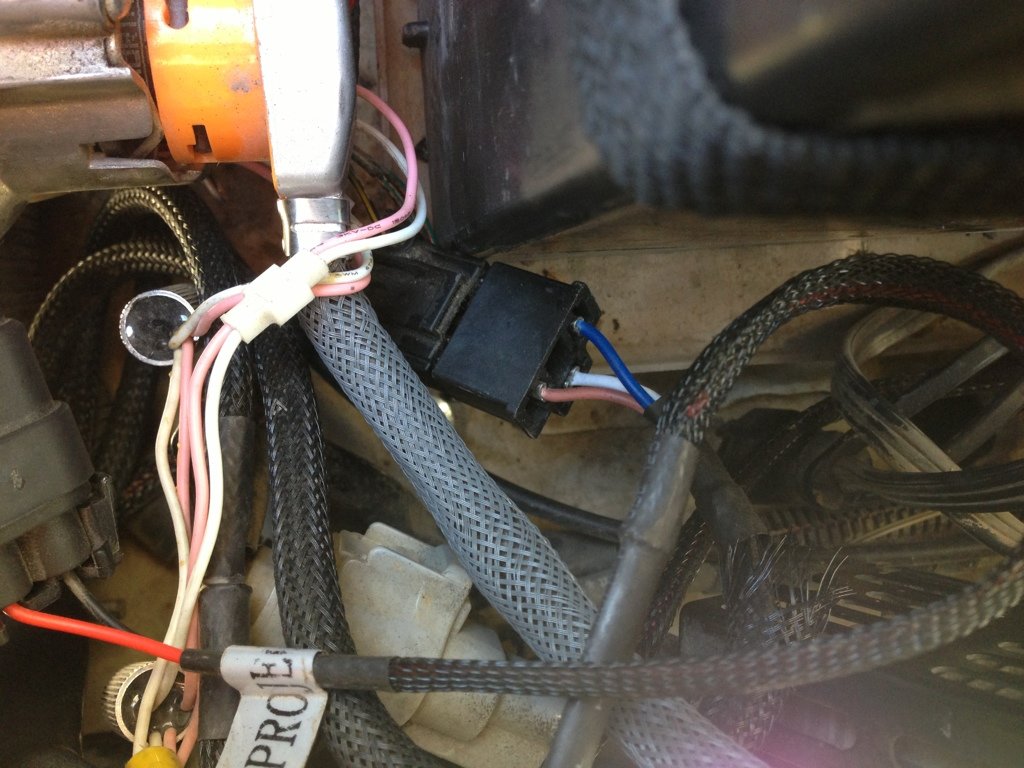

    And the plug in the center of the pic is what controls high and low.
    The plug with blue, brown and white wires, plugs into the stock headlight plug.

    0B2DF29B-C14B-4060-898B-5A0975A6F56A-670_b2ef769f78f01e70b07f40c9c78881a27e812d28.jpg

  5. May 1, 2013 at 11:50 AM
    #5
    sick 3.4 tacoma

    sick 3.4 tacoma [OP] Well-Known Member

    Joined:
    Aug 16, 2010
    Member:
    #41803
    Messages:
    429
    Gender:
    Male
    First Name:
    Eric
    portland Oregon
    Vehicle:
    2003 double cab 4x4
    elite bumper, xrc8 winch, 12in sub, cb, flowmaster, deck plate mod, 3in lift.
    Thanks guys prob is i spaced on buying the adapter plug so Im going to hard wire it my self. That's kind of why Im looking for a wiring diagram

  6. May 1, 2013 at 11:54 AM
    #6
    Conman117

    Conman117 AWESOME MEMBER

    Joined:
    Mar 10, 2012
    Member:
    #74659
    Messages:
    1,501
    Gender:
    Male
    First Name:
    Nathan
    BC, Canada
    Vehicle:
    98 Brap-coma
    Blue LED dash lights
    just give TRS a call. just remember that they're eastern time so they close at 3:00 PM
