How to wire up this air compressor?

Discussion in '3rd Gen. Tacomas (2016-2023)' started by full_r, May 8, 2019.

  1. May 8, 2019 at 11:13 AM
    #1
    full_r

    full_r [OP] Member

    Joined:
    Mar 11, 2019
    Member:
    #286169
    Messages:
    6

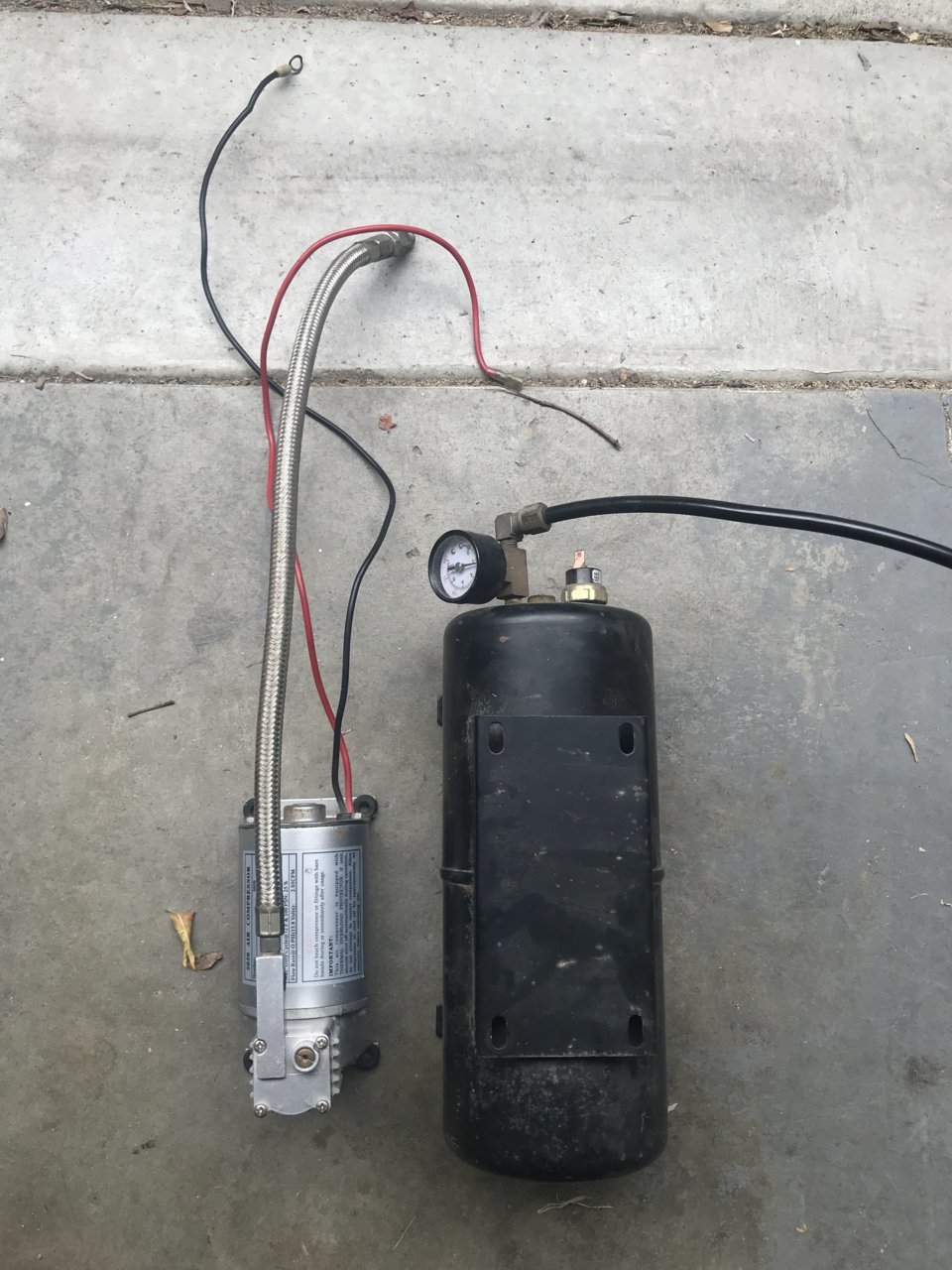

    i found a small compressor and tank in my garage a while back and want to install it somewhere on my truck for mountain bike tires and emergency use.
    I have zero understanding of wiring and power. Would anyone have an idea of what’s needed to get this thing going safely?


  2. May 8, 2019 at 11:21 AM
    #2
    golfindia

    golfindia Well-Known Member

    Joined:
    Aug 25, 2017
    Member:
    #228000
    Messages:
    2,884
    Yes.
    Vehicle:
    pickup truck
    Looks like it has a pressure switch. You just need a 12v relay that can handle at least 20amps.

  3. May 8, 2019 at 12:03 PM
    #3
    Taco_Craig

    Taco_Craig Well-Known Member

    Joined:
    Jan 15, 2016
    Member:
    #175043
    Messages:
    760
    Gender:
    Male
    First Name:
    Craig
    Vehicle:
    2016 MGM Tacoma, DCSB TRD-OR
    RCI Sliders/Plates, Icon [Stage 3] Suspension
    Alligator clips on the battery, on demand? :) plus an inline 30 amp fuse? That's the fastest way I can think of. It's 12 volts and 20 amps, same as my Viair...

  4. May 8, 2019 at 1:43 PM
    #4
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,781
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    One way..not only way

    0xDEADBEEF and Taco_Craig like this.
  5. May 9, 2019 at 2:52 PM
    #5
    Pilsner

    Pilsner Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277424
    Messages:
    1,150
    Gender:
    Male
    Vehicle:
    18 TRDOR
    255/85r16 ST Maxx 6112/5160 w/ Dakar RCI armor, sliders, and rear bumper CBI hidden winch mount w/ Smity 20k

    This all looks correct. Keep the fuse close to the battery and use heavy enough wire.
