hubcentric, lugcentric. SO confusing.

Discussion in 'Wheels & Tires' started by TacomaPrime, Oct 26, 2011.

  1. Oct 26, 2011 at 1:41 PM
    #1
    TacomaPrime

    TacomaPrime [OP] Cybertronian Tacoma

    Joined:
    May 20, 2011
    Member:
    #56955
    Messages:
    1,656
    Gender:
    Male
    First Name:
    Greg
    Illinois
    Vehicle:
    05 Prerunner SR5 TRD off road
    So I've heard many different things on this. I always understood that if your factory wheels are hubcentric, you either have to get wheels with the same hub bore, or if you get lugcentric wheels, you need a ring for the hub?

    Is that correct, or do you only need a hub ring if you get new wheels that have a bigger hub bore then the factory ones?

    What is the difference if your factory wheels are hubcentric, but your aftermarket ones are lugcentric? Will that make you more prone to driveline vibes?

    Also, if I get lugcentric aftermarket wheels, do I have to get tapered lugnuts? Or do I only need those if I get hubcentric wheels?

    I'm looking at the wheelers offroad wheels, so will get the lugnuts he sells for those, but in case I change my mind or for other people who are wondering.

  2. Oct 26, 2011 at 1:49 PM
    #2
    Sheppymach

    Sheppymach Well-Known Member

    Joined:
    Nov 23, 2010
    Member:
    #46617
    Messages:
    552
    Gender:
    Male
    First Name:
    Sheppy
    Philadelphia, Pa
    Vehicle:
    2014 4Runner trail edition
    BLU LOGIC bt, avid, weather tech mats & rain guards, 285/70/17, BenWA's totally AWESOME power sliding window mod.
    hub centric drives off the ring so it cant be off, lug centric is the cone on each lug nut and if you put the first on off a little the rest will follow

    the ring is for aftermarket wheel with a big hole in center and you get the right size ring for what your hub is. you dont need a ring with the lug centric because the lugs "should" center the rim.

    as long as you take your time the lug centric should be centered. I just snug each one up little at a time then torque to spec.

  3. Oct 26, 2011 at 1:50 PM
    #3
    Sheppymach

    Sheppymach Well-Known Member

    Joined:
    Nov 23, 2010
    Member:
    #46617
    Messages:
    552
    Gender:
    Male
    First Name:
    Sheppy
    Philadelphia, Pa
    Vehicle:
    2014 4Runner trail edition
    BLU LOGIC bt, avid, weather tech mats & rain guards, 285/70/17, BenWA's totally AWESOME power sliding window mod.

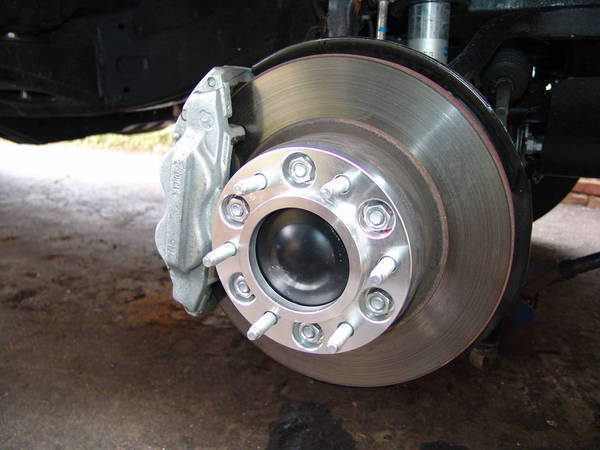

    heres my hub centric specers
    [​IMG]
    .
    [​IMG]

  4. Oct 27, 2011 at 5:43 AM
    #4
    KPT

    KPT sees what you did there.

    Joined:
    Sep 3, 2009
    Member:
    #22227
    Messages:
    32,339
    Gender:
    Male
    Vehicle:
    09 Prerunner
    Katskin leather interior, Satoshi grille, Bilstein 5100's @ 1.75, rear leaf TSB, magnaflow exhaust, 18x9 BBS RW's, 275/65/18 Nitto TG's, black headlights, black taillights, Hella Supertones, weathertechs, EFX tri-fold tonneau, n-Fab steps
    If your wheels are lug-centric, extended-thread lugs will help center the wheel better than standard conical seat lugs.

  5. Oct 27, 2011 at 5:49 AM
    #5
    TacomaPrime

    TacomaPrime [OP] Cybertronian Tacoma

    Joined:
    May 20, 2011
    Member:
    #56955
    Messages:
    1,656
    Gender:
    Male
    First Name:
    Greg
    Illinois
    Vehicle:
    05 Prerunner SR5 TRD off road
    What are the black lugs here?
    http://www.wheelersoffroad.com/tacomawheels.htm

    It says they are acorn style, that's the right type, correct.

  6. Oct 27, 2011 at 5:56 AM
    #6
    KPT

    KPT sees what you did there.

    Joined:
    Sep 3, 2009
    Member:
    #22227
    Messages:
    32,339
    Gender:
    Male
    Vehicle:
    09 Prerunner
    Katskin leather interior, Satoshi grille, Bilstein 5100's @ 1.75, rear leaf TSB, magnaflow exhaust, 18x9 BBS RW's, 275/65/18 Nitto TG's, black headlights, black taillights, Hella Supertones, weathertechs, EFX tri-fold tonneau, n-Fab steps
  7. Jan 30, 2012 at 4:28 AM
    #7
    Mytaco09

    Mytaco09 Active Member

    Joined:
    Dec 20, 2011
    Member:
    #69059
    Messages:
    34
    Gender:
    Male
    First Name:
    Steve
    Edmonton, AB, Canada
    Vehicle:
    '09 TRD Sport Supercharged
    TRD Supercharger, billet grill, Toytec ULK on the front with AllPro Expos bringing up the rear, a work in progress
    Hey I hope this isn't too off topic for this thread but I think it is sorta relevent here. The wheels I want to buy from Fuel Offroad can be made in several different configurations and sometimes when there is too much choice it gets more confusing. I can get them with a center bore(which i assume is the same as hub size?) of either 108mm or 106.4mm and some people on here from what I have read say the 2005+ Tacoma's are 106mm hub and others say 108mm. What should I order these rims in? Thanks.

  8. Jan 30, 2012 at 8:34 AM
    #8
    KPT

    KPT sees what you did there.

    Joined:
    Sep 3, 2009
    Member:
    #22227
    Messages:
    32,339
    Gender:
    Male
    Vehicle:
    09 Prerunner
    Katskin leather interior, Satoshi grille, Bilstein 5100's @ 1.75, rear leaf TSB, magnaflow exhaust, 18x9 BBS RW's, 275/65/18 Nitto TG's, black headlights, black taillights, Hella Supertones, weathertechs, EFX tri-fold tonneau, n-Fab steps
    Yeah I've heard different numbers too. First, I'd ask the company you are buying from which to get. Also, I'd take off one of your wheels and measure the hubs yourself.
