I have question about harness

Discussion in '3rd Gen. Tacomas (2016-2023)' started by MaxGong, Dec 21, 2023.

  1. Dec 21, 2023 at 6:45 AM
    #1
    MaxGong

    #1
    MaxGong [OP] Member

    Joined:
    Nov 25, 2023
    Member:
    #438225
    Messages:
    5
    Gender:
    Male
    Hello!!

    I have 2023 Tacoma SR

    And, I added cargo light switch yesterday. And it was work perfectly.

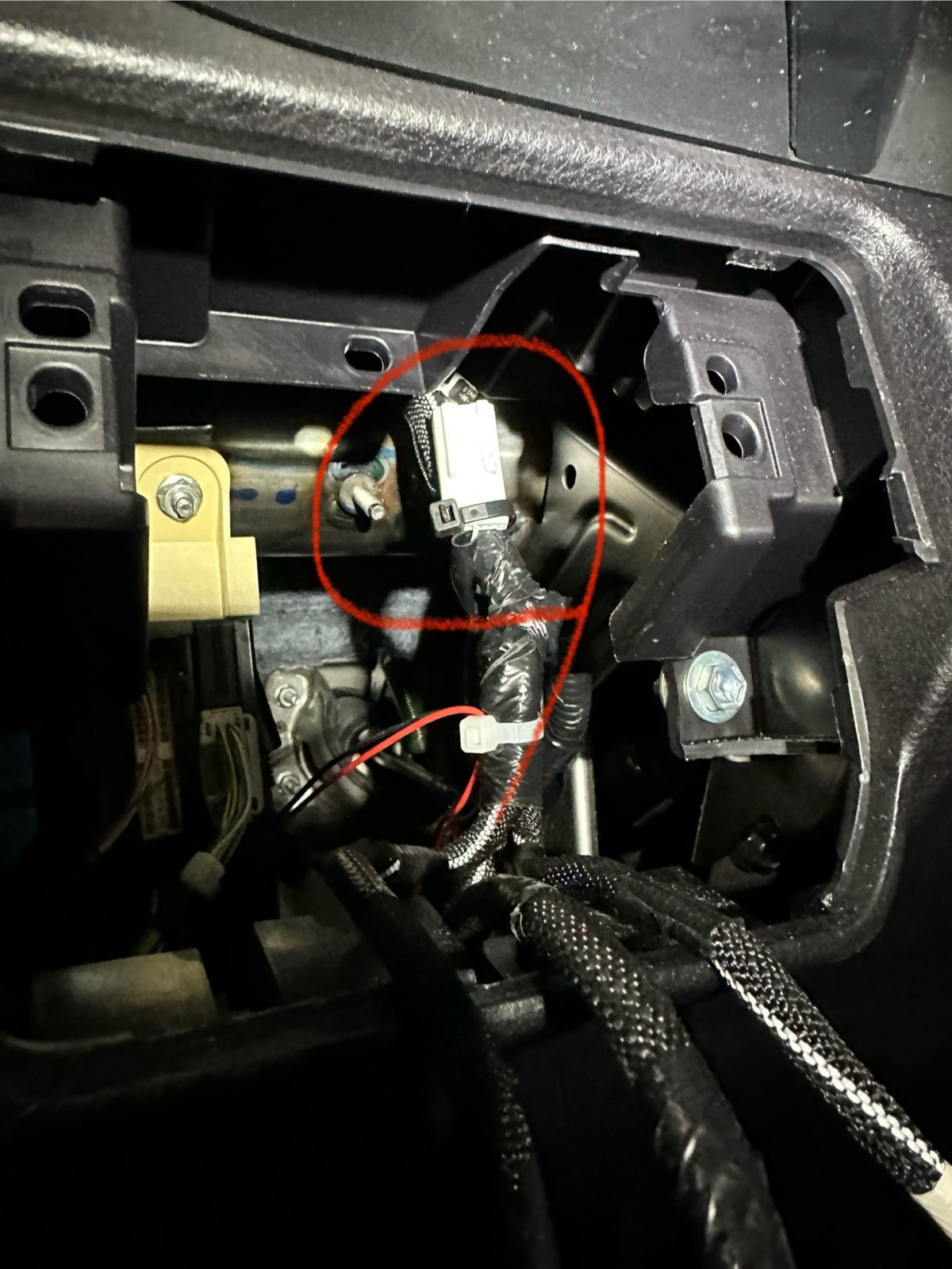

    When I opened the switch panel, I found one for cargo light switch and other one.

    I wonder what's that for.

    Please help me if somebody know about it. Checked the red circle in picture.

    Thanks! Happy Holiday!


    MaxGong, Dec 21, 2023
    #1
  2. Dec 21, 2023 at 7:07 AM
    #2
    caribe makaira

    #2
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,816
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Undue the tape, get a better picture...:burp: It can always be retaped.:D

    caribe makaira, Dec 21, 2023
    #2
  3. Dec 21, 2023 at 11:48 AM
    #3
    MaxGong

    #3
    MaxGong [OP] Member

    Joined:
    Nov 25, 2023
    Member:
    #438225
    Messages:
    5
    Gender:
    Male

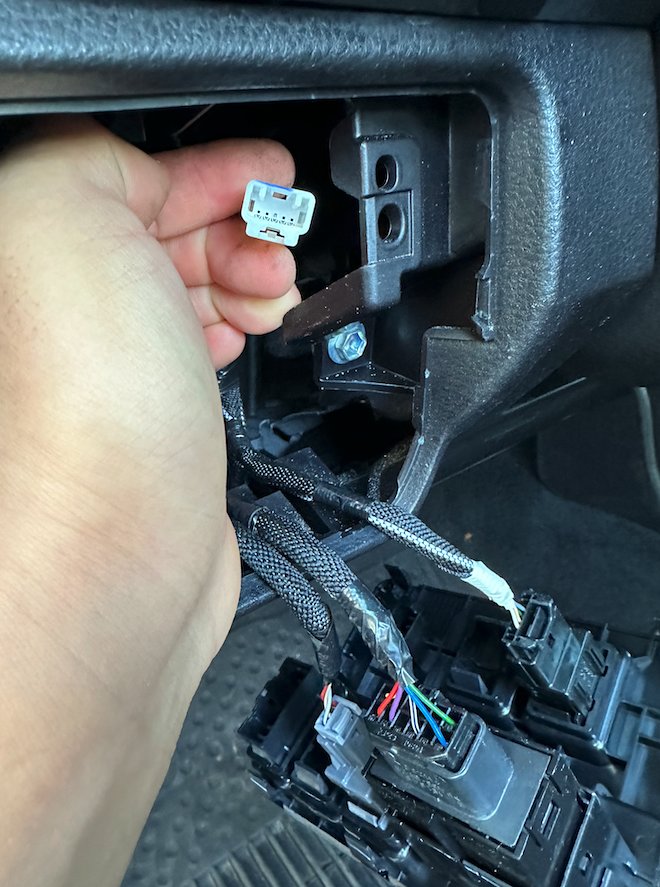

    Here you are sir!

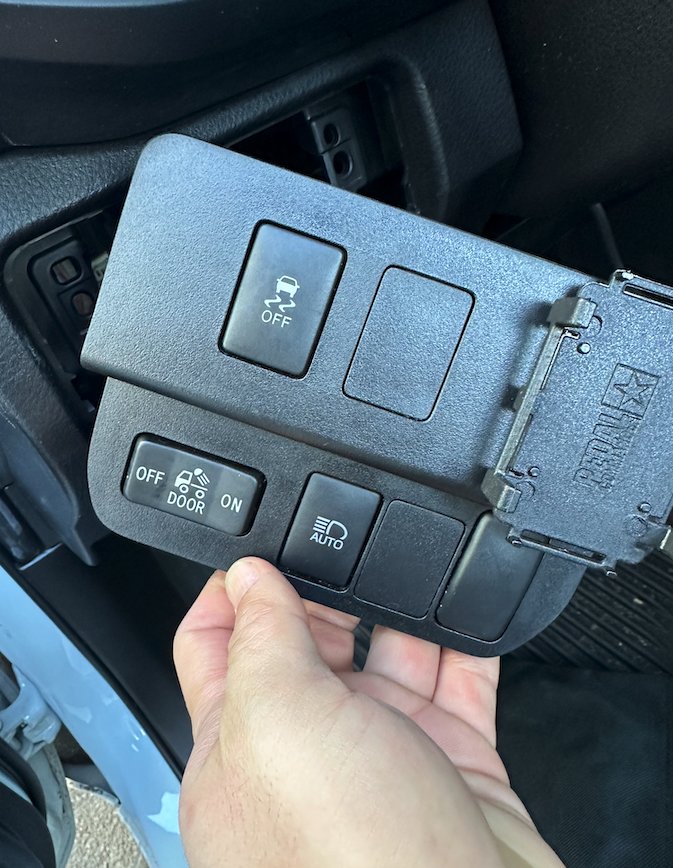

    Just in case, sending with the switches what I have.

    If that harness is something for pre wired one, i'd like to add.

    Please let me know!

    Thanks.

    Screenshot 2023-12-21 at 2.46.40 PM.png
    Screenshot 2023-12-21 at 2.46.30 PM.png

    MaxGong, Dec 21, 2023
    #3
  4. Dec 21, 2023 at 12:17 PM
    #4
    Chucky888_2021_TRD_OR

    #4
    Chucky888_2021_TRD_OR Live free and drive Taco

    Joined:
    Dec 22, 2020
    Member:
    #350372
    Messages:
    172
    Gender:
    Male
    First Name:
    Ching
    Osseo, MN
    Vehicle:
    2021 TRD OR DCSB
    For the 400W bed Outlet Switch?:notsure:

    Chucky888_2021_TRD_OR, Dec 21, 2023
    #4
  5. Dec 21, 2023 at 1:51 PM
    #5
    caribe makaira

    #5
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,816
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Wire colors? (pic)

    caribe makaira, Dec 21, 2023
    #5
    Stevie17 likes this.
  6. Dec 21, 2023 at 8:07 PM
    #6
    MaxGong

    #6
    MaxGong [OP] Member

    Joined:
    Nov 25, 2023
    Member:
    #438225
    Messages:
    5
    Gender:
    Male
    yes white one.

    MaxGong, Dec 21, 2023
    #6
  7. Dec 21, 2023 at 8:34 PM
    #7
    caribe makaira

    #7
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,816
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    What are the colors of the wires to the connector you are holding in the pic?

    caribe makaira, Dec 21, 2023
    #7
