I need slider specs!

Discussion in '1st Gen. Tacomas (1995-2004)' started by malander, Jan 26, 2011.

  1. Jan 26, 2011 at 10:18 AM
    #1
    malander

    malander [OP] That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    Hey guys I've been contemplating some sliders for a while and have decided to try and build my own. I know they're going to be about 78" long made of 2x2 square tubing that's either 1/8" or .120 wall. My main design is finished I just don't know what size frame plates and gussets I should use. I wouldn't mind over engineering these as they will be pretty heavy. I'll try and get some pics up on the next couple days but basically imagine demello hybrid sliders except all square tube. Any of these measurements would be a huge help so please let me know what you guys are running. Thanks alot ya'll

  2. Jan 26, 2011 at 12:03 PM
    #2
    malander

    malander [OP] That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    Come on guys I know ya have em! If I can get the specs in before 3:00ish I might be able to finish the design today

  3. Jan 26, 2011 at 12:10 PM
    #3
    davidpick

    davidpick NWXPDTN

    Joined:
    Jan 21, 2010
    Member:
    #29760
    Messages:
    2,234
    Gender:
    Male
    First Name:
    David
    Everett, WA
    Vehicle:
    2004 Xcab 4x4 TRD
    the frame plates on my sliders are 4" x 4" i believe (i have the demello standard round-tube sliders) and the gussets are just a triangle piece from the edge of the plate to the tube that extends away from the frame.

    i don't have my truck with me here at work today or i would go get exact measurements for you. i can check and reply back when i get home ~3:30 or 4pm.

  4. Jan 26, 2011 at 12:24 PM
    #4
    malander

    malander [OP] That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    Thanks alot I think that will help me get this design done today, do you think the gussets would just be about an inch on two sides and 1.414" for the hypotenuse? I can't decide on if that would be sufficient or if I should go with a massive 3x4x5 triangle. I also forgot to mention that I need the length of the legs. Once again thank you

  5. Jan 26, 2011 at 1:11 PM
    #5
    vantaco

    vantaco Well-Known Member

    Joined:
    Jul 23, 2010
    Member:
    #40631
    Messages:
    500
    Gender:
    Male
    Vehicle:
    02 Taco Xtracab TRD Step Side
    why are you using sqaure tubing?

    that's going to look weird in my opinion

  6. Jan 26, 2011 at 1:27 PM
    #6
    davidpick

    davidpick NWXPDTN

    Joined:
    Jan 21, 2010
    Member:
    #29760
    Messages:
    2,234
    Gender:
    Male
    First Name:
    David
    Everett, WA
    Vehicle:
    2004 Xcab 4x4 TRD
    i always over-build when doing projects like this myself, so if it were me, i'd opt for as large a triangle as possible. it's going to be under the truck and pretty much invisible, so why not, you know?

    that said, i think the gussets on my sliders are probably 1.5" - 2" per side (again, i'll have to measure later for actual specs), but i don't recall them being overly large and the sliders are definitely solid and can be used as a jacking point if need be.

    do you plan on welding or bolting the sliders to the frame?

  7. Jan 26, 2011 at 4:05 PM
    #7
    davidpick

    davidpick NWXPDTN

    Joined:
    Jan 21, 2010
    Member:
    #29760
    Messages:
    2,234
    Gender:
    Male
    First Name:
    David
    Everett, WA
    Vehicle:
    2004 Xcab 4x4 TRD
    Here are actual measurements:

    Frame mount plates: 4" x 4"
    Gussets: 4" (along the tube) x 2" (along the gusset), but then the top part of the triangle that would overhang the gusset is cut off so it looks something like:

    |--------\
    | \
    | \
    |________\

    where the gusset is on the left and the tube going out to the sliders is along the bottom.

    the tube attachments to the sliders are roughly 8"

  8. Jan 26, 2011 at 8:38 PM
    #8
    malander

    malander [OP] That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    Square is alot easier to measure out and cut angles from whereas with round tubing I would have to get a tube bender and deal with a whole lot more shenanigans than I want to. It's either perfect or complete shut to me and I want to get this done right.

  9. Jan 26, 2011 at 8:45 PM
    #9
    malander

    malander [OP] That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    where the gusset is on the left and the tube going out to the sliders is along the bottom.
    This is a little confusing to me but I'll figure it out when I'm not so tired. They will be welded in the end. So basically your gusset is more of a quadrilateral than a triangle correct? I think I will still be going with a triangle simply because it seems like it would distribute pressure to the frame plate better. I finished the design but it will need some refinement when I take more measurements when it gets a little warmer out. I'll try and post up pics tomorrow. Thanks alot man you've been a great help

  10. Jan 26, 2011 at 8:46 PM
    #10
    RelentlessFab

    RelentlessFab Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    14,183
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras: Sparks, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the old Taco's.... new Tundra is pretty stock
    If you'd like some of the same gussets and 'L' shape frame plates I use on all my sliders, hit me up. Wrapping under the frame in the 'L' shape adds a lot of beef IMO. My plates are 4" wide and the gussets are a 2x6" right triangle. Slider legs should be about 8" long

  11. Jan 26, 2011 at 8:47 PM
    #11
    RelentlessFab

    RelentlessFab Tacoma offroad armor fabricating beast Vendor

    Joined:
    Feb 17, 2008
    Member:
    #4772
    Messages:
    14,183
    Gender:
    Male
    First Name:
    Eric
    Eastern side of the Sierras: Sparks, NV
    Vehicle:
    07 SR5 4x4> 03 SR5 4x4 total> 14 Crewmax TRD
    Had tons on the old Taco's.... new Tundra is pretty stock
    [​IMG]

    These are CNC waterjet cut from 3/16 plate. :cool:

  12. Jan 26, 2011 at 8:49 PM
    #12
    Johnnie

    Johnnie Well-Known Member

    Joined:
    Mar 11, 2009
    Member:
    #14594
    Messages:
    1,835
    Gender:
    Male
    I.E. SoCal
    Vehicle:
    Feds
  13. Jan 26, 2011 at 10:53 PM
    #13
    davidpick

    davidpick NWXPDTN

    Joined:
    Jan 21, 2010
    Member:
    #29760
    Messages:
    2,234
    Gender:
    Male
    First Name:
    David
    Everett, WA
    Vehicle:
    2004 Xcab 4x4 TRD
    sorry, my little ascii art spacing got a little messed up, but the idea's there. the sentence that confused you is referring to the diagram. so the frame mount plate is along the left edge and the leg going out to the slider is along the bottom of the diagramed gusset.

    looks like relentless has a pretty solid set up there. my mounting plates don't wrap under the frame in an "L" shape, but if i were to build a set myself, i'd most likely go that route for added strength.

  14. Jan 27, 2011 at 6:53 AM
    #14
    malander

    malander [OP] That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    I really wanted to make this all by myself but I definitely don't want to skimp out on the mounting points or end up with crooked ass sliders. I think I would have to modify the gussets unless I welded the leg to the bottom of the frame plate and not the center. How much would eight frame plates and gussets cost me?

  15. Jan 27, 2011 at 6:54 AM
    #15
    malander

    malander [OP] That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
  16. Jan 27, 2011 at 6:55 AM
    #16
    malander

    malander [OP] That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    Thank man, I think I got it now as I said I may order some relentless Fran plates and gussets

  17. Jan 27, 2011 at 6:58 AM
    #17
    malander

    malander [OP] That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    Alright guys I probably won't have time to post up picks today but I'll try and figure it out on my iPhone. I will probably extend the main body of the sliders so that they are around 12"-13" from the frame. Legs will be about 8"

  18. Jan 27, 2011 at 6:59 AM
    #18
    Tepidy

    Tepidy Well-Known Member

    Joined:
    Nov 18, 2010
    Member:
    #46352
    Messages:
    1,073
    Gender:
    Male
    First Name:
    Ted
    upstate NY
    Vehicle:
    11 tacoma 4x4
    Toytec Coil Overs 3.00" DSM UCA's (Desert Products) TSB 4 Leaf w/AAL by Pro Comp Bilstein 5100 rear 1"ToyTec SwayBar Drops 1" diff drop Detroit Trutrac Rear Diff Nitro 4.56 Gears Doug Thornley Header MagnaFlow Cat Back Exhaust Custom Built Rear Plate Bumper Custom Built Front Plate Bumper 4X Innovations Rock Sliders ATO Front Skid BAMF Rear Diff Skid Uniden 510XL Pro CB Raceline Renegades BF Goodrich Mud Terrains KM2's 265x75x16 WeatherTechs Rear Diff breather Relocate Intake Resonator Removed Yellow Wire Mod
    I would have used round heavy walled pipe onto 3/8 "L" plate steel and weld on frame

  19. Jan 29, 2011 at 9:47 PM
    #19
    malander

    malander [OP] That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,424
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    [​IMG]

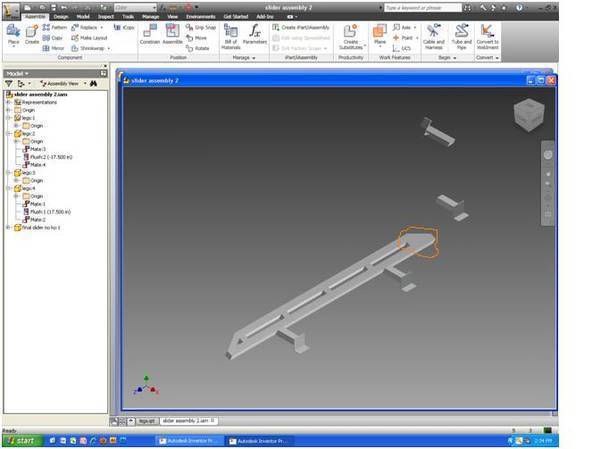

    heres a quick pick. legs have been redesigned and aren't full assembled in this pick. The orange area looks like it isn't cut out for some reason but it is symmetric to the other end. what do ya'll think? these are 78" but I'm designing some 80" sliders as well. the angle thing has kinda frustrated me, you can't really angle square tube because the legs would be about 2.2" long rather than 2" because of the angled cut (im thinkin about 25 degrees)

  20. Jan 29, 2011 at 10:15 PM
    #20
    Nightwar

    Nightwar .....

    Joined:
    Jan 29, 2011
    Member:
    #50177
    Messages:
    1,400
    Gender:
    Male
    First Name:
    Nick
    Dickinson, Tx
    Vehicle:
    11 SR5 V6 4X4 Silver
    Avid sliders & Lightbar, Front 5100s/Eibachs, Rear OME Shocks/Alcan 2" AAL, LR UCAs, Debadged, ProComp 7089s, BF Goodrich All Terrain T/A KO, Wet Okoles, Sockmonkey decals, 2x Kicker CompVR 10s, Pioneer P4300DVD, BHLM
    Well I like the angle look. But mine were easy with round tubing. Also got to make sure the door can open. I put my braces on the frame and then adjusted the angle. What your doing right now is the hardest part. An angle with square tubing is tricky.
