I need/want to switch from an incandescent dome light to LED in my ARE cap

Discussion in 'Lighting' started by cgm, Apr 3, 2016.

  1. Apr 3, 2016 at 7:45 AM
    #1
    cgm

    cgm [OP] Well-Known Member

    Joined:
    Mar 19, 2016
    Member:
    #181682
    Messages:
    131
    Gender:
    Male
    NBPT, MA
    Vehicle:
    2014 TRD Sport 6 Speed DCSB
    I picked up a used 2014 Tacoma last week, and it had an ARE cap on it.

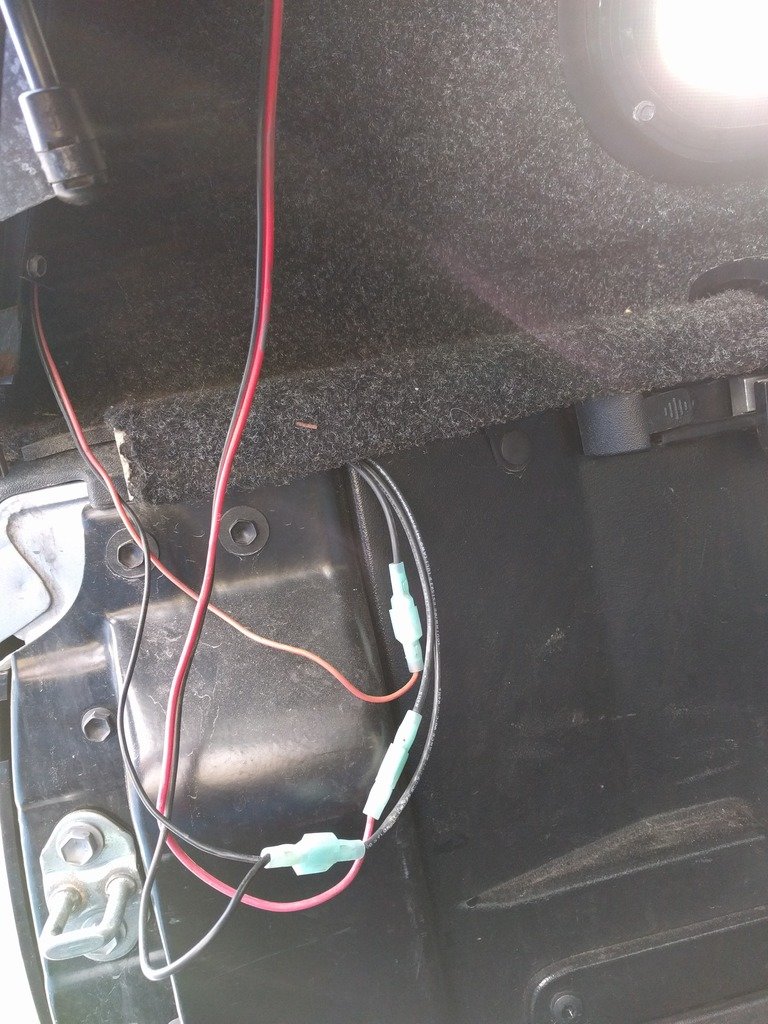

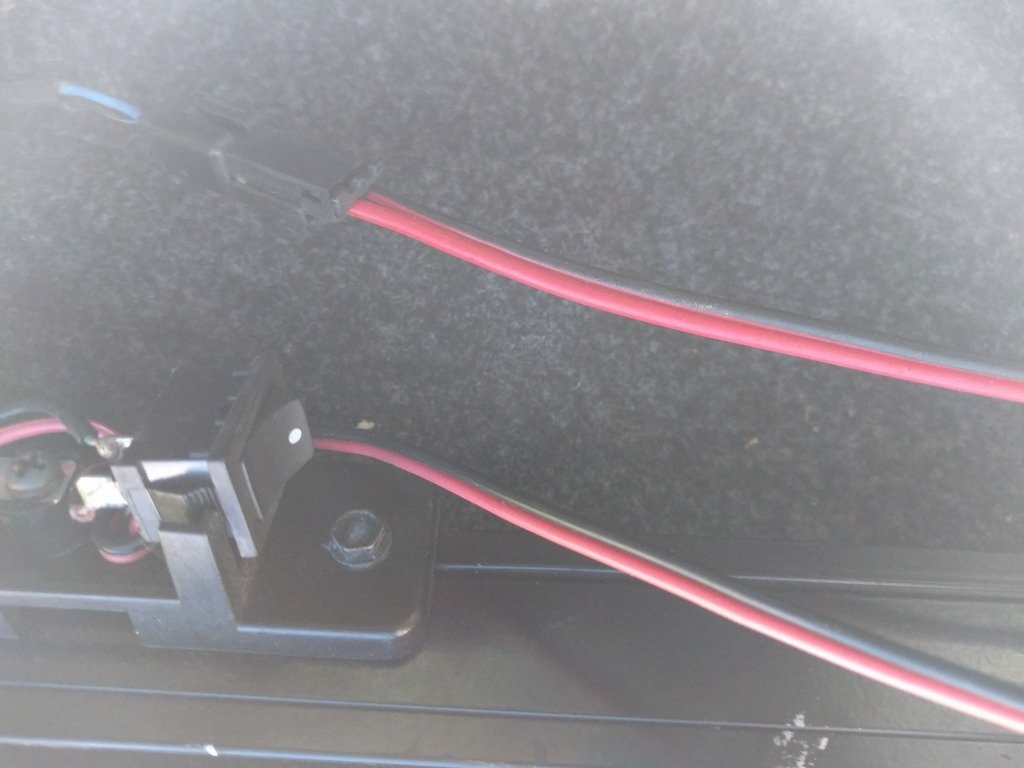

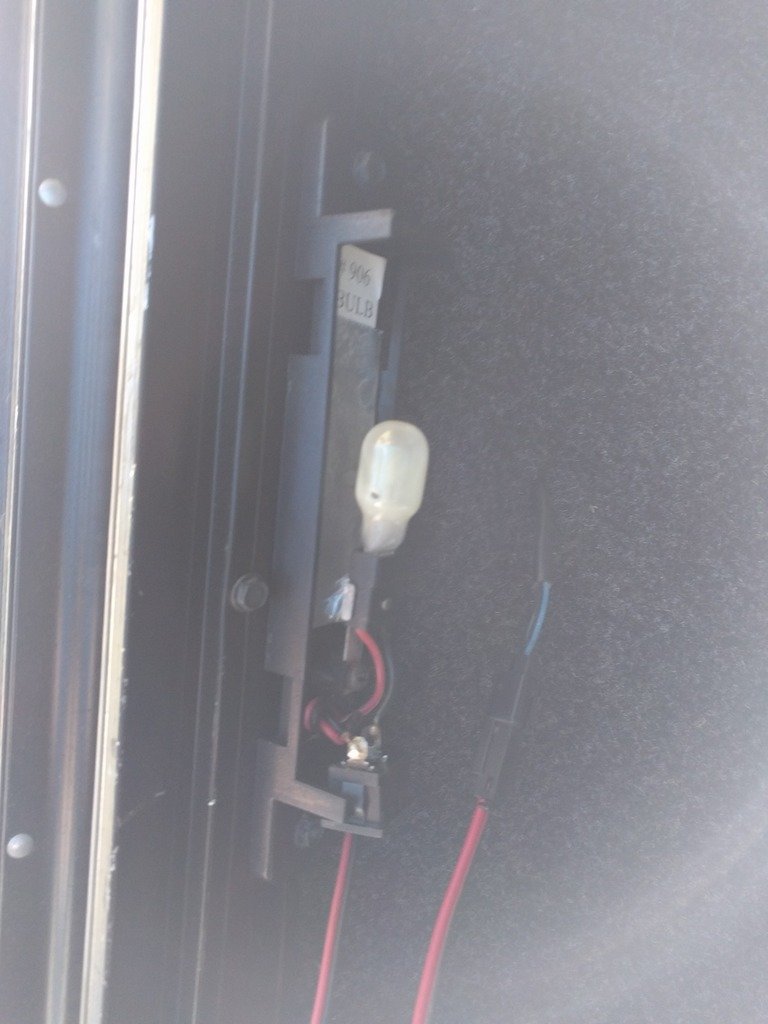

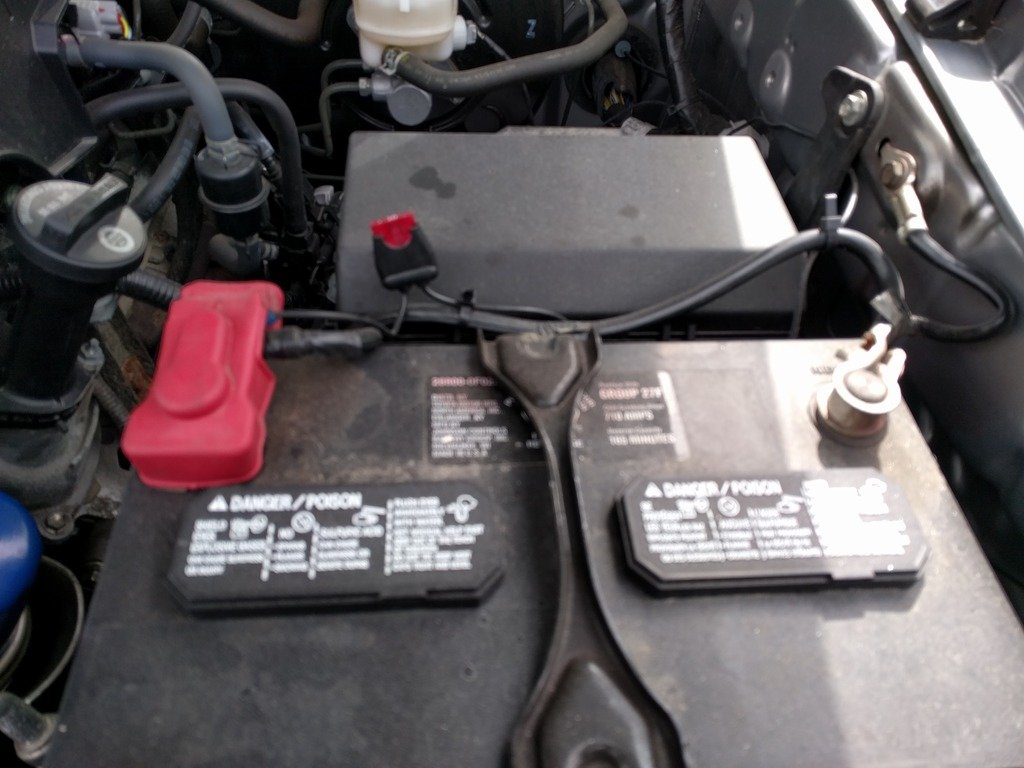

    The bulb is out on the cap, but ARE no longer sells the bulbs. This is fine with me, because I want to look into running an LED strip light down the shell. The truck already has a fused wire connected directly from the battery. I need to clean up the wires a bit, here are the wires for the brake light and the dome light:
    and

    Is there any reason I couldn't keep the switch and unsolder the old dome light and solder the new LED strip? I could then use some double-sided tape and velcro to attach the LED strip to the cap liner down the length of the cap?

    Is there a simpler solution? I brought it by the local ARE dealer, and he could sell me a sealed 12" LED strip light with a switch for $36. I feel like I can get a cheaper price and a longer LED strip by putting this together myself.

  2. Apr 3, 2016 at 8:24 AM
    #2
    ChemDawg

    ChemDawg Well-Known Member

    Joined:
    May 15, 2015
    Member:
    #155296
    Messages:
    2,457
    Gender:
    Male
    Maine
    Vehicle:
    2005 sr5 4x4
    I put 5m cheap ebay 50/50 led strip ziptied under rails all the way around.
    I tied into dome light wiring but mine already had inline fuses installed.

  3. Apr 3, 2016 at 8:33 AM
    #3
    cgm

    cgm [OP] Well-Known Member

    Joined:
    Mar 19, 2016
    Member:
    #181682
    Messages:
    131
    Gender:
    Male
    NBPT, MA
    Vehicle:
    2014 TRD Sport 6 Speed DCSB
  4. Apr 3, 2016 at 8:49 AM
    #4
    ChemDawg

    ChemDawg Well-Known Member

    Joined:
    May 15, 2015
    Member:
    #155296
    Messages:
    2,457
    Gender:
    Male
    Maine
    Vehicle:
    2005 sr5 4x4
    I think those led's were 5a? so as long as the swith is rated above that. I did this.

  5. Apr 3, 2016 at 9:11 AM
    #5
    cgm

    cgm [OP] Well-Known Member

    Joined:
    Mar 19, 2016
    Member:
    #181682
    Messages:
    131
    Gender:
    Male
    NBPT, MA
    Vehicle:
    2014 TRD Sport 6 Speed DCSB
    Time to figure out the switch's rating, if I can't figure it out, I will also get a switch.

  6. Apr 3, 2016 at 9:25 AM
    #6
    ChemDawg

    ChemDawg Well-Known Member

    Joined:
    May 15, 2015
    Member:
    #155296
    Messages:
    2,457
    Gender:
    Male
    Maine
    Vehicle:
    2005 sr5 4x4
    Good luck and take lots of pics :thumbsup:

  7. Apr 3, 2016 at 9:49 AM
    #7
    LeftCoastNerd

    LeftCoastNerd Old 'nuff to know betta

    Joined:
    Mar 27, 2016
    Member:
    #182459
    Messages:
    1,890
    First Name:
    John
    Santa Cruz, California
    Vehicle:
    08 AC 4x4 OR 6sp
    I haven't done mine yet, still in the planning stage, but I've ordered one of these for power...
    [​IMG]
    http://www.amazon.com/Lumision-Shipping-CIRCUIT-PROFILE-FUSETAP/dp/B00I0MWPXU

    I'm going to remove the 'horn' fuse and plug this into its place, then put the horn fuse and another 10A fuse in the 'tap', and attach my power wire to the pigtail... you already have power so you can skip that phase.

    for the lighting, I've ordered this molding,
    [​IMG]

    http://www.amazon.com/U-Shape-Aluminum-recessed-installation-Mounting/dp/B00VUAYFW8


    and will be attaching 1 piece of that down the center of my ceiling, with 1 meter of 60 LED/meter 5050 RGB led 'tape' inside hte molding. Haven't quite decided how I'll secure it yet, maybe 3M weatherstripping glue ('gorilla snot'), maybe tiny screws into the carpet lining on my snugtop.

    I'm using RGB tape because I want to be able to get dim red light for my amateur astronomy (I use the tailgate as my 'desk'), and white light for general working. amber or cool blue-green mood lighting is a bonus. I haven't quite decided how I'll control the color, I have a couple RGB power controllers that have a IR remote control dimmer that can select colors etc, but messing with a remote control seems kinda funky. I'd *love* to find a triple slider control, liek an audio mixer panel, so all 3 together is white, or red only or any color combination you want by adjusting them seperately, but they don't seem to exist. I found a triple-knob RGB control I might just use.

    [​IMG]

    tcBob likes this.
  8. Apr 3, 2016 at 9:52 AM
    #8
    cgm

    cgm [OP] Well-Known Member

    Joined:
    Mar 19, 2016
    Member:
    #181682
    Messages:
    131
    Gender:
    Male
    NBPT, MA
    Vehicle:
    2014 TRD Sport 6 Speed DCSB
    Awesome!

    As for sticking to the headliner, the cap place said that they double sided tape the study to industrial Velcro and attach it to the carpeted liner.

  9. Apr 3, 2016 at 10:00 AM
    #9
    LeftCoastNerd

    LeftCoastNerd Old 'nuff to know betta

    Joined:
    Mar 27, 2016
    Member:
    #182459
    Messages:
    1,890
    First Name:
    John
    Santa Cruz, California
    Vehicle:
    08 AC 4x4 OR 6sp
    oops, cant' use that tap in the horn fuse, as the 'hot' side is such that the pigtail would run into the sidewall of the fuse box... ok, so radio#2 fuse, or something.


    edit: just tracked down the wiring diagrams. 'radio #2' is the fuse for the optional separate audio amplifier, its always on power, so this is a pretty good place to tap for me as I'm pretty sure I don't *have* that optional amp, as my Taco has a pretty basic ('SR-5') interior and just the basic CD stereo.

    Last edited: Apr 3, 2016
  10. Apr 3, 2016 at 10:15 AM
    #10
    cgm

    cgm [OP] Well-Known Member

    Joined:
    Mar 19, 2016
    Member:
    #181682
    Messages:
    131
    Gender:
    Male
    NBPT, MA
    Vehicle:
    2014 TRD Sport 6 Speed DCSB
    Do you have the tow package? I have seen write ups where people tap that for power and then find a place to grind to the chassis

  11. Apr 3, 2016 at 10:32 AM
    #11
    LeftCoastNerd

    LeftCoastNerd Old 'nuff to know betta

    Joined:
    Mar 27, 2016
    Member:
    #182459
    Messages:
    1,890
    First Name:
    John
    Santa Cruz, California
    Vehicle:
    08 AC 4x4 OR 6sp
    I do, but afaik, the hitch only has BATT power when the engine is on, and I want my dome lights to work with the ignition completely off.

    I toyed with the idea of putting an aux battery in back to run the lights and any other 12V stuff I plug in back there, and wiring that battery to the trailer hitch harness so it charges when driven, but there's not a good place to mount the battery, I don't want it inside the bed, and I don't want to lose the left side storage cubby which I keep my tow straps and a whisk broom in.

  12. Apr 3, 2016 at 6:31 PM
    #12
    birdman076

    birdman076 Well-Known Member

    Joined:
    Dec 6, 2014
    Member:
    #143788
    Messages:
    81
    Gender:
    Male
    Hudson, FL
    Vehicle:
    2015 DCSB SR5 PreRunner 4x2
    Bull Bar, 4" SS Side Steps, LED Bulb Replacements Throughout, Tri-Fold Tonneau Cover, T-Rex SS Grill Inserts
  13. Apr 3, 2016 at 7:16 PM
    #13
    LeftCoastNerd

    LeftCoastNerd Old 'nuff to know betta

    Joined:
    Mar 27, 2016
    Member:
    #182459
    Messages:
    1,890
    First Name:
    John
    Santa Cruz, California
    Vehicle:
    08 AC 4x4 OR 6sp
    dude, I've been googling for a week now trying to find that!!!!

    ordered already. :)

    :taco:

    birdman076 likes this.
  14. Apr 4, 2016 at 10:25 PM
    #14
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    735
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd

  15. Apr 11, 2016 at 12:54 AM
    #15
    LeftCoastNerd

    LeftCoastNerd Old 'nuff to know betta

    Joined:
    Mar 27, 2016
    Member:
    #182459
    Messages:
    1,890
    First Name:
    John
    Santa Cruz, California
    Vehicle:
    08 AC 4x4 OR 6sp
    btw that white LED tape you listed, thats 5 amps for 5 meters. 1 meter of that tape should be way more than bright enough to light up your truck like daylight. 1 meter is 1 amp.

    those 906 dome lights like came in those shells are 9 watt bulbs. at 13V, thats about 0.7 amps (watts/volts = amps, because volts*amps = watts)

    13V at 1 amp is about 13 watts. 13 watts of LEDs are as bright as 50 watts of regular light bulbs.

  16. Apr 11, 2016 at 12:57 AM
    #16
    LeftCoastNerd

    LeftCoastNerd Old 'nuff to know betta

    Joined:
    Mar 27, 2016
    Member:
    #182459
    Messages:
    1,890
    First Name:
    John
    Santa Cruz, California
    Vehicle:
    08 AC 4x4 OR 6sp
  17. Apr 11, 2016 at 2:12 AM
    #17
    Howen

    Howen Well-Known Member

    Joined:
    Dec 3, 2015
    Member:
    #171346
    Messages:
    595
    Gender:
    Male
    Vehicle:
    2016 DCSB OR M/T black w/Leer 180
  18. Apr 11, 2016 at 3:55 AM
    #18
    LeftCoastNerd

    LeftCoastNerd Old 'nuff to know betta

    Joined:
    Mar 27, 2016
    Member:
    #182459
    Messages:
    1,890
    First Name:
    John
    Santa Cruz, California
    Vehicle:
    08 AC 4x4 OR 6sp
    1 meter of 60 5050/meter LED tape, mounted in the center of the ceiling...

    at about 0.15 amps
    [​IMG]

    same LEDs at 1 amp.
    [​IMG]

    birdman076 likes this.
  19. Apr 11, 2016 at 7:33 AM
    #19
    ChemDawg

    ChemDawg Well-Known Member

    Joined:
    May 15, 2015
    Member:
    #155296
    Messages:
    2,457
    Gender:
    Male
    Maine
    Vehicle:
    2005 sr5 4x4
    I got what is probably a cheaper version than yours. It looks like this one..
