I want to see pictures with the lift/wheel/tire combo listed!

1.6 Eibachs with 5100's set at zero and SPC upper control arms up front.
Icon progressive 3 leaf with overload and 5100's out back.
1.75 inches total lift up front and rear.
Level 8 mk6's with zero offset and 265/70/17 Hankooks.



Any DCLB 4x4's with 5100's, OME 884 and progressive AAL? Ready to pull the trigger but cant decide between 884 and 885.



OME 884's and 5100's up front for a 2-5/8" lift.
Wheeler 2"AAL out back for 2" of lift.
FJ Trail Team wheels (16")
285/75 Duratracs

In the future going to go up to 285's on 17x9 Mickey Thompson Classic 3's (Black). Also adding top plate spacers up front, Dakar's out back doing a CMC and UCA's.



Wheels - Stock 17" Sport wheels

Tires - 265/70/17 Goodyear Wrangler Duratrac C range

Spacers - 1.25" Spidertrax on all 4 corners

Front suspension - 5100s set at .85, Eibach springs, 1/4" top plates, & Light Racing upper control arms set at setting D (+2*). Aligned to factory spec w/ roughly 3* of caster

Rear suspension - 5100s, Wheeler HD 3 leaf add-a-leaf, 4 leaf TSB leaf springs, & 1/2" blocks

Other - trimmed and reshaped mud flaps, no skid plates save for OEM ones, and stuck with 265s to retain gas mileage.



Nice dude! Did you do the Spidertrax 1-1/4"?



Beautiful!



Thanks

Correct. Thanks



2015 TRD Sport 5100's with 884 coils and Headstrong off-road progressive AAL with the overload kept in.



Looks damn near perfect for my purposes. Are you using a 1/4" spacer for the driver side?



Here's mine. I purchased the taco with 2.5" spacers on stock shocks. It also came with AAL, but I replaced it with a new set of TSB leafs and deaver progressive AAL as the originals cracked and sagged. Plan on upgrading to 5100's.

Wheels - 16x8 Raceline Raptors on 265/75/16 BFG K02

Lift - 2.5" preload spacer and diff drop (front), TSB Leaf pack with Deaver progressive AAL.



Yes, Headstrong had in put in when they mounted the coils on the shocks. Thank you.



Sorry forgot to mention stock size tires for now. 265-65-17 on Stealth custom 6's.

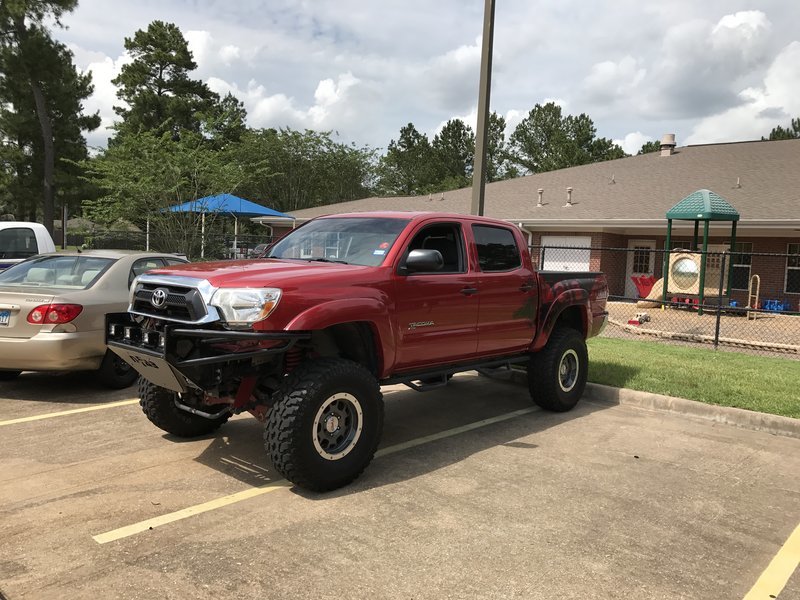

Fabtech 6 inch lift kit with stock trd wheels wrapped in 315-75-16 firestone destination MT.



Thanks dude, but naw it's kingman wash. Check it out if you get a chance there's a pretty cool mine trail to the right that has some of the best views I've seen locally.



dope ill check it out some time!



Lift- Icon stage 4 front and rear, tubular UCA, set at 2.5in
Tires- 255/85/16 cooper S/T Maxx



Another angle



3" FOX, 1" block, air-bags, SPC UCA, 265X70X17 Duratracs.



Wheels: ion 135 17x8

Tires: 285/70r17 BFG Ko2's

Lift: 3" Toytec with rear add a leaf



2.5 RC Level with 1 inch block rear. 265 Toyo Open Country A/T 2.
