I want to trigger on a relay with my high beams

Discussion in '2nd Gen. Tacomas (2005-2015)' started by LightsOut, Jul 10, 2021.

  1. Jul 10, 2021 at 11:30 PM
    #1
    LightsOut

    #1
    LightsOut [OP] Member

    Joined:
    Jul 8, 2021
    Member:
    #370799
    Messages:
    20
    Vehicle:
    14 Offroad DC
    Ive exhausted my search options and going to start a thread. I want to trigger on a relay with my high beam switch (2014). where can i find a wire that would do this? my end goal is to have my LED aux lighting turn on with my OEM high beam switch. Thanks

    Last edited: Jul 11, 2021
    LightsOut, Jul 10, 2021
    #1
  2. Jul 11, 2021 at 12:06 AM
    #2
    Jimmyh

    #2
    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    14,292
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5

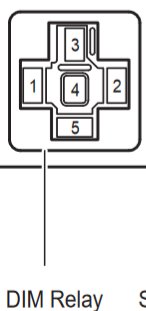

    You could tap off of terminal # 5 of the DIM Relay in the under hood fuse panel ( Red Wire W/Black Stripe ) which powers the High Beams to pick up the Coil of your Aux LED Relay.



    DIM Relay # 5 >> Fuse >> Coil of Aux LED Relay >> Ground.


    Jimmyh, Jul 11, 2021
    #2
    sloth671, Juisebocks and TnShooter like this.
  3. Jul 11, 2021 at 7:43 AM
    #3
    Juisebocks

    #3
    Juisebocks Commander of the Inglorious Badger

    Joined:
    Oct 4, 2019
    Member:
    #307045
    Messages:
    3,101
    Gender:
    Male
    First Name:
    Drew
    Vehicle:
    2015 SR5 2.7L AT OPAF,DTF&PITA
    "Stock+"
    This is the way. Tap to the relay you want to power your thing.

    Juisebocks, Jul 11, 2021
    #3
  4. Jul 11, 2021 at 9:08 AM
    #4
    caribe makaira

    #4
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,809
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

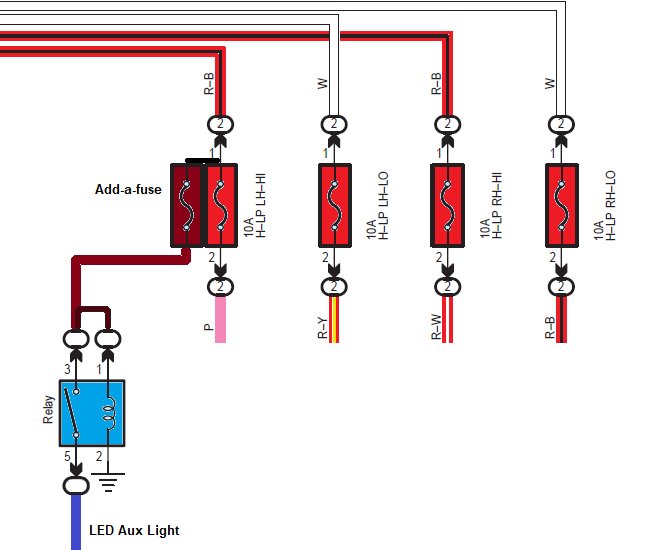

    Add-a-fuse to high beam fuse as trigger to added lights relay.

    caribe makaira, Jul 11, 2021
    #4
    Jimmyh likes this.
  5. Jul 11, 2021 at 9:19 AM
    #5
    caribe makaira

    #5
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,809
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

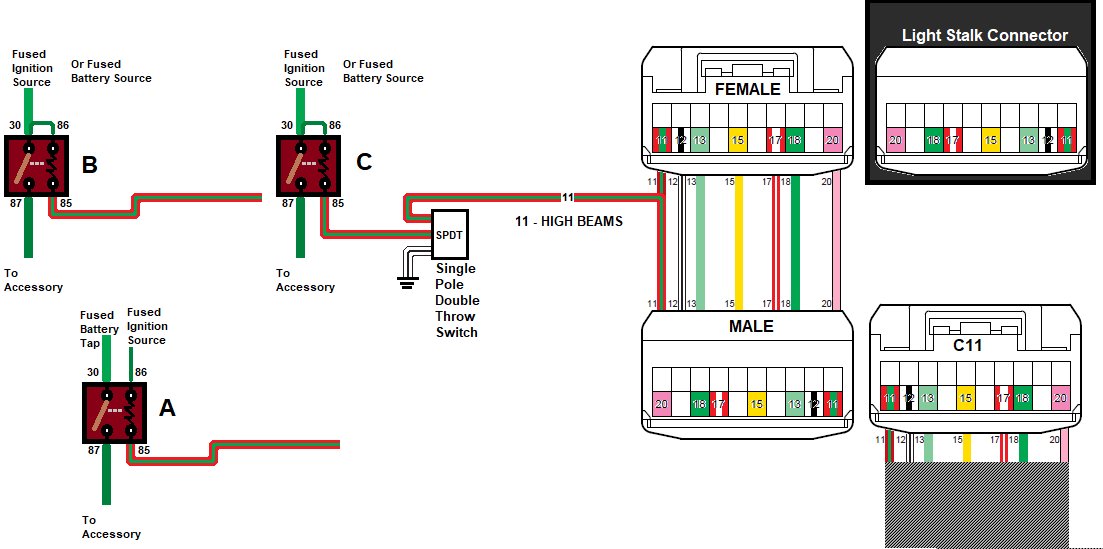

    Another option:
    For your '14, test the same #wire for high beam (-).
    @kmorgan3 could provide the T harness on C11 for a no cut tap.

    Last edited: Jul 11, 2021
    caribe makaira, Jul 11, 2021
    #5
    TnShooter and Jimmyh like this.
  6. Jul 11, 2021 at 5:28 PM
    #6
    LightsOut

    #6
    LightsOut [OP] Member

    Joined:
    Jul 8, 2021
    Member:
    #370799
    Messages:
    20
    Vehicle:
    14 Offroad DC
    so you are using the ground side of the relay trigger it "on" then? i understand the normal operation of a standard 4 post 12v relay, but this is different than i have ever wired one.


    LightsOut, Jul 11, 2021
    #6
  7. Jul 11, 2021 at 5:29 PM
    #7
    caribe makaira

    #7
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,809
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

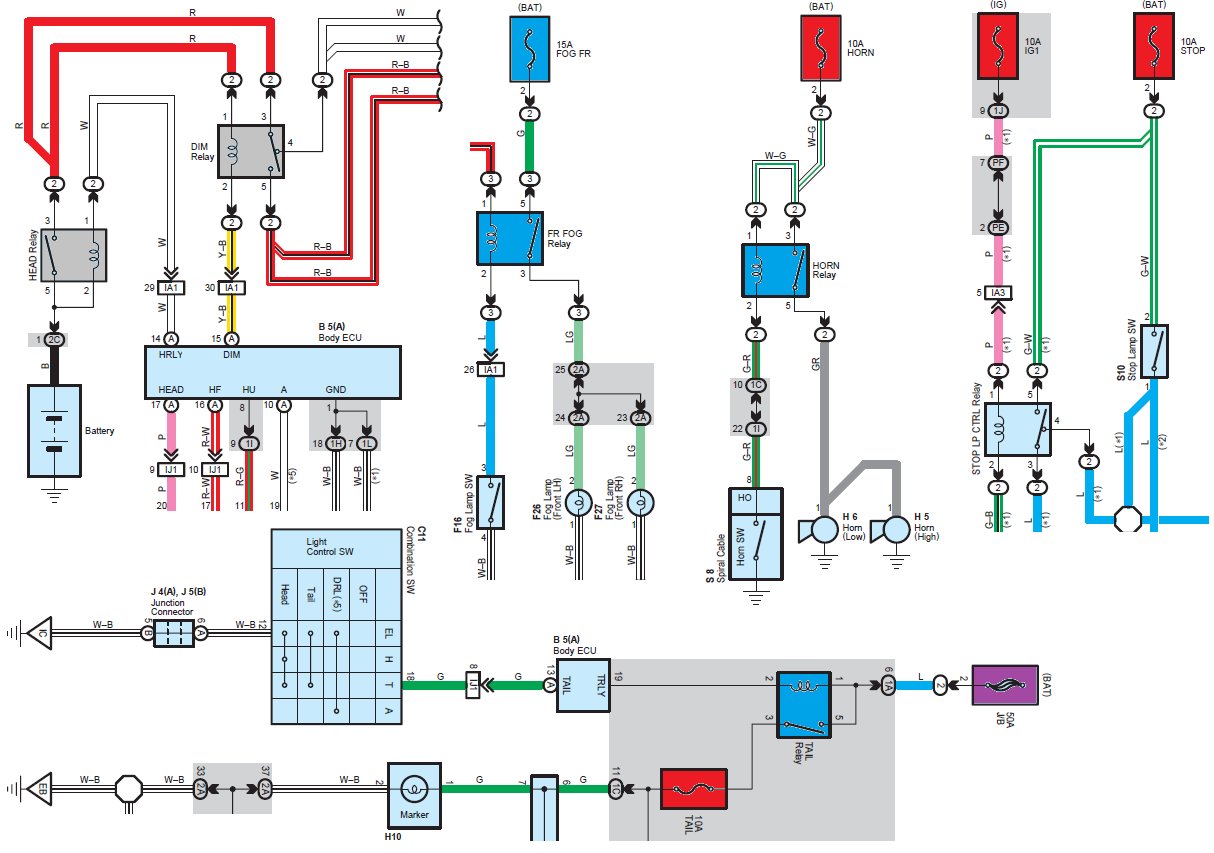

    All relays on the Tacoma are ground switched...
    a few here:

    Last edited: Jul 11, 2021
    caribe makaira, Jul 11, 2021
    #7
    Jimmyh and TnShooter like this.
  8. Jul 11, 2021 at 5:51 PM
    #8
    HawkShot99

    #8
    HawkShot99 Well-Known Member

    Joined:
    Oct 20, 2015
    Member:
    #167182
    Messages:
    2,211
    Gender:
    Male
    Kingston, NY
    Vehicle:
    13' Silver DCLB TRD Sport - Sold
    I have my lght bar triggered by my highbeams.

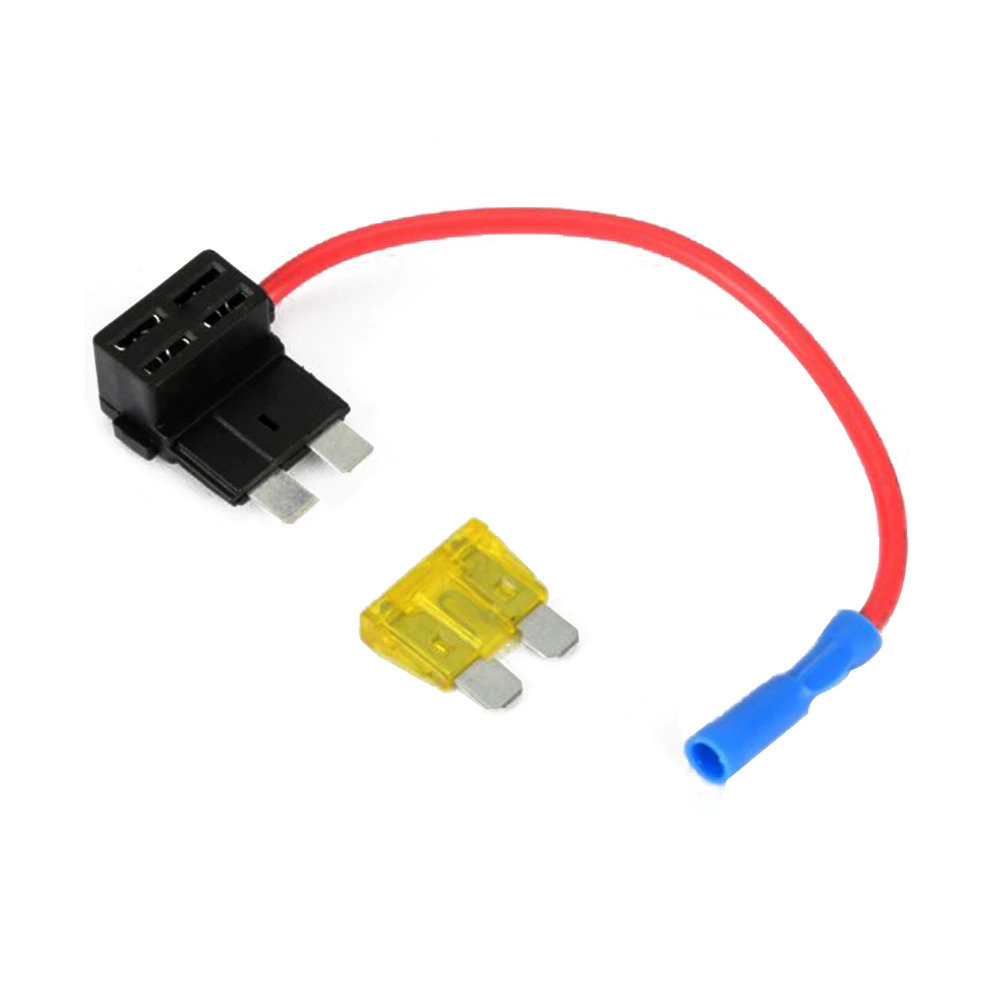

    Used a add a fuse in the main fuse panel on the high beam fuse.
    add a fuse.jpg

    I opened up the wiring harness, and connected that wire to the relay. I also have the switch mounted in the cab, so I can operate the high beams without the light bar if needed, such as for a inspection or something.

    HawkShot99, Jul 11, 2021
    #8
    Jimmyh and Juisebocks like this.
  9. Jul 11, 2021 at 6:52 PM
    #9
    LightsOut

    #9
    LightsOut [OP] Member

    Joined:
    Jul 8, 2021
    Member:
    #370799
    Messages:
    20
    Vehicle:
    14 Offroad DC
    thats exactly what i want. so you did yours like this that is in post #4 above

    [​IMG]


    LightsOut, Jul 11, 2021
    #9
  10. Jul 11, 2021 at 7:04 PM
    #10
    RecklessTLS

    #10
    RecklessTLS Well-Known Member

    Joined:
    Jun 24, 2017
    Member:
    #222277
    Messages:
    214
    Gender:
    Male
    First Name:
    Rowdy
    Ft Collins, Colorado / Texas Native
    Vehicle:
    2009 Tacoma DCSB TRD Offroad 4.0
    TRD CAI and Exhaust,ECGS bushing, Blistien 6112 Fronts at 2.5, SPC upper arms, Bilstien 5160 Rear with 2in AAL, Interior light mod, Back up camera anytime Mod, Overhead Console Temp/Compass Fix. Leather Interior with heated seats, Weathertech floor liners, Ultraguage, Oil catch can, Smart Tap, More to come
    RecklessTLS, Jul 11, 2021
    #10
  11. Jul 11, 2021 at 8:10 PM
    #11
    HawkShot99

    #11
    HawkShot99 Well-Known Member

    Joined:
    Oct 20, 2015
    Member:
    #167182
    Messages:
    2,211
    Gender:
    Male
    Kingston, NY
    Vehicle:
    13' Silver DCLB TRD Sport - Sold
    I used a wiring harness I bought off Amazon. It has been several yrs since I installed it, so I do not remember what pins on the relay I used, but followed the directions.

    HawkShot99, Jul 11, 2021
    #11
  12. Jul 12, 2021 at 3:08 AM
    #12
    EdinCincinnati

    #12
    EdinCincinnati Well-Known Member

    Joined:
    Mar 11, 2013
    Member:
    #99457
    Messages:
    2,448
    Gender:
    Male
    First Name:
    Ed
    Ohio
    Vehicle:
    2014 4x4 TRD OR

    I don’t know how to create the fancy diagrams but as another idea, I used these relays for my lights:

    5 Pack 40/30 AMP 12 V DC Waterproof Relay and Harness - Heavy Duty 12 AWG Tinned Copper Wires, 5-PIN SPDT Bosch Style Automotive Relay
    $26 irhapsody 5 Pack 40/30 AMP 12V DC Waterproof Relay Kit with Heavy-Duty Pigtail, 5-PIN SPDT Automotive Relay
    https://www.amazon.com/dp/B074FSZWVT?_encoding=UTF8

    I can either operate the light independently or press my Hi Beam Assist button and the specific light bar button and they come on with the Hi Beam circuit

    EdinCincinnati, Jul 12, 2021
    #12
    HawkShot99 likes this.
  13. Jul 12, 2021 at 3:23 AM
    #13
    ardrummer292

    #13
    ardrummer292 500k or bust

    Joined:
    Feb 27, 2020
    Member:
    #320484
    Messages:
    1,166
    Gender:
    Male
    First Name:
    Austin
    ESVA
    Vehicle:
    2015 DCLB V6 A/T 4x4, 2011 Camry LE
    Overbuilt daily driver
    ardrummer292, Jul 12, 2021
    #13
    HawkShot99 likes this.
