Icon 2.5 C/O non-res rebuild with pics

Discussion in 'Suspension' started by jjbeenken, May 22, 2011.

  1. May 22, 2011 at 11:12 PM
    #1
    jjbeenken

    jjbeenken [OP] Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27719
    Messages:
    241
    Gender:
    Male
    First Name:
    Big Daddy Woo Woo
    Arkansas
    Vehicle:
    2010 Taco double cab (under construction)
    Hertz-Arc Audio-PPI-Image Dynamics-Pioneer F90BT-Icon Coils-AP UCA's-Dakar Springs-300 shot NOS!

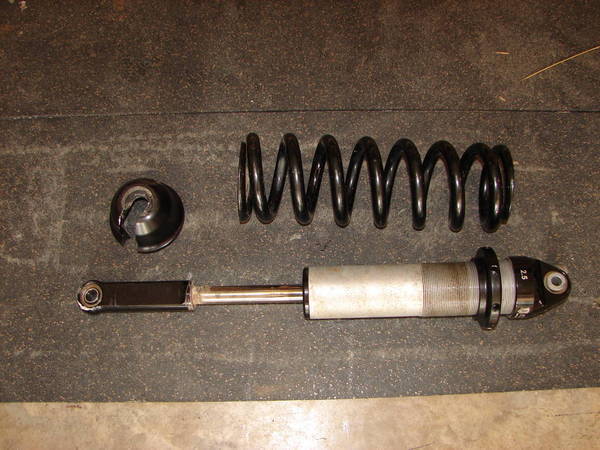

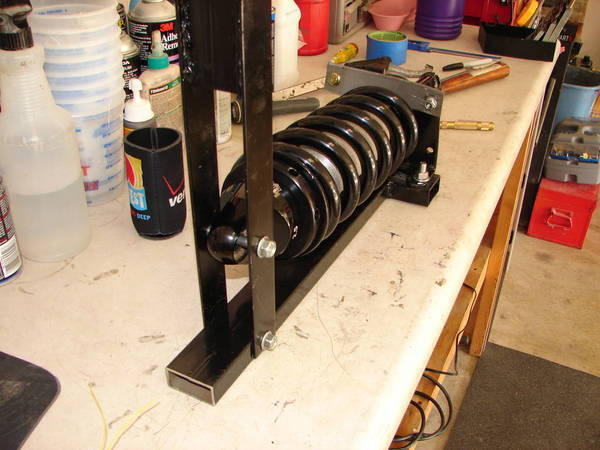

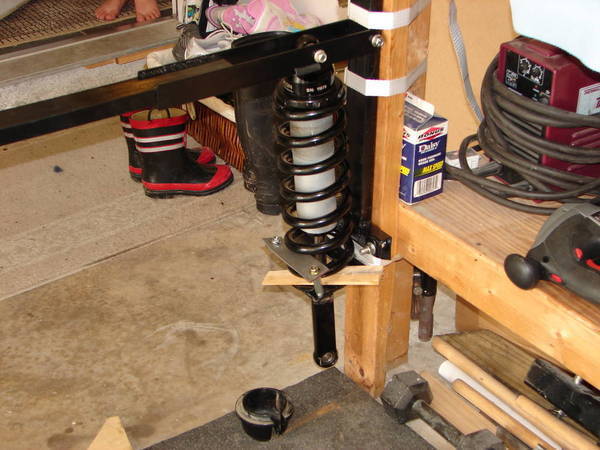

    Home made compressor. I will modify this one.
    [​IMG]

  2. May 22, 2011 at 11:13 PM
    #2
    jjbeenken

    jjbeenken [OP] Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27719
    Messages:
    241
    Gender:
    Male
    First Name:
    Big Daddy Woo Woo
    Arkansas
    Vehicle:
    2010 Taco double cab (under construction)
    Hertz-Arc Audio-PPI-Image Dynamics-Pioneer F90BT-Icon Coils-AP UCA's-Dakar Springs-300 shot NOS!
  3. May 22, 2011 at 11:14 PM
    #3
    jjbeenken

    jjbeenken [OP] Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27719
    Messages:
    241
    Gender:
    Male
    First Name:
    Big Daddy Woo Woo
    Arkansas
    Vehicle:
    2010 Taco double cab (under construction)
    Hertz-Arc Audio-PPI-Image Dynamics-Pioneer F90BT-Icon Coils-AP UCA's-Dakar Springs-300 shot NOS!
  4. May 22, 2011 at 11:16 PM
    #4
    jjbeenken

    jjbeenken [OP] Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27719
    Messages:
    241
    Gender:
    Male
    First Name:
    Big Daddy Woo Woo
    Arkansas
    Vehicle:
    2010 Taco double cab (under construction)
    Hertz-Arc Audio-PPI-Image Dynamics-Pioneer F90BT-Icon Coils-AP UCA's-Dakar Springs-300 shot NOS!
  5. May 22, 2011 at 11:18 PM
    #5
    jjbeenken

    jjbeenken [OP] Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27719
    Messages:
    241
    Gender:
    Male
    First Name:
    Big Daddy Woo Woo
    Arkansas
    Vehicle:
    2010 Taco double cab (under construction)
    Hertz-Arc Audio-PPI-Image Dynamics-Pioneer F90BT-Icon Coils-AP UCA's-Dakar Springs-300 shot NOS!
  6. May 22, 2011 at 11:18 PM
    #6
    jjbeenken

    jjbeenken [OP] Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27719
    Messages:
    241
    Gender:
    Male
    First Name:
    Big Daddy Woo Woo
    Arkansas
    Vehicle:
    2010 Taco double cab (under construction)
    Hertz-Arc Audio-PPI-Image Dynamics-Pioneer F90BT-Icon Coils-AP UCA's-Dakar Springs-300 shot NOS!

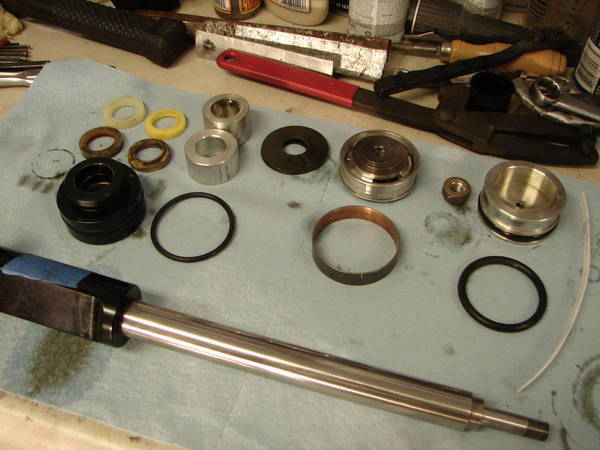

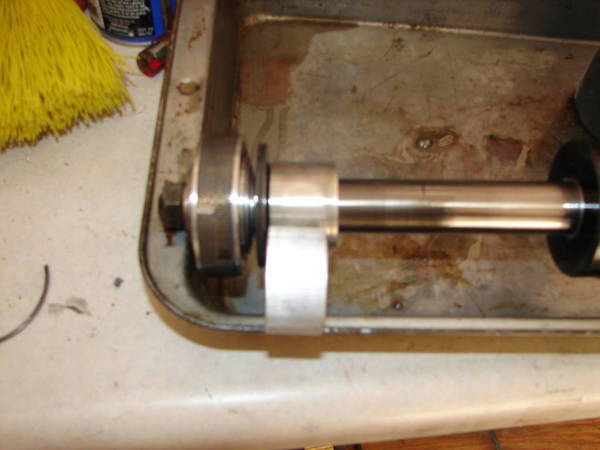

    Disassembled shaft with new parts
    [​IMG]

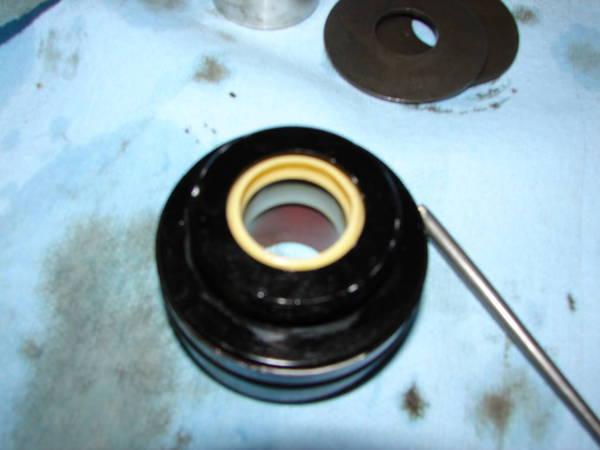

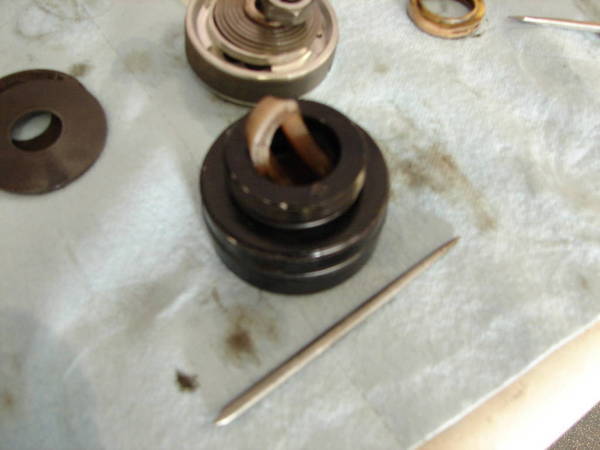

    Removing the seals are a little tricky. They are very rigid. Using a very sharp pic like I was able to to insert it in the seal to pry it out and then get a rounded flat bladed screwdriver behind it. This made it very easy and not tear up the seal head.
    [​IMG]
    New seals installed
    [​IMG]

  7. May 22, 2011 at 11:19 PM
    #7
    jjbeenken

    jjbeenken [OP] Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27719
    Messages:
    241
    Gender:
    Male
    First Name:
    Big Daddy Woo Woo
    Arkansas
    Vehicle:
    2010 Taco double cab (under construction)
    Hertz-Arc Audio-PPI-Image Dynamics-Pioneer F90BT-Icon Coils-AP UCA's-Dakar Springs-300 shot NOS!

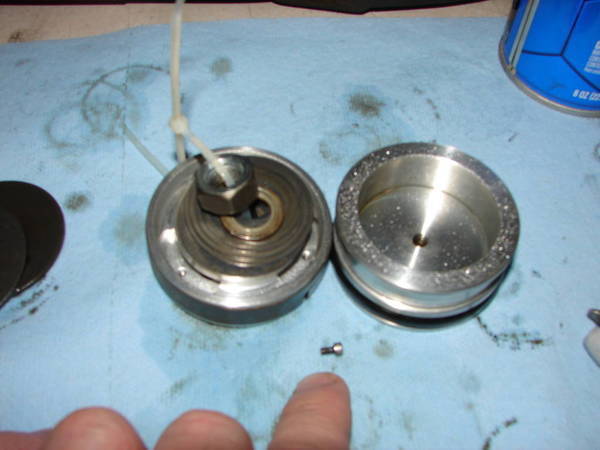

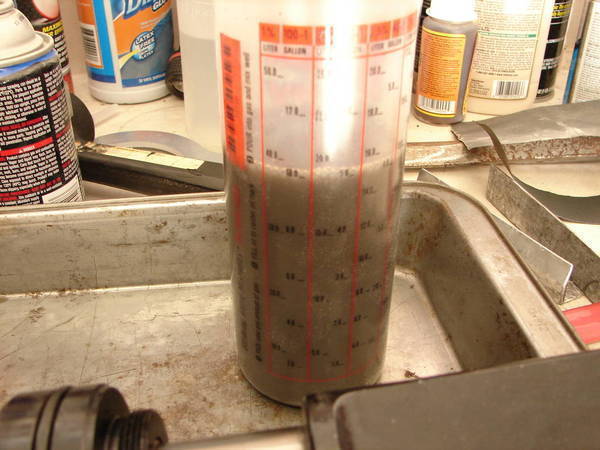

    Machine screw fell out of the piston and bounced around for a while apparently. Good thing I took these things apart before pit them on. This shock was low on oil and nitro, not sure its related to the screw or not. The other shock still felt pretty good with the spring off.
    [​IMG]

  8. May 22, 2011 at 11:19 PM
    #8
    jjbeenken

    jjbeenken [OP] Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27719
    Messages:
    241
    Gender:
    Male
    First Name:
    Big Daddy Woo Woo
    Arkansas
    Vehicle:
    2010 Taco double cab (under construction)
    Hertz-Arc Audio-PPI-Image Dynamics-Pioneer F90BT-Icon Coils-AP UCA's-Dakar Springs-300 shot NOS!

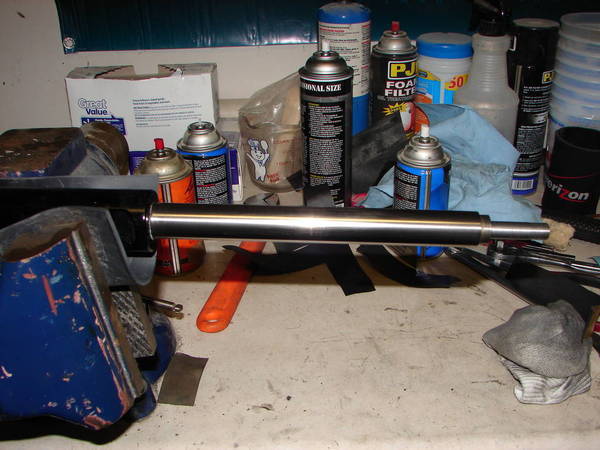

    Shaft before
    [​IMG]

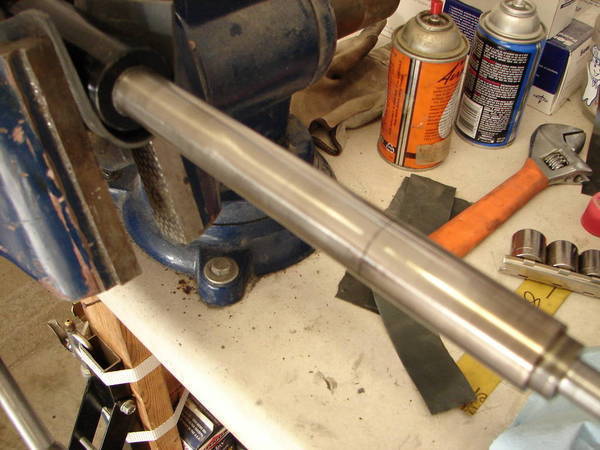

    After (I did clean up that spot in the center) 320 to 800 then 1500 grit
    [​IMG]

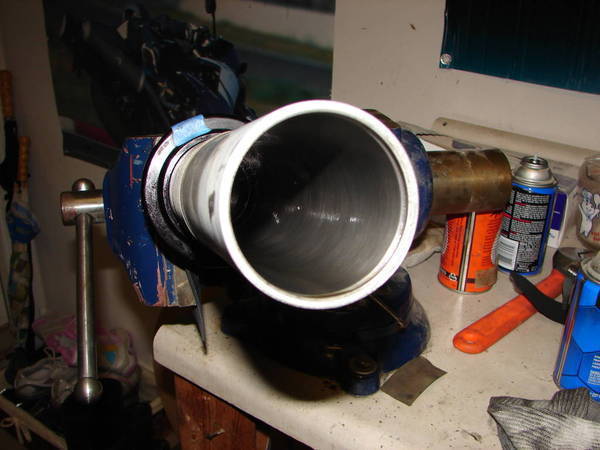

    Shock body after touchup
    [​IMG]

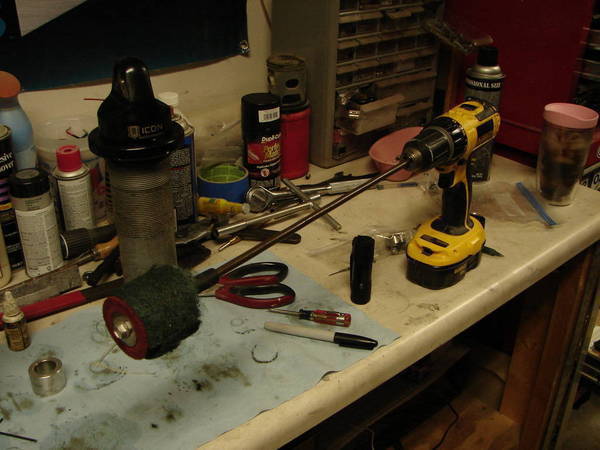

    With this high dollar piece of equipment.
    [​IMG]

  9. May 22, 2011 at 11:20 PM
    #9
    jjbeenken

    jjbeenken [OP] Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27719
    Messages:
    241
    Gender:
    Male
    First Name:
    Big Daddy Woo Woo
    Arkansas
    Vehicle:
    2010 Taco double cab (under construction)
    Hertz-Arc Audio-PPI-Image Dynamics-Pioneer F90BT-Icon Coils-AP UCA's-Dakar Springs-300 shot NOS!

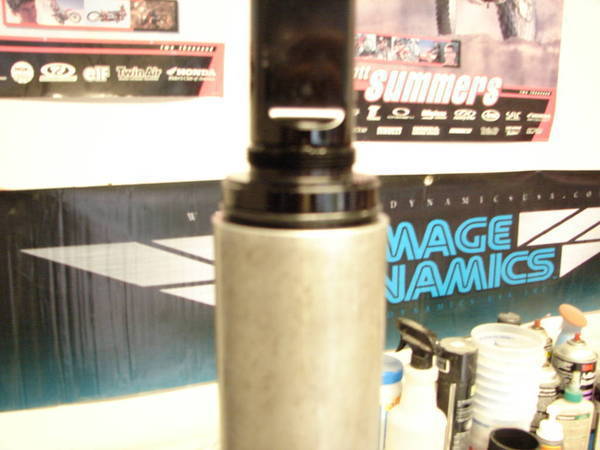

    Set dividing piston
    [​IMG]

  10. May 22, 2011 at 11:20 PM
    #10
    jjbeenken

    jjbeenken [OP] Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27719
    Messages:
    241
    Gender:
    Male
    First Name:
    Big Daddy Woo Woo
    Arkansas
    Vehicle:
    2010 Taco double cab (under construction)
    Hertz-Arc Audio-PPI-Image Dynamics-Pioneer F90BT-Icon Coils-AP UCA's-Dakar Springs-300 shot NOS!
    This is just a look inside. Read the link below from TS. It is a great write up and frankly more ambitious than I am. Hats off to him for a great read!!

  11. May 22, 2011 at 11:24 PM
    #11
    jjbeenken

    jjbeenken [OP] Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27719
    Messages:
    241
    Gender:
    Male
    First Name:
    Big Daddy Woo Woo
    Arkansas
    Vehicle:
    2010 Taco double cab (under construction)
    Hertz-Arc Audio-PPI-Image Dynamics-Pioneer F90BT-Icon Coils-AP UCA's-Dakar Springs-300 shot NOS!
    Hey mods how do I fix my misspelled title?????

  12. May 23, 2011 at 8:24 AM
    #12
    jjbeenken

    jjbeenken [OP] Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27719
    Messages:
    241
    Gender:
    Male
    First Name:
    Big Daddy Woo Woo
    Arkansas
    Vehicle:
    2010 Taco double cab (under construction)
    Hertz-Arc Audio-PPI-Image Dynamics-Pioneer F90BT-Icon Coils-AP UCA's-Dakar Springs-300 shot NOS!
    ^
    thanks mjp2, it was a late night last night:drunk:

  13. May 26, 2011 at 2:05 PM
    #13
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,905
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    i have a few if you dont mind...
    1 - im just wondering about exactly how much oil do i refill the shock with.
    2 - do you have to de-pressurized the shock before you take it apart? if so, how do you do that? (i have a set of the DR coilovers, but i believe the nitro fill up valve is the same.)

  14. May 26, 2011 at 2:20 PM
    #14
    jjbeenken

    jjbeenken [OP] Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27719
    Messages:
    241
    Gender:
    Male
    First Name:
    Big Daddy Woo Woo
    Arkansas
    Vehicle:
    2010 Taco double cab (under construction)
    Hertz-Arc Audio-PPI-Image Dynamics-Pioneer F90BT-Icon Coils-AP UCA's-Dakar Springs-300 shot NOS!
    1 - You need to set the dividing piston depth with the shaft assembly. Move the seal head all the way to the end of the shaft and push the dividing piston down until the groove on the seal head is even with the shock body. Then fill the shock up to about an inch from the top. You then bleed all of the air out of the shock. Before you put the seal head in top the shock off so some oil spills out. You do not want any air in the oil.
    2- Don't let the nitrogen out until you unscrew the cap on the the bottom of the shock or the seal head will turn. You then let the nitrogen out with a nitrogen needle and then push in the seal head to take the C-clip out. The shaft then pulls out.

  15. May 27, 2011 at 5:08 AM
    #15
    JonnyBb

    JonnyBb I have to return some videotapes

    Joined:
    Mar 26, 2011
    Member:
    #53778
    Messages:
    2,765
    Gender:
    Male
    Arkansas
    Vehicle:
    2010 TRD Sport DC LB 4x4
    Work in progress, but installed so far; 265/70/17 Duratracs, Spidertrax, OME885X coils with OME lean spacer, OME N140S and N182 shocks, Wheeler's 1.5" 3 Leaf Progressive AAL (kept the overload), LR UCAs. TP14 spacers
    hehe, you said "seal head"

  16. May 27, 2011 at 1:08 PM
    #16
    jjbeenken

    jjbeenken [OP] Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27719
    Messages:
    241
    Gender:
    Male
    First Name:
    Big Daddy Woo Woo
    Arkansas
    Vehicle:
    2010 Taco double cab (under construction)
    Hertz-Arc Audio-PPI-Image Dynamics-Pioneer F90BT-Icon Coils-AP UCA's-Dakar Springs-300 shot NOS!
    Here's a great write up.
    http://www.tundrasolutions.com/forums/suspension-and-axle/97686-teamwest-coilover-r-and-r/

  17. May 27, 2011 at 1:10 PM
    #17
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,905
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    ^ sweet dude, appreciate that!

    also, did you use shock oil from DSM, or where and what brand did you use?

  18. May 27, 2011 at 7:26 PM
    #18
    jjbeenken

    jjbeenken [OP] Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27719
    Messages:
    241
    Gender:
    Male
    First Name:
    Big Daddy Woo Woo
    Arkansas
    Vehicle:
    2010 Taco double cab (under construction)
    Hertz-Arc Audio-PPI-Image Dynamics-Pioneer F90BT-Icon Coils-AP UCA's-Dakar Springs-300 shot NOS!
    No problem. I just found that today. Kinda makes this whole post a waste. Just put mine together and went flawlessly. I'll charge them tomorrow at the shop and I should be set.:pray:

  19. May 27, 2011 at 8:43 PM
    #19
    jjbeenken

    jjbeenken [OP] Well-Known Member

    Joined:
    Dec 17, 2009
    Member:
    #27719
    Messages:
    241
    Gender:
    Male
    First Name:
    Big Daddy Woo Woo
    Arkansas
    Vehicle:
    2010 Taco double cab (under construction)
    Hertz-Arc Audio-PPI-Image Dynamics-Pioneer F90BT-Icon Coils-AP UCA's-Dakar Springs-300 shot NOS!
    New pics added

  20. May 28, 2011 at 1:01 AM
    #20
    rzimm001

    rzimm001 Tearmytaco

    Joined:
    Mar 16, 2009
    Member:
    #14812
    Messages:
    967
    Gender:
    Male
    First Name:
    Bobby
    Wildomar
    Vehicle:
    08 PreRunner SR5 Mid-travel
    King 2.5 coilovers w/ resi and adjustable compression. Factory spindles w/ ALLPRO gussets. Total Chaos tower gussets. Energy Poly cab mounts and steering rack mounts. Light Racing UCA's. Glassworks fenders. DMZ bed cage. King 2.5x14 smoothbody remote resi shocks in the rear. Icon progressive add a leaf 1.5" lift. Race radio (2meter). Removed swaybar. Removed front mud flaps. Removed secondary carbon air filter. Magnaflow exhaust. Phram fresh air cabin filter. Sirius satellite radio. HID headlights high/low beam and fog lights. Remote start system. K&N replacement filter, After market stereo with 10" subwoofer, Grillcraft grill, custom fabled roof rack with 7" HID's, TRD seat covers.
    Nice job. Especially with cleaning up the shafts. I did the same thing to mine because the new seals will quickly become destroyed if the shaft is scarred up. I'm sure they'll give you years of good service now. Removing those seals from the seal head is a delicate matter eh? Definitely something to watch out for when DIY.
