ICON AAL Brake line mount

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Greatdane01, Dec 6, 2020.

  1. Aug 20, 2023 at 9:53 PM
    #61
    Brawwp

    Brawwp Well-Known Member

    Joined:
    Feb 12, 2022
    Member:
    #389936
    Messages:
    55
    Gender:
    Male
    First Name:
    Jason
    Oahu
    Vehicle:
    2022 white SR 4x4

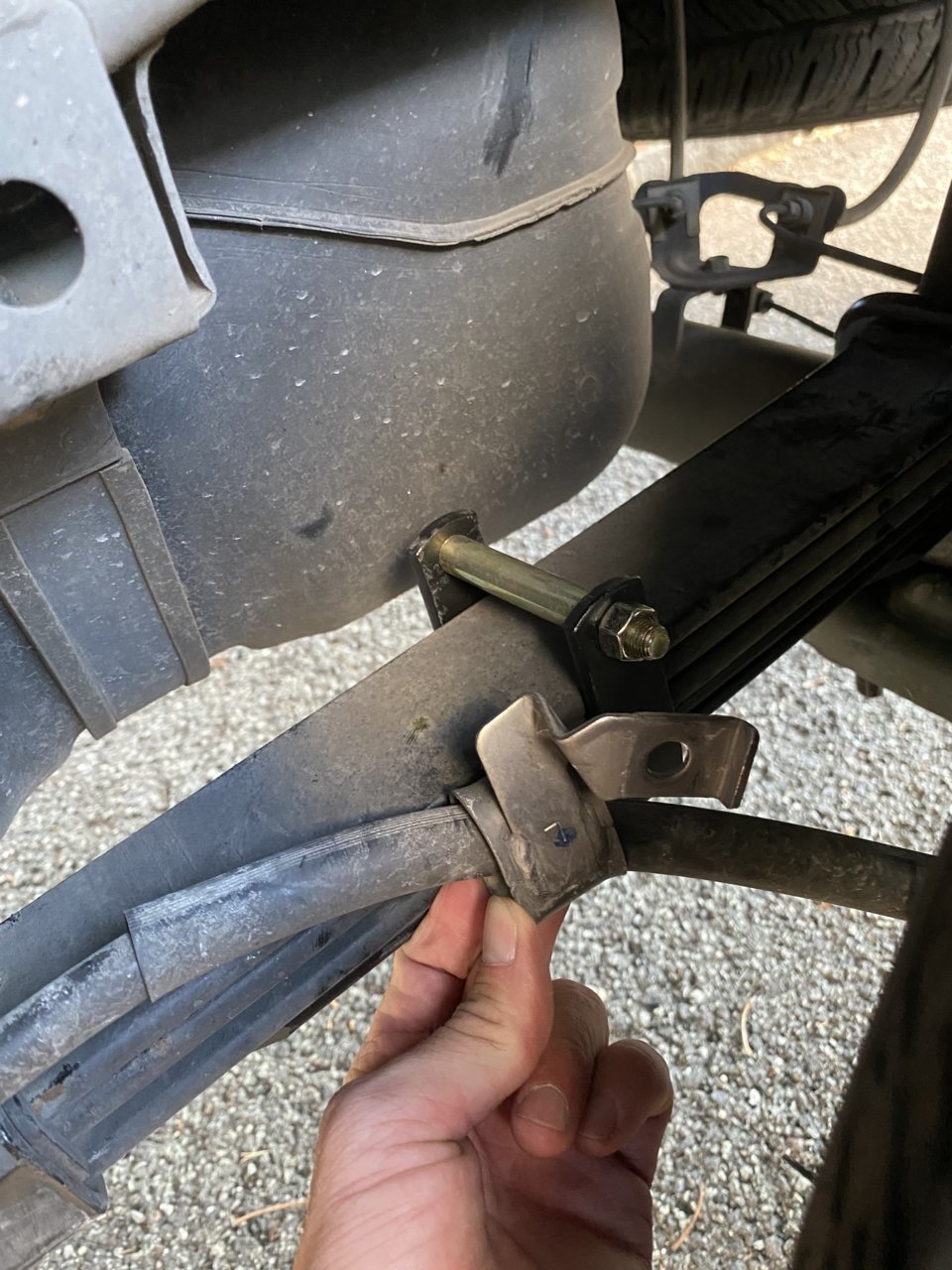

    Installed my icon add a leaf today. The brake line clip isn’t even close, especially at full droop (image is on ground not droop). Is the answer to cut it off? Saw some on here say they did, just want to see if any issues.


  2. Aug 21, 2023 at 6:20 AM
    #62
    Greatdane01

    Greatdane01 [OP] Well-Known Member

    Joined:
    Jan 5, 2019
    Member:
    #278232
    Messages:
    278
    Gender:
    Male
    Vehicle:
    3rd Gen TRD Sport Tacoma
    3” lift, XD Wheels, BFG Tires, GT momentum cold air intake
    I added a 2” piece of steel with a bolt to extend my bracket

    Brawwp likes this.
  3. Aug 21, 2023 at 9:57 AM
    #63
    JoeCOVA

    JoeCOVA Well-Known Member

    Joined:
    Nov 15, 2016
    Member:
    #202463
    Messages:
    9,657
    First Name:
    Joe
    Colorado Springs
    Vehicle:
    Ford F350, Lexus RX450h, FZJ80, Jeep YJ, Jeep LJ
    Go to the hardware store and get lawn mower springs. Attach the spring to the bolt and the brake line. This holds it up while allowing additional flex in the line.

    Anton338 likes this.
  4. Aug 21, 2023 at 11:26 AM
    #64
    Brawwp

    Brawwp Well-Known Member

    Joined:
    Feb 12, 2022
    Member:
    #389936
    Messages:
    55
    Gender:
    Male
    First Name:
    Jason
    Oahu
    Vehicle:
    2022 white SR 4x4
    Do you have any pics of this?

  5. Aug 21, 2023 at 2:40 PM
    #65
    JoeCOVA

    JoeCOVA Well-Known Member

    Joined:
    Nov 15, 2016
    Member:
    #202463
    Messages:
    9,657
    First Name:
    Joe
    Colorado Springs
    Vehicle:
    Ford F350, Lexus RX450h, FZJ80, Jeep YJ, Jeep LJ
  6. Aug 21, 2023 at 11:43 PM
    #66
    SR77Tundra

    SR77Tundra New Member

    Joined:
    Jan 5, 2018
    Member:
    #240309
    Messages:
    3
    Gender:
    Male
    First Name:
    Shaun
    Laguna Niguel, CA
    Vehicle:
    2019 Tacoma TRD Off-Road
    Zer0
    I installed the Headstrong aal's and came across the same problem. I took out the overload leafs and added a 1/2" shim. I ended up cutting the guide bracket off. I drilled through the bottom of the forward rebound clip and tapped it to fit the original guide bolt. I used a cheap stainless hose mounting clip for the cable. Took me about 15-20 minutes each side. I have about 2500 miles on it now and haven't had any issues. One of these days I'll build a custom bracket out of thicker steel and round over the edges where it contacts the cable. Similar to the stock bracket, but better.

    [​IMG]

    Anton338 and Brawwp[QUOTED] like this.
  7. Aug 22, 2023 at 4:12 AM
    #67
    SnuggleTruck

    SnuggleTruck Well-Known Member

    Joined:
    Jan 31, 2020
    Member:
    #317873
    Messages:
    433
    Gender:
    Male
    First Name:
    Alex
    Fort Myers
    Vehicle:
    2020 DCLB TRD OR
    TRD 2" lift shocks Icon AAL (gave me 1" lift with OL leaf out) 17x8.5" -12mm Trail Edition OEM replica wheels by FSW BF Goodrich KO2s (285 70 17) ECGS bushing OME carrier bearing drop kit TRD Pro skid plate Truxedo roll up Tonneau cover MESO - led interior light kit, blackout kit and gashole Toyota door sill protectors and bed mat
    I cut mine off and have sent it for like 2.5 years now with no issue.

    Brawwp likes this.
  8. Aug 22, 2023 at 3:17 PM
    #68
    808stateofmind

    808stateofmind Well-Known Member

    Joined:
    Feb 19, 2023
    Member:
    #418343
    Messages:
    336
    Gender:
    Male
    Kona
    Vehicle:
    '22 Lunar Rock TRD OR 4x4 DCSB 6MT
    Eibach pro truck 2.0/2R lift kit 1.5" AAL OME/ARB UCA BFG KO2, 285/70-17 SCS Blaze 10, 17-8.5, -10 offset ECGS bushing needle bearing replacement Clutch accumulator disk delete Poor mans TRD intake, K&N 57 series intake tube, K&N high flow filter, TRD flow accelerator

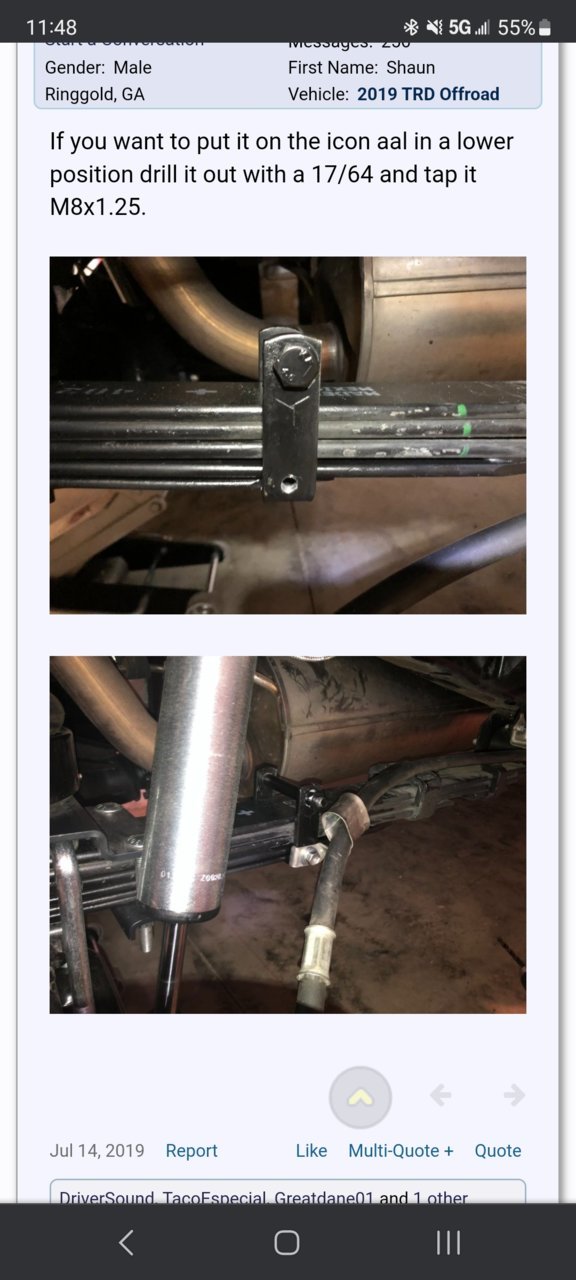

    Drill a hole, tap it, and secure it on the stock bracket... not my picture but i did the exact same thingScreenshot_20230707_114812_Chrome.jpg

    TacoTina and Anton338 like this.
  9. Aug 22, 2023 at 9:35 PM
    #69
    Tucker2020!

    Tucker2020! Well-Known Member

    Joined:
    Mar 22, 2021
    Member:
    #360210
    Messages:
    134
    I fab'd my own bracket. Without the bracket my brake line rubbed on the leafs. Been running w/ my custom-hack-job-bracket utilizing the OEM bracket for over 3 years now with Icon AAL and now / Icon RXTs
