Icon Dynamics Stage # Lift Thread

Discussion in 'Suspension' started by SLACKBOY, Jun 22, 2016.

  1. Jun 22, 2016 at 8:46 PM
    #1
    SLACKBOY

    SLACKBOY [OP] Toyota For Life!

    Joined:
    Nov 26, 2015
    Member:
    #170763
    Messages:
    1,488
    Gender:
    Male
    First Name:
    Erich
    Washington State
    Vehicle:
    2016 MGM Toyota Tacoma OR 4x4
    Blacked Out Emblems Wet Okole Seat Covers Installed Tinted Front Windows Weathertech Digital Floor Liners for the Front Plasti Dipped OF Grill - Removed BAMF Grill - MGM Installed Icon Stage 2 Kit. TRD Pro Wheels - 17's Ko2s installed (275 70 17) TRD PRO Rigid Led Fogs N Fab 3" Step Bars TRD Pro Auto Shift Knob TRD Pro Tail Lights
    Good Evening TW Members !

    I would like to start this thread for all third gen owners who have installed any Icon stage kits on their Tacoma's. Please make sure the topics and pictures relate to Icon Kits Only!

    Please post any of the following items:

    1.) Before/After Pictures of Icon Kits installed

    2.) Installation Issues

    3.) Installation Pictures

    4.) Coilover Heights Questions

    5.) Icon Issues

    6.) Etc

    There are No dedicated Icon Threads out there except this one.

    JakeDay009 and Law950 like this.
  2. Jun 22, 2016 at 11:57 PM
    #2
    jonnyozero3

    jonnyozero3 Well-Known Member

    Joined:
    Jan 14, 2015
    Member:
    #146402
    Messages:
    823
    Gender:
    Male
    Dry places
    Vehicle:
    '99 TRD OR V6 M/T & '17 TRD OR 6MT
    OME, sliders, dents, soiled armrest. Lightbulbs.
    Dedicated ICON thread? Neato.

    In that case, I submit my masterpiece that no one except me probably finds useful. Whatever. It has pretty colors. :)

    [​IMG]
    Edit: added pics.

    Link to all 3rd Gen packages on ICON's site: http://iconvehicledynamics.com/shop/672-2016-up-toyota-tacoma-complete-suspension-systems

    -------------------------ICON Parts Breakdown----------------

    Stage 1:
    58630 (QTY.1) | 2005-UP Toyota Tacoma 2.5" IFP Coilover Shock Kit
    56503 (QTY.2) | 2005-UP Toyota Tacoma (0-3" Lift) 2.0 Aluminum Series Rear Shock

    Stage 2:
    58630 (QTY.1) | 2005-UP Toyota Tacoma 2.5" IFP Coilover Shock Kit
    51100 (QTY.1) | 2005-UP Toyota Tacoma Add-A-Leaf Kit (1.5" Lift)
    56503R (QTY.2) | 2005-UP Toyota Tacoma (0-3" Lift) 2.0 Aluminum Series Rear Remote Reservoir Shock

    Stage 3:
    58635 (QTY.1) | 2005-UP Toyota Tacoma 2.5" IFP Extended Travel Coilover Shock Kit
    58450 (QTY.1) | 2005-UP Toyota Tacoma Tubular Steel Uniball UCA Kit
    51100 (QTY.1) | 1996-UP Toyota Tacoma Progressive Add-A-Leaf
    56503R (QTY.2) | 2005-UP Toyota Tacoma (0-3" Lift) 2.0 Aluminum Series Rear Shoc

    Stage 4:
    58735 (QTY.1) | 2005-UP Toyota Tacoma 2.5" Remote Reservoir Extended Travel Coilover Shock Kit
    58450 (QTY.1) | 2005-UP Toyota Tacoma Tubular Steel Uniball UCA Kit
    51100 (QTY.1) | 1996-UP Toyota Tacoma Progressive Add-A-Leaf
    56503R (QTY.2) | 2005-UP Toyota Tacoma (0-3" Lift) 2.0 Aluminum Series Rear Remote Reservoir Shock

    Stage 5:
    58735 (QTY.1) | 2005-UP Toyota Tacoma 2.5" Remote Reservoir Extended Travel Coilover Shock Kit
    58450 (QTY.1) | 2005-UP Toyota Tacoma Tubular Steel Uniball UCA Kit
    51100 (QTY.1) | 1996-UP Toyota Tacoma Progressive Add-A-Leaf
    57805P (QTY.1) | 2005-UP Toyota Tacoma (0-3" Lift) 2.5 Series Rear Remote Reservoir Shock (Pair)

    Stage 6:
    58735C (QTY.1) | 2005-UP Toyota Tacoma 2.5" Remote Reservoir Extended Travel CDCV Coilover Shock Kit
    58450 (QTY.1) | 2005-UP Toyota Tacoma Tubular Steel Uniball UCA Kit
    51100 (QTY.1) | 1996-UP Toyota Tacoma Progressive Add-A-Leaf
    57805CP (QTY.1) | 2005-UP Toyota Tacoma (0-3" Lift) 2.5 Series Rear Remote Reservoir CDCV Shock (Pair)

    Stage 7:
    58735C (QTY.1) | 2005-UP Toyota Tacoma 2.5" Remote Reservoir Extended Travel CDCV Coilover Shock Kit
    58450 (QTY.1) | 2005-UP Toyota Tacoma Tubular Steel UCA Kit
    51100 (QTY.1) | 1996-UP Toyota Tacoma Progressive Add-A-Leaf
    59905P (QTY.1) | 2005-UP Toyota Tacoma (0-3" Lift) 2.5 Omega Bypas Series Rear Remote Reservoir Shock (Pair)

    Shock nomenclature I got from ICON's website and their install directions. I wasn't quite sure what all the abbreviations meant.

    Legend:
    - 2.0 = 2 inch shock
    - 2.5 = 2 1/2 inch shock
    - VS = Vehicle Specific
    - IR = Internal Reservoir
    - IFP = internal floating piston
    - RR = Remote Reservoir
    - XT = Extended Travel
    - CDCV = Compression Damping Control Valve
    - AAL = Add-a-leaf
    - UCA = Upper Control Arm

    Last edited: Jul 23, 2016
  3. Jun 23, 2016 at 12:06 AM
    #3
    dylmatik

    dylmatik Well-Known Member

    Joined:
    Sep 14, 2015
    Member:
    #164249
    Messages:
    427
    First Name:
    Dylan
    Vehicle:
    16 DCLBTRDOR
    ^that is great info. What does CDCV stand for?

    Tacomamike mike and jonnyozero3 like this.
  4. Jun 23, 2016 at 12:22 AM
    #4
    Maximus

    Maximus Well-Known Member

    Joined:
    Jun 18, 2011
    Member:
    #58482
    Messages:
    1,688
    Gender:
    Male
    North Bay
    Vehicle:
    11 Tacoma TRD OR 4x4
    Icon Suspension with CDCV, SPC Light Racing UCAs, Wheeler's 3 Leaf AAL, Wheeler's Superbumps, sPod SE BAMF Sliders, All-Pro Skids, AFE Drop in filter, Magnaflow Exhaust, RCI Aluminum LCA Skids, BAMF Bed Brackets, 4X Innovations Rear Bumper, FX-R Retrofit Headlights with Philips 4300k, Custom Nestah Edition Firestik AM/FM Antenna, Famous Fab Hood brackets, FrontRunner SlimLine 2 Roof Rack, Mob Town Offroad tailgate reinforcement plate, Ram A pillar mount, Anti-Dark hood lights, Lots of LED lights,
    Compression damping control valve

    Tacomamike mike likes this.
  5. Jun 23, 2016 at 5:02 AM
    #5
    SLACKBOY

    SLACKBOY [OP] Toyota For Life!

    Joined:
    Nov 26, 2015
    Member:
    #170763
    Messages:
    1,488
    Gender:
    Male
    First Name:
    Erich
    Washington State
    Vehicle:
    2016 MGM Toyota Tacoma OR 4x4
    Blacked Out Emblems Wet Okole Seat Covers Installed Tinted Front Windows Weathertech Digital Floor Liners for the Front Plasti Dipped OF Grill - Removed BAMF Grill - MGM Installed Icon Stage 2 Kit. TRD Pro Wheels - 17's Ko2s installed (275 70 17) TRD PRO Rigid Led Fogs N Fab 3" Step Bars TRD Pro Auto Shift Knob TRD Pro Tail Lights
    Yes there is not an actual thread for individuals who have Icon kits installed on their Taco. I have only seen the general lift threads and one Toytec Boss specific thread.

    There should be an icon lift thread.

    Great chart by the way!!!

    Law950 and jonnyozero3 like this.
  6. Jun 23, 2016 at 5:04 AM
    #6
    SLACKBOY

    SLACKBOY [OP] Toyota For Life!

    Joined:
    Nov 26, 2015
    Member:
    #170763
    Messages:
    1,488
    Gender:
    Male
    First Name:
    Erich
    Washington State
    Vehicle:
    2016 MGM Toyota Tacoma OR 4x4
    Blacked Out Emblems Wet Okole Seat Covers Installed Tinted Front Windows Weathertech Digital Floor Liners for the Front Plasti Dipped OF Grill - Removed BAMF Grill - MGM Installed Icon Stage 2 Kit. TRD Pro Wheels - 17's Ko2s installed (275 70 17) TRD PRO Rigid Led Fogs N Fab 3" Step Bars TRD Pro Auto Shift Knob TRD Pro Tail Lights

    Details

    Icon stage 2 kit
    Left at settings from icon and rear AAL
    Stock UCAs
    Stock wheels and tires - Current
    Still has about 1" rake which I like

    Have yet to install:

    17" x 7" TRD pro wheels

    Can't decide on tires - thinking 275s

  7. Jun 23, 2016 at 7:38 AM
    #7
    jonnyozero3

    jonnyozero3 Well-Known Member

    Joined:
    Jan 14, 2015
    Member:
    #146402
    Messages:
    823
    Gender:
    Male
    Dry places
    Vehicle:
    '99 TRD OR V6 M/T & '17 TRD OR 6MT
    OME, sliders, dents, soiled armrest. Lightbulbs.
    Very nice. If that is an M/T you have the exact truck I am looking to order. :)

    Did you measure how much lift you got in the front and back from stock? Any difficulty with alignment at the Icon stock settings and no UCA?

    Any comments on the how it rides compared to stock? How is the body roll on turns? How does it handle sharp bumps?

    Last edited: Jun 23, 2016
  8. Jun 23, 2016 at 11:11 AM
    #8
    ELKAHOLIC

    ELKAHOLIC Well-Known Member

    Joined:
    Jun 11, 2008
    Member:
    #7243
    Messages:
    396
    Gender:
    Male
    Edgewood Texas
    Vehicle:
    2016 DCLB OFFROAD 4X4 Quicksand
    Icon suspension, Falken Wild Peak AT3W,s, Marshall Fab sliders, Built Right uca's, BAMF grill, Cali Raised led light, Bakflip fibermax, Husky mats, Clazzio leather
    Cool! Just got my Icon extended travel coilovers and aal from fedex today! still waiting on rear shocks and uca bolts.
    They have 1 1/4" of thread showing in the box. So how much lift should they give me right out of the box? Icon said for a 16 they come preset for 1 1/4" lift out of the box. So does that mean The amount of thread showing is the amount of lift? I have heard from others that they are 2 1/2" lift out of the box for a 16?

    I plan on leaving in the overload in the rear because I haul crap and tow a trailer some.

    Last edited: Jun 23, 2016
  9. Jun 23, 2016 at 5:38 PM
    #9
    SLACKBOY

    SLACKBOY [OP] Toyota For Life!

    Joined:
    Nov 26, 2015
    Member:
    #170763
    Messages:
    1,488
    Gender:
    Male
    First Name:
    Erich
    Washington State
    Vehicle:
    2016 MGM Toyota Tacoma OR 4x4
    Blacked Out Emblems Wet Okole Seat Covers Installed Tinted Front Windows Weathertech Digital Floor Liners for the Front Plasti Dipped OF Grill - Removed BAMF Grill - MGM Installed Icon Stage 2 Kit. TRD Pro Wheels - 17's Ko2s installed (275 70 17) TRD PRO Rigid Led Fogs N Fab 3" Step Bars TRD Pro Auto Shift Knob TRD Pro Tail Lights

    Measurements looked to be about 1 1/2" to 2" with not changing icons preset. There's still 1" rake from front to back. No difficulties with alignment with stock UCAs. I actually asked another TW member Woody. Same setup with 285s for tires.

    It rides so much better than stock but stiffer. Everything is that much better in corners.

    Just gotta decide on tire size.

    Last edited: Jun 23, 2016
    Law950 and 2016Tacoman like this.
  10. Jun 23, 2016 at 5:40 PM
    #10
    SLACKBOY

    SLACKBOY [OP] Toyota For Life!

    Joined:
    Nov 26, 2015
    Member:
    #170763
    Messages:
    1,488
    Gender:
    Male
    First Name:
    Erich
    Washington State
    Vehicle:
    2016 MGM Toyota Tacoma OR 4x4
    Blacked Out Emblems Wet Okole Seat Covers Installed Tinted Front Windows Weathertech Digital Floor Liners for the Front Plasti Dipped OF Grill - Removed BAMF Grill - MGM Installed Icon Stage 2 Kit. TRD Pro Wheels - 17's Ko2s installed (275 70 17) TRD PRO Rigid Led Fogs N Fab 3" Step Bars TRD Pro Auto Shift Knob TRD Pro Tail Lights

    Mine shows 1 1/4" of thread on Coilover. You should get more height out of box due to extended travel from my understanding.

    The 16s are already 1" lift from factory and you don't want to be more than 3" total including the 1" lift from factory or you could mess up a lot of components.

    61ragtop and Law950 like this.
  11. Jun 23, 2016 at 5:41 PM
    #11
    SLACKBOY

    SLACKBOY [OP] Toyota For Life!

    Joined:
    Nov 26, 2015
    Member:
    #170763
    Messages:
    1,488
    Gender:
    Male
    First Name:
    Erich
    Washington State
    Vehicle:
    2016 MGM Toyota Tacoma OR 4x4
    Blacked Out Emblems Wet Okole Seat Covers Installed Tinted Front Windows Weathertech Digital Floor Liners for the Front Plasti Dipped OF Grill - Removed BAMF Grill - MGM Installed Icon Stage 2 Kit. TRD Pro Wheels - 17's Ko2s installed (275 70 17) TRD PRO Rigid Led Fogs N Fab 3" Step Bars TRD Pro Auto Shift Knob TRD Pro Tail Lights

    Auto transmission

  12. Jun 23, 2016 at 7:45 PM
    #12
    Wingman

    Wingman It is what it is

    Joined:
    Jan 26, 2016
    Member:
    #176206
    Messages:
    70
    Gender:
    Male
    First Name:
    Bob
    Anderson
    Vehicle:
    2016 TRD Sport 4x4 DCSB
    Pop & Lock tailgate mod, SOS sliders, Icon stage 2, Icon UCA, 285-70-17
    Here is an after picture. Sorry nothing before.


    Icon stage 2 with IconUCAs
    285/70R17 GY duratrac on Ray10s
    Height of front coils prior to install 20 1/2" from center hub to bottom of fender.
    After install 23"

    4 times to the alignment shop and to get it right. CMC, inner plastic trim, cutting and chopping is still not complete but it's close.

  13. Jun 23, 2016 at 7:47 PM
    #13
    SLACKBOY

    SLACKBOY [OP] Toyota For Life!

    Joined:
    Nov 26, 2015
    Member:
    #170763
    Messages:
    1,488
    Gender:
    Male
    First Name:
    Erich
    Washington State
    Vehicle:
    2016 MGM Toyota Tacoma OR 4x4
    Blacked Out Emblems Wet Okole Seat Covers Installed Tinted Front Windows Weathertech Digital Floor Liners for the Front Plasti Dipped OF Grill - Removed BAMF Grill - MGM Installed Icon Stage 2 Kit. TRD Pro Wheels - 17's Ko2s installed (275 70 17) TRD PRO Rigid Led Fogs N Fab 3" Step Bars TRD Pro Auto Shift Knob TRD Pro Tail Lights

    Did you change the front coil over height ?

    Did you pay for 4 alignments?

  14. Jun 23, 2016 at 7:51 PM
    #14
    Wingman

    Wingman It is what it is

    Joined:
    Jan 26, 2016
    Member:
    #176206
    Messages:
    70
    Gender:
    Male
    First Name:
    Bob
    Anderson
    Vehicle:
    2016 TRD Sport 4x4 DCSB
    Pop & Lock tailgate mod, SOS sliders, Icon stage 2, Icon UCA, 285-70-17
    I cranked up the coils and no I paid for one year of alignments. I figured I would need them. Only $110 for as many as I need, no questions asked.

    arkywally likes this.
  15. Jun 23, 2016 at 7:55 PM
    #15
    SLACKBOY

    SLACKBOY [OP] Toyota For Life!

    Joined:
    Nov 26, 2015
    Member:
    #170763
    Messages:
    1,488
    Gender:
    Male
    First Name:
    Erich
    Washington State
    Vehicle:
    2016 MGM Toyota Tacoma OR 4x4
    Blacked Out Emblems Wet Okole Seat Covers Installed Tinted Front Windows Weathertech Digital Floor Liners for the Front Plasti Dipped OF Grill - Removed BAMF Grill - MGM Installed Icon Stage 2 Kit. TRD Pro Wheels - 17's Ko2s installed (275 70 17) TRD PRO Rigid Led Fogs N Fab 3" Step Bars TRD Pro Auto Shift Knob TRD Pro Tail Lights

    How far did you crank up? How much thread is exposed?

    Tacomamike mike and jhc8d like this.
  16. Jun 23, 2016 at 7:57 PM
    #16
    Wingman

    Wingman It is what it is

    Joined:
    Jan 26, 2016
    Member:
    #176206
    Messages:
    70
    Gender:
    Male
    First Name:
    Bob
    Anderson
    Vehicle:
    2016 TRD Sport 4x4 DCSB
    Pop & Lock tailgate mod, SOS sliders, Icon stage 2, Icon UCA, 285-70-17
    I went to 1 3/4". Instructions say I could go to 2" of thread showing but I don't think the travel of the shock would be very much.

  17. Jun 23, 2016 at 8:01 PM
    #17
    SLACKBOY

    SLACKBOY [OP] Toyota For Life!

    Joined:
    Nov 26, 2015
    Member:
    #170763
    Messages:
    1,488
    Gender:
    Male
    First Name:
    Erich
    Washington State
    Vehicle:
    2016 MGM Toyota Tacoma OR 4x4
    Blacked Out Emblems Wet Okole Seat Covers Installed Tinted Front Windows Weathertech Digital Floor Liners for the Front Plasti Dipped OF Grill - Removed BAMF Grill - MGM Installed Icon Stage 2 Kit. TRD Pro Wheels - 17's Ko2s installed (275 70 17) TRD PRO Rigid Led Fogs N Fab 3" Step Bars TRD Pro Auto Shift Knob TRD Pro Tail Lights
    What do you have for measurements in the rear - hub to fender

  18. Jun 23, 2016 at 8:09 PM
    #18
    Wingman

    Wingman It is what it is

    Joined:
    Jan 26, 2016
    Member:
    #176206
    Messages:
    70
    Gender:
    Male
    First Name:
    Bob
    Anderson
    Vehicle:
    2016 TRD Sport 4x4 DCSB
    Pop & Lock tailgate mod, SOS sliders, Icon stage 2, Icon UCA, 285-70-17
    Stock it was 21 1/2" now it sits about 22". I had the overload leaf stock. When I installed the Icon progressive add a leaf I took it out. Still have a little rake to it.

  19. Jun 24, 2016 at 1:40 AM
    #19
    Rising Eagle

    Rising Eagle Well-Known Member

    Joined:
    Dec 18, 2015
    Member:
    #172514
    Messages:
    331
    Gender:
    Male
    Oahu Hawaii
    Vehicle:
    2016 DCLB OR 4x4 (Sold)
    ICON Stage III

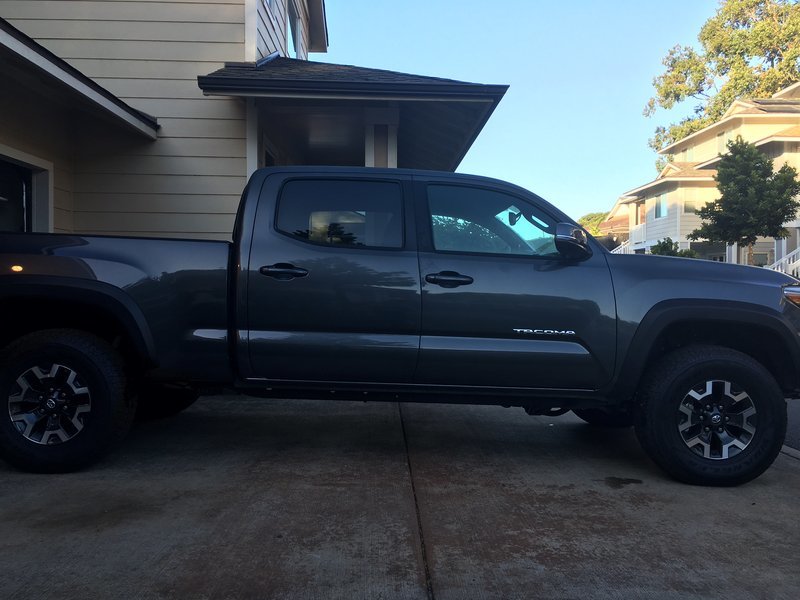

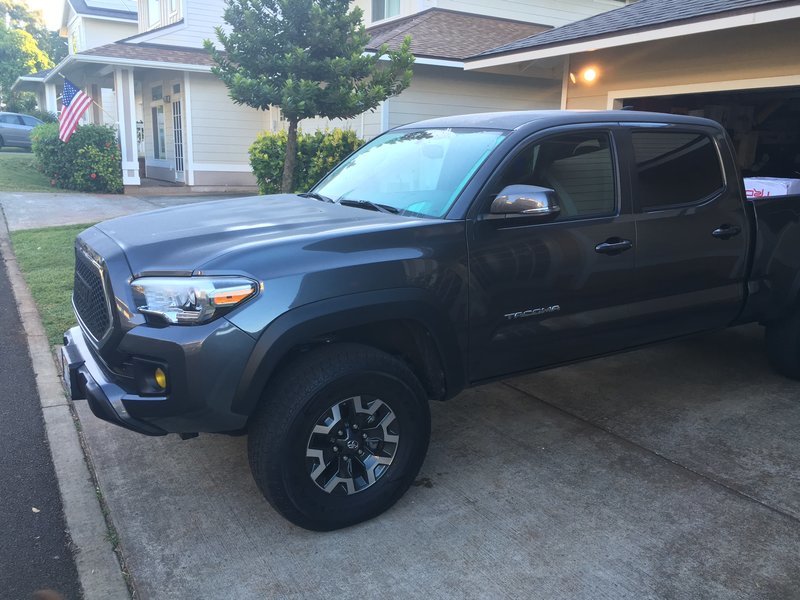

    Before:

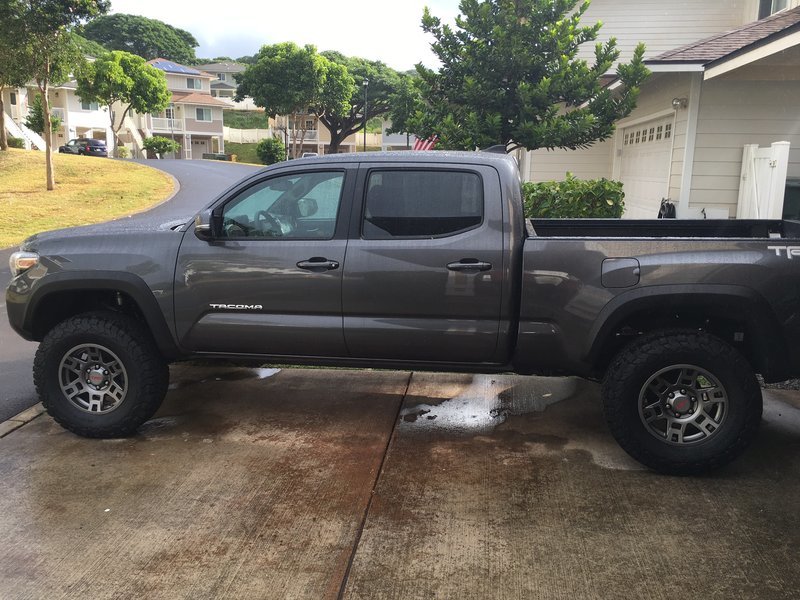

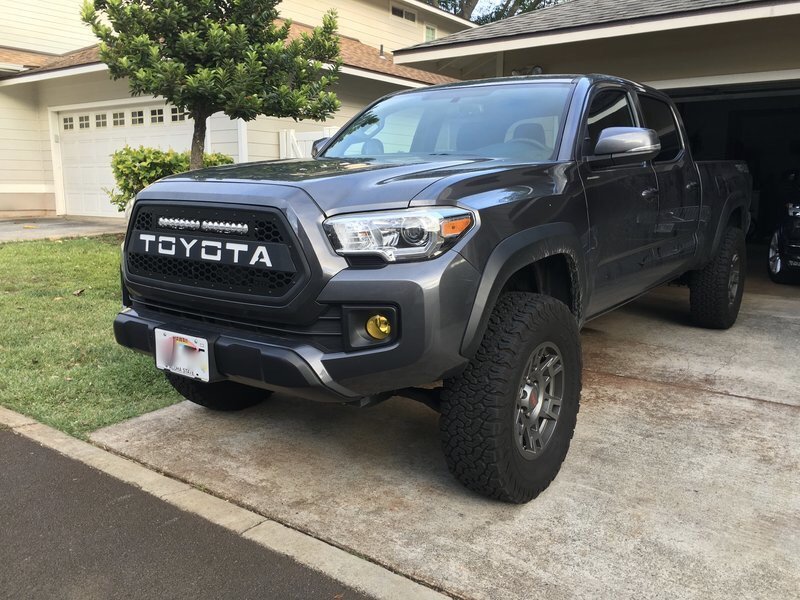

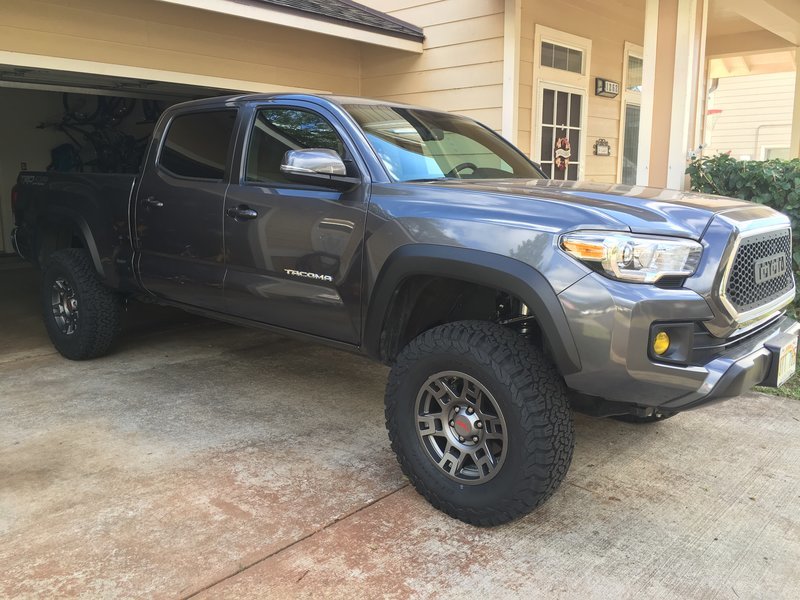

    After:

    Last edited: Jun 24, 2016
    Cudgel, 61ragtop, Maxcustody and 19 others like this.
  20. Jun 24, 2016 at 3:44 AM
    #20
    SLACKBOY

    SLACKBOY [OP] Toyota For Life!

    Joined:
    Nov 26, 2015
    Member:
    #170763
    Messages:
    1,488
    Gender:
    Male
    First Name:
    Erich
    Washington State
    Vehicle:
    2016 MGM Toyota Tacoma OR 4x4
    Blacked Out Emblems Wet Okole Seat Covers Installed Tinted Front Windows Weathertech Digital Floor Liners for the Front Plasti Dipped OF Grill - Removed BAMF Grill - MGM Installed Icon Stage 2 Kit. TRD Pro Wheels - 17's Ko2s installed (275 70 17) TRD PRO Rigid Led Fogs N Fab 3" Step Bars TRD Pro Auto Shift Knob TRD Pro Tail Lights

    Great Transformation!

    Did you adjust your front coil over? To what inch of thread is now exposed?

    Leave your overload in ?

    Rising Eagle likes this.

Products Discussed in

To Top
