Icon RXT Leaf Pack Install (stage 3)

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Beakerman, Nov 8, 2021.

  1. Mar 25, 2022 at 8:05 PM
    #41
    RusD

    RusD Active Member

    Joined:
    Jan 23, 2018
    Member:
    #242167
    Messages:
    27
    Gender:
    Male
    Vehicle:
    2017 QS DCSB OR Tacoma
    I'm currently stock now and was considering going with the RXT and 5100 setup to deal with bed weight and improve some performance. Why did you feel like the 5100s needed to be replaced and did you ever change to something else?

  2. Mar 26, 2022 at 5:34 AM
    #42
    Bikinaz

    Bikinaz It wasn't me!

    Joined:
    Oct 13, 2018
    Member:
    #269257
    Messages:
    1,613
    Gender:
    Male
    First Name:
    Hey You!
    Phoenix, AZ
    Vehicle:
    2014 Regular Cab 4x4 5MT
    Pelfreybuilt Skids. ModCo wheels. Sliders. Cruise Control. Intermittent Wipers. Fog Lights.

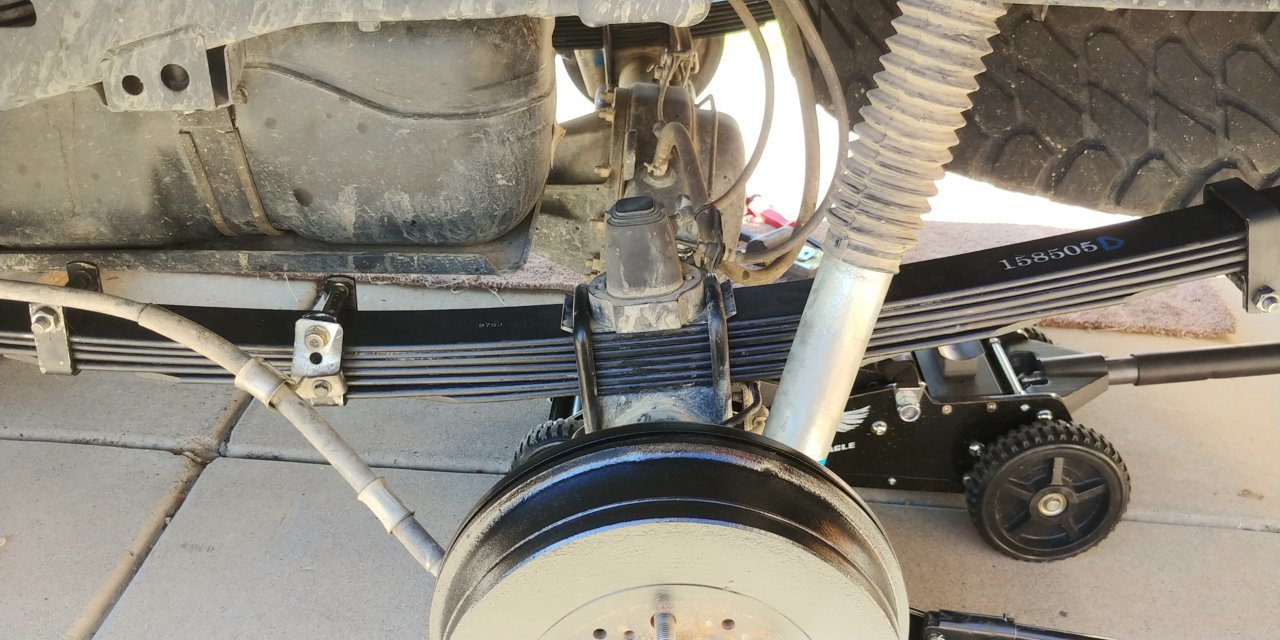

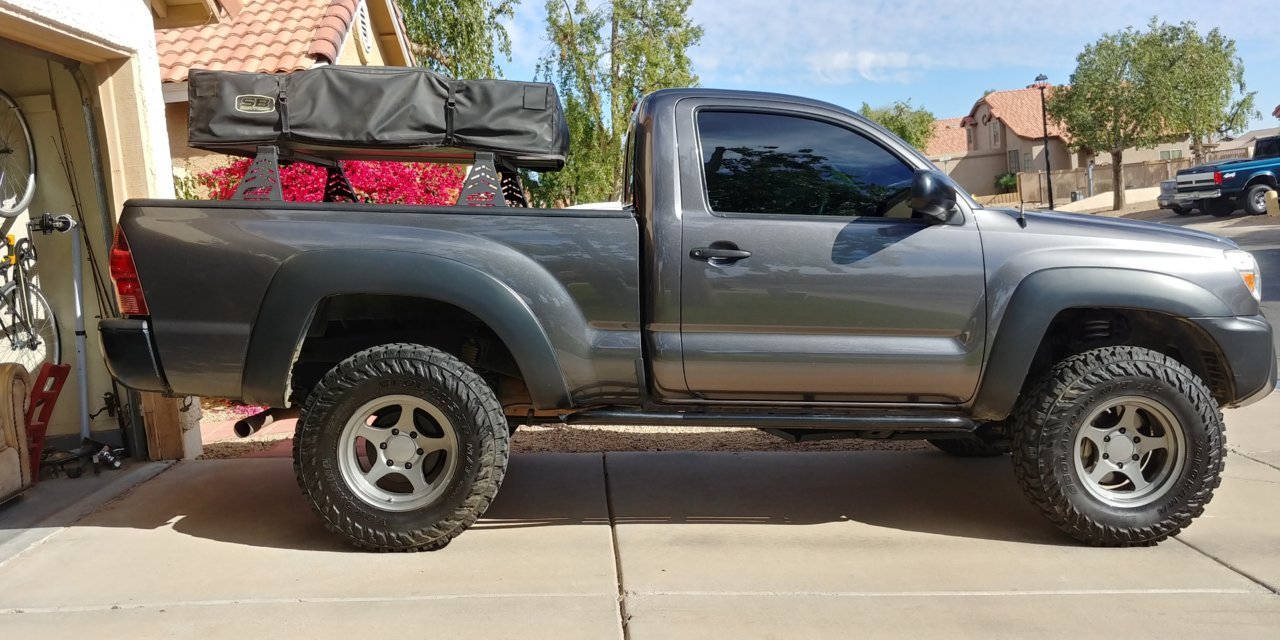

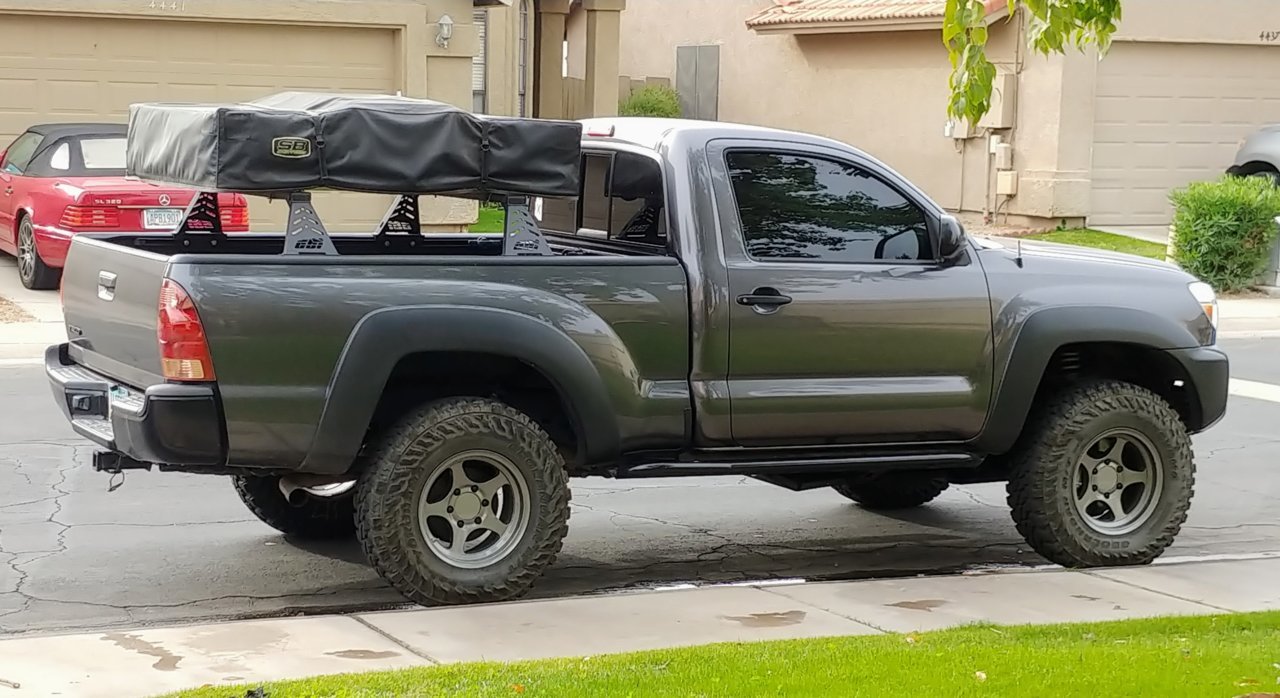

    The 5100s in the pic were of unknown mileage, that paired with a need of new bushings drove me to new shocks. That and the fact that the 5100s were obviously about two inches short with the axle droop.

    I ended up with the 5125 shocks as they are almost 2 inches longer than the 5100s . I wanted to go with Fox shocks, but the guy I deal with said the Bilstien's would pair better and be a better feel combined with my Bilstien's up front.

  3. Mar 26, 2022 at 7:40 AM
    #43
    71tattooguy

    71tattooguy Well-Known Member

    Joined:
    Dec 19, 2018
    Member:
    #276275
    Messages:
    5,866
    Gender:
    Male
    First Name:
    Dino
    Petaluma , Ca (707)
    Vehicle:
    2019 DCLB TRD OFF- ROAD
    Kings 2.5” front and rears from Accutune / ICON RXT LEAF PACK black badges doors and tailgate / method 315 / 255/85/16 Yokohama G003 / magnaflow exhaust , axle dump / meso int delete kit / meso led map lights / dome lights / wheelers front super bumps / accutune Flip kit with spacer and new bumps / Cali raised fog light pods / Cali raised ditch lights / RCI FULL SKIDS / SLIDERS / RCI rear bumper / rigid backup lights / tuned on 4.88’s

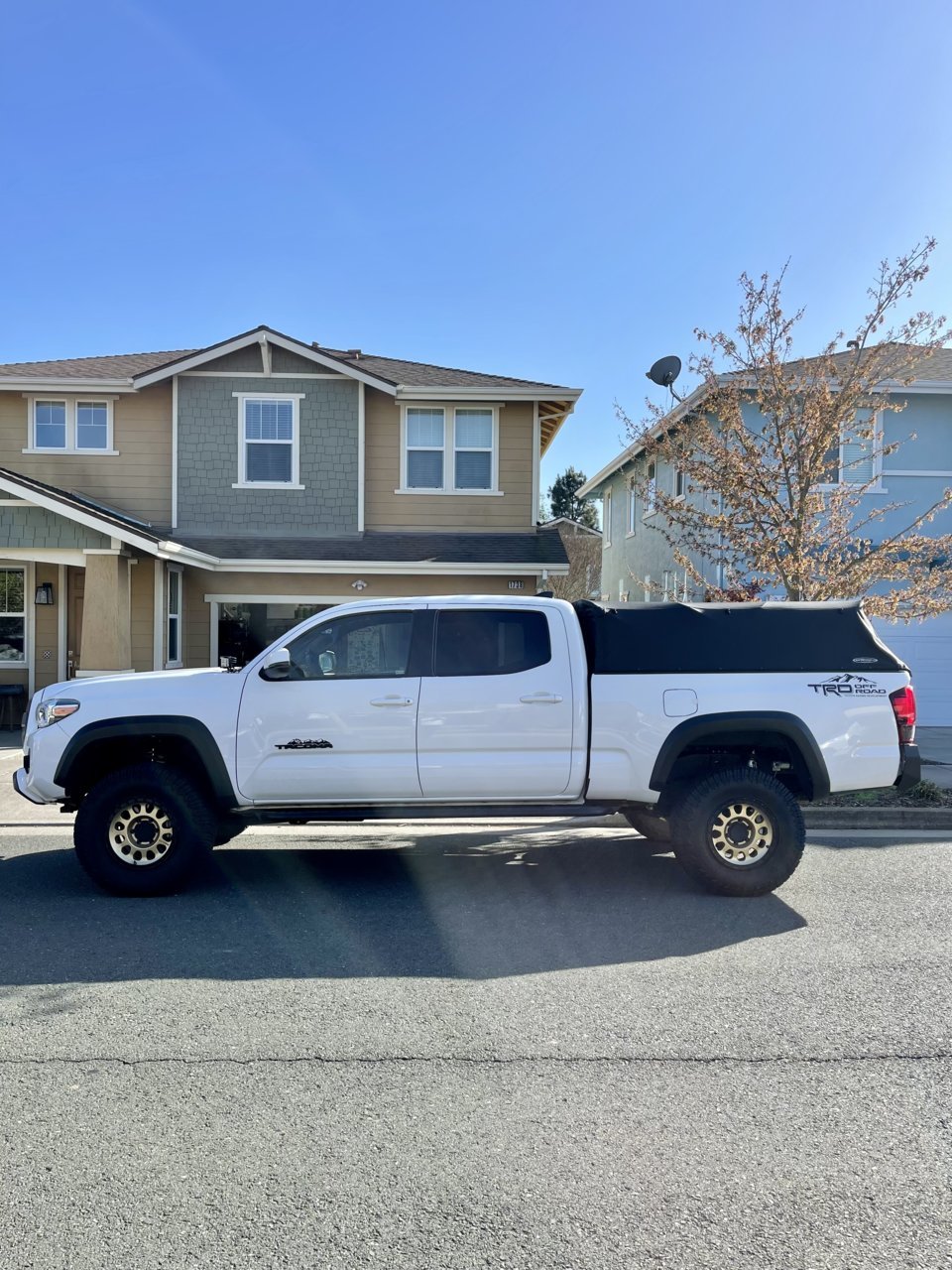

    option #2 super stoked. So happy to have a leaf pack that holds rake when loaded. Have about 2” rake now see if it settles not worried. Now I have room to add weight if needed. :thumbsup: @tonered

    Nemesis-dsl likes this.
  4. Mar 27, 2022 at 7:26 AM
    #44
    Terraj66

    Terraj66 Well-Known Member

    Joined:
    Jan 26, 2016
    Member:
    #176136
    Messages:
    303
    Gender:
    Male
    las vegas
    Vehicle:
    2016 DCSB 4x4 sport. super white
    so I found a set of deaver stage 2s (rated for 400- 600 lbs) and ended up canceling my rxts. They are perfect, I am about an inch higher in the rear with about 300lbs of weight with my fox 2.5 dscs. Loaded for camping I am leveled and have no sag.

  5. Mar 27, 2022 at 10:33 AM
    #45
    RusD

    RusD Active Member

    Joined:
    Jan 23, 2018
    Member:
    #242167
    Messages:
    27
    Gender:
    Male
    Vehicle:
    2017 QS DCSB OR Tacoma
    Good to know. I'm still on stock TRDOR suspension. The Deavers were what was first suggested to me but would require upgrading shocks as well. I wasn't sure I wanted to drop that much cash at once, so it was suggested I look at the RXT leafs then upgrade the shocks if and when needed. Decisions decisions...

  6. Mar 27, 2022 at 2:06 PM
    #46
    Terraj66

    Terraj66 Well-Known Member

    Joined:
    Jan 26, 2016
    Member:
    #176136
    Messages:
    303
    Gender:
    Male
    las vegas
    Vehicle:
    2016 DCSB 4x4 sport. super white
    Definitely do one or the other, prior to my leaf upgrade I did have the icon add a leaf on and that would still not be sufficient enough for just the cap and some ply wood in my truck. So I’m sure your ass is struggling!

    71tattooguy likes this.
  7. Jul 27, 2022 at 4:28 AM
    #47
    fullsend604

    fullsend604 Well-Known Member

    Joined:
    Dec 14, 2018
    Member:
    #275855
    Messages:
    209
    Vehicle:
    2018 Tacoma TRD Sport 4x4 DCLB
    Yukon 5.29 gears, Eaton ELocker, Stoptech 6 Piston front BBK + Stoptech 4 Piston rear BBK conversion (Tundra master cylinder upgrade), 315/70R17 Falken Wildpeak AT3W, Advan RG-D2 17x8.5 wheels (Indigo Blue), Fox 2.5 PE mid travel w/DSC adjust, Icon RXT leaf pack, DRT shackle hangers w/crossbar, BTF high caster LCA, SPC UCA, OVTune 5.29 (87 regular tune), C4 Hybrid front bumper (30" Rigid light bar + 3" pods), C4 Rock Runner HC rear bumper (Baja Designs S1 wide cornering reverse lights), C4 oversized tire fender kit, Cali Raised trail rock sliders, Cali Raised Overland bed rack, Cali Raised bed stiffeners, RCI engine/trans/tcase skids, CBI fuel tank skid, Prinsu cab rack, Borla Type-S exhaust, Morimoto XB LED head + tail lights.
    Should I be using option 2 or 3 on my RXT leaf springs with 450+ pounds weight in the bed? Hard shell tent (Skycamp 3.0) mounted on Diamondback HD tonneau cover, tool box, gear and a hitch mounted carrier with 2 mountain bikes. Running Bilstein 6112 set at max height up front so I would like the rear to be close to that when loaded.

  8. Jul 27, 2022 at 4:59 AM
    #48
    71tattooguy

    71tattooguy Well-Known Member

    Joined:
    Dec 19, 2018
    Member:
    #276275
    Messages:
    5,866
    Gender:
    Male
    First Name:
    Dino
    Petaluma , Ca (707)
    Vehicle:
    2019 DCLB TRD OFF- ROAD
    Kings 2.5” front and rears from Accutune / ICON RXT LEAF PACK black badges doors and tailgate / method 315 / 255/85/16 Yokohama G003 / magnaflow exhaust , axle dump / meso int delete kit / meso led map lights / dome lights / wheelers front super bumps / accutune Flip kit with spacer and new bumps / Cali raised fog light pods / Cali raised ditch lights / RCI FULL SKIDS / SLIDERS / RCI rear bumper / rigid backup lights / tuned on 4.88’s
    Option #3

  9. Jul 27, 2022 at 1:27 PM
    #49
    fullsend604

    fullsend604 Well-Known Member

    Joined:
    Dec 14, 2018
    Member:
    #275855
    Messages:
    209
    Vehicle:
    2018 Tacoma TRD Sport 4x4 DCLB
    Yukon 5.29 gears, Eaton ELocker, Stoptech 6 Piston front BBK + Stoptech 4 Piston rear BBK conversion (Tundra master cylinder upgrade), 315/70R17 Falken Wildpeak AT3W, Advan RG-D2 17x8.5 wheels (Indigo Blue), Fox 2.5 PE mid travel w/DSC adjust, Icon RXT leaf pack, DRT shackle hangers w/crossbar, BTF high caster LCA, SPC UCA, OVTune 5.29 (87 regular tune), C4 Hybrid front bumper (30" Rigid light bar + 3" pods), C4 Rock Runner HC rear bumper (Baja Designs S1 wide cornering reverse lights), C4 oversized tire fender kit, Cali Raised trail rock sliders, Cali Raised Overland bed rack, Cali Raised bed stiffeners, RCI engine/trans/tcase skids, CBI fuel tank skid, Prinsu cab rack, Borla Type-S exhaust, Morimoto XB LED head + tail lights.
    It’s worth noting that I don’t drive with the RTT all the time and same with the hitch mounted bikes. ICON advertises option 3 giving 2.625” of lift when unloaded so I’m just thinking about how much more rake that will be as the front is only lifted 2”. Shouldn’t be too bad as the HD tonneau cover weights 115lbs and I do have a 34” spare in the bed as well so that is still 200+ lbs of constant weight. Regardless I think #3 would be my best bet. Hopefully the ride isn’t too harsh when unloaded at #3.

  10. Jul 30, 2022 at 10:30 AM
    #50
    OffroadToy

    OffroadToy kokanee smoker

    Joined:
    Sep 12, 2009
    Member:
    #22680
    Messages:
    6,956
    Gender:
    Male
    Vehicle:
    2007 Offroad DCSB AT- VSC,TRAC,HAC, & DAC
    Icon Stage 8, ECGS Bushing, Timbren ubolt flip, Crown extended brake lines, Overland Custom Design sway bar links, rear differential breather extension, oil filter drain hose, a/c drain hose extension & reroute, front windows tint, Cat Security, XPEL headlight/fog & grill protection, OEM block heater, RCBS illuminated 4X4 switch, Weathertech mats, Wet Okole seat covers, Sherpa Grand Teton/Crows Nest, Baja Designs S8 light bar, Diode Dynamics SS3 Pro fog lights, Method 305 NV Double Black, 275/70/17 Toyo R/T Trail.

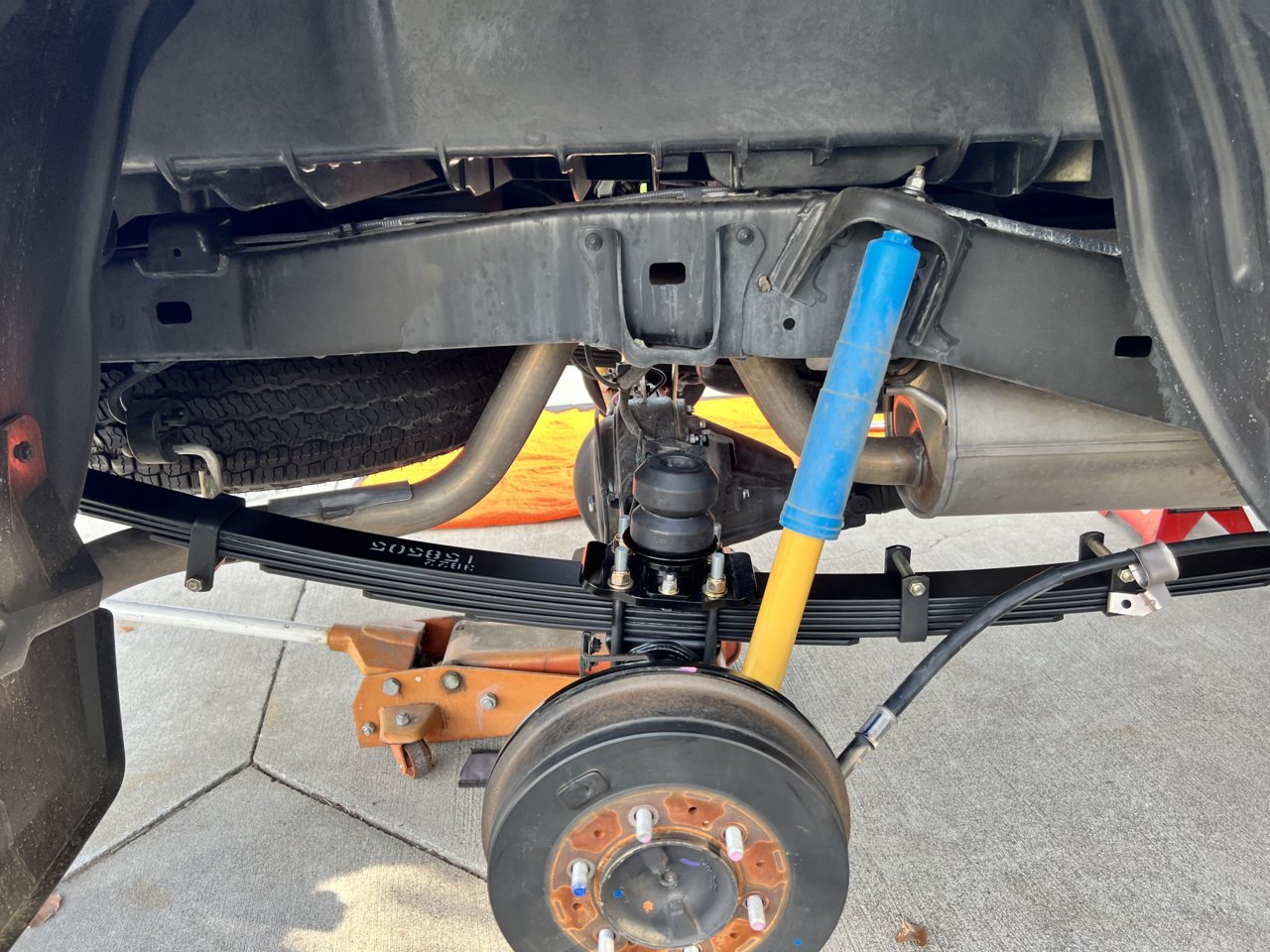

    I'm on option 2... installer had these parts taped to removed leaf springs. Assuming all these parts are for option 3, where do the plates go?
    [​IMG]

  11. Jul 30, 2022 at 10:34 AM
    #51
    AwArD

    AwArD Well-Known Member

    Joined:
    May 3, 2021
    Member:
    #364640
    Messages:
    147
    Gender:
    Male
    Vehicle:
    2012 Tacoma Trail Teams TRD sport Double Cab V6 4.0
    Icon Rxt rear leaf option 2 Elka 2.5 DC Reservoir Front/Rear with 600lbs/14inch coil JBA Offroad STD high caster UCA Whiteline LCA inner bushing Mevotech TTX LCA Ball joint Woodward U-Joints Intermidate steering shaft mod Uni filter mod TRD Cat-Back Exhaust Timbren Active Off-Road Bumpstops Front/Rear Overland Torque Tune (OTT) by Yotatune Amsoil signature engine/transmission Amsoil SEVERE GEAR 80W-90 Front/rear diff and T-case Tacoma bed mat Weathertech mat front and rear cabin Summer BFG Ko2 265/65r17 E rated / Fuel Rebel 6 Bronze wheels Winter Nokian Hakkapeliitta 10 studded, 265/65r17 / oem Toyota wheels
    The plate are needed between the leaf, if you add the leaf for the option 3 (8 leaf total) you will need to put the plate between the leaf

  12. Jul 30, 2022 at 3:33 PM
    #52
    TacoZmtn

    TacoZmtn Well-Known Member

    Joined:
    Apr 30, 2022
    Member:
    #396207
    Messages:
    266
    Gender:
    Male
    Vehicle:
    2022 TRD Off Road LB
    OTT-6112’s~5160’s rxt's~ShmellFab Sliders
    Doing the install now... is there an orientation for a certain end of the pack that goes towards the front? Looks symmetrical to me but thought id ask before I went back at it.. thx!


    71tattooguy likes this.
  13. Jul 30, 2022 at 3:34 PM
    #53
    TacoZmtn

    TacoZmtn Well-Known Member

    Joined:
    Apr 30, 2022
    Member:
    #396207
    Messages:
    266
    Gender:
    Male
    Vehicle:
    2022 TRD Off Road LB
    OTT-6112’s~5160’s rxt's~ShmellFab Sliders
    actually just notice the double brackets on one side...

    71tattooguy likes this.
  14. Jul 30, 2022 at 3:36 PM
    #54
    TacoZmtn

    TacoZmtn Well-Known Member

    Joined:
    Apr 30, 2022
    Member:
    #396207
    Messages:
    266
    Gender:
    Male
    Vehicle:
    2022 TRD Off Road LB
    OTT-6112’s~5160’s rxt's~ShmellFab Sliders

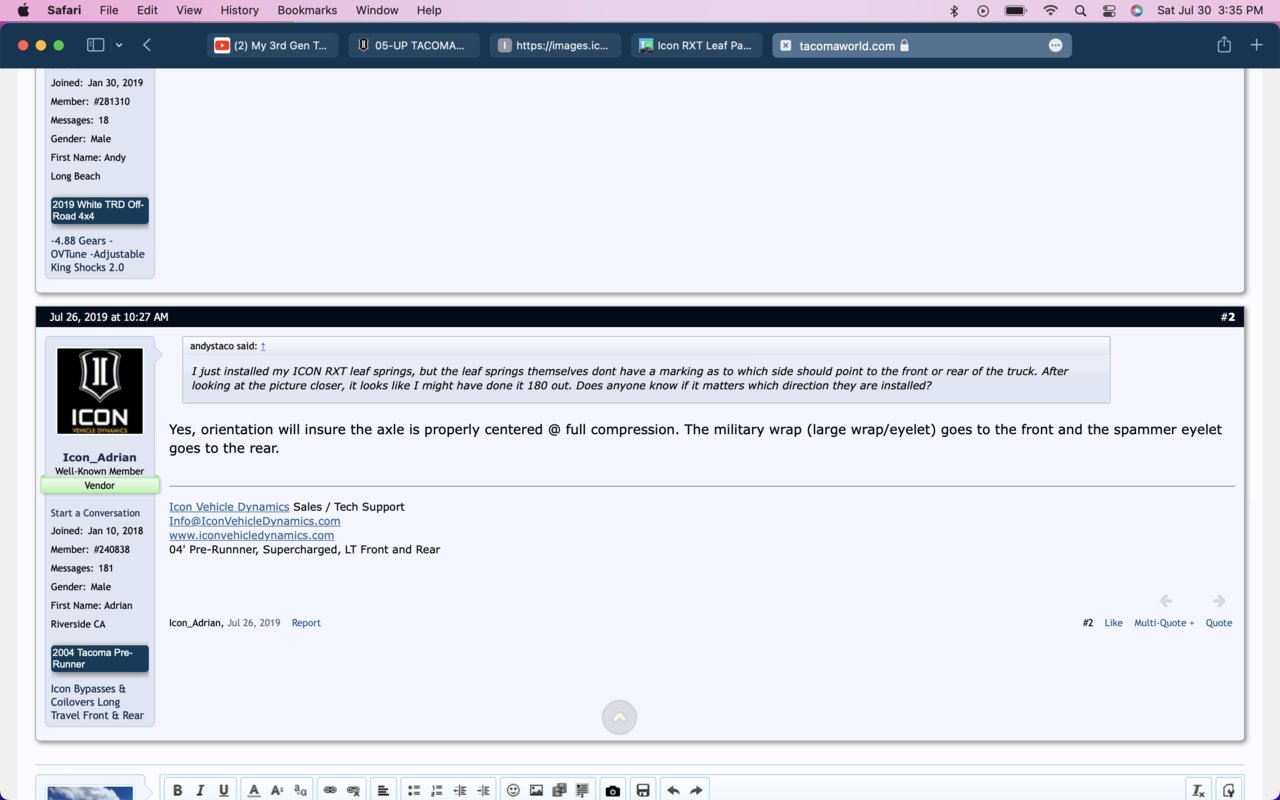

    nevermind, found this for anyone else ever wondering and if I missed it in this thread

    Screen Shot 2022-07-30 at 3.35.47 PM.jpg

    71tattooguy likes this.
  15. Jul 30, 2022 at 3:44 PM
    #55
    71tattooguy

    71tattooguy Well-Known Member

    Joined:
    Dec 19, 2018
    Member:
    #276275
    Messages:
    5,866
    Gender:
    Male
    First Name:
    Dino
    Petaluma , Ca (707)
    Vehicle:
    2019 DCLB TRD OFF- ROAD
    Kings 2.5” front and rears from Accutune / ICON RXT LEAF PACK black badges doors and tailgate / method 315 / 255/85/16 Yokohama G003 / magnaflow exhaust , axle dump / meso int delete kit / meso led map lights / dome lights / wheelers front super bumps / accutune Flip kit with spacer and new bumps / Cali raised fog light pods / Cali raised ditch lights / RCI FULL SKIDS / SLIDERS / RCI rear bumper / rigid backup lights / tuned on 4.88’s
    Nice :thumbsup:

    TacoZmtn[QUOTED] likes this.
  16. Jul 30, 2022 at 3:50 PM
    #56
    NACAircrew

    NACAircrew Well-Known Member

    Joined:
    Jul 22, 2022
    Member:
    #401915
    Messages:
    476
    Gender:
    Male
    First Name:
    My pronoun is Chaz
    Vehicle:
    TRD OR/4R Trail
    Raptor lights/Meso everything/Predator steps

    Get it!!!!

    TacoZmtn[QUOTED] and 71tattooguy like this.
  17. Jul 30, 2022 at 5:24 PM
    #57
    TacoZmtn

    TacoZmtn Well-Known Member

    Joined:
    Apr 30, 2022
    Member:
    #396207
    Messages:
    266
    Gender:
    Male
    Vehicle:
    2022 TRD Off Road LB
    OTT-6112’s~5160’s rxt's~ShmellFab Sliders
    Anyone know if its possible to overtigjten the upper shackle bolt? I got the front bolt torqued to 89lb but my torque wrench won’t click at 89lb for the rear upper shackle bolt. Haven’t dropped it yet to torque the u-bolts and lower shackle bolt… should I have torqued the upper bolt after I drop off the jacks? It seems like the end of the bolt out of the nut is sticking out too far compared to the oem drivers side that I havent disassembled yet…

  18. Jul 30, 2022 at 5:26 PM
    #58
    TacoZmtn

    TacoZmtn Well-Known Member

    Joined:
    Apr 30, 2022
    Member:
    #396207
    Messages:
    266
    Gender:
    Male
    Vehicle:
    2022 TRD Off Road LB
    OTT-6112’s~5160’s rxt's~ShmellFab Sliders

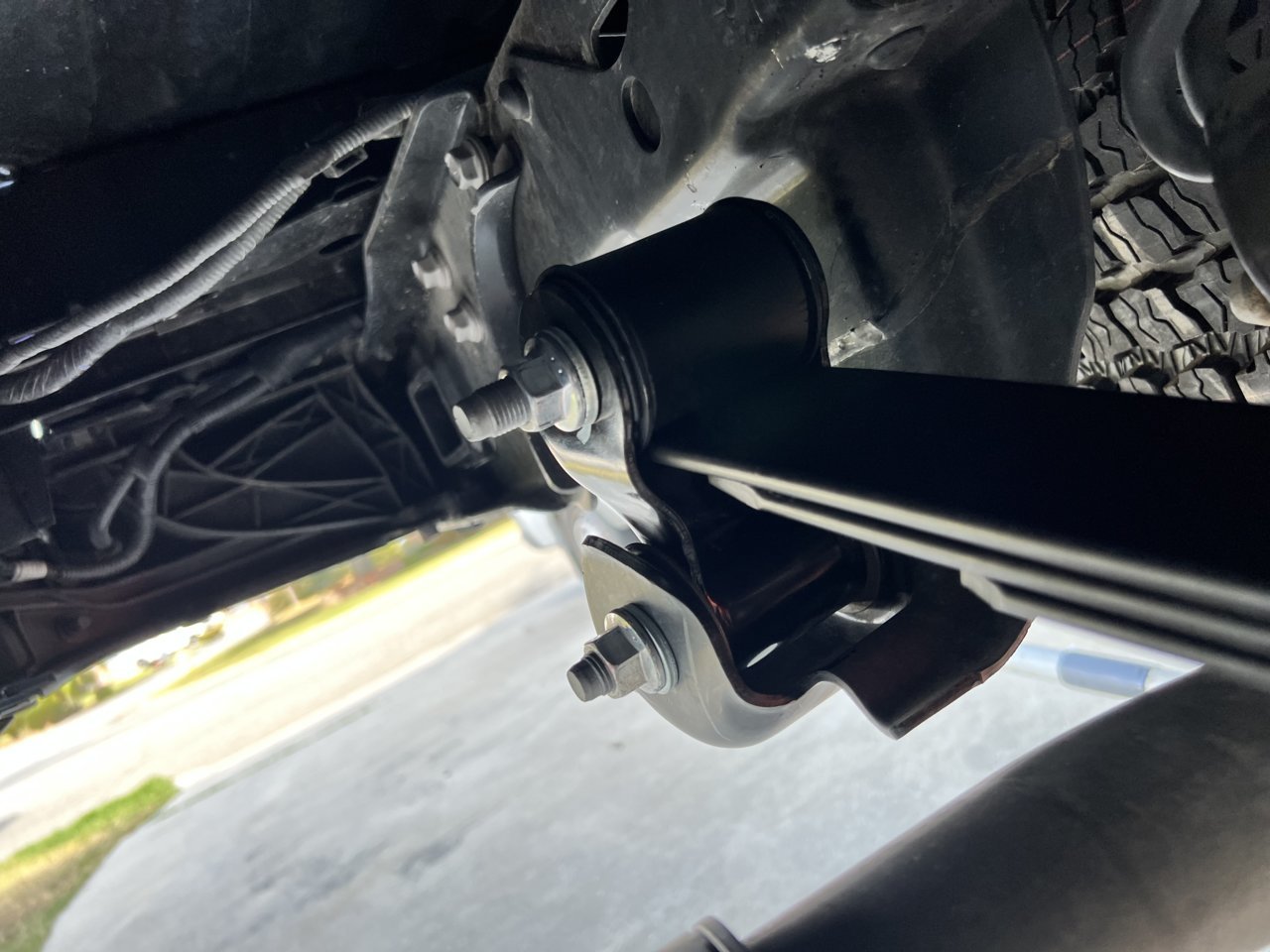

    See upper bolt..


  19. Jul 31, 2022 at 12:46 AM
    #59
    TacoZmtn

    TacoZmtn Well-Known Member

    Joined:
    Apr 30, 2022
    Member:
    #396207
    Messages:
    266
    Gender:
    Male
    Vehicle:
    2022 TRD Off Road LB
    OTT-6112’s~5160’s rxt's~ShmellFab Sliders

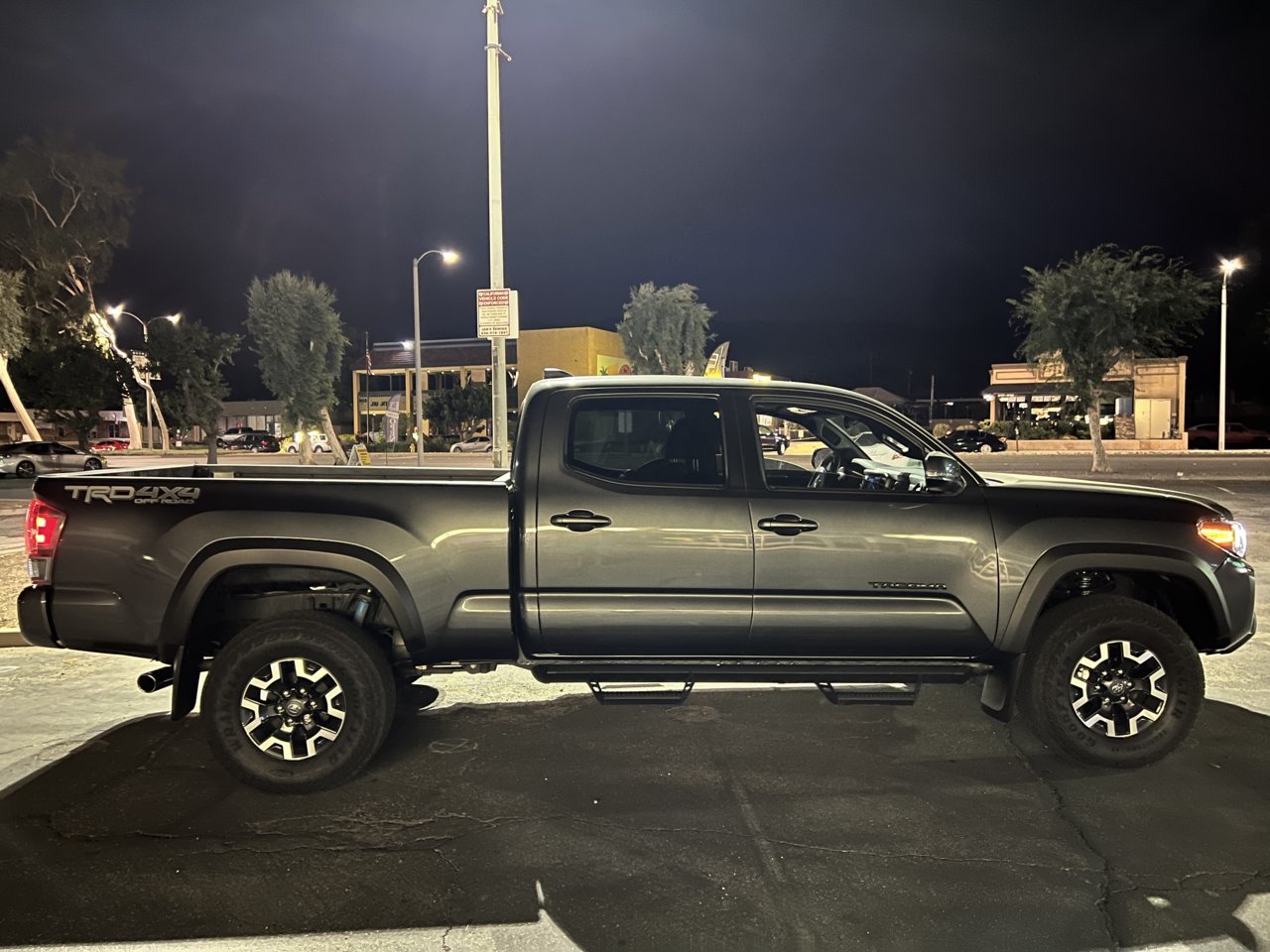

    Install went well minus the long bolt thing. Idk if my torque wrench is a pos or what else could be wrong. I am on the oem 4130’s still and installing the 5160’s next week when they arrive… Test drove it and it makes an odd noise when going over certain bumps… probably bc of the 4130’s… we’ll see next week. Still gotta let everything settle… Already rides better. 6112’s go on after some sleep


    71tattooguy likes this.
  20. Jul 31, 2022 at 12:47 AM
    #60
    TacoZmtn

    TacoZmtn Well-Known Member

    Joined:
    Apr 30, 2022
    Member:
    #396207
    Messages:
    266
    Gender:
    Male
    Vehicle:
    2022 TRD Off Road LB
    OTT-6112’s~5160’s rxt's~ShmellFab Sliders



    71tattooguy likes this.
