Discussion in '3rd Gen. Tacomas (2016-2023)' started by blackohio, Aug 12, 2017.

  1. Jun 12, 2024 at 5:34 PM
    #2321
    guaco.supreme

    guaco.supreme Fk around and find out

    Joined:
    Jan 26, 2024
    Member:
    #442486
    Messages:
    431
    Gender:
    Male
    MN
    Vehicle:
    '20 AG TRD Pro

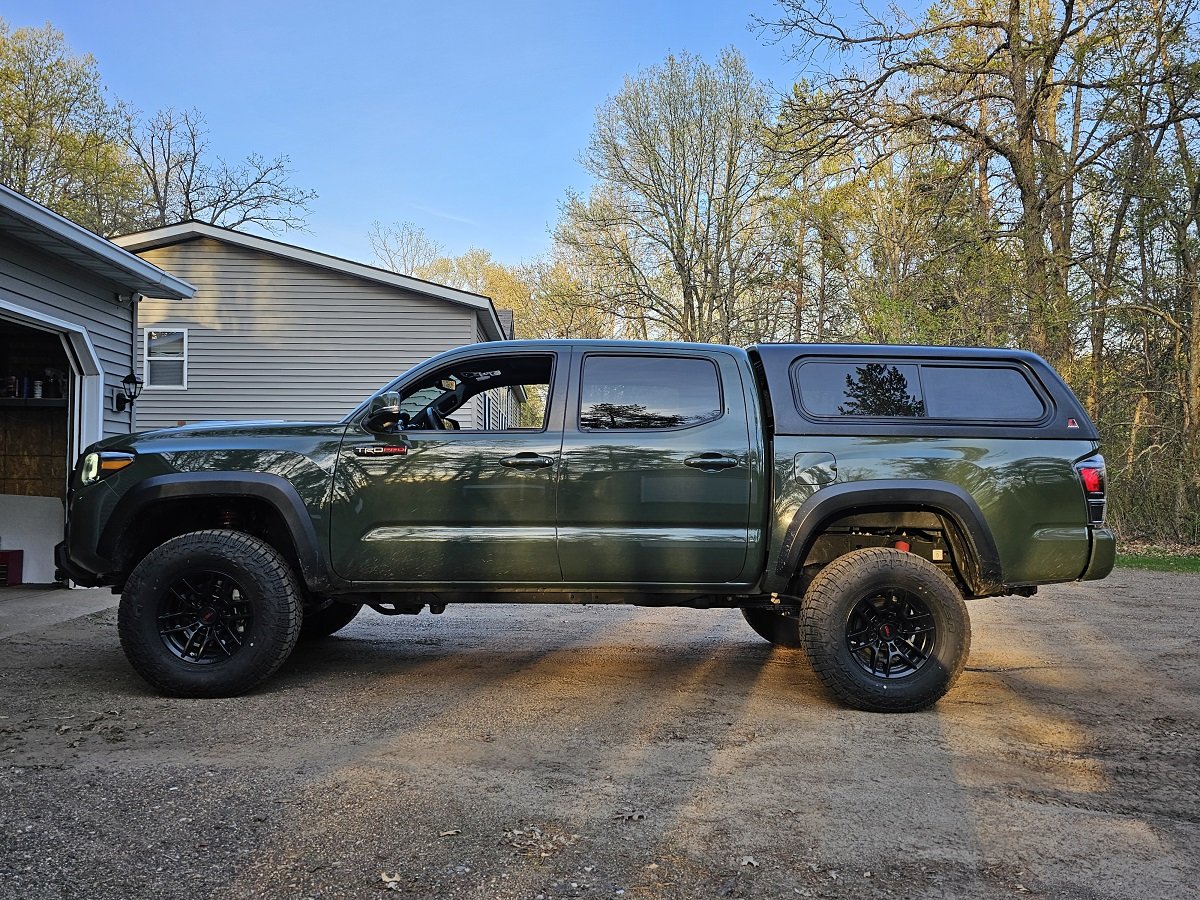

    You'll be fine. I have option 2 on my '20 Pro, and plenty of others do as well. Your max extension will still be limited by the shock length, but you'll still have plenty of flex.


  2. Jun 12, 2024 at 6:47 PM
    #2322
    Larueminati

    Larueminati Well-Known Member

    Joined:
    Dec 6, 2013
    Member:
    #118009
    Messages:
    516
    Gender:
    Male
    Western MA.
    Vehicle:
    2013 DCSB TRD 0FF-ROAD
    So is that standard where the shock tops out before the leaf pack unless you run a universal length shock? I'm looking at an icon rxt leaf pack that I want to run option 1 for 1.875" of lift, can I use bilstein 5160's with that even though they're only for up to 1.500" of lift? If not what are my other options?

  3. Jun 12, 2024 at 6:59 PM
    #2323
    Chito346

    Chito346 Well-Known Member

    Joined:
    Nov 19, 2017
    Member:
    #236446
    Messages:
    88
    Gender:
    Male
    First Name:
    Ruben
    Los Fresnos, TX
    Vehicle:
    LA YOTONA - 2017 TRD OFF-ROAD
    Eibach shocks, 888 OME coils, SPC Light Racing UCAs, True North fabrication hybrid bumper, Bilstein 5125s, Icon RXT leaf springs, MBRP exhaust, Level8 MK6, Nitto Ridge Grapplers, Diode Dynamics lighting, Martin Off-road roof rack, BAMF bolt on slider w/kick out, Lil B’s bed stiffeners, Power Thirst tune.
    I’m running 5125s with my icon rxts




  4. Jun 13, 2024 at 9:26 AM
    #2324
    memario1214

    memario1214 Hotshot Offroad Moderator Vendor

    Joined:
    Oct 1, 2009
    Member:
    #23628
    Messages:
    19,957
    Gender:
    Male
    First Name:
    Colton
    Missoula, MT
    Vehicle:
    SOLD - 05 Dub Cab TRD Sport 4x4, CURRENT - '21 Tundra MGM Limited
    Oddly enough, I've honestly never had TRD Pro Foxes in hand so I don't know their length! That said, I've seen @2one8 poking around plenty so I figure that he knows what he's talking about. If you want my gut guess they're probably a tad shorter than I would like to see. If you stumble across the extended/compressed lengths on them though I could tell you for sure.
    In general, yes. There are a few options that get closer to the maximum droop values such as the Icon RXT rear shocks, but very few will get all the way out there. The issue that quickly comes up is that as you keep pushing that extended length the compressed length creeps up as well, and many forget to take into consideration where their bumpstop will need to move to compensate. I would MUCH rather have a shock too short than too long and bottom it out.

    TL;DR - The 5160s work just fine. We marry them up with RXTs all of the time!

  5. Jun 13, 2024 at 11:02 AM
    #2325
    guaco.supreme

    guaco.supreme Fk around and find out

    Joined:
    Jan 26, 2024
    Member:
    #442486
    Messages:
    431
    Gender:
    Male
    MN
    Vehicle:
    '20 AG TRD Pro
    I wouldn't necessarily say I know what I'm talking about lol I just do a lot of research before purchasing stuff.

    The 5160s have similar specs to the Fox shocks.


    From my digging:

    TRD Pro Fox:
    Extended

    Rear: 595mm

    Collapsed
    Rear:357mm

    Stroke
    Rear:238mm



    Bilstein 5160:
    Extended

    Rear: 600.3mm

    Collapsed
    Rear: 361.1mm

    Stroke:
    Rear: 239.2mm



    To compare those to what ICON provides in their RXT kit:

    ICON 2.5 (RXT Option 2 kit)
    Extended

    Rear: 641mm

    Collapse
    Rear: 374.65mm

    Stroke
    Rear: 266.35mm


    ICON wont release the exact specs, but they gave me "approximate" lengths. Assuming ICON designed their RXT kit to match the droop of the RXT spring packs, the Fox and 5160 shocks come up around 46mm, or 1.8in short when fully extended.


    If I remember correctly from installing my RXT packs, the Fox shocks reached max extend even before the OEM springs reached full droop. I doubt anyone will have issues with Fox or 5160s unless they are running whoops non-stop and slamming the shocks to full extend over and over.

    bruhman likes this.
  6. Jun 14, 2024 at 7:32 AM
    #2326
    bruhman

    bruhman Well-Known Member

    Joined:
    Oct 26, 2022
    Member:
    #408993
    Messages:
    105
    Gender:
    Male
    PDX
    Vehicle:
    '22 White TRD Pro MT
    SnugTop canopy
    Bummer. That's exactly what I want to do. J/k :rofl:

    Thanks for the info @2one8 & @memario1214.

  7. Aug 20, 2024 at 5:07 PM
    #2327
    Tacodrew22

    Tacodrew22 Well-Known Member

    Joined:
    Aug 7, 2022
    Member:
    #403038
    Messages:
    61
    Gender:
    Male
    First Name:
    Andrew
    Michigan
    Vehicle:
    22 TRD Off-road
    2 inch TRD lift kit Lasfit LED Ditch lights WeBoost Softopper Method 701 265/75 R16 Mickey Baja Boss a/t
    Curios if someone can give me some direction. I currently have the Icon 1.5” aal I opted to keep the factory overload spring installed. I’m happy with how the truck sits currently but want to get the full leaf pack now. What config will get me closest to what I’m at now lift and weight wise?
    Going stiffer than I am now would be good to as my constant weight has been creeping up as I’ve been adding gear.

  8. Aug 20, 2024 at 6:27 PM
    #2328
    devinzz1

    devinzz1 Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132892
    Messages:
    6,798
    Gender:
    Male
    First Name:
    devin
    lewisporte Newfoundland
    Vehicle:
    2023 aclb trd or mt
    icon stage 10 kit, toytec 1" bl, 35" general x3s, 17x9.5 procomp wheels, locker anytime mod, s&b intake, blackhawk 2.1 tune,
    those icon shock specs are correct. but even with leafs on option 1 the leafs droop more than the shocks will allow and axle had to be jacked up to bolt the shock in.

  9. Aug 20, 2024 at 9:30 PM
    #2329
    Ffej

    Ffej Well-Known Member

    Joined:
    Mar 25, 2015
    Member:
    #151752
    Messages:
    281
    Gender:
    Male
    Evergreen, Colorado
    Vehicle:
    '22 TRD OR DCSB
    Bed mat
    Go with stage 2 for roughly 2” of lift. It’ll handle weight (200-500 pounds) just fine.

    I’ve run my leaf pack in all three settings and like stage 2 the best. Stage 3 is a harsh ride without 300+ pounds and stage 1 can’t handle more than 200 pounds without sagging. Stage 2 is the sweet spot and I have about 30k miles on the leaf pack.

  10. Aug 20, 2024 at 10:02 PM
    #2330
    TACO5AU5

    TACO5AU5 Well-Known Member

    Joined:
    Jan 2, 2021
    Member:
    #351485
    Messages:
    120
    Gender:
    Male
    New york
    Vehicle:
    2020 Tacoma Trd offroad
    SSO slime line hybrid bumper Baja design s8 Baja design ditch lights Eibach coilovers Icon rear leaf springs
    I’m currently on my 2nd set of rxts and the squeaks are extremely irritating I think I’m throwing in the towel and going archive garage . Before anyone judges me I’ve ran 2 sets on my truck both stage 3 . The 1st set I did the standard install(No liners/No lubricants) . I sold them after only 7-10k miles on them the squeaks were horrendous. It wasn’t the leafs but the bushings. Now the second set I purchased the leaf liners from speedway motors as well as coating each leaf with lubricants that worked for about 6 months now I’m about 18months in and the squeaks are ridiculously loud .

  11. Aug 21, 2024 at 5:42 AM
    #2331
    guaco.supreme

    guaco.supreme Fk around and find out

    Joined:
    Jan 26, 2024
    Member:
    #442486
    Messages:
    431
    Gender:
    Male
    MN
    Vehicle:
    '20 AG TRD Pro
    I have liners as well and I have squeak, but I do think mine is in he bushings. It's more like creaking at slow speeds and it's not very loud yet. I don't seem to hear anything with bumps, just creaks when tension changes.

  12. Aug 21, 2024 at 6:10 AM
    #2332
    rustyfromskowhegan

    rustyfromskowhegan Well-Known Member

    Joined:
    Jan 31, 2017
    Member:
    #209215
    Messages:
    486
    Vehicle:
    2013 AC 4x4
    Let me know if you decide to sell your current set :D

  13. Aug 21, 2024 at 6:12 AM
    #2333
    MagicToolbox

    MagicToolbox Well-Known Member

    Joined:
    Feb 23, 2024
    Member:
    #444482
    Messages:
    289
    Gender:
    Male
    Vehicle:
    2022DCSB MT TRD OffRoad in Lunar Rock
    Purchased Toyota Certified, with Vijay bumpers, additional lights, and Falken Wildpeaks on Fuel rims. Prev owner apparently painted the grill.
    My CPO '22 had terrible squeaking. Wife said she knew I was almost home when she could hear the truck. I tried a few different things, but 3 months ago I sprayed Fluid Film between each of the leaf springs, with special emphasis on the spacers at the ends. Then used the PB'laster on the bushings of the spring hangers. I'm not sure which thing 'fixed' the problem, and I don't know how long it will last. I used the PB'laster on the bushings because the Fluid Film says on the can that it may deteriorate rubber components.

    Not a lot of dusty driving since then, but the squeak has not yet returned. I've been doing stuff to my truck and been tempted to reapply, but I want to know how long it will last.

  14. Aug 21, 2024 at 6:19 AM
    #2334
    backcountryj

    backcountryj Pending Approval

    Joined:
    Aug 19, 2010
    Member:
    #41950
    Messages:
    7,057
    Gender:
    Male
    First Name:
    Jonathan
    GA
    My bushings creak so bad. Sounds like an 1850’s wooden wagon.

    I’m on option 2 with bike tubes between each leaf, and Dobinson greaseable shackle bolt. Still creaky AF

    Last edited: Aug 21, 2024
  15. Aug 21, 2024 at 6:23 AM
    #2335
    ERod27

    ERod27 Well-Known Member

    Joined:
    Mar 3, 2019
    Member:
    #285264
    Messages:
    388
    Gender:
    Male
    First Name:
    Eddie
    Vehicle:
    2019 TRD OR DCSB
    Icon Stage 8 (tubular UCAs) Cooper Discoverer AT3 XLT 285/70/R17 17" 4 Runner TRD PRO SEMA wheels TRD PRO skid plate limo tint 5.29 Yukon gears Apogee rear bumper with tire carrier
    I’m on option 3 with 255 in just my rear bumper and topper. Even if I load my truck down with over 350 in weight.. they still squeak. I’m switching to Alcans in about a month.

  16. Aug 21, 2024 at 6:54 AM
    #2336
    uhchxrlie

    uhchxrlie Well-Known Member

    Joined:
    Aug 31, 2023
    Member:
    #432532
    Messages:
    238
    Gender:
    Male
    Vehicle:
    2020 MGM Tacoma SR SX Package
    Just started getting squeaks. I’m on option 2 with about 350 lbs constant load. It only seemed to get bad after humid/rainy days! Prior to that there were no squeaks! A little disappointed but it still gets the job done so I will live!

    71tattooguy likes this.
  17. Aug 21, 2024 at 8:41 AM
    #2337
    Nyrob

    Nyrob Well-Known Member

    Joined:
    Mar 4, 2021
    Member:
    #358202
    Messages:
    738
    Gender:
    Male
    First Name:
    Robert
    Vehicle:
    2021 SX 2.7 AT 4WD
    5100 1.1 Front, 5125 Icon Stage 2 Rear, 5.29's, LCE Header
    Any pictures? how have they been holding up, did you drill holes in the other leafs? i was going to swap from option 2 to 1 no squeaks but these dormans are cheap at rock figured it couldnt hurt. I was planning on drilling the leafs without pads and having them on each leaf

  18. Aug 21, 2024 at 8:49 AM
    #2338
    TACO5AU5

    TACO5AU5 Well-Known Member

    Joined:
    Jan 2, 2021
    Member:
    #351485
    Messages:
    120
    Gender:
    Male
    New york
    Vehicle:
    2020 Tacoma Trd offroad
    SSO slime line hybrid bumper Baja design s8 Baja design ditch lights Eibach coilovers Icon rear leaf springs
    Hopefully archive has a Labor Day sale so I can pull the trigger and they are all yours :thumbsup:

  19. Aug 21, 2024 at 9:18 AM
    #2339
    JFriday1

    JFriday1 Well-Known Member

    Joined:
    Jan 14, 2019
    Member:
    #279318
    Messages:
    613
    Gender:
    Male
    First Name:
    Jesse
    Lakewood, CO
    Vehicle:
    19 Taco TRD-Sport, 16 4Runner
    Mobile Mechanic in Denver Instagram - "Jfriday123"

    Holes are the same size, no drilling needed. They are holding up much better than icon's. If you are level 3 like me then you will likely need to ditched the two front Leaf pack gold bolts that attached to the leaf alignment brackets, but I kept the rear one in place with a little persuasion. Sometimes I get a little bit squeak but I have had the leaf packs for 4 years now.

    Its also common to go in with a prybar 1x a year and clean the leafs and re-lube the induvial leafs and the round pads to keep the squeaks away. Otherwise throwing a can of fluid film or something similar at it can help too.

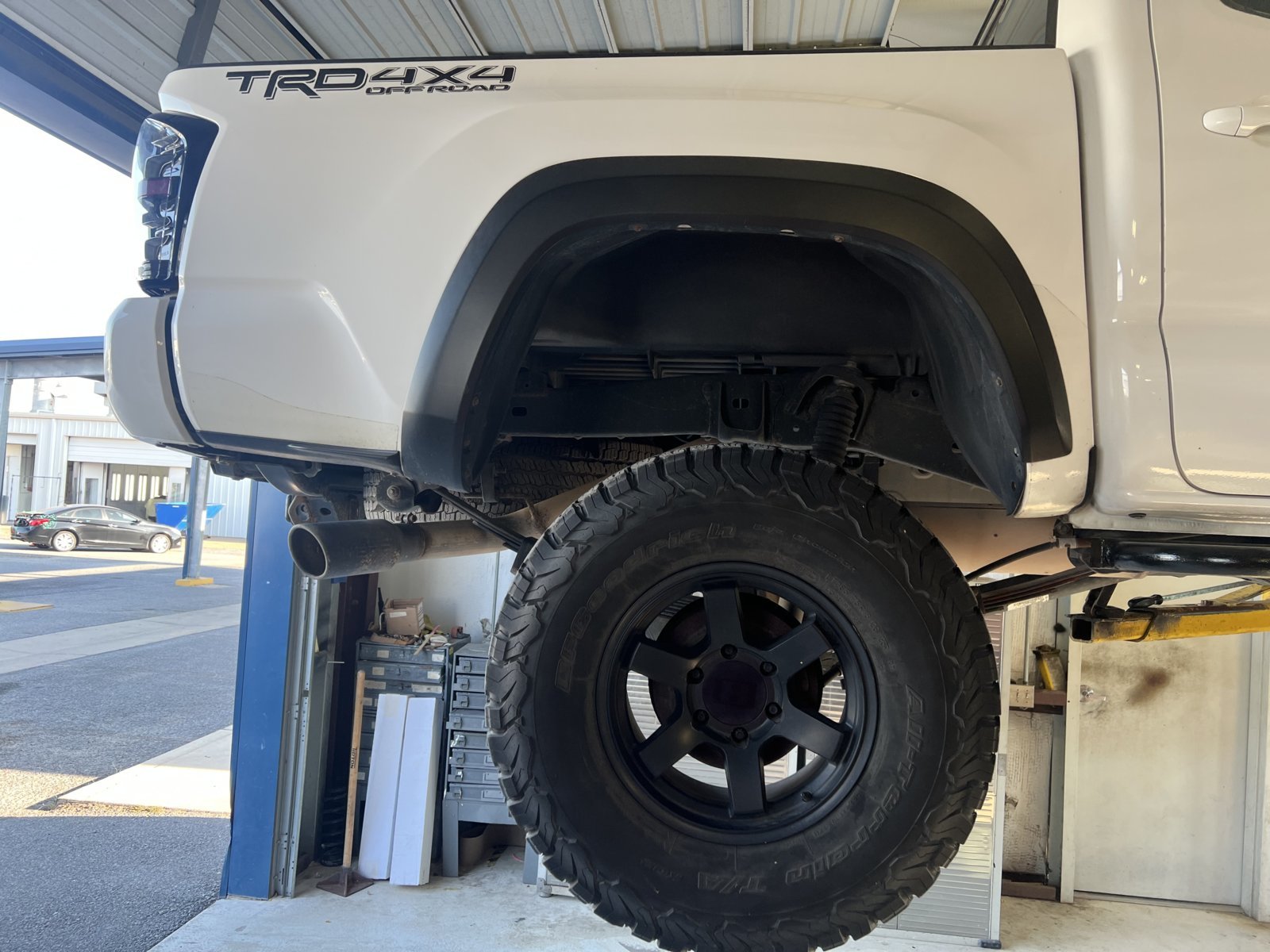

    Icon Vs Doorman.jpg

    AR15xAR10 likes this.
  20. Aug 21, 2024 at 9:49 AM
    #2340
    Nyrob

    Nyrob Well-Known Member

    Joined:
    Mar 4, 2021
    Member:
    #358202
    Messages:
    738
    Gender:
    Male
    First Name:
    Robert
    Vehicle:
    2021 SX 2.7 AT 4WD
    5100 1.1 Front, 5125 Icon Stage 2 Rear, 5.29's, LCE Header
    Thanks i meant drilling for i think the bottom 2 leafs since they do not have pads. I am on option 2 wanting to swap to 1 so i could use the longer option 3 hangers that should fit. I also figure with the slightly taller pads it will be easier to get in between the packs to re grease/clean. I normally run just a topper and some tools in my AC so 4-500lbs and option 2 is just a little high with a 1.1 front lift even after 15-20k on them. Had it loaded up 2 days ago moving with 7-800lbs plus the fiberglass shell so figure 1000lbs and there was still a 1.5'' rake from the front which is which is good. Its just not loaded down that heavy often so i think option 1 will better suit my needs, the access cab has to play a part in it option 2 on my truck can hold a ton of weight without really sagging.
