Icon rxt leaf pack

Discussion in '3rd Gen. Tacomas (2016-2023)' started by blackohio, Aug 12, 2017.

Page 19 of 115
  1. Nov 21, 2019 at 4:38 PM
    #361
    BrianPVan

    #361
    BrianPVan Well-Known Member

    Joined:
    Apr 12, 2017
    Member:
    #216082
    Messages:
    200
    Gender:
    Male
    First Name:
    Brian
    BC
    Vehicle:
    2017 DCSB OffRoad
    Have had my RXT's for about a year and no vibrations... Pack 3. Guess I'm one of the lucky ones.

    BrianPVan, Nov 21, 2019
    #361
    jonnytacoo likes this.
  2. Nov 21, 2019 at 6:02 PM
    #362
    SpeySquatch

    #362
    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,350
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)
    Looks great. How much lift in front? Also tire size?

    SpeySquatch, Nov 21, 2019
    #362
    toucan likes this.
  3. Nov 21, 2019 at 6:49 PM
    #363
    '18CementTaco

    #363
    '18CementTaco Well-Known Member

    Joined:
    Sep 18, 2018
    Member:
    #266670
    Messages:
    58
    Gender:
    Male
    BC
    Vehicle:
    2018 TRD OR DCSB
    JUST under 2”. Tires are 275/70/17

    '18CementTaco, Nov 21, 2019
    #363
    SpeySquatch[QUOTED] likes this.
  4. Nov 21, 2019 at 7:58 PM
    #364
    Island Cruiser

    #364
    Island Cruiser TVita

    Joined:
    May 20, 2012
    Member:
    #79166
    Messages:
    3,930
    Gender:
    Male
    Kauai
    Vehicle:
    Baja
    Love that stance

    Island Cruiser, Nov 21, 2019
    #364
    BizzyB726 likes this.
  5. Nov 21, 2019 at 8:35 PM
    #365
    '18CementTaco

    #365
    '18CementTaco Well-Known Member

    Joined:
    Sep 18, 2018
    Member:
    #266670
    Messages:
    58
    Gender:
    Male
    BC
    Vehicle:
    2018 TRD OR DCSB
    Thanks!

    '18CementTaco, Nov 21, 2019
    #365
  6. Nov 22, 2019 at 11:11 AM
    #366
    SpeySquatch

    #366
    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,350
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)

    How is the ride on option 2 with that empty bed? Have you ran other leaf packs to compare to?

    SpeySquatch, Nov 22, 2019
    #366
    paleh0rse likes this.
  7. Nov 22, 2019 at 3:32 PM
    #367
    '18CementTaco

    #367
    '18CementTaco Well-Known Member

    Joined:
    Sep 18, 2018
    Member:
    #266670
    Messages:
    58
    Gender:
    Male
    BC
    Vehicle:
    2018 TRD OR DCSB
    It rides really nice Its definitely a softer ride than OEM pack w/ AAL i previously had on. I havent ran any other leaf packs so i cant really compare the ride to other packs like Dakars or Deavers.

    '18CementTaco, Nov 22, 2019
    #367
    SpeySquatch[QUOTED] likes this.
  8. Nov 24, 2019 at 3:49 PM
    #368
    GF8er

    #368
    GF8er Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233920
    Messages:
    638
    MT. Hood
    Vehicle:
    18 MGM DCSB TRD OR 6MT
    I'm loving these RXT leaf's. The flex and ride is great, zero vibes.

    [​IMG]

    [​IMG]

    GF8er, Nov 24, 2019
    #368
    nattykanari, BFRT_King Ranch, paleh0rse and 4 others like this.
  9. Nov 24, 2019 at 4:34 PM
    #369
    toucan

    #369
    toucan Stupid truck

    Joined:
    Oct 27, 2013
    Member:
    #115366
    Messages:
    1,139
    Gender:
    Male
    First Name:
    Sam
    Oregon
    Vehicle:
    2013 DC offroad MGM. 2012 Super White SR 4x4 RC
    SCS/Bilstein/Icon/JBA/ Relentless/ATH/Smittybilt/Meso/Mobtown/Archive Garage/BAMF/Pioneer/Rockford Fosgate/Sundown/Wet Okole/Spiker Engineering/I'mMr.Yo/RAMMounts/Softopper/Weathertech/Factor55/Morel/DD
    I got mine last year at wheelers. 15% off. think theyre doing the same sale this year.

    toucan, Nov 24, 2019
    #369
    SpeySquatch[QUOTED] likes this.
  10. Nov 24, 2019 at 4:35 PM
    #370
    SpeySquatch

    #370
    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,350
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)
    Thanks Sir,

    I’ll check it out

    SpeySquatch, Nov 24, 2019
    #370
  11. Nov 24, 2019 at 4:53 PM
    #371
    GF8er

    #371
    GF8er Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233920
    Messages:
    638
    MT. Hood
    Vehicle:
    18 MGM DCSB TRD OR 6MT
    I bought mine from Wheelers during Black Friday also.

    GF8er, Nov 24, 2019
    #371
    SpeySquatch[QUOTED] likes this.
  12. Dec 1, 2019 at 1:09 PM
    #372
    SpeySquatch

    #372
    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,350
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)
    Has anyone on here taken/burnt out the stock eyelets in the ends of the leaf pack and replaced with something like energy suspension bushings and sleeve?

    SpeySquatch, Dec 1, 2019
    #372
  13. Dec 1, 2019 at 1:45 PM
    #373
    SpeySquatch

    #373
    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,350
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)
    @Icon_Adrian


    This goes for anyone to answer as well.

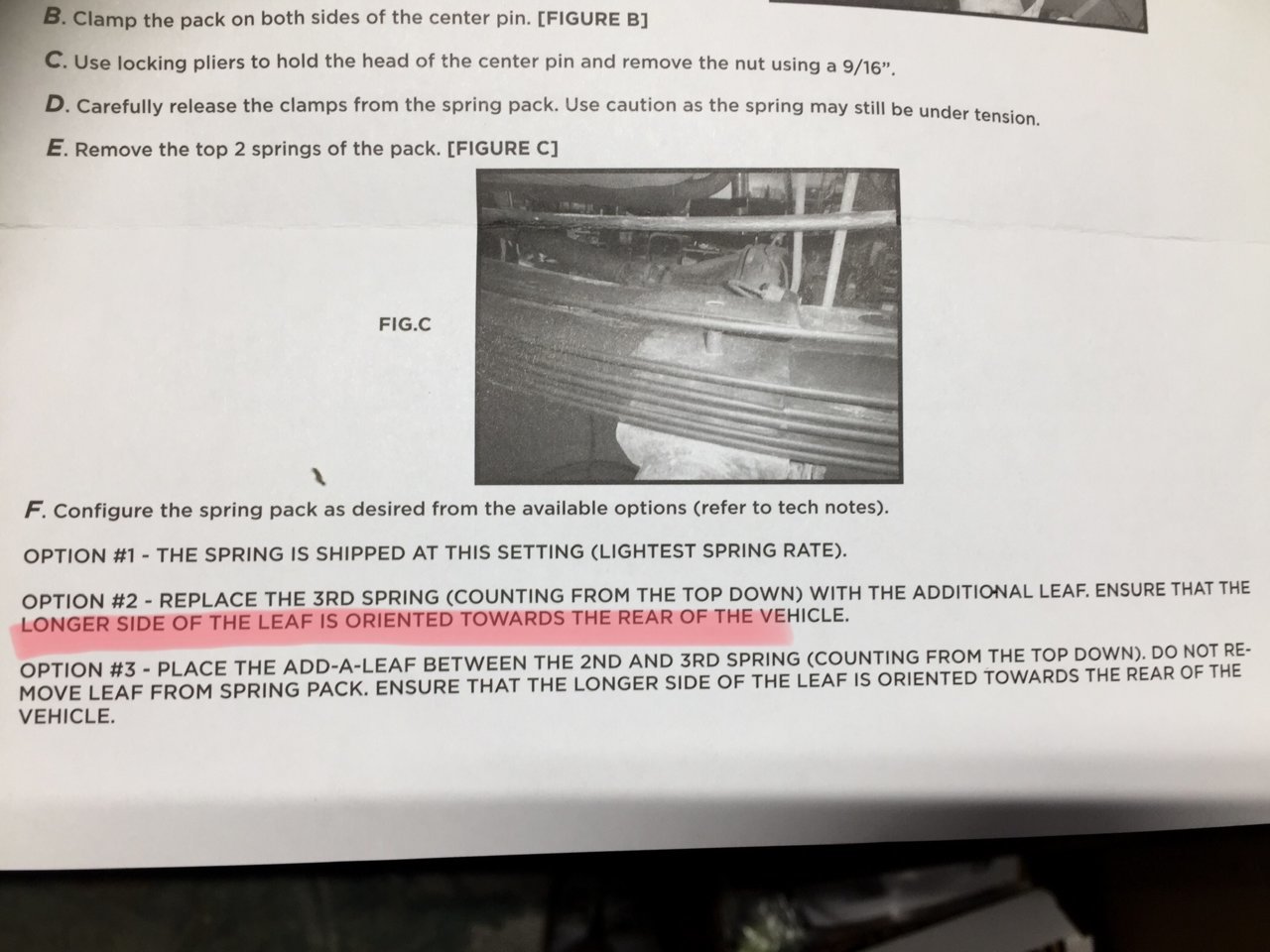

    Is this really true? According to Icon’s directions the longer end of the supplied leaf for option two should orient to the rear of the vehicle/leaf pack.

    I did this exactly and even measure the distance from the center hole of the leaf to each end. One was 24” or so, the other 27”. Input the long end towards the rear and the 3rd leaf now sits flush with the second. How is this wrong?



    SpeySquatch, Dec 1, 2019
    #373
    paleh0rse likes this.
  14. Dec 1, 2019 at 2:02 PM
    #374
    Nomis88

    #374
    Nomis88 Well-Known Member

    Joined:
    Jul 3, 2019
    Member:
    #298181
    Messages:
    141
    First Name:
    max
    Vehicle:
    17 taco
    I followed the instructions and my install went fine

    Nomis88, Dec 1, 2019
    #374
  15. Dec 1, 2019 at 2:05 PM
    #375
    SpeySquatch

    #375
    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,350
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)

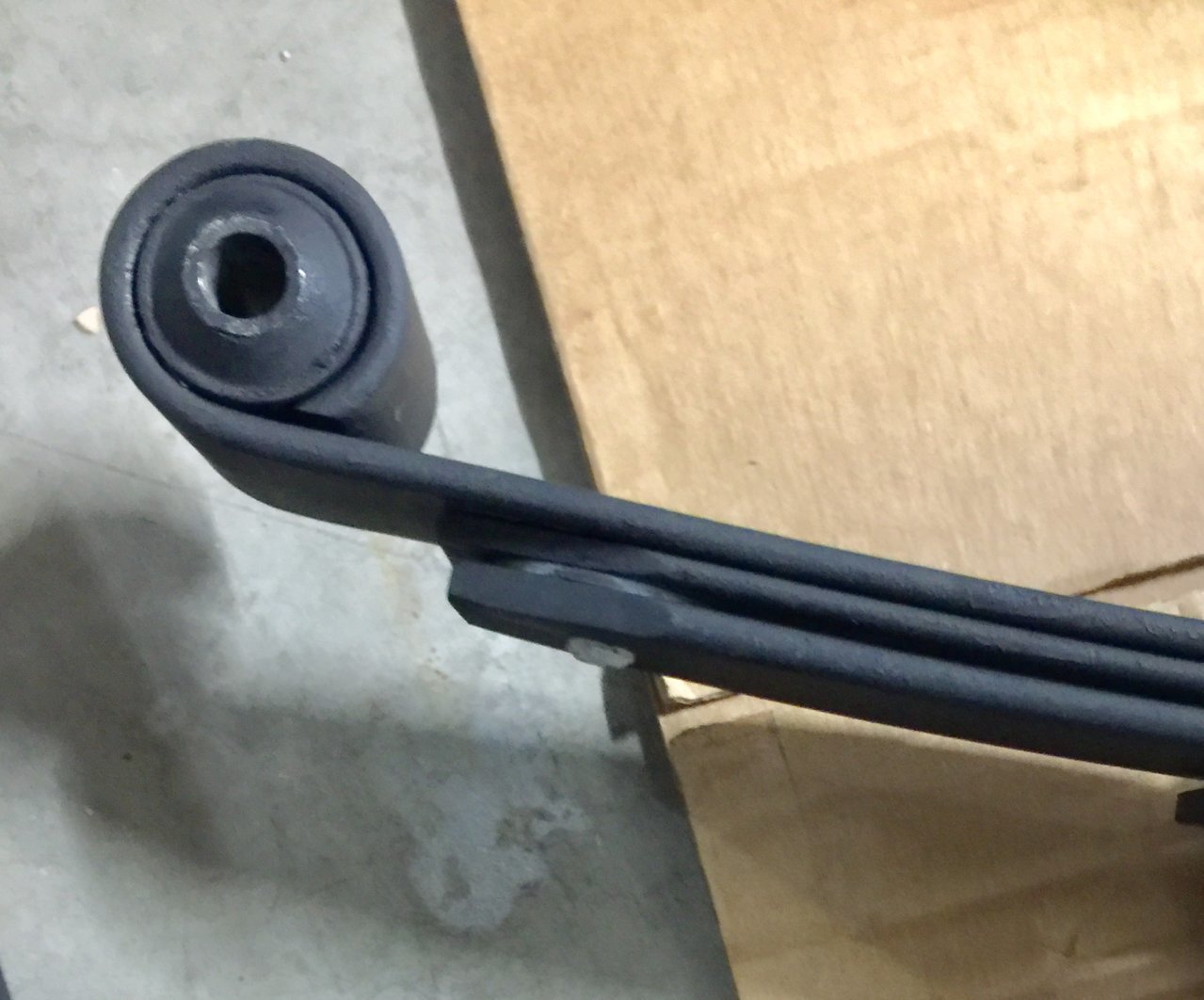

    Thanks for the help. Does your rear 3rd leaf look like this?


    SpeySquatch, Dec 1, 2019
    #375
  16. Dec 1, 2019 at 3:11 PM
    #376
    rdpoe

    #376
    rdpoe #2WDFTW

    Joined:
    May 28, 2018
    Member:
    #254789
    Messages:
    1,732
    Gender:
    Male
    First Name:
    Ryan
    Central Kentucky
    Vehicle:
    2019 TRD OR DCLB (Sold), Honda Civic TRD PRO
    Huh... I didn't follow the instructions there, I installed my the other way on my previous truck and just a few days ago on the new truck.

    I wonder how important it is and the reasoning? They say, "ensure..... Blah blah blah." Sounds like it makes a difference.

    Any @Icon_Adrian feedback?

    rdpoe, Dec 1, 2019
    #376
    SpeySquatch[QUOTED] likes this.
  17. Dec 1, 2019 at 3:24 PM
    #377
    SpeySquatch

    #377
    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,350
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)

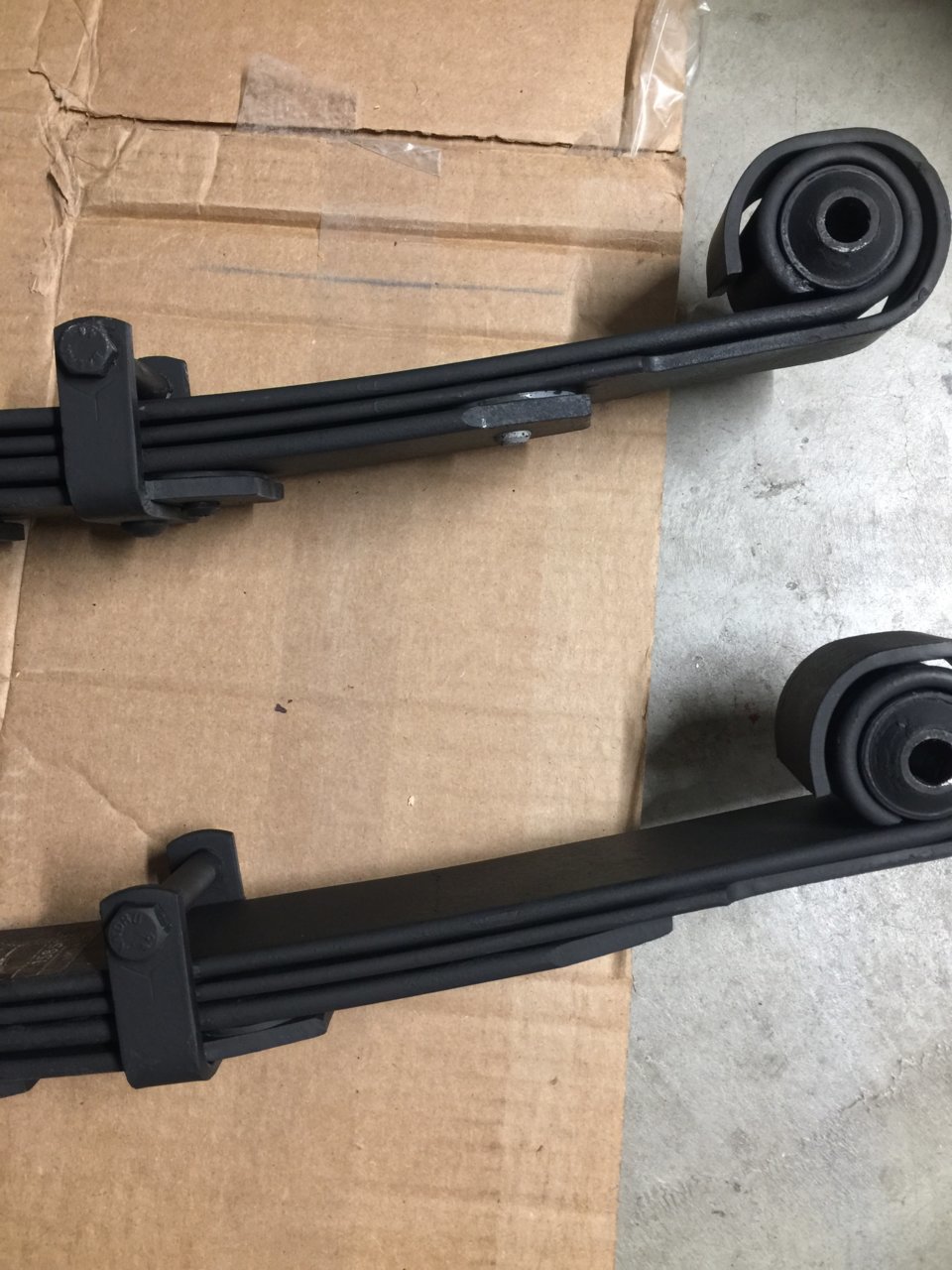

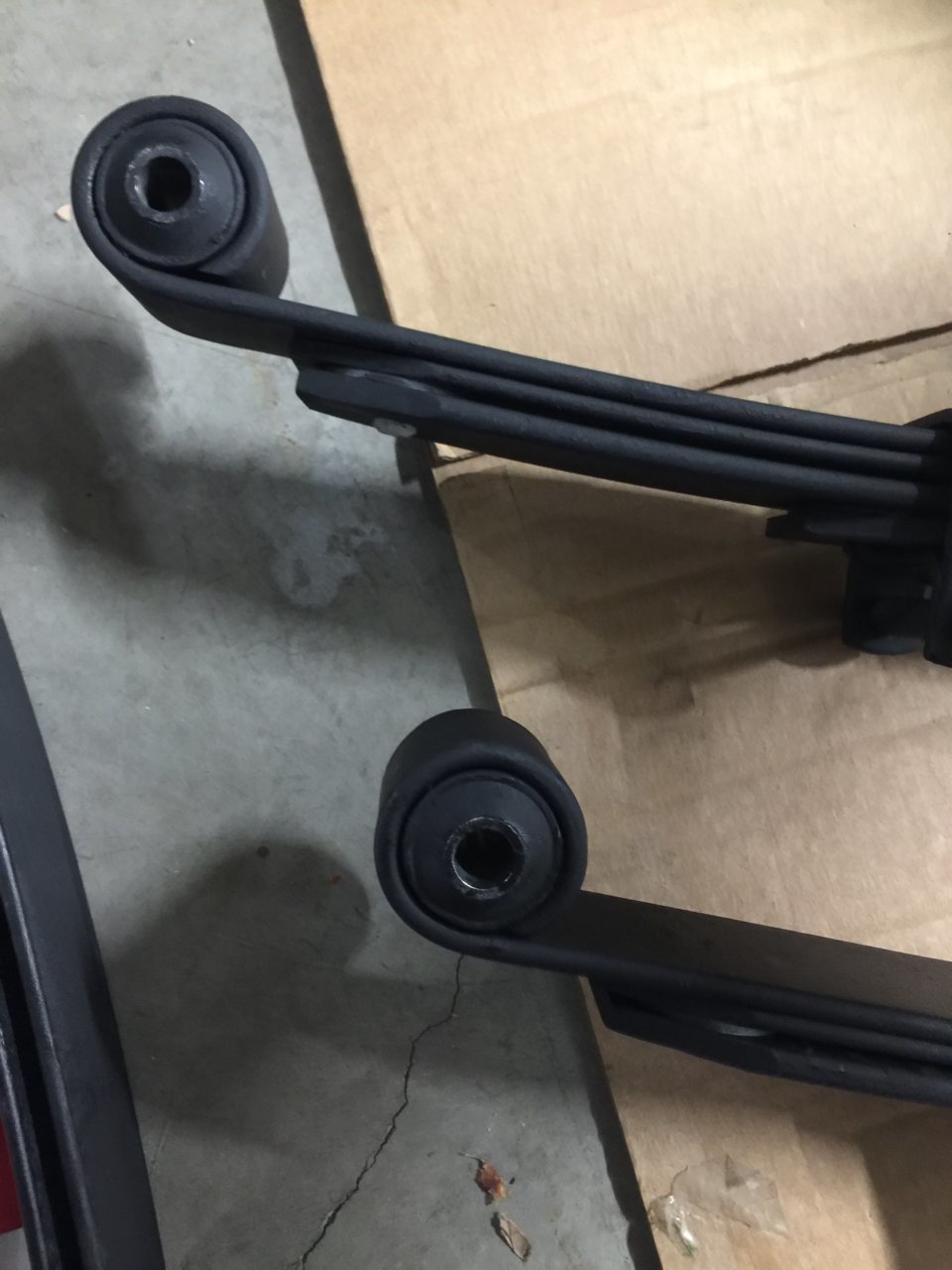

    Because nearly everyone (including Icon) that I looked at online (for option 2) installed it where the 2nd and 3rd leaf are not flush (opposite of directions)...I just went out in the garage and changed them so now they look like this on the rear part of the leaf.

    Appreciate your concern as well...I was feeling ignored lol


    SpeySquatch, Dec 1, 2019
    #377
  18. Dec 1, 2019 at 3:34 PM
    #378
    rdpoe

    #378
    rdpoe #2WDFTW

    Joined:
    May 28, 2018
    Member:
    #254789
    Messages:
    1,732
    Gender:
    Male
    First Name:
    Ryan
    Central Kentucky
    Vehicle:
    2019 TRD OR DCLB (Sold), Honda Civic TRD PRO
    Well you have me curious because I totally glossed over that in the instructions.

    I wonder why they specifically pointed it out (though it seems counterintuitive)?

    I'm also curious if you feel a difference.

    rdpoe, Dec 1, 2019
    #378
  19. Dec 1, 2019 at 3:39 PM
    #379
    SpeySquatch

    #379
    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,350
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)

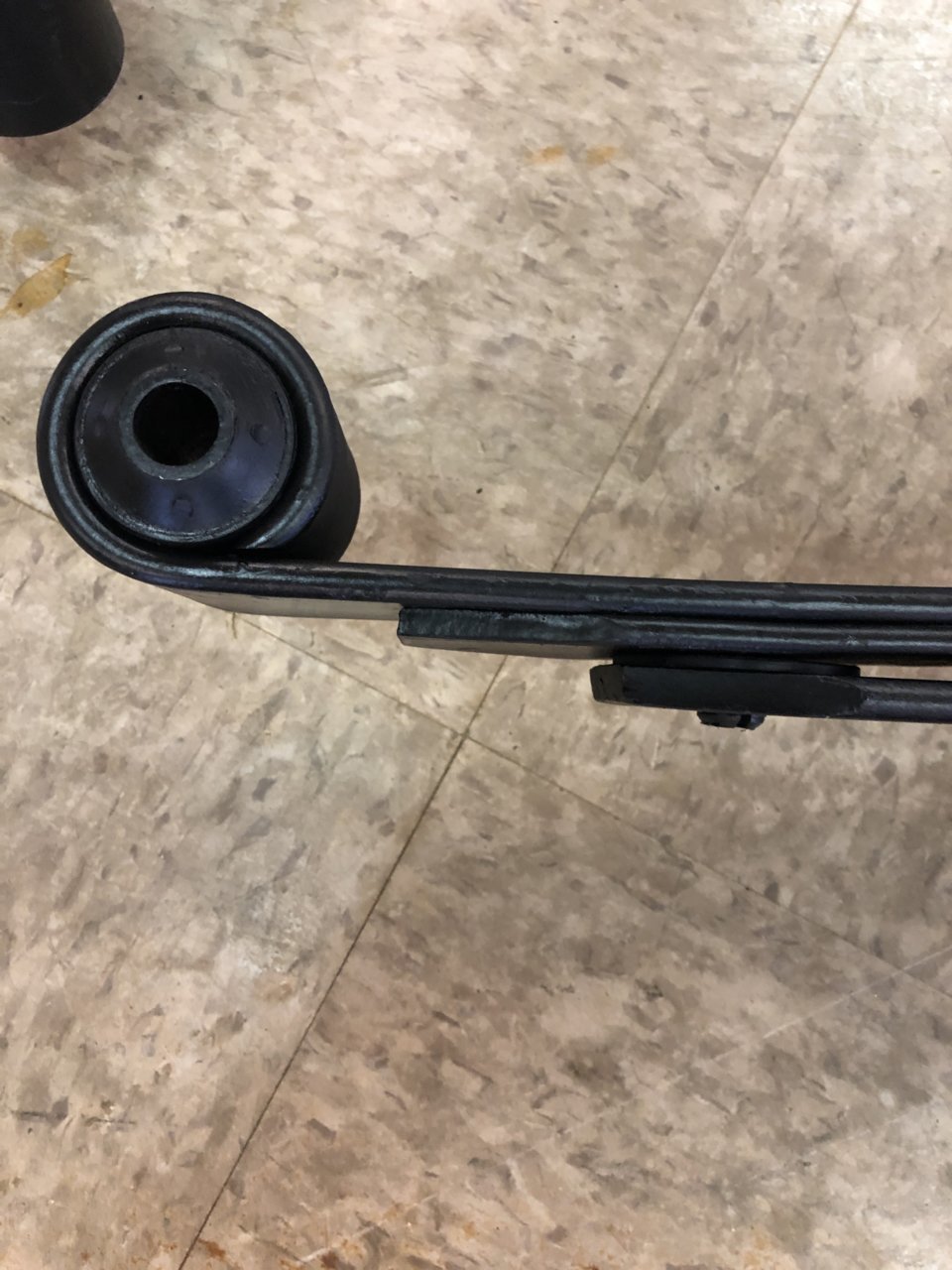

    It does seem counterintuitive. If the leafs flex flat when it looks like the image below, there is a chance the 3rd leaf liner will slip over the end of the 2nd leaf. This is with the 3rd leaf long end pointed to the rear of the pack


    All icon had to do was put an image of the final assembled product in the instructions...

    SpeySquatch, Dec 1, 2019
    #379
    charlieyankee88, paleh0rse, ARCHIVE and 1 other person like this.
  20. Dec 1, 2019 at 4:18 PM
    #380
    christyle

    #380
    christyle 107

    Joined:
    May 16, 2017
    Member:
    #219225
    Messages:
    1,706
    Gender:
    Male
    First Name:
    Chris
    Chino Hills, CA
    Vehicle:
    2014 Raptor
    Maybe this is why some people have wrap and others don't? Double up the thickenss up where @ARCHIVE thinks it's causing the wrap issue?

    christyle, Dec 1, 2019
    #380
    SpeySquatch likes this.
