Discussion in '3rd Gen. Tacomas (2016-2023)' started by blackohio, Aug 12, 2017.

Page 20 of 114
  1. Dec 1, 2019 at 5:01 PM
    #381
    SpeySquatch

    #381
    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,347
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)
    @slomoe

    Can one of you fellers take a pic on the rear of your leaf pack showing the end at the back of the truck of the 2nd and 3rd leaf please

    Last edited: Dec 1, 2019
    SpeySquatch, Dec 1, 2019
    #381
  2. Dec 1, 2019 at 5:20 PM
    #382
    GF8er

    #382
    GF8er Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233920
    Messages:
    638
    MT. Hood
    Vehicle:
    18 MGM DCSB TRD OR 6MT
    @SpeySquatch

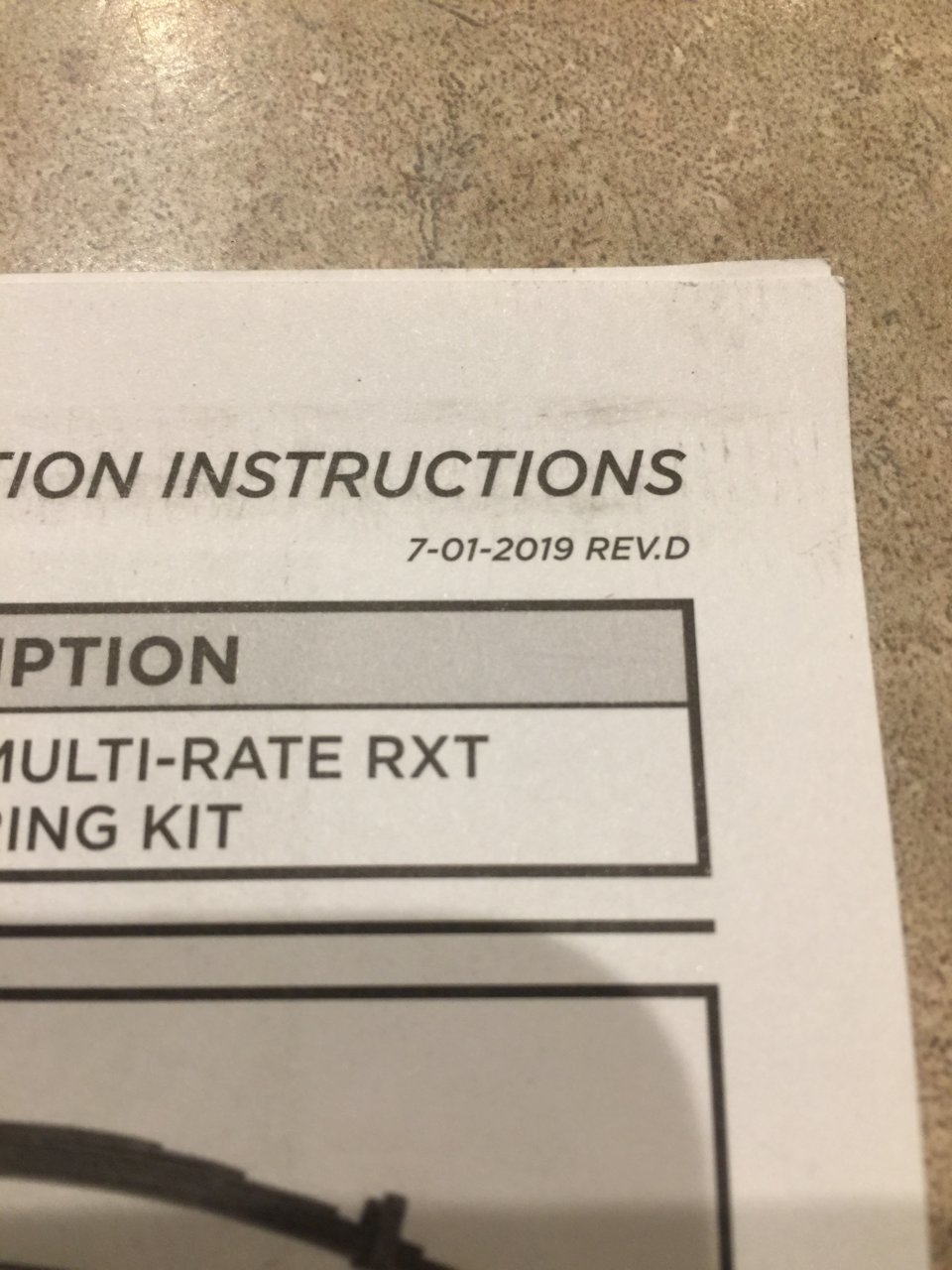

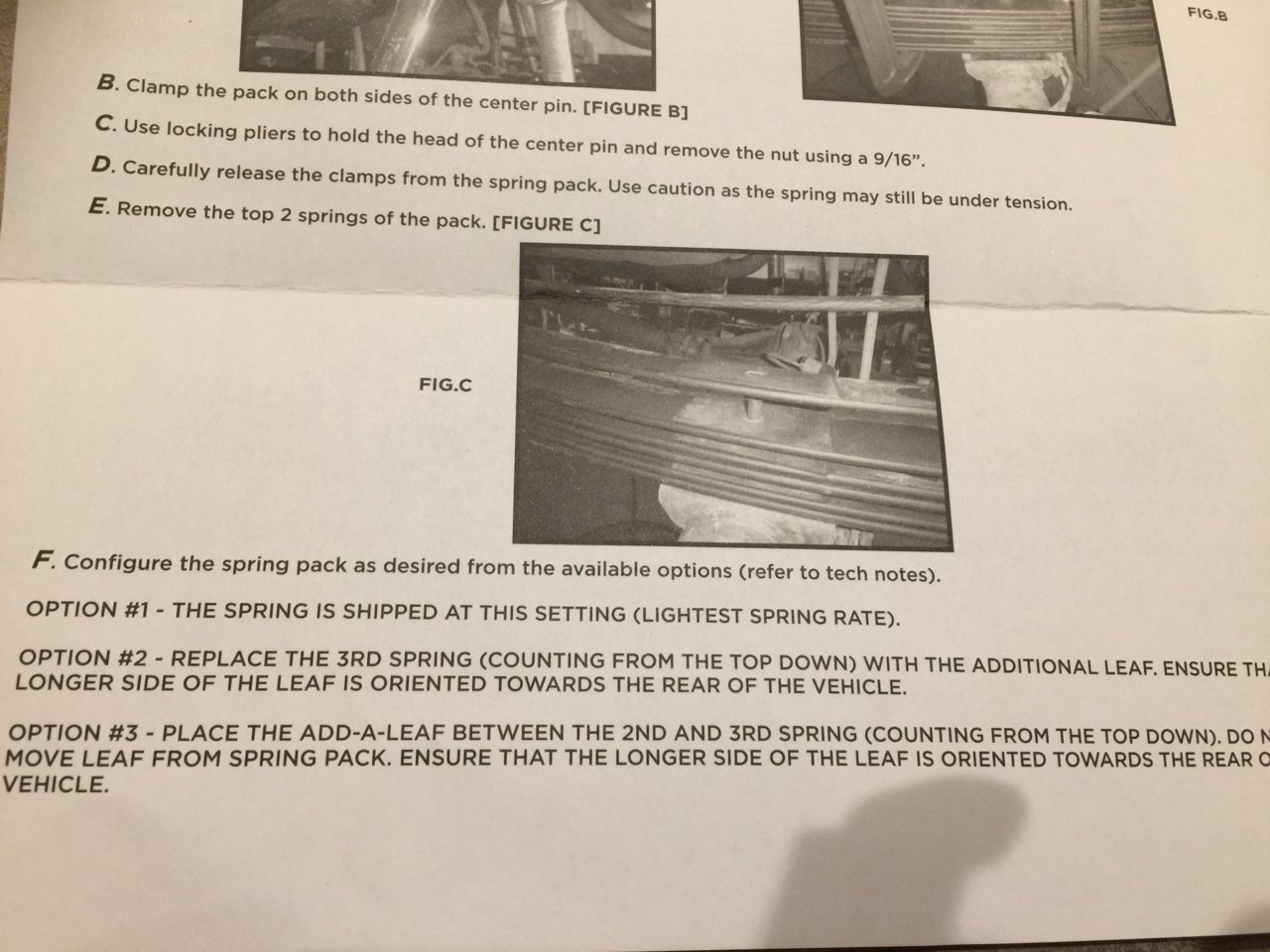

    What is the revision date on your instructions? My instructions don't mention the leaf direction.

    [​IMG]

    [​IMG]

    GF8er, Dec 1, 2019
    #382
    charlieyankee88 likes this.
  3. Dec 1, 2019 at 5:22 PM
    #383
    GF8er

    #383
    GF8er Well-Known Member

    Joined:
    Oct 23, 2017
    Member:
    #233920
    Messages:
    638
    MT. Hood
    Vehicle:
    18 MGM DCSB TRD OR 6MT
    GF8er, Dec 1, 2019
    #383
  4. Dec 1, 2019 at 5:42 PM
    #384
    SpeySquatch

    #384
    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,347
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)
    Good catch! Very interesting.

    This ought to be good. I’ll come to find out I need to flip the leaf to the way I had it...lol



    Last edited: Dec 1, 2019
    SpeySquatch, Dec 1, 2019
    #384
    charlieyankee88 likes this.
  5. Dec 1, 2019 at 7:23 PM
    #385
    omegaman2

    #385
    omegaman2 Unknown Member

    Joined:
    Sep 25, 2016
    Member:
    #198242
    Messages:
    650
    Gender:
    Male
    805
    Vehicle:
    2015 4WD DCSB
    my 2nd & 3rd leafs are not flush. a while back in this thread the consensus here was they should not be flush (forget how exactly how we came to that). my instructions are from 6-27-2017 REV. A, which does not stipulate which end the longer side should point...
    i have the take-off shudder both with & without 3* shims.
    would be great to have icon weigh in here...

    omegaman2, Dec 1, 2019
    #385
    charlieyankee88, paleh0rse, '18CementTaco and 1 other person like this.
  6. Dec 2, 2019 at 2:29 AM
    #386
    rdpoe

    #386
    rdpoe #2WDFTW

    Joined:
    May 28, 2018
    Member:
    #254789
    Messages:
    1,732
    Gender:
    Male
    First Name:
    Ryan
    Central Kentucky
    Vehicle:
    2019 TRD OR DCLB (Sold), Honda Civic TRD PRO
    On the shudder topic, I did a carrier bearing drop and nothing else on both trucks, both running option 2.

    No shudder or vibrations.

    Maybe I lucked out or maybe the DCLB geometry has something to do with it

    rdpoe, Dec 2, 2019
    #386
  7. Dec 2, 2019 at 5:49 AM
    #387
    SR-71A

    #387
    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    7,443
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    255/85/R16 Falken Wildpeak MTs, Mobtown sliders, ARB bar, SOS front skid, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, OVS wedge RTT, dual AGM batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    I wouldn't overthink it too much haha. What you have in your picture is incorrect (as you know). The cover image on the instruction sheet is essentially the 'final product' image you are looking for like GF8er posted. Working 'down' the pack from largest to smallest, each leaf gets smaller by roughly an equal length on each side. In your case you have no overlap on that side, and probably ~4 inches of overlap on the other. Just have to turn that one leaf around.


    SR-71A, Dec 2, 2019
    #387
    SpeySquatch[QUOTED] and toucan like this.
  8. Dec 2, 2019 at 9:08 AM
    #388
    SpeySquatch

    #388
    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,347
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)
    I just called Icon and they said it was a typo in that batch of instructions that they include for other leaf packs not specific to the Tacoma.

    All good

    SpeySquatch, Dec 2, 2019
    #388
    SR-71A[QUOTED], omegaman2 and '18CementTaco like this.
  9. Dec 2, 2019 at 9:41 AM
    #389
    omegaman2

    #389
    omegaman2 Unknown Member

    Joined:
    Sep 25, 2016
    Member:
    #198242
    Messages:
    650
    Gender:
    Male
    805
    Vehicle:
    2015 4WD DCSB
    So to be clear - the 2nd & 3rd leaf ends should NOT be flush with each other?

    omegaman2, Dec 2, 2019
    #389
  10. Dec 2, 2019 at 9:45 AM
    #390
    paleh0rse

    #390
    paleh0rse Well-Known Member

    Joined:
    Nov 17, 2018
    Member:
    #273012
    Messages:
    1,799
    Gender:
    Male
    Raleigh, NC
    Vehicle:
    2019 Cement Tacoma TRD Off-road DCLB
    What was the typo, exactly? it's extremely difficult to keep up with who is saying what in here. I still have no idea which installation method is correct based on the vague/numerous responses.

    Can you or someone else PLEASE post a "once and for all" correct installation description and image? It would be much appreciated.

    paleh0rse, Dec 2, 2019
    #390
  11. Dec 2, 2019 at 9:56 AM
    #391
    rdpoe

    #391
    rdpoe #2WDFTW

    Joined:
    May 28, 2018
    Member:
    #254789
    Messages:
    1,732
    Gender:
    Male
    First Name:
    Ryan
    Central Kentucky
    Vehicle:
    2019 TRD OR DCLB (Sold), Honda Civic TRD PRO
    I think the "once and for all" clarification can only come from @Icon_Adrian but the consensus seems to be the leafs should not be flush. When going from option 1 -2, they should maintain the same orientation and corresponding step down in length as the original leaf.

    This is how I have mine installed and how @SpeySquatch swapped his to be installed. Per his phone conversation with Icon, the original instructions were incorrect and the leafs should not be flush.

    Unless I'm misunderstanding....haha

    rdpoe, Dec 2, 2019
    #391
    nattykanari and paleh0rse[QUOTED] like this.
  12. Dec 2, 2019 at 10:02 AM
    #392
    SR-71A

    #392
    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    7,443
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    255/85/R16 Falken Wildpeak MTs, Mobtown sliders, ARB bar, SOS front skid, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, OVS wedge RTT, dual AGM batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    Correct.

    SR-71A, Dec 2, 2019
    #392
    christyle and omegaman2[QUOTED] like this.
  13. Dec 2, 2019 at 10:21 AM
    #393
    SpeySquatch

    #393
    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,347
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)
    Correct. Tapered look

    SpeySquatch, Dec 2, 2019
    #393
    nattykanari and omegaman2[QUOTED] like this.
  14. Dec 2, 2019 at 10:23 AM
    #394
    SpeySquatch

    #394
    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,347
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)

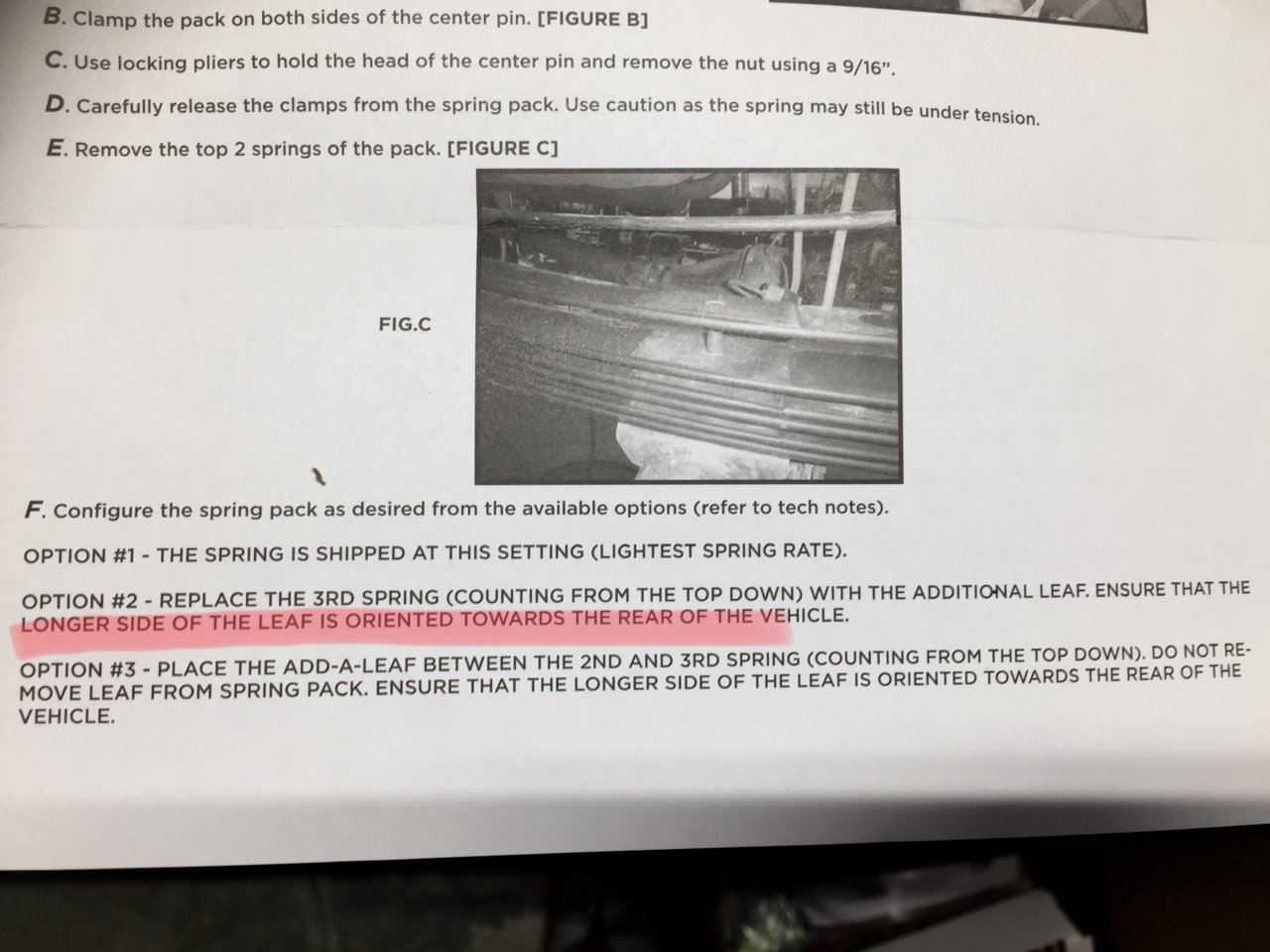

    The highlighted red area in my instructions is the typo. I called Icon tech help directly


    SpeySquatch, Dec 2, 2019
    #394
    paleh0rse[QUOTED] and omegaman2 like this.
  15. Dec 2, 2019 at 11:08 AM
    #395
    omegaman2

    #395
    omegaman2 Unknown Member

    Joined:
    Sep 25, 2016
    Member:
    #198242
    Messages:
    650
    Gender:
    Male
    805
    Vehicle:
    2015 4WD DCSB
    Awesome
    Thanks for calling icon

    omegaman2, Dec 2, 2019
    #395
    SpeySquatch likes this.
  16. Dec 5, 2019 at 12:30 PM
    #396
    charlieyankee88

    #396
    charlieyankee88 Well-Known Member

    Joined:
    Jul 22, 2017
    Member:
    #224770
    Messages:
    337
    Gender:
    Male
    Vehicle:
    2017 TRD OR DCSB MT
    RADFLO Suspension, JBA HD UCAs, Mobtown low pro bumper, Mobtown bolt-on sliders, Engo SR10s, SCS Stealth 6, AFE CAI, URD Spec U, OV Tuned, Gobi Rack, Softopper, CMC
    My install was correct. Great discussion though and good feedback. My point of writing the whole thing up was to avoid people running into the same issues I had. It was not fun reconfiguring the packs so many times. It should have been apparent that the leaves should have not been flush.

    charlieyankee88, Dec 5, 2019
    #396
    SpeySquatch likes this.
  17. Dec 5, 2019 at 12:47 PM
    #397
    Nomis88

    #397
    Nomis88 Well-Known Member

    Joined:
    Jul 3, 2019
    Member:
    #298181
    Messages:
    141
    First Name:
    max
    Vehicle:
    17 taco
    hahah great so now i have to reconfigure the pack, so much for following the directions. For what its worth ive had the vehicle plenty loaded in option 3 with the AAL installed the wrong way and I havent had any issue

    Nomis88, Dec 5, 2019
    #397
  18. Dec 5, 2019 at 12:54 PM
    #398
    slomoe

    #398
    slomoe Well-Known Member

    Joined:
    Nov 8, 2017
    Member:
    #235473
    Messages:
    667
    Gender:
    Male
    Stuart,Fl
    Vehicle:
    2011 Tacoma DCLB TRD Sport 4x4
    Wet Okole, Maxxis Razor (285x70x17), Bilstein 6112, RXT's Fn 5star
    Aye, sorry for late reply. I can get a pic for ya later if you still need it.
    In option one the third leaf is in fact put in longer end forward as packaged. For option 2 the long end of the leaf should be to the front of the pack. If leafs are installed the std long end to the rear, I had interference with the isolater pads, plus leafs dont match or step correctly which has been mentioned. My directions gave no mention right or wrong.
    Yes i did talk to icon as well and they confirmed my findings a few months ago

    slomoe, Dec 5, 2019
    #398
  19. Dec 5, 2019 at 1:13 PM
    #399
    SpeySquatch

    #399
    SpeySquatch Function over Form

    Joined:
    Mar 6, 2018
    Member:
    #246516
    Messages:
    7,347
    Gender:
    Male
    Vehicle:
    2016 TRD OR DCSB
    C4Fab LoPro, BAMF Sliders, Ext ADS 2.5’s, 4.88's, OVTune (OG to KDMax)
    No sweat. I got it set right with icon. All good

    Thanks for the response :thumbsup:

    SpeySquatch, Dec 5, 2019
    #399
    slomoe[QUOTED] likes this.
  20. Dec 5, 2019 at 1:49 PM
    #400
    christyle

    #400
    christyle 107

    Joined:
    May 16, 2017
    Member:
    #219225
    Messages:
    1,706
    Gender:
    Male
    First Name:
    Chris
    Chino Hills, CA
    Vehicle:
    2014 Raptor
    I mean...have you ever seen a leaf pack where they don't taper in length? If you're able to install leafs on your truck, I feel like you should understand the instructions had a mistake.

    christyle, Dec 5, 2019
    #400
    SR-71A and slomoe like this.
