Icon RXT leaf spring help???

Discussion in '3rd Gen. Tacomas (2016+)' started by EricTRD4x4, Jan 19, 2019.

  1. Jan 19, 2019 at 12:24 PM
    #1
    EricTRD4x4

    EricTRD4x4 [OP] Well-Known Member

    Joined:
    Jul 18, 2016
    Member:
    #192294
    Messages:
    94
    Gender:
    Male
    Vehicle:
    2016 DCSB TRD Off Silver Sky Metallic
    Bilstein 6112 and 5160, CBI Hidden Winch, Warn VR10, TRD Wheels w/ BFG KO2
    Installing the Icon RXT spring pack and doing option 2. The extra provided leaf is longer on one side than the other. I’m presuming front is where the longer side goes but would like to double check. Could be blind but intructions don’t specify. Anyone know which end????

  2. Jan 19, 2019 at 12:52 PM
    #2
    Clay7160

    Clay7160 Well-Known Member

    Joined:
    Aug 15, 2016
    Member:
    #194623
    Messages:
    1,159
    Gender:
    Male
    Vehicle:
    2018 MGM TRDOR DCLB 4x4
    GYEON ceramic coating
    No I believe the long side goes towards the rear, I’m also on option number two. I measured the leafspring that came out and put it same way. I called icon to verify, and they said that was correct. I used all the same hardware from option one, everything was long enough. Also on the rear brake cable brackets, I used a Unibit to enlarge the hole, used pliers to twist the bracket to line up with cable, and bolted it to the leaf spring clamps. On my double cab longbed, game me 3” lift before settling. They ride so much smoother compared to stock leaf springs.


    BassAckwards and codirtlimo like this.
  3. Jan 19, 2019 at 1:12 PM
    #3
    EricTRD4x4

    EricTRD4x4 [OP] Well-Known Member

    Joined:
    Jul 18, 2016
    Member:
    #192294
    Messages:
    94
    Gender:
    Male
    Vehicle:
    2016 DCSB TRD Off Silver Sky Metallic
    Bilstein 6112 and 5160, CBI Hidden Winch, Warn VR10, TRD Wheels w/ BFG KO2
    After the post I took to measuring also and the longer side on mine was to the front (side with two clamps). Funny the instructions don’t mention nor is it marked there is a longer side.


  4. Jan 19, 2019 at 1:32 PM
    #4
    Clay7160

    Clay7160 Well-Known Member

    Joined:
    Aug 15, 2016
    Member:
    #194623
    Messages:
    1,159
    Gender:
    Male
    Vehicle:
    2018 MGM TRDOR DCLB 4x4
    GYEON ceramic coating
    I just placed the new leaf in the same orientation as the one I removed - short side replaced short side.

  5. Jan 19, 2019 at 1:52 PM
    #5
    EricTRD4x4

    EricTRD4x4 [OP] Well-Known Member

    Joined:
    Jul 18, 2016
    Member:
    #192294
    Messages:
    94
    Gender:
    Male
    Vehicle:
    2016 DCSB TRD Off Silver Sky Metallic
    Bilstein 6112 and 5160, CBI Hidden Winch, Warn VR10, TRD Wheels w/ BFG KO2
    Any other opinions from the group???

  6. Jan 20, 2019 at 7:15 AM
    #6
    EricTRD4x4

    EricTRD4x4 [OP] Well-Known Member

    Joined:
    Jul 18, 2016
    Member:
    #192294
    Messages:
    94
    Gender:
    Male
    Vehicle:
    2016 DCSB TRD Off Silver Sky Metallic
    Bilstein 6112 and 5160, CBI Hidden Winch, Warn VR10, TRD Wheels w/ BFG KO2
  7. Jan 20, 2019 at 7:41 AM
    #7
    chucklefunkk

    chucklefunkk Well-Known Member

    Joined:
    Jan 1, 2017
    Member:
    #206229
    Messages:
    429
    So. AZ
    Vehicle:
    2016 TRD OR
    Can't remember the direction I installed mine. Only one orientation looked correct/even and that's how I replaced the third leaf.

    Don't ever use the Option 1 config if you use your truck. You'll flatten the leaf packs pretty quick.

    After I flattened my driver's pack I'm running Option 3 on the driver and Option 2 on the passenger.

  8. Jan 20, 2019 at 10:48 AM
    #8
    Dacon

    Dacon 2017 Tacoma TRD PRO Quikrete

    Joined:
    Dec 20, 2016
    Member:
    #205354
    Messages:
    2,532
    Gender:
    Male
    First Name:
    Danny
    Gilbert, Arizona.
    Vehicle:
    2017 TRD PRO DCSB. DOP 02.20.2017
    TRD PRO Cement 2017 TRD CAI and AFE Magnum Flow Dry Air Filter Camburg KINETIK Series Billet UCA Icon LCA skid plates Icon Coilover extended travel shocks with 700# springs Icon 2" rear shocks Icon RXT leaf springs full pack (new rims and tires soon)
    What state in? I installed mine alone. Could help.

  9. Jan 20, 2019 at 1:45 PM
    #9
    EricTRD4x4

    EricTRD4x4 [OP] Well-Known Member

    Joined:
    Jul 18, 2016
    Member:
    #192294
    Messages:
    94
    Gender:
    Male
    Vehicle:
    2016 DCSB TRD Off Silver Sky Metallic
    Bilstein 6112 and 5160, CBI Hidden Winch, Warn VR10, TRD Wheels w/ BFG KO2
    I’m Georgia but I’m good to go on install just don’t want to do it twice. I’m getting mixed opinions and one guy on a Facebook group I’m in put one side one way and the other the opposit by accident. I’m going to go with longer side forward. Because if you do option 3 with longer side to the back the Original 3rd leaf and the one you add the nylon pad nipple on the bottom would be on top of the nylon pad below, and that couldn’t be right.

  10. Jan 20, 2019 at 7:44 PM
    #10
    Dacon

    Dacon 2017 Tacoma TRD PRO Quikrete

    Joined:
    Dec 20, 2016
    Member:
    #205354
    Messages:
    2,532
    Gender:
    Male
    First Name:
    Danny
    Gilbert, Arizona.
    Vehicle:
    2017 TRD PRO DCSB. DOP 02.20.2017
    TRD PRO Cement 2017 TRD CAI and AFE Magnum Flow Dry Air Filter Camburg KINETIK Series Billet UCA Icon LCA skid plates Icon Coilover extended travel shocks with 700# springs Icon 2" rear shocks Icon RXT leaf springs full pack (new rims and tires soon)
    ***
    PM sent.

  11. Feb 9, 2019 at 5:53 AM
    #11
    charlieyankee88

    charlieyankee88 Well-Known Member

    Joined:
    Jul 22, 2017
    Member:
    #224770
    Messages:
    310
    Gender:
    Male
    Vehicle:
    2017 TRD OR DCSB MT
    RADFLO Suspension, JBA HD UCAs, Mobtown low pro bumper, Mobtown bolt-on sliders, Engo SR10s, SCS Stealth 6, AFE CAI, URD Spec U, OV Tuned, Gobi Rack, Softopper, CMC
    I am about to do the same thing. Makes sense the way you describe it.

  12. Feb 9, 2019 at 6:47 AM
    #12
    EricTRD4x4

    EricTRD4x4 [OP] Well-Known Member

    Joined:
    Jul 18, 2016
    Member:
    #192294
    Messages:
    94
    Gender:
    Male
    Vehicle:
    2016 DCSB TRD Off Silver Sky Metallic
    Bilstein 6112 and 5160, CBI Hidden Winch, Warn VR10, TRD Wheels w/ BFG KO2
    I completed the install and no issues so far. After a lot of checking there was no definitive way but this way makes sense to me.

  13. Apr 2, 2019 at 11:36 PM
    #13
    Daddy_Firebird

    Daddy_Firebird Well-Known Member

    Joined:
    Dec 11, 2016
    Member:
    #204634
    Messages:
    1,285
    Gender:
    Male
    Colorado
    Vehicle:
    2016 TRD Off Road DCSB MGM
    -Fox 2.5 DSC w/Adjustable Reservoirs & 650lb Eibach Springs -SPC UCAs -Icon RXT Leaf Pack w/Timbren Off-Road Bumps -BFG KO2 285/75/16 -Method NV Bronze -Hefty Fabworks Sliders -RCI Steel Skid Plates (Front & Transmission) -Custom Car Grille -Total Chaos Bed Stiffeners -Custom Billet Shift Knob (7r41lbr34k3r) -BD Squadron Sport Fogs -Supernova V4 low beams -Meso Red Map & White Dome Lights
    Hey guys, I’ve read the posts on this thread and I’m still confused. I’m going with option two. Does the longer side go towards the two clamps or one clamp? Thanks fellas!

  14. Apr 3, 2019 at 4:02 AM
    #14
    charlieyankee88

    charlieyankee88 Well-Known Member

    Joined:
    Jul 22, 2017
    Member:
    #224770
    Messages:
    310
    Gender:
    Male
    Vehicle:
    2017 TRD OR DCSB MT
    RADFLO Suspension, JBA HD UCAs, Mobtown low pro bumper, Mobtown bolt-on sliders, Engo SR10s, SCS Stealth 6, AFE CAI, URD Spec U, OV Tuned, Gobi Rack, Softopper, CMC

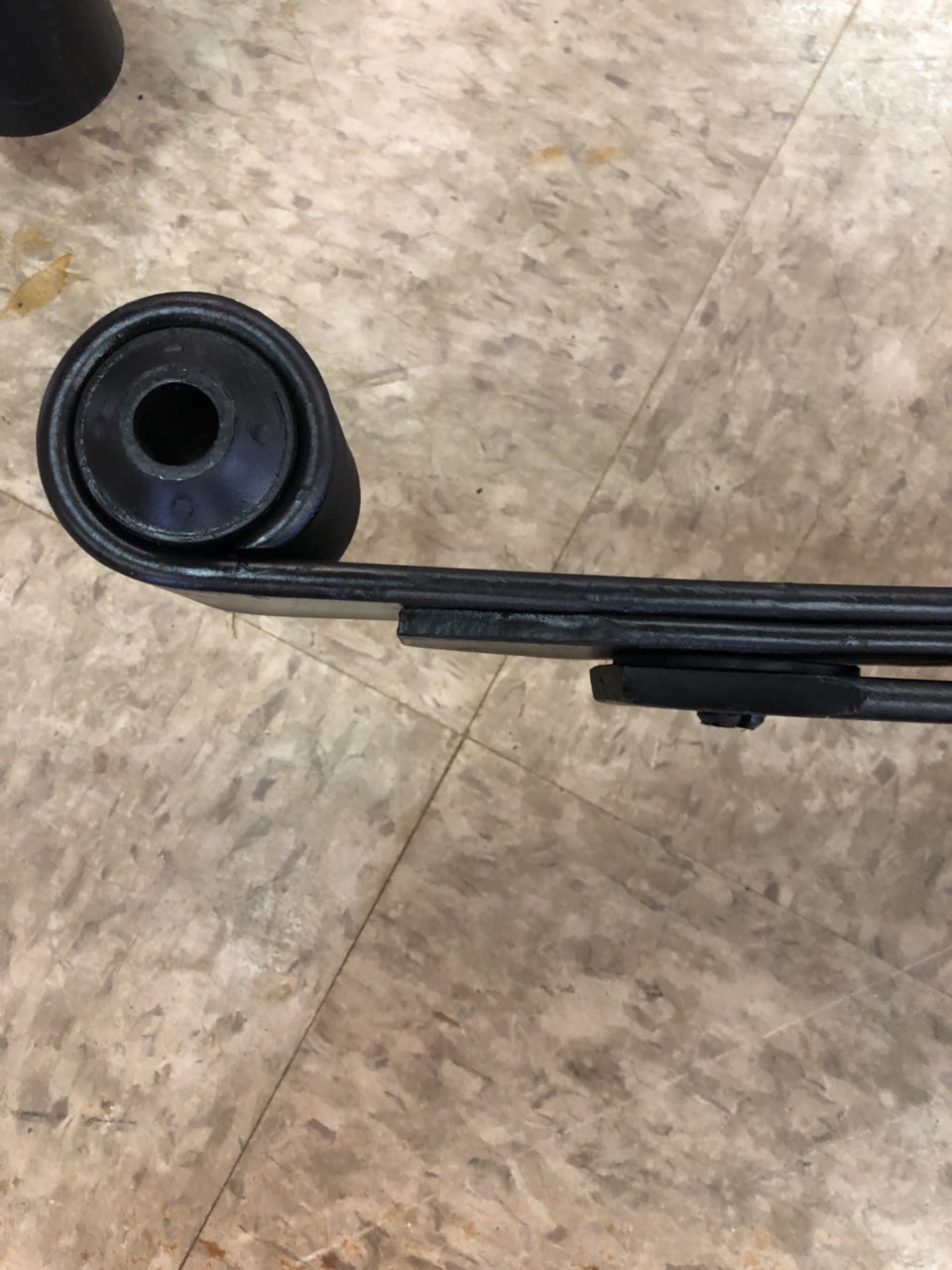

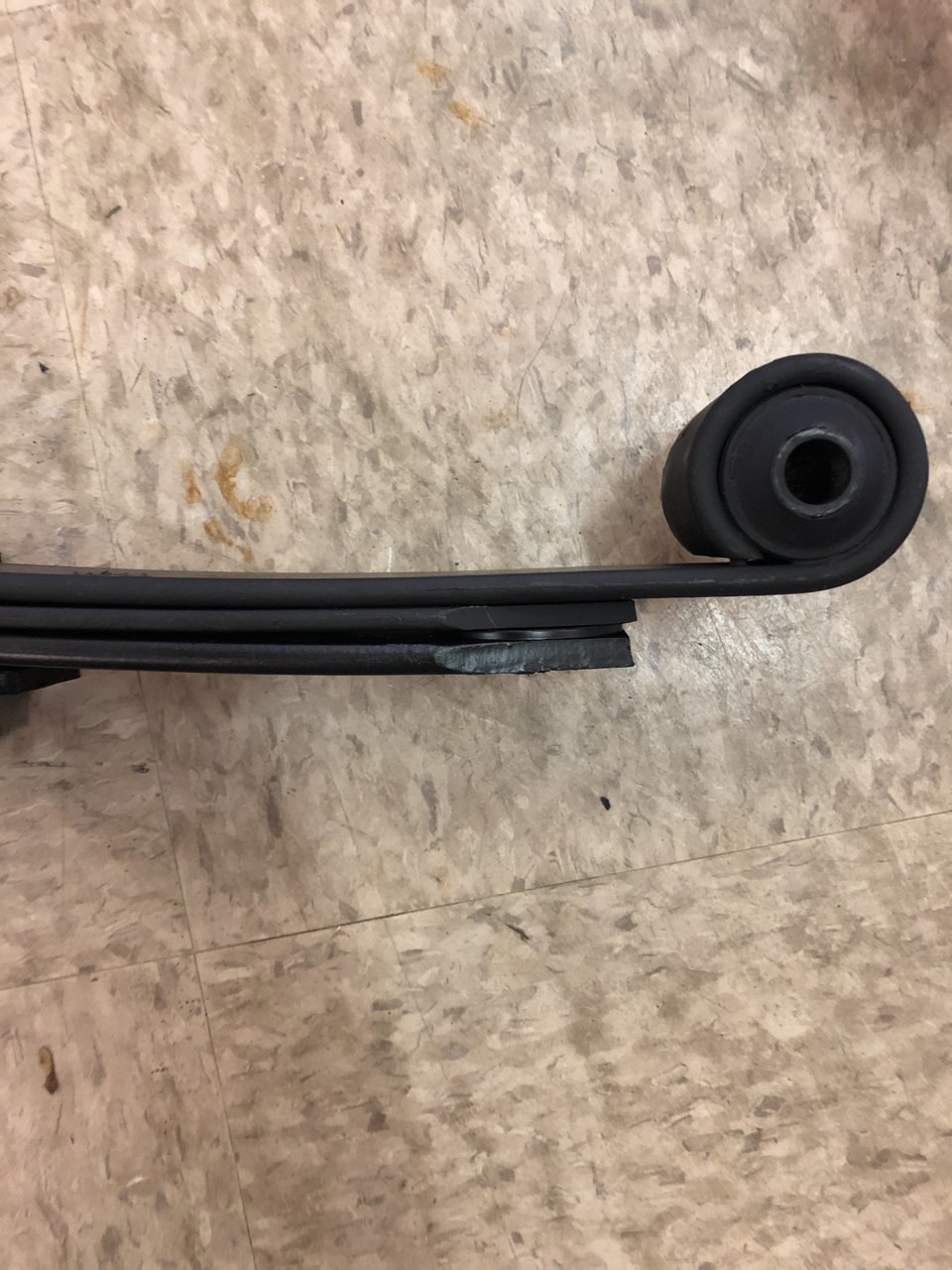

    When assembled they should look like the top pic not the bottom. It only makes sense for them to go one way or they will stack directly on top of the other spring like the bottom pic. So longer side towards the double clamp, or front of vehicle.

    Daddy_Firebird likes this.
  15. Apr 3, 2019 at 5:25 AM
    #15
    EricTRD4x4

    EricTRD4x4 [OP] Well-Known Member

    Joined:
    Jul 18, 2016
    Member:
    #192294
    Messages:
    94
    Gender:
    Male
    Vehicle:
    2016 DCSB TRD Off Silver Sky Metallic
    Bilstein 6112 and 5160, CBI Hidden Winch, Warn VR10, TRD Wheels w/ BFG KO2
    Agreed, I called several shops that do them and got different opinions but the way the pads meet says long to the front which is what I did with no issues.

    Daddy_Firebird likes this.
  16. Apr 3, 2019 at 5:51 AM
    #16
    Daddy_Firebird

    Daddy_Firebird Well-Known Member

    Joined:
    Dec 11, 2016
    Member:
    #204634
    Messages:
    1,285
    Gender:
    Male
    Colorado
    Vehicle:
    2016 TRD Off Road DCSB MGM
    -Fox 2.5 DSC w/Adjustable Reservoirs & 650lb Eibach Springs -SPC UCAs -Icon RXT Leaf Pack w/Timbren Off-Road Bumps -BFG KO2 285/75/16 -Method NV Bronze -Hefty Fabworks Sliders -RCI Steel Skid Plates (Front & Transmission) -Custom Car Grille -Total Chaos Bed Stiffeners -Custom Billet Shift Knob (7r41lbr34k3r) -BD Squadron Sport Fogs -Supernova V4 low beams -Meso Red Map & White Dome Lights
    Awesome, thanks fellas!

  17. Apr 3, 2019 at 5:56 PM
    #17
    Daddy_Firebird

    Daddy_Firebird Well-Known Member

    Joined:
    Dec 11, 2016
    Member:
    #204634
    Messages:
    1,285
    Gender:
    Male
    Colorado
    Vehicle:
    2016 TRD Off Road DCSB MGM
    -Fox 2.5 DSC w/Adjustable Reservoirs & 650lb Eibach Springs -SPC UCAs -Icon RXT Leaf Pack w/Timbren Off-Road Bumps -BFG KO2 285/75/16 -Method NV Bronze -Hefty Fabworks Sliders -RCI Steel Skid Plates (Front & Transmission) -Custom Car Grille -Total Chaos Bed Stiffeners -Custom Billet Shift Knob (7r41lbr34k3r) -BD Squadron Sport Fogs -Supernova V4 low beams -Meso Red Map & White Dome Lights
    Alright, alright, alright.. swapped out the 3rd leaf today. These bad boys are going on tomorrow along with some timbren off road bumps. Thanks for all the help fellas!

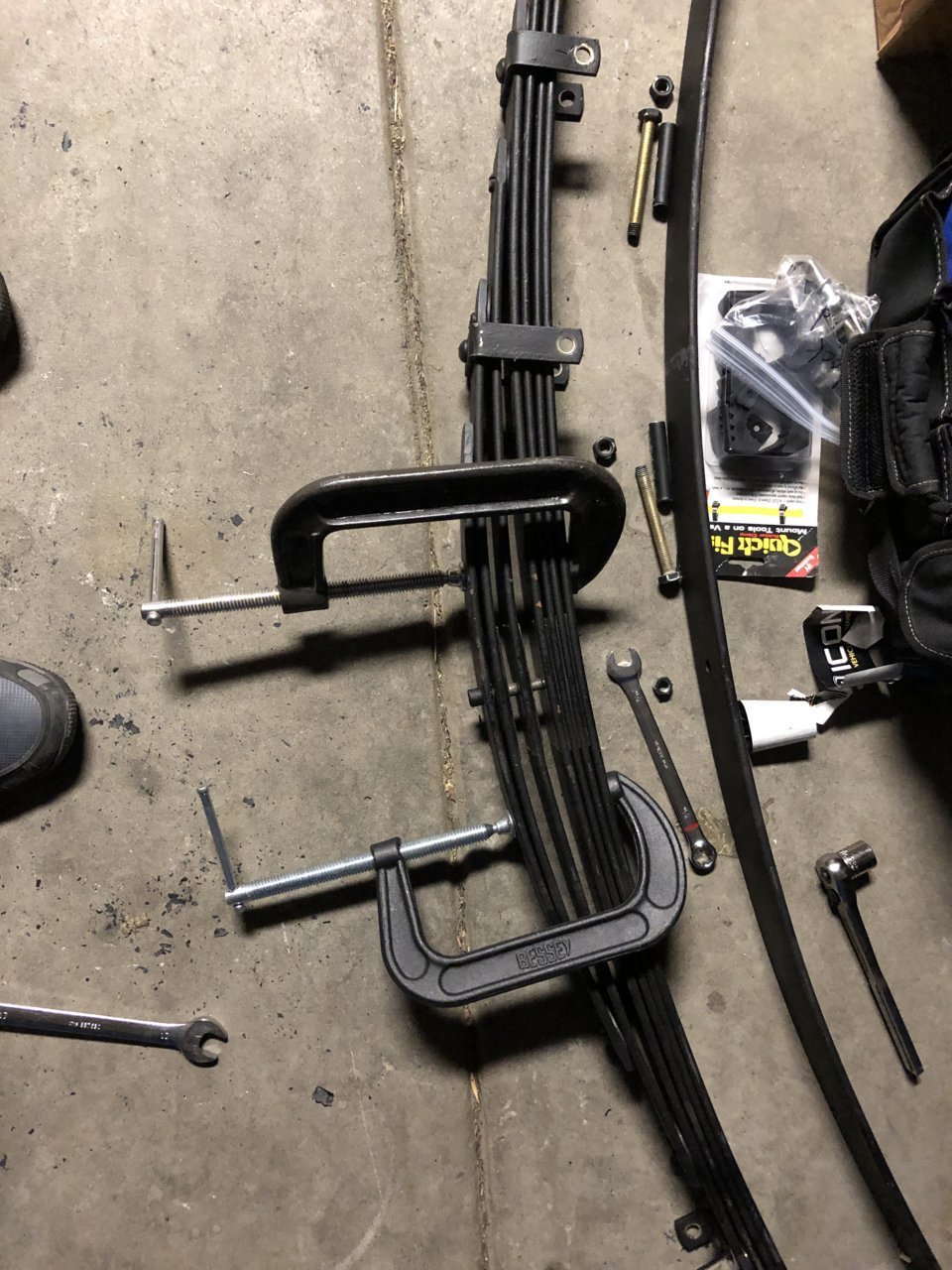

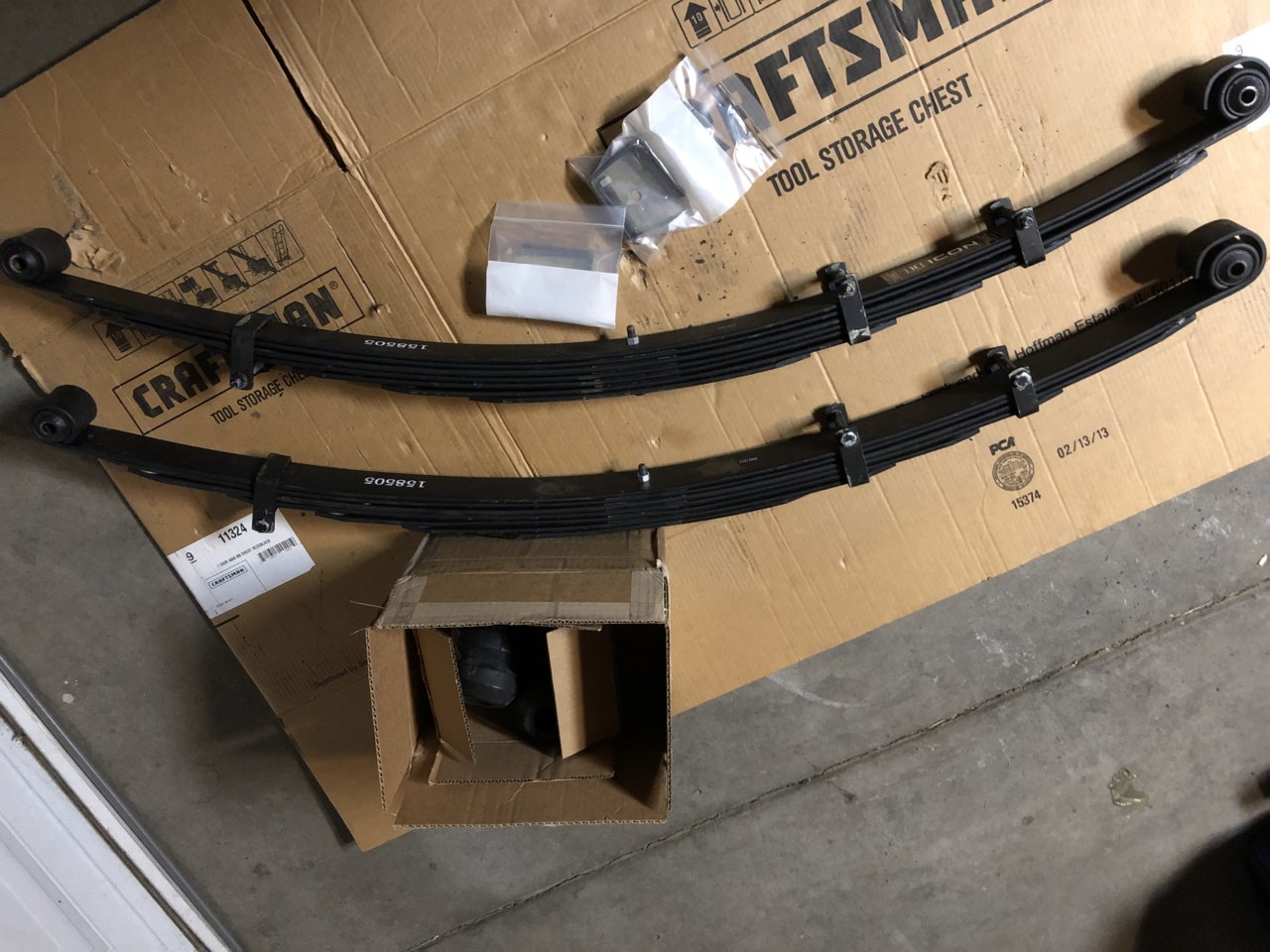

    0608B0DA-E283-46E3-BFFD-6F9383CAC6C8.jpg DD0F29E8-770D-48CA-851B-7CE6387BA02D.jpg

    Last edited: Apr 4, 2019
    charlieyankee88 likes this.
  18. Apr 4, 2019 at 3:04 PM
    #18
    Daddy_Firebird

    Daddy_Firebird Well-Known Member

    Joined:
    Dec 11, 2016
    Member:
    #204634
    Messages:
    1,285
    Gender:
    Male
    Colorado
    Vehicle:
    2016 TRD Off Road DCSB MGM
    -Fox 2.5 DSC w/Adjustable Reservoirs & 650lb Eibach Springs -SPC UCAs -Icon RXT Leaf Pack w/Timbren Off-Road Bumps -BFG KO2 285/75/16 -Method NV Bronze -Hefty Fabworks Sliders -RCI Steel Skid Plates (Front & Transmission) -Custom Car Grille -Total Chaos Bed Stiffeners -Custom Billet Shift Knob (7r41lbr34k3r) -BD Squadron Sport Fogs -Supernova V4 low beams -Meso Red Map & White Dome Lights
    Got the leaf pack installed today- went with option two. This leaf pack vs my old AAL is a night a day difference as far as how much smoother the ride is. Not sure how much the bumps are helping but there is a substantial difference in ride. Now all I need to do is cut the u-bolts down about an inch. Fronts are at 23 3/4" and rears are at 24 1/4" and 24 1/2".

    Thanks again for all your help @EricTRD4x4 & @charlieyankee88

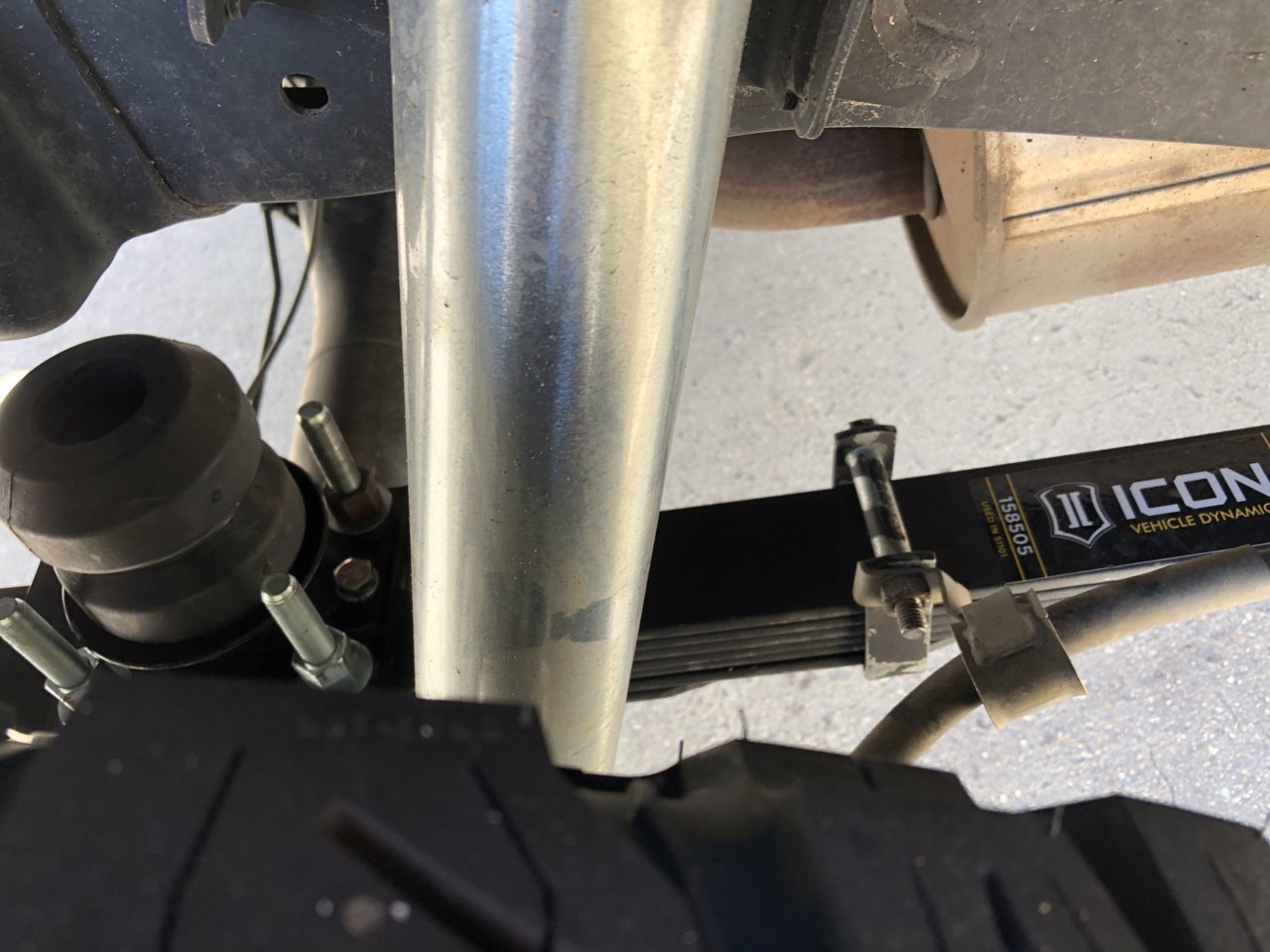

    IMG_2243.jpg IMG_2245.jpg

    Last edited: Apr 4, 2019
    omegaman2 likes this.
  19. Apr 4, 2019 at 3:05 PM
    #19
    Alesimo

    Alesimo Ruined my Pro's resale value.

    Joined:
    Sep 29, 2014
    Member:
    #139352
    Messages:
    927
    Gender:
    Male
    First Name:
    Alec
    Houston, Texas
    Vehicle:
    2017 Cement TRD Pro MT
    Frontrunner Slimline II Rokblokz Mudflaps Spod SE w/ HD Switch Cali Raised Ditch Brackets w/ Rigid Industries D2 Hyperspots Rigid Industries D2 Driving Lights Exhaust Reroute Pelfreybuilt Aluminum Pro Mid, Rear, and Gas Skid Plates ARB Twin Compressor w/ ExE Bed Cubby Mount ExE TPAM RAM System w/ Hondo Garage Perfect Squeeze Meso Customs Ultimate Map and Dome Lights Docloco Rear Seat Molle Panel Mobtown Bolt-On Rock Sliders Mobtown Steel Plate Bumper King Shocks 2.5 Reservoir EXT w/ compression adjusters on all 4 corners Icon RXT Rear Leaf Pack
    What kit did you get to flip the shackle?

  20. Apr 4, 2019 at 3:24 PM
    #20
    Daddy_Firebird

    Daddy_Firebird Well-Known Member

    Joined:
    Dec 11, 2016
    Member:
    #204634
    Messages:
    1,285
    Gender:
    Male
    Colorado
    Vehicle:
    2016 TRD Off Road DCSB MGM
    -Fox 2.5 DSC w/Adjustable Reservoirs & 650lb Eibach Springs -SPC UCAs -Icon RXT Leaf Pack w/Timbren Off-Road Bumps -BFG KO2 285/75/16 -Method NV Bronze -Hefty Fabworks Sliders -RCI Steel Skid Plates (Front & Transmission) -Custom Car Grille -Total Chaos Bed Stiffeners -Custom Billet Shift Knob (7r41lbr34k3r) -BD Squadron Sport Fogs -Supernova V4 low beams -Meso Red Map & White Dome Lights
    Wheelers
