ICON RXT orientation help

Nowhere in the instructions is there information on which is the front and back end of the leaf springs.

Can anyone shed light on this?



Where is the centering pinhole is that offset
In the springs themselves



It seemed to be centered.



Awesome thanks!



Diamonds cuts towards the back.

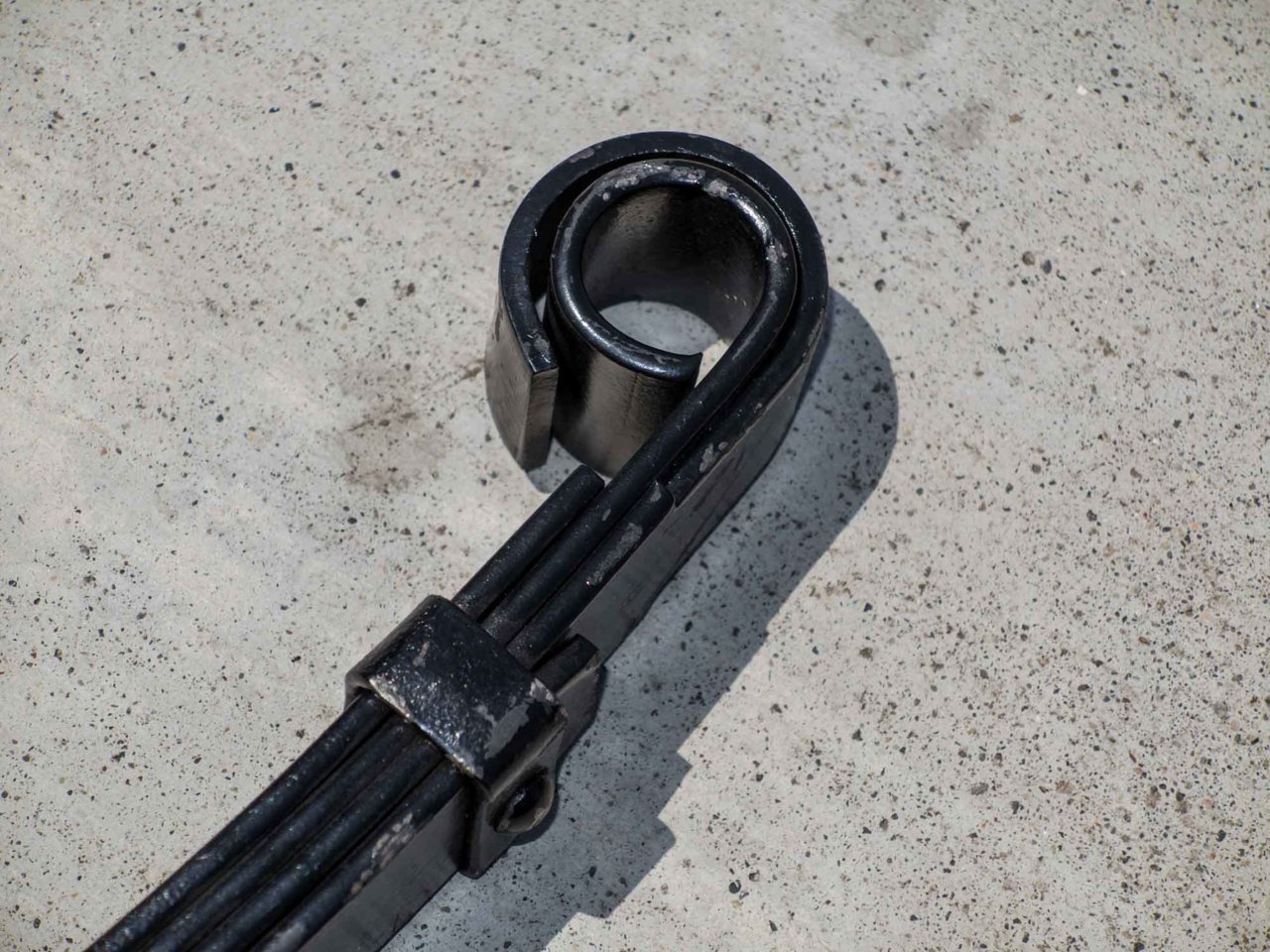

This is called a military wrap:



It goes towards the front of the vehicle.

The rear won’t have that double wrap on the bushing hole.



gonna double check orientation per above posts

I imagine even with military wrap forward, diamond cut rear, 2 brackets at front, 1 bracket rear

they may still be swappable left to right

has anyone ever had to mess with it such as evening left to wide ride height?

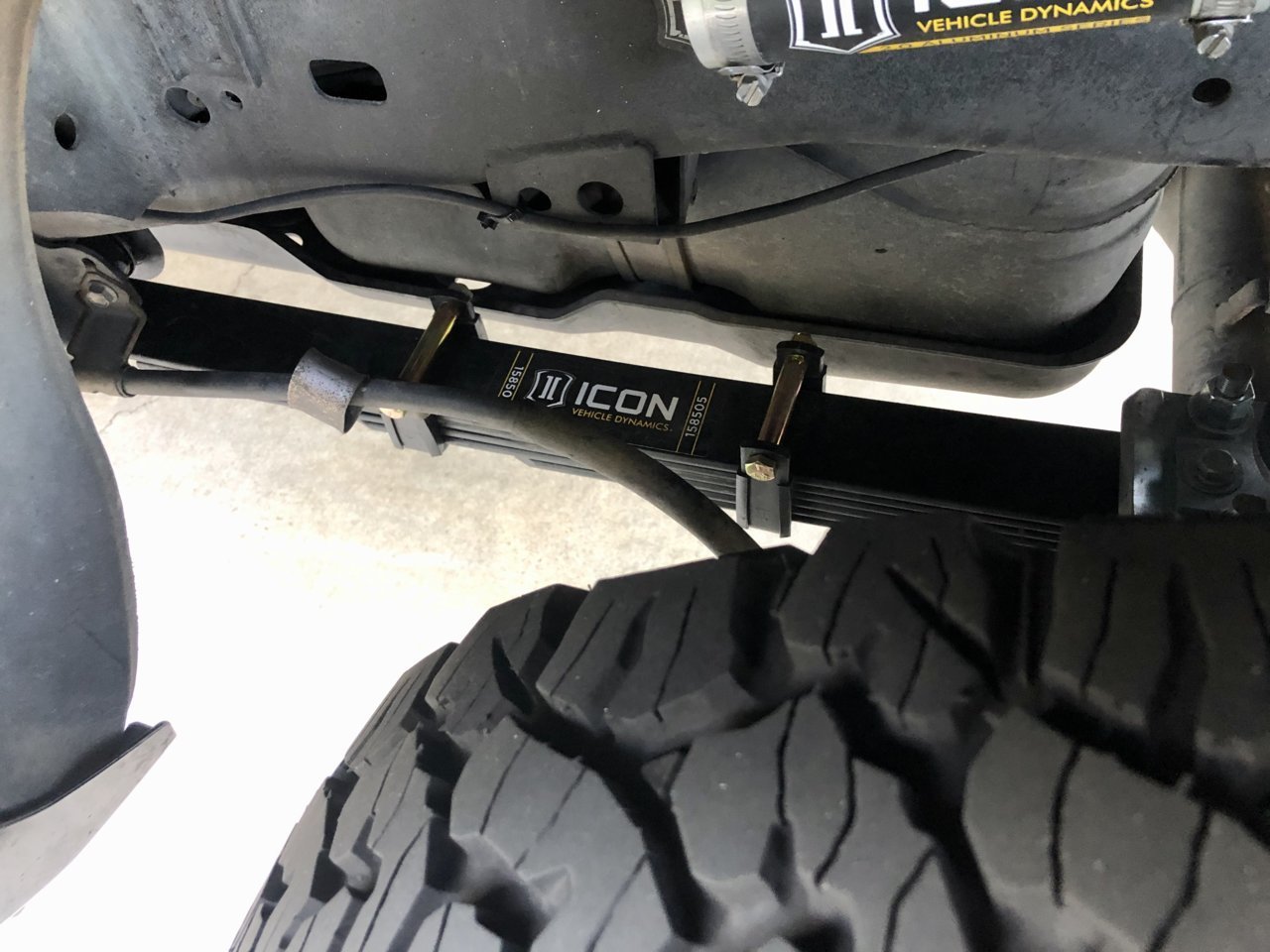

mine are installed with the little clamps bolts from the inside going out
Which in some parts looks more necessary to clear
Nuts and studs on outside

noticed this is an issue as one of them is rubbing into the e brake cable sheathing.
Thinking about flipping that one the other way, rather than shorten stud with grinder.

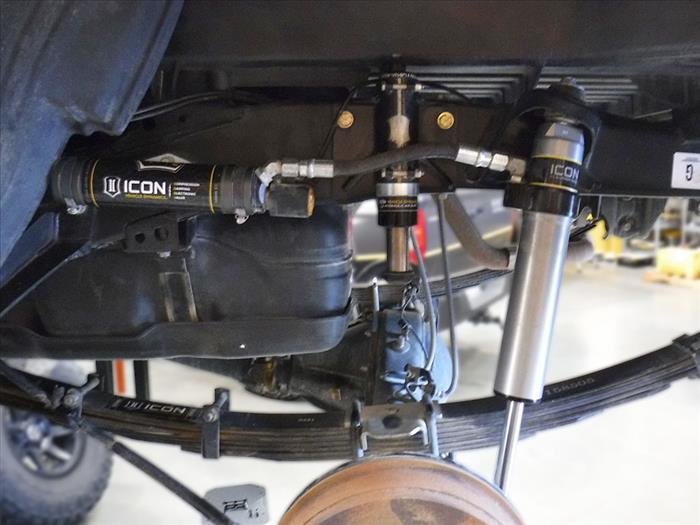

mine are like this pic
Except sticker deteriorated


But opposite of this pic…



(regarding c shaped clamp hardware facing direction)

I wonder if the left to right potential swappability even matters…



^Icon sells the leaf packs as singles. They are the same P/N left and right.

On the driver side leaf pack, flip the retainer bolts so the bolt head, not bolt tip, faces the fuel tank.



they're all like that; bolt heads on the inside
stud protrudes at outside

it's just one of them, pass side, that stud rubs the e-brake sheathing
might just flip that single one since there's no fuel tank to worry about there
