Icon Stage 4 Install Detailed Instructions

Discussion in 'Suspension' started by DrSpaceman, Jan 2, 2012.

  1. Feb 23, 2014 at 8:05 AM
    #61
    ICONRep

    ICONRep Direct Representative Vendor

    Joined:
    Oct 23, 2012
    Member:
    #89638
    Messages:
    225
    Gender:
    Male
    Regarding the upper arms we have closed the the gap on features between the two now that we are the first company to offer a uniball cover cap for the tubular uniball control arms. There are still the differences between the two like our dual stage bushing set up vs. adjustable rod ends. We build caster and different engineering in to the tubular arms over stock so they are great, but the billet arms offers you full control to adjust for optimum alignment and overall performance. The billet arm does carry a different look and high end appeal, but is similar in performance to that of one you would find on a off road race truck. The unique feature is they can be adjusted on the vehicle with out removing them. The rod ends are mounted with a double adjuster and pinch bolts on the inside of the arm.

    Both great options and we honestly sell a fairly equal amount of both.

  2. Apr 6, 2014 at 10:44 AM
    #62
    sbarnesvta

    sbarnesvta Well-Known Member

    Joined:
    Aug 11, 2012
    Member:
    #84565
    Messages:
    80
    Gender:
    Male
    Burbank, Ca
    Vehicle:
    12 Tacoma TRD 4x4
    Do you have a paypal account or can you send PM your name so I can donate to BRC on your behalf? Let me know which you prefer.

    I installed my Stage 3 kit yesterday and this was a HUGE help. I would be more than happy to send a couple bucks your way for your time invested in this.

    Thanks

  3. Apr 9, 2014 at 2:18 PM
    #63
    FevaDawg

    FevaDawg Member

    Joined:
    May 15, 2011
    Member:
    #56686
    Messages:
    7
    Gender:
    Male
    Haiku, HI
    Vehicle:
    '11 V6 4x4 TRD Offroad
    WeatherTech, TracRack, Maglight mount
    Have you run into any issues with your CV boots? I noticed you did not even mention doing a differential drop and am curious if you have had wear issues yet.

  4. Apr 11, 2014 at 4:40 PM
    #64
    squint0241

    squint0241 No Can Re-Member

    Joined:
    Jan 4, 2014
    Member:
    #119916
    Messages:
    5,057
    Gender:
    Male
    First Name:
    Rick
    Tropics
    Vehicle:
    '14 DCSB/Off-Road
    Plenty
    Bradda...no need Dif drop with the ICONS. Mine are only 2.5" higher than stock right now and the diff drop is negligible for that. Besides...it only makes the diff drop down into the skid pan and mine was causing the skid to look crooked and the 4wheelparts guys who put it on cross threaded the bolts because of the tight fit up of the skid against the diff drop. After reading around the forum and consulting with tons of guys who don't use the diff drop...I took the bugga off. No probs what so eva! If you were lifting higher than 3"...I would prob do it then, but less than 3...no need..:D

  5. May 8, 2014 at 8:46 AM
    #65
    transplant

    transplant resident know-nothing

    Joined:
    Jun 5, 2011
    Member:
    #57759
    Messages:
    780
    Gender:
    Male
    First Name:
    theo
    Crestline, Ca
    Vehicle:
    89 sr5, 99 OR, 11sport, 14 offroad
    idk if anyone has asked this, but why use a jack on the lower control arm and then a ball joint separator? why not just let the jack down? isnt it all just bolted together nice and pretty? and whats the deal with cutting the uca bolts? if you can get new ones in why cant you get them out?

    ill be doing this over the weekend... so... i suppose ill be answering my own questions soon enough if no one else can.

  6. May 8, 2014 at 11:54 AM
    #66
    panisher57

    panisher57 Well-Known Member

    Joined:
    Feb 9, 2014
    Member:
    #122666
    Messages:
    57
    Gender:
    Male
    First Name:
    Dustin
    Ontario Canada
    Vehicle:
    2014 TRD-Off Road Access Cab
    show us before and after

  7. May 8, 2014 at 2:51 PM
    #67
    Vorra65

    Vorra65 Well-Known Member

    Joined:
    Jan 24, 2014
    Member:
    #121341
    Messages:
    83
    Gender:
    Male
    I would like to hear a comeback here- as I have some ICON arms to install myself. I'm not crazy about hacking and bending the sheet metal in the well just to get the bolts out. Now if there is enough room to install the bolts from the rear, and install the nut in front-then it makes more sense to cut the head of the bolt off shove it all to the rear and go back together with new bolts-$24, done.

    Anyone?

    PN# for upper bolt-90105A0095 $12.01 each

    Never mind-read the whole thread.

    Last edited: May 8, 2014
  8. May 9, 2014 at 10:34 AM
    #68
    truckingbear

    truckingbear Member

    Joined:
    Oct 5, 2009
    Member:
    #23819
    Messages:
    11
    Gender:
    Male
    First Name:
    Robert
    Denver, Co
    Vehicle:
    07 SR5 off road 4x4
    Icon Stage 4 w/Billet UCA's, K&N intake
    How long does it take to install this set up for the average person?

  9. May 9, 2014 at 11:17 AM
    #69
    sgscholla

    sgscholla Well-Known Member

    Joined:
    Feb 3, 2013
    Member:
    #96754
    Messages:
    57
    Gender:
    Male
    Reston VA
    Vehicle:
    13 Sport 4x4 DCSB.
    Pyrite on Bronze
    sub'd, lots of goodness in this thread.

  10. May 10, 2014 at 8:09 AM
    #70
    sbarnesvta

    sbarnesvta Well-Known Member

    Joined:
    Aug 11, 2012
    Member:
    #84565
    Messages:
    80
    Gender:
    Male
    Burbank, Ca
    Vehicle:
    12 Tacoma TRD 4x4
    I did not have to do any sheet metal cutting to get the bolts out. I had to do some minor bending with a crescent wrench, but nothing too crazy.

  11. May 10, 2014 at 8:11 AM
    #71
    sbarnesvta

    sbarnesvta Well-Known Member

    Joined:
    Aug 11, 2012
    Member:
    #84565
    Messages:
    80
    Gender:
    Male
    Burbank, Ca
    Vehicle:
    12 Tacoma TRD 4x4
    There are a couple places you will need 2 people (pulling UCA bolts) or at least it will make things a lot easier. My first time around it took about 4hrs with 2 people to do the front and rear suspension. Make sure you have everything you need before hand and it goes together pretty smooth.

  12. May 10, 2014 at 10:46 AM
    #72
    Vorra65

    Vorra65 Well-Known Member

    Joined:
    Jan 24, 2014
    Member:
    #121341
    Messages:
    83
    Gender:
    Male
    Anyone have a line on some nice billet clamps for the rear resi's ?

    Supplied is the bracket with hose clamps, looking for something a little nicer than hose clamps to mount the resi's on the frame.

  13. May 10, 2014 at 10:56 AM
    #73
    MightyMouse-SCT

    MightyMouse-SCT Well-Known Member

    Joined:
    Oct 18, 2010
    Member:
    #44862
    Messages:
    15,693
    Gender:
    Male
    First Name:
    Gabriel
    O'SIDE CA
    Vehicle:
    MightyMouse-SCT - 2011 LT 4x4 Desert Runner
    Long Travel Total chaos kit, fox shocks, smp fab , dmz sua, glassworks, method wheels.
    Set aside a Full day. Decent amount of work

  14. May 10, 2014 at 4:48 PM
    #74
    truckingbear

    truckingbear Member

    Joined:
    Oct 5, 2009
    Member:
    #23819
    Messages:
    11
    Gender:
    Male
    First Name:
    Robert
    Denver, Co
    Vehicle:
    07 SR5 off road 4x4
    Icon Stage 4 w/Billet UCA's, K&N intake
    I figured a day would be a good idea. How about the reliability and the type of abuse this set up would take? Warranty? I was going to use 4Wheel Parts place to have them do all this, but with a front and rear set of Kings and UCA's for $3600 including labor, or Stage 4 Icon , I install for $3600 plus maybe $200 in tools I dont have. I am leaning towards the Icon. Anyone wanna chime please. Which would be a better choice? I typically do mostly moderate Colorado trails.

  15. May 10, 2014 at 6:16 PM
    #75
    Vorra65

    Vorra65 Well-Known Member

    Joined:
    Jan 24, 2014
    Member:
    #121341
    Messages:
    83
    Gender:
    Male
    I paid right at $2600 shipped from SDHQ, and Vince put a kit together of the stuff I wanted. All Icon stuff, tube UCA's, ext travel C/O's, AAL kit and 2.0 RR's ext travels in the rear. 4WP wanted $750 to install and $150 for an alignment-!

    Thanks to another member here, found me an alignment shop for $80, and will install all the components myself. $ 820 is substantial moola-especially hanging around TW a lot ! Step up and install your own stuff, easy peazy-take your time and be patient. Look at it like this, if you ever have to do a trail repair- you' ll be better equipped knowing how it all goes together.

    http://www.tacomaworld.com/forum/vendor-reviews/327309-sdhq-order.html#post8602741

  16. May 10, 2014 at 6:24 PM
    #76
    truckingbear

    truckingbear Member

    Joined:
    Oct 5, 2009
    Member:
    #23819
    Messages:
    11
    Gender:
    Male
    First Name:
    Robert
    Denver, Co
    Vehicle:
    07 SR5 off road 4x4
    Icon Stage 4 w/Billet UCA's, K&N intake
    I had to replace a strut on the trail last week, pulled the bottom of it out and bam, blew apart. So now the owner of a spring compressor. lol 4wp is only charging me $400 labor plus $150 alignment. I have a lifetime alignment deal with Firestone. I think I will go with the Icon Stage 4 with the billet UCA. Was cuious on the durability compared to Kings.

    Last edited: May 10, 2014
  17. Jun 9, 2014 at 12:30 AM
    #77
    KCCOsavage

    KCCOsavage Member

    Joined:
    May 26, 2014
    Member:
    #130597
    Messages:
    8
    Gender:
    Male
    Corona,CA
    Vehicle:
    14 PreRunner TRD Offroad
    Icon Stage 4 Kit, Billet Arms
    Nice write up!! gonna put it to use when i install mine latter this week

  18. Jun 17, 2014 at 9:04 AM
    #78
    GrouchyMunchkin

    GrouchyMunchkin Member

    Joined:
    Jun 10, 2014
    Member:
    #131719
    Messages:
    5
    Gender:
    Male
    First Name:
    Chris
    Oklahoma
    Vehicle:
    12 4x4 TRD
    Jumpin into a stage 3 install this weekend. I have no idea what Im getting myself into. This was some really good insight. Awesome write up

  19. Jun 19, 2014 at 11:50 PM
    #79
    KCCOsavage

    KCCOsavage Member

    Joined:
    May 26, 2014
    Member:
    #130597
    Messages:
    8
    Gender:
    Male
    Corona,CA
    Vehicle:
    14 PreRunner TRD Offroad
    Icon Stage 4 Kit, Billet Arms
    Good write up!!

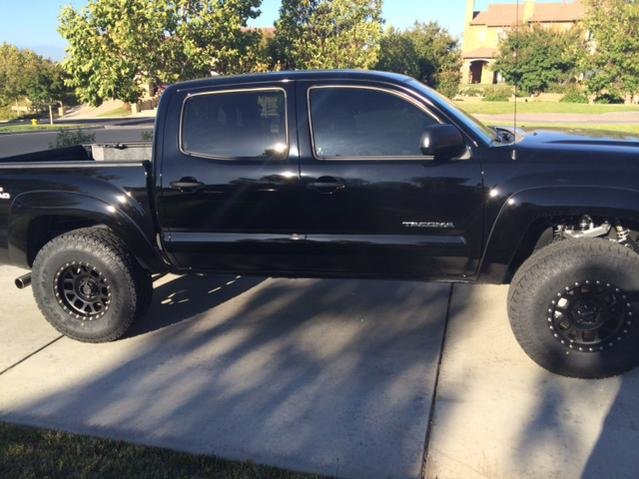

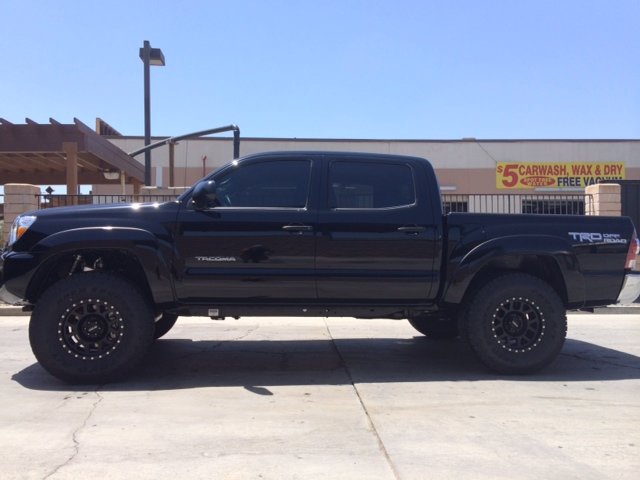

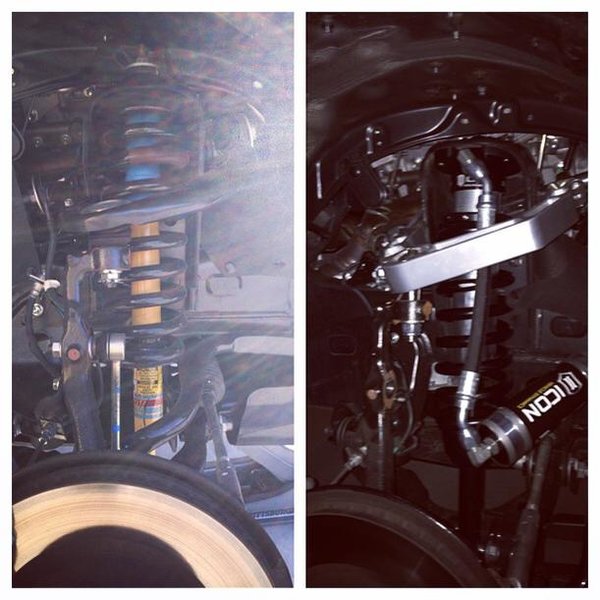

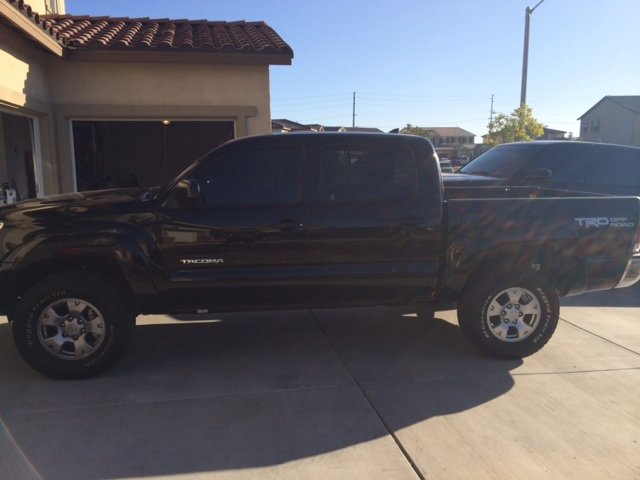

    was very useful when installing my stage 4 billet. here are a few before and after. rear wasn't installed yet was waiting on the rear shocks to come in.

    photo 1.JPG
    photo 2.jpg
    photo 3.JPG
    photo 4.jpg

  20. Jun 21, 2014 at 11:50 AM
    #80
    transplant

    transplant resident know-nothing

    Joined:
    Jun 5, 2011
    Member:
    #57759
    Messages:
    780
    Gender:
    Male
    First Name:
    theo
    Crestline, Ca
    Vehicle:
    89 sr5, 99 OR, 11sport, 14 offroad
    what is everyone using to lube up the uniball?
