Identify this Connector/Crimp Terminal

Discussion in 'Technical Chat' started by Moto_dj, May 20, 2018.

  1. May 20, 2018 at 7:02 PM
    #1
    Moto_dj

    Moto_dj [OP] Active Member

    Joined:
    Feb 23, 2018
    Member:
    #245360
    Messages:
    38
    Gender:
    Male
    First Name:
    Dean
    Michigan
    Vehicle:
    2012 White Tacoma TRD

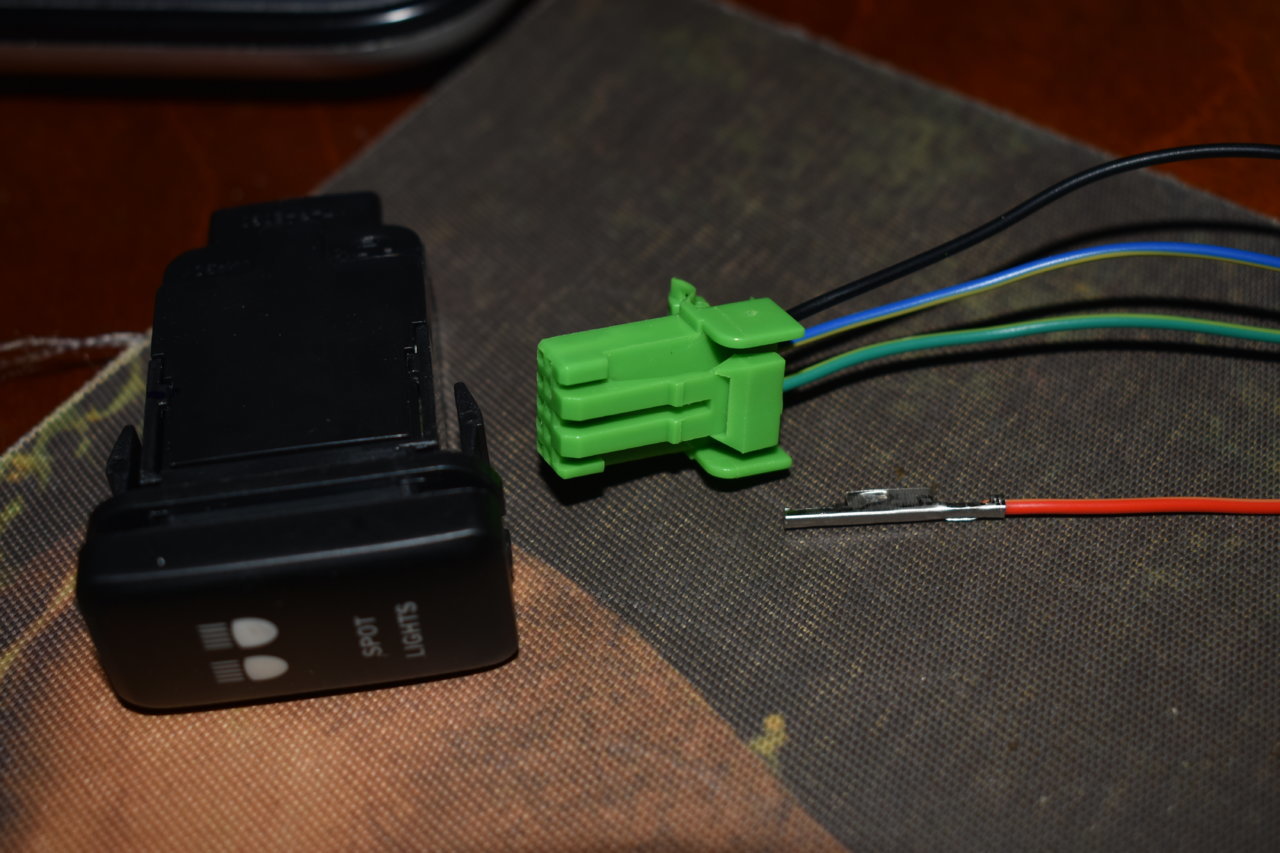

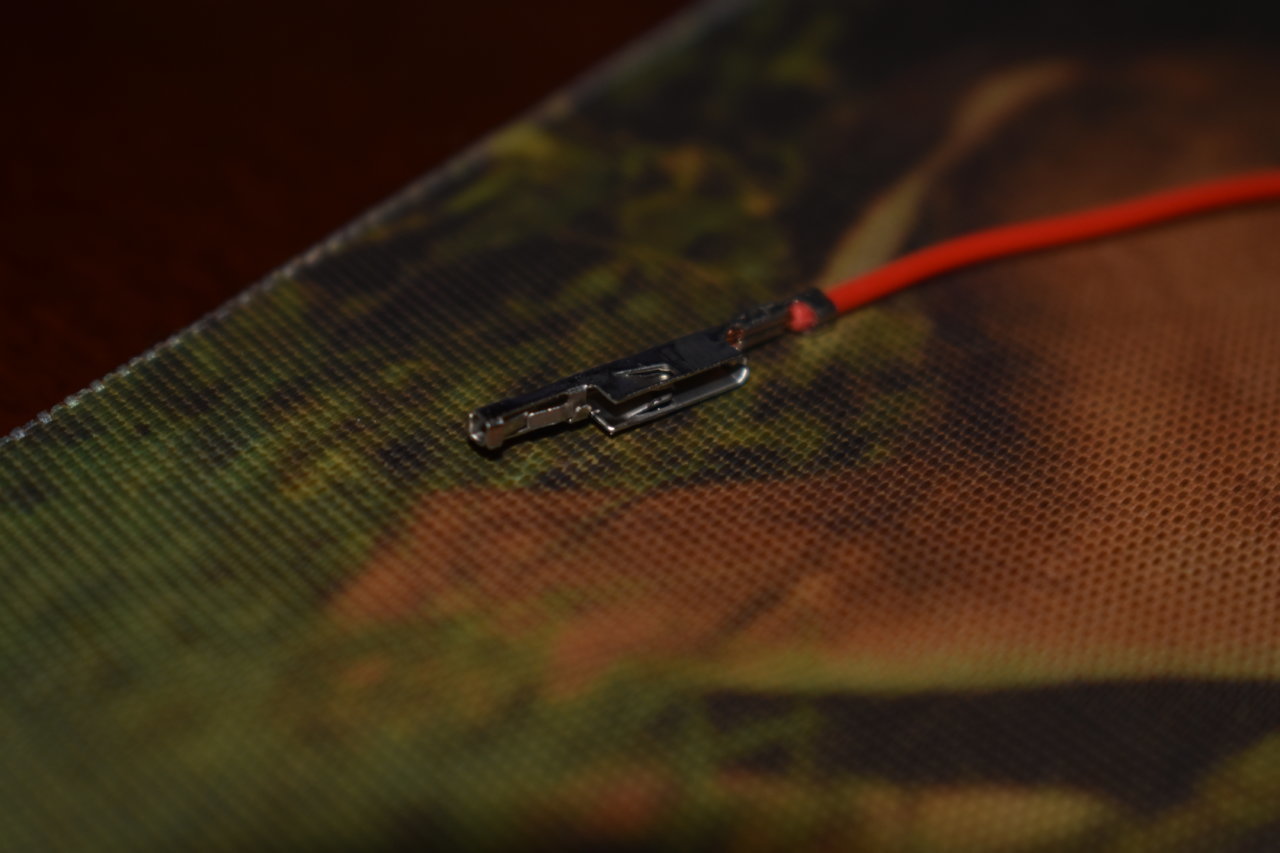

    Can anyone identify this crimp terminal that goes into this connector? I've managed to find the connector from different sources but no info on the crimp terminals. I'd like to procure some more of these so that I can wire everything in with the crimp terminals instead of splicing wires.

    These connectors come on the pigtails with many of the 'OEM replacement' push button switches. The ones I got were from air-on-board.


  2. May 21, 2018 at 4:28 AM
    #2
    nzbrock

    nzbrock Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    1,767
    Gender:
    Male
    First Name:
    Noah
    Philadelphia, PA
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 255/85/16 Cooper ST Maxx 4Runner overhead sunglass console RSX Leather Seats All LED lights Red/Clear Tail Light Tundra Brakes Black Headlights and Corners 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system
    Here is the master list. I use this to find the correct pins and connectors whenever I need one.

    Search for 10P to find the 10 pin female connectors. Match the image to the connector, then search the last numbers to find the connector repair wire.

    If you read the first parts of the document it tells you how to measure the wire pins to verify that it is the correct size.


    Attached Files:

    Last edited: May 21, 2018
  3. May 21, 2018 at 5:31 AM
    #3
    Moto_dj

    Moto_dj [OP] Active Member

    Joined:
    Feb 23, 2018
    Member:
    #245360
    Messages:
    38
    Gender:
    Male
    First Name:
    Dean
    Michigan
    Vehicle:
    2012 White Tacoma TRD
    I should have clarified further, this is an aftermarket switch in the OEM style. Im not sure that Toyota actually uses these connectors. Also its a 5pin connector, the double row of square openings is misleading as the crimp terminals take up the entire hieght of the connector.

    All that being said, however, I did find a very similar connector on page 73 (D-55) part number 90980-10631. The crimp repair terminals they list for these (82998-12170) dont quite look the same, but maybe they'll work. I'll do some more digging. Thanks for posting that manual

    Athlaos likes this.
  4. Jul 10, 2018 at 5:23 AM
    #4
    Moto_dj

    Moto_dj [OP] Active Member

    Joined:
    Feb 23, 2018
    Member:
    #245360
    Messages:
    38
    Gender:
    Male
    First Name:
    Dean
    Michigan
    Vehicle:
    2012 White Tacoma TRD
  5. Jul 10, 2018 at 7:30 AM
    #5
    Taco'09

    Taco'09 Well-Known Member

    Joined:
    Dec 31, 2008
    Member:
    #12073
    Messages:
    1,182
    Gender:
    Male
    Most of the OEM terminals in the truck are a dual lock type and mfg. by Amp/Tyco but are real difficult to find in small quantities. The dealer pigtails are way too costly IMHO. I've seen a number of people use Molex terminals as they are easily found and a couple of the ones I have seen look somewhat close. Might want to find a Molex catalog?

  6. Sep 19, 2018 at 7:23 PM
    #6
    Moto_dj

    Moto_dj [OP] Active Member

    Joined:
    Feb 23, 2018
    Member:
    #245360
    Messages:
    38
    Gender:
    Male
    First Name:
    Dean
    Michigan
    Vehicle:
    2012 White Tacoma TRD

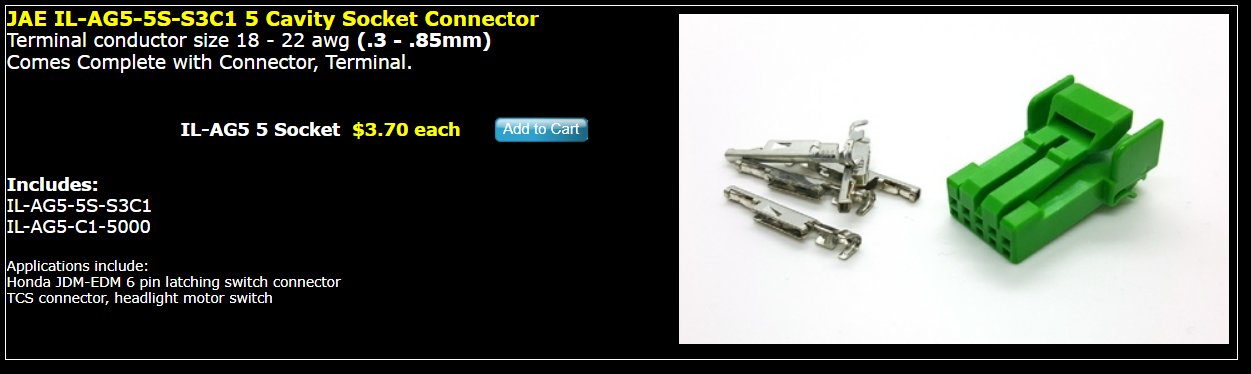

    I found an even better, and cheaper, source!
    http://www.cycleterminal.com/jae-il-ag5.html
    This guy out in New Jersey has quite a few import connectors and terminals. I will be ordering a few terminals from him soon.


  7. Sep 20, 2018 at 3:53 AM
    #7
    nzbrock

    nzbrock Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    1,767
    Gender:
    Male
    First Name:
    Noah
    Philadelphia, PA
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 255/85/16 Cooper ST Maxx 4Runner overhead sunglass console RSX Leather Seats All LED lights Red/Clear Tail Light Tundra Brakes Black Headlights and Corners 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system
    Nice Find!
