Ignition Light Ring Mod help!!

Discussion in '1st Gen. Tacomas (1995-2004)' started by KerlyQ, Jan 29, 2013.

  1. Jan 29, 2013 at 3:17 PM
    #1
    KerlyQ

    KerlyQ [OP] Well-Known Member

    Joined:
    Jan 15, 2013
    Member:
    #95274
    Messages:
    52
    Gender:
    Male
    First Name:
    Jared
    BC Canada
    Vehicle:
    First and last truck Ill own.
    Magnaflow exhaust. Custom leather Katskinz. Fujita CIA. Custom canopy. Armourthane sprayed bed. Grey wire mod. Black American eagle wheels. Dick Cepeks FCII's. Black Emblems all around. TRD oil cap. Ignition Light Ring Mod. Blue LED dash and controls.
    Hi everyone. I picked up an ignition ring light from a 98 tacoma from the wreckers a few days ago and I have been trying to wire it into my 02 Tacoma but Im having some difficulty. I have read several threads but they are less than specific or I have just not found the right ones (And I have searched like crazy) I was hoping some one could point me in the right direction as to where to wire the light. I want to wire it in so that it lights up along with the dome light when the door opens, and when the door unlocks, and then turns off when I turn the ignition on. Just like how the courtesy light works. As of right now its wired into the black wire in the "A" pillar and grounded into the frame....which is just keeping the light on at all times.:frusty: Please forgive me for being part retarded but is anyone familiar with this and can give me a hand here?....Im about to lose my shi# because ive been at this all day and its snowing outside and im freezing......any and all help will be appreciated!!!

  2. Jan 29, 2013 at 6:33 PM
    #2
    KerlyQ

    KerlyQ [OP] Well-Known Member

    Joined:
    Jan 15, 2013
    Member:
    #95274
    Messages:
    52
    Gender:
    Male
    First Name:
    Jared
    BC Canada
    Vehicle:
    First and last truck Ill own.
    Magnaflow exhaust. Custom leather Katskinz. Fujita CIA. Custom canopy. Armourthane sprayed bed. Grey wire mod. Black American eagle wheels. Dick Cepeks FCII's. Black Emblems all around. TRD oil cap. Ignition Light Ring Mod. Blue LED dash and controls.
    Ok, I think I figured it out. I have to use the same ground as the courtesy lights rather than the frame as a ground. Ill try that...I think its a black wire with a white stripe...I just have to find it. If im wrong...Ill let you guys know if I blow anything up.
    :annoyed:

  3. Jan 29, 2013 at 6:45 PM
    #3
    Seventh

    Seventh Insert witty title here

    Joined:
    Nov 21, 2012
    Member:
    #91582
    Messages:
    278
    Gender:
    Male
    First Name:
    Chris
    Boston, MA
    Vehicle:
    2001 Reg Cab 4x4
    Sub'd for a cool idea.

  4. Jan 30, 2013 at 7:50 PM
    #4
    KerlyQ

    KerlyQ [OP] Well-Known Member

    Joined:
    Jan 15, 2013
    Member:
    #95274
    Messages:
    52
    Gender:
    Male
    First Name:
    Jared
    BC Canada
    Vehicle:
    First and last truck Ill own.
    Magnaflow exhaust. Custom leather Katskinz. Fujita CIA. Custom canopy. Armourthane sprayed bed. Grey wire mod. Black American eagle wheels. Dick Cepeks FCII's. Black Emblems all around. TRD oil cap. Ignition Light Ring Mod. Blue LED dash and controls.
    Ok I was right!! Works like a charm. Looks great too. Except its green...for now. All I did was use the black wire for power (there is only one in the "A" Pillar which is a constant 12v power) and used the Black one with a white stripe as the ground. I spliced into them both at about half way up and ran them down the "A" pillar then under the steering column right into the Ignition ring. There are only four wires in there. 1 black (power), 1 black with white stripe (ground), 1 green with white stripe (power for third brake light) and 1 white with black stripe (ground for third brake light). Also, Im not sure why but there is a coaxial cable in there too but mines cut at the top and cut at the bottom of the A pillar so I have no idea where it went to or where it came from..its only about 2/12 ft long so if anyone has a clue what it was for please let me know as I'm very curious. Anyways there you go. Go get a ring from the wreckers. Oh and one more thing. If you find one, make sure you grab the little black plastic ignition ring cover as the your current one wont fit over the light ring.

  5. Jan 30, 2013 at 8:26 PM
    #5
    KerlyQ

    KerlyQ [OP] Well-Known Member

    Joined:
    Jan 15, 2013
    Member:
    #95274
    Messages:
    52
    Gender:
    Male
    First Name:
    Jared
    BC Canada
    Vehicle:
    First and last truck Ill own.
    Magnaflow exhaust. Custom leather Katskinz. Fujita CIA. Custom canopy. Armourthane sprayed bed. Grey wire mod. Black American eagle wheels. Dick Cepeks FCII's. Black Emblems all around. TRD oil cap. Ignition Light Ring Mod. Blue LED dash and controls.

    Yea I read a few threads where some guys have used the clock power as a source to light the ring but I wanted it to function the way it was intended. I wouldnt want it on all the time myself but thats just my preference. FYI, if you get a ring from a 98 or older, the actual light rings wires are a red with green stripe (ground) and a blue with yellow stripe which was the power. So just match the red/g to the blk/w and the blue/y to the black..I know its not the most detailed explanation but it will work for any 01-04 tacoma. Hmmm the glove box and console lights are a good idea. maybe Ill try that next.

  6. Feb 2, 2013 at 3:48 PM
    #6
    KerlyQ

    KerlyQ [OP] Well-Known Member

    Joined:
    Jan 15, 2013
    Member:
    #95274
    Messages:
    52
    Gender:
    Male
    First Name:
    Jared
    BC Canada
    Vehicle:
    First and last truck Ill own.
    Magnaflow exhaust. Custom leather Katskinz. Fujita CIA. Custom canopy. Armourthane sprayed bed. Grey wire mod. Black American eagle wheels. Dick Cepeks FCII's. Black Emblems all around. TRD oil cap. Ignition Light Ring Mod. Blue LED dash and controls.
    No pix sry, I should have taken some pix I suppose huh?! I plan on going back into my dash and "A" Pillar to add more lights in the very near future. I will do a picture tutorial of how to install the light ring while I'm in there if everyone wants me too.

  7. Feb 2, 2013 at 3:49 PM
    #7
    TacoSkeet

    TacoSkeet 'MERICA

    Joined:
    Oct 16, 2012
    Member:
    #89164
    Messages:
    669
    Gender:
    Male
    First Name:
    Steven
    Memphis, TN
    Vehicle:
    03 DC Tacoma
    sub'd for pictures. I'd like to see this

  8. Apr 9, 2013 at 2:33 PM
    #8
    BigOly

    BigOly Well-Known Member

    Joined:
    May 3, 2012
    Member:
    #78148
    Messages:
    417
    Gender:
    Male
    Bay Area, NorCal
    Vehicle:
    04 TRD DC V6 SR5 4WD
    I've got all the parts and planning to get this done. Very good info OP! If anyone else has already done this and has pics to show where to tap that would be great ;)

  9. Apr 12, 2013 at 7:13 PM
    #9
    BigOly

    BigOly Well-Known Member

    Joined:
    May 3, 2012
    Member:
    #78148
    Messages:
    417
    Gender:
    Male
    Bay Area, NorCal
    Vehicle:
    04 TRD DC V6 SR5 4WD
    KerlyQ, you are the man! I just got this mod done and lovin it! :D

    Instead of taking the A piller panel out (I hate doing this), I crawled underneath behind the fuse box and found those wires you were talking about. On my 04 Double cab I found a wire harness that was wrapped in gray foam like material.

    Just like you said, Black is positive, black with white stripe is negative.

    I tapped into those wires and the ring lights up and dims just like the dome light! This should have been standard on the tacos! I still need to get rid of the green light too and swap it with a natural white LED.

    Here's a pic of the wire harness I tapped into:
    [​IMG]

  10. Apr 13, 2013 at 2:16 PM
    #10
    Taco Man in HD

    Taco Man in HD DC TRD MallRunner

    Joined:
    Dec 13, 2009
    Member:
    #27494
    Messages:
    820
    Gender:
    Male
    First Name:
    Evan
    Ohio
    Vehicle:
    2004 DC Tacoma PreRunner
    Methods, Red Labels, and other bro stuff.
    funny that I found this thread because I was just looking at the light ring in our landcruiser and realized I wanted one in my tacoma. :cool:

    anyone find a place that sells them online other than ebay? I've searched partsgeek, but no luck. :notsure:

  11. Apr 13, 2013 at 9:49 PM
    #11
    AhviFree

    AhviFree Well-Known Member

    Joined:
    Mar 6, 2013
    Member:
    #99178
    Messages:
    65
    Gender:
    Male
    San Antonio,TX
    Vehicle:
    01 4x4 Tacoma
    I grabbed one for a 97 Camry on Ebay for 6 bucks...fits fine after a small but of dremeling

  12. Apr 15, 2013 at 11:12 AM
    #12
    Taco Man in HD

    Taco Man in HD DC TRD MallRunner

    Joined:
    Dec 13, 2009
    Member:
    #27494
    Messages:
    820
    Gender:
    Male
    First Name:
    Evan
    Ohio
    Vehicle:
    2004 DC Tacoma PreRunner
    Methods, Red Labels, and other bro stuff.
    I finally found one from a 4runner on eBay from a tip from BigOly. :D

    Have you guys replaced the bulb with an led or just leave the stock green-covered bulb in there?

    I'm going to try and track down the led size for a white led color.

  13. Apr 15, 2013 at 11:28 AM
    #13
    Yamaha Dave

    Yamaha Dave Well-Known Member

    Joined:
    Mar 27, 2010
    Member:
    #34080
    Messages:
    2,662
    Gender:
    Male
    If you pull the bulb out from the ring, use your fingernails and you can peel off the green covering and underneath will be a "soft white" LED bulb. If you want a different color though or more of a "pure white," than custommleds.com has that bulb size.

  14. Apr 15, 2013 at 11:35 AM
    #14
    BigOly

    BigOly Well-Known Member

    Joined:
    May 3, 2012
    Member:
    #78148
    Messages:
    417
    Gender:
    Male
    Bay Area, NorCal
    Vehicle:
    04 TRD DC V6 SR5 4WD
    Nice! :) I still havent attempted to swap out the stock bulb with an LED yet (I plan to swap it with a white LED as well), but I'm pretty sure it may need a couple of 1w 100ohm resistors due to the fact that the wires we tapped into go directly to the dome light. I have read that people with 01-04 tacos have reported having issues when installing LEDs in the dome light and a couple of resistors fixed the problem.

    I'll report back once I attempt to change the stock green bulb (currently working) with an LED and if it needs resistors. I think the stock bulb is a #74 when I was fiddling with it but you may want to double check.

    I did noticed one side effect with this mod, when tapping into the dome light wires, when the dome light is switched to off, the stock green bulb starts to blink for some weird reason. I wonder if OP or anyone else has notice this? It only happens when the dome light is switched to off. If the dome light is in the "on" or "door" position, the ring light is normal so it's not a deal breaker for me.

  15. Apr 15, 2013 at 11:41 AM
    #15
    BigOly

    BigOly Well-Known Member

    Joined:
    May 3, 2012
    Member:
    #78148
    Messages:
    417
    Gender:
    Male
    Bay Area, NorCal
    Vehicle:
    04 TRD DC V6 SR5 4WD
    Good idea, but correct me if I'm wrong but I'm pretty sure you meant incandescent, not LED when you peel off the green rubber. I did try this, out of curiosity, and the color is a bit of a dirty white, I prefer a natural clean white that a LED produces.

  16. Apr 15, 2013 at 1:02 PM
    #16
    Yamaha Dave

    Yamaha Dave Well-Known Member

    Joined:
    Mar 27, 2010
    Member:
    #34080
    Messages:
    2,662
    Gender:
    Male
    ^Yes sorry lol I'm even positive if LEDs were around pre-2003 lol.

  17. Apr 15, 2013 at 5:00 PM
    #17
    BigOly

    BigOly Well-Known Member

    Joined:
    May 3, 2012
    Member:
    #78148
    Messages:
    417
    Gender:
    Male
    Bay Area, NorCal
    Vehicle:
    04 TRD DC V6 SR5 4WD
    So here's an update:

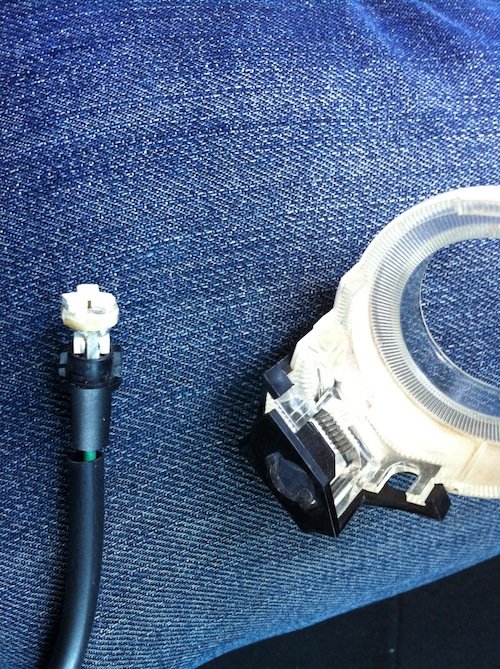

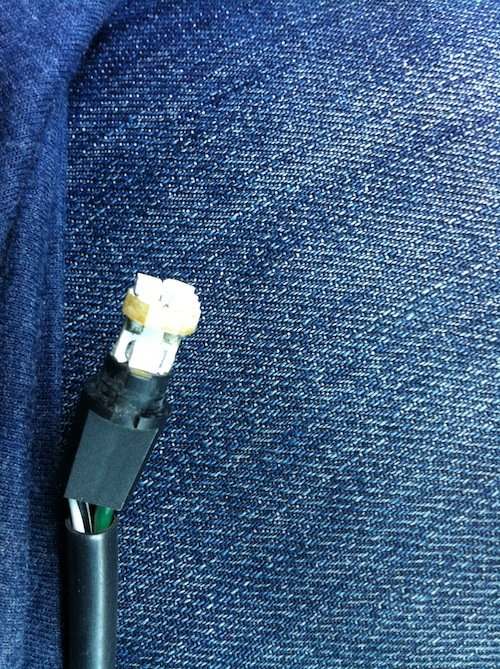

    My order of white LEDs (5 led -3 on top 2 on sides- 360 angle type) came in the mail so I had to rush home from work to get going on replacing the weak green incandescent bulb in the 4Runner light ring. Here it is connected to the light socket:
    [​IMG]

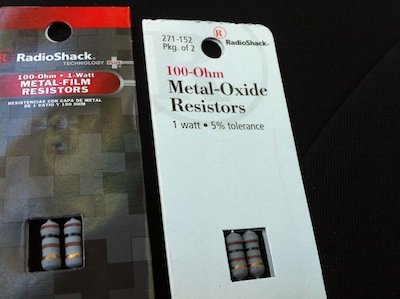

    On my way home I hit ratshack and got me 2 packs (I only really needed one pack but never hurts to get an extra) of 1 watt 100 Ohm resistors:

    [​IMG]

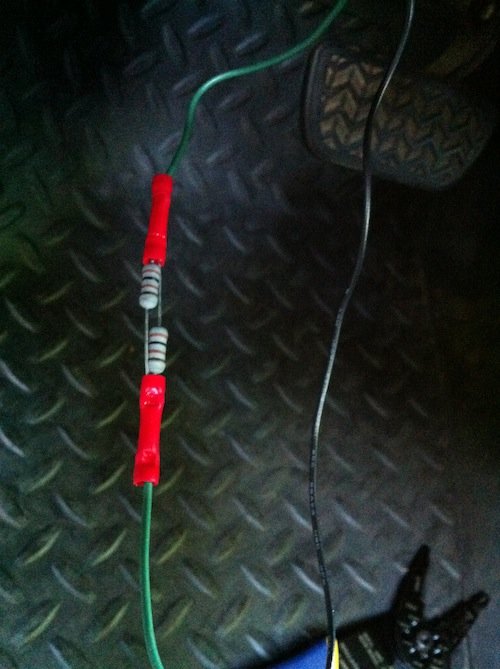

    Then I took a pair of them and secured them together using a couple of butt connectors:

    [​IMG]

    Plugged everything together and the white LED lit up!! WOOT!!!;) I also notice that the ring light blinking issue I posted earlier went away when turing off the dome light. WOOT X2!!!! :D

    [​IMG]

    I have two more of these white LEDs that fits snug in the 4Runner light ring that I don't need so if anyone needs one PM me (you will still need resistors if you do this mod) otherwise I'll just keep them as backup. I'll sell them at $5 each shipped first class anywhere in the USA.

    [​IMG]

    White LED ignition ring all wired up in all it's glory:
    [​IMG]

    Last edited: Apr 15, 2013
  18. Apr 16, 2013 at 10:55 AM
    #18
    Taco Man in HD

    Taco Man in HD DC TRD MallRunner

    Joined:
    Dec 13, 2009
    Member:
    #27494
    Messages:
    820
    Gender:
    Male
    First Name:
    Evan
    Ohio
    Vehicle:
    2004 DC Tacoma PreRunner
    Methods, Red Labels, and other bro stuff.
    ^looks great! mine is on it's way. :turtleride:

    did you dremel the existing black plastic ring around your ignition to fit with the light or does it replace the black plastic part?

  19. Apr 16, 2013 at 11:05 AM
    #19
    BigOly

    BigOly Well-Known Member

    Joined:
    May 3, 2012
    Member:
    #78148
    Messages:
    417
    Gender:
    Male
    Bay Area, NorCal
    Vehicle:
    04 TRD DC V6 SR5 4WD
    I used a black plastic surround off an old 3rd gen 4runner limited. The existing black surround of the taco will not fit, the surround is to large/hole is to small.

    You could probably dremel the existing surround to make the ring fit but not sure how well that would look, unless you have really good dremel skills (mine suck). A detailed install of how I put it all together here.

  20. Apr 18, 2013 at 10:26 AM
    #20
    SteveFaust

    SteveFaust Well-Known Member

    Joined:
    Jan 2, 2013
    Member:
    #94247
    Messages:
    65
    Gender:
    Male
    First Name:
    Steve
    Poway, CA
    Vehicle:
    1995 XtraCab XL 2.7 4x4
    Okay my electrical engineering skills aren't up to par -- what do the resistors do re the LED bulb?
