Illuminated Ignition Ring Mod

Discussion in '2nd Gen. Tacomas (2005-2015)' started by JdevTac, Feb 9, 2015.

Page 2 of 20
  1. Feb 10, 2015 at 2:57 AM
    #21
    Hardscrabble

    #21
    Hardscrabble Well-Known Member

    Joined:
    Feb 9, 2011
    Member:
    #50838
    Messages:
    3,139
    Gender:
    Male
    First Name:
    Scott
    McDonough, GA
    Vehicle:
    '11 TM DCSB & '13 BRM regular cab
    Leather seats, WeatherTech's, Access LiteRider tonneau cover, extra D-rings in bed & tailgate. Pelley lightbar with Hella 700FF's. Temp./compass O/H console.
    Great idea for a mod Josh. When you get it sorted out I'll have to add it to my "to do" list.

    Hardscrabble, Feb 10, 2015
    #21
  2. Feb 10, 2015 at 3:54 AM
    #22
    gearcruncher

    #22
    gearcruncher Well-Known Member

    Joined:
    Nov 1, 2012
    Member:
    #90305
    Messages:
    6,692
    Gender:
    Male
    First Name:
    Canadain bumper technician
    Great white North 51.0333° N, 93.8333° W
    Vehicle:
    2010.TRD.SportDCLB4x4Limited leather package
    TRD Sport Rally -5 speed automatic Limited ,Factory heated leather seats ,chrome package,Super white with front windows tinted to 35 % Dick Cepek DC-2 wheels Summer tires - Good year silent armor P265/65R17 Winter tires - Good year P265/65R17 Ultra Ice studded Illuminated 4x4 switch TRD 3rd brake light cover ($20) TRD seat belt shoulder protectors (5). ($50) TRD ...B pillar emblems ($20) TRD rear slider sticker with devil horns ( $6) TRD summer floor matts ($60) TRD steering wheel emblem ($20) TRD floor pedals .($95) TRD shorty antenna ($14) TRD front Windshield emblems ($17) TRD head pillows .($60) TRD head rest protectors TRD door scuff protection $20 TRD floor matt emblems ($40) TRD tow plug emblem . ($40) TRD cigarette lighter with LED.($35) TRD tissue dispenser ($12) TRD front bezel emblems ($9) TRD door emblems ($6) TRD lanyards($9) TRD lisence plates with TRD bolts($50) TRD fender emblems TRD center caps Part Number:PT904-35070-CC ($80) TRD cd
    I have also been looking for a mod like this .
    On my 2010 sport , as soon as you get into the cab and close the drivers door , the interior light dims and you cant see the ignition . It would be great if we could adjust the interior light timing to fade a little later . Not sure if you have the same issue on the 13 , but imagine you do , thus the reason for the mod . If you plan to tie into the interior lighting circuit , they will dim shortly after the door is closed

    gearcruncher, Feb 10, 2015
    #22
  3. Feb 10, 2015 at 6:03 AM
    #23
    B737

    #23
    B737 Throbbing Member

    Joined:
    Aug 1, 2012
    Member:
    #83903
    Messages:
    1,475
    Gender:
    Male
    First Name:
    Kevin
    Jersey Shore
    Vehicle:
    2015 Tundra Double Cab Limited
    stock
    crap. that is an excellent point!! :(

    B737, Feb 10, 2015
    #23
  4. Feb 10, 2015 at 6:18 AM
    #24
    Pigpen

    #24
    Pigpen My truck is never clean

    Joined:
    Mar 6, 2012
    Member:
    #74319
    Messages:
    8,945
    Gender:
    Male
    Northwest Montana
    Vehicle:
    2012 AC Manual 4.0 4x4 Base Model
    Access cab toolbox/ dog bed with seats and headrests deleted, waterproof TRD seat covers, yellow wire mod, diff breather relocated to tail light, engine block heater, Leer topper with Yakima tracks and rack, Yakima rack on cab, Ride Rite with Daystar cradles, CBI hidden front hitch, wired for winch front and rear Warn quick connect, Warn x8000i on external carrier, sway bar delete, trailer plug relocated to bumper, Pelfreybilt IFS and Mid skids, ECGS front diff bushing, ARB CKMA12 compressor, 255/85/16 Backcountrry MT 3 load E tires on stock steel rims, Up2NoGood heated mirror kit, Husky X-act Contour front floor liners, Northstar AGM 24F battery, Pelfreybilt bolt on sliders with kickout and top plates, TRD Pro headlights, Depo smoked tail lights, Energy suspension body mount bushing kit, OME Dakar leaf packs with AAL, Billstein B110 rear shocks, OME 90021 front shocks with 885 coils, SPC LR UCAs, Up2NoGood 2wd low range mod, 4 Wheel Campers Grandby slide in camper
    This mod is a great idea, but I have to say that the dark 4x4 switch irritates me more. I'll be keeping an eye on this one. If it turns out to be simple enough, I may do it.

    Pigpen, Feb 10, 2015
    #24
  5. Feb 10, 2015 at 3:13 PM
    #25
    JdevTac

    #25
    JdevTac [OP] Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    5,376
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica (sold)

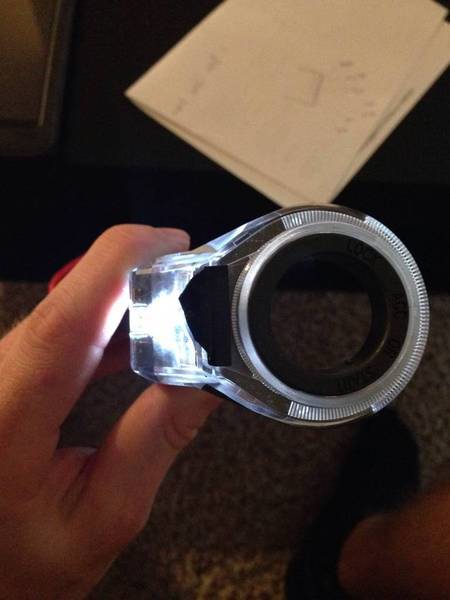

    Alright everyone we have liftoff! As per L J's EXCELLENT observation, ILL+ and ILL- (Pins 3 and 6 respectively) are indeed for the LED. I successfully got the LED to light up!

    Now all it will take is getting the factory harness wired up and tied into the dome light for these 2 leads. Pics below of the 4th gen test dummy. Take note the 4th gen ring has a white LED, where based on my experience in a 2013 4Runner, the 5th gen ring LED is probably amber....which is a bummer for me being a 12+ with the white and green factory scheme lol.

    [​IMG]

    [​IMG]

    Only thing I need to do now is verify the Tacoma harness is not wired for those pins and then I'll get all the wiring done this weekend and also post a wiring diagram of the amplifier harness up momentarily.

    JdevTac, Feb 10, 2015
    #25
  6. Feb 10, 2015 at 3:15 PM
    #26
    B737

    #26
    B737 Throbbing Member

    Joined:
    Aug 1, 2012
    Member:
    #83903
    Messages:
    1,475
    Gender:
    Male
    First Name:
    Kevin
    Jersey Shore
    Vehicle:
    2015 Tundra Double Cab Limited
    stock
    Sweet.........

    B737, Feb 10, 2015
    #26
  7. Feb 10, 2015 at 3:27 PM
    #27
    JdevTac

    #27
    JdevTac [OP] Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    5,376
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica (sold)

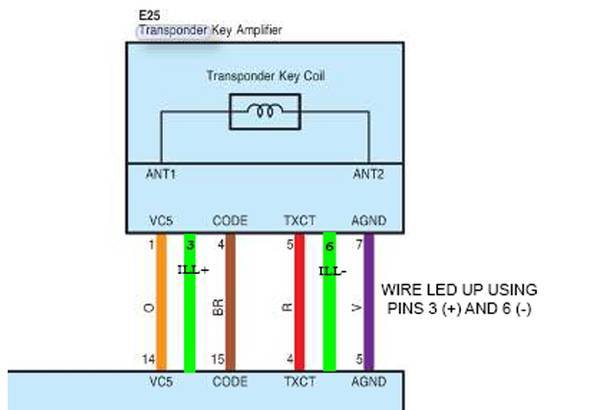

    I'll update the original post with the wiring diagram. I apologize it is a little low quality. Had to upsize it because it was so small and hard to see. Both green leads are what need to be wired for LED function.

    [​IMG]

    JdevTac, Feb 10, 2015
    #27
  8. Feb 10, 2015 at 3:29 PM
    #28
    Bpassmore8

    #28
    Bpassmore8 Brian13DCSB

    Joined:
    Jul 2, 2013
    Member:
    #107443
    Messages:
    177
    Gender:
    Male
    First Name:
    Brian
    Vacaville, CA
    Vehicle:
    2013 Super White TRD Sport
    Debadged, N-Fab step bars, LED cup holder lights, LED dome and map lights, TRD stickers, HID retrofit (Morimoto Mini H1 6.0, BHLM, HomerTaco ghost raptor grill, OME 885s with 90021 up front, 60091 in the rear with trim spacer
    Are you planning on doing a write up for those of us who are thoroughly confused by wiring diagrams?

    Bpassmore8, Feb 10, 2015
    #28
  9. Feb 10, 2015 at 3:32 PM
    #29
    Unchained 5150

    #29
    Unchained 5150 Rick

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    65,286
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    Vehicle:
    2021 TRD Poser Pro Manual.
    Right I don't think even wiring for dummies will help me

    Unchained 5150, Feb 10, 2015
    #29
  10. Feb 10, 2015 at 3:32 PM
    #30
    JdevTac

    #30
    JdevTac [OP] Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    5,376
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica (sold)
    Yes I sure will! I won't get around to it until the weekend, but I will get it done. And I'll borrow my fiancé's Nikon DSLR camera so picture quality will be up 1000% lol.

    I'm a novice when it comes to wiring but if I can get it done anyone can.

    Lol I'll get everything squared away so everyone of all experience levels can knock this mod out.

    JdevTac, Feb 10, 2015
    #30
  11. Feb 10, 2015 at 3:38 PM
    #31
    Jerez

    #31
    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    17,890
    Gender:
    Male
    First Name:
    Rod
    Diamond Bar/Ontario, CA
    Vehicle:
    08 TRD 2wd converted to 4wd/2019 4runner SR5 premium 4x4
    Estock
    They run 30 seconds after you close the door of right after if the key is in the ignition...so I think that's enough time

    Jerez, Feb 10, 2015
    #31
  12. Feb 10, 2015 at 3:44 PM
    #32
    B737

    #32
    B737 Throbbing Member

    Joined:
    Aug 1, 2012
    Member:
    #83903
    Messages:
    1,475
    Gender:
    Male
    First Name:
    Kevin
    Jersey Shore
    Vehicle:
    2015 Tundra Double Cab Limited
    stock
    ok so if it's pins 3 & 6, they are already populated from the Tacoma plug?
    So we would need to bring the dome + - and wire tap them to the leads going to those pins?

    B737, Feb 10, 2015
    #32
  13. Feb 10, 2015 at 3:50 PM
    #33
    JdevTac

    #33
    JdevTac [OP] Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    5,376
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica (sold)
    I need to verify there are pins/terminals/whatever you call the slots the pins slide in to in the Tacoma wiring harness, and if they are present in the harness we are 100% go for the next and final phase of just wiring everything up.

    And yes, just run a + and - in the respective harness slots for those pins and then to the proper dome circuit.

    JdevTac, Feb 10, 2015
    #33
  14. Feb 10, 2015 at 5:34 PM
    #34
    L J

    #34
    L J Well-Known Member

    Joined:
    Mar 16, 2010
    Member:
    #33339
    Messages:
    861
    Gender:
    Male
    Illinois
    Vehicle:
    07 4X4 SR5 TRD Sport DCLB
    Glad I could contribute to your cool mod. Thanks for doing the work.

    L J, Feb 10, 2015
    #34
  15. Feb 10, 2015 at 6:38 PM
    #35
    Unchained 5150

    #35
    Unchained 5150 Rick

    Joined:
    Sep 25, 2014
    Member:
    #139054
    Messages:
    65,286
    Gender:
    Male
    First Name:
    Rick
    Auburn Ma
    Vehicle:
    2021 TRD Poser Pro Manual.

    Awesome brother thanks

    Unchained 5150, Feb 10, 2015
    #35
  16. Feb 10, 2015 at 7:37 PM
    #36
    champcaracing

    #36
    champcaracing Member

    Joined:
    Jan 27, 2014
    Member:
    #121640
    Messages:
    13
    Gender:
    Male
    First Name:
    neal
    MI
    Vehicle:
    19 sport 4x4 DCSB
    gotta do this mod, something else is going on the back burner. this mod would take care of the very thing that's been bothering me since i bought this truck.

    champcaracing, Feb 10, 2015
    #36
  17. Feb 11, 2015 at 4:55 AM
    #37
    L J

    #37
    L J Well-Known Member

    Joined:
    Mar 16, 2010
    Member:
    #33339
    Messages:
    861
    Gender:
    Male
    Illinois
    Vehicle:
    07 4X4 SR5 TRD Sport DCLB

    I looked up 2005 - 2014 tacoma and it appears that they all use the same part number.

    L J, Feb 11, 2015
    #37
  18. Feb 11, 2015 at 5:20 AM
    #38
    Chris(NJ)

    #38
    Chris(NJ) Well-Known Member

    Joined:
    Jan 21, 2010
    Member:
    #29777
    Messages:
    4,169
    Gender:
    Male
    First Name:
    Chris
    Usually in Central Jersey
    Vehicle:
    08 Indigo 4x4 DC OR
    Mods are currently being changed .....
    Great idea/mod! Looking forward to this last update for the connector. Hope they mate up properly. It'll be a fun addition to the truck. Thanks! :cool:

    Chris(NJ), Feb 11, 2015
    #38
  19. Feb 11, 2015 at 6:07 AM
    #39
    BrttClne22

    #39
    BrttClne22 Well-Known Member

    Joined:
    Jul 31, 2012
    Member:
    #83813
    Messages:
    125
    Gender:
    Male
    First Name:
    Britt
    Asheville, NC
    Vehicle:
    2015 Barcelona Red DCLB 4x4 V6
    Sub'd!

    I hope there's a white 5th gen 4Runner ring. That could be a deal killer for me

    BrttClne22, Feb 11, 2015
    #39
  20. Feb 11, 2015 at 7:13 AM
    #40
    JdevTac

    #40
    JdevTac [OP] Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    5,376
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica (sold)
    There might be for trail edition 4Runners as I am pretty sure they run white gauges but I could be totally wrong. From what I remember the part number might just be universal across 5th gen 4Runner models but I can't search it at school right now, for whatever reason the Toyota catalogue is blocking my assigned IP address.

    Worst case scenario you could find a white LED replacement and have it soldered in. Removal of the cover piece to visualize the circuit board gives limited access to the LED solder points for replacement. It would be tight but can be done.

    I know that's a lot to add on to an already $108 part so I know it dissuades some.

    JdevTac, Feb 11, 2015
