Illuminated Ignition Ring Mod

Discussion in '2nd Gen. Tacomas (2005-2015)' started by JdevTac, Feb 9, 2015.

  1. Apr 14, 2020 at 4:25 AM
    #381
    Crosis

    Crosis Tertiary adjunct to unimatrix 01

    Joined:
    Oct 9, 2012
    Member:
    #88629
    Messages:
    2,391
    Gender:
    Male
    Cape Breton Island Nova Scotia
    Vehicle:
    09 Tacoma 4x4 TRD Off Road
    Cool deal then. Toyota has their shit together.

    Muddinfun likes this.
  2. Aug 5, 2020 at 11:30 AM
    #382
    60centenergy

    60centenergy Member

    Joined:
    May 16, 2014
    Member:
    #129989
    Messages:
    14
    Gender:
    Male
    First Name:
    Zack
    Greenville, SC
    Vehicle:
    '14 DCSB TRD OR
    Just did this mod and love it! I followed @Toy4me on post #304 method because I didn't want to buy any connectors and crimp them. Here are my steps:

    • Sourced the illuminated ring for the years of vehicles from @ramonortiz55 post #234 and bought a 2011 Camry Ignition switch w/ Immobilizer on eBay
    • Stole the ring and pigtail from this assembly
    • Extracted the connectors w/ wire for two of the ones from pins 2-6 that will fit in the Tacoma connector for illumination(this was difficult - had to use a sharp point and poke through the housing to press down the locking points on the connectors while pulling them from the back to get them out)
    • Followed directions from the first post with pdf on steps to remove installed ring
    • Soldered longer wire onto both wires that were extracted from pigtail for (+) and (-) illumination
    • Followed the pdf all the way to the end and everything works great! Hopefully I can sell the rest of the Camry assembly and old ring to net out the mod, we'll see...
    Thanks again everyone here on this discussion that contributed to this mod!

    Hardscrabble and Toy4me like this.
  3. Aug 5, 2020 at 2:55 PM
    #383
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,145
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock

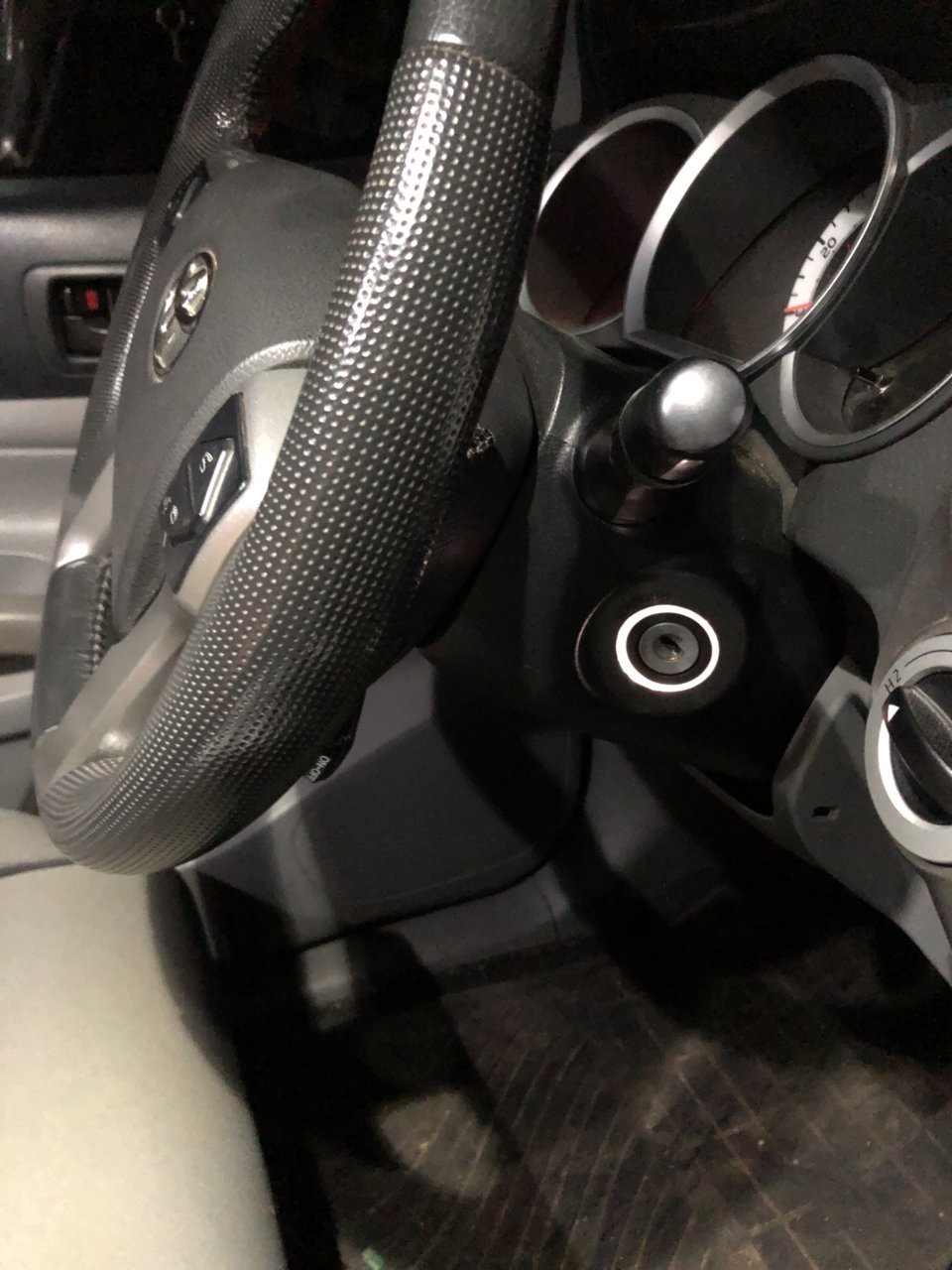

    pictures. now

    60centenergy and Norton like this.
  4. Aug 6, 2020 at 4:23 AM
    #384
    60centenergy

    60centenergy Member

    Joined:
    May 16, 2014
    Member:
    #129989
    Messages:
    14
    Gender:
    Male
    First Name:
    Zack
    Greenville, SC
    Vehicle:
    '14 DCSB TRD OR
    works like a charm and dims with the dome lights when turning off!



    TRDSport10, Hardscrabble and Norton like this.
  5. Aug 6, 2020 at 5:35 AM
    #385
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,145
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    SEX

    60centenergy likes this.
  6. Aug 6, 2020 at 5:36 AM
    #386
    ramonortiz55

    ramonortiz55 Not A Well-Known Member

    Joined:
    Nov 28, 2012
    Member:
    #92013
    Messages:
    34,145
    Gender:
    Male
    First Name:
    Ramon
    Texas
    Vehicle:
    2015 DCSB Offroad 4x4
    stock
    if i ever suffer from Erectile Dysfunction, I just got to see that picture.

    60centenergy likes this.
  7. Aug 7, 2020 at 9:06 PM
    #387
    prone2xl

    prone2xl Well-Known Member

    Joined:
    Jun 23, 2009
    Member:
    #18803
    Messages:
    665
    Gender:
    Male
    Mississippi
    Vehicle:
    2008 Silver TRD Sport DC
    Random question. But seeing as this deals with ignition and I recently installed a 12volt solutions remote start kit, will this affect that I’m any way ? Thanks

  8. Aug 8, 2020 at 4:28 AM
    #388
    Larzzzz

    Larzzzz Grande' Ricardo

    Joined:
    Aug 23, 2009
    Member:
    #21609
    Messages:
    2,765
    Gender:
    Male
    First Name:
    Larry
    MA
    Vehicle:
    '06 dclb 350+ kmiles
    Aux back up lights, Bed lights, Re-located trailer plug, Good dooby, a.k.a. jumper cable mod, Heated seats, back up camera,
    The remote start and this ignition ring light are 2 completely separate systems.
