    Started wiring switches and installed a 6 panel switch holder in the front sunglasses holder. Many thanks to @tacozord again for creating an excellent DIY thread for building a Bussman RTMR fuse/relay block, which was immensely helpful to me before jumping down this rabbit hole of wiring. My harness/wiring is very similar to the one in that thread but used quick disconnects instead of molex/mini molex connectors.

    The wiring harness I created accomplishes the same objective as the RTMR, but is a little less complex Used OTRATTW lower independent/upper dependent switches and wired them into a harness with quick disconnects. Made a wiring harness with corresponding wire colors with one end feeding up to the switches, and the other end feeding down into the engine bay to connect relays. Mounted a Blue Sea bus bar on top of the stock fuse box cover, this will serve as a centralized grounding point for the relays and is grounded to where the stock battery ground is. Only have 4 switches installed so far but wired it to accommodate 2 more switches whenever I add more accessories.

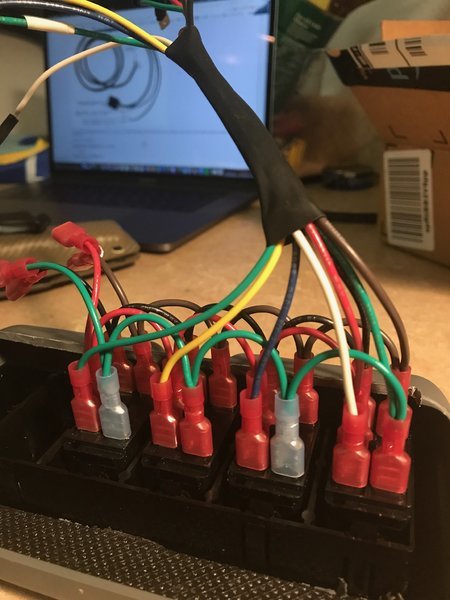

    Switches connected

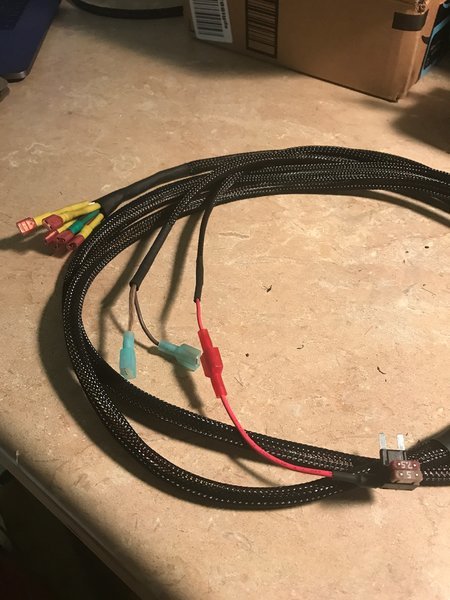

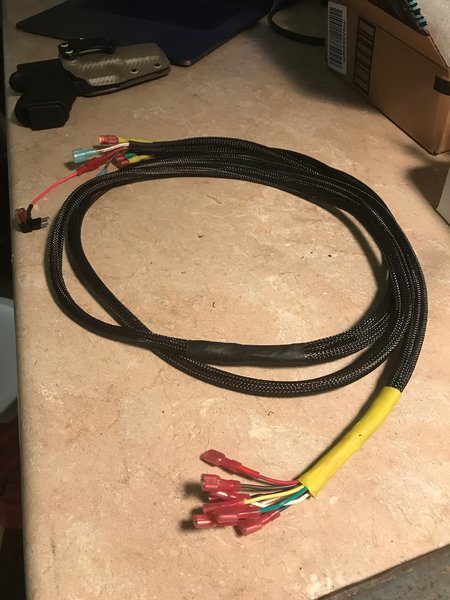

    Completed wiring harness




    Quick disconnects to relays in engine bay, pos/neg wires T-tapped into ABS switch for dimmer control, mini add-a-fuse into dash light fuse location for switch power

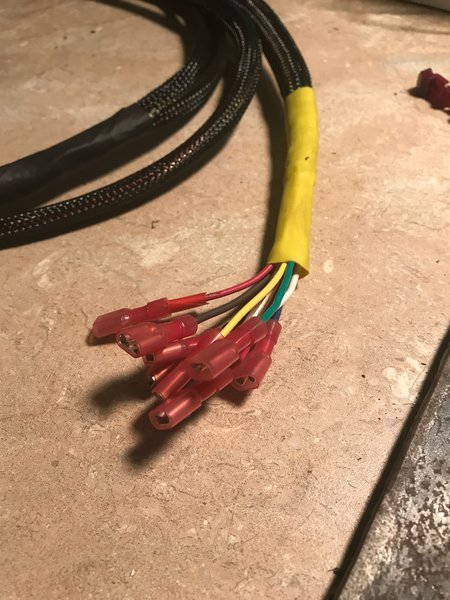

    Quick disconnects for switch wiring harness




    Completed switch panel





    Incognito, May 23, 2017
    #41
    ChadsPride likes this.
  2. May 29, 2017 at 10:37 PM
    #42
    Incognito

    #42
    Incognito [OP] No better friend, no worse enemy

    Joined:
    May 25, 2009
    Member:
    #17626
    Messages:
    13,754
    Gender:
    Male
    VA
    Vehicle:
    2012 Pyrite AC TRD OR
    Spacer lift, bumper stickers, ejector seat, etc.

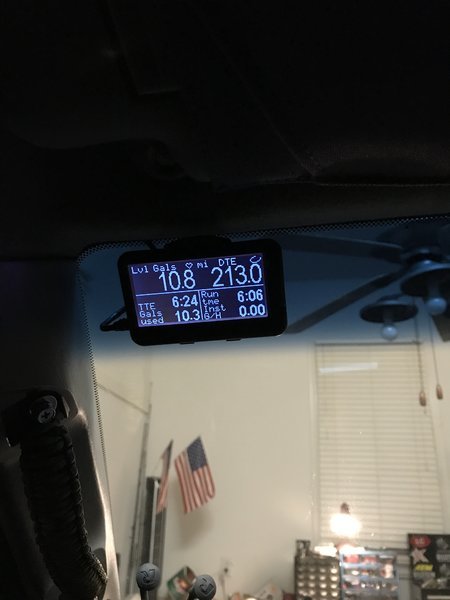

    Added an Ultragauge MX 1.3



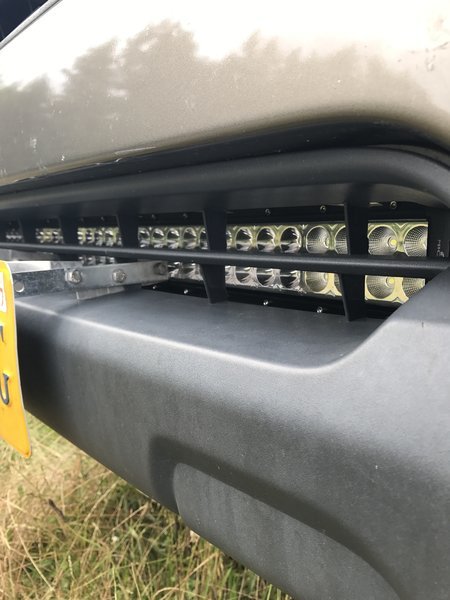

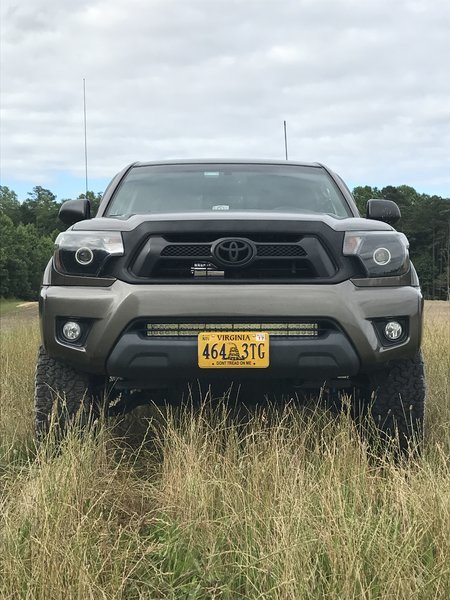

    Installed a 32" Mictunning LED light bar in the lower valence, haven't had a chance to get some good pics of it yet but it is wired up and puts out an incredible amount of light.








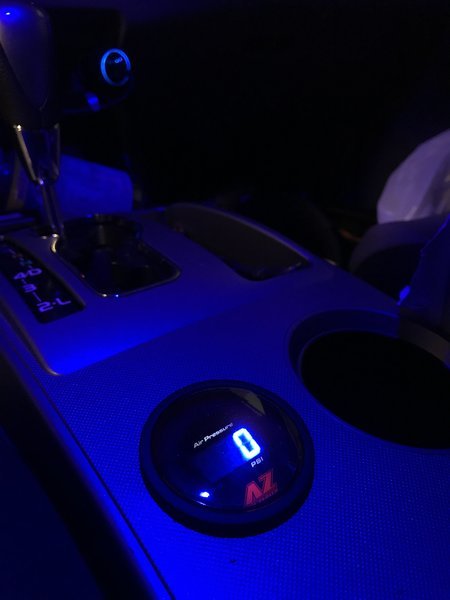

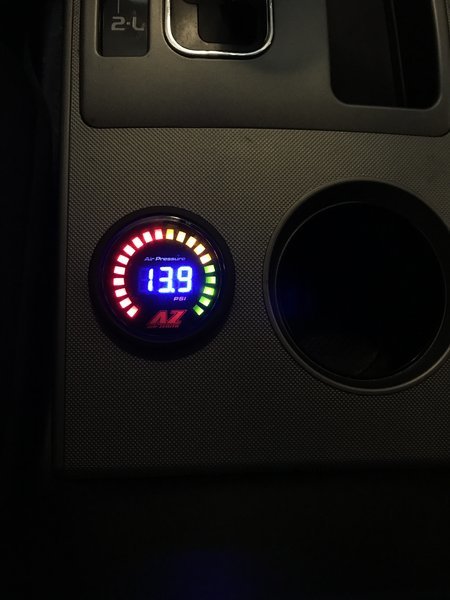

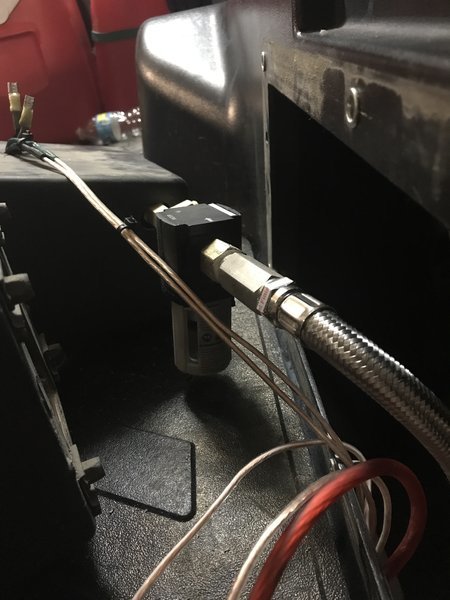

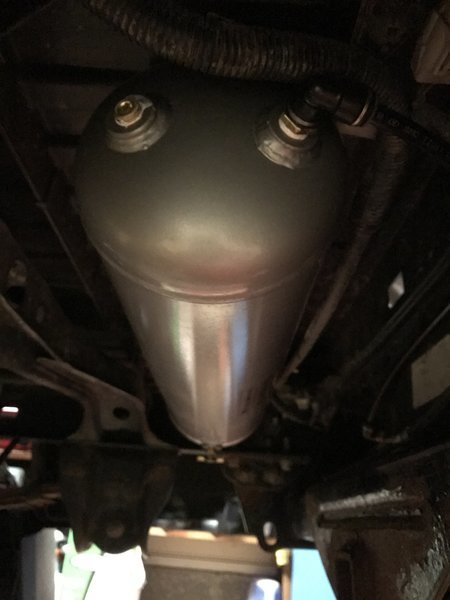

    Also installed an Air Zenith digital pressure gauge by the shifter for the OBA system. Waiting on DOT PTC fittings and 3/8" air line from Accuair to finish up the OBA, should be delivered Thursday. Ran the wiring for the Viair 480C, viair pressure switch, pressure gauge, and LED bed lighting while I had everything torn apart. Viair 480C will be installed behind the passenger tail light and a 2.5 gal tank will be mounted above the trailer hitch where the spare tire was. A cool feature on the Air Zenith pressure gauge is that it reads the system voltage for the first 30 seconds after turning the key, then switches over to tank PSI.

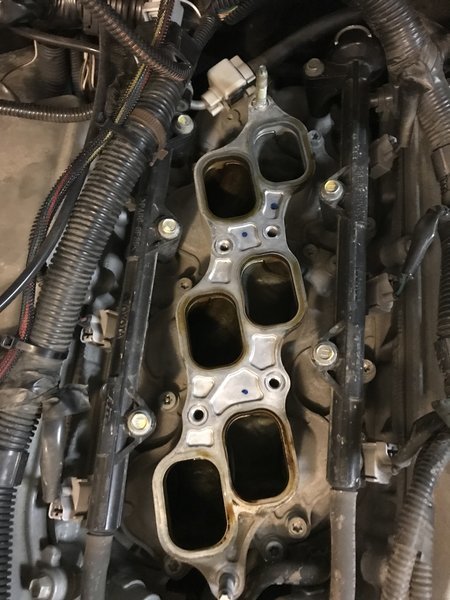

    Installed an XTP intake manifold spacer a couple weeks ago. Great addition to get back the low end torque I lost from the DTLT headers. Didn't get any good pics of the installation.
