Inner tie rod replacment on 4X4

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Rob MacRuger, Oct 16, 2019.

  1. Oct 16, 2019 at 6:22 AM
    #1
    Rob MacRuger

    Rob MacRuger [OP] retired and broke

    Joined:
    Apr 22, 2017
    Member:
    #216950
    Messages:
    199
    Gender:
    Male
    Vehicle:
    Gen 2 4X4 4.0
    2 Lo, ECGS, AT cooler, F+B cameras, sumo springs, gen 3 coils
    What is the trick to accessing the inner tie rod for removal? It looks hard to get at.

    BassAckwards likes this.
  2. Oct 16, 2019 at 6:32 AM
    #2
    BassAckwards

    BassAckwards Toyoda

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    26,165
    Gender:
    Male
    First Name:
    Robert
    TX
    Vehicle:
    2009 2.7L PreRunner
    URD SC, 70mm pulley, custom dual exhaust, ARP head studs, ARP exhaust manifold studs, 550cc fuel injectors, 840cc 5th injector, Snow Stage 3 Water/Methanol Injection w/ 375ml/min nozzle, MAPECU3 with URD jumper harness, 5.29 gears w/ TrueTrac LSD, Hurst/Core Short Shifter, AEM boost & AFR gauges, BorgWarner EFR 7163 coming soon
    remove the dust seal for the steering rack and then you have to bend a couple of tabs that lock it in place out, and then you can put a wrench on it and unthread it

    That's how it was on an FJ when i changed them.. i would expect the taco is nearly identical

    Rob MacRuger [OP] likes this.
  3. Oct 16, 2019 at 10:04 AM
    #3
    Rob MacRuger

    Rob MacRuger [OP] retired and broke

    Joined:
    Apr 22, 2017
    Member:
    #216950
    Messages:
    199
    Gender:
    Male
    Vehicle:
    Gen 2 4X4 4.0
    2 Lo, ECGS, AT cooler, F+B cameras, sumo springs, gen 3 coils
    Thanks!
    I guess I'll need to turn the rack out for better access.

    Last edited: Oct 23, 2019
    BassAckwards likes this.
  4. Oct 23, 2019 at 10:37 AM
    #4
    Rob MacRuger

    Rob MacRuger [OP] retired and broke

    Joined:
    Apr 22, 2017
    Member:
    #216950
    Messages:
    199
    Gender:
    Male
    Vehicle:
    Gen 2 4X4 4.0
    2 Lo, ECGS, AT cooler, F+B cameras, sumo springs, gen 3 coils
    OK done, did this today.
    I had done this on my beater gen 1 pre-runner earlier this year and access to the inner tie rods was way better!
    Hardest part was finding access when folding the flat washer ends on the inner tie rods.
    Getting the inner boot straps off wasn't too bad as Toyota had positioned the clip towards the front.
    Jacking up the lower control arms moved the sway bar up and out of the way on both sides for much better access.
    I used a special narrow jaw crescent wrench to hold the inner rack steady while removing the inner rod. I used a ratchet strap to tie the crescent wrench rock solid steady to the frame while I used an ugly green OEM inner tie rod tool to loosen and tighten. This tool made it really easy to torque the inner tie rods. The OE size wrench is 38.4mm and the Proforged is 1 7/16". No thread lock used since there is a lock washer.
    A long pry bar also proved useful with removing the inside boot strap and folding the flat washer ends. I reused the outer boot clamps but used the new inner clamps. Kind of a stainless steel tie wrap with three wraps.
    Parts used were: Beck/Arnley 103-3070 and 103-2881 boots. This has more soft rubbery feeling than the stock one. Proforged 104-10601 inner and 104-10892 outer tie rods. They didn't look beefier than stock but very similar. The outer tie rod was shorter by a half inch. The castle nut increased in size from 19mm to 22mm.
    I took pics but don't have time to find and upload now.
    Also did the ball joints and sway bar bushings/links last week so this front end is tight and quiet for an almost 14 year old truck.

    Last edited: Oct 29, 2019
  5. Oct 23, 2019 at 12:56 PM
    #5
    knottyrope

    knottyrope Well-Known Member

    Joined:
    Apr 13, 2017
    Member:
    #216122
    Messages:
    1,966
    Gender:
    Male
    First Name:
    Knotty
    Bahstun
    Vehicle:
    09 Taco CCLB 4x4 SR5 4.0
    Pads, rotors, ujoints, 5900K Super White Xenon HID Halogen Bulb Fog Light
    I have inner tie rods coming tomorrow, thanks for sharing

    Rob MacRuger [OP] likes this.
  6. Oct 23, 2019 at 1:33 PM
    #6
    Rob MacRuger

    Rob MacRuger [OP] retired and broke

    Joined:
    Apr 22, 2017
    Member:
    #216950
    Messages:
    199
    Gender:
    Male
    Vehicle:
    Gen 2 4X4 4.0
    2 Lo, ECGS, AT cooler, F+B cameras, sumo springs, gen 3 coils
    TY and YW. Just an FYI, if you have 11" stainless steel tie wraps you are golden. If not and you didn't get new boots with straps just use plastic tie wraps. Access to the inner boot strap is very limited and the gen 2 OE straps are one use only after prying off. At least in my case.
    My gen 1 Pre-runner has different straps that I was able to re-use.
    Best of luck, I spent about 3+ hours taking my time doing both sides.

    Last edited: Oct 29, 2019
    knottyrope likes this.
  7. Oct 23, 2019 at 1:40 PM
    #7
    knottyrope

    knottyrope Well-Known Member

    Joined:
    Apr 13, 2017
    Member:
    #216122
    Messages:
    1,966
    Gender:
    Male
    First Name:
    Knotty
    Bahstun
    Vehicle:
    09 Taco CCLB 4x4 SR5 4.0
    Pads, rotors, ujoints, 5900K Super White Xenon HID Halogen Bulb Fog Light
    I have new boots and straps coming.
    Reman rack was put in 7-2017 so I will cut the old straps off if needed

    My gen 1 had a driver inner fail at 40k and was so easy to change out

    Wish my boot was not torn. Not sure how it happened but I did get an alignment this year and went off roading a bit.

    Rob MacRuger [OP] likes this.
  8. Oct 24, 2019 at 11:47 AM
    #8
    Rob MacRuger

    Rob MacRuger [OP] retired and broke

    Joined:
    Apr 22, 2017
    Member:
    #216950
    Messages:
    199
    Gender:
    Male
    Vehicle:
    Gen 2 4X4 4.0
    2 Lo, ECGS, AT cooler, F+B cameras, sumo springs, gen 3 coils

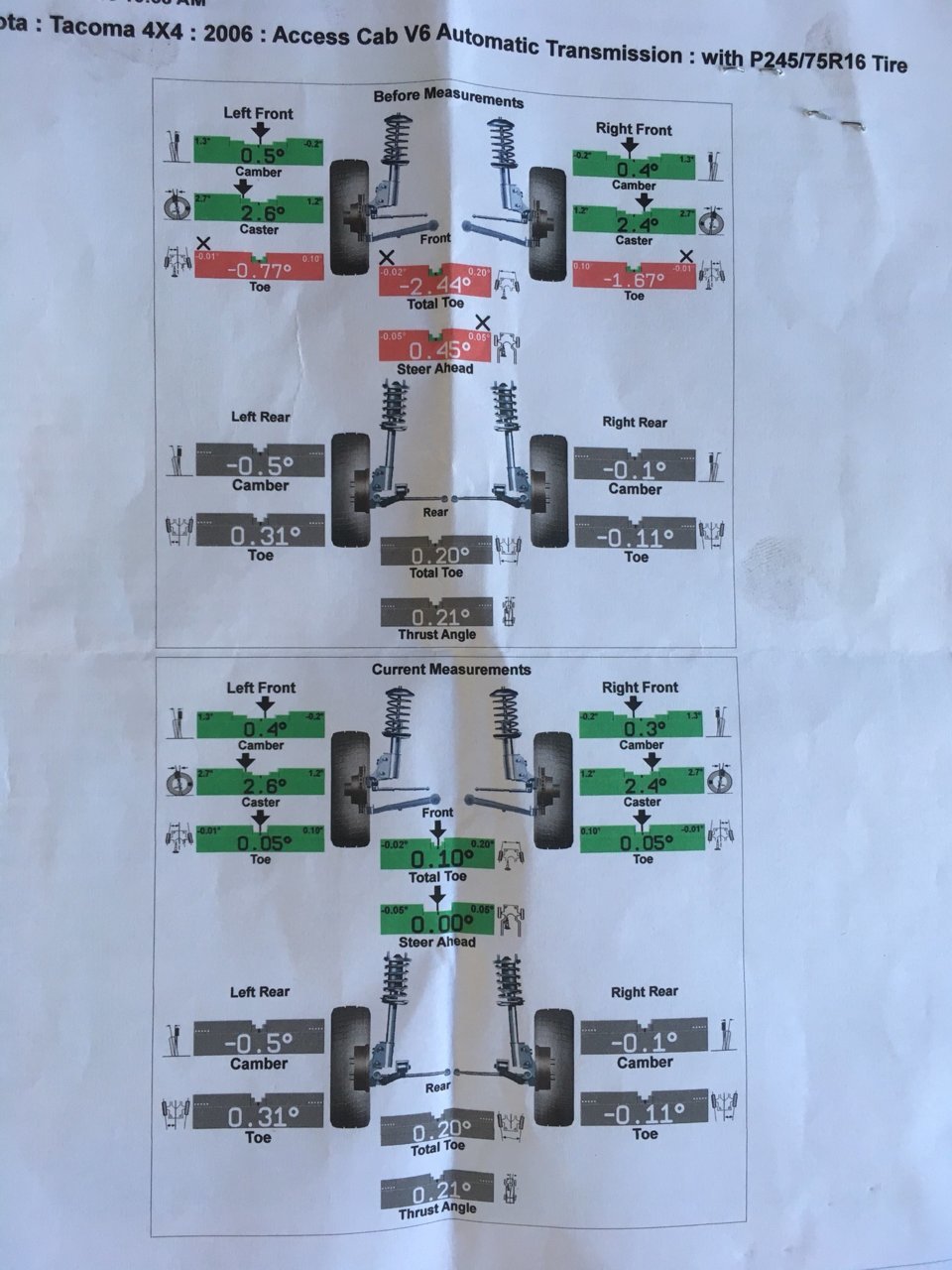

    alignment 20-24-2019 (2).jpg
    As much as I measured the old and new tie rods this was the best I could get.
    I did the right side first. Funny how the left side after 3 beers was closer.

    BassAckwards likes this.
