install offroad lights

Discussion in 'Technical Chat' started by socal19, May 12, 2009.

  1. May 12, 2009 at 10:41 PM
    #1
    socal19

    socal19 [OP] TACOMA03

    Joined:
    Feb 16, 2009
    Member:
    #13694
    Messages:
    363
    Gender:
    Male
    California
    Vehicle:
    03 tacoma pre runner
    2.5" Front spacers, 16inch wheelers steel wheels on 265-75-R16 BFG All Terrain, N-FAB prerunner bar, Flowmaster Exhaust
    hey guys im going to put some offroad lights on my truck and im going to be using a switch so i want to hook up the lights to my fuse box and i only want them on when i go offrading at night so i just flip the switch to turn them on HELP

  2. May 13, 2009 at 2:36 PM
    #2
    Evil Monkey

    Evil Monkey There's an evil monkey in my truck

    Joined:
    Aug 8, 2007
    Member:
    #2352
    Messages:
    8,337
    Gender:
    Male
    First Name:
    Robert
    Escondido, CA
    Vehicle:
    07 4x4 DC SR5 TRD Off-road
    Weathertech front & rear mats, rear suspension TSB, Toytec AAL for TSB, Hi-Lift Jack, Bilstein 5100 & Toytec Adjustable coilovers, Built Right UCAs, KMC XD 795 Hoss Wheels, Definity Dakota MTs 285/75R16, Leer XR, Thule Tracker II & Thule MOAB basket
    Power your switch off your accessory fuse and the send the other end to a 12v 30 amp relay's energizing coil.

    If you're wired to the accessory fuse, the lights will only be on when the key is turned (prevents accidently leaving them on when you leave the truck). The switch portion of the relay would be used to power the lights.

    Using a relay makes sure that power for the light isn't running through the switch (which would fry the switch). Fuse the light power near the battery.

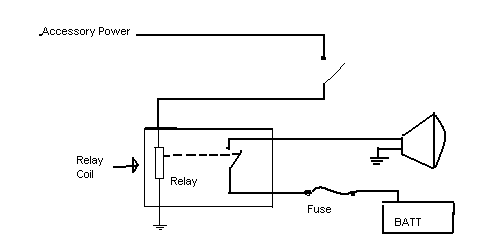

    Light wiring.gif

  3. May 13, 2009 at 2:42 PM
    #3
    socal19

    socal19 [OP] TACOMA03

    Joined:
    Feb 16, 2009
    Member:
    #13694
    Messages:
    363
    Gender:
    Male
    California
    Vehicle:
    03 tacoma pre runner
    2.5" Front spacers, 16inch wheelers steel wheels on 265-75-R16 BFG All Terrain, N-FAB prerunner bar, Flowmaster Exhaust
    yea i only want my lights on when i turn the switch to be on i dont want to have tem on when i start my truck its only for when i go out riding at nite to turn the switch to have them on

  4. May 13, 2009 at 2:45 PM
    #4
    Evil Monkey

    Evil Monkey There's an evil monkey in my truck

    Joined:
    Aug 8, 2007
    Member:
    #2352
    Messages:
    8,337
    Gender:
    Male
    First Name:
    Robert
    Escondido, CA
    Vehicle:
    07 4x4 DC SR5 TRD Off-road
    Weathertech front & rear mats, rear suspension TSB, Toytec AAL for TSB, Hi-Lift Jack, Bilstein 5100 & Toytec Adjustable coilovers, Built Right UCAs, KMC XD 795 Hoss Wheels, Definity Dakota MTs 285/75R16, Leer XR, Thule Tracker II & Thule MOAB basket
    In the example above, they would only be on when you flip the switch. The switch energizes the relay, closing the relay's internal switch, which then allows power to the lights.
