Install the Smittybilt compressor under hood?

Discussion in '3rd Gen. Tacomas (2016-2023)' started by skcihs, May 15, 2020.

  1. May 15, 2020 at 10:05 AM
    #1
    skcihs

    #1
    skcihs [OP] Active Member

    Joined:
    Aug 6, 2019
    Member:
    #301376
    Messages:
    36
    Last edited: May 15, 2020
    skcihs, May 15, 2020
    #1
  2. Jun 2, 2021 at 2:56 PM
    #2
    Mateoblagana

    #2
    Mateoblagana New Member

    Joined:
    Jun 2, 2021
    Member:
    #367477
    Messages:
    1
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    2017 Silver Tacoma TRD OR DCLB
    2" ARB OME Lift, 285/75/16 BF Goodrich KO2 tires, Prinsu Roof Rack, Nighlight Ditch Lights, Tacorail phone mount system, Midland Radio
    Did you get it installed? Mine arrived today. I didn't realize how big it is!

    Mateoblagana, Jun 2, 2021
    #2
  3. Jun 2, 2021 at 10:00 PM
    #3
    Buttskevin21

    #3
    Buttskevin21 Well-Known Member

    Joined:
    Dec 14, 2020
    Member:
    #349654
    Messages:
    2,490
    Gender:
    Male
    First Name:
    Kevin
    Washington
    Vehicle:
    2019 Brocoma, 37s, Lt, Dual Tcases, blah blah blah https://www.instagram.com/kevinjbutts/
    Stock-ish

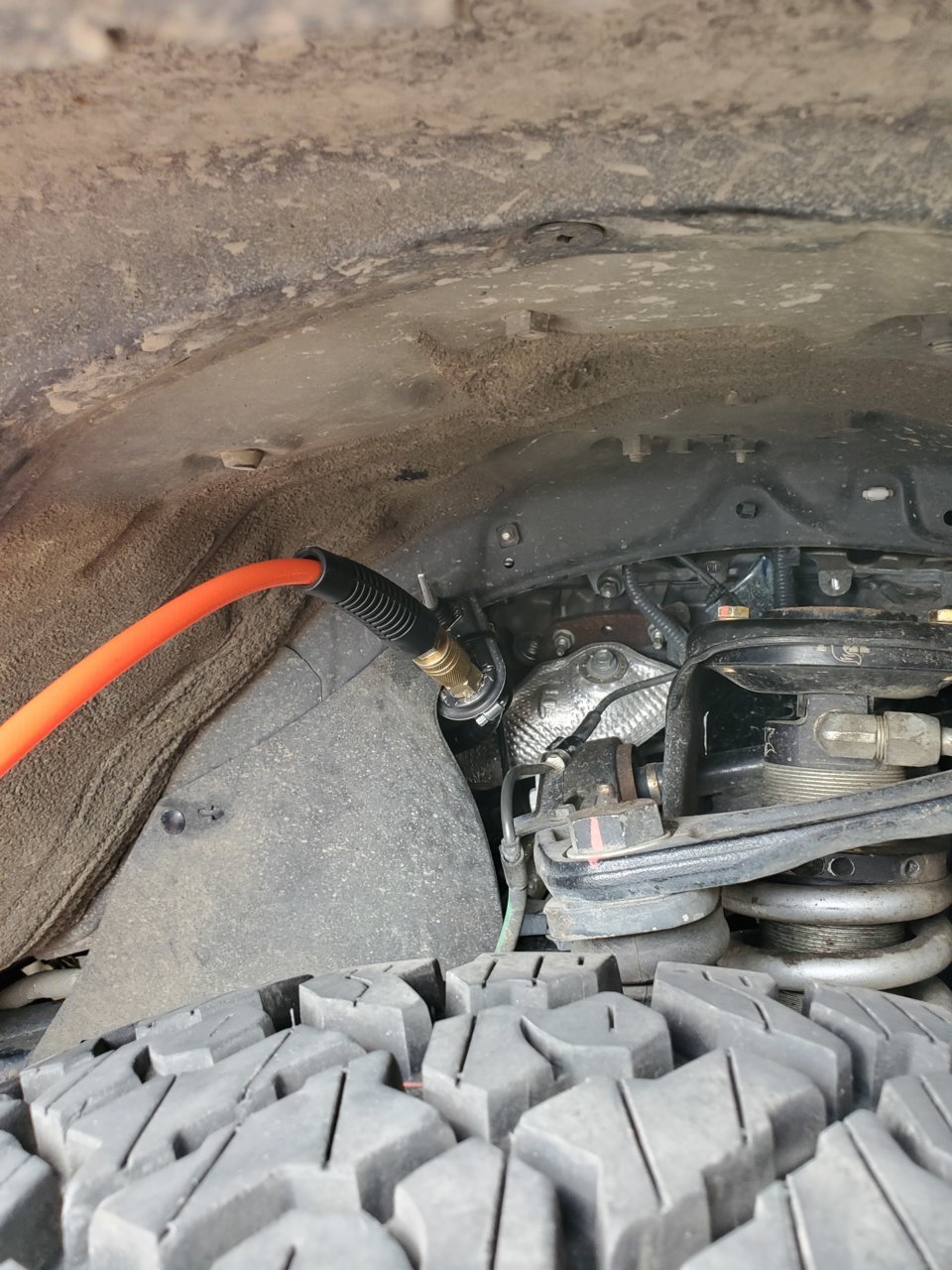

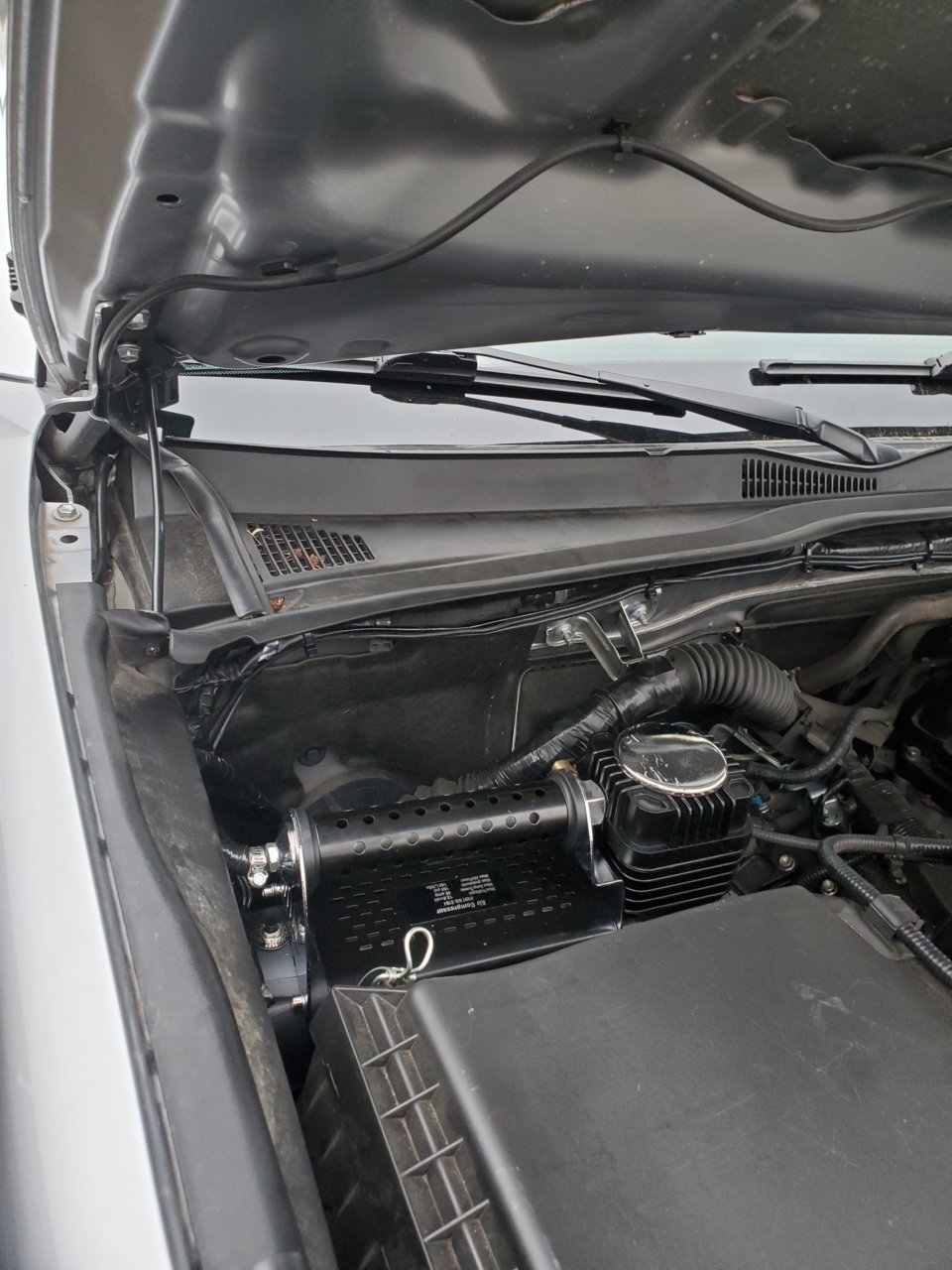

    I put one where a second battery would go. Had to move some hoses/bend some brake lines out if the way to allow it to fit. Made a bracket to support the weight of this massive thing. Hard wired it in with a switch and the air connection in the wheel well. Only thing i need to redo, is the hose coming directly off of the compressor as it basically does a 180 degree turn and is borderline kinked.20210403_184146.jpg 20210403_155021.jpg

    Buttskevin21, Jun 2, 2021
    #3
    Scrat and MJTH like this.
  4. Jun 3, 2021 at 6:30 AM
    #4
    Pilsner

    #4
    Pilsner Well-Known Member

    Joined:
    Dec 30, 2018
    Member:
    #277424
    Messages:
    1,149
    Gender:
    Male
    Vehicle:
    18 TRDOR
    255/85r16 ST Maxx 6112/5160 w/ Dakar RCI armor, sliders, and rear bumper CBI hidden winch mount w/ Smity 20k

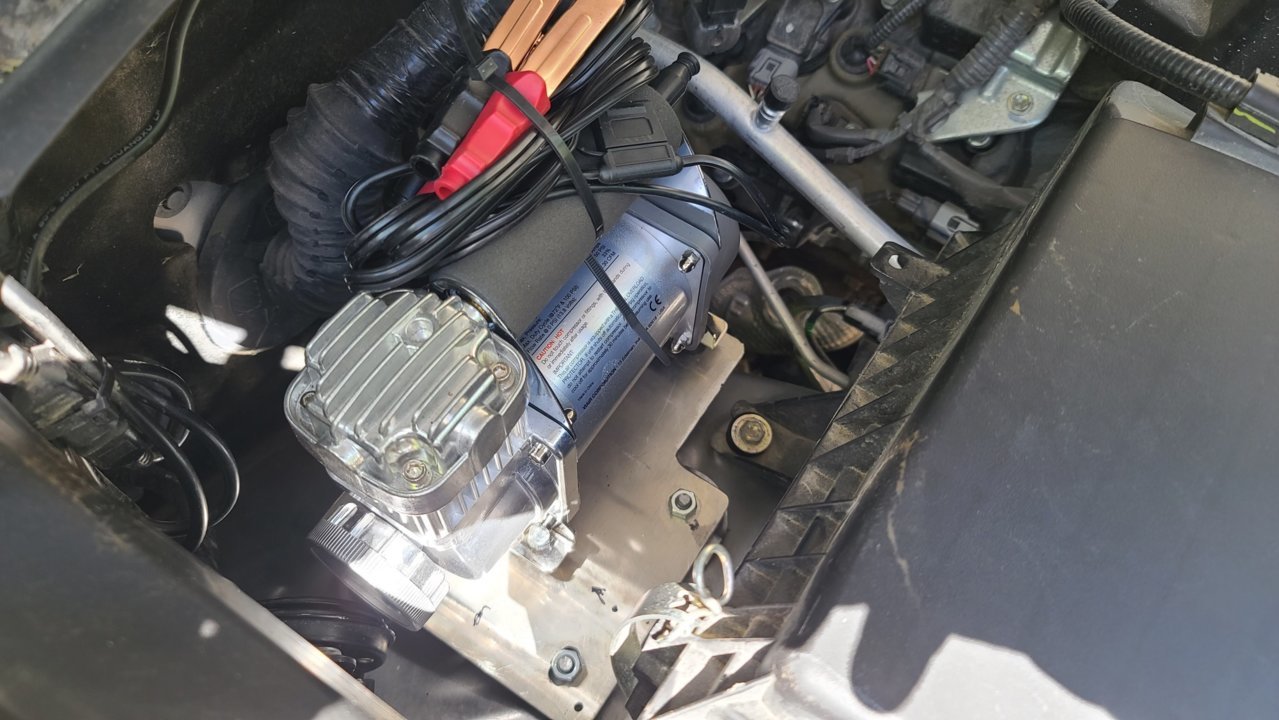

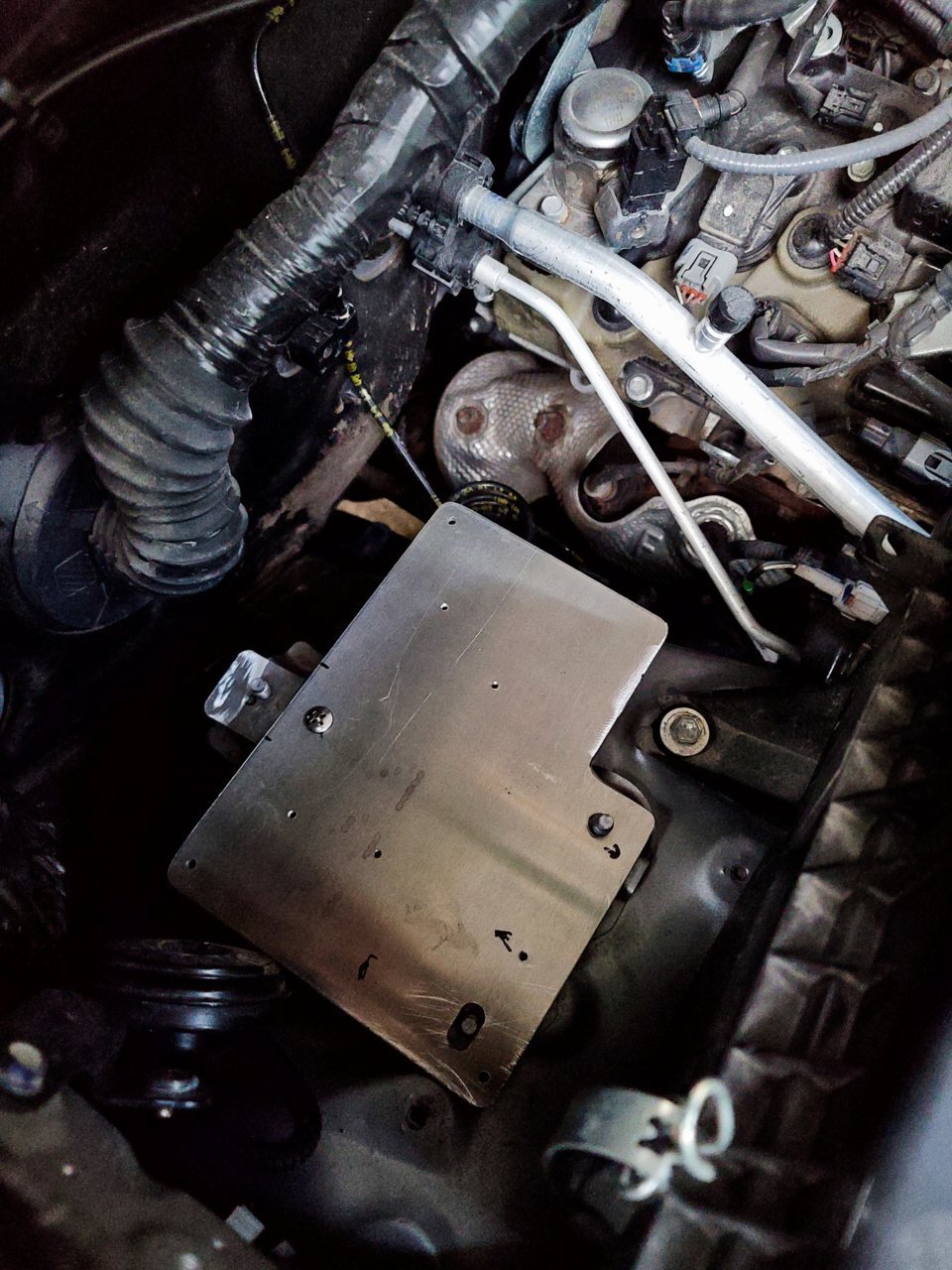

    Here is what I did for my Viair that looks extremely similar. It is all hard wired now. This summer I will be adding a distribution block and pressure shut off switch. I made the bracket out of aluminum that I had in the shop.


    Pilsner, Jun 3, 2021
    #4
  5. Jun 3, 2021 at 10:33 AM
    #5
    Millhouse516

    #5
    Millhouse516 Traveling by Tacoma

    Joined:
    Sep 4, 2019
    Member:
    #304281
    Messages:
    185
    Gender:
    Male
    San Diego
    Vehicle:
    Silver 2019 DCSB SR5
    5100's - Icon AAL - RTT - DIY Awning - DIY Mods
    I added my Viair to my truck. Not the same compressor obviously, but may give you some alternate ideas. Been great, no issues whatsoever so far.

    https://youtu.be/jsRGuHM7ffA

    Millhouse516, Jun 3, 2021
    #5
    EvxnCrxss and Uthmoelleri like this.
