Installed D-Rings in the Bed (Pics)

Discussion in '2nd Gen. Tacomas' started by Neubs, Feb 27, 2009.

  1. Feb 27, 2009 at 3:23 PM
    #1
    Neubs

    Neubs [OP] Sold my Tacoma. Goodbye TW.

    Joined:
    Sep 13, 2008
    Member:
    #9194
    Messages:
    1,024
    Gender:
    Male
    Maryland
    Vehicle:
    06 TRD Offroad DC 4X4
    ToyTec 5100 Bilstein Adjustable Coilovers w/ Eibach Springs | OME Darkar Leaf Springs | 5150 10" Bilstein Rear Shocks| Light Racing UCAs | All Pro U-Bolt Flip Kit | Timbren Rear Bumps | Extended Stainless Steel Rear Brake Lines | ARB CKMA12 On-Board Air Compressor | Method 16" Race Wheels | Goodyear 285/70/16 MTR | 48" Hi-Lift Jack | ToyTec Diff Drop | Warn Hitch Shackle | TRD Cold Air Intake | PIAA Intense White Bulbs | PIAA Silicone Wipers | Toyota Bed Mat |Sockmonkey Graphics | 20% Tint | Sport Hood | Scan Gauge II & Blend Mount | Shrockworks Sliders | ARB Bumper | Warn M8000 Winch | Viking Synthetic Winch line | 12-Volt Guy In-Dash Winch Controller | Viking Delrin Rollers | Daystar Winch Isolator| ARB/IPF 900XS Lights | Weather Tech Liners | Rock Lights | Diff Breather Mod | Extra Bed D-Rings | Misc. LED bulbs throughout
    I love cheap and easy mods so here is one that I did today. Special Thanks to Mr.Grimm from TN and all of the others who have done this before me. Toyota should have built the Tacoma with these from the factory but oh well. Enjoy: :)

    Step 1: Assemble materials and tools
    -Toyota Part:pT785-35054
    -T-55 Socket
    -Paint
    -Dremel tool
    -Speed Square
    -Tape measure
    -Sharpie
    -Razor Knife

    [​IMG]

    Step 2: Locate Bolts (I found a few of them hiding under my bed mat)
    [​IMG]

    Step 3: Remove Bed bolts
    [​IMG]

    Step4: Use Dremel to grind down rings below washer (this must be done to remove washer)
    [​IMG]

    Step 5: Remove washer and prime for paint
    [​IMG]

    Step 6: Paint and Apply Anti-Seize
    [​IMG]

    Step 7: Assemble
    [​IMG]

    Step 8: Re-install
    [​IMG]

    Step 9: Measure for bed mat cut
    [​IMG]

    Step 10: Measure and Mark
    [​IMG]

    Step 11: Cut Bed Mat
    [​IMG]

    Step 12: Done
    [​IMG]

    Enjoy your new mod:
    [​IMG]

    [​IMG]

  2. Feb 27, 2009 at 3:32 PM
    #2
    Snipe

    Snipe Well-Known Member

    Joined:
    Jan 9, 2009
    Member:
    #12421
    Messages:
    1,155
    Gender:
    Male
    Pacific NW
    Vehicle:
    08 TRD Off Road
    Nice write up :thumbsup:

    Excellent pics too :)

  3. Feb 27, 2009 at 3:33 PM
    #3
    jolayiv

    jolayiv Carolina Alliance

    Joined:
    Aug 25, 2008
    Member:
    #8757
    Messages:
    1,131
    Gender:
    Male
    First Name:
    Jim
    New Bern NC
    Vehicle:
    07 DC TRD 4x4 Off-Road
    Revenge-Fab Sliders, AVS Vent Guards, Rear TSB, Hose clamp MOD, Locker MOD, Flowmaster 40 Series Delta Flow, Midland Radio, Wilson 1000 antenna, Rear Diff breather MOD, Weathertech liners, Maglite mount, Bed Divider, LEER 100XR, Pop&Lock
    I like it!

  4. Feb 27, 2009 at 3:35 PM
    #4
    Neubs

    Neubs [OP] Sold my Tacoma. Goodbye TW.

    Joined:
    Sep 13, 2008
    Member:
    #9194
    Messages:
    1,024
    Gender:
    Male
    Maryland
    Vehicle:
    06 TRD Offroad DC 4X4
    ToyTec 5100 Bilstein Adjustable Coilovers w/ Eibach Springs | OME Darkar Leaf Springs | 5150 10" Bilstein Rear Shocks| Light Racing UCAs | All Pro U-Bolt Flip Kit | Timbren Rear Bumps | Extended Stainless Steel Rear Brake Lines | ARB CKMA12 On-Board Air Compressor | Method 16" Race Wheels | Goodyear 285/70/16 MTR | 48" Hi-Lift Jack | ToyTec Diff Drop | Warn Hitch Shackle | TRD Cold Air Intake | PIAA Intense White Bulbs | PIAA Silicone Wipers | Toyota Bed Mat |Sockmonkey Graphics | 20% Tint | Sport Hood | Scan Gauge II & Blend Mount | Shrockworks Sliders | ARB Bumper | Warn M8000 Winch | Viking Synthetic Winch line | 12-Volt Guy In-Dash Winch Controller | Viking Delrin Rollers | Daystar Winch Isolator| ARB/IPF 900XS Lights | Weather Tech Liners | Rock Lights | Diff Breather Mod | Extra Bed D-Rings | Misc. LED bulbs throughout
    Thank you. :)

  5. Feb 27, 2009 at 3:37 PM
    #5
    DeeKay21

    DeeKay21 Lieutenant Dan.

    Joined:
    Nov 11, 2008
    Member:
    #10651
    Messages:
    14,201
    Gender:
    Male
    Nevada/Utah
    Vehicle:
    06' TRD Sport 4x4
    Looks great!!! I love that bed mat!!! Where did you pick that up from?:cool:

  6. Feb 27, 2009 at 3:39 PM
    #6
    LonghornTaco

    LonghornTaco Can you pass the bailout please?

    Joined:
    Oct 6, 2008
    Member:
    #9763
    Messages:
    3,358
    Gender:
    Male
    First Name:
    Jason
    Minnesota
    Vehicle:
    Black 09 4x4 TRD Off Road Doublecab
    3" ToyTec coilover lift on Bilstein 5100s, Total Chaos UCAs, ToyTec diff drop, Scangauge II, 4D MagLite mounted on the drivers seat, Painted engine cover, Painted calipers (red), Painted skid plate (red) Valentine 1 radar detector hard wired, Damplifier Pro on the floor, back wall and doors, Luxury Liner Pro on the floor and doors, Kenwood DNX8120, 2 Pioneer TS-SW1041D 10" shallow mount subs, 2 Pioneer PRS-D4200F 1200W amps, Mr Marv sub enclosure, Hybrid Audio Clarus 6.5" components in the front doors, Alpine 5.25" coaxials in the rear doors, A.R.E. LSII fiberglass tonneau cover, All Pro bumper, All Pro sliders, Wet Okole seat covers, Sockmonkey Mountain badges, PIAA 510 SMR Driving Lights, Warn M8000 Winch, Bud Built skids
    Nice job! I've thought about getting one of those bedmats...

  7. Feb 27, 2009 at 3:40 PM
    #7
    Neubs

    Neubs [OP] Sold my Tacoma. Goodbye TW.

    Joined:
    Sep 13, 2008
    Member:
    #9194
    Messages:
    1,024
    Gender:
    Male
    Maryland
    Vehicle:
    06 TRD Offroad DC 4X4
    ToyTec 5100 Bilstein Adjustable Coilovers w/ Eibach Springs | OME Darkar Leaf Springs | 5150 10" Bilstein Rear Shocks| Light Racing UCAs | All Pro U-Bolt Flip Kit | Timbren Rear Bumps | Extended Stainless Steel Rear Brake Lines | ARB CKMA12 On-Board Air Compressor | Method 16" Race Wheels | Goodyear 285/70/16 MTR | 48" Hi-Lift Jack | ToyTec Diff Drop | Warn Hitch Shackle | TRD Cold Air Intake | PIAA Intense White Bulbs | PIAA Silicone Wipers | Toyota Bed Mat |Sockmonkey Graphics | 20% Tint | Sport Hood | Scan Gauge II & Blend Mount | Shrockworks Sliders | ARB Bumper | Warn M8000 Winch | Viking Synthetic Winch line | 12-Volt Guy In-Dash Winch Controller | Viking Delrin Rollers | Daystar Winch Isolator| ARB/IPF 900XS Lights | Weather Tech Liners | Rock Lights | Diff Breather Mod | Extra Bed D-Rings | Misc. LED bulbs throughout
    Got it from my dealer. They hooked me up a while back to make up for one of their screw-ups. :)

  8. Feb 27, 2009 at 3:40 PM
    #8
    SocalMan22

    SocalMan22 Founder Socaltacomas.com Staff Member

    Joined:
    Mar 25, 2007
    Member:
    #1146
    Messages:
    8,155
    Gender:
    Male
    First Name:
    Steve-0
    So*Cal
    Vehicle:
    06 PreRunner Dbl Cab
    What Mods!
    I like the layout of d-rings will probably do the middle as well, with the d-rings i got, i cut the washer off with a cut off wheel easy and quick. just an idea i didnt have my dremel at the time.

  9. Feb 27, 2009 at 3:44 PM
    #9
    DeeKay21

    DeeKay21 Lieutenant Dan.

    Joined:
    Nov 11, 2008
    Member:
    #10651
    Messages:
    14,201
    Gender:
    Male
    Nevada/Utah
    Vehicle:
    06' TRD Sport 4x4
    Oh okay got yah! Hmmm? Maybe I will look for it somewhere.:rolleyes:

  10. Feb 27, 2009 at 4:09 PM
    #10
    jdkeller

    jdkeller How many words can be fit in this s

    Joined:
    Nov 26, 2008
    Member:
    #11040
    Messages:
    13,034
    Gender:
    Male
    First Name:
    Jonathan
    Inland Empire, Ca
    Vehicle:
    2008 Tacoma Prerunner TRD Offroad
    Dome light LED, 6000k HID Headlights and fogs, Grillcraft black mesh, rear 5100's, Total Chaos UCA's, 285/75/16 BFG KM2's, Spidertrax spacers, Blacked out emblems, cb,kenwood tm270 ham radio, All Pro 3" leaf pack, Fox 2.0 coilovers, Revenge Fab Sliders, u bolt flip kit, Pioneer avh4200, bed bar with light and antenna, Wet Okoles, Weathertech Mats, Wet Okole Armrests, Rear KR Fab bumper, bed mat, N-Fab spare tire carrier with full size spare on 16" TRD rim, Bedlinered flares and grille. Camburg Spindles, All Pro front fenders.
    sweet! Im doing this soon!

  11. Feb 27, 2009 at 4:16 PM
    #11
    Neubs

    Neubs [OP] Sold my Tacoma. Goodbye TW.

    Joined:
    Sep 13, 2008
    Member:
    #9194
    Messages:
    1,024
    Gender:
    Male
    Maryland
    Vehicle:
    06 TRD Offroad DC 4X4
    ToyTec 5100 Bilstein Adjustable Coilovers w/ Eibach Springs | OME Darkar Leaf Springs | 5150 10" Bilstein Rear Shocks| Light Racing UCAs | All Pro U-Bolt Flip Kit | Timbren Rear Bumps | Extended Stainless Steel Rear Brake Lines | ARB CKMA12 On-Board Air Compressor | Method 16" Race Wheels | Goodyear 285/70/16 MTR | 48" Hi-Lift Jack | ToyTec Diff Drop | Warn Hitch Shackle | TRD Cold Air Intake | PIAA Intense White Bulbs | PIAA Silicone Wipers | Toyota Bed Mat |Sockmonkey Graphics | 20% Tint | Sport Hood | Scan Gauge II & Blend Mount | Shrockworks Sliders | ARB Bumper | Warn M8000 Winch | Viking Synthetic Winch line | 12-Volt Guy In-Dash Winch Controller | Viking Delrin Rollers | Daystar Winch Isolator| ARB/IPF 900XS Lights | Weather Tech Liners | Rock Lights | Diff Breather Mod | Extra Bed D-Rings | Misc. LED bulbs throughout
    Yeah, the bolts in my bed came out easy, of course I did eat my Wheaties this morning....I saw the cheapo D-Rings you referenced but I wanted something that would look like it came straight from the factory. I also wanted something well made.

    The Toyota rings will allow you to mount the rings in other places because they come with all necessary hardware. To be honest with you I am not trying to re-invent the wheel here, I thought I would post some pics of what I did in the hope that it might help someone else. Thanks for your contribution. :)

  12. Feb 27, 2009 at 4:44 PM
    #12
    jefferson

    jefferson needs to stop cruising Buy/Sell/Trade....

    Joined:
    Jul 31, 2008
    Member:
    #8260
    Messages:
    5,325
    Gender:
    Male
    First Name:
    Sex Panther
    San Diego (North Park!), CA
    Vehicle:
    05 PreRunner SR5
    toyota brand hitch and uhaul wiring harness, fog lamps on anytime, bed lamps, map lights on with dome, day time running lamps, remove secondary air filter, painted bumper grill, Double Din touch screen stereo, Sockmonkey custom SR5 decal, door & seatbelt bells disabled, painted engine cover, installed compass/temperature overhead console, failed mod: passenger side auto down window switches, weathertech front mats, RedLine hood struts, Cheap Beep piezo buzzer locking beep, 5100s in the front set at 2.5, 5100s in the rear, AAL, hitch safe, revenge fab sliders, bed bar, prerunner light, cb wired
    ah awesome. I gotta do this one.. good on ya

  13. Feb 27, 2009 at 4:57 PM
    #13
    Pster

    Pster Well-Known Member

    Joined:
    Jun 30, 2008
    Member:
    #7654
    Messages:
    2,770
    Gender:
    Male
    Charlotte, NC
    Vehicle:
    2006 Tacoma 4x4
    Bak Flip bed cover, shorty antenna, Peripheral iPod interface, Garmin 750 mount, add'l bed tie down rings, Westin nerf bars, hitch safe, tailgate lock, Ideal 1 3/4" turn-key clamp to secure tailgate from removal, Spare tire security cable, spare tire stainless air hose extender, Fumoto oil drain valve, Amp Research Bed X-Tender w/Schlage Cable Lock, bed mat, Redline hood struts
    Nice job! Did the Star Bit remove the bolts without stripping them at all?

  14. Feb 27, 2009 at 5:05 PM
    #14
    Neubs

    Neubs [OP] Sold my Tacoma. Goodbye TW.

    Joined:
    Sep 13, 2008
    Member:
    #9194
    Messages:
    1,024
    Gender:
    Male
    Maryland
    Vehicle:
    06 TRD Offroad DC 4X4
    ToyTec 5100 Bilstein Adjustable Coilovers w/ Eibach Springs | OME Darkar Leaf Springs | 5150 10" Bilstein Rear Shocks| Light Racing UCAs | All Pro U-Bolt Flip Kit | Timbren Rear Bumps | Extended Stainless Steel Rear Brake Lines | ARB CKMA12 On-Board Air Compressor | Method 16" Race Wheels | Goodyear 285/70/16 MTR | 48" Hi-Lift Jack | ToyTec Diff Drop | Warn Hitch Shackle | TRD Cold Air Intake | PIAA Intense White Bulbs | PIAA Silicone Wipers | Toyota Bed Mat |Sockmonkey Graphics | 20% Tint | Sport Hood | Scan Gauge II & Blend Mount | Shrockworks Sliders | ARB Bumper | Warn M8000 Winch | Viking Synthetic Winch line | 12-Volt Guy In-Dash Winch Controller | Viking Delrin Rollers | Daystar Winch Isolator| ARB/IPF 900XS Lights | Weather Tech Liners | Rock Lights | Diff Breather Mod | Extra Bed D-Rings | Misc. LED bulbs throughout
    Thanks :wave:

    Aye, the bit did a dandy job. It left a few minor marks but nothing too bad. :)

  15. Feb 27, 2009 at 5:06 PM
    #15
    DesmoBob

    DesmoBob Active Member

    Joined:
    Dec 29, 2008
    Member:
    #12009
    Messages:
    31
    Gender:
    Male
    Hawaii
    Vehicle:
    08 PreRunner SR5
    Nice writeup. Good idea about putting rings in the middle section too.

  16. Feb 27, 2009 at 5:50 PM
    #16
    Neubs

    Neubs [OP] Sold my Tacoma. Goodbye TW.

    Joined:
    Sep 13, 2008
    Member:
    #9194
    Messages:
    1,024
    Gender:
    Male
    Maryland
    Vehicle:
    06 TRD Offroad DC 4X4
    ToyTec 5100 Bilstein Adjustable Coilovers w/ Eibach Springs | OME Darkar Leaf Springs | 5150 10" Bilstein Rear Shocks| Light Racing UCAs | All Pro U-Bolt Flip Kit | Timbren Rear Bumps | Extended Stainless Steel Rear Brake Lines | ARB CKMA12 On-Board Air Compressor | Method 16" Race Wheels | Goodyear 285/70/16 MTR | 48" Hi-Lift Jack | ToyTec Diff Drop | Warn Hitch Shackle | TRD Cold Air Intake | PIAA Intense White Bulbs | PIAA Silicone Wipers | Toyota Bed Mat |Sockmonkey Graphics | 20% Tint | Sport Hood | Scan Gauge II & Blend Mount | Shrockworks Sliders | ARB Bumper | Warn M8000 Winch | Viking Synthetic Winch line | 12-Volt Guy In-Dash Winch Controller | Viking Delrin Rollers | Daystar Winch Isolator| ARB/IPF 900XS Lights | Weather Tech Liners | Rock Lights | Diff Breather Mod | Extra Bed D-Rings | Misc. LED bulbs throughout
    Hey thanks a lot for your valuable input and informative post.

    Thanks

  17. Feb 27, 2009 at 5:54 PM
    #17
    AK27

    AK27 Well-Known Member

    Joined:
    Nov 24, 2008
    Member:
    #11005
    Messages:
    39,106
    nice work!

  18. Feb 28, 2009 at 8:58 AM
    #18
    silver07taco

    silver07taco Well-Known Member

    Joined:
    Apr 27, 2008
    Member:
    #6241
    Messages:
    4,559
    Gender:
    Male
    First Name:
    COIL
    Maryland
    Vehicle:
    13 Tundra RCSB 5.7 4x4,07 Tacoma AC 4.0 4x4
    2013 Tundra RCSB 5.7 4x4, 2007 Tacoma AC 4.0 4x4
    Nice work Dave!

  19. Feb 28, 2009 at 3:35 PM
    #19
    Neubs

    Neubs [OP] Sold my Tacoma. Goodbye TW.

    Joined:
    Sep 13, 2008
    Member:
    #9194
    Messages:
    1,024
    Gender:
    Male
    Maryland
    Vehicle:
    06 TRD Offroad DC 4X4
    ToyTec 5100 Bilstein Adjustable Coilovers w/ Eibach Springs | OME Darkar Leaf Springs | 5150 10" Bilstein Rear Shocks| Light Racing UCAs | All Pro U-Bolt Flip Kit | Timbren Rear Bumps | Extended Stainless Steel Rear Brake Lines | ARB CKMA12 On-Board Air Compressor | Method 16" Race Wheels | Goodyear 285/70/16 MTR | 48" Hi-Lift Jack | ToyTec Diff Drop | Warn Hitch Shackle | TRD Cold Air Intake | PIAA Intense White Bulbs | PIAA Silicone Wipers | Toyota Bed Mat |Sockmonkey Graphics | 20% Tint | Sport Hood | Scan Gauge II & Blend Mount | Shrockworks Sliders | ARB Bumper | Warn M8000 Winch | Viking Synthetic Winch line | 12-Volt Guy In-Dash Winch Controller | Viking Delrin Rollers | Daystar Winch Isolator| ARB/IPF 900XS Lights | Weather Tech Liners | Rock Lights | Diff Breather Mod | Extra Bed D-Rings | Misc. LED bulbs throughout

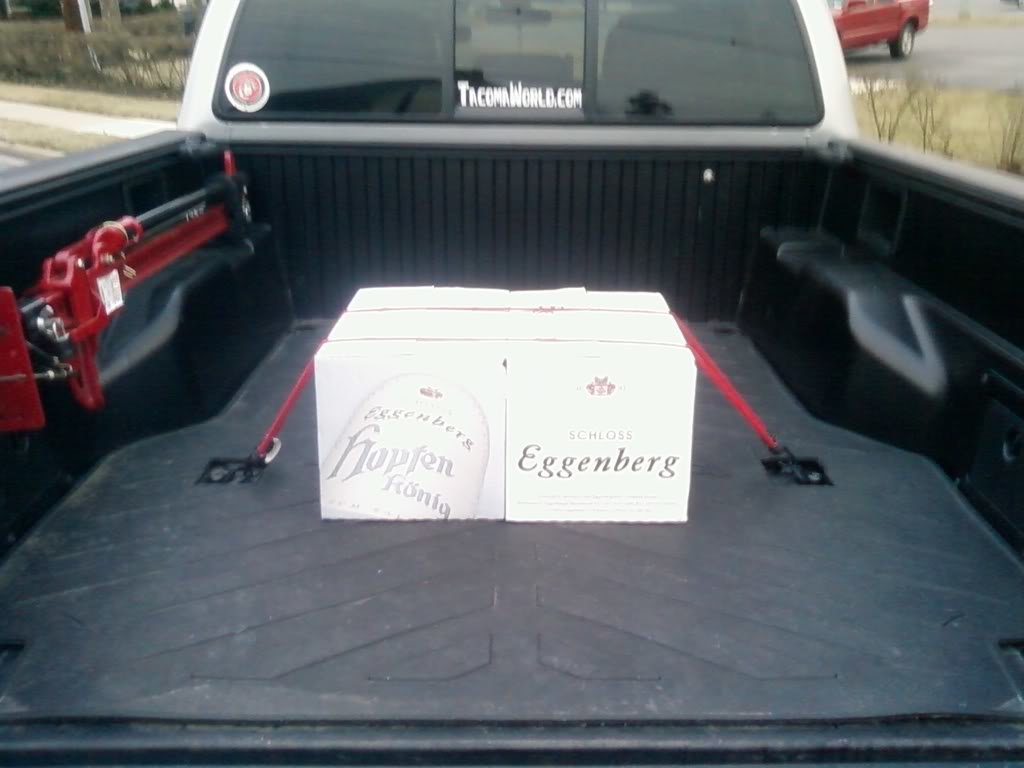

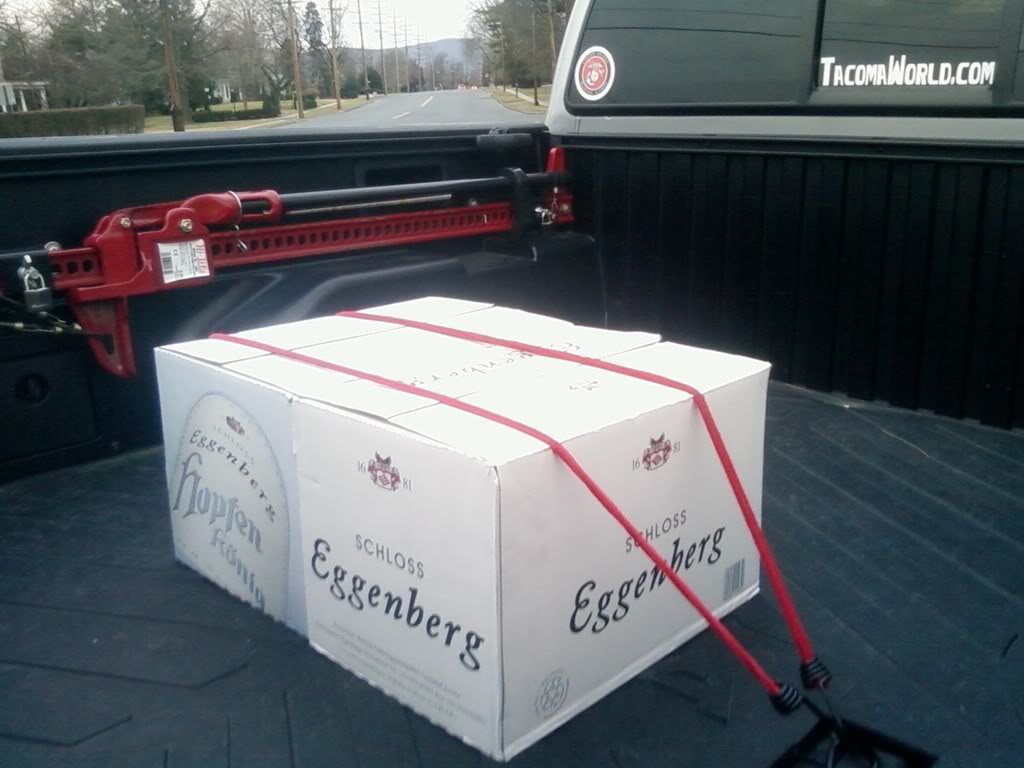

    Thanks guys. I was able to test out my new bed D-Rigs today and I can surely say that they work great. :thumbsup: (Sorry for the low quality camera phone pictures)
