Installed PIAA 510 Fog Lamps

Discussion in '2nd Gen. Tacomas' started by 95SLE, Oct 10, 2009.

  1. 95SLE

    95SLE [OP] Getting Ready for Summer

    Joined:
    Aug 5, 2009
    Member:
    #20718
    Messages:
    11,552
    Gender:
    Male
    First Name:
    Tom
    Maryland
    Vehicle:
    09 RWD Access Cab
    Custom XM Install, Window Tint, Intermittant Wiper Install, AVS Bug Deflector, Bed Mat, TRS FX-R retrofits, CIBIE fog and spot lamps, PIAA 510 lamps, Acess LE cover, Weathertech Digital floorr mats, LED interior lighting, Pioneer AVH-2300BT HU, Boston Acoustics speakers, JL Audio Amp, shorty antenna, leather wrap steering wheel cover, Viper security system.
    I began the install of the PIAA 510 fog lamps last weekend. It rained 3 mornings this past week and the lights work well.

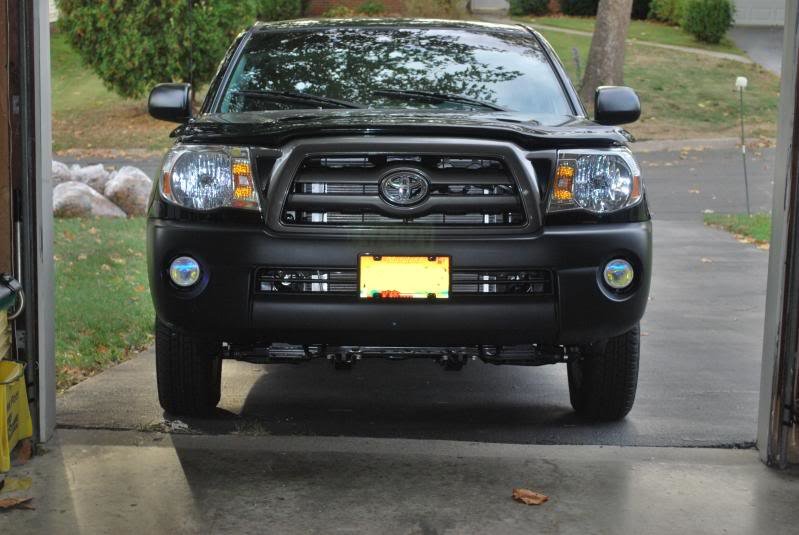

    Here is a pic of the install lamps.

    [​IMG]

    I drilled a hole 2” from the rear of the fog lamp assembly and that gave me the clearance for the fog lamp to fit in the opening.

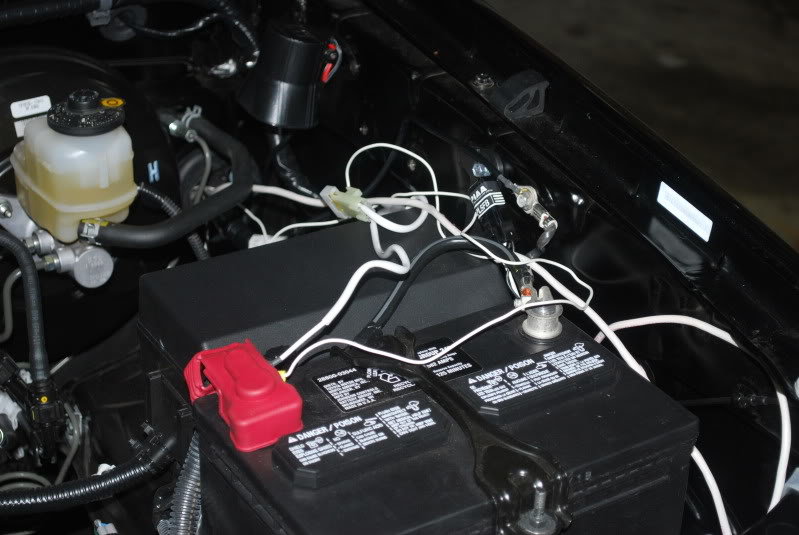

    However under the hood was a temporary wire job. Butt Ugly.

    [​IMG]

    Today I went to work on a fuse panel/relay center that I had planned for under the hood.

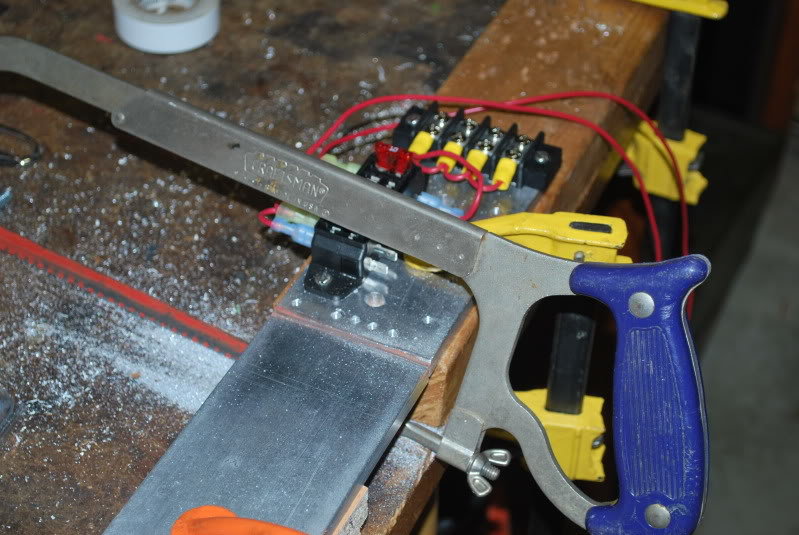

    I needed to cut the buss bar to 6”

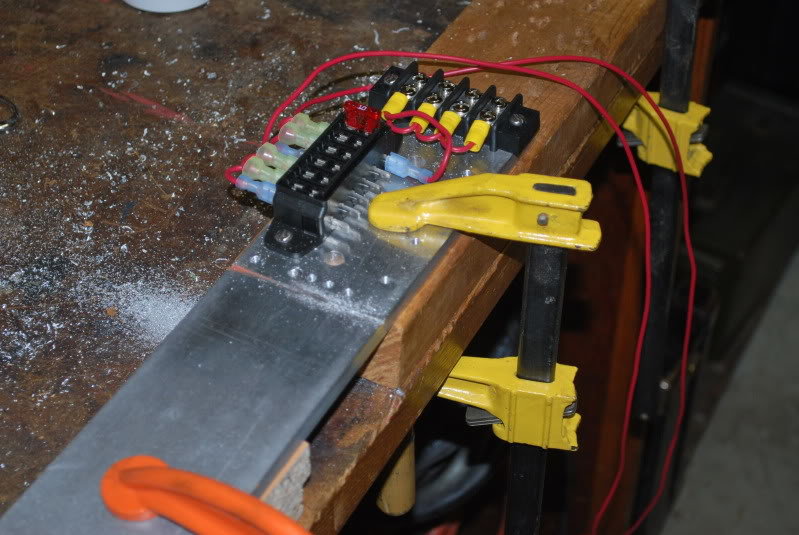

    [​IMG]

    [​IMG]

    Here is the finished install with room to add 3 more relays and an extra fused circuit that may be required in the future.

    [​IMG]

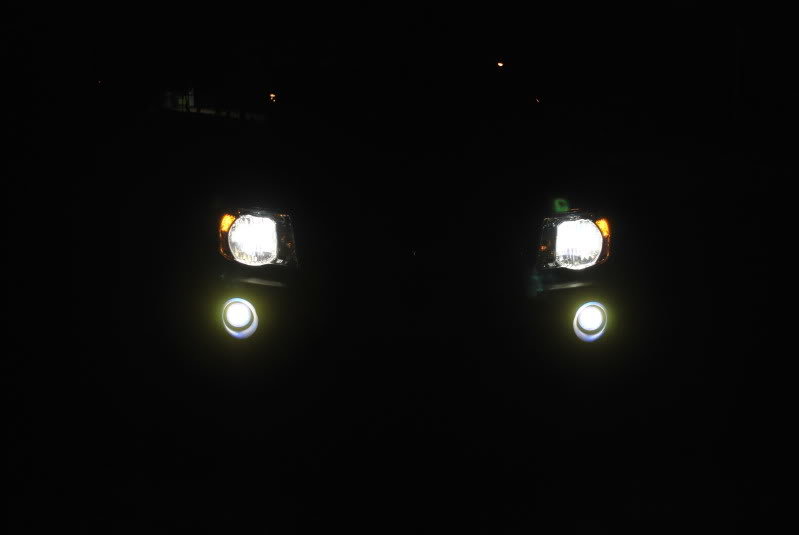

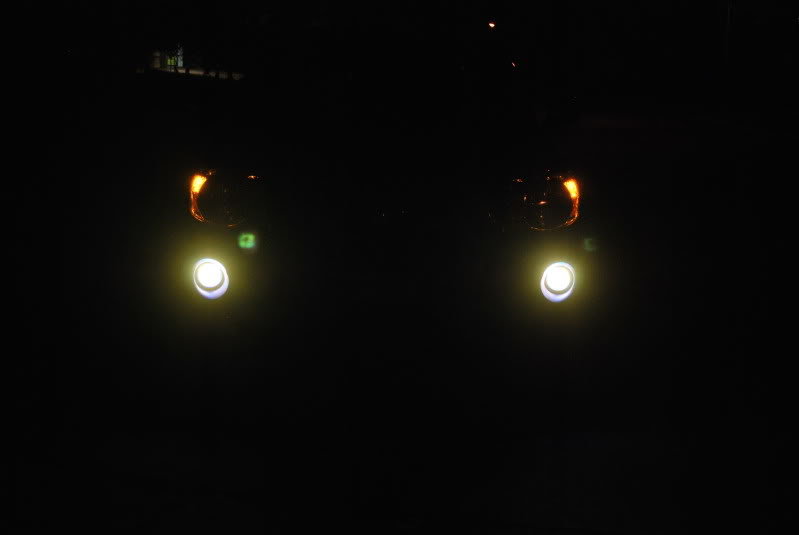

    A few night time pics of the new lights.

    [​IMG]

    [​IMG]

    What is nice is that now adding lamps to the bed or a set of driving lamps will be an easier project. All I need to do is add wiring to the lamps and add a switch. I ran an extra 8 wires from the fuse paned to the area where the existing fog lamp switch is located.
