Installing 2012 stock radio in a pre-2012

Discussion in 'Audio & Video' started by Jerez, Apr 3, 2012.

  1. Jul 8, 2013 at 6:09 PM
    #201
    UrPebkac

    UrPebkac Well-Known Member

    Joined:
    Jan 20, 2013
    Member:
    #95649
    Messages:
    787
    Gender:
    Male
    First Name:
    David
    RI
    Vehicle:
    07 DCLB TRD Sport
    LED Gauge Swap, 400w inverter anytime, Fog lamps on w/ Running lights, Secondary Air Filter removed, LED interior throughout, 886 Backup Mod, OMD style/inspired Spring Refurb. Icon 2.5" coilovers front, King 2.5" rear remote Resi with compression adjuster, ECGS bushing, illuminated 4x4 switch, 2013 Toyota touchscreen radio, BAMF 96" sliders @ 10*
    Rod did you get the USB to work on the 2013 touchscreen?
    I only ask cuz I didn't see an update. It looks like your picture here could be labeled incorrectly. http://www.tacomaworld.com/forum/au...012-stock-radio-pre-2012-a-7.html#post6019233
    Are you sure that unit has satellite? I believe that port is the USB port. I think the adapter that goes with it is this part PT546-00120-US I found it here. http://www.toyotanation.com/forum/1...5-new-toyota-panasonic-86120-0r130-radio.html
    I don't mean to question but from what I have seen all the satellite ports are a blue connector and slightly dif. I am going to go to the dealer and see if I can pick up the part plus I want to see what is on the other side for a connector. Hopefully something to connect to 86190-0C020
    Just a thought :notsure:

    Last edited: Jul 8, 2013
  2. Jul 8, 2013 at 7:21 PM
    #202
    Jerez

    Jerez [OP] SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,628
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    I ordered that same part like 5 weeks ago an nothing.
    I did label it wrong. It was a quick labeling months ago without any short of diagram showin me what it was. I too think the gray plug is the usb

  3. Jul 8, 2013 at 7:30 PM
    #203
    UrPebkac

    UrPebkac Well-Known Member

    Joined:
    Jan 20, 2013
    Member:
    #95649
    Messages:
    787
    Gender:
    Male
    First Name:
    David
    RI
    Vehicle:
    07 DCLB TRD Sport
    LED Gauge Swap, 400w inverter anytime, Fog lamps on w/ Running lights, Secondary Air Filter removed, LED interior throughout, 886 Backup Mod, OMD style/inspired Spring Refurb. Icon 2.5" coilovers front, King 2.5" rear remote Resi with compression adjuster, ECGS bushing, illuminated 4x4 switch, 2013 Toyota touchscreen radio, BAMF 96" sliders @ 10*
    The wiring line up with a USB wiring diagram. http://www.frontx.com/cpx101_2.html
    I might need to try custom make it from the cn-802 part number. It looks to be an lg part number.

  4. Jul 9, 2013 at 6:37 AM
    #204
    apoteker

    apoteker Well-Known Member

    Joined:
    Aug 1, 2012
    Member:
    #83859
    Messages:
    114
    Gender:
    Male
    Vehicle:
    2012 DCSB O/R debadged
    JBL/Entune Touchscreen Navigation with Speed override mod, JBL Speaker refit, debadged, chime removed, overhead led mod, switch LED mod, rear cupholder LED mod, ImMrYo Rear-View Mirror Lift Bracket #339
  5. Jul 9, 2013 at 7:31 AM
    #205
    UrPebkac

    UrPebkac Well-Known Member

    Joined:
    Jan 20, 2013
    Member:
    #95649
    Messages:
    787
    Gender:
    Male
    First Name:
    David
    RI
    Vehicle:
    07 DCLB TRD Sport
    LED Gauge Swap, 400w inverter anytime, Fog lamps on w/ Running lights, Secondary Air Filter removed, LED interior throughout, 886 Backup Mod, OMD style/inspired Spring Refurb. Icon 2.5" coilovers front, King 2.5" rear remote Resi with compression adjuster, ECGS bushing, illuminated 4x4 switch, 2013 Toyota touchscreen radio, BAMF 96" sliders @ 10*
    Wow good find!!!! Let me know how it works. I am curious if it will charge an iPhone/iPad stock as is out of the new radio.
    Thanks for the info.

  6. Jul 9, 2013 at 1:25 PM
    #206
    Jerez

    Jerez [OP] SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,628
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
  7. Jul 10, 2013 at 5:47 PM
    #207
    ca joe

    ca joe Member

    Joined:
    Jan 10, 2013
    Member:
    #94900
    Messages:
    7
    Gender:
    Male
    Morgan Hill, CA
    Vehicle:
    08 DCLB
    yes
    Do you have a part number for that surround? Doing a FJ twin stick transfer case and an entune/nav radio in my 08 so the surround you got without the 4x4 switch would be perfect for me.

  8. Jul 10, 2013 at 11:49 PM
    #208
    apoteker

    apoteker Well-Known Member

    Joined:
    Aug 1, 2012
    Member:
    #83859
    Messages:
    114
    Gender:
    Male
    Vehicle:
    2012 DCSB O/R debadged
    JBL/Entune Touchscreen Navigation with Speed override mod, JBL Speaker refit, debadged, chime removed, overhead led mod, switch LED mod, rear cupholder LED mod, ImMrYo Rear-View Mirror Lift Bracket #339
    so i will toss this out here before listing in the for sale forum-
    i have a few extra jbl speakers (6x9, 6.5) and i am looking to sell a few sets for a low price- if anyone is interested let me know what it would be worth to you

    i was thinking $10 for each speaker?

    msg me if interested

  9. Jul 11, 2013 at 8:07 AM
    #209
    Millertime187

    Millertime187 I'll be your huckleberry!

    Joined:
    Sep 25, 2012
    Member:
    #87698
    Messages:
    1,920
    Gender:
    Male
    First Name:
    David
    Clay City, KY
    Vehicle:
    2012 4x4 Single Cab Taco!
    EZ Lift/Pro Comp 3" lift. Spacer in front, add a leaf in rear, Bilstien 5100 shocks, TC UCA, 5% Tint all around, Painted all trim to match. Magnaflow muffler dumped, drop in k&n air filter, tinted tail lights
    HELP!!!

    I need a part number for the wiring harness that goes from the USB plug to a 2013 non-e tune touch screen radio. I got the plug today but need the wiring.

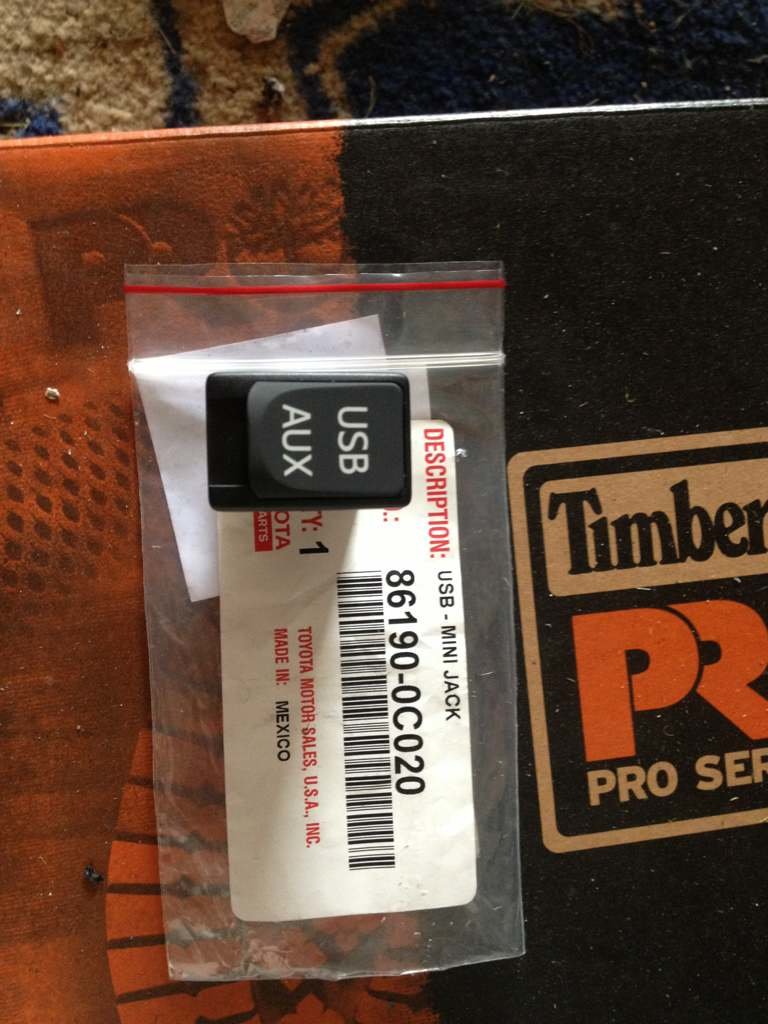

    Here the plug with part #

    [​IMG]
    [​IMG]

    THANKS!!!

    David

    Last edited: Jul 11, 2013
  10. Jul 11, 2013 at 9:10 AM
    #210
    Jerez

    Jerez [OP] SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,628
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    ^^^^They don't sell it by itself...it's all one big harness from what I've been told...
    If you look up a couple posts you can see we just ordered a part to see if it works

  11. Jul 11, 2013 at 9:19 AM
    #211
    Millertime187

    Millertime187 I'll be your huckleberry!

    Joined:
    Sep 25, 2012
    Member:
    #87698
    Messages:
    1,920
    Gender:
    Male
    First Name:
    David
    Clay City, KY
    Vehicle:
    2012 4x4 Single Cab Taco!
    EZ Lift/Pro Comp 3" lift. Spacer in front, add a leaf in rear, Bilstien 5100 shocks, TC UCA, 5% Tint all around, Painted all trim to match. Magnaflow muffler dumped, drop in k&n air filter, tinted tail lights
    Last edited: Jul 11, 2013
  12. Jul 11, 2013 at 10:47 AM
    #212
    Jerez

    Jerez [OP] SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,628
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
  13. Jul 11, 2013 at 11:14 AM
    #213
    Millertime187

    Millertime187 I'll be your huckleberry!

    Joined:
    Sep 25, 2012
    Member:
    #87698
    Messages:
    1,920
    Gender:
    Male
    First Name:
    David
    Clay City, KY
    Vehicle:
    2012 4x4 Single Cab Taco!
    EZ Lift/Pro Comp 3" lift. Spacer in front, add a leaf in rear, Bilstien 5100 shocks, TC UCA, 5% Tint all around, Painted all trim to match. Magnaflow muffler dumped, drop in k&n air filter, tinted tail lights
    I ordered the other one as well. Hopefully figure something out.

  14. Jul 11, 2013 at 11:52 AM
    #214
    Jerez

    Jerez [OP] SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,628
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    gotcha...mines taking forever...everytime i order something for this radio it takes a while. not sure what it is:eek:

  15. Jul 12, 2013 at 7:57 AM
    #215
    Millertime187

    Millertime187 I'll be your huckleberry!

    Joined:
    Sep 25, 2012
    Member:
    #87698
    Messages:
    1,920
    Gender:
    Male
    First Name:
    David
    Clay City, KY
    Vehicle:
    2012 4x4 Single Cab Taco!
    EZ Lift/Pro Comp 3" lift. Spacer in front, add a leaf in rear, Bilstien 5100 shocks, TC UCA, 5% Tint all around, Painted all trim to match. Magnaflow muffler dumped, drop in k&n air filter, tinted tail lights

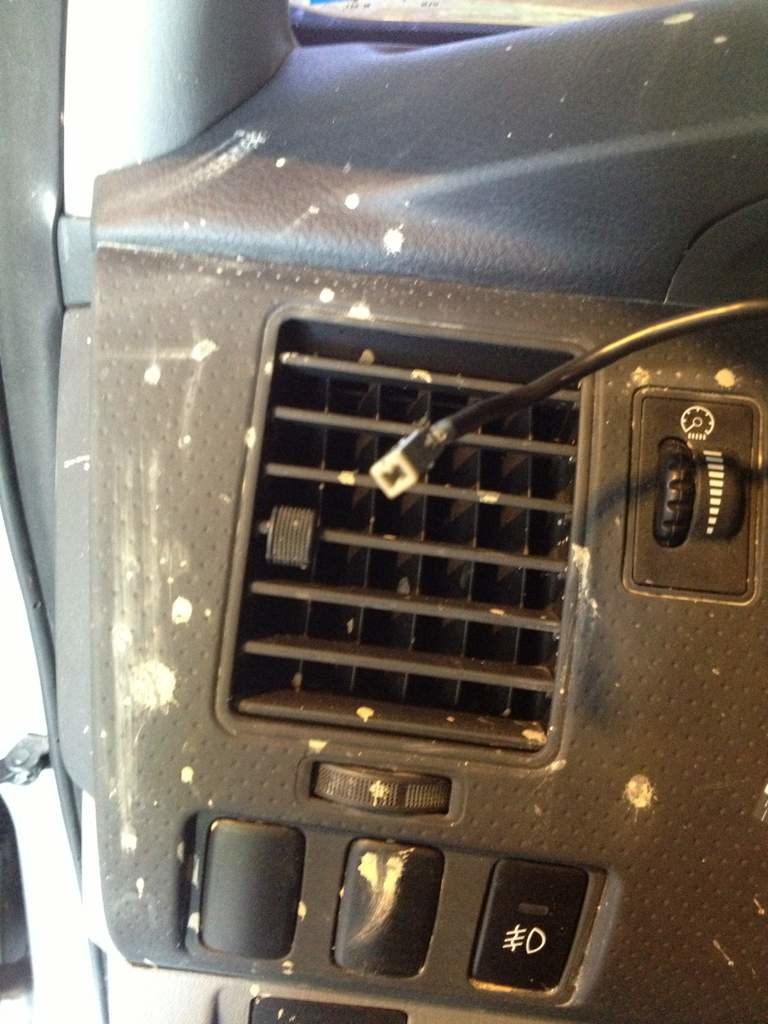

    [​IMG]
    [​IMG]

    Mine didnt work...hopefully the eBay one will!!!

    Last edited: Jul 12, 2013
  16. Jul 15, 2013 at 12:57 PM
    #216
    CAD41985

    CAD41985 Well-Known Member

    Joined:
    Oct 11, 2012
    Member:
    #88750
    Messages:
    82
    Gender:
    Male
    First Name:
    Corey
    Virginia Beach, VA
    Vehicle:
    12 TRD Sport 4x4 DCLB Super White
    Toytec 3" ULK, LR UCA's, 17" Procomp 7089's with 285/70/17 BFG KM2's, debadged tailgate, plasti-dipped front and side emblems, Weather tech rear liner, ARE camper shell
    Does anyone know a place to get wiring schematics/diagrams? I am currently installing a 2013 non-entune into my 2012. I have all the plugs and connectors I need, I just need to figure out what wire goes in what position. Any help would be MUCH appreciated.

  17. Jul 15, 2013 at 1:43 PM
    #217
    Millertime187

    Millertime187 I'll be your huckleberry!

    Joined:
    Sep 25, 2012
    Member:
    #87698
    Messages:
    1,920
    Gender:
    Male
    First Name:
    David
    Clay City, KY
    Vehicle:
    2012 4x4 Single Cab Taco!
    EZ Lift/Pro Comp 3" lift. Spacer in front, add a leaf in rear, Bilstien 5100 shocks, TC UCA, 5% Tint all around, Painted all trim to match. Magnaflow muffler dumped, drop in k&n air filter, tinted tail lights
    Where you get the AUX plugs?

  18. Jul 15, 2013 at 2:37 PM
    #218
    Jerez

    Jerez [OP] SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,628
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    google "toyota tis" then pay to check all the schematics you want...$15 for 2 days

  19. Jul 15, 2013 at 8:59 PM
    #219
    blktaco58

    blktaco58 Well-Known Member

    Joined:
    Feb 20, 2012
    Member:
    #73226
    Messages:
    107
    Gender:
    Male
    Hawaii
    Vehicle:
    2012 Tacoma 4wd V6 AC
    884X springs, 1.5" AAL, 16 x 8 MT Sidebitters, 265/75/16 Duratracs, BHLM, Painted Front Valence, Wet Okoles, USA SPEC ipod,
    For the r15 wire harness I ordered the adapter kit which takes our plugs and the Bluetooth mic plug and converts it into the 28 pin harness for the stereo! So basically it's plug and play for the Bluetooth phone calling!

    U need the mic and harness:
    Pt546-74120-mc
    Pt546-00120-ch

    Total cost was around 85
    Bucks!

  20. Jul 15, 2013 at 10:15 PM
    #220
    Jerez

    Jerez [OP] SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,628
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count

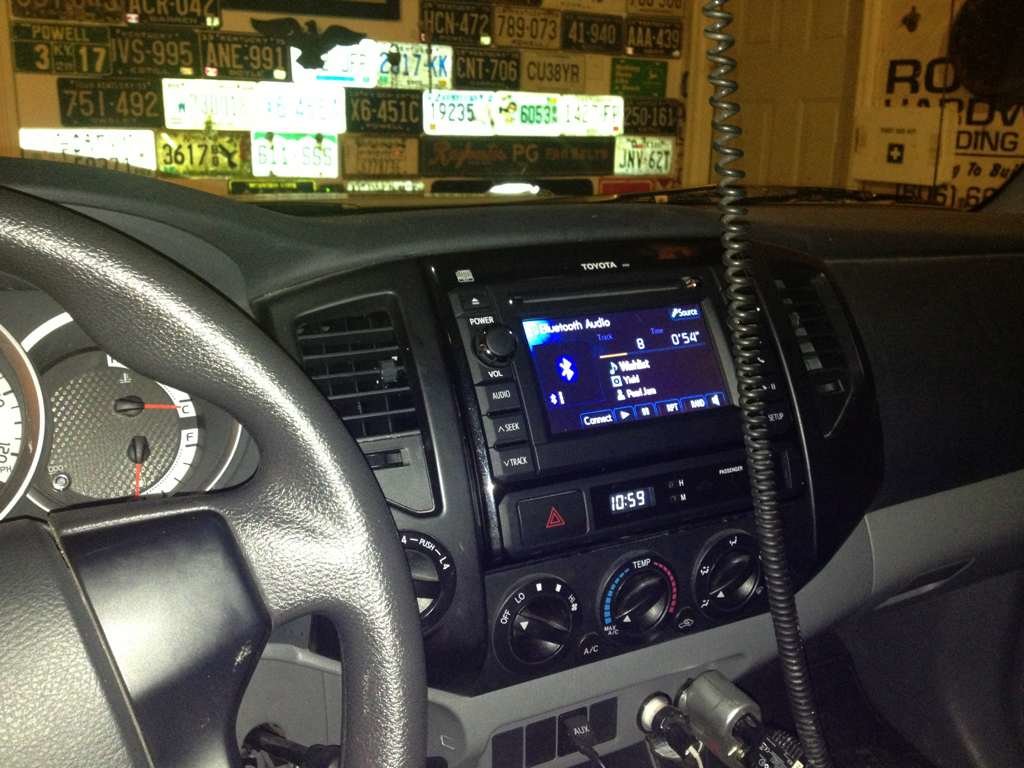

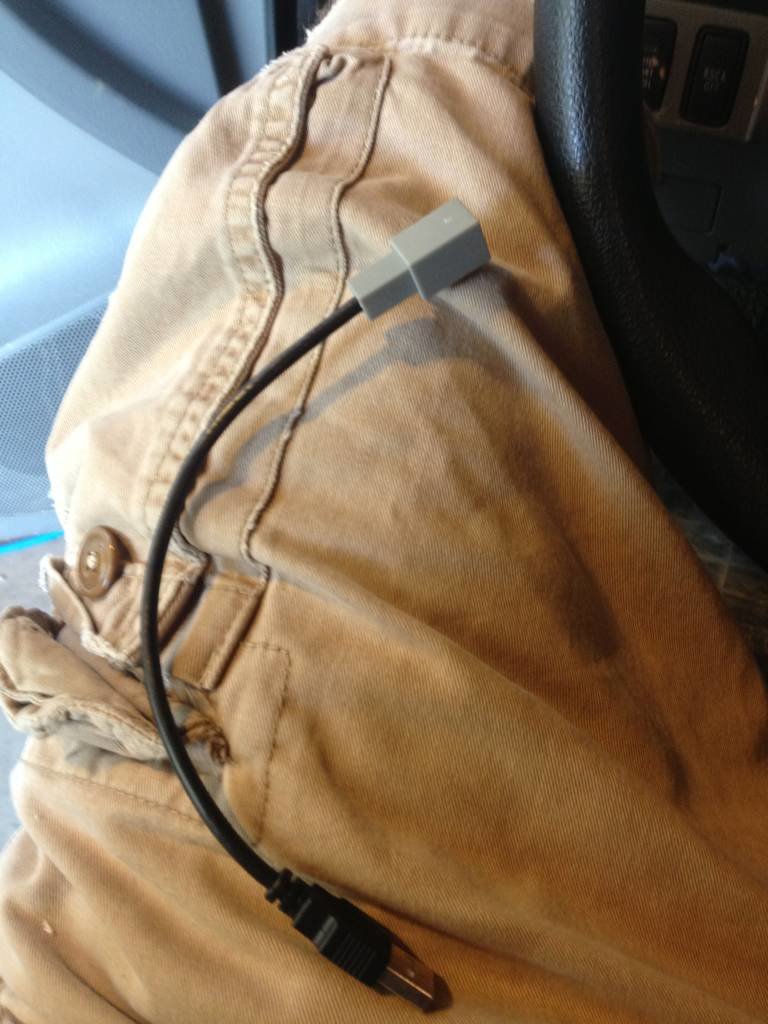

    Ok so that plug from the link above came in today...plugged into the radio and I ran power to the radio from my work bench because I don't have it installed in my truck at the moment...
    So I plugged my iPhone in and it started charging my phone and on the screen if showed the song playing. Now tomorrow ill install it into my truck and confirm that music plays thru the speakers :woot:
