Installing 5100's and need feedback on issues

Discussion in 'Suspension' started by headhunter247, Nov 23, 2009.

  1. Nov 23, 2009 at 6:41 PM
    #1
    headhunter247

    headhunter247 [OP] Well-Known Member

    Joined:
    Oct 16, 2008
    Member:
    #10013
    Messages:
    1,303
    Gender:
    Male
    St. Louis, MO area
    Vehicle:
    13 Taco Double Cab TRD
    Bilstein 5100's all around, front set at 2.5", Toytec AAL, 265/75/16 Duratracs, Pro Comp 5001, Weathertech's, AVS In Channel Visors, Nokya Hyper Yellow fogs, CB Set up, Color matched grill surround and bumper, ATC Camper Shell with Yakima Racks.
    Hey all...just ordered my billies and AAL today. I need to know if there are any issues that you had when you did this yourself? Any helpful hints to make this go as smooth as possible would be greatly appreciated. Thanks in advance.

  2. Nov 23, 2009 at 6:42 PM
    #2
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Thor

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,781
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Dont let Pep Boys install the spring on the shock. Or else you can be wearing one of these....If your lucky.

    [​IMG]

  3. Nov 23, 2009 at 6:45 PM
    #3
    headhunter247

    headhunter247 [OP] Well-Known Member

    Joined:
    Oct 16, 2008
    Member:
    #10013
    Messages:
    1,303
    Gender:
    Male
    St. Louis, MO area
    Vehicle:
    13 Taco Double Cab TRD
    Bilstein 5100's all around, front set at 2.5", Toytec AAL, 265/75/16 Duratracs, Pro Comp 5001, Weathertech's, AVS In Channel Visors, Nokya Hyper Yellow fogs, CB Set up, Color matched grill surround and bumper, ATC Camper Shell with Yakima Racks.
    HA! Thats classic. Id have to give someone a shiner for that..it will be my local greasemonkey compressing them on.

  4. Nov 23, 2009 at 6:48 PM
    #4
    RI06TACO

    RI06TACO Well-Known Member

    Joined:
    Oct 20, 2009
    Member:
    #24605
    Messages:
    75
    Gender:
    Male
    First Name:
    Jeff
    Rhode Island
    Vehicle:
    06 Tacoma Sport
    just make sure you follow the instructions..and take everything apart on both sides before you try to remove stock shock..The sway bar needs to be un connected on BOTH sides before you remove the shock..

    I'll post some pics on another thread of how mine came out..

    AND GET SOMEONE TO DO THE SPRINGS FOR YOU!!!

  5. Nov 24, 2009 at 5:13 AM
    #5
    headhunter247

    headhunter247 [OP] Well-Known Member

    Joined:
    Oct 16, 2008
    Member:
    #10013
    Messages:
    1,303
    Gender:
    Male
    St. Louis, MO area
    Vehicle:
    13 Taco Double Cab TRD
    Bilstein 5100's all around, front set at 2.5", Toytec AAL, 265/75/16 Duratracs, Pro Comp 5001, Weathertech's, AVS In Channel Visors, Nokya Hyper Yellow fogs, CB Set up, Color matched grill surround and bumper, ATC Camper Shell with Yakima Racks.
  6. Nov 24, 2009 at 5:17 AM
    #6
    Brunes

    Brunes abides. Thor

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,803
    Gender:
    Male
    First Name:
    Rotorhead
    Big Easy, USA
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit Upcoming: ATO Gas Tank Skid and Sliders w/ kickout. ATO Shackle Flip Kit. Down the line: Front/Rear ARB Lockers w/ OBA. 4.56 Gears
    Make sure the guy doing your springs aligns the top plate studs with the lower shock mount properly. Jan has a diagram of how it's supposed to work.
    Take your time- Don't be afraid to remove parts if they are in the way- Take your time- and Enjoy working on it!!

  7. Nov 24, 2009 at 5:32 AM
    #7
    hillbillynwv

    hillbillynwv Well-Known Member

    Joined:
    Jun 25, 2008
    Member:
    #7555
    Messages:
    1,067
    Gender:
    Male
    Fairmont, WV
    Vehicle:
    08 Tacoma 4x4 TRD V6 SR5
    Rear Leaf Spring TSB, Front Bilstein 5100's set to 1.75, Goodyear Wrangler DuraTrac 265/75/R16 tires, Black WeatherTech Floor Liners, aFe Pro Dry S air filter, lighted 4x4 switch......
    Make sure the driver's side coil spring goes back on the driver's side. It's supposedly built heavier.

  8. Nov 24, 2009 at 5:43 AM
    #8
    headhunter247

    headhunter247 [OP] Well-Known Member

    Joined:
    Oct 16, 2008
    Member:
    #10013
    Messages:
    1,303
    Gender:
    Male
    St. Louis, MO area
    Vehicle:
    13 Taco Double Cab TRD
    Bilstein 5100's all around, front set at 2.5", Toytec AAL, 265/75/16 Duratracs, Pro Comp 5001, Weathertech's, AVS In Channel Visors, Nokya Hyper Yellow fogs, CB Set up, Color matched grill surround and bumper, ATC Camper Shell with Yakima Racks.

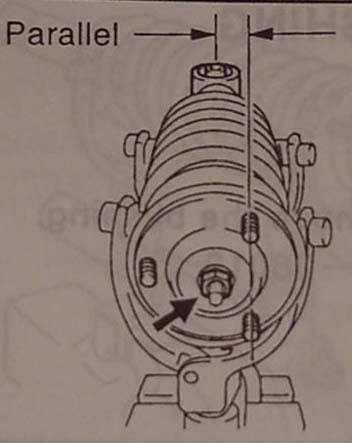

    Edit: Is this what you are talking about?

    [​IMG]

  9. Nov 24, 2009 at 6:04 AM
    #9
    Dark Knight

    Dark Knight East Bound and Down

    Joined:
    Jul 18, 2008
    Member:
    #8006
    Messages:
    9,550
    Gender:
    Male
    First Name:
    Jeff
    SE Tennessee
    Vehicle:
    Trail Limo
    Skyjacker Platinum Coilovers w/ 16" 750# King springs, Skyjacker rear leafs, FJ TRD SE wheels, 285/75/16 MTZ's, Piaa 520 Smr Driving Lights, Yakima Rack, Bestop Canopy, TRD Exhaust, TRD CAI, Kenwood DNX5120 Navi, Fog Light Mod, Driving Light Mod, BHLM, Scanguage II on Blendmount, TC uca's, ARB Heavy Duty air compressor, ARB Rear Locker, Shrockworks Rock Sliders, ARB Front Bumper, Relentless Fab Rear Bumper w/ custom bed protection, WARN M8000
    if not aligned correctly you can put the top of the Coilover in the coil bucket, loosly tighten the 3 top nuts and turn the bottom of the coilover with a large wrench to line things up.

    Much easier then going back to the shop 2-3 times........

  10. Nov 24, 2009 at 6:07 AM
    #10
    jester156

    jester156 Well-Known Member

    Joined:
    Oct 9, 2009
    Member:
    #24005
    Messages:
    713
    Gender:
    Male
    Cumberland, RI
    Vehicle:
    08 V6 4x4 DC TRD, 6spd
    TRD Supercharger, TRD CAI, Sirius, Rear TSB, Front 5100 with Eibach coils, 1.5" AAL, URD short throw, fog light mod, weather tech liners,
    ^^that's what I did^^, I did try and line it up pretty close, but had to do a little adjusting on the truck.

  11. Nov 24, 2009 at 6:21 AM
    #11
    Brunes

    Brunes abides. Thor

    Joined:
    May 31, 2008
    Member:
    #7011
    Messages:
    17,803
    Gender:
    Male
    First Name:
    Rotorhead
    Big Easy, USA
    Vehicle:
    08 Red/Graphite and Satin Black
    Inside: Tint, Wet Okole 1/2 Piped Red/Black Covers, Black Weathertech Digital Fit Mats, URD Short Throw w/ TWM Weighted Knob, USA Spec iPod adapter. Outside: 4300K Retro w/ Angel Eyes and Red Shrouds, 5000K Blazer Fog Light Retrofit, Debadge, Bed Locking Handle, Satin Black Rims Performance: TRD/Steigmeier Blower w/ 2.7 Pulley. 668 Injectors and 320 LPH AEM Fuel pump. URD UCON and 7th Injector. DTLT Headers, URD Y-Pipe, Wicked Flow Muffler. Suspension: Both: OME Shocks Front: 886X's and TC UCAs Rear: Dakars Armor: Relentless Front Bumper Relentless High Clearance Rear w/ Tire/Rotopax Swing Out Relentless Front, Mid, and TCase skids BAMF Diff Skid Recovery and Spares: Fullsize Spare Tire 2x2 gal Rotopax 1x1 gal Rotopax 1x1 gal Water Rotopax Warn 9.5XP-S Winch Hi-Lift Extreme 60" Ironman Off-Road Recovery Kit Upcoming: ATO Gas Tank Skid and Sliders w/ kickout. ATO Shackle Flip Kit. Down the line: Front/Rear ARB Lockers w/ OBA. 4.56 Gears
    That's it. I put the first on together wrong...looked at the FSM and got the second one spot on and then fixed the first one.

  12. Nov 24, 2009 at 8:09 AM
    #12
    headhunter247

    headhunter247 [OP] Well-Known Member

    Joined:
    Oct 16, 2008
    Member:
    #10013
    Messages:
    1,303
    Gender:
    Male
    St. Louis, MO area
    Vehicle:
    13 Taco Double Cab TRD
    Bilstein 5100's all around, front set at 2.5", Toytec AAL, 265/75/16 Duratracs, Pro Comp 5001, Weathertech's, AVS In Channel Visors, Nokya Hyper Yellow fogs, CB Set up, Color matched grill surround and bumper, ATC Camper Shell with Yakima Racks.
    Cool, I dont think this should be too hard. I have a friend helping thats pretty good at all this so I should be good. If anyone else has anything to chime in with, please do so.

  13. Nov 24, 2009 at 8:32 AM
    #13
    Hoyal

    Hoyal Whiskey bent and hell bound.

    Joined:
    May 14, 2009
    Member:
    #17221
    Messages:
    17,638
    Gender:
    Male
    First Name:
    Devin
    N 39.2249 W -106.16974
    Vehicle:
    2000 4runner
    OME 3 inch suspension lift Toytec 1in body lift Rodger brown diff drop ARB front bumper Big tires, but want bigger! :) Xrc 8000 winch Hella3000 lights Deck plate mod Diff breather relocate Cb radio 1st gen roll bar Addicted sliders Spider trax wheel spacers.
    Do it your self on the springs its easy. Just get one of these.

    [​IMG]

    Took me about 3 hours.

  14. Nov 24, 2009 at 8:46 AM
    #14
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Thor

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,781
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    In your pic, it the spring seat on the 5100 is upside down. I hope you didnt install them like that.

  15. Nov 24, 2009 at 8:50 AM
    #15
    Hoyal

    Hoyal Whiskey bent and hell bound.

    Joined:
    May 14, 2009
    Member:
    #17221
    Messages:
    17,638
    Gender:
    Male
    First Name:
    Devin
    N 39.2249 W -106.16974
    Vehicle:
    2000 4runner
    OME 3 inch suspension lift Toytec 1in body lift Rodger brown diff drop ARB front bumper Big tires, but want bigger! :) Xrc 8000 winch Hella3000 lights Deck plate mod Diff breather relocate Cb radio 1st gen roll bar Addicted sliders Spider trax wheel spacers.
    No I installed the way It was so posed to we caught that ask Brandon (Blowham) it was funny I was like WTF that dosent seem right lol he was quality control and he was slacking! I actually had someone with me that is a mechanic but if I were to do it again I could have easily done it with just the advice you gave me through PM.

  16. Nov 24, 2009 at 9:40 AM
    #16
    Rustyota

    Rustyota well.....

    Joined:
    Oct 12, 2009
    Member:
    #24194
    Messages:
    152
    Gender:
    Male
    Central Coast, CA
    Vehicle:
    08 4x4 DC long bed
    debadged, rear spring TSB, leveled with Bilstein 5100s at 1.75", Goodyear Duratrac 265/75/r16, Leer shell with Yakima rack
    I "borrowed" a spring compressor from Autozone ($50, but refunded when you bring it back) and it was pretty easy. Literally did this last night, took a little over an hour, but I've had this front end apart before so it was probably quicker than if it was my first.

    Couple words of advice--First, check and make sure you have ALL the parts before you start. It's a long story, but it sucks when you have everything apart and realize that you have to put it all back together and wait for FedEx to bring a missing part...

    Second, have someone help you when you pull the struts and when you put them back. The helper uses a pry bar (with wood block of course) to push the lower arm down while you pull the strut out and down in front of the lower arm. The strut will slide right out (downward) in between the lower arm and the steering control arm. Way easier than taking it toward the back, and you don't have to remove brake lines and all.

  17. Nov 24, 2009 at 9:40 AM
    #17
    chris4x4

    chris4x4 With sufficient thrust, pigs fly just fine. Thor

    Joined:
    May 8, 2008
    Member:
    #6497
    Messages:
    103,781
    Gender:
    Male
    First Name:
    FlimFlubberJAM
    Tenoe, AZ
    Vehicle:
    2013 Rubicon Unlimited,
    4.10 gears, sliders, and lots of buttons.
    Whew. Good to hear. :)

  18. Nov 24, 2009 at 7:37 PM
    #18
    Rustyota

    Rustyota well.....

    Joined:
    Oct 12, 2009
    Member:
    #24194
    Messages:
    152
    Gender:
    Male
    Central Coast, CA
    Vehicle:
    08 4x4 DC long bed
    debadged, rear spring TSB, leveled with Bilstein 5100s at 1.75", Goodyear Duratrac 265/75/r16, Leer shell with Yakima rack

    I took some pics of the removal/reinstall and could post them if you're interested. It's not that bad...

  19. Nov 24, 2009 at 7:57 PM
    #19
    ttylerr

    ttylerr Well-Known Member

    Joined:
    Jun 1, 2009
    Member:
    #17913
    Messages:
    838
    Gender:
    Male
    First Name:
    Tyler
    Fort McMurray, Alberta
    Vehicle:
    09 MGM 4Banger 4x4
    5% tint all around, Alpine IVA-W505, 16x8 Mojave Teflon Rims w/Hercules Terra Trac 265/75, Grillcraft Grill, Slimcubby HIDs, Front 5100's @ 0 w/Eibach 1.6" springs, URD Short Shifter, Extang Trifecta Tonneau Cover, Uniden Pro510XL and K30Mag Mount, Relentless Fab Bumper soon to come
    just got back from the shop after putting 5100's and the eibach coils in myself.

    i removed the sway bar, disconnected the tie rod ends and lower ball joint mounts.
    this way you can move the whole hub assembly back and out of the way and have tons of room to work and move the coil assembly out/in to place.
    pry down on the lower control arm and slide the whole unit out.

    i had to disassemble my old coils to get the top plates for the spring and coil setup. i was using a loaner spring compressor set from a parts store (which i don't think was rated for anywhere near the spring rate of even the stock coils!). it can be a pain but just takes a little patience. this will most like be the hardest part of the install.
    alot of people say to get them done by someone else, but it is important to align the top plate properly with the lower shock mount, or you'll be cursing up and down trying to get it all back together

    just remember to anti-seize everything when it goes back together! you'll thank yourself in the future.

  20. Feb 10, 2010 at 9:09 PM
    #20
    texastacobueno

    texastacobueno Effin A Cotton, Effin A

    Joined:
    Jan 21, 2010
    Member:
    #29784
    Messages:
    155
    Gender:
    Male
    First Name:
    Andy
    College Station, Texas
    Vehicle:
    08 4x4 Sport
    Pop N Lock - Westin sportsman guard - Hella 500 fogs - extra D-rings - Mag Lite mounts
    mk I just ordered my eibach and billy's today so i'm about to begin prepping for the install, and i see that allignment diagram shown above but what i dont understand is which side the 2 studs that are parallel go on. do they face the inside of the truck or the outside?
