Installing a cam lock for your bedside storage mod

Discussion in '3rd Gen. Tacomas (2016+)' started by Caliph420, Aug 17, 2016.

  1. Aug 17, 2016 at 6:54 AM
    #1
    Caliph420

    Caliph420 [OP] Well-Known Member

    Joined:
    Nov 27, 2015
    Member:
    #170793
    Messages:
    498
    Gender:
    Male
    Vehicle:
    2016 SR Tacoma Access Cab MG
    Headache Rack, Curt Tow Hitch

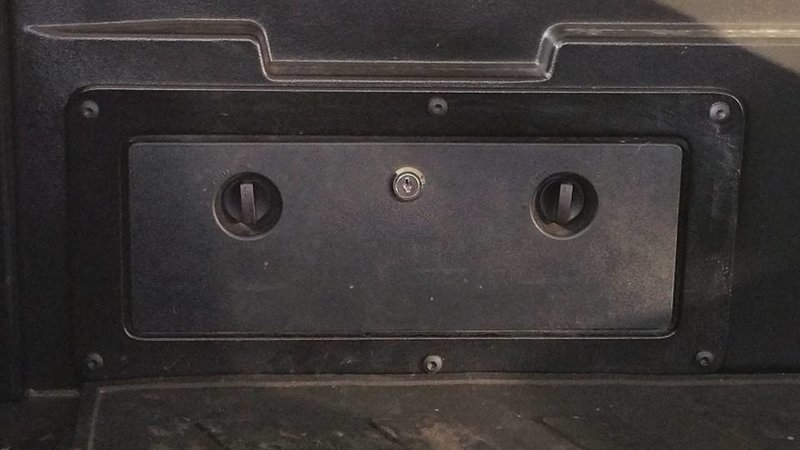

    I had this in my build page but thought other people may be interested in the process I used to key my cabinets

    Note: Buy 2 keyed alike locks so you only have one key for the 2 cabinets, I ended up buying them online since the hardware store didnt have them to purchase like that

    1) Remove actual cabinet box from bed

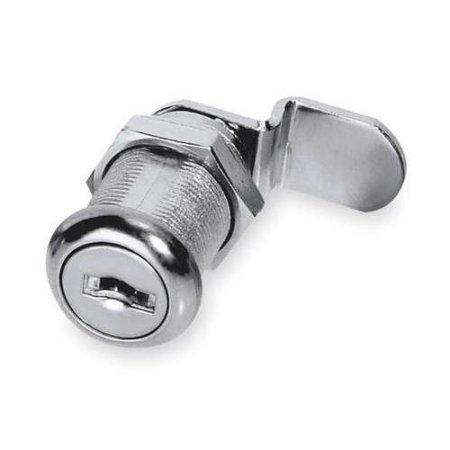

    2) Take door to cabinet and use a [​IMG] step bit to drill a hole in the center the diameter of your [​IMG] file cabinet lock. You want it to fit snugly so the hex nut will pinch the plastic good when it is tightened and most come with a little metal circle with 2 sharp ends which hold the lock firmly in place once it is tightened down with the hex nut

    3) Put back the newly keyed door [​IMG] into the original place in the cabinet and put some caulking or paste on the [​IMG] ^ tab which sticks out the right. When you take the key and turn the lock it will leave a mark on the inside of the cabinet where you need to drill a slot.

    4) Drill a series of holes like this [​IMG] in the top of the cabinet so the lock can engage the top part of the cabinet when it is closed and lock and is secure. This part is super critial to meaure correctly because even a little play messes up the whole process. Also the cabinet boxes are fiberglass and no fun to drill in. I filed down the edges of the drilled holes so it makes a smooth slot like this [​IMG] The opening is larger at the front so the tab can catch the slot easier and then narrows so it fits snugly once its in the locked position. Very possible to jack up the whole thing up by not making the slot precisely where it needs to be to have a smooth action on the lock, just a heads up.

    Last edited: Dec 4, 2016
  2. Aug 17, 2016 at 9:40 AM
    #2
    Rambeaux

    Rambeaux Diäb soulé

    Joined:
    Oct 26, 2015
    Member:
    #167793
    Messages:
    593
    Gender:
    Male
    Oblivion
    Vehicle:
    2016 Blk TRD Sport 4X4 DCSB
    1911 .45 ACP
    Nice job!

    Btw, at first I thought you keyed your bed with some cabinets. Glad that wasn't the case.

  3. Aug 17, 2016 at 11:12 AM
    #3
    mcdean

    mcdean Well-Known Member

    Joined:
    Jun 2, 2016
    Member:
    #188538
    Messages:
    58
    Gender:
    Male
    First Name:
    Mike
    San Jose, CA
    Vehicle:
    2016 DCLB TRDOR 4x4 A/T
    LED int lights, Morimoto HID lows, Philips LED fogs
    Spadi_5, Ch78, tomwil and 1 other person like this.
  4. Aug 17, 2016 at 11:18 AM
    #4
    Caliph420

    Caliph420 [OP] Well-Known Member

    Joined:
    Nov 27, 2015
    Member:
    #170793
    Messages:
    498
    Gender:
    Male
    Vehicle:
    2016 SR Tacoma Access Cab MG
    Headache Rack, Curt Tow Hitch
    :welder::sawzall:wheres the fun in that? :boink: if you see my build page Im not really about droppin tons of cash buying stuff for my truck, I have made a bunch of things for it though, backwoods custom stylie ;)

    Last edited: Aug 17, 2016
    Duck_Hunter, nevadabugle and tcBob like this.
  5. Oct 6, 2016 at 6:16 PM
    #5
    crymes

    crymes Well-Known Member

    Joined:
    Oct 6, 2016
    Member:
    #199099
    Messages:
    107
    Gender:
    Male
    First Name:
    Cameron
    CT
    Vehicle:
    2017 TRD OR DCSB QS
  6. Dec 4, 2016 at 4:03 PM
    #6
    Dawnpatrol

    Dawnpatrol Well-Known Member

    Joined:
    Dec 4, 2016
    Member:
    #204019
    Messages:
    63
    Gender:
    Male
    Thanks Caliph420 for the great tip! If I pull the trigger on that 2017, this will be my first modification!

    Caliph420 likes this.
  7. Dec 8, 2016 at 6:46 PM
    #7
    tacitos

    tacitos Tah-Key-Toes

    Joined:
    Nov 16, 2015
    Member:
    #169837
    Messages:
    1,203
    Gender:
    Male
    Vehicle:
    16 TRDORDCLBJBL
    If you look around enough you can find some lock kits that fit the standard hole avoiding the need to drill. I used mailbox locks for mine, no drill required.

  8. Dec 20, 2016 at 11:41 AM
    #8
    JWolfUO

    JWolfUO Well-Known Member

    Joined:
    Feb 6, 2015
    Member:
    #148048
    Messages:
    89
    Gender:
    Male
    First Name:
    Jon
    Tigard, OR
    Vehicle:
    2017 White Tacoma DCSB 4x4 SR5
    You have a link or more info on these?

  9. Dec 20, 2016 at 11:59 AM
    #9
    Hogpauls

    Hogpauls Hmmmmmm.

    Joined:
    Mar 30, 2016
    Member:
    #182800
    Messages:
    151
    Gender:
    Male
    Near Boise
    Vehicle:
    '16 Tacoma BBP TRD OR Dbl cab mt ftw
    JWolfUO likes this.
  10. Dec 20, 2016 at 12:28 PM
    #10
    tacitos

    tacitos Tah-Key-Toes

    Joined:
    Nov 16, 2015
    Member:
    #169837
    Messages:
    1,203
    Gender:
    Male
    Vehicle:
    16 TRDORDCLBJBL
    JWolfUO likes this.
  11. Dec 20, 2016 at 12:40 PM
    #11
    JWolfUO

    JWolfUO Well-Known Member

    Joined:
    Feb 6, 2015
    Member:
    #148048
    Messages:
    89
    Gender:
    Male
    First Name:
    Jon
    Tigard, OR
    Vehicle:
    2017 White Tacoma DCSB 4x4 SR5
  12. Dec 20, 2016 at 12:46 PM
    #12
    JWolfUO

    JWolfUO Well-Known Member

    Joined:
    Feb 6, 2015
    Member:
    #148048
    Messages:
    89
    Gender:
    Male
    First Name:
    Jon
    Tigard, OR
    Vehicle:
    2017 White Tacoma DCSB 4x4 SR5
    tacitos likes this.
  13. Dec 20, 2016 at 2:17 PM
    #13
    Caliph420

    Caliph420 [OP] Well-Known Member

    Joined:
    Nov 27, 2015
    Member:
    #170793
    Messages:
    498
    Gender:
    Male
    Vehicle:
    2016 SR Tacoma Access Cab MG
    Headache Rack, Curt Tow Hitch
    There are def advantages to replacing the knobs with locks as far as simplicity. The way I did it you could easily jack it up so it doesn't work good or at all. My main thing was wanting 1 key for 2 cabinets and 1 lock to open each cabinet for easier access.

  14. Dec 20, 2016 at 2:57 PM
    #14
    JoeCOVA

    JoeCOVA Well-Known Member

    Joined:
    Nov 15, 2016
    Member:
    #202463
    Messages:
    1,055
    First Name:
    Joe
    Vehicle:
    2017 DCSB TRD OR
    I would do this if they weren;t plastic, so easy to bypass the lock.

  15. Dec 20, 2016 at 3:01 PM
    #15
    Caliph420

    Caliph420 [OP] Well-Known Member

    Joined:
    Nov 27, 2015
    Member:
    #170793
    Messages:
    498
    Gender:
    Male
    Vehicle:
    2016 SR Tacoma Access Cab MG
    Headache Rack, Curt Tow Hitch
    I'm targeting that jerk walking by my truck in a parking lot or while my truck is parked somewhere in the woods. Anyone who really wants to get in there is gonna do it. Its just a deterrent against lazy thieves.

    JoeCOVA likes this.
  16. Dec 20, 2016 at 3:11 PM
    #16
    JWolfUO

    JWolfUO Well-Known Member

    Joined:
    Feb 6, 2015
    Member:
    #148048
    Messages:
    89
    Gender:
    Male
    First Name:
    Jon
    Tigard, OR
    Vehicle:
    2017 White Tacoma DCSB 4x4 SR5
    I'm a lazy thief. I only steal ideas.

  17. Dec 20, 2016 at 3:14 PM
    #17
    Caliph420

    Caliph420 [OP] Well-Known Member

    Joined:
    Nov 27, 2015
    Member:
    #170793
    Messages:
    498
    Gender:
    Male
    Vehicle:
    2016 SR Tacoma Access Cab MG
    Headache Rack, Curt Tow Hitch
    Thank you Tacomaworld for that. Great times browsing all this info and dreamin up random crap to change on the Taco.

    JWolfUO likes this.
  18. Jan 10, 2017 at 8:21 PM
    #18
    Taco351

    Taco351 Well-Known Member

    Joined:
    Oct 15, 2016
    Member:
    #199858
    Messages:
    52
    Gender:
    Male
    First Name:
    Robert
    NLR/Sherwood
    Vehicle:
    2017 Tacoma Double Cab 4X4 TRD Off-Road White
    K&N air filter/LED lights/Magna Flow Muffler/TOYO AT2 Tires and lots of fun stuff.

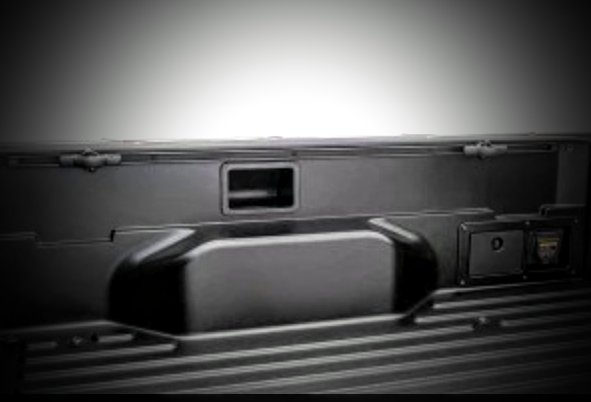

    I just noticed the earlier Tacoma's have these extra storage pockets close to the wheel wells. Some are just in front and some are almost right over the wheel wells. I am thinking about adding these. Has anyone done this or does anyone know the part numbers? Thanks! I think 2014 and earlier.
