Installing A Double-Din Head Unit

Discussion in 'Audio & Video' started by ShawnR, Oct 8, 2011.

  1. Oct 8, 2011 at 9:45 PM
    #1
    ShawnR

    ShawnR [OP] Roads?? We don't need no stinkin' roads...

    Joined:
    Sep 14, 2010
    Member:
    #43209
    Messages:
    245
    Gender:
    Male
    First Name:
    Shawn
    Denver
    Vehicle:
    10 Taco TRD OR access cab
    PIAA driving lights,Pioneer AVH-P3300BT stereo with HD radio and Axxess steering wheel control adapter,rearview mirror mod,ReTrax rolling cover,Demello front bumper,WeatherTech,10 inch woofer,500 watt amp,CB in armrest, heated Wet Okole seat covers,Spidertrax spacers, ARB twin compressor,Ikon 10,500lb wireless winch,A-pillar RAM mount,Pull-Pal,electric locking tailgate
    OK, I took out my Toyota stereo today, and replaced it with a Pioneer AVH-P3300BT, with HD radio add-on, and the Axxess steering wheel control adapter, and a relay to allow me to play videos without the parking brake on.
    I haven't seen any pics on this sight of the disconnecting of the old radio and how to connect everything, so here are some pictures for you guys doing it in the future.

    Disconnecting the hazard/clock/airbag display is a BITCH. The panel consists of a black out cover, a white inner cover, and a clock circuit board.
    You have to get out all three pieces, without breaking their tabs. I used 4 razor blades to slip between the plastic parts to hold each of the clips away far enough for me to pull each cover out.

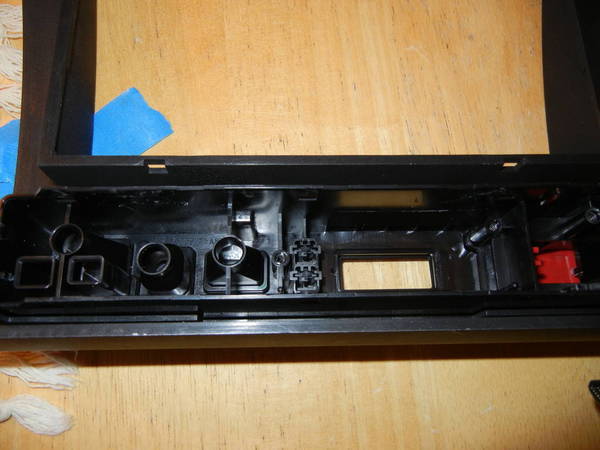

    This is the outer black cover inside the new Schoche unit.
    [​IMG]

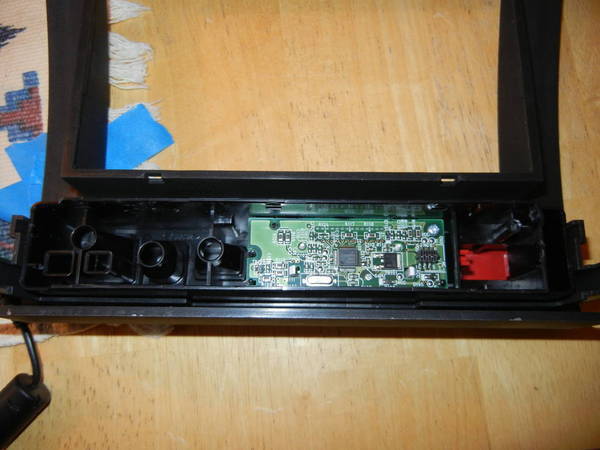

    Here is the black cover with the clock circuit board. The white cover goes inside the black cover, and over the clock circuit board.
    [​IMG]

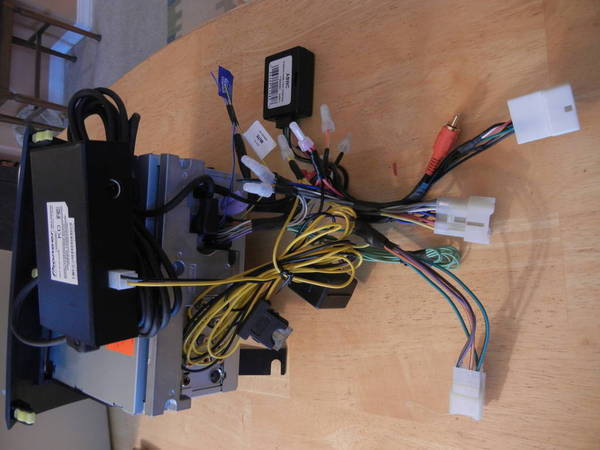

    All the adapters and add-ons. I had them all taped, nice and neat, with the HD tuner taped to the top. DIDN'T work. There was not enough room behind the radio for all the wires, and the way you have to slide the radio in will not allow the HD tuner on the top. I had to jam everything to the sides of where the radio goes to make room for it to slide in.


    [​IMG]
    There were no directions for the harness adapters, and there was an extra plug in the truck that I found out was pre-wiring for an XM radio.
    There were no directions for the Axxess module either.
    Even without much in the way of directions, I joined the same colored wires together, and it all worked.
    The directions for the receiver weren't much better, so I am still discovering how all the controls work, but the steering wheel controls,the HD tuner the parking break override and the ipod over USB all work great.
    It took me all day to put everything together, but I have never done a radio replacement before, so if I can do it, so can you.

  2. Oct 8, 2011 at 10:09 PM
    #2
    907taco

    907taco Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,363
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    nice work man, and this builds confidence for when i eventually do this. i have never done anthing like this befoe either but i like doing my own work. BTW you forgot to add that "installed" shot.

  3. Oct 8, 2011 at 10:12 PM
    #3
    Bens MBL TACO

    Bens MBL TACO Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58700
    Messages:
    150
    Gender:
    Male
    San Diego, CA
    Vehicle:
    07 Prerunner Rumbler
    AFE Air Intake, Billy 5100's up front set at .85 with top plate and lean spacer, Eibach coils, Bilstein 5160's rear shocks, Toytec AAL, TRD Exhaust, Flowmaster Super 44 Muffler, JBA Headers, 5k 35 Watt HID, 3K 35 Watt HID fogs, Anytime fog mod Fierce 265, 70, r17.
    installed pics pls. Nice job man, way to tackle it with little to no directions.

  4. Oct 9, 2011 at 7:01 PM
    #4
    ShawnR

    ShawnR [OP] Roads?? We don't need no stinkin' roads...

    Joined:
    Sep 14, 2010
    Member:
    #43209
    Messages:
    245
    Gender:
    Male
    First Name:
    Shawn
    Denver
    Vehicle:
    10 Taco TRD OR access cab
    PIAA driving lights,Pioneer AVH-P3300BT stereo with HD radio and Axxess steering wheel control adapter,rearview mirror mod,ReTrax rolling cover,Demello front bumper,WeatherTech,10 inch woofer,500 watt amp,CB in armrest, heated Wet Okole seat covers,Spidertrax spacers, ARB twin compressor,Ikon 10,500lb wireless winch,A-pillar RAM mount,Pull-Pal,electric locking tailgate

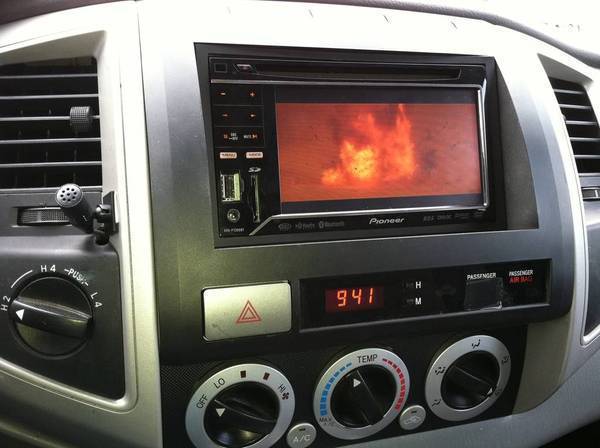

    Here is the final outcome. I painted the Scoche dash black, and the panel beneath it black to match. I put the BT mike just above the 4x4 switch.
    The screen was playing an explosion from the movie Dune.
    I will have to connect the microphone with something better, as the double-sided tape keeps coming off.

    [​IMG]

  5. Oct 9, 2011 at 7:06 PM
    #5
    ShawnR

    ShawnR [OP] Roads?? We don't need no stinkin' roads...

    Joined:
    Sep 14, 2010
    Member:
    #43209
    Messages:
    245
    Gender:
    Male
    First Name:
    Shawn
    Denver
    Vehicle:
    10 Taco TRD OR access cab
    PIAA driving lights,Pioneer AVH-P3300BT stereo with HD radio and Axxess steering wheel control adapter,rearview mirror mod,ReTrax rolling cover,Demello front bumper,WeatherTech,10 inch woofer,500 watt amp,CB in armrest, heated Wet Okole seat covers,Spidertrax spacers, ARB twin compressor,Ikon 10,500lb wireless winch,A-pillar RAM mount,Pull-Pal,electric locking tailgate
    In the picture, you'll notice I taped over the Airbag alert. My wife doesn't wear her seatbelt, and I am tired at looking at the blinking red light.

  6. Oct 9, 2011 at 9:18 PM
    #6
    2Kings920

    2Kings920 Member

    Joined:
    Oct 2, 2011
    Member:
    #64478
    Messages:
    13
    Gender:
    Male
    First Name:
    MartyV
    Biloxi MS
    Vehicle:
    08 Tacoma
    With the BT mic in front of the air vent does it pic up the sound of air moving by when A/C is on full blast? It looks like you had to drill a small hole in the 4x4 switch cover?

    I'm debating doing almost the same install. I've got a AVIC Z-1 w/ back up cam and I've located a iPod adapter kit to add. I'm nervous though, I've never messed with car stereos and I don't want to get it apart and not be able to get all back together.

  7. Oct 9, 2011 at 9:24 PM
    #7
    nammer

    nammer Well-Known Member

    Joined:
    Aug 1, 2011
    Member:
    #60945
    Messages:
    7,949
    Gender:
    Male
    First Name:
    Nam
    St. Petersburg, Florida
    Vehicle:
    2006 SR5 DCSB
    15000K HID headlights 3000K HID fogs LED Front Side Marker Bulbs LED License Plate Bulbs LED Front Turn Signals Color Matched Grille Color Matched Side Mirrors and Door Handles CB radio and PA speaker Overhead Compass and Temperature Window Tint Anytime Fog Light Mod Bakflip G2 Westin Stainless Bull Bar Pop N Lock PL5300 UltraGauge K&N Intake Stant Locking Gas Cap Color Matched Rear Bumper Jet Throttle Body Spacer
    Hi, i was wondering for your bluetooth mic, did you drill through your plastic to get it right on top of your 4x4 switch? thanks

  8. Oct 10, 2011 at 9:21 AM
    #8
    ShawnR

    ShawnR [OP] Roads?? We don't need no stinkin' roads...

    Joined:
    Sep 14, 2010
    Member:
    #43209
    Messages:
    245
    Gender:
    Male
    First Name:
    Shawn
    Denver
    Vehicle:
    10 Taco TRD OR access cab
    PIAA driving lights,Pioneer AVH-P3300BT stereo with HD radio and Axxess steering wheel control adapter,rearview mirror mod,ReTrax rolling cover,Demello front bumper,WeatherTech,10 inch woofer,500 watt amp,CB in armrest, heated Wet Okole seat covers,Spidertrax spacers, ARB twin compressor,Ikon 10,500lb wireless winch,A-pillar RAM mount,Pull-Pal,electric locking tailgate
    I drilled a hole for the mike, only to realize after that I didn't need to.
    The 4X4 switch plate pops right off and all I really needed was to grind a little off the back to let the wire through.

  9. Oct 10, 2011 at 9:36 AM
    #9
    nammer

    nammer Well-Known Member

    Joined:
    Aug 1, 2011
    Member:
    #60945
    Messages:
    7,949
    Gender:
    Male
    First Name:
    Nam
    St. Petersburg, Florida
    Vehicle:
    2006 SR5 DCSB
    15000K HID headlights 3000K HID fogs LED Front Side Marker Bulbs LED License Plate Bulbs LED Front Turn Signals Color Matched Grille Color Matched Side Mirrors and Door Handles CB radio and PA speaker Overhead Compass and Temperature Window Tint Anytime Fog Light Mod Bakflip G2 Westin Stainless Bull Bar Pop N Lock PL5300 UltraGauge K&N Intake Stant Locking Gas Cap Color Matched Rear Bumper Jet Throttle Body Spacer
    ok, cool, thanks for the info, nice install!

  10. Oct 10, 2011 at 1:54 PM
    #10
    ShawnR

    ShawnR [OP] Roads?? We don't need no stinkin' roads...

    Joined:
    Sep 14, 2010
    Member:
    #43209
    Messages:
    245
    Gender:
    Male
    First Name:
    Shawn
    Denver
    Vehicle:
    10 Taco TRD OR access cab
    PIAA driving lights,Pioneer AVH-P3300BT stereo with HD radio and Axxess steering wheel control adapter,rearview mirror mod,ReTrax rolling cover,Demello front bumper,WeatherTech,10 inch woofer,500 watt amp,CB in armrest, heated Wet Okole seat covers,Spidertrax spacers, ARB twin compressor,Ikon 10,500lb wireless winch,A-pillar RAM mount,Pull-Pal,electric locking tailgate
    I tried out my mike with the air on, and the person on the phone said I sounded loud and clear, so no problems with the mike location.
