Installing Leer Canopy

Discussion in '2nd Gen. Tacomas (2005-2015)' started by islandwheeler, Dec 7, 2011.

  1. Dec 7, 2011 at 10:14 AM
    #1
    islandwheeler

    islandwheeler [OP] Member

    Joined:
    Oct 23, 2011
    Member:
    #65731
    Messages:
    6
    Gender:
    Male
    I'm going to pick up a Leer Canopy on Friday. Just wondering what tools I will need to install it. Will be far from home so need to be prepared. My truck is a 2007 dclb.
    Cheers

  2. Dec 7, 2011 at 10:18 AM
    #2
    scottri

    scottri Well-Known Member

    Joined:
    Apr 13, 2010
    Member:
    #35187
    Messages:
    2,095
    Gender:
    Male
    First Name:
    Scott
    Tigard Oregon
    Vehicle:
    '10 Sport DC TRD Sport PreRunner
    Cover King Seat Covers, WeatherTech Liners, PopNLock, storage bin locks, N-Fab Step bars, and G4 Elite Tonneau cover.
    They are usually just clamped to the bed rails so basic hand tools like a socket set should do it.

  3. Dec 7, 2011 at 10:23 AM
    #3
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,726
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Why not get it installed when you pick it up ? How you gonna get home ?

  4. Dec 7, 2011 at 10:23 AM
    #4
    jflan

    jflan Well-Known Member

    Joined:
    Dec 26, 2008
    Member:
    #11901
    Messages:
    1,013
    Vancouver, WA
    Vehicle:
    09 Access 4x4 2.7L manual SR5
    SnugTop SuperSport Sportsman keyless cap Weathertech mats - OEM skidplate - OEM hitch
    Make sure that the seller has the all Leer to Tacoma C-channel clips
    Ask him if the seal is still good.

  5. Dec 7, 2011 at 10:27 AM
    #5
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    30,854
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    There's 2 parts to the install, physically setting the shell on the bed and clamping it down and the wiring. As long as the hardware is all there, the first part is a breeze. Unless you plan on bringing a soldering iron, heat gun and all the wiring accessories required, you'll have to drive back without the 3rd brake light operational.

  6. Dec 7, 2011 at 10:27 AM
    #6
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,726
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Mine is installed with bolts into threaded aluminum blocks in the bedrails

  7. Dec 7, 2011 at 10:31 AM
    #7
    jflan

    jflan Well-Known Member

    Joined:
    Dec 26, 2008
    Member:
    #11901
    Messages:
    1,013
    Vancouver, WA
    Vehicle:
    09 Access 4x4 2.7L manual SR5
    SnugTop SuperSport Sportsman keyless cap Weathertech mats - OEM skidplate - OEM hitch
    Those are the "C-channel clips"
    Snug uses a similar system that attaches via the bedrail (c-channel)

    Very sanitary.

  8. Dec 7, 2011 at 5:25 PM
    #8
    islandwheeler

    islandwheeler [OP] Member

    Joined:
    Oct 23, 2011
    Member:
    #65731
    Messages:
    6
    Gender:
    Male
    I am buying the canopy second hand. The brake light will have to wait until i get home but for the C clamps all i should need is a socket set? Could anyone tell me what size of sockets the clamps are?

  9. Dec 7, 2011 at 6:12 PM
    #9
    jflan

    jflan Well-Known Member

    Joined:
    Dec 26, 2008
    Member:
    #11901
    Messages:
    1,013
    Vancouver, WA
    Vehicle:
    09 Access 4x4 2.7L manual SR5
    SnugTop SuperSport Sportsman keyless cap Weathertech mats - OEM skidplate - OEM hitch
    Don't confuse the hold down hardware with C-clamps. Those are something else.
    It's a hardware package that works with your bedrail which is a sort of C-channel. The hold down bolts attach the canopy to the truck via the bedrail.

    I think my Snug uses a 1/2" socket.....just bring your 3/8" drive socket set and some open end wrenches as well.
    Don't confuse "drive" with "socket" ;)

    I would be talking to the seller about socket size etc because you want to verify that he has all this hardware and that the gasket is in good shape.
    If the gasket's toast it will leak and you will have to re-do.

  10. Dec 7, 2011 at 6:23 PM
    #10
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,726
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi

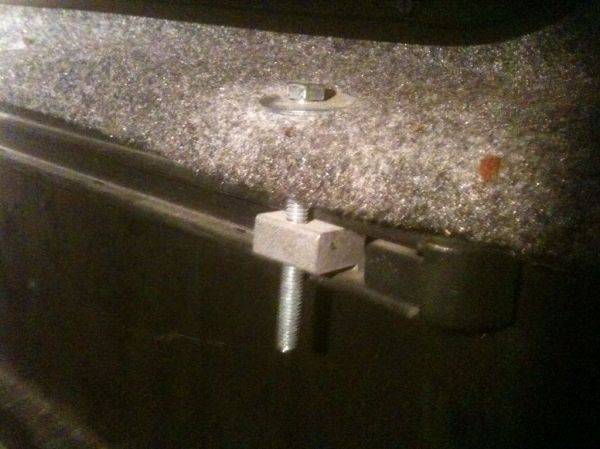

    Here's my set up , sorry for the crappy pic it was dark out there , cold too .

    [​IMG]

    The bolts are 1/2" on mine

  11. Dec 7, 2011 at 6:33 PM
    #11
    jflan

    jflan Well-Known Member

    Joined:
    Dec 26, 2008
    Member:
    #11901
    Messages:
    1,013
    Vancouver, WA
    Vehicle:
    09 Access 4x4 2.7L manual SR5
    SnugTop SuperSport Sportsman keyless cap Weathertech mats - OEM skidplate - OEM hitch
    Good pic, OZ.

    :thumbsup:

  12. Dec 7, 2011 at 6:40 PM
    #12
    islandwheeler

    islandwheeler [OP] Member

    Joined:
    Oct 23, 2011
    Member:
    #65731
    Messages:
    6
    Gender:
    Male
    Thanks Guys. Yes I will give the guy a call and ask about the seal. Will be bringing my socket and wrench sets. Pic is great, I see exactly how It could bolt down.

  13. Dec 7, 2011 at 6:42 PM
    #13
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,726
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
  14. Dec 14, 2014 at 12:45 PM
    #14
    colton1808

    colton1808 Active Member

    Joined:
    Oct 22, 2013
    Member:
    #115034
    Messages:
    43
    Gender:
    Male
    This is probably a dumb question but what keeps the canopy from just sliding right off the rail system? it looks like from what OZ-T posted it has the potential to slide off.

  15. Dec 14, 2014 at 12:46 PM
    #15
    OZ-T

    OZ-T Quite an experience to live in fear , isn't it ?

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    38,726
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    You tighten the bolts

  16. Dec 14, 2014 at 3:21 PM
    #16
    Toy4me

    Toy4me Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85061
    Messages:
    1,007
    Gender:
    Male
    First Name:
    Tom
    NNJ
    Vehicle:
    '10 DCLB TRD Sport MGM
    LOL
