Installing MeSoJDM's Custom Lower Switch Panel

Discussion in 'Product Reviews' started by destin_meeks, Mar 15, 2018.

  1. Jan 4, 2020 at 5:13 PM
    #41
    duvinclunk

    duvinclunk Well-Known Member

    Joined:
    Jun 9, 2016
    Member:
    #189147
    Messages:
    1,305
    Gender:
    Male
    First Name:
    Davin
    Salt Lake City, UT
    Vehicle:
    2016 DCSB|OR|QS
    I thought about doing the same but how would you epoxy it in place if you can’t access the rear?

  2. Jan 4, 2020 at 5:22 PM
    #42
    Rome604

    Rome604 I am the Captain now

    Joined:
    Feb 23, 2017
    Member:
    #211478
    Messages:
    4,485
    Gender:
    Male
    First Name:
    Dave
    Alexandria, VA
    Vehicle:
    2020 White Sienna AWD
    You need to leave a lip for it to epoxy to. I got the quick set stuff and held it in place as it dried.

    tonered and duvinclunk like this.
  3. Jan 4, 2020 at 5:59 PM
    #43
    duvinclunk

    duvinclunk Well-Known Member

    Joined:
    Jun 9, 2016
    Member:
    #189147
    Messages:
    1,305
    Gender:
    Male
    First Name:
    Davin
    Salt Lake City, UT
    Vehicle:
    2016 DCSB|OR|QS
    I may go this route. It looks insane to remove this.

  4. Jan 4, 2020 at 6:54 PM
    #44
    Rome604

    Rome604 I am the Captain now

    Joined:
    Feb 23, 2017
    Member:
    #211478
    Messages:
    4,485
    Gender:
    Male
    First Name:
    Dave
    Alexandria, VA
    Vehicle:
    2020 White Sienna AWD
    If I remember correctly it took like an hour. I had planned on it taking much longer than that so I had the rest of the afternoon to work on other projects.

  5. Jan 6, 2020 at 6:31 PM
    #45
    Grossomotto

    Grossomotto Complete 3rd Member

    Joined:
    Mar 13, 2018
    Member:
    #247175
    Messages:
    7,175
    39.9526° N, 75.1652° W
    Vehicle:
    2017 4WDV6LB6MT
    It’s a pretty big project, I turned it into multiple days of experimenting before settling on clear epoxy after the dremel tool. Don’t want to take my dash apart again.



    sbl23 and tonered like this.
  6. Jan 6, 2020 at 7:37 PM
    #46
    duvinclunk

    duvinclunk Well-Known Member

    Joined:
    Jun 9, 2016
    Member:
    #189147
    Messages:
    1,305
    Gender:
    Male
    First Name:
    Davin
    Salt Lake City, UT
    Vehicle:
    2016 DCSB|OR|QS
    To be honest, after watching some videos and reading the how to, I’ll probably just skip it entirely and figure out another location or option. I don’t trust I can do a clean and tidy job without removing the panel and just seems to be more effort than it’s worth.

    Grossomotto likes this.
  7. Jan 6, 2020 at 7:53 PM
    #47
    destin_meeks

    destin_meeks [OP] I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,878
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    If you haven’t, just look into the left side switch panel he makes. Easy install, no modification or disassembly

    Bunk Moreland likes this.
  8. Feb 23, 2020 at 4:57 PM
    #48
    bcgill

    bcgill Well-Known Member

    Joined:
    Jan 1, 2019
    Member:
    #277739
    Messages:
    197
    Gender:
    Male
    First Name:
    Ben
    Blacksburg, Virginia
    Vehicle:
    2019 SR 3.5L V6 4x4 Magnetic Grey

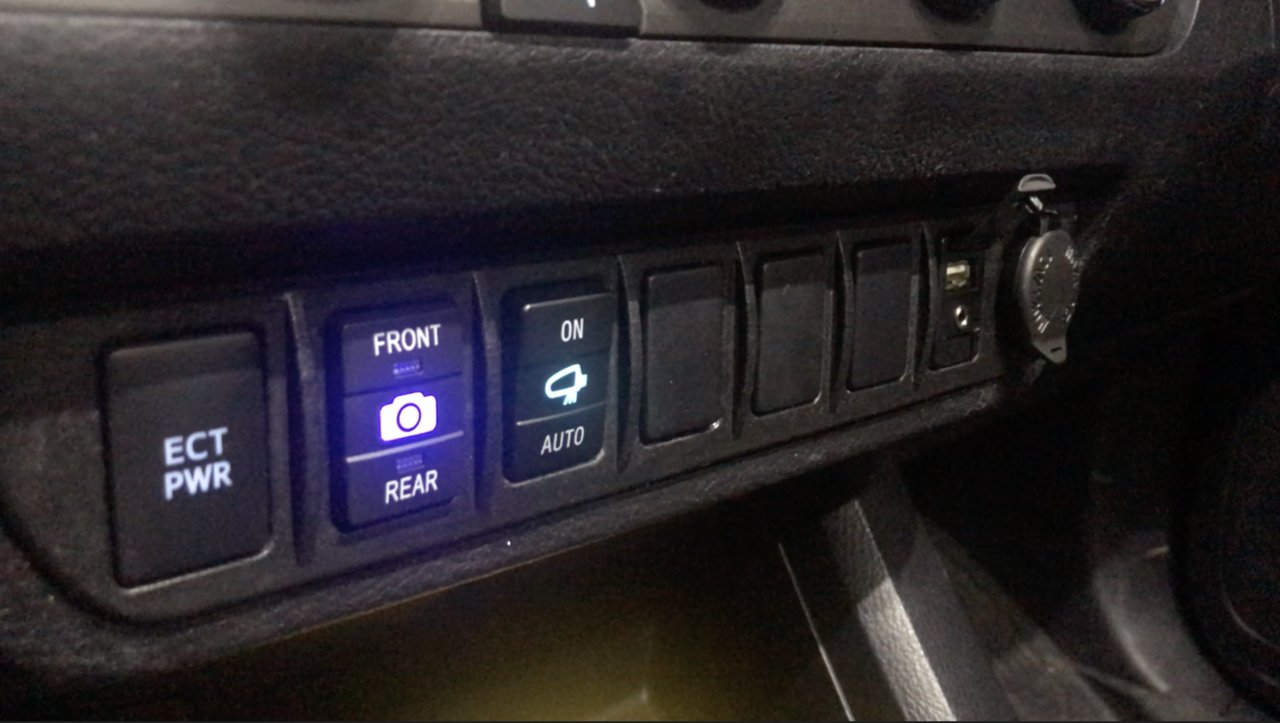

    Thanks for this @destin_meeks . I did the install this weekend and your write up was invaluable. I also ended up, despite my best efforts, with an extra screw too.

    Screen Shot 2020-02-23 at 7.54.06 PM.jpg

  9. Feb 23, 2020 at 5:52 PM
    #49
    destin_meeks

    destin_meeks [OP] I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,878
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    It happens when you’re working on your own vehicle.
    I take cars apart and install electronics for a living. I can do a full system in a car spanning 2 full 8-hour days and somehow all the screws go back in the right spots. But in my own truck, I have an extra screw after taking out the glove box. It’s crazy

    Grossomotto likes this.
  10. Mar 7, 2020 at 4:17 PM
    #50
    Not_Sure

    Not_Sure Well-Known Member

    Joined:
    Mar 9, 2019
    Member:
    #285950
    Messages:
    362
    Gender:
    Male
    First Name:
    J
    NC
    Vehicle:
    2019 Model 7545 in Silver Sky
    Bike rack

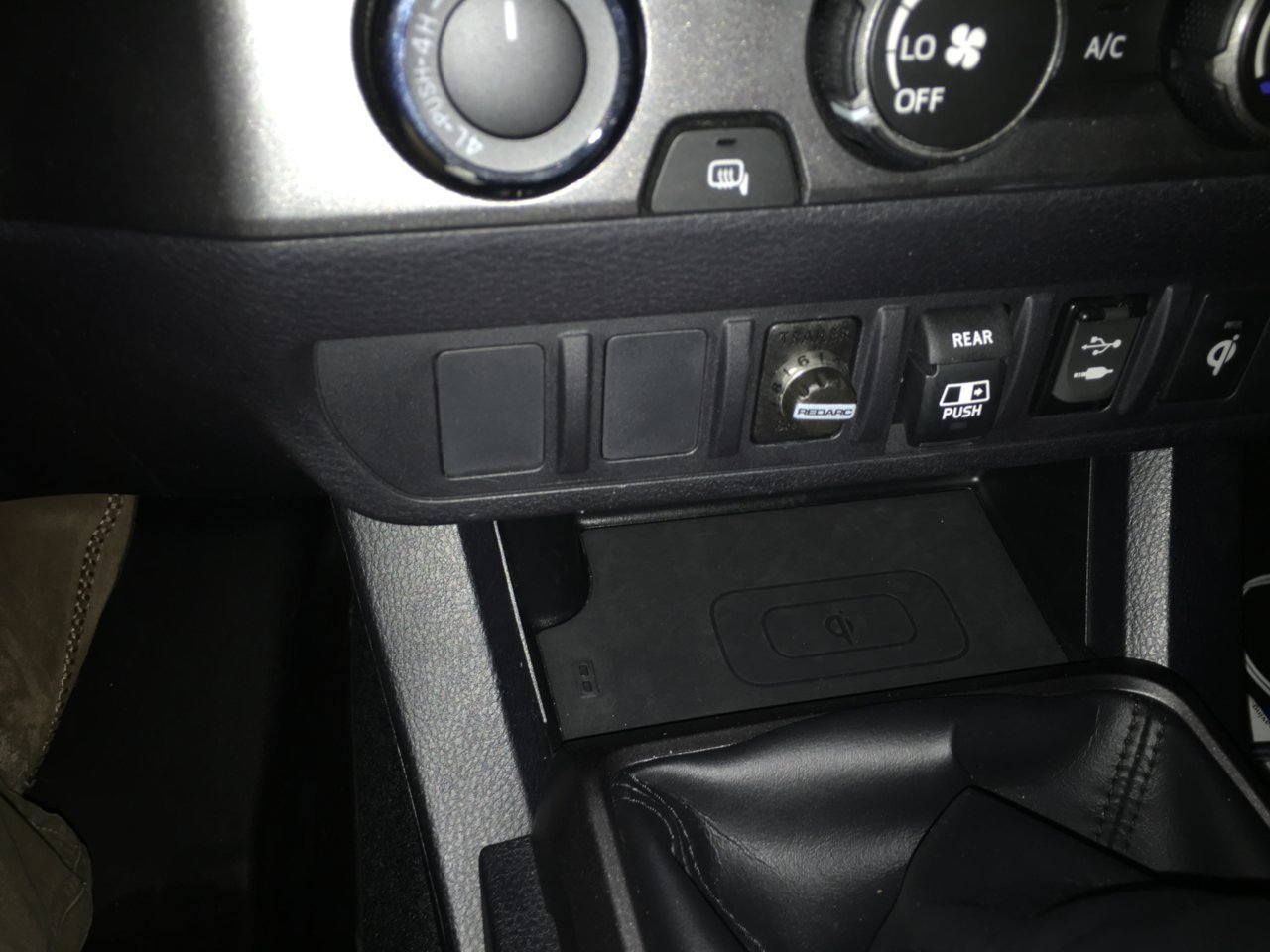

    Thanks for the write up and pictures! Was able to use this for my brake controller install today.


  11. Mar 8, 2020 at 10:14 AM
    #51
    wirickc7

    wirickc7 Well-Known Member

    Joined:
    Feb 13, 2017
    Member:
    #210520
    Messages:
    522
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2016 white Tacoma try off-road
    Have 2 extra screws ... hmmmm


  12. Mar 8, 2020 at 11:14 AM
    #52
    destin_meeks

    destin_meeks [OP] I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,878
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Throw them in the glove box and when you take the dash apart again, try to find them homes lol

    sbl23 and Not_Sure like this.
  13. Mar 8, 2020 at 12:29 PM
    #53
    Not_Sure

    Not_Sure Well-Known Member

    Joined:
    Mar 9, 2019
    Member:
    #285950
    Messages:
    362
    Gender:
    Male
    First Name:
    J
    NC
    Vehicle:
    2019 Model 7545 in Silver Sky
    Bike rack
    Listen for rattles.

  14. Mar 8, 2020 at 7:06 PM
    #54
    Taco_Coma

    Taco_Coma That's a lovely accent you have. New Jersey?

    Joined:
    Oct 30, 2018
    Member:
    #271144
    Messages:
    2,388
    Gender:
    Male
    South NJ
    Vehicle:
    2018 DCSB SR5

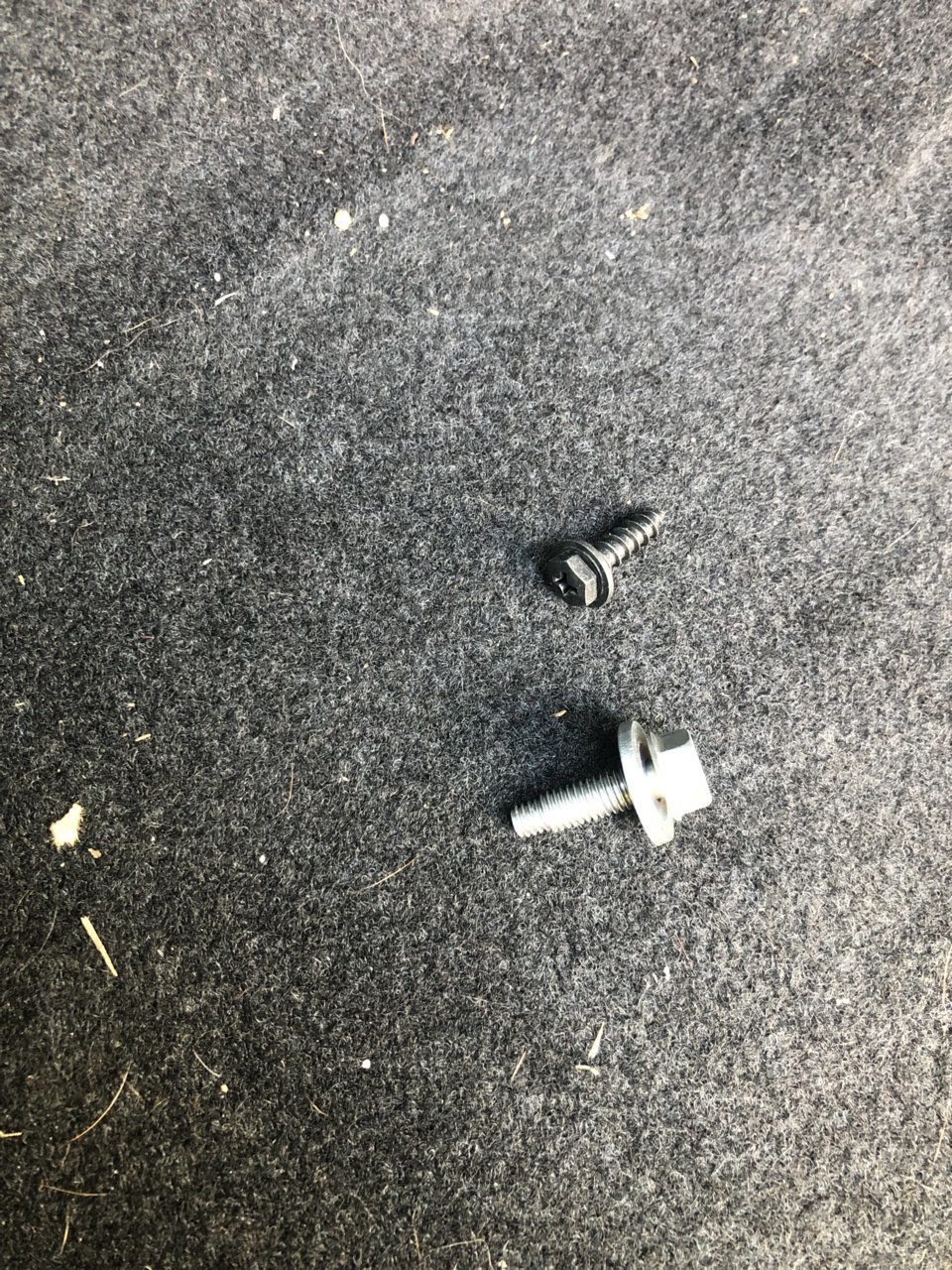

    Weight reduction. We're building race cars now
    But the black one looks like the one that goes in the drivers side lower kick panel.
    and the silver looks like it goes in the center console

  15. Mar 8, 2020 at 7:44 PM
    #55
    wirickc7

    wirickc7 Well-Known Member

    Joined:
    Feb 13, 2017
    Member:
    #210520
    Messages:
    522
    Gender:
    Male
    First Name:
    Chris
    Vehicle:
    2016 white Tacoma try off-road
    Have those all in there I had 3 silver ones total. 2 in center console and the 3rd one tbd lol

  16. Mar 8, 2020 at 9:56 PM
    #56
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,054
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM

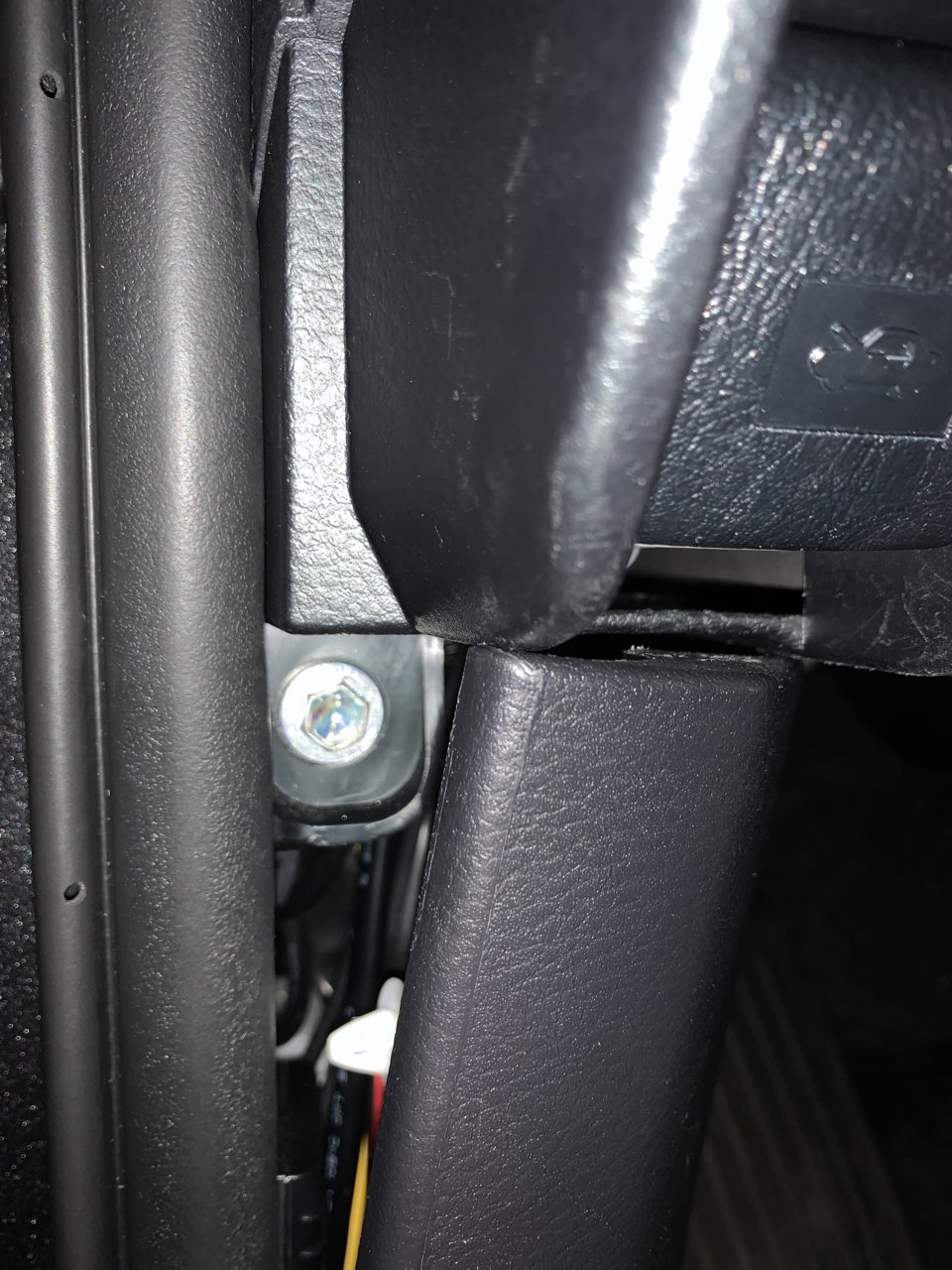

    Too me, the black one looks like the screw in the door handle, under the felt pad. The silver one looks like it bolts the lower driver side dash panel near the hood release, but underneath the lower kick panel towards the top.FFEDC7F6-C333-423F-8639-639DD52DD8FB.jpgC5FEB236-BC3E-4E1F-9C37-9E6D14FA848C.jpg

    Last edited: Mar 8, 2020
  17. Mar 8, 2020 at 10:04 PM
    #57
    TacoTruck808

    TacoTruck808 Well-Known Member

    Joined:
    May 15, 2017
    Member:
    #219102
    Messages:
    2,054
    Gender:
    Male
    Oahu in the Aloha State!
    Vehicle:
    2016 Tacoma TRD Sport DCSB, Prem & Tech Pkg, MGM

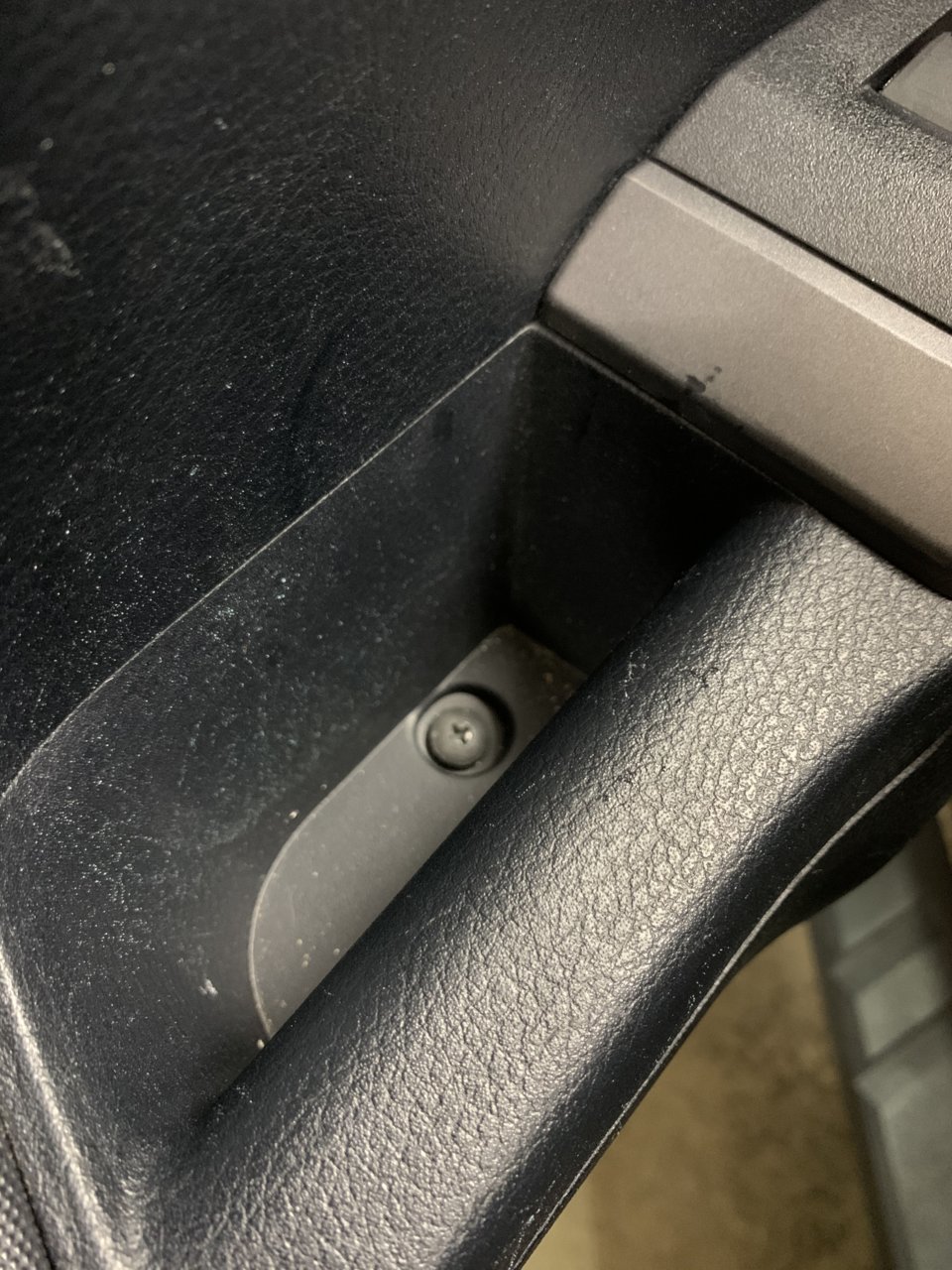

    The screw under the pad looks different now that i went out and snapped a pic. It looks familiar, just don’t remember where it belongs now...

  18. Apr 21, 2020 at 11:52 AM
    #58
    VirusCage

    VirusCage Well in the secondary immune response

    Joined:
    Jul 5, 2017
    Member:
    #223232
    Messages:
    1,402
    Allison Park, PA
    Vehicle:
    2017 TRD Sport DCSB 6MT 1995 Landcruiser 2015 Highlander XLE
    Hood deflector, window vent visors, stainless steps, kb voodoo bedrack, bed cubby cap seals, meso ext fuse cover, meso lower switch panel, 4xhella horns, power tray aux panel, 2wd lo mod, rear FU lights, bed led lights, BPF SKID and Hook, rear view mirror usb power ports, front and rear dash cam, front and rear cam anytime mod, cherry air freshener!
    Well, I bought the meso lower panel last summer...I am going to attempt this this weekend. Does anyone happen to have a pic of the "best" or good spot to run the wires into the cab from the driver/battery side?
    Thanks for the write-up and thanks for the advice IA!

  19. Apr 21, 2020 at 12:25 PM
    #59
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    990
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, 2LM, SSO Hybrid bumper/Warn 10kSynthetic, Custom Car Grille, MESO Ultimate Turn Signal in KTJO Power Folding Mirrors, Genesis Dual Battery, BHLM with LED upgrade, RIGID fogs, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, 400W anytime w/ interior outlets, USB charging stations, DE-badged, TVD blackout kit, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns.

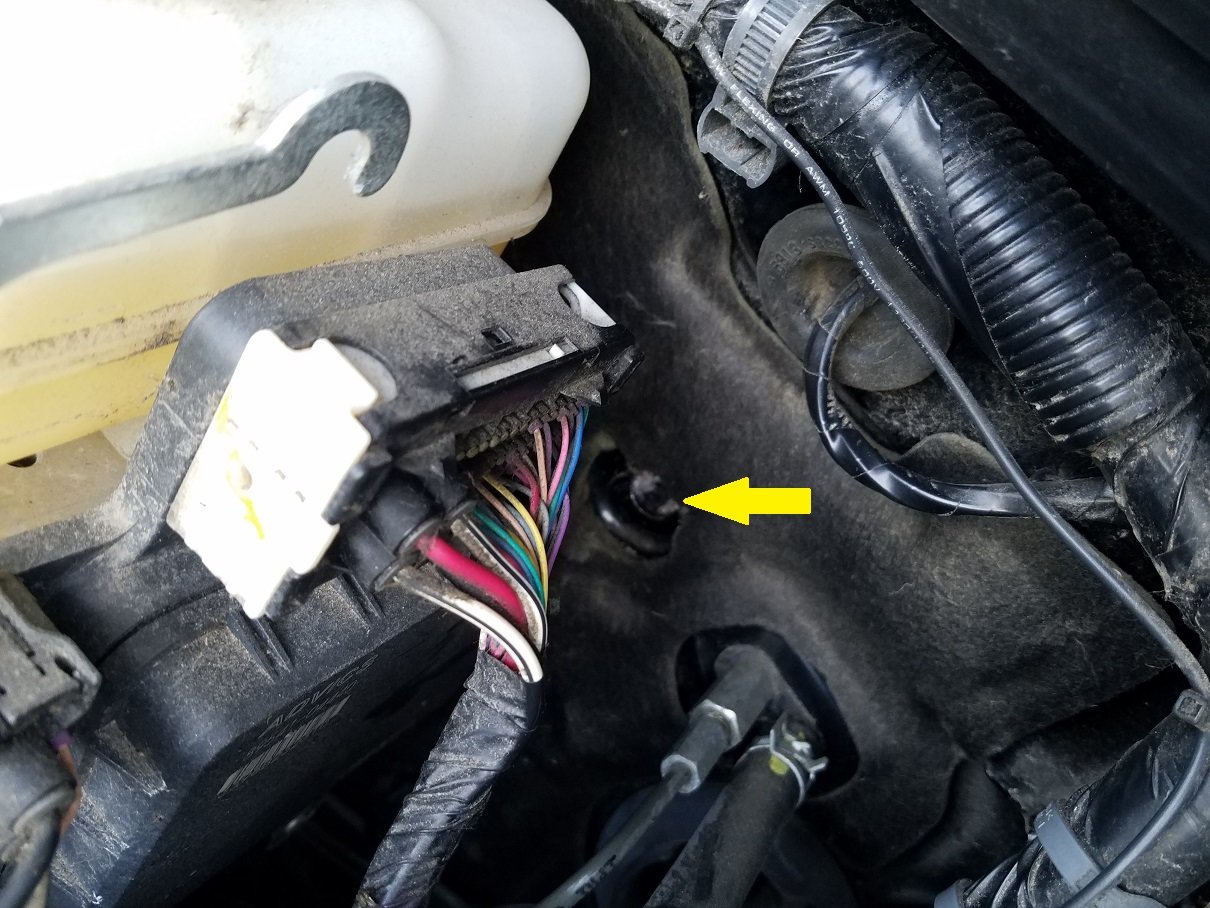

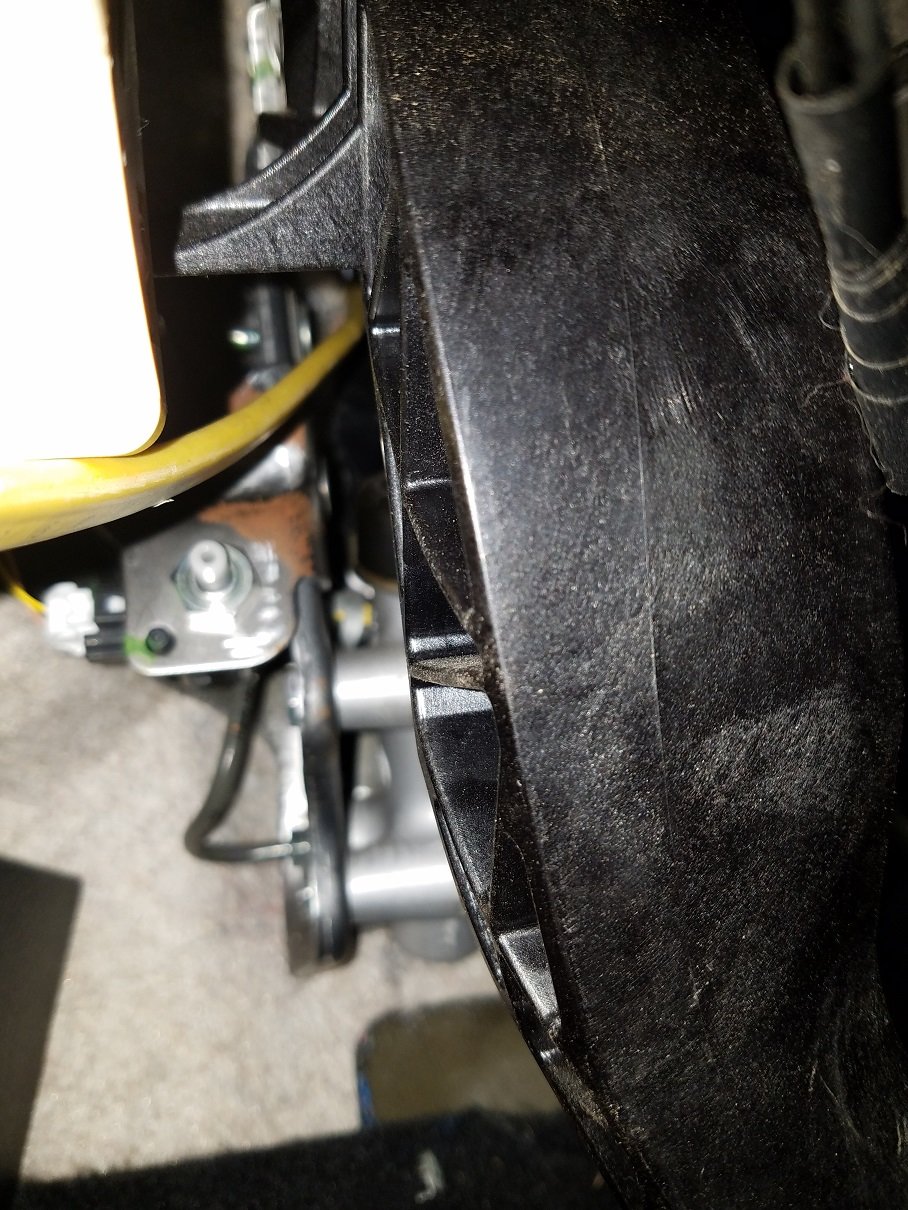

    There is an unused rubber plug behind the brake reservoir. It is tricky to fish the wires with a clutch pedal in the way. But it is possible if you use a stiff piece of wire,(like some house hold wire), to fish it through. I have some pictures. I ll try to get them loaded quickly

    VirusCage likes this.
  20. Apr 21, 2020 at 12:38 PM
    #60
    fatboyfirebass

    fatboyfirebass Well-Known Member

    Joined:
    Mar 24, 2018
    Member:
    #248258
    Messages:
    990
    Gender:
    Male
    Vehicle:
    2018 Blk TRD OR DCSB MT6 Prem/Tech Pkgs
    OV Tuned, S&B Intake, MBRP Dual black Cat-back, accumulator delete, URD SS, 2LM, SSO Hybrid bumper/Warn 10kSynthetic, Custom Car Grille, MESO Ultimate Turn Signal in KTJO Power Folding Mirrors, Genesis Dual Battery, BHLM with LED upgrade, RIGID fogs, Geko Bed & Underhood lighting, Rear camera anytime, Nav Block Override, 400W anytime w/ interior outlets, USB charging stations, DE-badged, TVD blackout kit, HiLux interior door handles, Hybrid SS/Delrin Shift Knob, Cali-Raised bed Stiffeners, Ultimate Tailgate Seal, "El Dorado" Dual-quad horns.

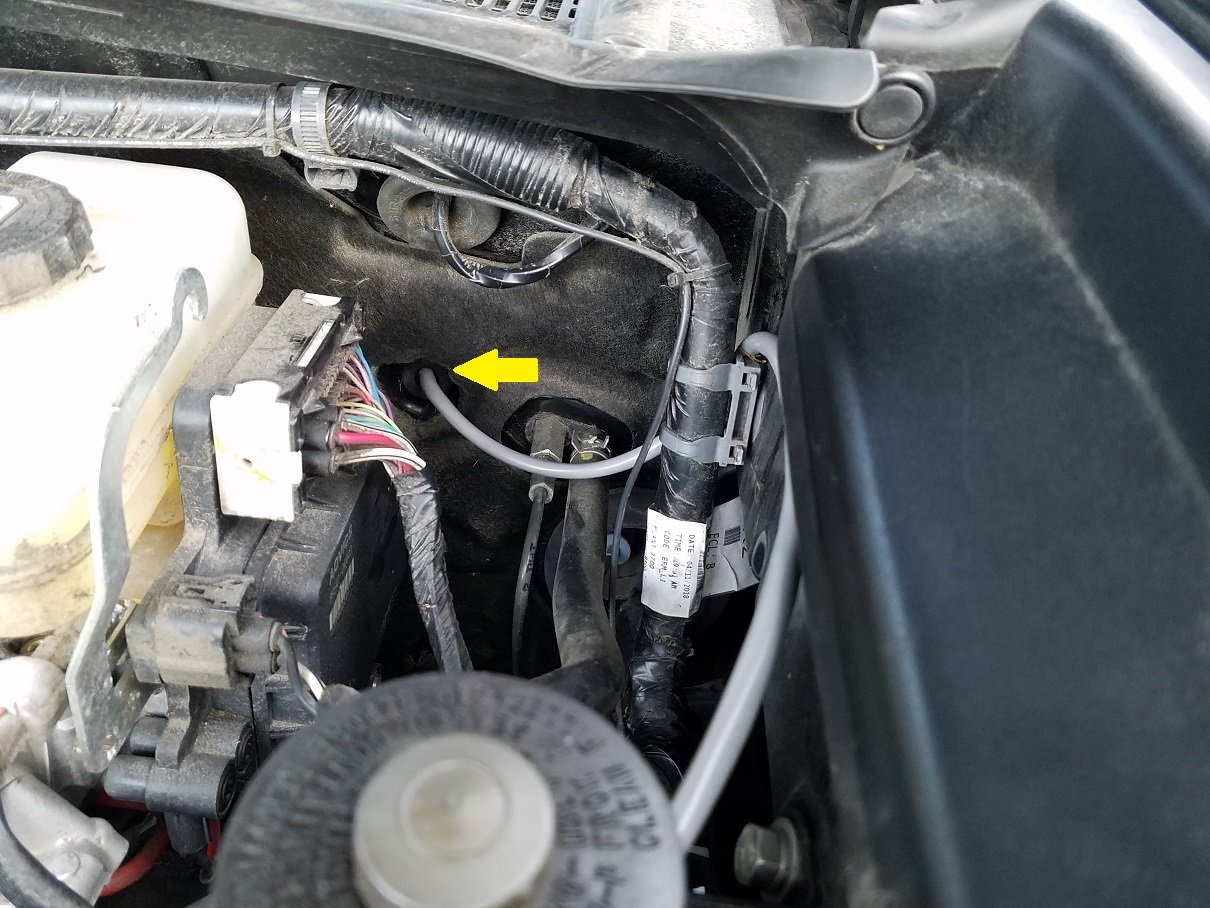

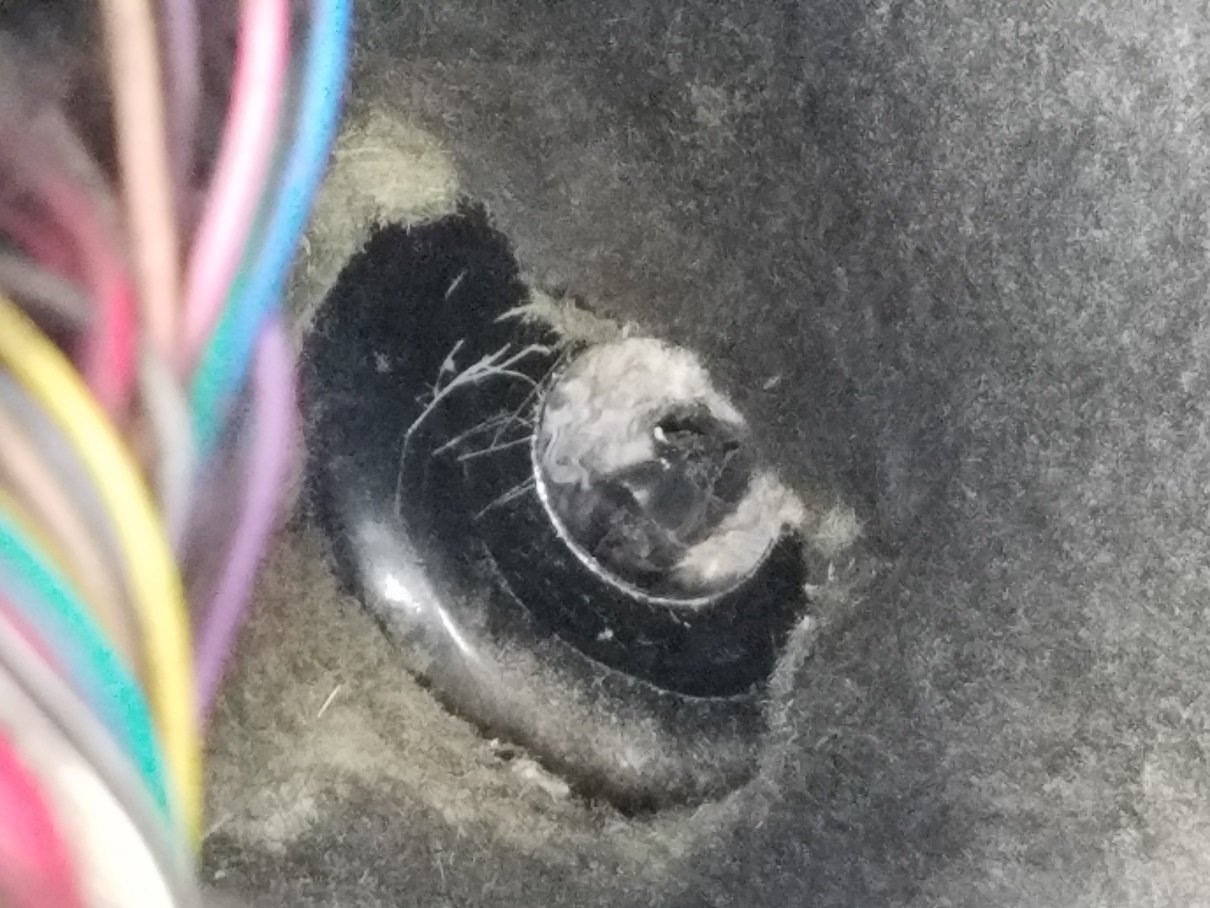

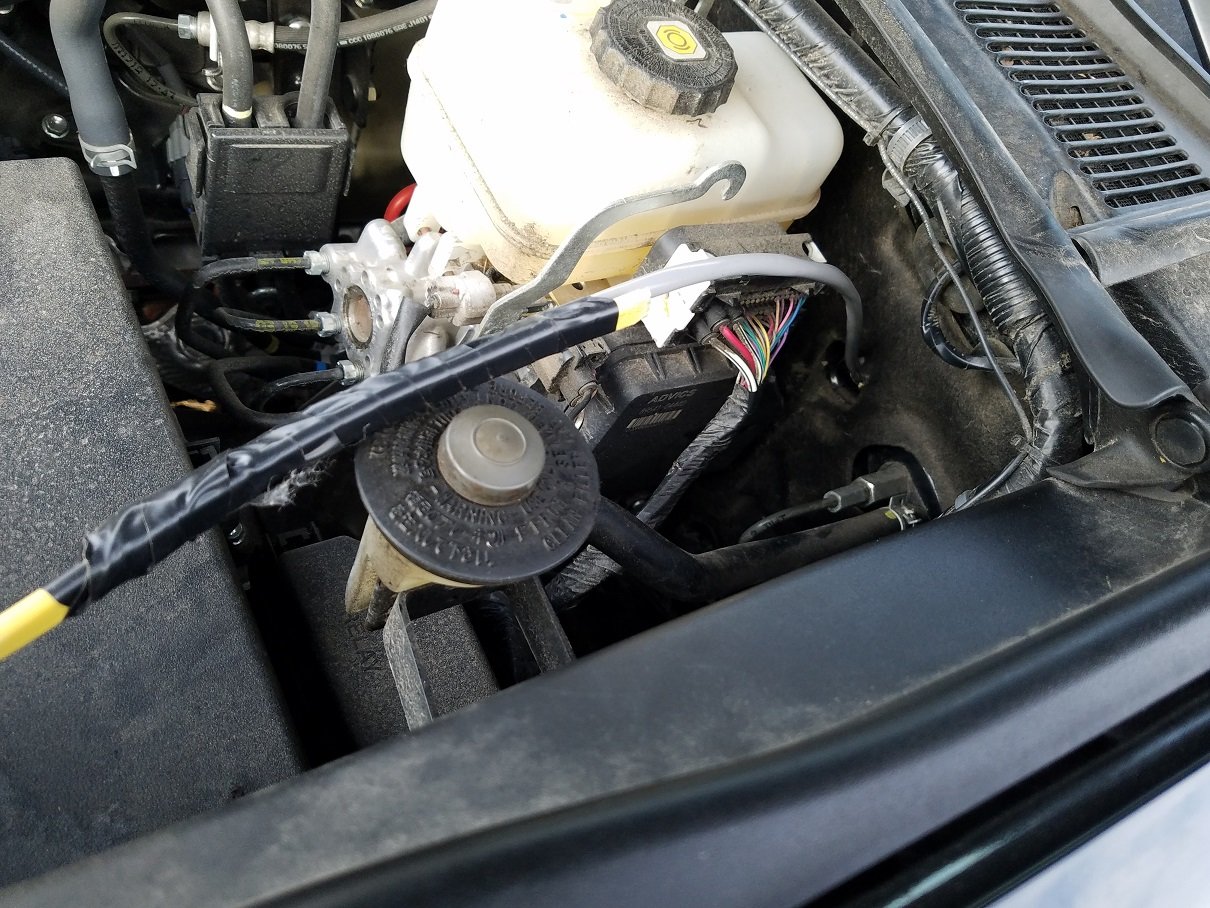

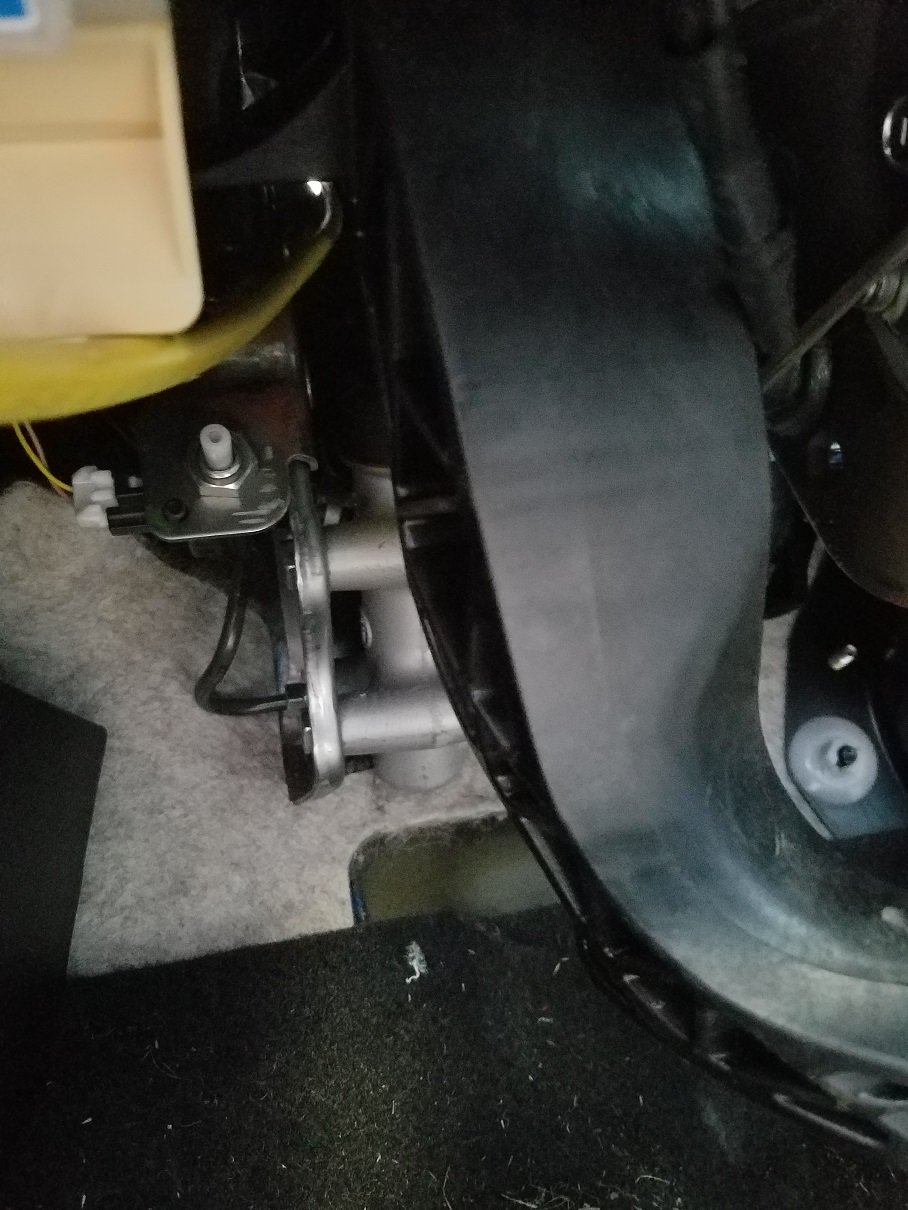

    It is easier to get to if you don't have a booster. You will have to remove the plug and turn it inside out to cut out the center of the plug to let the wire feed through. Then use a punch or awl and make a through hole in the carpet. put the plug back in. It will now be your grommet. You may want to use some RTV or source your own grommet, depending on how many wires you want to run, or what gauge they are.20191226_160741.jpg 20191226_160806.jpg
    20191226_161016.jpg 20191226_161027.jpg



    20191226_161109.jpg 20191226_161752.jpg

    VirusCage likes this.
