Installing OEM Keyless Entry

Discussion in '3rd Gen. Tacomas (2016+)' started by motofish84, Jul 15, 2019.

  1. Jul 15, 2019 at 5:37 AM
    #1
    motofish84

    motofish84 [OP] Well-Known Member

    Joined:
    Jun 26, 2019
    Member:
    #297482
    Messages:
    138
    First Name:
    Tyler
    Hi folks.

    I decided to do a write up on installing the OEM keyless entry.

    I have a 3rd Gen SR with power locks but no keyless entry. My understanding is that this kit will work for anyone that is in the same situation. I believe that the SR is the only trim level that doesn't have it. So, if you have power locks this kit should work for you.

    I know there's a couple of threads about this but I read them before doing my install and they still left me with some questions. Thought I would try and write something that covers all bases.

    First off I want to say that if you don'f feel comfortable with this procedure or your abilities than don't attempt it. With that said, if you thoroughly read the instructions, have some patience and take your time this is easy enough for almost anyone to do. It took me about 2 hours or so and I was taking pictures which added some time. I take no responsibilities if you attempt it and something goes wrong. This is only meant to be a guide and you will need the instruction booklet as well.

    Alright, so the kit I used is Toyota part # 00016-32901


    Here's a link to the install instructions from Toyota: Instructions

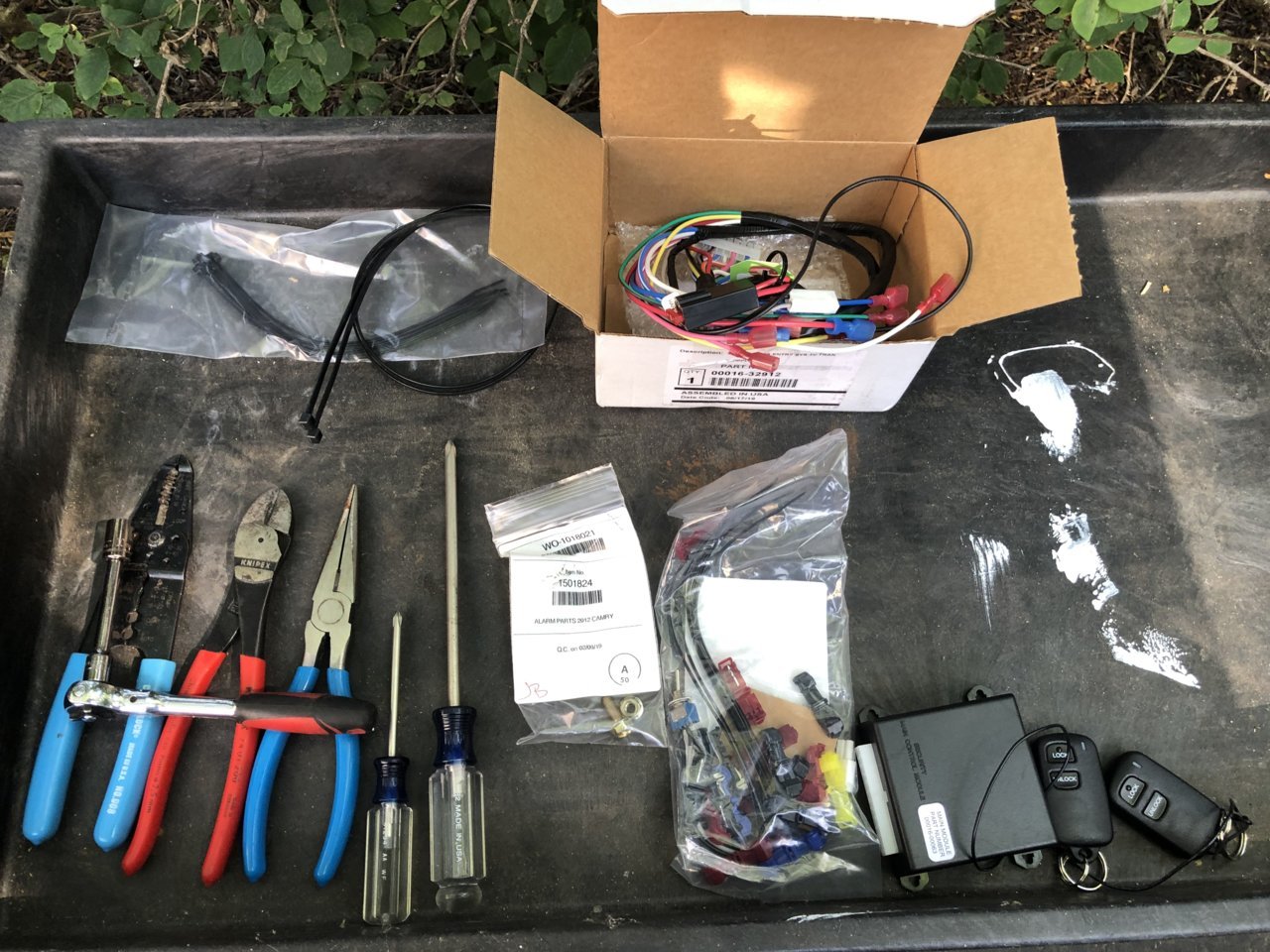

    You'll need some tools:
    1.Phillips screwdriver
    2.Wire strippers
    3.Wire cutters
    4. Needle nose pliers
    5. 10mm socket / ratchet

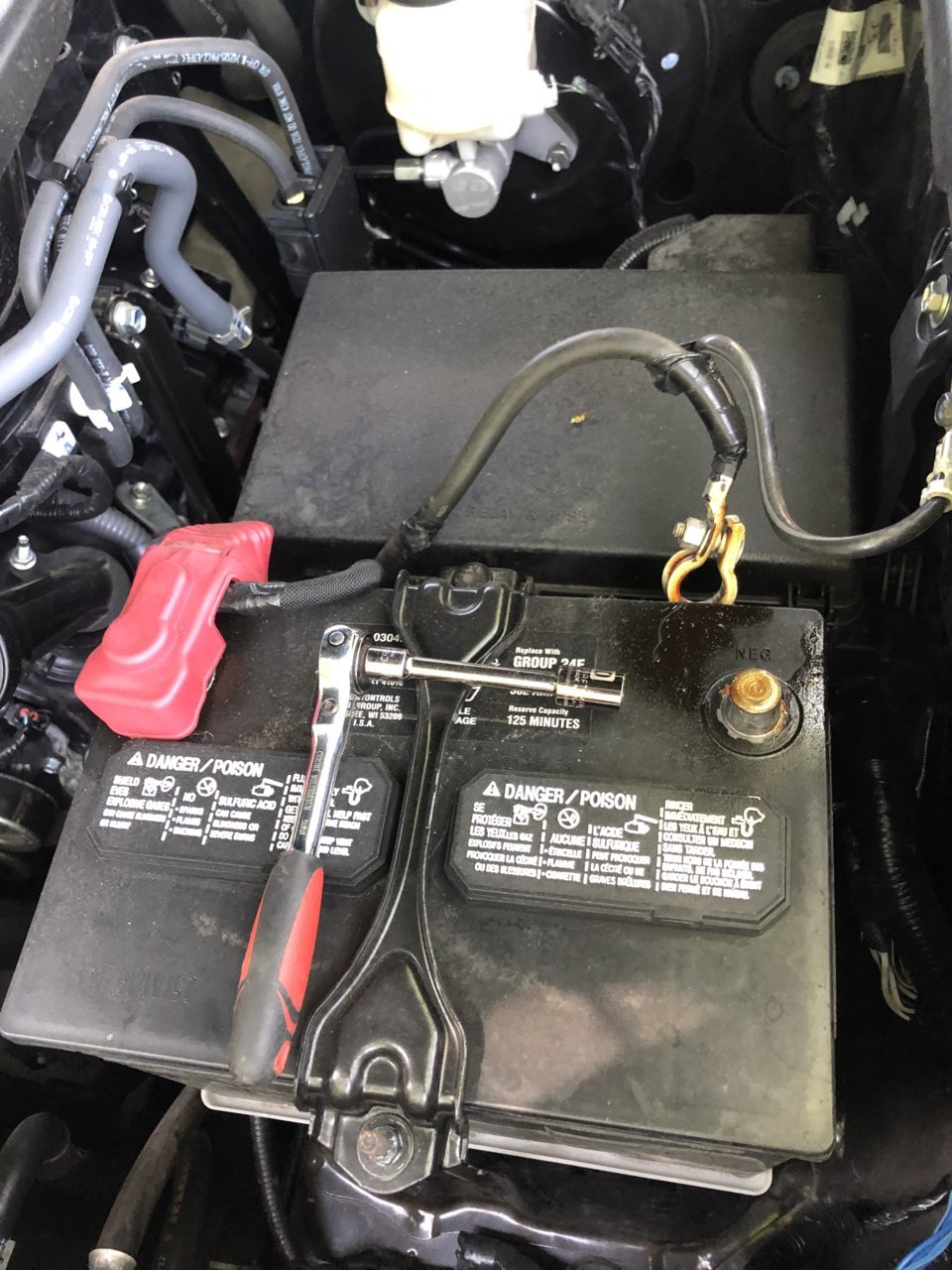

    First, you'll want to pop the hood and disconnect the negative terminal on the battery -

    Next you want to remove the drivers side scuff plate as well as the left lower kick panel.

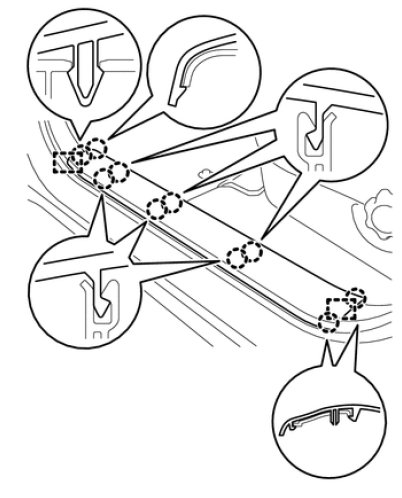

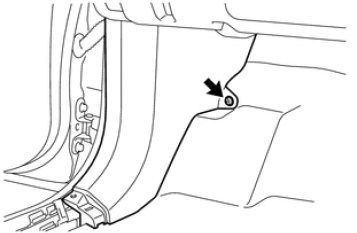

    The scuff plate removes by pulling up around the perimeter, it is only held on with clips. The kick panel has one plastic nut that needs to be removed. You'll see it near the top of the dead pedal. You should be able to remove the nut with your hand. Once the nut is off you can pull the panel outward to release the clips.

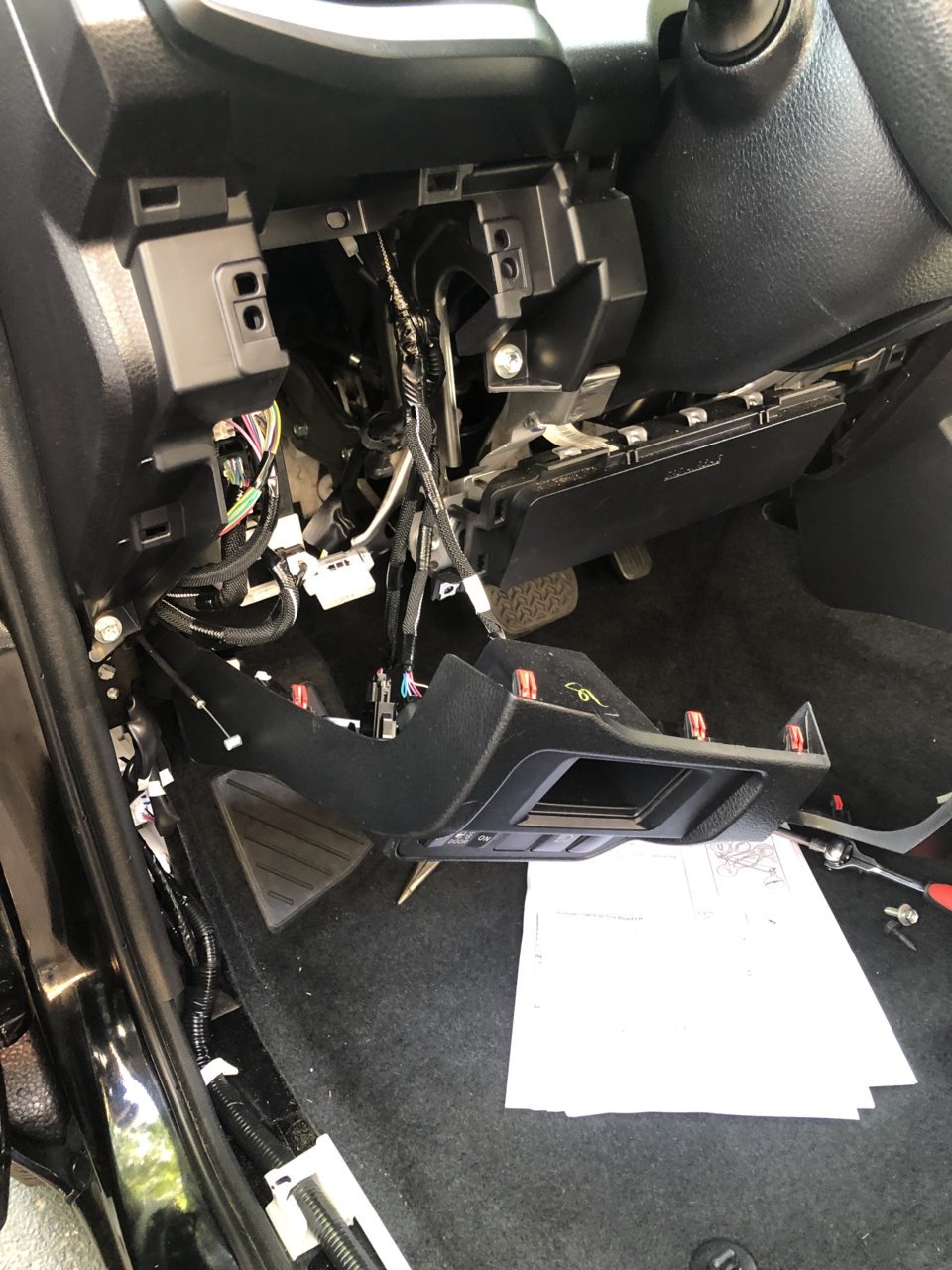

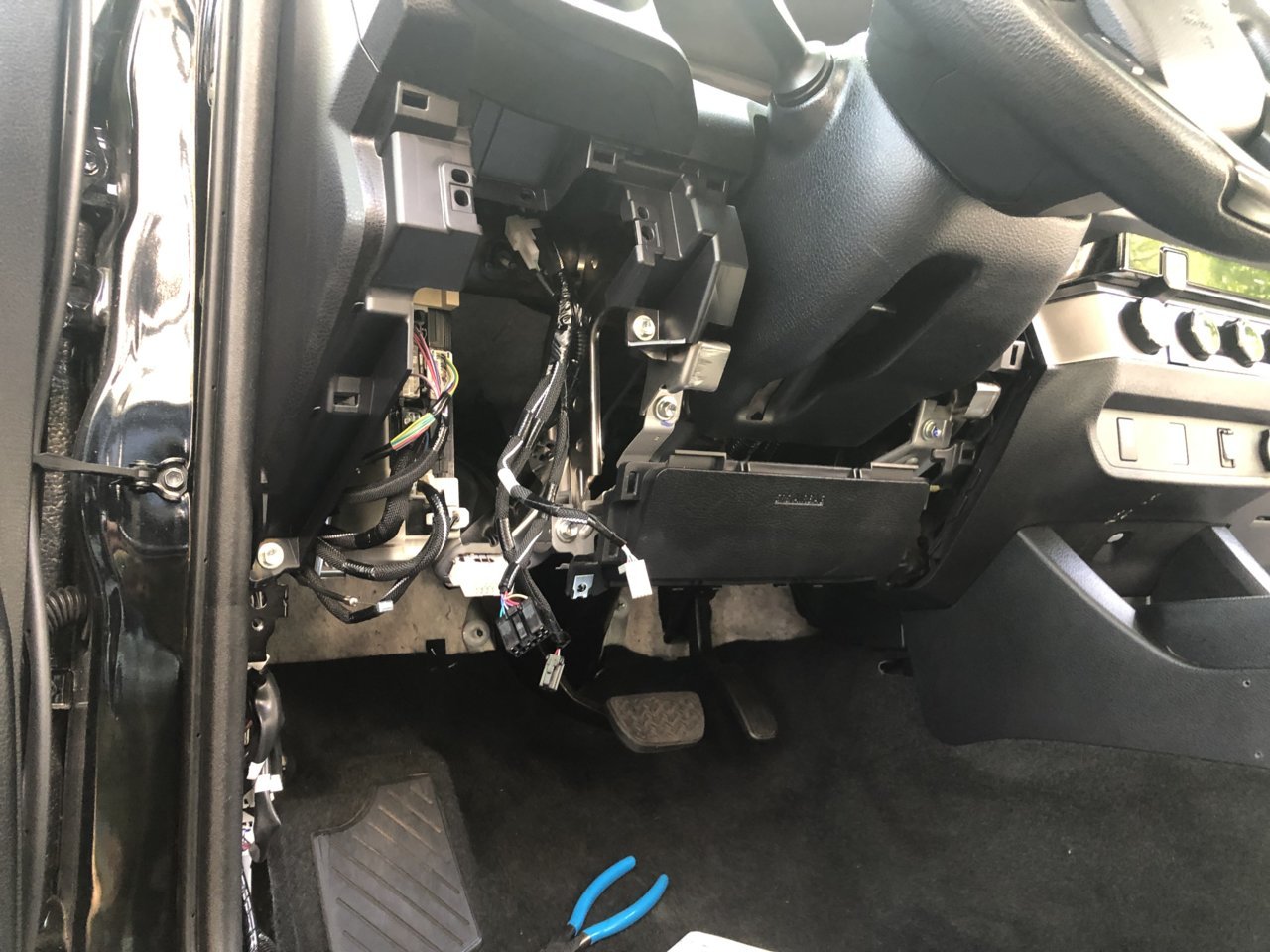

    Once those panels are removed you can move on to the lower dash and lower steering wheel cover.

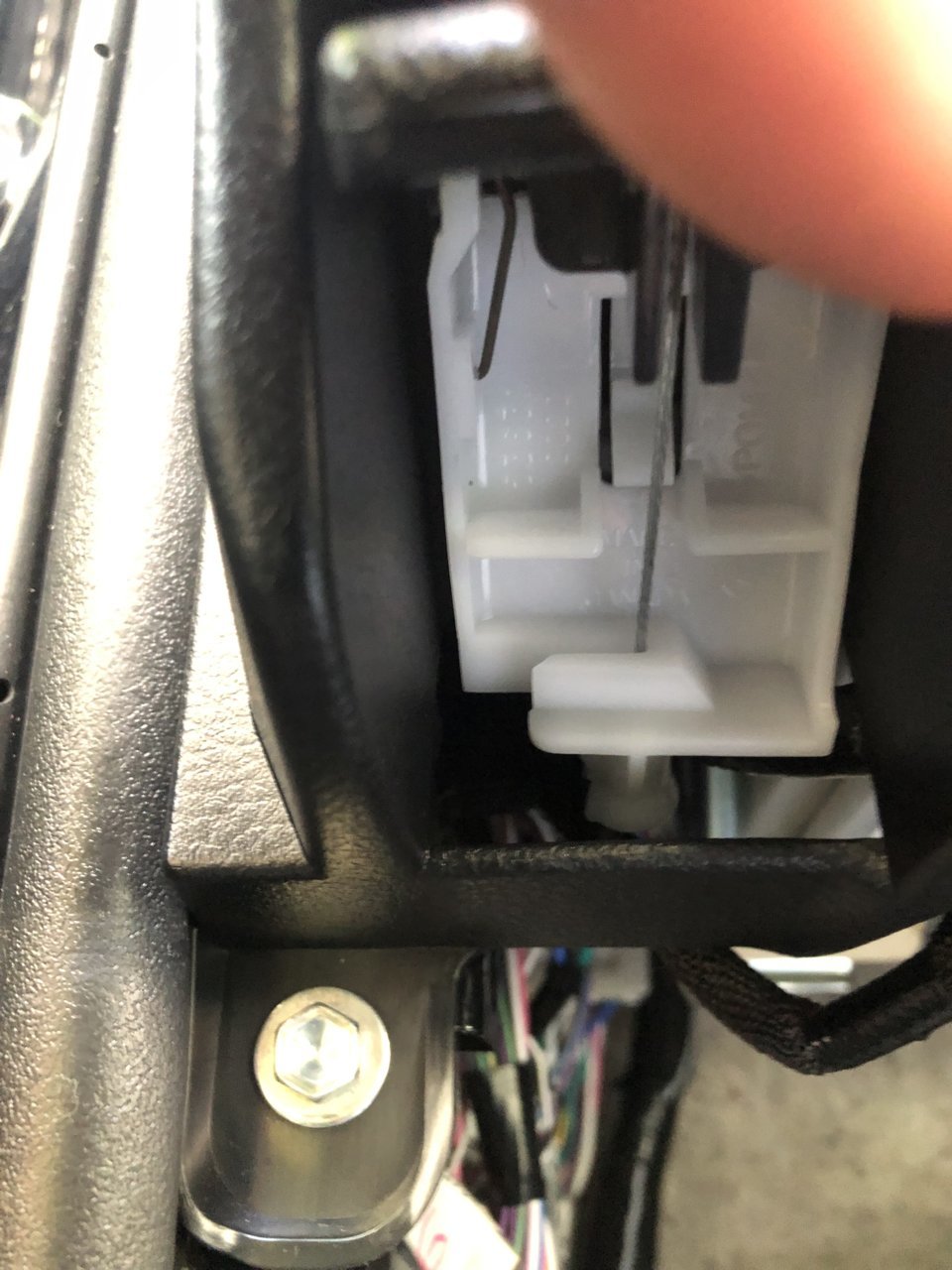

    You will have to release the cable from the hood release handle. To do this you pull the release and while holding it out you grab the cable with a pliers and remove the lead cable end by guiding out of the slot it sits in.

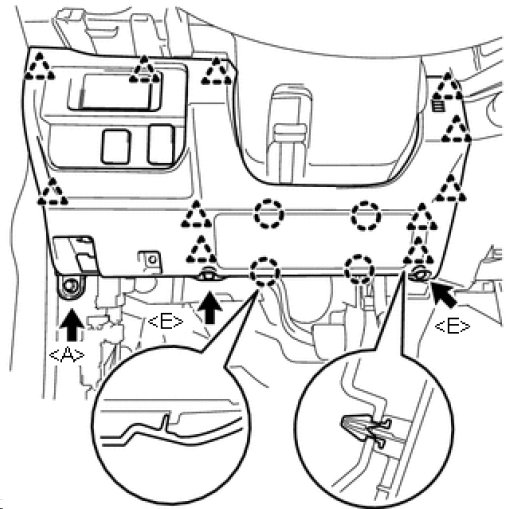

    Then remove the three bolts (indicated by arrows in the diagram) holding on the lower knee trim. Once the bolts are out you pull the trim outward working your way around the perimeter.


    Once it's loose you can remove any of the switch connectors. There should only be 3 or so to the left of the steering wheel.


    Last piece of trim is the lower steering wheel cover -

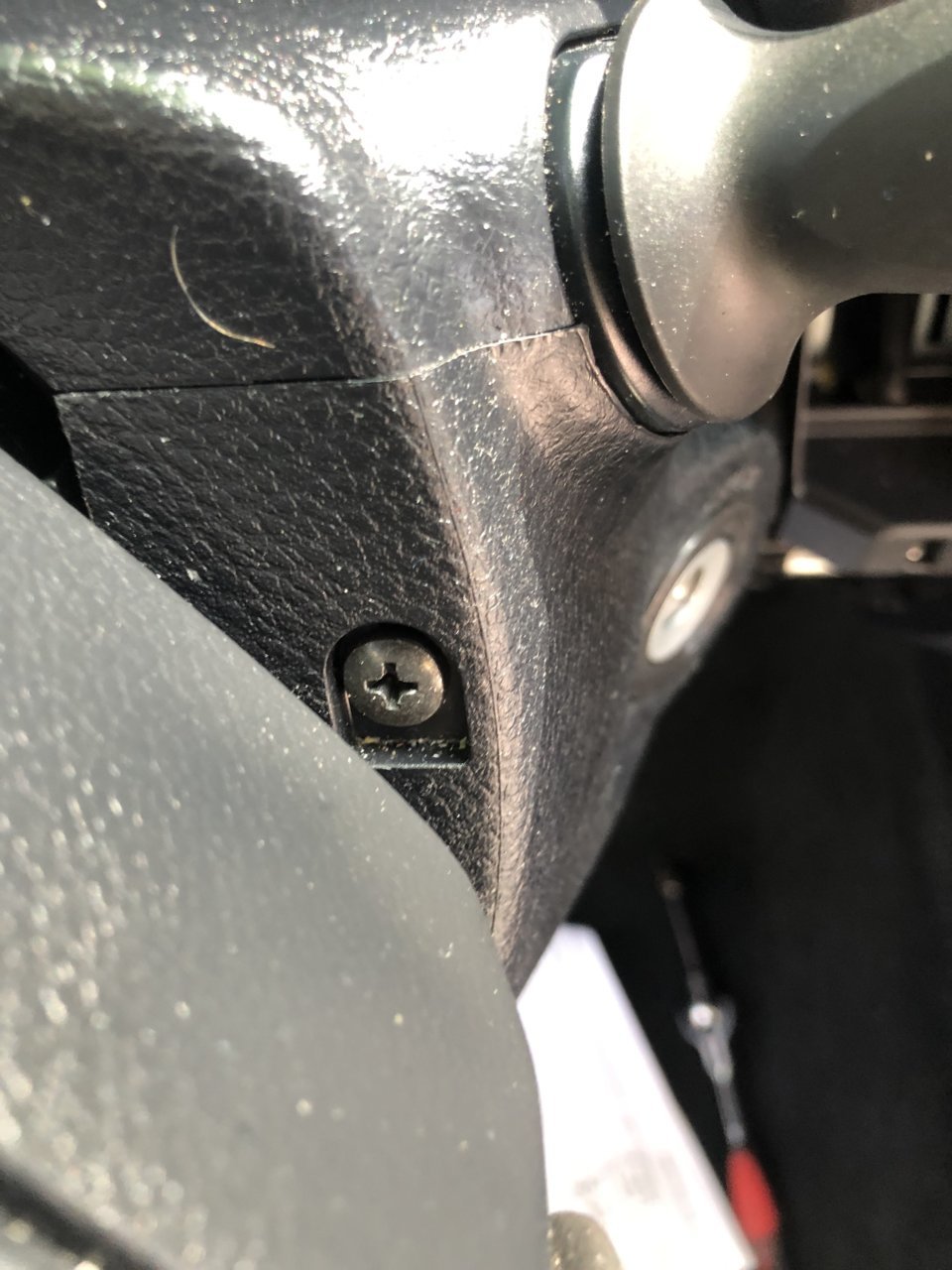

    There are two screws and clips holding this piece. The screws are found behind the steering wheel and can be accessed by turning the wheel to the right and left as pictured:

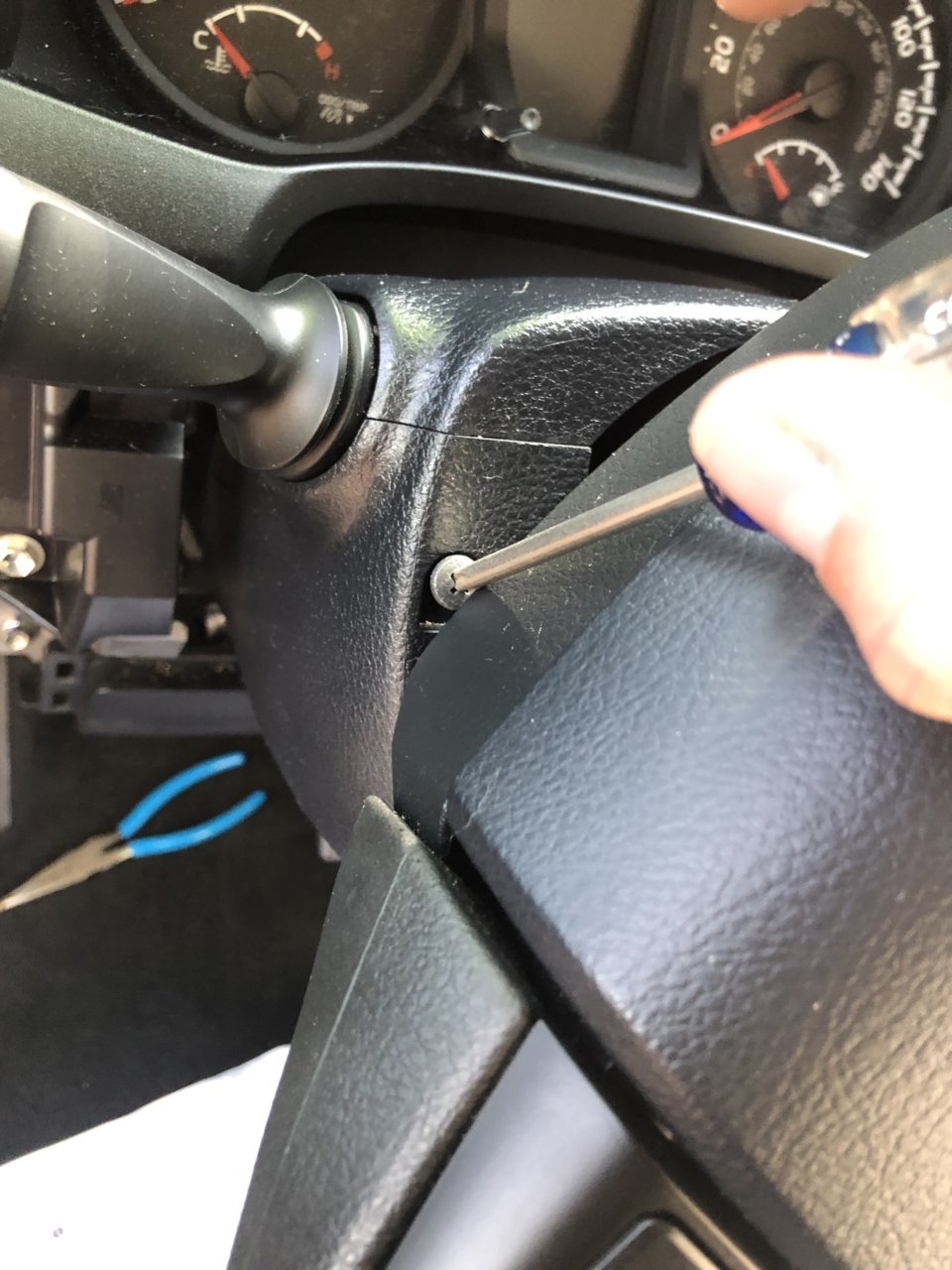

    IMG_4485.jpg IMG_4486.jpg

    Once the screws are out you should be able to pull the trim down and release it.



    Now the real fun begins.

    The instructions don't really tell you this but they want you to wire everything up and then route the wires and secure them in places. I found it to make more sense to route everything and then make the proper connections. Before I did that I wanted to locate all of the connectors that had wires I'd be tapping into.

    Also, many people who have done this skip the connections for the horn and lights. I chose to use them because I like to hit my lock button to locate my vehicle in crowded parking lots from time to time. The horn beep and lights coming on helps with this. Though you will find that the horn beep is fairly quiet.

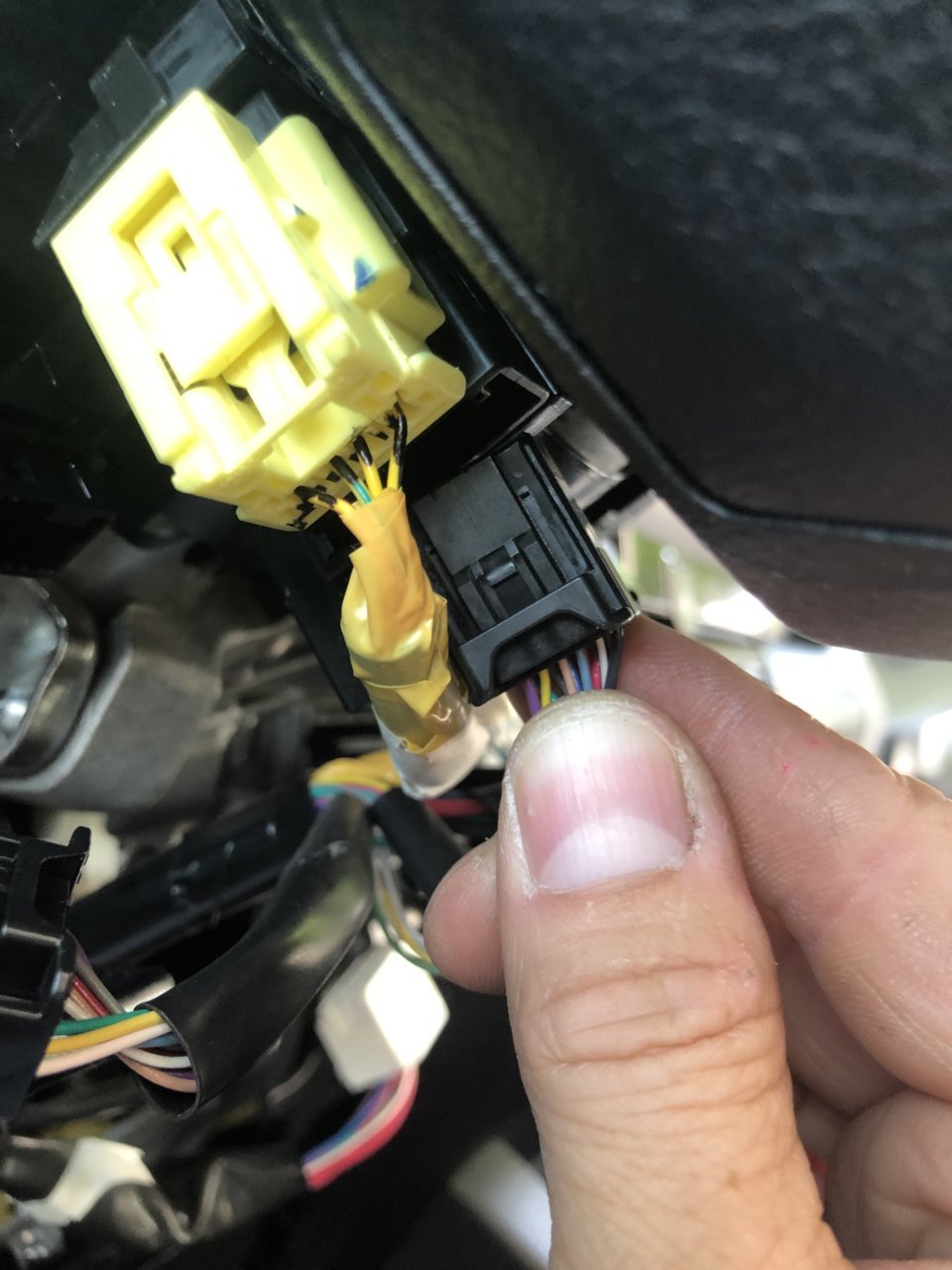

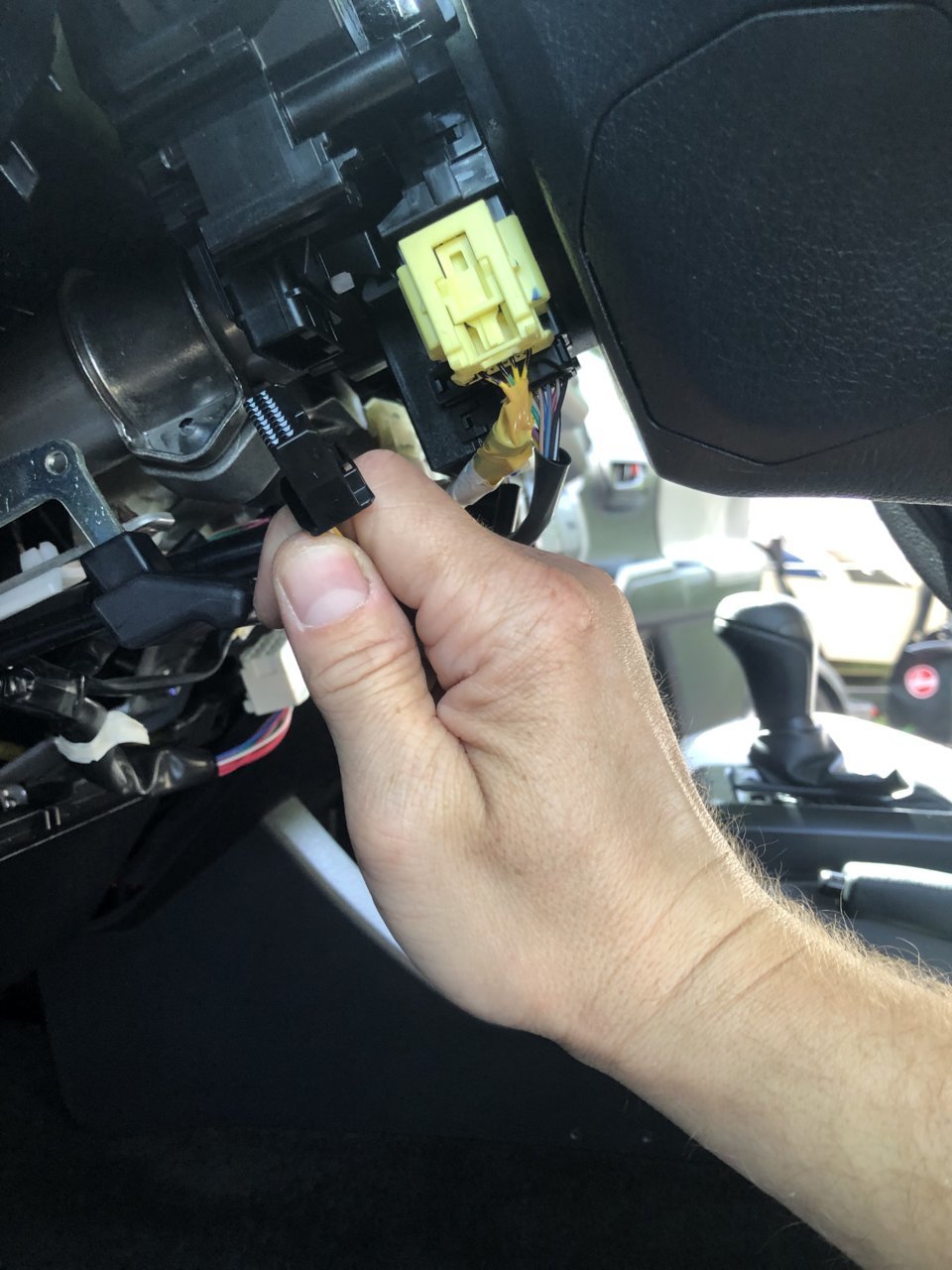

    Here are the connectors and pics of their locations:

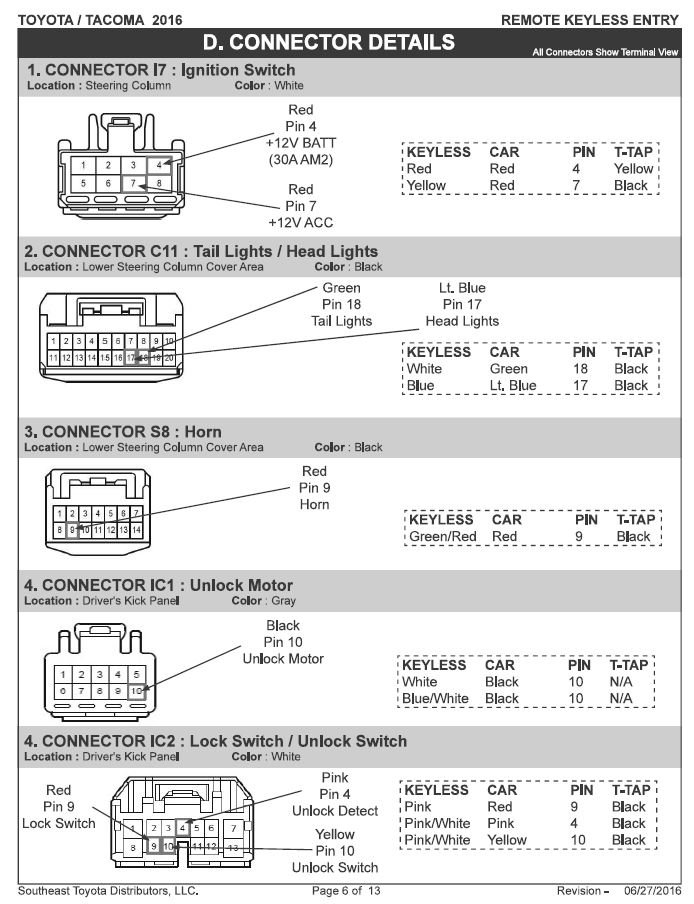

    connector snip.jpg

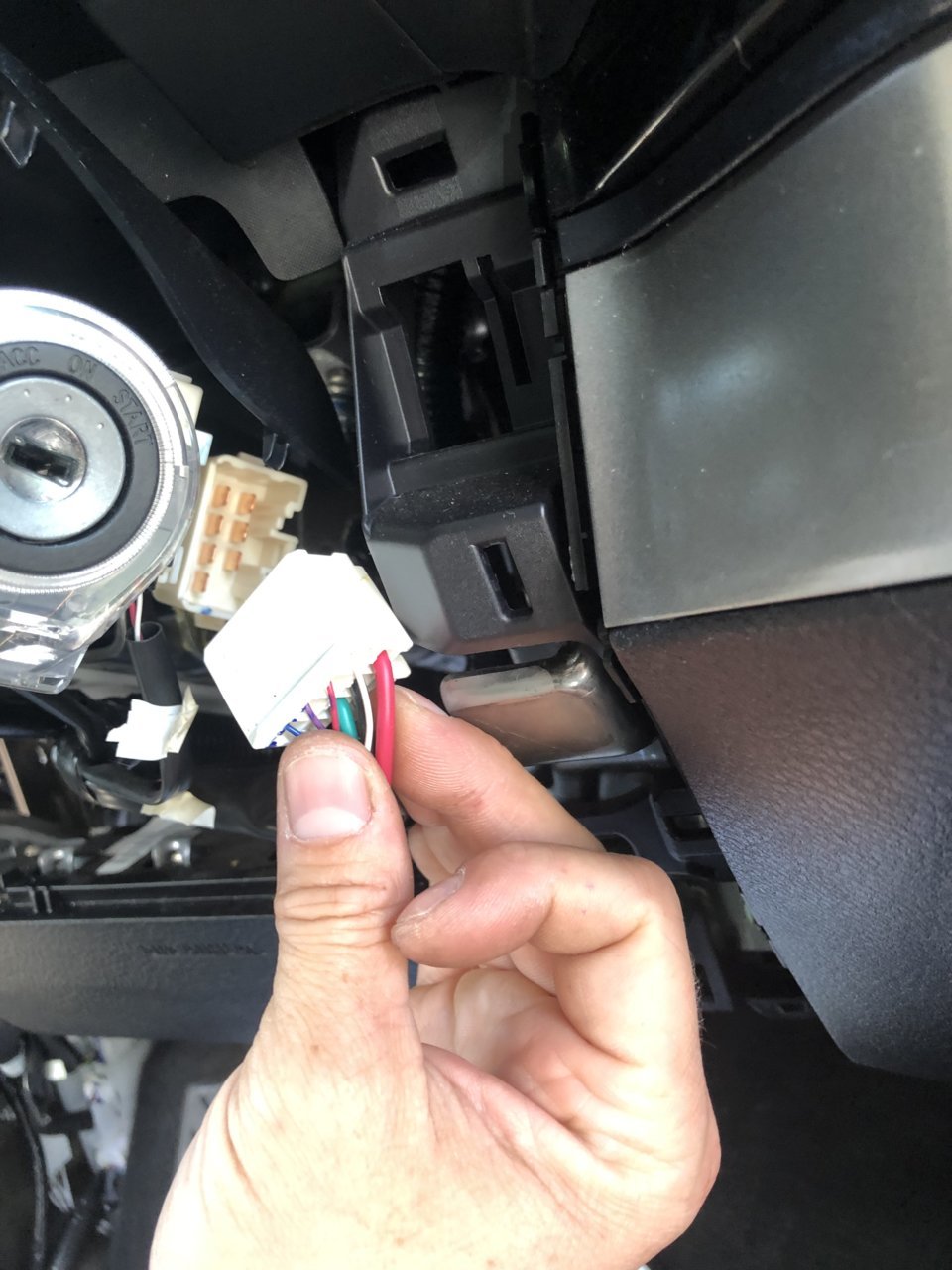

    Connector I7 - Ignition -


    Connector C11 - Taillights / Headlights

    Connector S8 - Horn

    Connectors IC1 (unlock motor) and IC2 (lock / unlock switch)

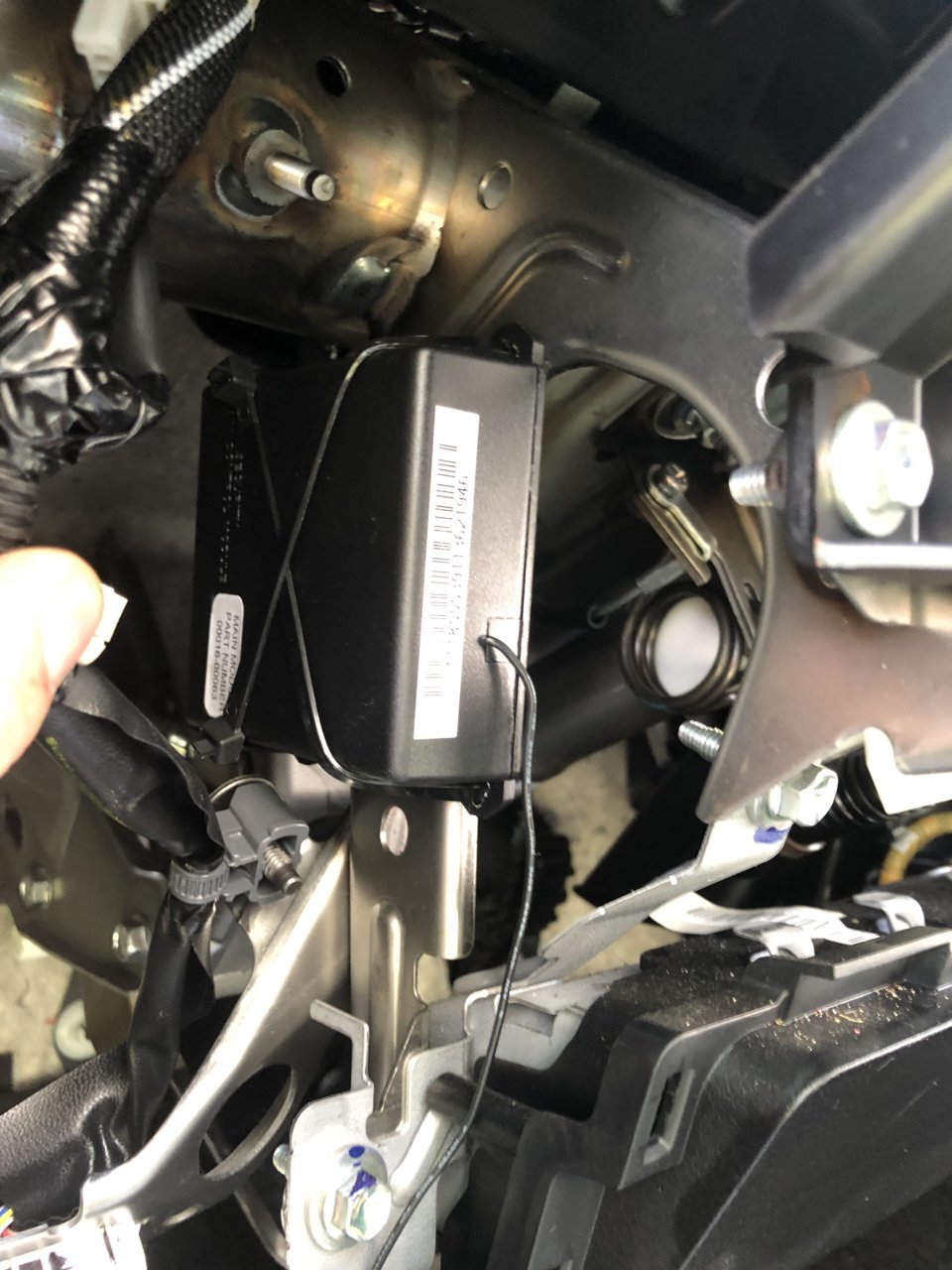

    I disconnected all connectors, mounted my control module and then routed my wiring as per the instructions.

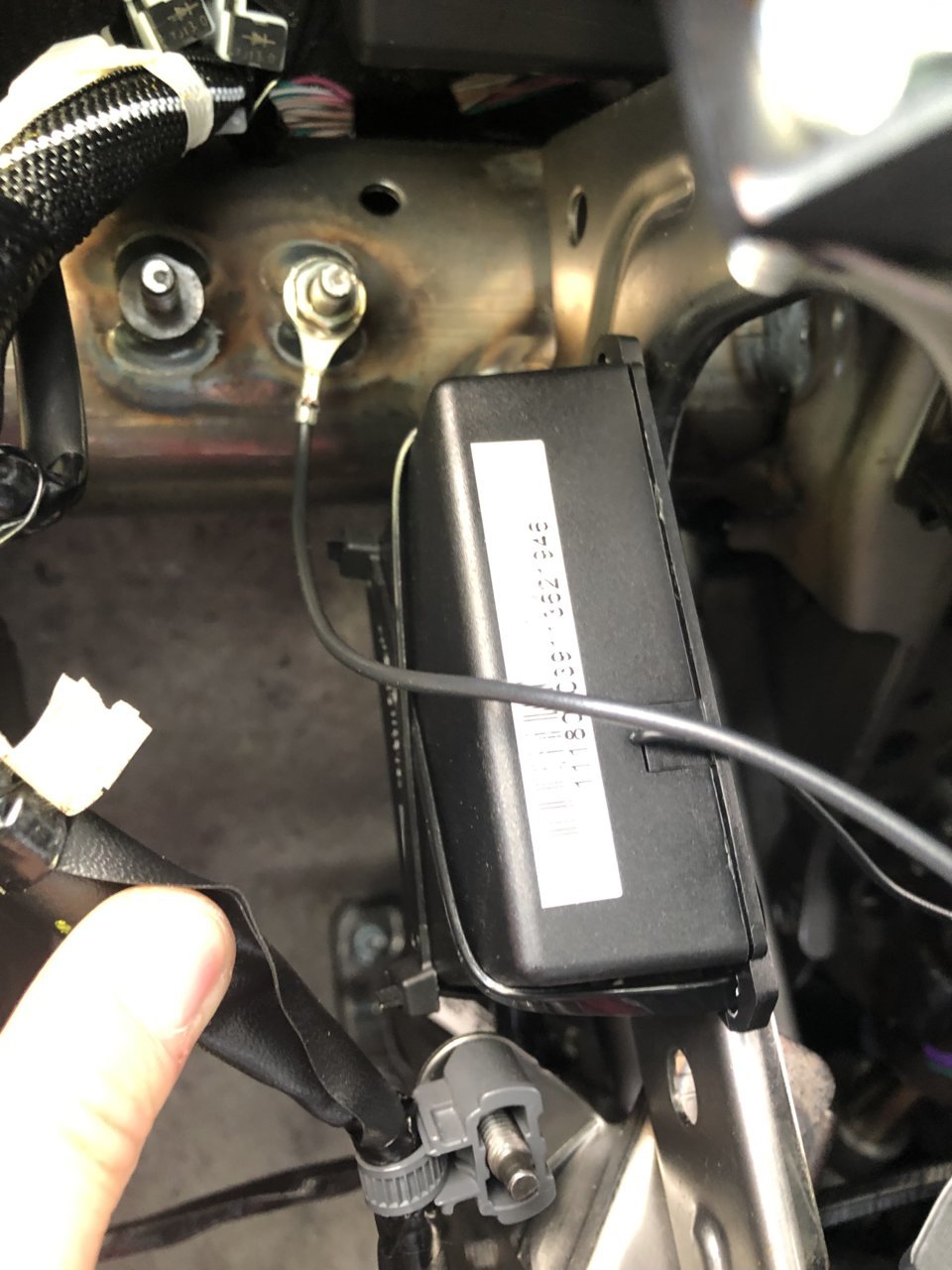

    Here you can see the ground stud you will use. It's on the steering column support bar just above where you mount the control box.

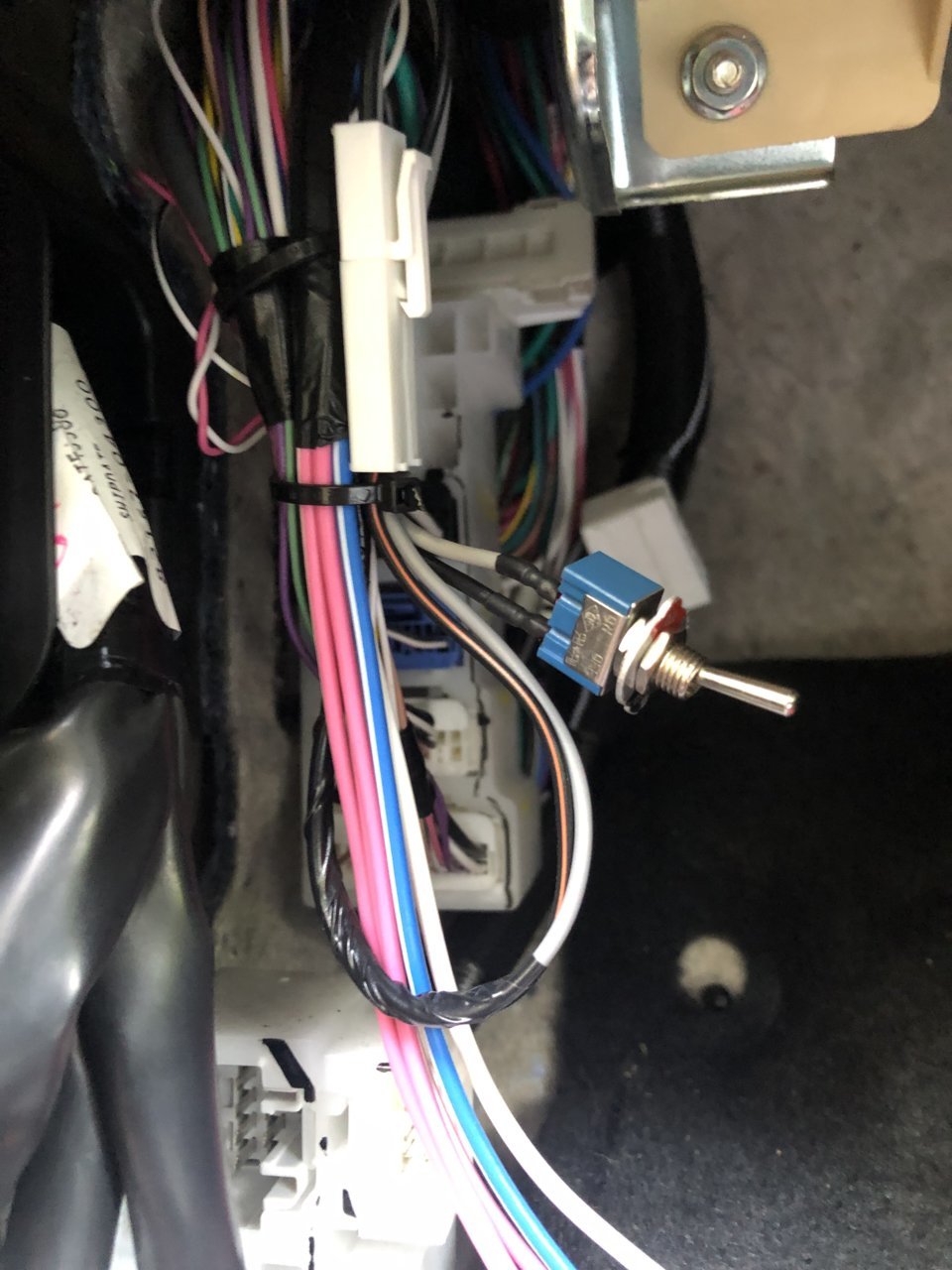

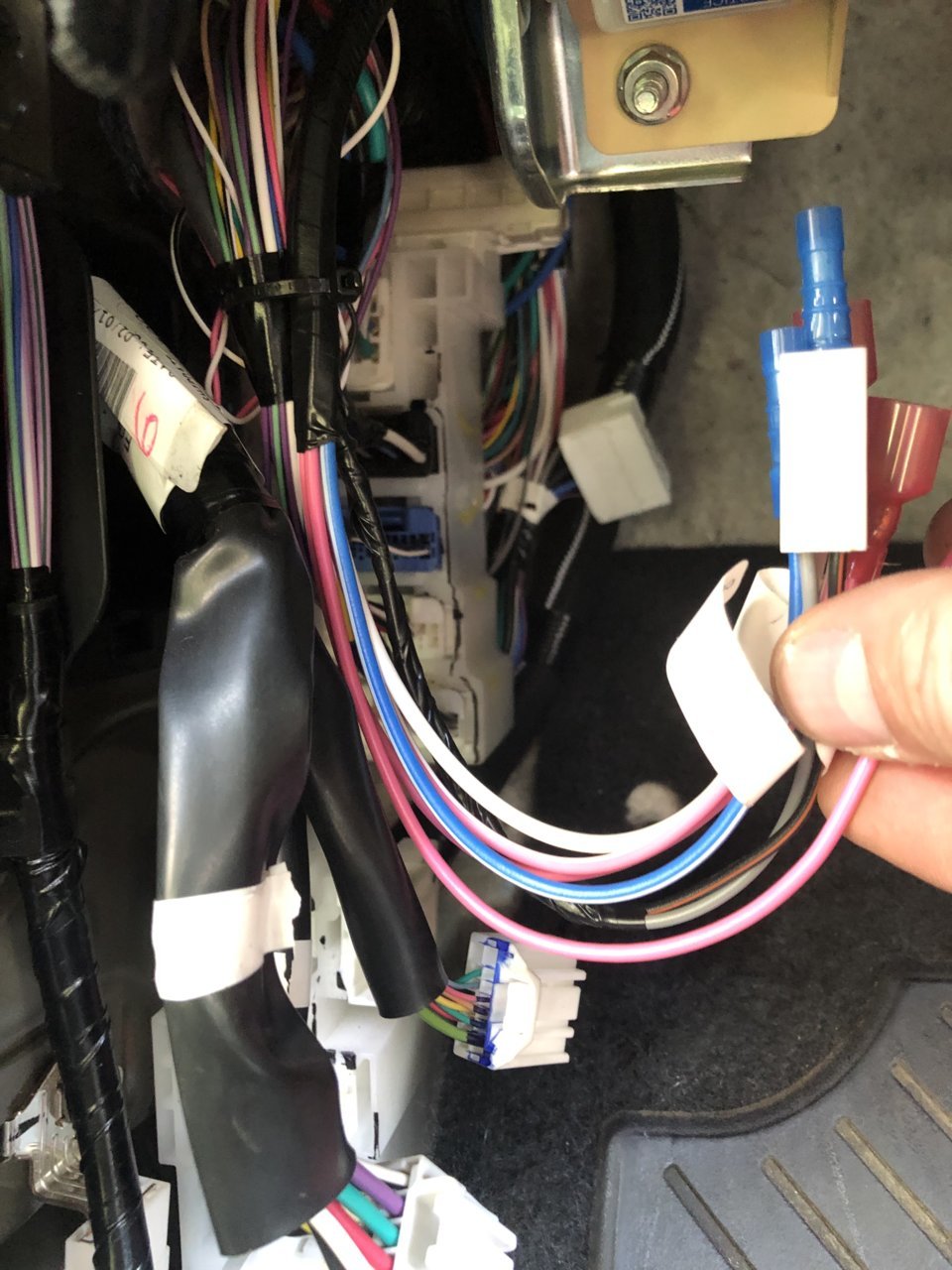

    IMG_4496.jpg IMG_4497.jpg

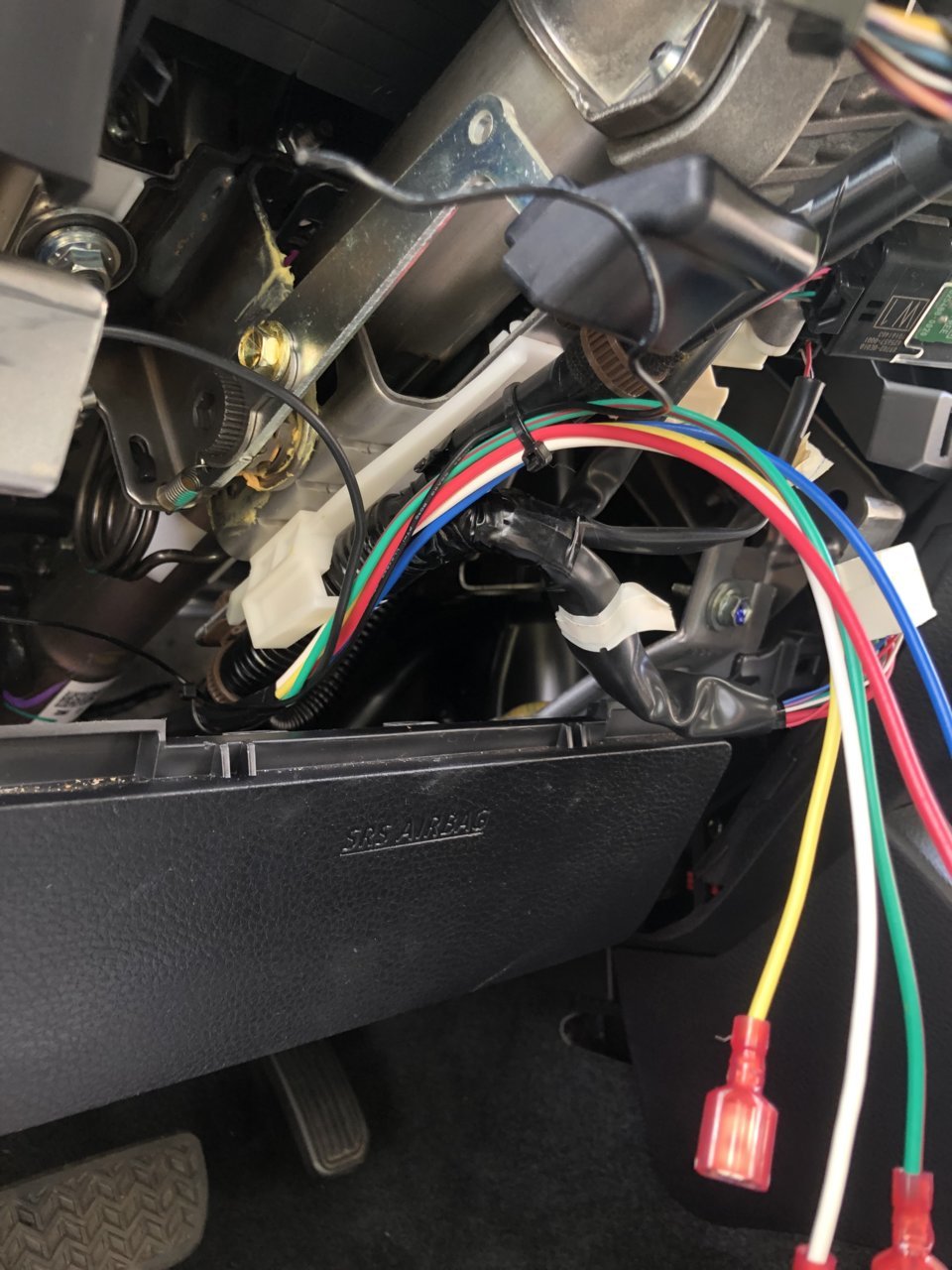

    Once all of your wires are routed and mostly zip tied in place you can begin T-Tapping into the appropriate wires. T-Taps are pretty easy to use but they should be used in a specific way.

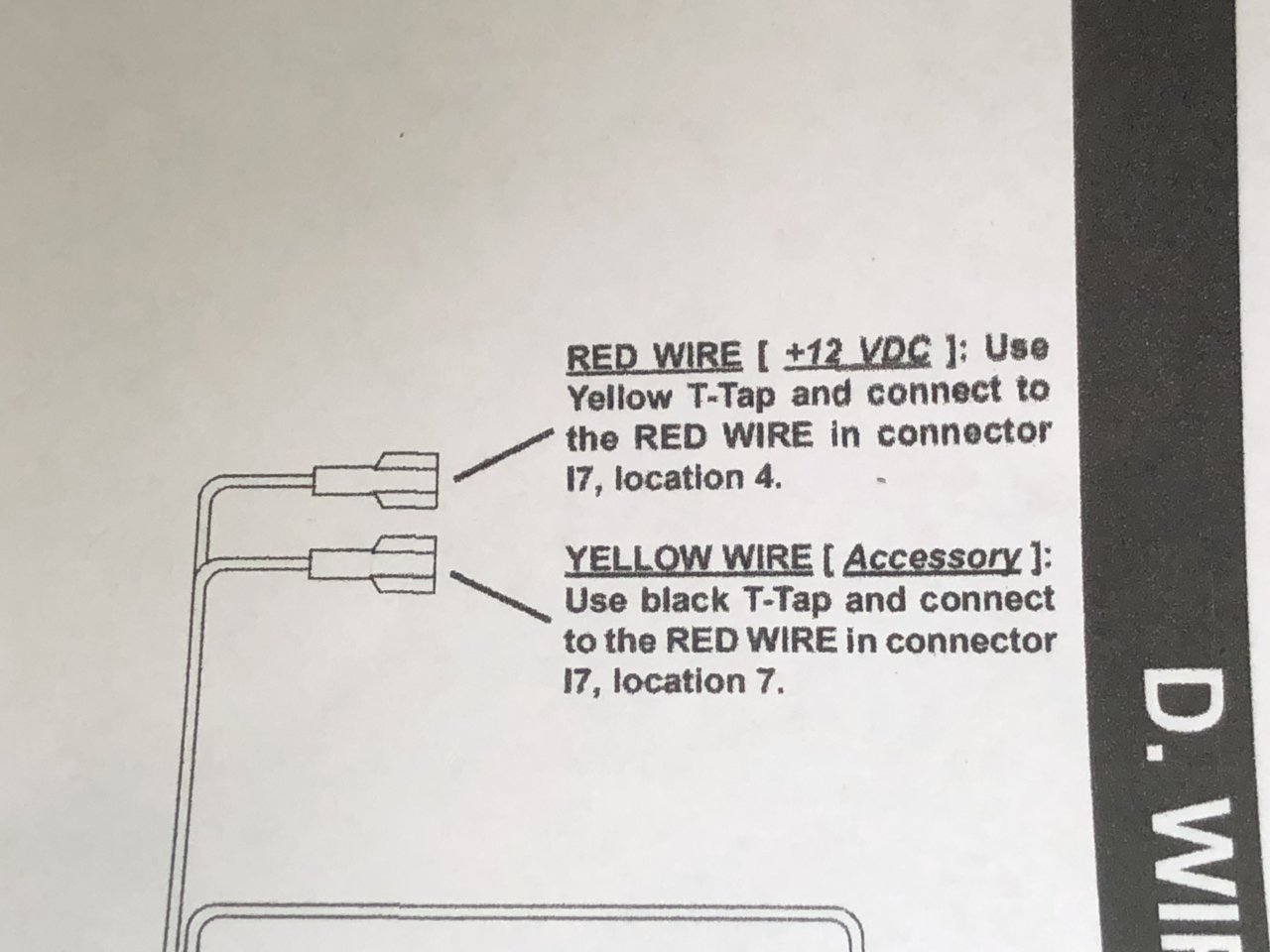

    Refer to the instructions on which specific wires to tap into. The instructions read pretty clearly on exactly which wire on the keyless harness goes to which wire on the vehicle as well as which color T-tap to use. (they are different for different wire gauges)

    As you get into this you may have to cut back or remove the heat shrink on the harnesses to gain decent access to the wires.

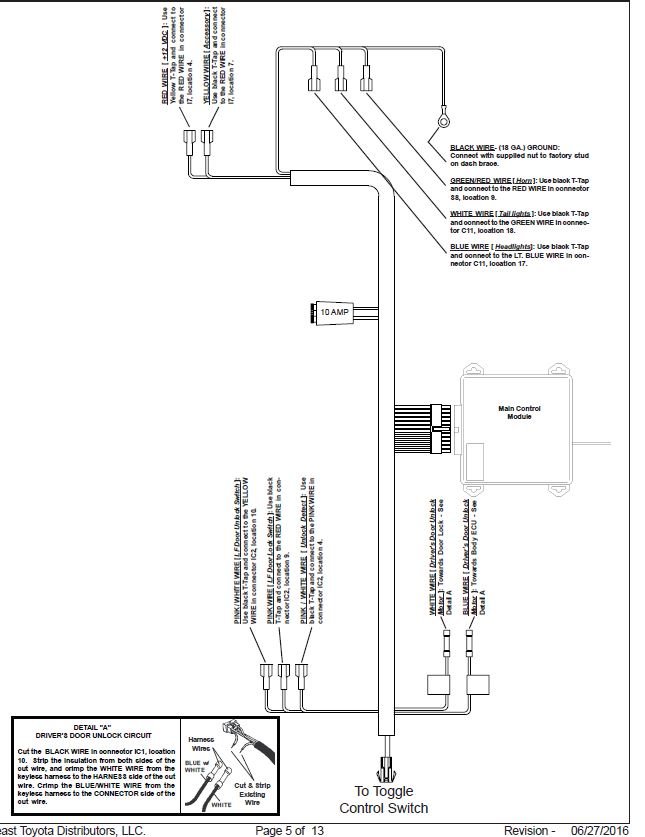

    wire locations snip.jpg

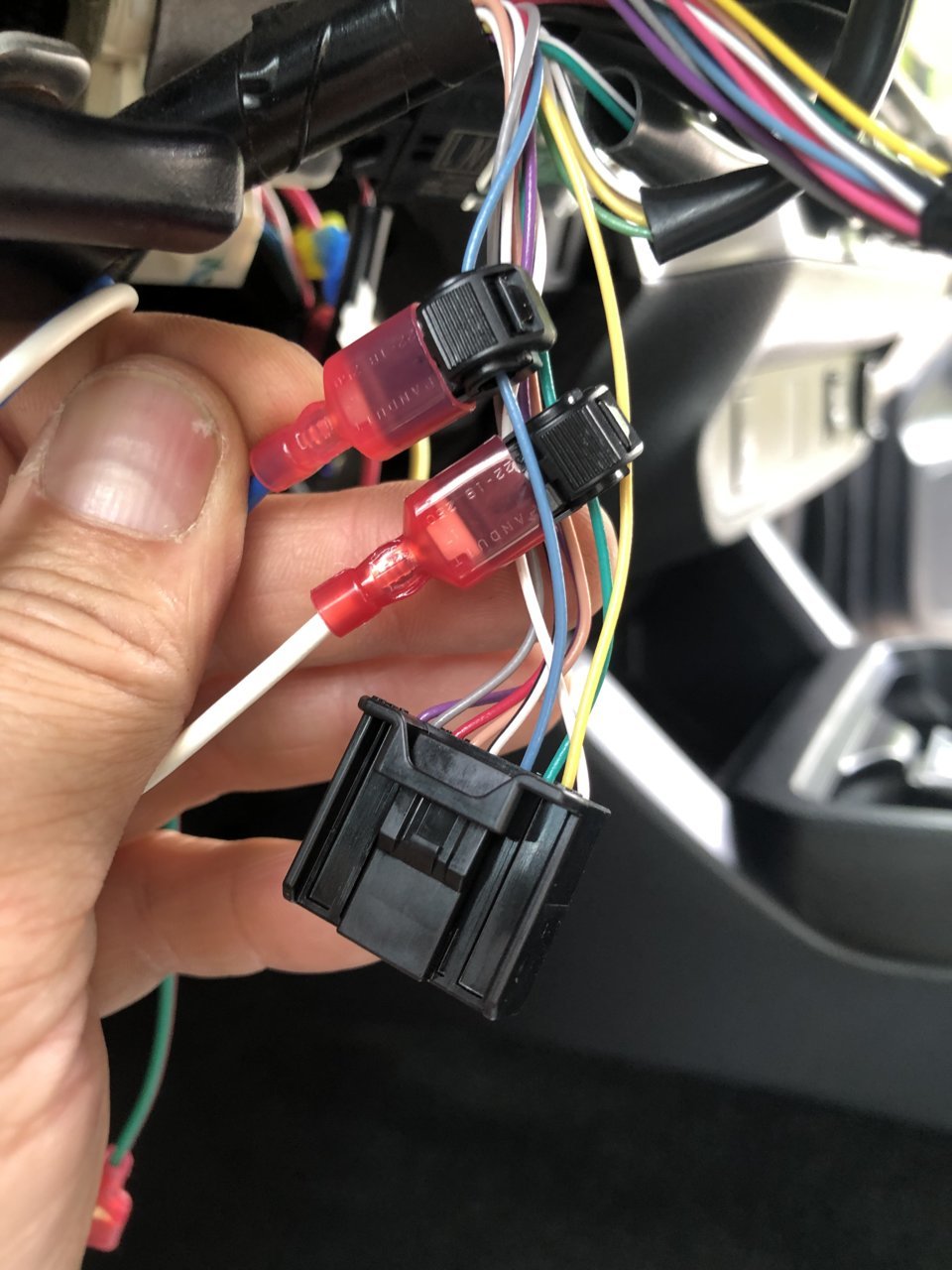

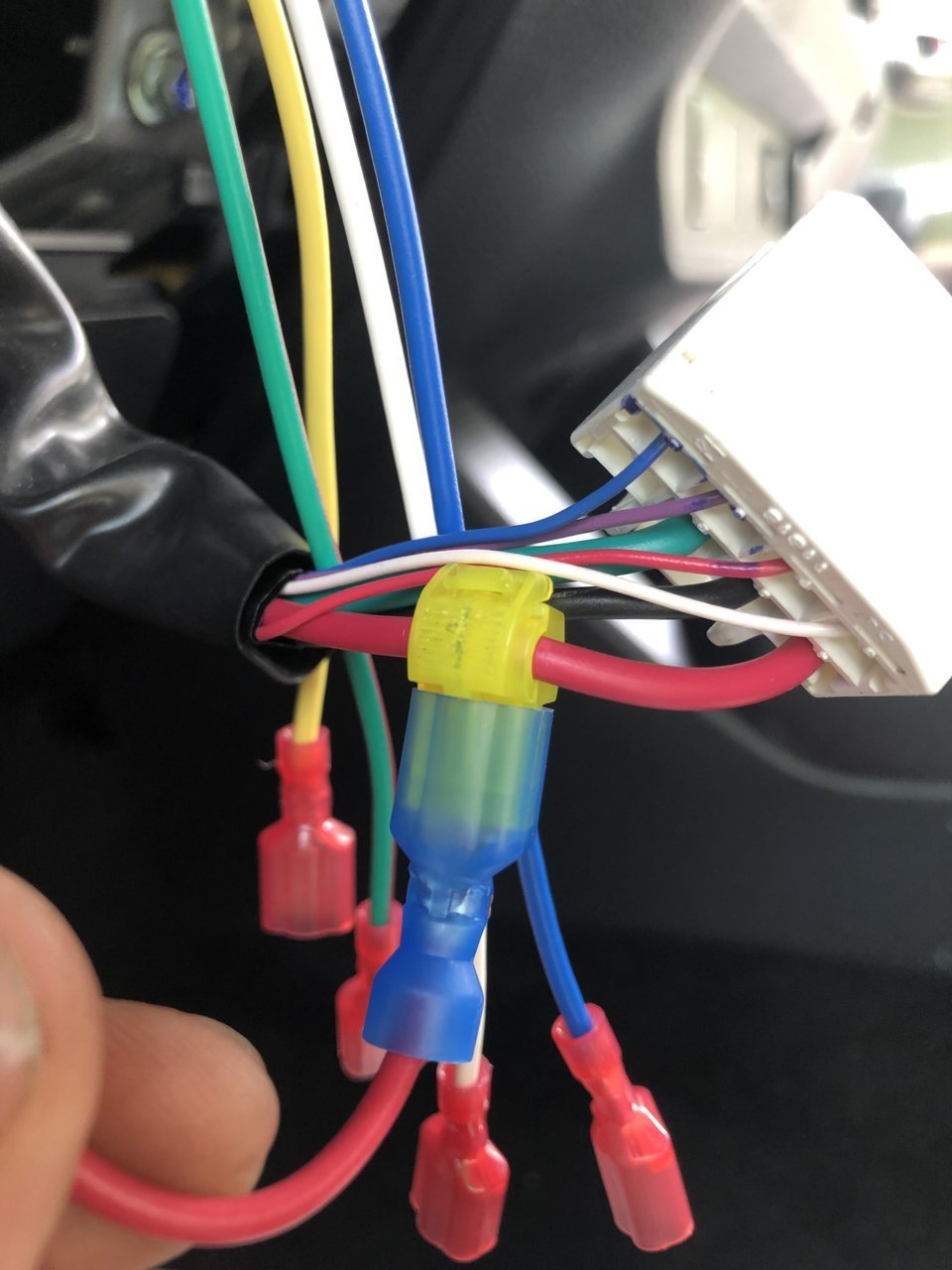

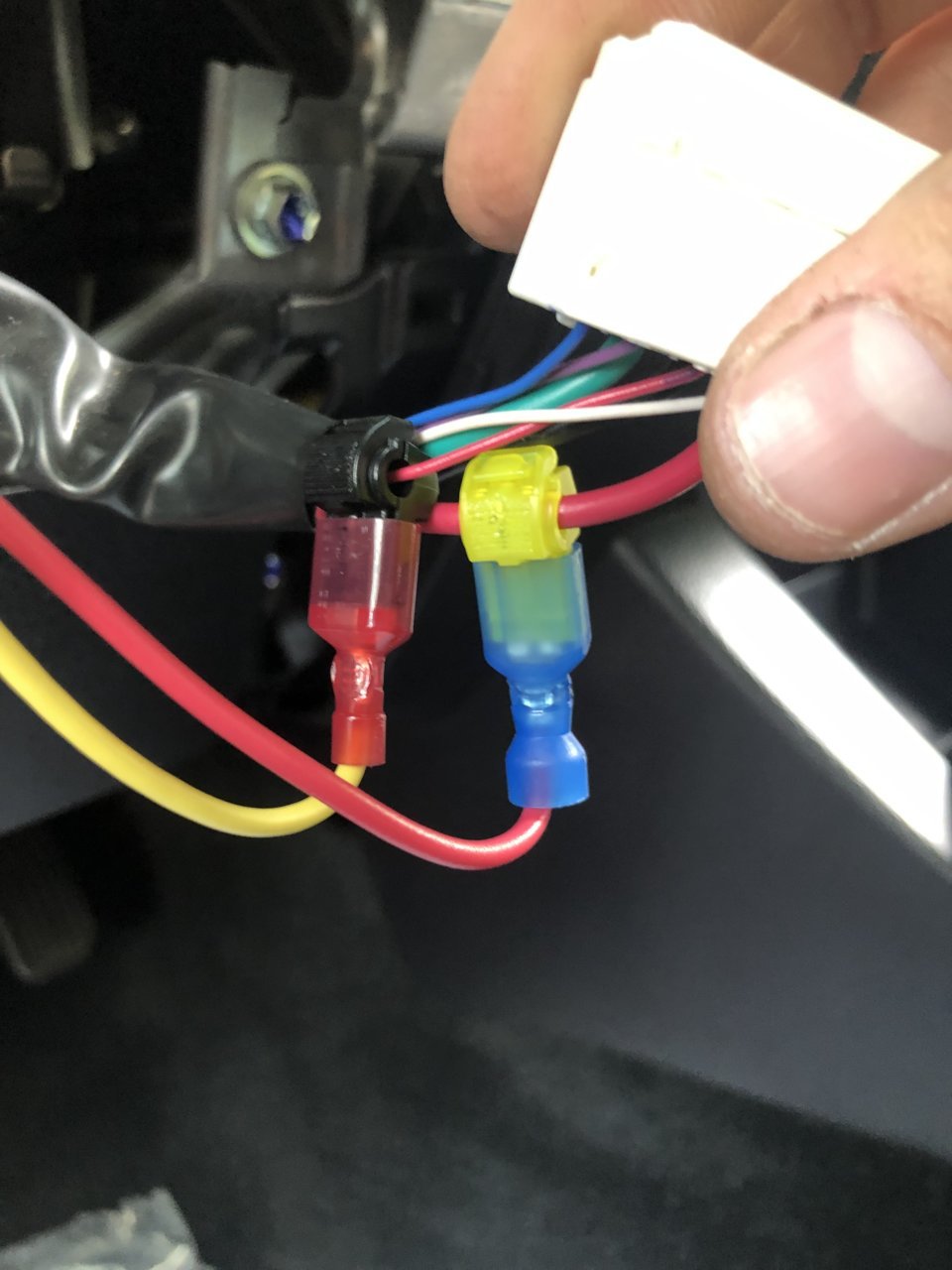

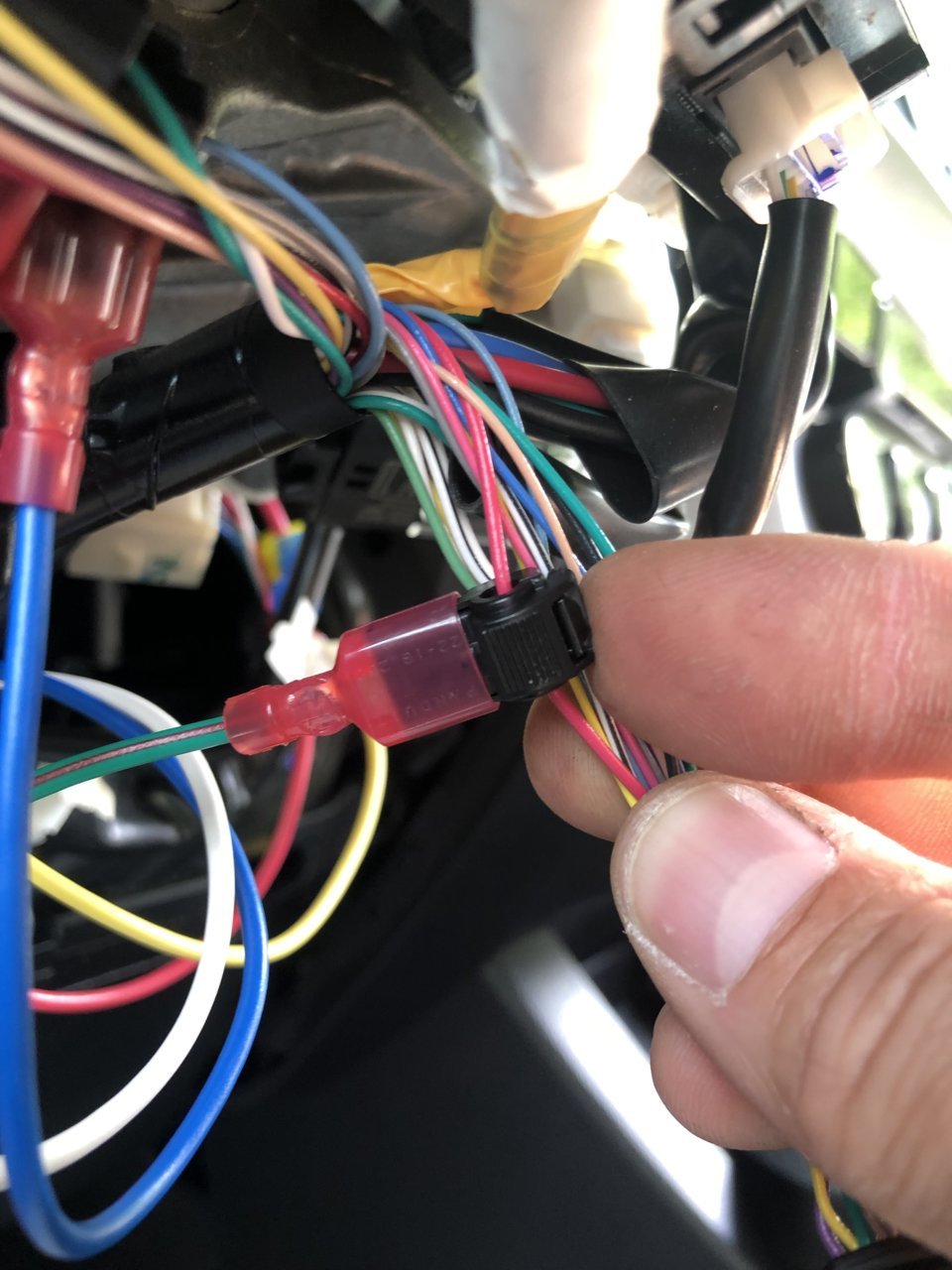

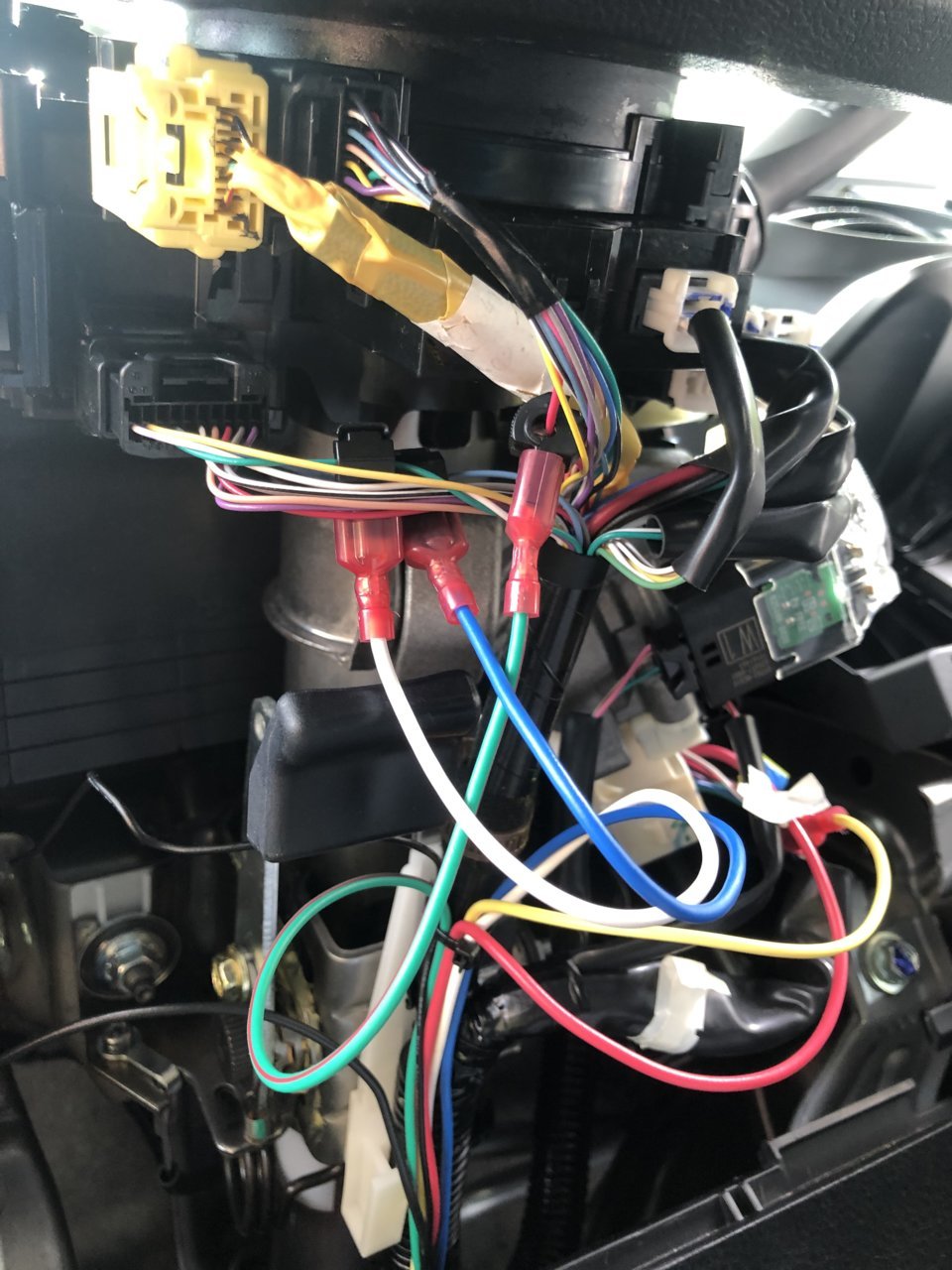

    The first wire you tap into is the Red #4 wire on the ignition connector. It's the bigger gauge red wire. When using the T tap you want to lay the wire in the guide area of the tap first. Then close the tap and pinch it with a pliers to secure the clip.

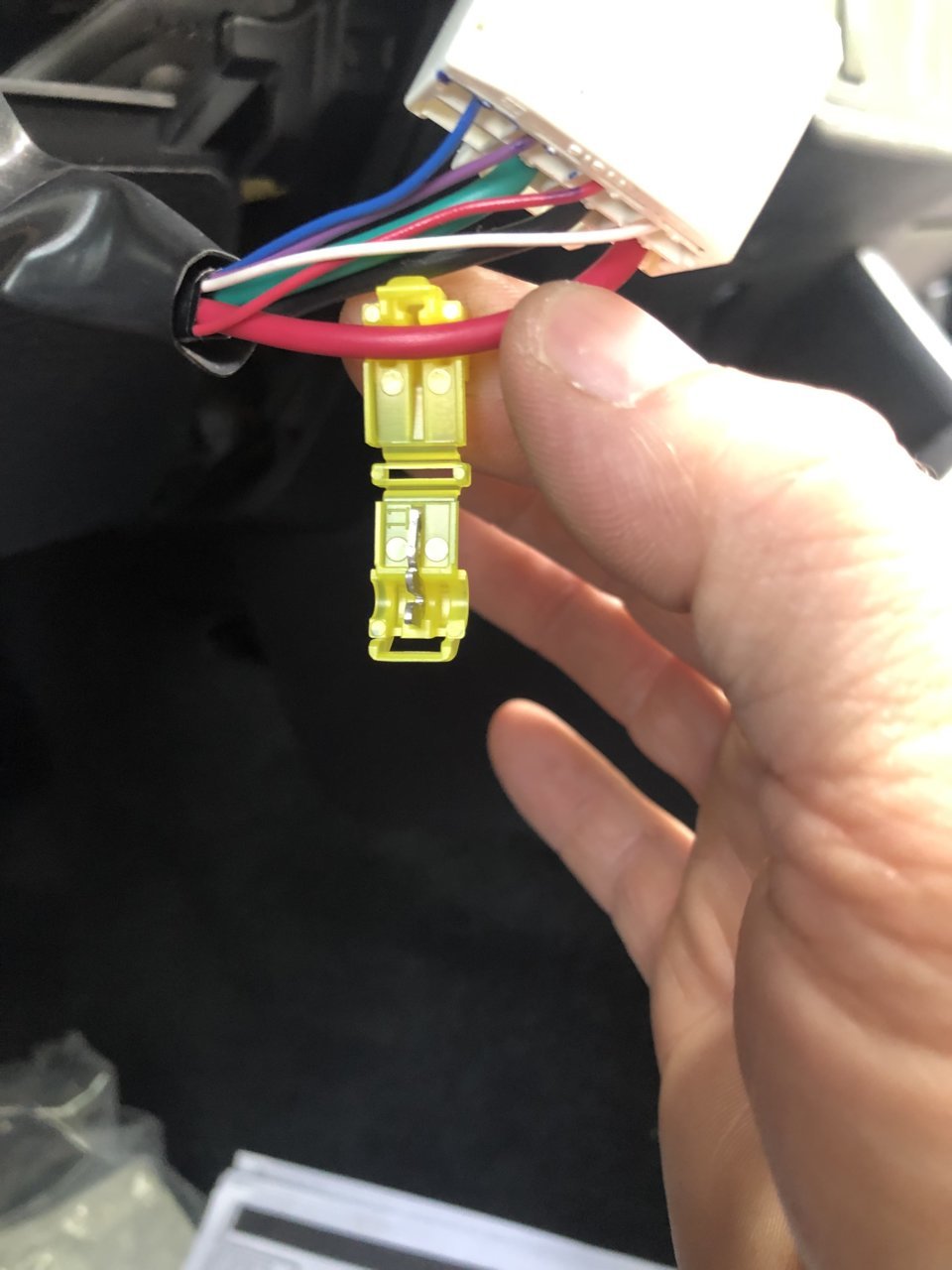

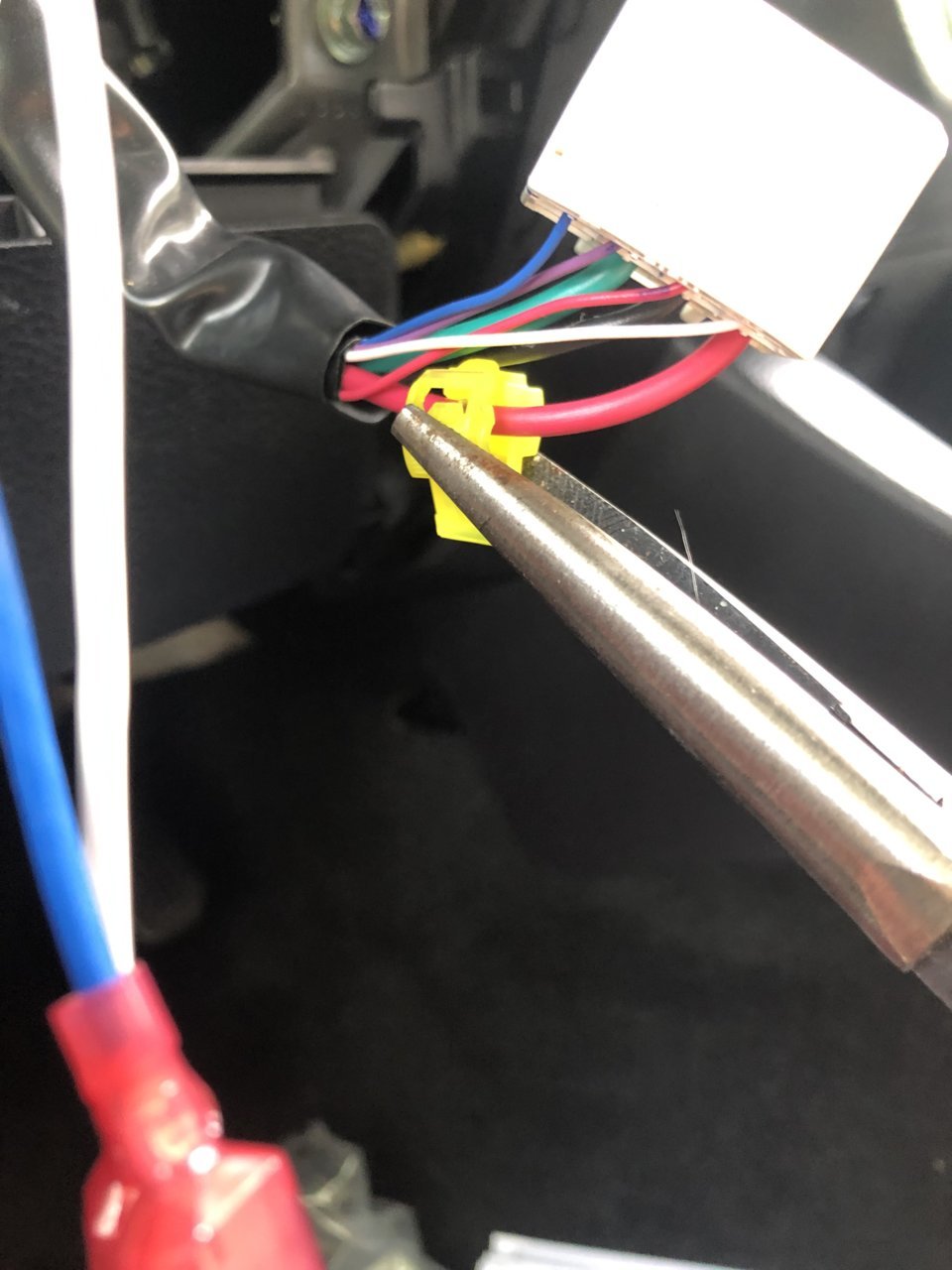

    Then you will insert the male spade terminal connector from the red wire on the keyless harness




    Follow the same procedure for the next red wire (smaller gauge) in the ignition connector. Connecting it to the yellow wire of the keyless harness, as noted by the instructions



    Follow the instructions to install all the remaining T-Taps to the proper vehicle wires. Connect the proper wires from the Keyless harness to their corresponding wire on the vehicle as noted by the wiring chart.

    Connector C11 (headlights / taillights)

    Connector S8 (horn)

    All connections made under the steering wheel and back in their proper locations. Wires are routed and secured along the existing wire harness on the column.

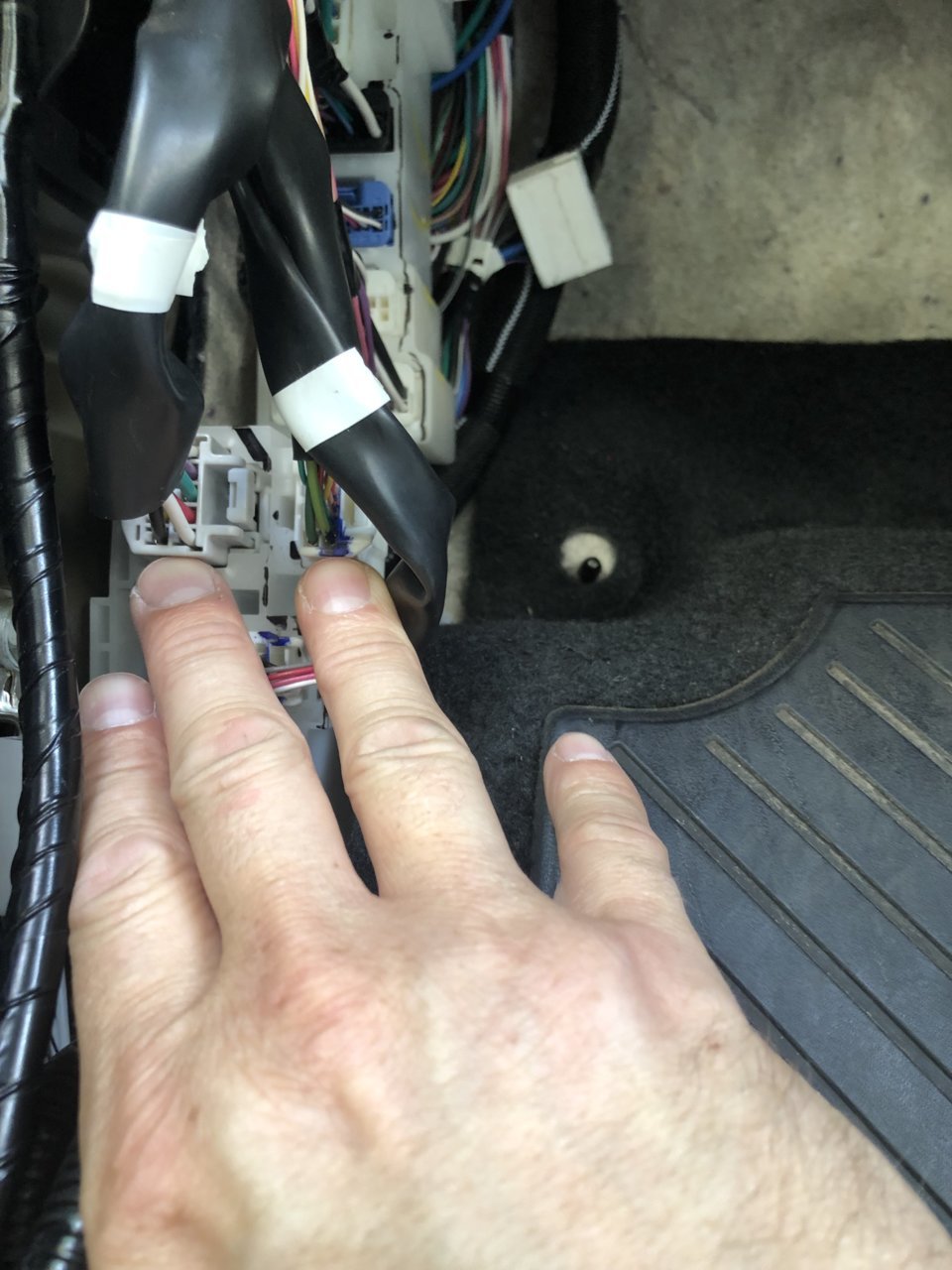

    Now we move on the the connectors in the lower kick panel area. These are for the lock / unlock activation.

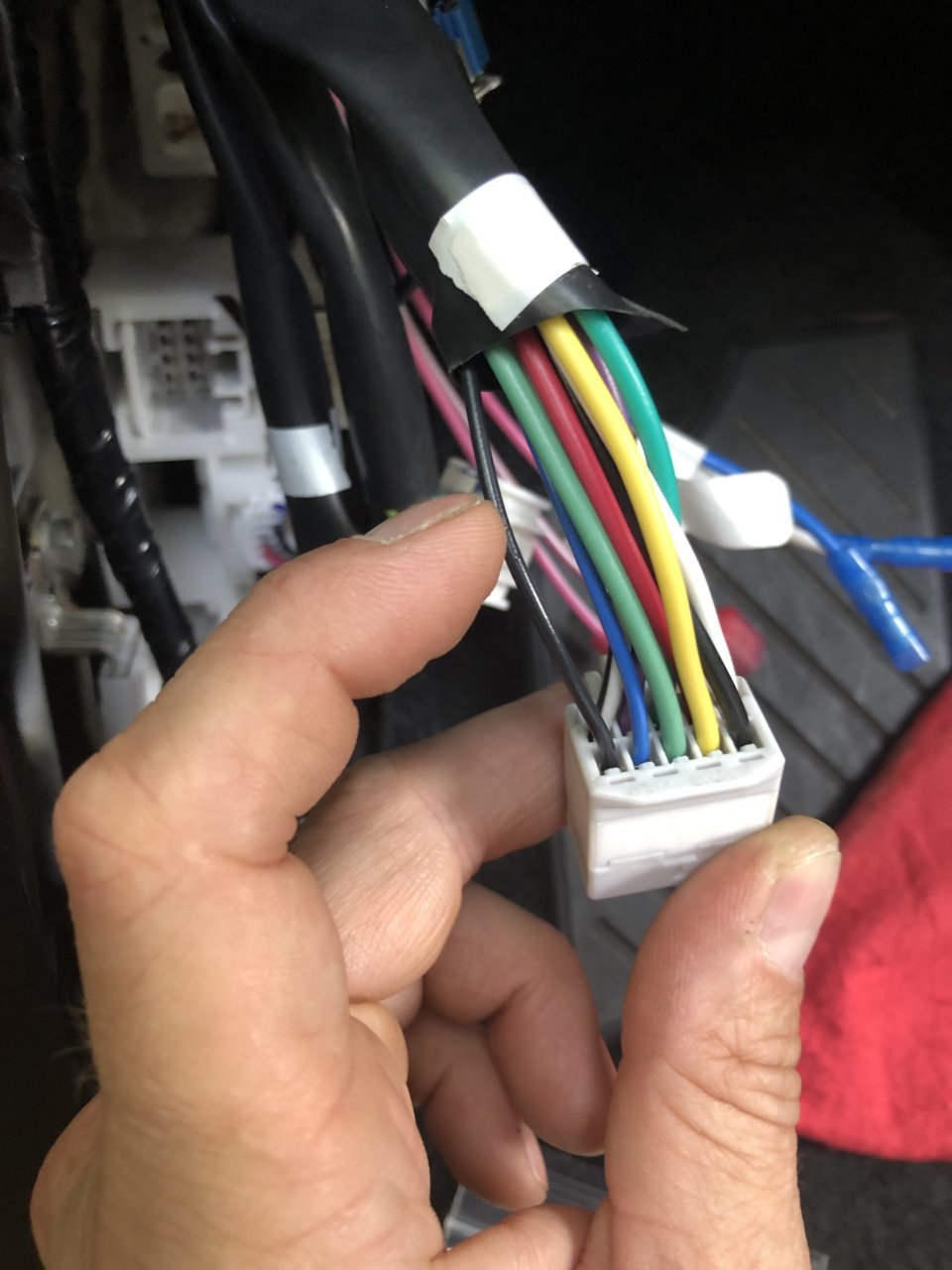

    Connector IC1 -

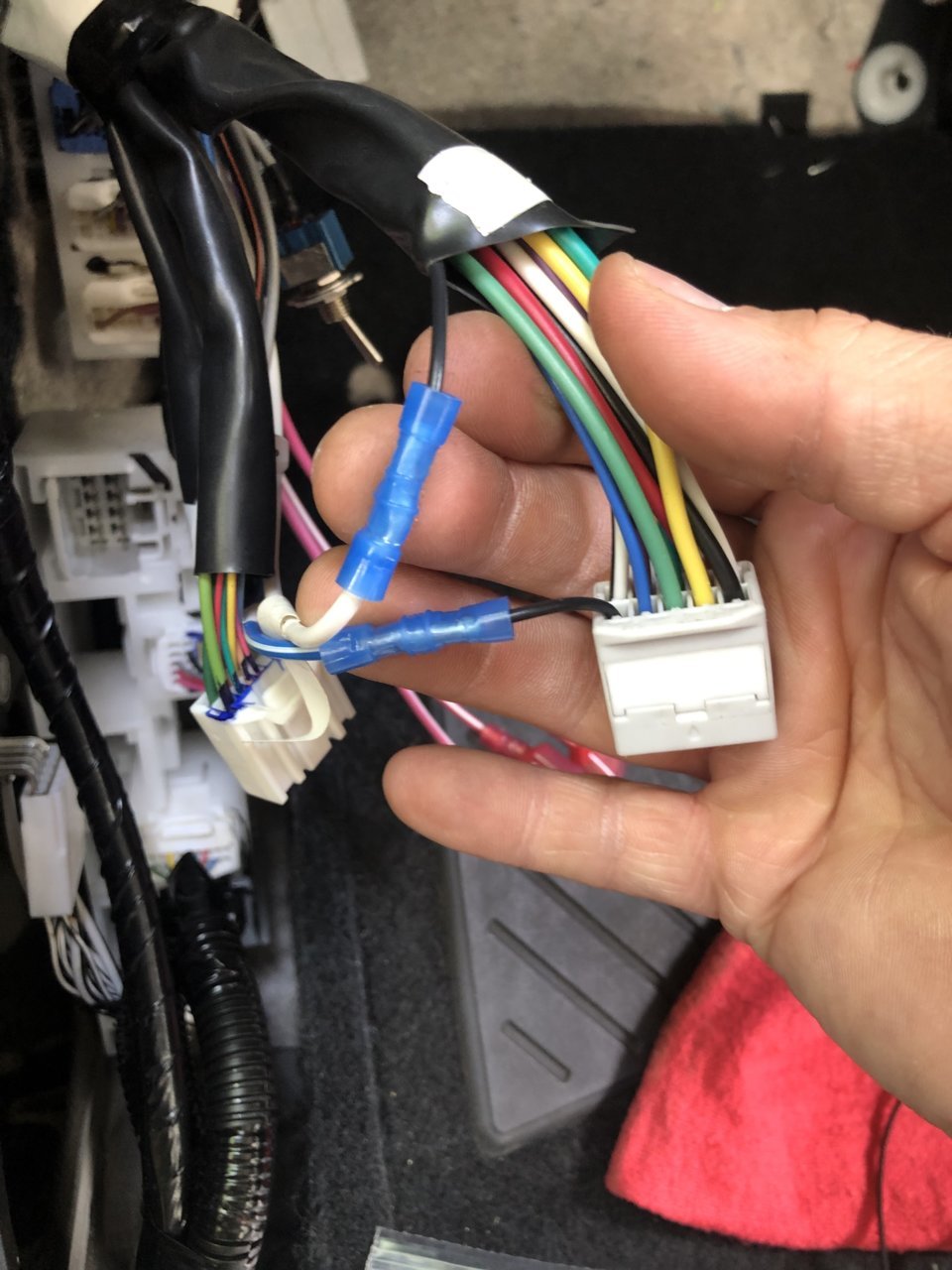

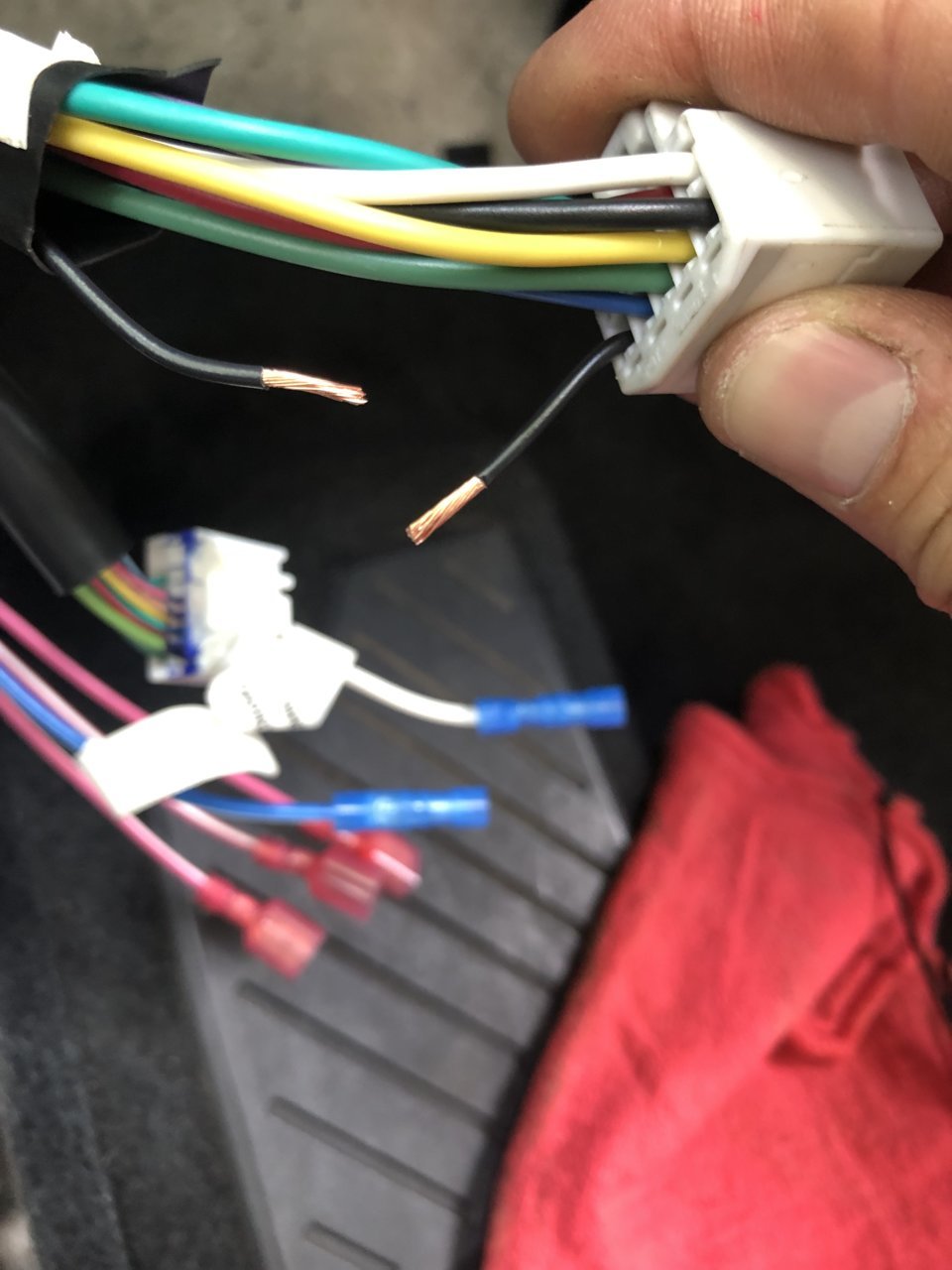

    The Grayish connector requires you to cut and splice into the black wire...there are two black wires here and the diagram can be a little confusing so make sure you are using the SMALLER GAUGE BLACK WIRE -


    You will cut into the wire and strip the shielding off of both ends.


    Then you will crimp the butt connector of the blue wire to the connector side of the black wire and crimp the white wire to the harness side of the black wire.


    Now you can move on to the final connector.

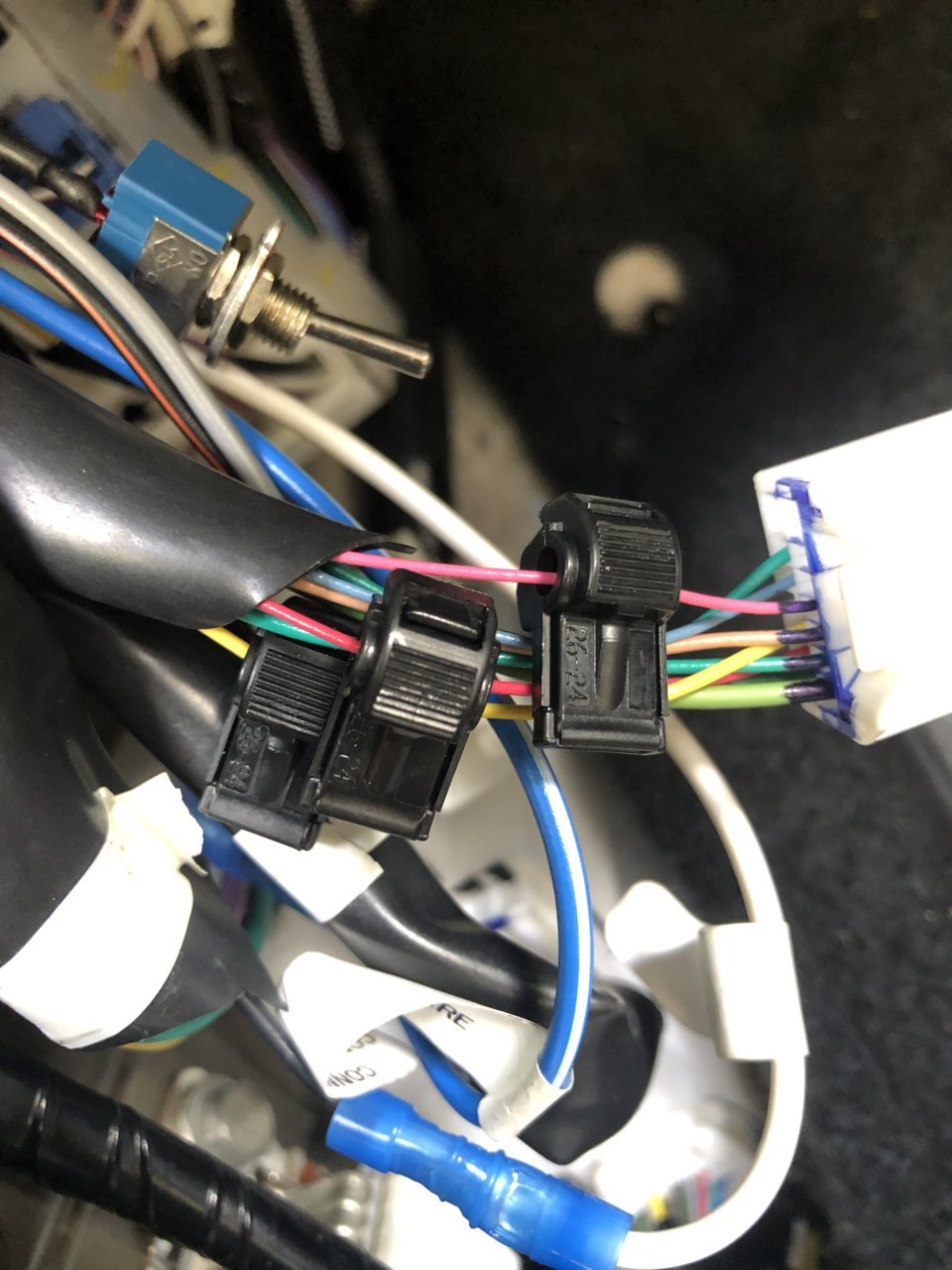

    Connector IC2 -
    I don't have step by step pics of this one but the only special thing to note is that there are two pink / white wires on the keyless harness and it doesn't matter if you mix them up. One is for lock and the other for unlock so use them interchangeably. Just follow the wiring tap locations in the instructions and you'll be fine.

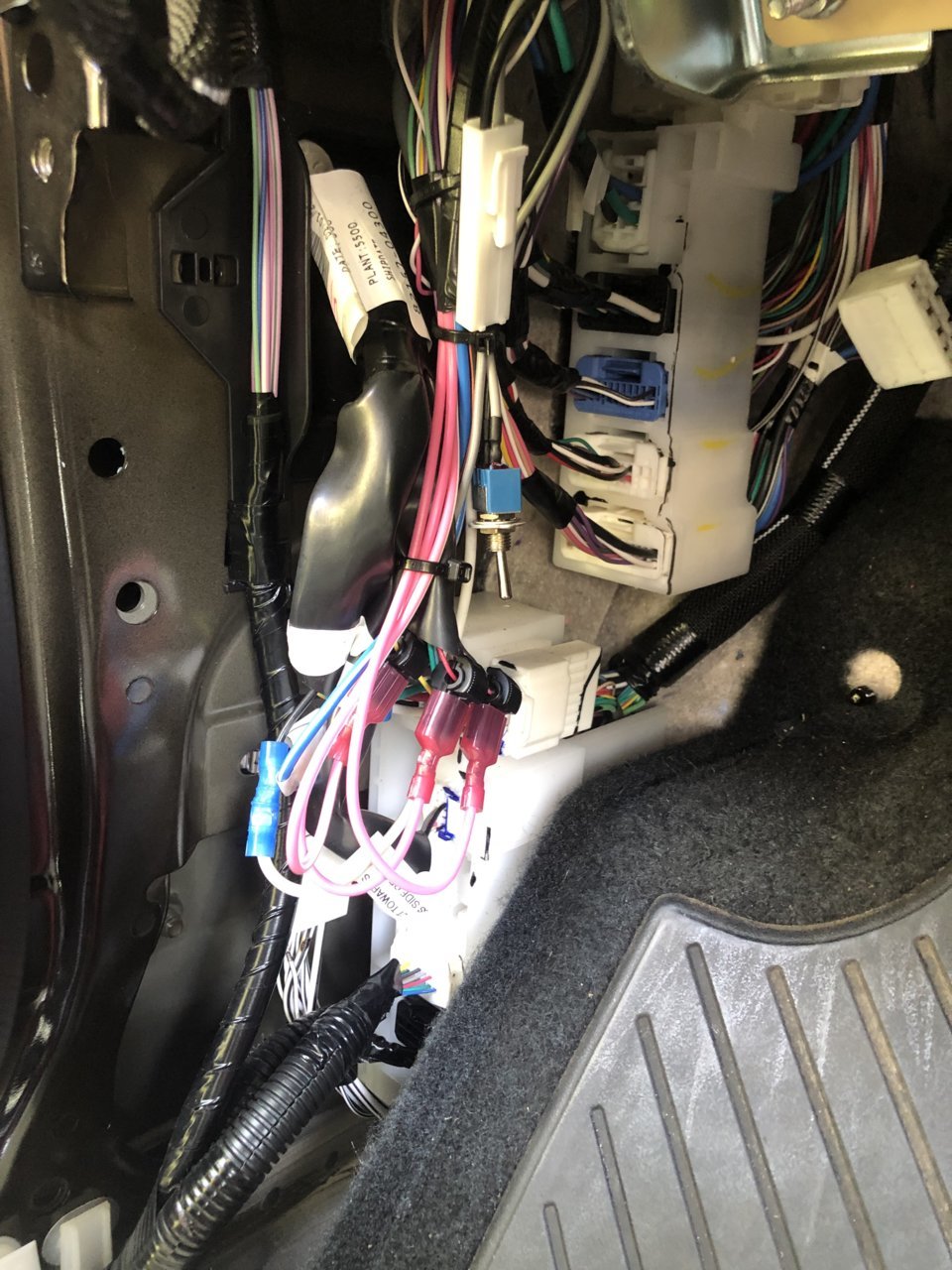

    Once all of your connections are made and wires are routed / zip tied in place, make sure you toggle switch is in the on position.

    If you did everything right the ground outside your truck should look like this:


    Now you can re-connect the negative terminal on the battery and test the system. I recommend doing this before putting things back together in case there's a faulty connection.

    Once everything tests ok you can go ahead and reinstall all of the panels.

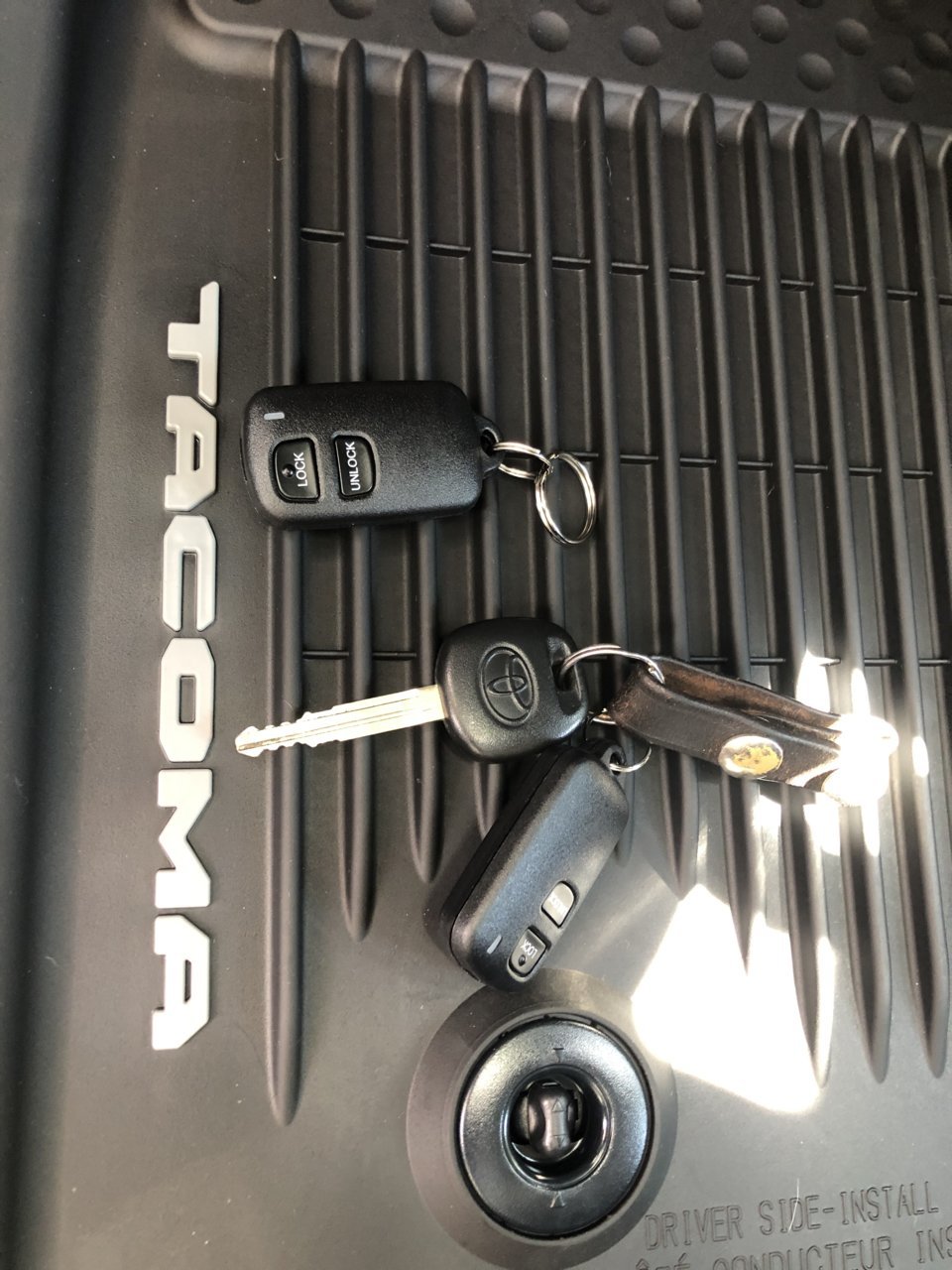

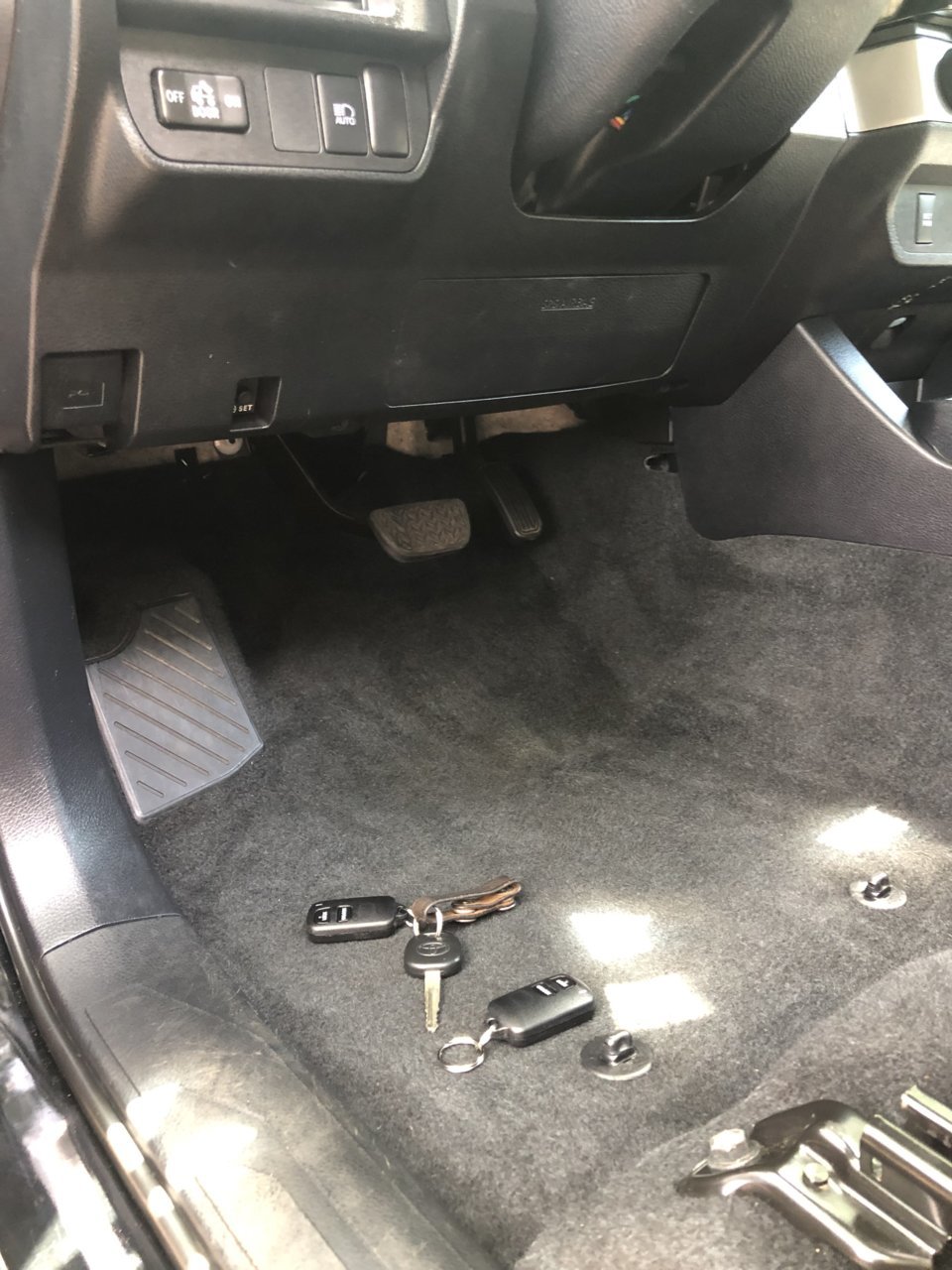

    Boom, you now have keyless entry on your 3rd Gen Tacoma SR



    There ya go folks. I hope I covered everything thoroughly enough. If you have any questions feel free to reach out.
