Installing Of Speakers + Amp to Factory Deck

Discussion in 'Audio & Video' started by SilverBullet07, Oct 24, 2011.

  1. Oct 24, 2011 at 5:56 PM
    #1
    SilverBullet07

    SilverBullet07 [OP] Silver Member

    Joined:
    Nov 26, 2010
    Member:
    #46737
    Messages:
    491
    Gender:
    Male
    First Name:
    Bryan
    Pleasanton, CA
    Vehicle:
    Silver 07 PreRunner Sport
    Tint, Grillcraft Grill, Leveling Kit, Retrofit Headlights.
    Introduction:

    Hello all, This thread will show the installation process of speakers and an amp to the amazing factory deck... with some help of Mr. Marv of course. Yes, I know that many people believe that in order to improve the stock Tacoma stereo they must remove the factory deck and put in an aftermarket deck. However I am trying to keep the stock look for now since it is easier on my wallet and just do everything else first.

    Tools:

    -Philips Screw Driver
    -Wire Stripper
    -Ratchet Set
    -Wire Connectors

    Links To Pages Used:

    Mr. Marvs Double Cab Audio Installation Instructions

    Installation Process:

    I'm not going to waste my time by including a step my step process to every component of this install because they all ready exist. If you would like to see a step by step installation of removing door panels, running wire, running RCA cables and installing baffles click on Mr. Marv's link above because he explains a basic set up for a double cab.What I will show you is how to hook up an aftermarket amp to the stock stereo deck.

    Step 1: Unplug The Car Battery
    Disclaimer: If you are not comfortable with any of the steps outlined in this DIY then do not attempt this project. That said I can not be responsible for any damage that occurs to your truck as a result of following the information contained within this thread.
    [​IMG]

    Step 2: Remove Stock Head Unit
    If you don't know how to remove the head unit I would follow these steps from taco tunes its fairly easy.

    Once you have the head unit out your dash will have the following harnesses exposed.

    [​IMG]

    The top two harnesses on the left that are circled are the ones that you will have to splice and add both RCA 4 and 2 channel converters. If you plan on someday hooking up your stock speakers again when you sell it I would splice the cables instead of cutting them completely so you can use them later if you want.

    Step 2: Wire RCA Converters
    So using the table below you can label on your converters which wire they will be tapping into so they are compatible with the stock head unit. My 2 channel RCA converter goes to my sub-woofers and it is hooked up to one of the rear speaker signal's from the head unit. (Rear right to be exact)

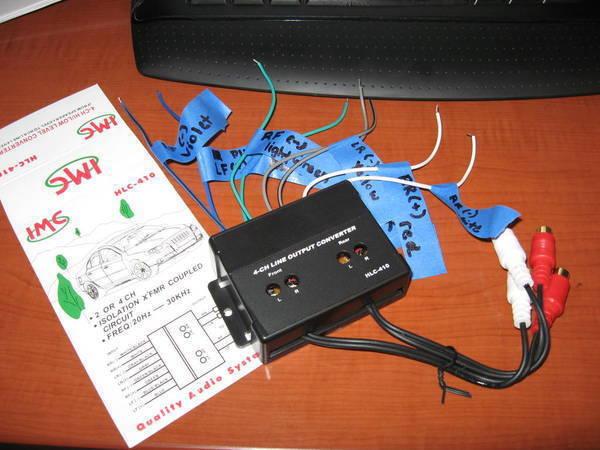

    Here's what my 4 channel RCA converter looked like before I started.
    [​IMG]

    Wire Color Table
    [​IMG]

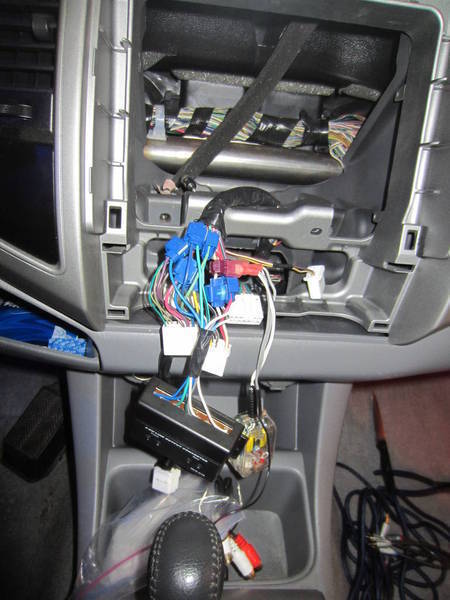

    Converters all attached: I had my RCA that was going to my Sub Amplifier run down the center console so that I could put my base knob in the armrest. My other RCA's for my 4-channel amp went down the passanger side and under the carpet to the door jam so it could be hidden.

    [​IMG]

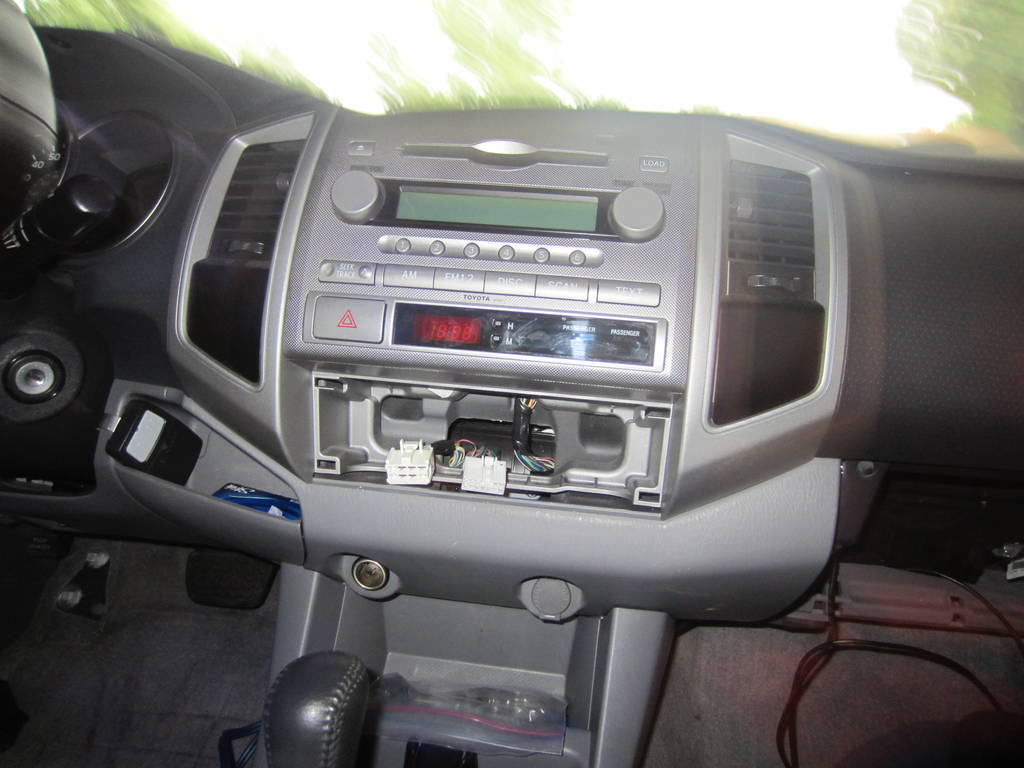

    Step 3: Place Factory Stereo Back In
    The only hard part I had was there wasn't much room so it took some time to get the deck to just slide in. *I would recommend not to bolt the Deck in till everything is working properly.*

    [​IMG]

    Success?
    If you properly hooked up your amplifier and correctly wired the converters you should now be able to send a signal from your factory stereo to your aftermarket amplifiers so you can power your speakers!

    Random Pictures During The Install:

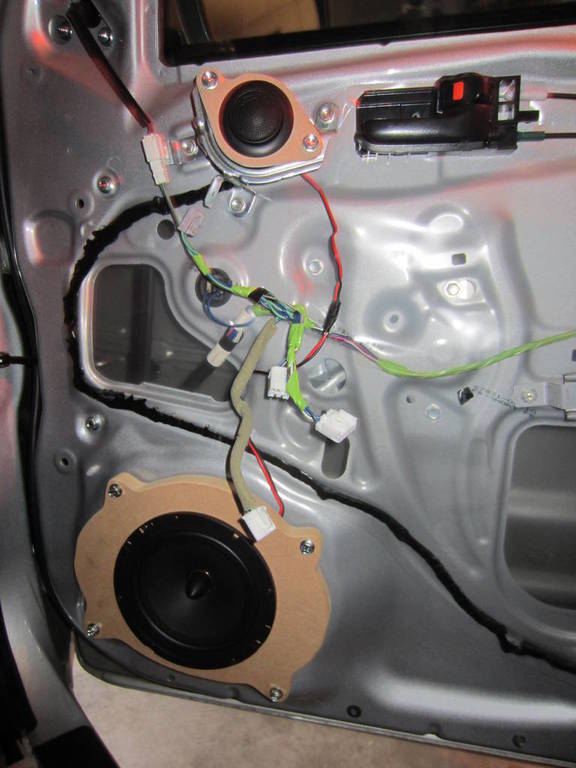

    Baffles and Speakers all wired and Installed in the passenger side door.
    [​IMG]

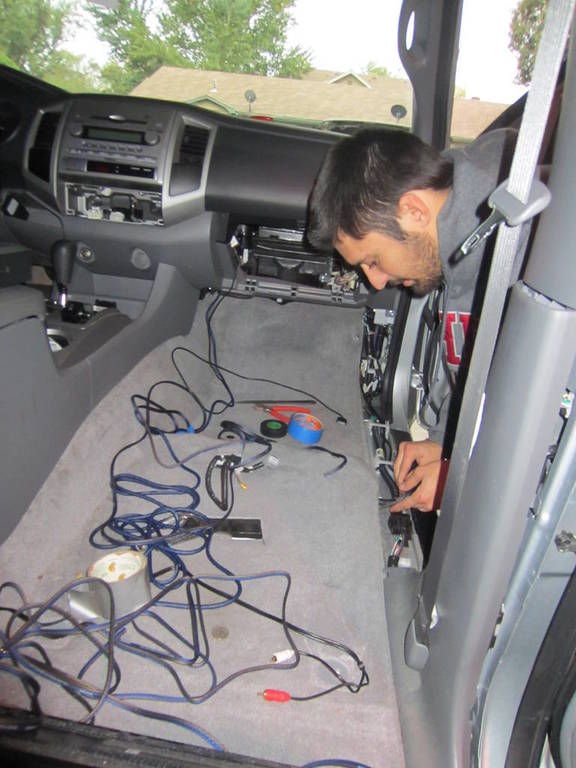

    Removed Passenger Seat for more Wiring Room
    [​IMG]

    I realize I didn't take as many helpful pictures as I wanted so If anyone wants to see anything or know something in particular let me know! Hope this helps someone.

  2. Oct 24, 2011 at 7:10 PM
    #2
    htowntaco23

    htowntaco23 Well-Known Member

    Joined:
    Oct 19, 2011
    Member:
    #65483
    Messages:
    129
    Gender:
    Male
    First Name:
    Matthew
    Austin, TX
    Vehicle:
    07 PreRunner SR5
    Carr side steps, Flowmaster 40 series dual exhaust, Spyder projector headlights, black housing LED taillights, 2 10' JL Audio subs, Polk amp, Famous Fabrication hood mount brackets, 2 Rigid Industries Dually LEDs
    How long have you had your subs in? Or are you just putting them in? Because what i have seen people do is remove the plastic on the back of the seat so that it does not rattle or make noise when the sub hits

  3. Oct 24, 2011 at 8:03 PM
    #3
    SilverBullet07

    SilverBullet07 [OP] Silver Member

    Joined:
    Nov 26, 2010
    Member:
    #46737
    Messages:
    491
    Gender:
    Male
    First Name:
    Bryan
    Pleasanton, CA
    Vehicle:
    Silver 07 PreRunner Sport
    Tint, Grillcraft Grill, Leveling Kit, Retrofit Headlights.
    I've had my subs in for two years... There is no rattling that I hear.

  4. Oct 25, 2011 at 11:49 PM
    #4
    SilverBullet07

    SilverBullet07 [OP] Silver Member

    Joined:
    Nov 26, 2010
    Member:
    #46737
    Messages:
    491
    Gender:
    Male
    First Name:
    Bryan
    Pleasanton, CA
    Vehicle:
    Silver 07 PreRunner Sport
    Tint, Grillcraft Grill, Leveling Kit, Retrofit Headlights.
    *Just ended up buying a KICKER 8-Guage/AWG 4-Channel Amp Wiring Install Kit off ebay a little more than I wanted to spend but everything comes together and I know its a good brand.*

    [​IMG]

    Complete 8 Gauge Z-Series 4-Channel Amplifier Installation Kit

    • 500 Watts max
    • Direct-connect engineering
    • Fewer connections for less signal distortion
    • Twisted-pair technology eliminates noise for crystal clear sound
    • Hyper-flex cable and wire
    • Full spec cable is true to gauge

    • 20 ft. (6.1m) Blue 8 AWG power wire
    • 3 ft. (0.9m) Black 8 AWG ground wire
    • 20 ft. (6.1m) Blue 18 AWG remote lead wire
    • 16.4 ft. (5m) Blue, black, and gray 4 Channel RCA cable
    • 60 ft. (18.3m) Blue and gray 16 AWG speaker cable
    • (1) Kicker 09FHS Fuse holder with 50 amp AFS fuse
    • Black rubber firewall grommet
    • (2) 8AWG Spade terminals
    • (5) 18AWG Spade terminals
    • (4) Female quick disconnect connectors
    • Black zip ties
    • Red butt connector

  5. Nov 4, 2011 at 2:37 PM
    #5
    SilverBullet07

    SilverBullet07 [OP] Silver Member

    Joined:
    Nov 26, 2010
    Member:
    #46737
    Messages:
    491
    Gender:
    Male
    First Name:
    Bryan
    Pleasanton, CA
    Vehicle:
    Silver 07 PreRunner Sport
    Tint, Grillcraft Grill, Leveling Kit, Retrofit Headlights.
    Finally received everything I will need to begin the installation. Hopefully I finish that this weekend and I will have some picture of the install in case anyone ever wants to go this route.

  6. Nov 5, 2011 at 5:45 AM
    #6
    Sprink669

    Sprink669 Well-Known Member

    Joined:
    Jan 31, 2010
    Member:
    #30386
    Messages:
    232
    Gender:
    Male
    I am planning on the basically the same thing but I am going to look into the audio control LC6i controller. Can't wait to see the install pics? Did you get any sound deadener for the doors?

  7. Nov 5, 2011 at 11:15 AM
    #7
    SilverBullet07

    SilverBullet07 [OP] Silver Member

    Joined:
    Nov 26, 2010
    Member:
    #46737
    Messages:
    491
    Gender:
    Male
    First Name:
    Bryan
    Pleasanton, CA
    Vehicle:
    Silver 07 PreRunner Sport
    Tint, Grillcraft Grill, Leveling Kit, Retrofit Headlights.
    Sound deadener will probably happen this winter when I have more money (Get my tax money back). I looked into getting it from RAmmaudio, they quoted me a pretty damn good price but for now I must wait.

    Install starts today.

  8. Nov 5, 2011 at 11:21 AM
    #8
    SilverBullet07

    SilverBullet07 [OP] Silver Member

    Joined:
    Nov 26, 2010
    Member:
    #46737
    Messages:
    491
    Gender:
    Male
    First Name:
    Bryan
    Pleasanton, CA
    Vehicle:
    Silver 07 PreRunner Sport
    Tint, Grillcraft Grill, Leveling Kit, Retrofit Headlights.
    Allright got a question... looking at my amp kit and I noticed that the fuse box isn't connected to the wire. Do I just cut the kicker wire where I want to put the fuse. I always though these came connected. Any help will be appreciated.. Im pretty sure this is what you do just not trying to mess up.

  9. Nov 15, 2011 at 7:34 PM
    #9
    SilverBullet07

    SilverBullet07 [OP] Silver Member

    Joined:
    Nov 26, 2010
    Member:
    #46737
    Messages:
    491
    Gender:
    Male
    First Name:
    Bryan
    Pleasanton, CA
    Vehicle:
    Silver 07 PreRunner Sport
    Tint, Grillcraft Grill, Leveling Kit, Retrofit Headlights.
    Updated. Not sure if its as detailed as I though I was gonna make it but sure damn hard to take pictures of everything done. I still need some finished pictures of both amps.

  10. Apr 11, 2012 at 8:28 AM
    #10
    gsxrdoug

    gsxrdoug 2012 DCLB

    Joined:
    Mar 3, 2011
    Member:
    #52284
    Messages:
    218
    Gender:
    Male
    First Name:
    Douglas
    Hawaii
    Vehicle:
    12 Prerunner DCLB SR5 no stinking badges
    Mr. Marv Sub, TRD wheels, Tint, Carbon Fiber wrap roof,
    Great post used it last night to install my sub to my Stock HU.

  11. Apr 11, 2012 at 12:04 PM
    #11
    SilverBullet07

    SilverBullet07 [OP] Silver Member

    Joined:
    Nov 26, 2010
    Member:
    #46737
    Messages:
    491
    Gender:
    Male
    First Name:
    Bryan
    Pleasanton, CA
    Vehicle:
    Silver 07 PreRunner Sport
    Tint, Grillcraft Grill, Leveling Kit, Retrofit Headlights.
    Glad it helped someone!:thumbsup:

  12. Apr 21, 2012 at 7:10 PM
    #12
    Kozzmosis

    Kozzmosis New Member

    Joined:
    Apr 21, 2012
    Member:
    #77360
    Messages:
    4
    Gender:
    Male
    First Name:
    Sean
    Calgary
    Vehicle:
    08 TRD Taco
    Readylift 2.75" front, 1" blocks rear BakFlip G2 Tonneau
    Hey, I was looking to leave the stock speakers wired up to the factory head unit on my 08 taco, but would like to install an amp/sub. Do they make a specific type of RCA converter that will allow me to do this?

  13. Apr 21, 2012 at 8:30 PM
    #13
    tango down

    tango down Policy Ninja

    Joined:
    Oct 17, 2011
    Member:
    #65363
    Messages:
    574
    Gender:
    Male
    First Name:
    jeff
    peoples republik of IL
    Vehicle:
    12 Taco DCSB TRD Off Road
    LED interior, rail mounted ammo cans
    tagged for if i go the rca/splice route or get a DSP by RF or JBL.

  14. Apr 22, 2012 at 2:45 PM
    #14
    SilverBullet07

    SilverBullet07 [OP] Silver Member

    Joined:
    Nov 26, 2010
    Member:
    #46737
    Messages:
    491
    Gender:
    Male
    First Name:
    Bryan
    Pleasanton, CA
    Vehicle:
    Silver 07 PreRunner Sport
    Tint, Grillcraft Grill, Leveling Kit, Retrofit Headlights.
    For my sub I used a RCA converter and just hooked it into one of the rear speakers and hooked up the amp from there.

  15. Apr 22, 2012 at 6:29 PM
    #15
    tango down

    tango down Policy Ninja

    Joined:
    Oct 17, 2011
    Member:
    #65363
    Messages:
    574
    Gender:
    Male
    First Name:
    jeff
    peoples republik of IL
    Vehicle:
    12 Taco DCSB TRD Off Road
    LED interior, rail mounted ammo cans
    Silverbullet....do you notice any signal loss due to the RCA splices? I think true audiophiles would be butthurt about not having the "right" signal delivery to the speakers.

    I think I am going this route as its $20 as opposed to $350+ in order to keep my h/u. Just wondering if you had to do it over again with an extra 400, would you get the Digital Signal processor as opposed to the RCA converters?

  16. Apr 22, 2012 at 6:34 PM
    #16
    SilverBullet07

    SilverBullet07 [OP] Silver Member

    Joined:
    Nov 26, 2010
    Member:
    #46737
    Messages:
    491
    Gender:
    Male
    First Name:
    Bryan
    Pleasanton, CA
    Vehicle:
    Silver 07 PreRunner Sport
    Tint, Grillcraft Grill, Leveling Kit, Retrofit Headlights.
    Well I always planned on buying a aftermarket headunit in the future. It sounds way better than stock and I dont notice much about lose signal quality.

  17. Apr 23, 2012 at 8:33 AM
    #17
    tango down

    tango down Policy Ninja

    Joined:
    Oct 17, 2011
    Member:
    #65363
    Messages:
    574
    Gender:
    Male
    First Name:
    jeff
    peoples republik of IL
    Vehicle:
    12 Taco DCSB TRD Off Road
    LED interior, rail mounted ammo cans
    ah, thanks. I doubt I'll ever get an aftermarket head, so Im just kicking around my options to add a sub/amp and better speakers.

  18. Apr 23, 2012 at 11:53 AM
    #18
    SilverBullet07

    SilverBullet07 [OP] Silver Member

    Joined:
    Nov 26, 2010
    Member:
    #46737
    Messages:
    491
    Gender:
    Male
    First Name:
    Bryan
    Pleasanton, CA
    Vehicle:
    Silver 07 PreRunner Sport
    Tint, Grillcraft Grill, Leveling Kit, Retrofit Headlights.
    Well if you don't like it you can always go the other route.... only gonna cost you around $20-$30 bucks depending on what RCA converter you go with.

  19. Apr 27, 2012 at 6:03 PM
    #19
    OneMentalCase

    OneMentalCase Well-Known Member

    Joined:
    Dec 25, 2009
    Member:
    #28132
    Messages:
    186
    Gender:
    Male
    South Florida
    Vehicle:
    10 Pyrite LB
    Toytec Ultimate
  20. May 29, 2012 at 12:19 PM
    #20
    sernaj64

    sernaj64 Aight

    Joined:
    Oct 28, 2011
    Member:
    #66033
    Messages:
    213
    Gender:
    Male
    First Name:
    Juan
    honolulu
    Vehicle:
    2011 prerunner V6 SR5
    N fab Step bars BHLM by Asianants Pro Comp 2.25" level lift kit rear leaf TSB
