Interest in shackle flip for 05+ Taco???

Discussion in '2nd Gen. Tacomas (2005-2015)' started by fabjunkie, Apr 20, 2012.

  1. Apr 20, 2012 at 10:18 AM
    #1
    fabjunkie

    fabjunkie [OP] Well-Known Member

    Joined:
    Apr 20, 2012
    Member:
    #77278
    Messages:
    80
    Gender:
    Male
    I know I'm new over here but I was referred to come over here and put this out there for you guys so I hope this is okay.

    Gauging interest in a shackle flip for the 05+ Tacoma. Everything is designed and ready to go but it doesn't make sense for me to do it with anything less than a run of 20. I will have a prototype built to verify and make any changes.

    Factory shackle will be retained, just inverted. 1" or 1.5" XJ lift shackles can also be used for additional lift. It is all 1/4" steel plate that is laser cut and broke. You get two mounting options at the frame and three at the shackle. The hangers can also be flipped side to side for really long spring set-ups. This gives you 12 total mounting options, 36 if you include the three shackle options. There is over 7.5" of adjustment. This means the kit will grow with your truck as it changes. Expect up to 1" of lift depending on set up.

    [​IMG]
    Clicky

  2. Apr 20, 2012 at 11:31 AM
    #2
    TACODOC1

    TACODOC1 AmericanAdventurist.com

    Joined:
    Jan 9, 2012
    Member:
    #70334
    Messages:
    319
    Gender:
    Male
    SoCal
    Vehicle:
    05 Tacoma 4WD V6 SR5 TRD Offroad
    See TACODOC.com!
  3. Apr 20, 2012 at 11:34 AM
    #3
    DTFtacoma

    DTFtacoma Dezert Toy Fabrication

    Joined:
    Mar 5, 2009
    Member:
    #14364
    Messages:
    6,711
    Gender:
    Male
    First Name:
    Anthony
    Santa Maria, CA
    Vehicle:
    06 PreRunner D-cab
    DTF LT front & rear
    Very nice work!

    GLWS!

  4. Apr 20, 2012 at 11:35 AM
    #4
    ruggedT

    ruggedT The Sticker Guy Vendor

    Joined:
    Jun 24, 2011
    Member:
    #58788
    Messages:
    3,138
    Gender:
    Male
    Midlothian, Va
    Vehicle:
    2013 Ford F150
    Icon, 35's, skids, ect
    Sweet. ATO never finished his. Should be some interest here

  5. Apr 20, 2012 at 1:04 PM
    #5
    arrrghhh

    arrrghhh Well-Known Member

    Joined:
    Jan 19, 2009
    Member:
    #12748
    Messages:
    2,062
    Gender:
    Male
    Denver, CO
    Vehicle:
    09 TRD Off-Road
    Custom Front Bumper, Smittybilt XRC-8, 3" OME lift, 33" Falken A/T tires
    I always wondered why...

    But this design looks great. Very flexible/adjustable, and it looks solid from the others I've seen...

  6. Apr 20, 2012 at 1:18 PM
    #6
    THExBUSxDRIVER

    THExBUSxDRIVER Victory is reserved...

    Joined:
    Mar 19, 2010
    Member:
    #33508
    Messages:
    4,135
    First Name:
    GOO5E
    Vehicle:
    Old Man Tan!
    Not enough.
    N00b question time.

    What to these shackle kits do for the truck?

  7. Apr 20, 2012 at 1:23 PM
    #7
    arrrghhh

    arrrghhh Well-Known Member

    Joined:
    Jan 19, 2009
    Member:
    #12748
    Messages:
    2,062
    Gender:
    Male
    Denver, CO
    Vehicle:
    09 TRD Off-Road
    Custom Front Bumper, Smittybilt XRC-8, 3" OME lift, 33" Falken A/T tires
    They provide a slight bit of lift, get your shackles out of the way of harm, and provide more droop so your rear tires will stay on the ground longer.

    You will probably need new shocks and brake lines to really get the full benefits of the shackle flip.

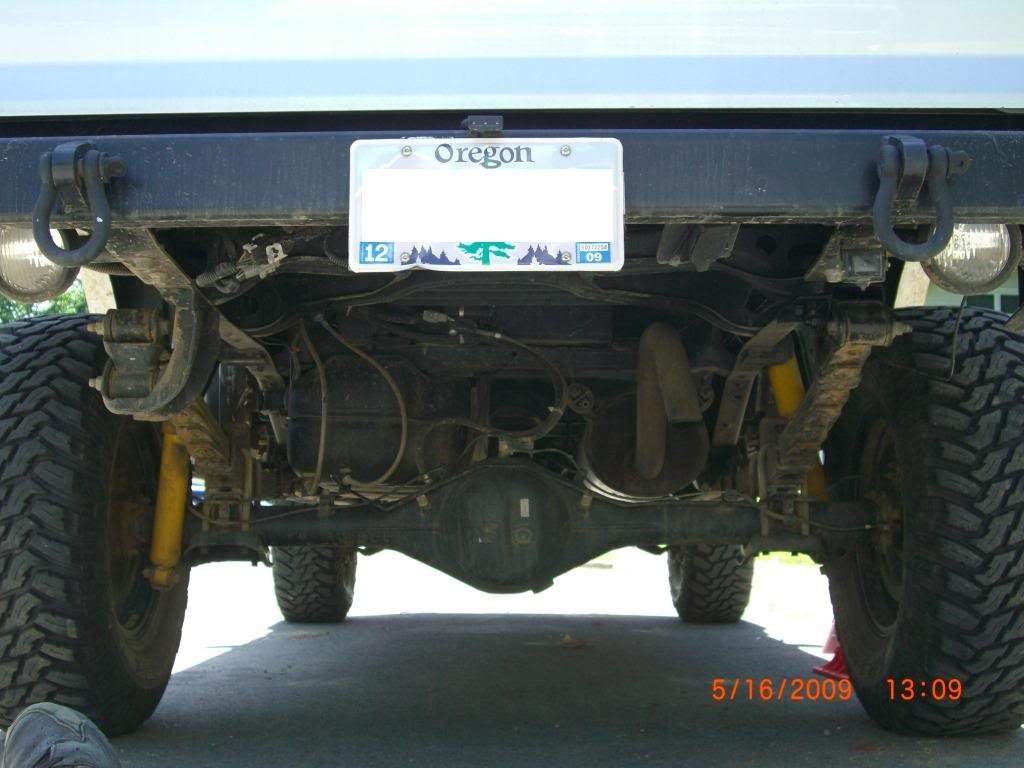

    Edit - ATO has a pretty good side-by-side pic of before & after flipping the shackle:

    [​IMG]

  8. Apr 20, 2012 at 1:23 PM
    #8
    NYCO

    NYCO ┌∩┐‹(ಠ_ಠ)›┌∩┐

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    17,321
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    great design!

    the multiple options is a great idea...GLWS

    already leaning a different route for this mod, but i'd definitely side with you if i wasn't

    i hear you put out some top notch products and supporting a colorado fabricator would be an additional bonus

  9. Apr 20, 2012 at 1:34 PM
    #9
    YumaTRD

    YumaTRD 22R...Legends never die

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    3,068
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    Solid Axle Yota
    Locked, Flat bed, 22R 5 speed, BFG KO's
    How are the XJ shackles an upgrade from stock and will this shackle flip kit only require drilling to mount to the frame?

    Bfox likes this.
  10. Apr 20, 2012 at 1:38 PM
    #10
    BigRedToy

    BigRedToy ¯\_(ツ)_/¯

    Joined:
    Apr 12, 2009
    Member:
    #15885
    Messages:
    2,045
    Gender:
    Male
    First Name:
    John
    Colorado
    Vehicle:
    07 Regular Cab SR5 4x4
    Greasable and provide more lift.

  11. Apr 20, 2012 at 1:39 PM
    #11
    maxamillion2345

    maxamillion2345 Go home if you don't like guns liquor and whores.

    Joined:
    Feb 20, 2010
    Member:
    #31761
    Messages:
    7,880
    Gender:
    Male
    First Name:
    Max
    Nevada
    Vehicle:
    80 series LC
    Too many
    You can get XJ lift shackles vs stock height.

    I think it bolts through the rivet holes.

  12. Apr 20, 2012 at 1:48 PM
    #12
    2011supercoma

    2011supercoma Well-Known Member

    Joined:
    Dec 5, 2011
    Member:
    #68211
    Messages:
    174
    Gender:
    Male
    First Name:
    capt. schyler
    nola
    Vehicle:
    sr5 4x4, trd supercharged
    trd supercharger, afe cai, doug thorley lt hearders, magnaflow exhaust, rcd 4.5" lift with ome 883 springs, cbi ditch light mounts woth rigid industry D2 spot lights,
    i def want this. i havnet started lifting my truck yet, so when its available ill get one.


    Those ready to buy.
    1. Zolo (Expo Portal)
    2. Cam-shaft (Expo Portal)
    3. TACODOC (Expo Portal)
    4. 2011 supercoma
    5.
    6.
    7.
    8.
    9.
    10.
    11.
    12.
    13.
    14.
    15.
    16.
    17.
    18.
    19.
    20.

  13. Apr 20, 2012 at 3:11 PM
    #13
    Mach375

    Mach375 Habitual Violator of Wheeling Rule #2

    Joined:
    Sep 18, 2010
    Member:
    #43428
    Messages:
    1,665
    Gender:
    Male
    First Name:
    Sathington "Alowicious Devadander Abercrombie" Willoughby (but you can call me Mud)
    Worse than Hell (SoCal)
    Vehicle:
    '11 DCLB 4x4 TRD Sport
    Too much to list, but enough to get me in trouble. Repeatedly.
    Super interested. :spy: right now until I see what the interest does, and what the final price is. Will you keep us updated on the full list as it grows, including other sites?

  14. Apr 20, 2012 at 3:14 PM
    #14
    COMAtose HI

    COMAtose HI Well-Known Member

    Joined:
    Jan 7, 2012
    Member:
    #70155
    Messages:
    1,965
    Gender:
    Male
    808
    Vehicle:
    2012 TRD SPORT 4x4
    6" Procomp Stage 1 Suspension Lift, Custom 6" Alcan Springs, N-Fab Side Steps, Husky Floor Liners, Wet Okole Seat Covers, Debadged, Weathertech Side Window Deflectors, 13" Antenna from AntennaX.com, 35% Tint for front windows, Procomp 7032 Series 18x9 wheels, 33x12.50 Nitto Mud Grappler tires
    x2

  15. Apr 20, 2012 at 3:58 PM
    #15
    fabjunkie

    fabjunkie [OP] Well-Known Member

    Joined:
    Apr 20, 2012
    Member:
    #77278
    Messages:
    80
    Gender:
    Male
    The XJ shackles allow you to get a little more lift and most are greasable like said.

    Mounting will require removing the factory rivets by your method of choice. I prefer to "X" the head down to the shaft with a cut off wheel, then use a chisel head on the air hammer, followed by the point attachment to drive them out of the frame/bracket. (HF's $15 one actually works really well ;)) Then you have to drill those holes out a little larger. Bolt it up where you need it and go.

    Got you added. Thanks!

    I'll keep the first post updated on all the forums as more people join the list. Just be ready to spend up to $200 and you're good. ;) Don't hold out waiting to see the interest though. Your order could be the one to send this into production. :thumbsup: If everyone mostly interested is :spy:, then it's going to take longer to get this going. :D

  16. Apr 20, 2012 at 4:00 PM
    #16
    fabjunkie

    fabjunkie [OP] Well-Known Member

    Joined:
    Apr 20, 2012
    Member:
    #77278
    Messages:
    80
    Gender:
    Male
    Thanks guys! Updated the list. Keep this up and we'll be prototyping next week!

  17. Apr 20, 2012 at 4:22 PM
    #17
    HAWAIICALIVEGAZ

    HAWAIICALIVEGAZ Desert Warrior

    Joined:
    Mar 30, 2011
    Member:
    #54006
    Messages:
    840
    Gender:
    Male
    First Name:
    SHANE
    LAS VEGAS NV
    Vehicle:
    2005 TRD Pre Runner
    Dr Coilovers; Camburg UCAs; Sway bar Relocation block; Deaver J66 Leafs; ProComp extended travel rear shocks 6K HIDs & 13" antenna
    sub'd Quick question... So with the stock shackle, whats the min/max amount of lift this would provide? estimated of course...

  18. Apr 20, 2012 at 4:34 PM
    #18
    arrrghhh

    arrrghhh Well-Known Member

    Joined:
    Jan 19, 2009
    Member:
    #12748
    Messages:
    2,062
    Gender:
    Male
    Denver, CO
    Vehicle:
    09 TRD Off-Road
    Custom Front Bumper, Smittybilt XRC-8, 3" OME lift, 33" Falken A/T tires
    I would think .5", maybe 1"...?

  19. Apr 20, 2012 at 5:14 PM
    #19
    fabjunkie

    fabjunkie [OP] Well-Known Member

    Joined:
    Apr 20, 2012
    Member:
    #77278
    Messages:
    80
    Gender:
    Male
    Somewhere around there. I'm keeping it as low as possible within the constraints of the truck.

  20. Apr 20, 2012 at 11:16 PM
    #20
    sytfu510

    sytfu510 INSTAGRAM: sytfu510

    Joined:
    Aug 27, 2011
    Member:
    #62453
    Messages:
    4,488
    Gender:
    Male
    First Name:
    Alex
    Bay Area
    Vehicle:
    06 DBL Cab Long Bed TRD Sport
    Dirt Designs LT kit DMZ LT Kit TRD Supercharger SCS Wheels BAMF
    Already posted on Expedition Portal, but BUMP for you.
