Introducing New Tacoma Fox Performance Elite Series Shocks

Hey guys we are excited to announce the new 05-22 Tacoma Fox Performance Elite Series Shocks. These will be in stock at Dirt King Fabrication and shipping in 3 weeks, and pair perfectly with our boxed/tubular UCAs. Call today to speak to our sales team and make sure to ask about our Mid Travel Packages 619-944-8913

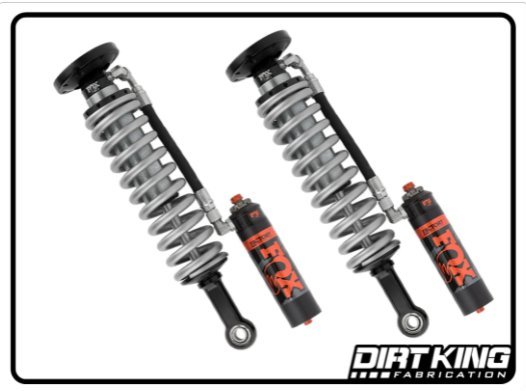

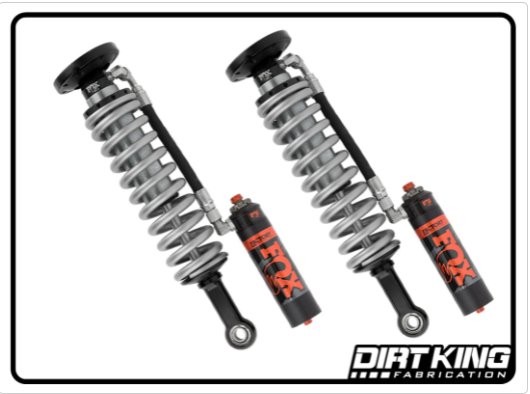

Fox Elite Series 2.5 Coilovers | 883-06-178

The Elite Series 2.5” Fox OEM for the Toyota Tacoma are direct bolt-on replacement shocks intended for maximum performance. These coilovers are specifically designed to optimize off-road performance without compromising on-road handling. The shocks are adjustable for up to 3” of lift and include all necessary hardware needed for installation. Requires aftermarket upper control arms.

Specifications

• Wheel Travel: Additional 25% of travel compared to stock
• Amount of Lift: Allows for 0-3” of lift
• Adjustments: DSC Adjusters
• Compatibility: 05-22 Toyota Tacoma 2WD / 4WD

View Product Listing
Fox Elite Series 2.5 Smooth Body Shocks | 883-26-112

The Elite Series 2.5” Fox OEM rear smooth body shocks for the Toyota Tacoma are direct bolt-on replacement shocks. These rear shocks are specifically designed to optimize off-road performance without compromising on-road handling. The shocks will allow for up to 1.5” of lift in the rear, and include all necessary hardware needed for installation.

Specifications

• Wheel Travel: Additional 15% of travel compared to stock
• Amount of Lift: Allows for 0-1.5” of lift
• Adjustments: DSC Adjusters
• Compatibility: 05-22 Toyota Tacoma 2WD / 4WD

Race Series vs Elite Series
Race Series

• Body: 2.5" Smooth bore and honed seamless alloy body
• Body Plating: Zinc-plated and double-clear coated for long lasting finish
• DSC Adjusters: Available in DSC and non DSC options

Elite Series

• Body: 2.5" impact-extruded and CNC-machined 6061-T6
• Body Plating: Type III anodized aluminum body
• DSC Adjusters: Only available with DSC adjusters

PAIR FOX SHOCKS WITH DIRT KING UPPER CONTROL ARMS

Ball Joint UCA's | DK-811901



Specifications

• Wheel Travel: Additional 1” of travel compared to stock
• Amount of Lift: Allows for 0-3” of lift
• Track Width: Stock
• Maximum Backspacing: 4.75”
• Minimum Rim Size: 16”
• Coil Over Shock Size: Factory or OEM replacement coilovers
• Compatibility: 05-22 Toyota Tacoma 2WD / 4WD

View Product Listing
Bushing UCA's | DK-811902



Specifications

• Wheel Travel: Additional 1” of travel compared to stock
• Amount of Lift: Allows for 0-3” of lift
• Track Width: Stock
• Maximum Backspacing: 4.75”
• Minimum Rim Size: 16”
• Coil Over Shock Size: Factory or OEM replacement coilovers
• Compatibility: 05-22 Toyota Tacoma 2WD / 4WD



$$ and availability?



These Will be in stock and ready to ship in 3 weeks, we are also offering FREE SHIPPING when purchased through 3-31-2022

https://dirtkingfabrication.com/collections/tacoma/products/fox-2-5-coilovers-dsc-remote-reservoir

https://dirtkingfabrication.com/col...x-2-5-smooth-body-shocks-dsc-remote-reservoir



These shocks are now in stock and ready to ship



@Dirt King Fab fox shock 883-06-178 to get the 3inch lift do you have to adjust the shock or does it come adjusted for max lift? I got a 2018 Tacoma btw



I believe for 2016+ trucks the lift is 0"-2" and 2005-2015 is 0"-3". The reasoning is 2016+ is an inch higher that 2005-2015 years.



For the 3rd gen models. What are the extended and collapse measurements on these?

And does anyone know the collapse and extended measurements for Kings 2.5 and the eibach stage 2.0?
