Inverter Circuit for Heated Mirrors

Discussion in 'Technical Chat' started by Isthatahemi, Mar 7, 2010.

  1. Mar 7, 2010 at 2:20 PM
    #1
    Isthatahemi

    Isthatahemi [OP] Well-Known Member

    Joined:
    Apr 29, 2009
    Member:
    #16582
    Messages:
    1,156
    Gender:
    Male
    Vehicle:
    TRD OFF ROAD
    BFG AT's, Weathertechs, Hoppy's brake controller.
    Does anyone know where I could tap into the inverter ciruit, after the relay, to steal power for the heated mirror lenses I bought for my Taco?
    I figure I will try to set it up to take power from the switched side, so overloading the circuit shouldn't be an issue. I was also thinking I would set it up to only power the mirrors when on the 100W setting. That way if I ever need power from the inverter, I can still use it when stopped, without the mirrors taking any current.
    Any thoughts?

  2. Mar 19, 2010 at 8:02 PM
    #2
    Isthatahemi

    Isthatahemi [OP] Well-Known Member

    Joined:
    Apr 29, 2009
    Member:
    #16582
    Messages:
    1,156
    Gender:
    Male
    Vehicle:
    TRD OFF ROAD
    BFG AT's, Weathertechs, Hoppy's brake controller.
  3. Mar 23, 2010 at 9:34 PM
    #3
    Crom

    Crom Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,331
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    Attached is wiring diagram for the inverter. It is for the 2007 model but should be relevant and useful.

    Also, I have modified my inverter to operate at 400W all the time by grounding a wire in the harness that supplies signals to the inverter.

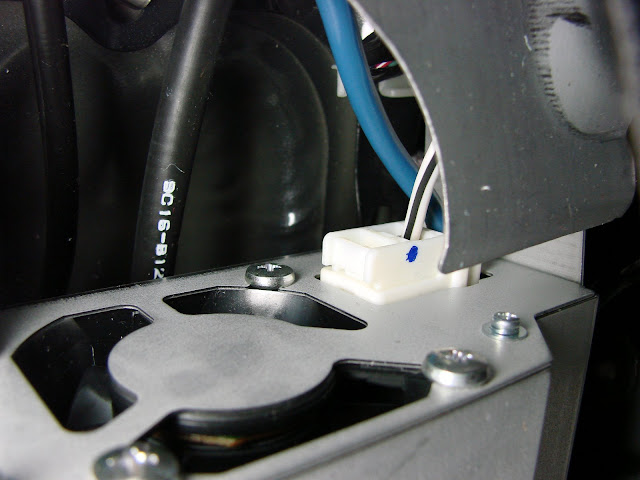

    While working on it I took this photo. The fat blue wire supplies the +12V to the inverter. It went inside some split wire loom and disappeared in the general direction of the passenger seat.

    [​IMG]

    I hope that helps you.


    Attached Files:

  4. Apr 13, 2010 at 4:47 PM
    #4
    Crom

    Crom Outside...

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    8,331
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Overland Build
    Millions
    Hemi, did you ever complete your project? How did it turn out?
