is this normal?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by jpneely, Jan 16, 2012.

  1. Jan 16, 2012 at 12:44 PM
    #1
    jpneely

    jpneely [OP] Well-Known Member

    Joined:
    Jan 16, 2011
    Member:
    #49361
    Messages:
    4,042
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2011 PreRunner SR5
    very, very stock.

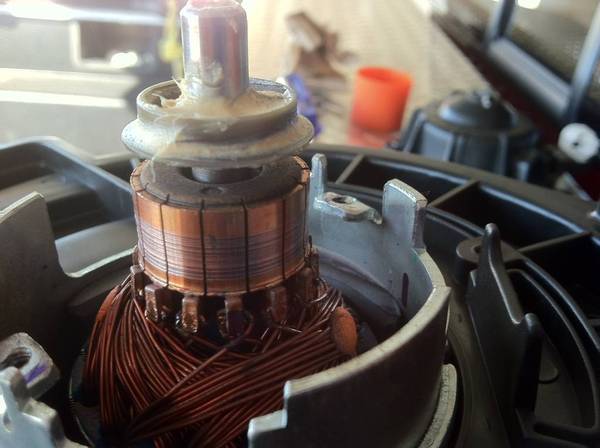

    hey so i wen to fix that damn squeaky blower motor and i did just that and she seems to be working like a charm. buuut when i had it taken apart i noticed a couple of things that just didnt seem normal. ive taken apart my fair share of electric motors and if this is normal for some reason it just hasnt struck me yet. but anywho heres the pics of it.

    [​IMG]

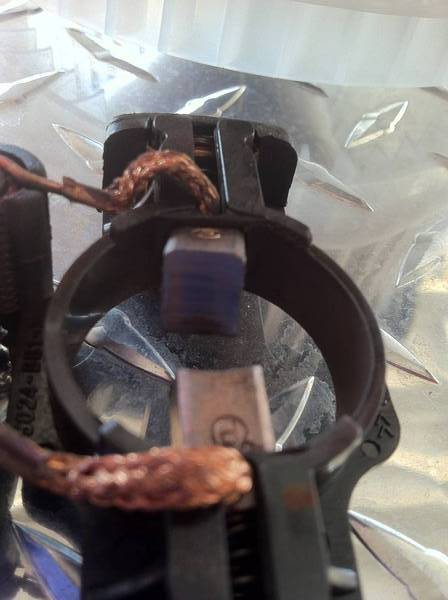

    ok so above the copper matrix it appears that
    [​IMG]
    these guys were rubbing the copper cylinder above it.

    im just wondering if this is something that could cause problems in the future or is this normal and im just being weird.

    sorry for the shoddy pics. they were taken with el telephono

  2. Jan 16, 2012 at 12:47 PM
    #2
    JasoTaco

    JasoTaco Well-Known Member

    Joined:
    Jan 25, 2010
    Member:
    #30057
    Messages:
    2,007
    Gender:
    Male
    First Name:
    Jason
    Salt Lake City, Utah
    Vehicle:
    09 Tacoma TRD Off Road
    ToyTec Ultimate 3" Lift -TSB Rear springs - TRD Cold Air Intake - TRD Skid Plate - Total Chaos Upper Control Arms - 2 Hella Rallye 4000 lights (130W Bulbs) - Clear Bra - Under Coat - Bed extener - Toyota Bed Mat - Weathertech floor mats - Tailgate hose clamp & washer mod - PIAA Fog Lights - ScanGauge II - Beefed Sliders - Differential Breather Mod - Heated Seats - All-Pro Bumper - Warn M8000 Winch with wireless controls - Boztec Diff Skid - ATO skids
    Take it to the dealer that blower motor is under warranty. I just had mine replaced for the third time apparently they have a new design...

  3. Jan 16, 2012 at 12:49 PM
    #3
    jpneely

    jpneely [OP] Well-Known Member

    Joined:
    Jan 16, 2011
    Member:
    #49361
    Messages:
    4,042
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2011 PreRunner SR5
    very, very stock.
    yea considered it but hell right now its not squeaky anymore. and i hate that damn place haha

  4. Jan 16, 2012 at 12:54 PM
    #4
    dexterdog

    dexterdog My pee parts itch

    Joined:
    Jul 12, 2009
    Member:
    #19571
    Messages:
    4,272
    Gender:
    Male
    Oly WA
    Vehicle:
    2012 F150
    Yes, they are carbon brushes. They are supposed to contact the motor.

  5. Jan 16, 2012 at 12:55 PM
    #5
    jpneely

    jpneely [OP] Well-Known Member

    Joined:
    Jan 16, 2011
    Member:
    #49361
    Messages:
    4,042
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2011 PreRunner SR5
    very, very stock.
    ^^ ok thank ya. peace of mind has been restored for the time being.

  6. Jan 16, 2012 at 12:59 PM
    #6
    TastyHuman

    TastyHuman Oh. Bummer.

    Joined:
    Dec 17, 2011
    Member:
    #68905
    Messages:
    104
    The two things that stick out and are rubbing are called "brushes" and the segmented copper cylinder is called a "commutator" and yes they should be rubbing. The brushes supply power to the commutator to create an electromagnetic field that spins the armature. If the brushes didn't rub on the commutator the motor wouldn't work.

  7. Jan 16, 2012 at 1:29 PM
    #7
    jpneely

    jpneely [OP] Well-Known Member

    Joined:
    Jan 16, 2011
    Member:
    #49361
    Messages:
    4,042
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2011 PreRunner SR5
    very, very stock.
    haha well played. i have taken many apart. i didnt neccesarily say i knew the terminology of pieces and parts. but thank all of yall anyways. oh and by taking apart the motors the oned i usually tooka apart were MUCH smaller and came out of rc cars etc.

  8. Jan 16, 2012 at 1:33 PM
    #8
    jpneely

    jpneely [OP] Well-Known Member

    Joined:
    Jan 16, 2011
    Member:
    #49361
    Messages:
    4,042
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2011 PreRunner SR5
    very, very stock.
    yea i stopped hearing it for a while but then my gf got into the truck one day and said that thing is still squeaking?! then the glass barrier in my mind broke and i heard it again... so its been squeaking for about a year now and it was just time to do it right and forget it.

  9. Jan 16, 2012 at 3:32 PM
    #9
    Tepidy

    Tepidy Well-Known Member

    Joined:
    Nov 18, 2010
    Member:
    #46352
    Messages:
    1,073
    Gender:
    Male
    First Name:
    Ted
    upstate NY
    Vehicle:
    11 tacoma 4x4
    Toytec Coil Overs 3.00" DSM UCA's (Desert Products) TSB 4 Leaf w/AAL by Pro Comp Bilstein 5100 rear 1"ToyTec SwayBar Drops 1" diff drop Detroit Trutrac Rear Diff Nitro 4.56 Gears Doug Thornley Header MagnaFlow Cat Back Exhaust Custom Built Rear Plate Bumper Custom Built Front Plate Bumper 4X Innovations Rock Sliders ATO Front Skid BAMF Rear Diff Skid Uniden 510XL Pro CB Raceline Renegades BF Goodrich Mud Terrains KM2's 265x75x16 WeatherTechs Rear Diff breather Relocate Intake Resonator Removed Yellow Wire Mod
    you have a 2911 tacoma. why would you take the motor out-your truck is under warranty

  10. Jan 16, 2012 at 4:25 PM
    #10
    Maticuno

    Maticuno Resident Pine Swine

    Joined:
    May 26, 2011
    Member:
    #57287
    Messages:
    2,900
    Gender:
    Male
    California High Deserts
    Vehicle:
    08 DCLB Sport
    Pioneer AVIC-D3, SWI-PS, Sirius Satellite Radio, 2X In-Cab 110V Outlets, Constant Fog Light Mod, Inverter Always 400W Mod, Anti-Pack-Rat-In-Intake Mod, Eibachs on 5100's, 2" Toytec AAL, B.A.M.F Rear Diff Skid, 265/70R17 Goodyear Wrangler Authority tires
    Generally, the smaller electric motors like those found in RC cars don't use carbon brushes. The just use simple copper contacts and the commutator is much smaller.

  11. Jan 16, 2012 at 5:02 PM
    #11
    jpneely

    jpneely [OP] Well-Known Member

    Joined:
    Jan 16, 2011
    Member:
    #49361
    Messages:
    4,042
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2011 PreRunner SR5
    very, very stock.
    if i can do something myself ill be damned if im gonna let someone else do it! especially if im bored :D

  12. Jan 17, 2012 at 1:45 AM
    #12
    Tepidy

    Tepidy Well-Known Member

    Joined:
    Nov 18, 2010
    Member:
    #46352
    Messages:
    1,073
    Gender:
    Male
    First Name:
    Ted
    upstate NY
    Vehicle:
    11 tacoma 4x4
    Toytec Coil Overs 3.00" DSM UCA's (Desert Products) TSB 4 Leaf w/AAL by Pro Comp Bilstein 5100 rear 1"ToyTec SwayBar Drops 1" diff drop Detroit Trutrac Rear Diff Nitro 4.56 Gears Doug Thornley Header MagnaFlow Cat Back Exhaust Custom Built Rear Plate Bumper Custom Built Front Plate Bumper 4X Innovations Rock Sliders ATO Front Skid BAMF Rear Diff Skid Uniden 510XL Pro CB Raceline Renegades BF Goodrich Mud Terrains KM2's 265x75x16 WeatherTechs Rear Diff breather Relocate Intake Resonator Removed Yellow Wire Mod
    I like doing everything myself as well although when it comes to warranty work I let toyota do it. Its too easy for them to say that you damaged the fan by trying to fix it resulting in them not doing the warranty work. Just saying-why give them an excuse

  13. Jan 17, 2012 at 8:24 AM
    #13
    Badwin45

    Badwin45 Well-Known Member

    Joined:
    Jul 7, 2010
    Member:
    #39905
    Messages:
    240
    Gender:
    Male
    First Name:
    Chris
    OKC
    Vehicle:
    '10 DC 4x4 & '00 Pre-Runner
    Aries 4" Oval step tubes, Brute Force Fab rear bumper, Weathertech digifit floor liners.
    When you consider that the replacement motors haven't really been a fix, you don't really have much to lose by trying.

    I took mine apart, lubed the bearings and felt washers that act as lube reservoirs, polished the shaft on a buffing wheel and I haven't heard a peep since.

  14. Jan 17, 2012 at 12:03 PM
    #14
    OrangeTexan

    OrangeTexan Well-Known Member

    Joined:
    Dec 29, 2011
    Member:
    #69600
    Messages:
    46
    Gender:
    Male
    San Antonio
    Vehicle:
    2012 4X4 TRD OR

    I used to race RC cars and I have never seen the simple copper contacts you are talking about, unless you are talking about cheap Walmart RC cars. Years ago all you could get were brushed motors for RC electric, and the brushes, comm, and armature all look quite similar to the pics he posted, at least for any racing motor.

    However, the OP's confusion is probably coming from the fact that most modern RC cars are now coming equipped with brushless motors, which look nothing like his pics. So I would suppose the motors he has seen were brushless...

  15. Jan 17, 2012 at 12:40 PM
    #15
    jpneely

    jpneely [OP] Well-Known Member

    Joined:
    Jan 16, 2011
    Member:
    #49361
    Messages:
    4,042
    Gender:
    Male
    Charleston, SC
    Vehicle:
    2011 PreRunner SR5
    very, very stock.
    CHA CHING! i do believe we have a winner! yea the ones ive seen didnt have the brushes. ergo my confusion on whether they were supposed to rubbing that heavily. but yea now i know! thanks guys

  16. Jan 23, 2012 at 11:25 PM
    #16
    rdm197aps

    rdm197aps Well-Known Member

    Joined:
    Dec 15, 2011
    Member:
    #68839
    Messages:
    69
    Gender:
    Male
    First Name:
    Rick
    DFW
    Vehicle:
    10 TRD Sport 4x4
    ARB bulbar WARN M8000, OME/Dakar, enough recovery gear to yank a GEO Tracker outta ditch!
    Sir, howdya get to the felt reservoirs? rumor has it they're in the metal housing...
    I've already taken the motor apart once, and used white lithium grease on the shaft. now i'm thinking royal purple maxfilm penetrating oil... im thinking about soaking that housing in the oil to see if the felt soaks it up. just ideas floating around...
