JAKE's 06 SOLID AXLE SWAPPED DCLB EAF & BS build

Discussion in '2nd Gen. Builds (2005-2015)' started by 3378jakesr5, Nov 26, 2015.

  1. Nov 26, 2015 at 6:06 AM
    #1
    3378jakesr5

    3378jakesr5 [OP] Owner of Adventure off road fabrication

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,576
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    Build page has not gotten as much attention as it needs so mods, and what the truck looks like are not current. Look at last few pages sparingly for curent info.

    last update 4/13/17



    blue means removed mods

    ........................


    I am a mechanical engineering major and have always loved building things so i picked up fabrication. all my bumpers are built by me and the armor unless specified will be from me as well. i will not review my own products but will do a write up on them and answer any questions about them. i will also build you something if you like it that much!

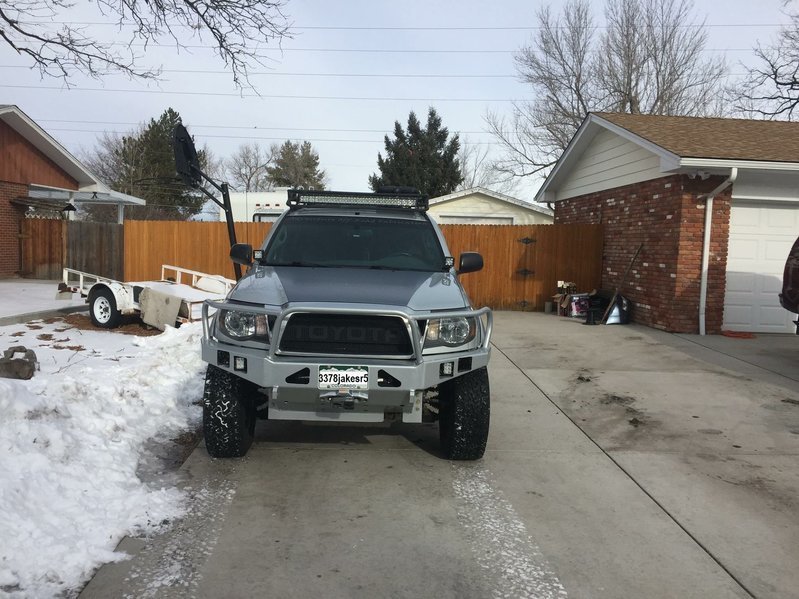

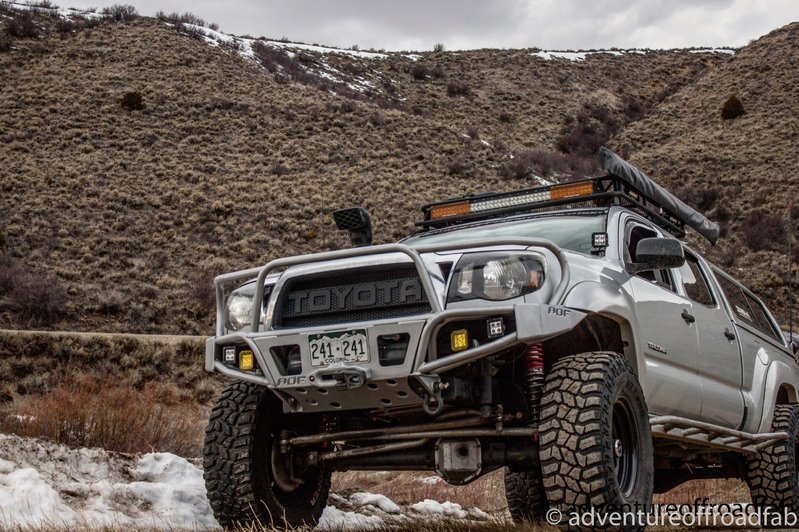

    the truck now

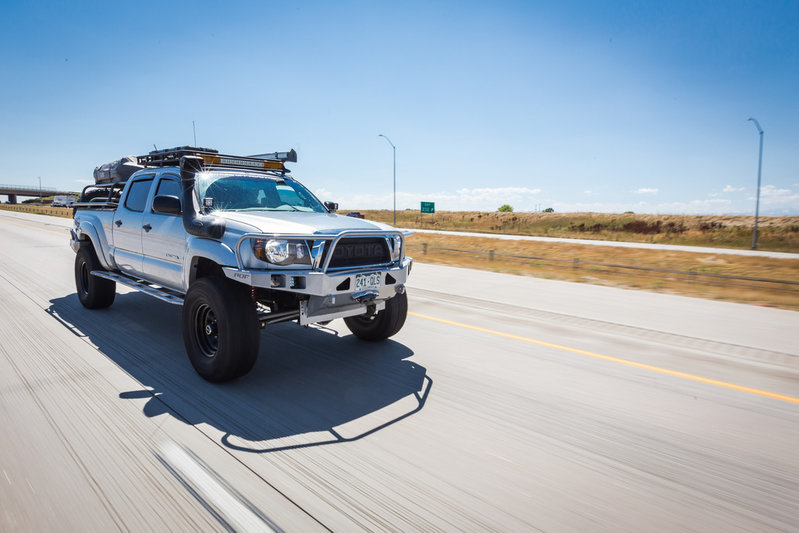

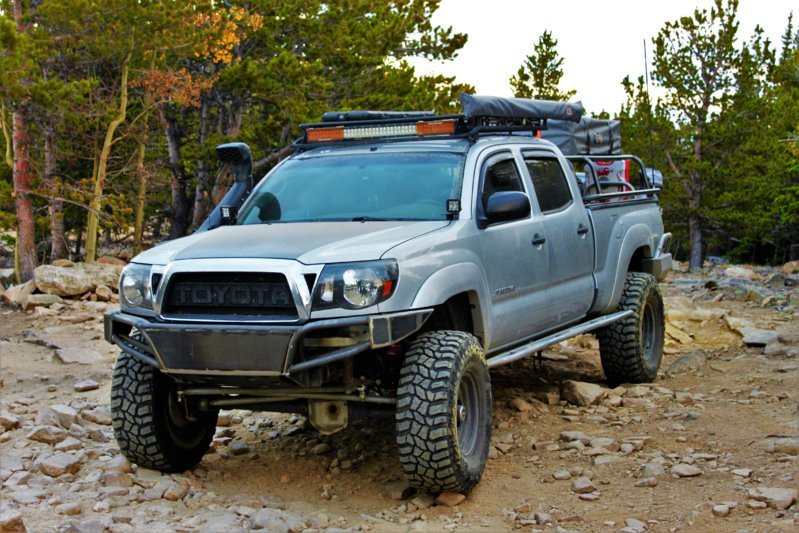

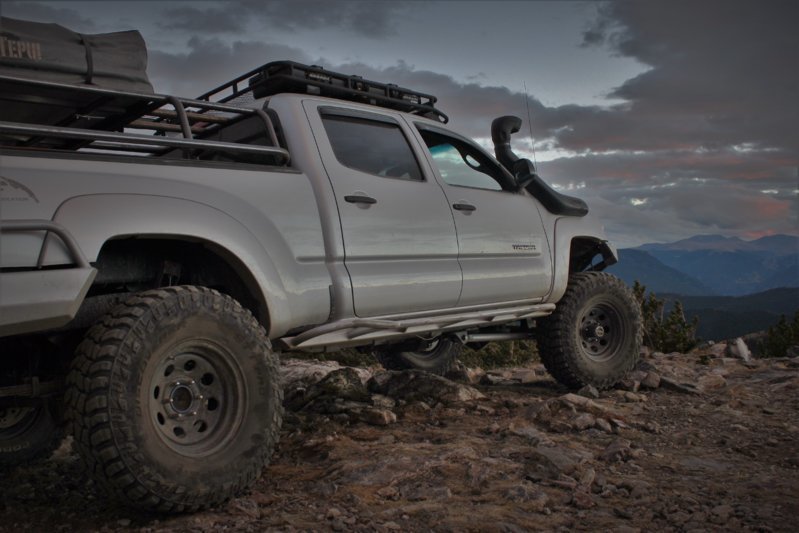

    better resolutuon photo.jpg upload_2016-10-1_18-23-28.jpg water crossing of my truck.jpg upload_2016-10-1_18-19-32.jpg

    reason why i bought the



    then this happened....





    mods to the truck.



    when i bought the truck.




    • bought the truck with 170,000 miles on it
    • had the 285/75 r 17 bfg all terrains
    • toytec coil overs in the front
    • add a leaf in the rear.
    • cut front fenders and inner fenders

    exterior mods.

    • AOf front bumper
    • AOF front hybrid bumper with custom crossmember relocated 4" higher
    • AOF high clearance rear bumper with dual swing out carriers 40/60 split with 20 lbs co2 tank, two 4 gallon rotopax, spare tire, trasharoo, axe and shovle.
    • AOF sliders with extended kickouts
    • AOF HD 1/4 inch ifs skid plate
    • CBI hood light mounts
    • AOF roof rack with LED side lights and and 40'' light bar
    • RCI lower control arm skids
    • DIY Front soshi grill with TOYOTA
    • SOLID AXLE SWAPPED FRONT END!!!

    interior mods.

    • RAM GPS mount
    • mob town phone mount
    • Shok sound deadening in doors, floor and ceiling.
    • switches and more switches!!
    • OVER HEAD SWITCH PANEL
    • kenwood single din stereo with blue tooth
    • illuminated 4 wheel drive switch
    • wet okole seat covers front and rear, heated front with switch moved to over head console
    • carbon fiber wrap on shifter and stereo bezel
    • center console led light mod
    • center console divider
    • glove box divider
    • weather tech floor liners
    • cb radio
    • Dash lights changed to white and blue
    • AOF behind the seat 10" sub box with pioneer class D mono 500rws amp.
    • 1000wat inverter installed behind driver back seat with plug in center console and bed.
    • New rear view mirror with back up camera.
    • flyzeye halo light red primary and white secondary
    • abs on off anytime mod (called i removed it with the front end swap:D)
    suspension and brake mods.

    brakes

    • front 25inch long steel braided brake lines
    • rear +7 steel braided brake lines
    • EBC slotted and dimpled disk brakes
    • EBC yellow stuff brake pads.
    • willwood calipers

    solid axle swap details

    • Ford high pinion dana 44 with 1/2 wall tubes and chevy milled high steer knuckles
    • 3/4 hiem steering links
    • 3 link front with 2" 0.250 wall 1.25 hiem lowers.
    • Engine cage and remote resi mount
    • chromoly shafts
    • warn hubs
    rear suspension

    • Dakar leaf spring pack
    • AOF shackle flip kit and 2 inch + longer shackles
    • toytec u bolt flip
    • timbren offroad bumpstops with u bolt flip
    • +4 inch blue steel extended break lines
    • +7 inch blue steel extended break lines
    • AOF shock tower relocation
    • bilstein 5125 12 inch travel shocks part # 33-230382

    shoes.

    • stock aluminum wheels powder coated grey
    • 285/75 r 17 BFG all terrains
    • pro comp steel wheels, 16x8 3.5 backspacing
    • cooper stt pro 315/75 r16
    • matching spare tire
    • spider wheel spacers 1.5
    electrical.

    • Dual battery set up!!
    • rigid dually on hood mounts
    • Remote start.
    • 40" light bar in roof rack.
    • led light pods in front bumper flood pattern with amber covers and white led spots
    • flush mount duallys in rear bumper with angle wedges
    • 4 led single row bars in cab roof rack
    • engine bay light strip
    • light strips in topper
    • light strip on topper rear glass
    • vision-x rock lights ( might have gotten ripped off by tires and a few branches )
    • 12 bank fuse block behind driver rear seat
    • 1000w inverter
    • lots of otrattw switches
    • tons of wires pre ran through the truck for future electrical (600+feet:rolleyes:)
    • winch control plug relocated to grill
    • led center console with tilt switch
    • flyzeye halo light
    • LED lights in dome lights
    junk in the trunk

    • AOF bed rack that sits on the bed rails.
    • bed rack has side mount tool box on drivers side, flip up tred recovery board holder with locking pins on passenger side, tray against glass for 3 8 gallon action packers with room underneath for pelican 2975's
    • odin designs 4 person e series tent (much like, matches trucks badassedness )
    accessories.

    • 63 qt arb fridge mounted in rear passanger seat area
    • arb 6' awning mounted on roof rack with single wall, and inclosed room
    • 4 gallon rotopax water and gas
    • arb twin compressor mounted in engine bay.
    • 20 lb co2 tank
    • frog 150 psi regulator
    • power tank co2 handle and cover
    • axe
    • shovel
    • plano gun case on rack to hold recovery straps
    • AOF drawer system to hold more sh!t!!!!
    • fire extinguisher in back seats
    • fire extinguisher relocated to infront of drivers seat with quick release mount
    • large first aid kit
    • first aid kits moved to one large pelican 1500 ems case. (so much room for activitys!!!)
    • large socket set
    • added box end wrenches
    • pliers and wrenches
    • ALL WRENCHES, SOCKETS... MOVED TO A PELICAN 1550 CASE WITH CUSTOM FOAM INSERTS! 5 CASES DELETED
    • multiple hammers
    • bottle jack
    • aluminum racing jack 2.5 ton. mounted in bed
    • dewalt 20 volt impact, drill, mini impact, angle grinder, lights, sawsall
    • jumper cables
    • tent
    • 7018 welding rod
    • welding goggles
    • carhart jacket
    • miscellaneous wire crimps,wire and electrical fuses
    • mini and regular fuses
    • seal and bearing race drivers
    • wire lug crimps
    • flares
    • winch line extension
    • fenix flash lights
    • trasharoo
    • 20 foot air hose
    • hi lift extreme 48
    recovery

    • warn zeon 8000-s winch
    • factor 55 flat link E
    • 5 or more d rings
    • arb 10 foot tree strap
    • arb 30 foot kinetic strap
    • warn kinetic strap
    • warn tree strap
    • warn pulley
    • smitty built pully
    • high lift winch conversion
    • high lift extreme 48
    • shovel
    • axe
    • 4 tred pro recovery boards ( coming some day )
    frame.

    • frame plated in front
    • front crossmember removed and upgraded to 2x4 0.250 wall box tube
    • rear frame boxed and plated then triangulated with 1.75 0.120wall DOM tubing
    • custom clearancing thanks to rocks throughout :rolleyes:
    • POR15 rear frame coating

    things to do

    • make mounts for 4' arb awning to mount off the back of the bed rack
    • make mount off swing out for backup camera
    • mount and wire lights in bed rack for bed lights,
    • run lighting and power to tool box for lights, dewalt battery charger.
    • finish the tred mount
    • run power to winch in and out controls in over head console
    • on board water
    • on board hot water
    • run air hose for quick connections in bed and front bumper.
    • probably a few more things to add.....


    Attached Files:

    Last edited: Apr 13, 2017
  2. Nov 26, 2015 at 6:06 AM
    #2
    3378jakesr5

    3378jakesr5 [OP] Owner of Adventure off road fabrication

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,576
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.

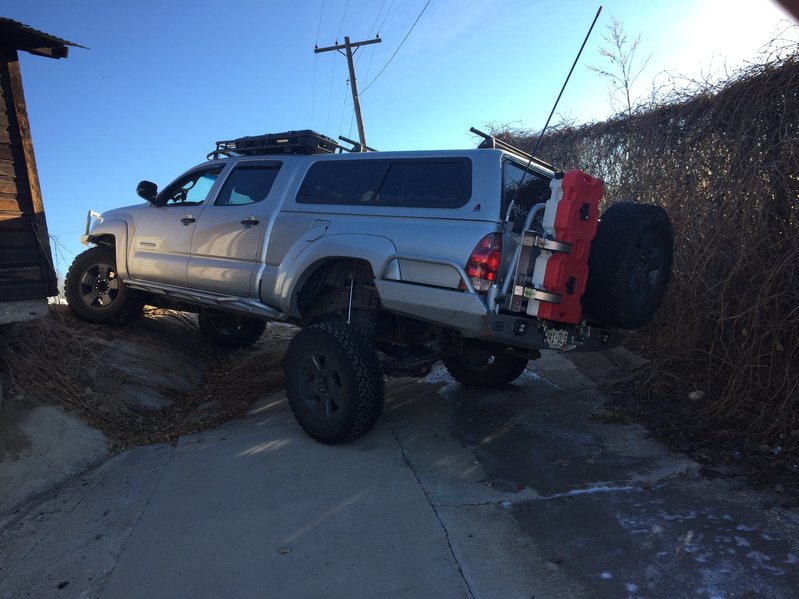

    trails the truck and or trailer have been on and truck pics

    wheeler lake September 2015


    rock and roll car show 2015


    Illinois gulch night run and BBQ


    heading down to moab Utah for grand slam west for the first time with the trailer!!!



    brewery meet up pre run with
    @odomandr, @CO Ryan, @mountainmonkey


    Attached Files:

    Last edited: Mar 9, 2016
  3. Nov 26, 2015 at 6:07 AM
    #3
    3378jakesr5

    3378jakesr5 [OP] Owner of Adventure off road fabrication

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,576
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    future mods for the truck
    Mods to the truck are not current. Trying to clean up thread and update every thing.

    power train

    • URD super charger??
    • some sort of exhaust
    • arb lockers (may not happen tell SAS and larger axles)
    • FJ t-case
    • doubler
    • Upgraded alternator
    • Dual OBA With 5 gal tank
    suspension

    • alcan spring under custom leafs in the back or linked

    exterior

    • new hybrid front bumper
    • roof rack for topper
    • custom aluminium modular bed rack for summer use
    • glass fenders in the front

    interior

    • Touch sreen dash
    • Molle panneling on rear back panel
    • Upgraded speakers
    • Patches give me patches!!

    accesories

    • viair compressor
    • water tank and pump in back of bed (thanks @aero3685 )
    • bed slide

    electrical

    • possibly light bars around rear bed rack
    • rear third break light on roof rack and duallys around roof rack
    • upgraded alternator
    • power ran to back of truck for trailer power
    recovery

    • master pull winch line
    • some one to recover me when ever i need it :D

    shoes

    • 35 inch tall tires on SAS (BFG all-terrain KO2

    Last edited: Aug 26, 2016
    ChadsPride and THROTTLE231 like this.
  4. Nov 26, 2015 at 6:07 AM
    #4
    3378jakesr5

    3378jakesr5 [OP] Owner of Adventure off road fabrication

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,576
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.

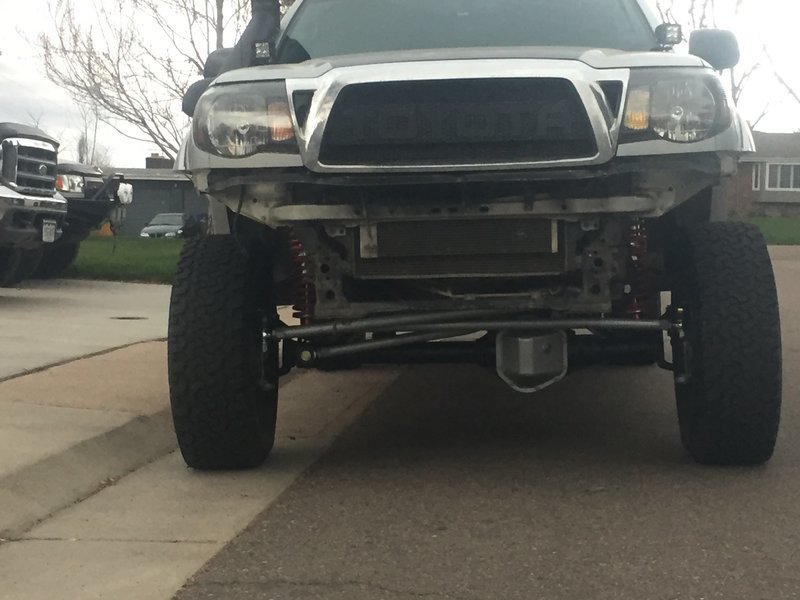

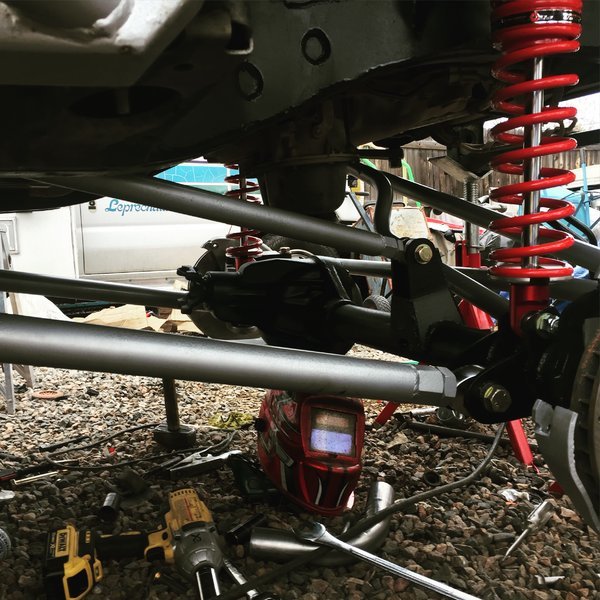

    SOLID AXLE SWAP!!!

    I chose a 79 ford high pinion HD dana 44 for the axle of choice for the SAS

    Why?

    1. The axle is the perfect axle for the truck and tucks up in between the frame and the oil pan very very very well
    2. The tubes on this thing is 1/2 inch thick so not worrying about braking anything
    3. The width of this axle is perfect for the truck
    4. Dana 44s are the most comon thing in the world to find parts for and so it works with the truck being expo.
    5. I do not plan on going over 35s for this truck so i do not need huge over kill.
    Links

    • 3 link with track bar
    • Lowers are 2 inch diameter by 0.250 wall DOM tubing
    • Upper, track bar, tie rod, and drag link are all 1.5 diameter by 0.250 wall DOM tubing.
    • Lower rod ends are 1.25 hiems with 3/4 inch grade 8 bolts.
    • Upper, and track bar rod ends are 7/8 hiems with 5/8 grade 8 bolts
    • Tie rod, and drag link rod ends are 3/4 hiems with 3/4 inch bolts.

    Suspension

    • Profender 2.5 inch, adjustable remote resi coil overs with 12 inches of travel
    • 225lb Primary spring
    • 300lb secondary spring
    • 6 ply limit straps
    • 4inch travel daystar stingers bump stops
    • 3 link suspention
    • Cage over engine connecting shock towers.


    More to be added.

    Last edited: Mar 21, 2016
    JD'STaco and ChadsPride like this.
  5. Nov 26, 2015 at 6:07 AM
    #5
    3378jakesr5

    3378jakesr5 [OP] Owner of Adventure off road fabrication

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,576
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    write ups and reviews part 2

    ChadsPride likes this.
  6. Nov 26, 2015 at 6:07 AM
    #6
    3378jakesr5

    3378jakesr5 [OP] Owner of Adventure off road fabrication

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,576
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    Write ups

    Last edited: Mar 21, 2016
    ChadsPride likes this.
  7. Nov 26, 2015 at 6:07 AM
    #7
    3378jakesr5

    3378jakesr5 [OP] Owner of Adventure off road fabrication

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,576
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    trailer build and specs (short hand)

    ChadsPride likes this.
  8. Nov 26, 2015 at 6:08 AM
    #8
    3378jakesr5

    3378jakesr5 [OP] Owner of Adventure off road fabrication

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,576
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    garage sale stuff

    Last edited: Nov 26, 2015
    ChadsPride likes this.
  9. Nov 26, 2015 at 6:18 AM
    #9
    303tacoma

    303tacoma Bad Karma is a Bitch

    Joined:
    Jan 19, 2014
    Member:
    #121024
    Messages:
    5,375
    Gender:
    Female
    First Name:
    Rebecca
    Denver Area
    Vehicle:
    2008 TRD Sport
    Wouldn't You Like To Know! The stuff I "think" I need!! ICONS Front & extended Rears DAKARS LR UCAS Wheelers Super Bumps F/R Homersoshi & Bumper insert, Ultra Gauge, Wet Okole seat covers, AFE air filter, Truxedo tonneau cover, LED White Cluster swap by yosh2000, Audio upgrade, ECGS Bushing, rcbs204 Lighted 4x4switch, Bullaculla trailer harness relocate bracket SOS Concepts IFS skid & sliders Anti- Dark RedLine Hood Struts Matt Gecko Bed Lights BHLM Depo Tailights Fog light anytime mod ABS cancel mod Rear diff breather mod Brake light 35watt mod Relentless u bolt flip Mobtown Recovery Bar Sound deadener doors rear wall Modified bed extender
  10. Nov 26, 2015 at 6:20 AM
    #10
    3378jakesr5

    3378jakesr5 [OP] Owner of Adventure off road fabrication

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,576
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    hahaha thats why im doing this is becuase of all the "creeps" fallowing me around.

  11. Nov 26, 2015 at 6:23 AM
    #11
    303tacoma

    303tacoma Bad Karma is a Bitch

    Joined:
    Jan 19, 2014
    Member:
    #121024
    Messages:
    5,375
    Gender:
    Female
    First Name:
    Rebecca
    Denver Area
    Vehicle:
    2008 TRD Sport
    Wouldn't You Like To Know! The stuff I "think" I need!! ICONS Front & extended Rears DAKARS LR UCAS Wheelers Super Bumps F/R Homersoshi & Bumper insert, Ultra Gauge, Wet Okole seat covers, AFE air filter, Truxedo tonneau cover, LED White Cluster swap by yosh2000, Audio upgrade, ECGS Bushing, rcbs204 Lighted 4x4switch, Bullaculla trailer harness relocate bracket SOS Concepts IFS skid & sliders Anti- Dark RedLine Hood Struts Matt Gecko Bed Lights BHLM Depo Tailights Fog light anytime mod ABS cancel mod Rear diff breather mod Brake light 35watt mod Relentless u bolt flip Mobtown Recovery Bar Sound deadener doors rear wall Modified bed extender
    Hahaha!!!!:anonymous:

  12. Nov 26, 2015 at 7:49 AM
    #12
    Over da Hill

    Over da Hill "Roads...where we're going we don't need roads"

    Joined:
    Jan 2, 2015
    Member:
    #145416
    Messages:
    4,482
    Gender:
    Male
    First Name:
    Johnny
    SoCal
    Vehicle:
    15 Black Taco 4WD DC SB SC
    Supercharger, Icon stage 3 suspension, Pelfreybilt Armor, All-Pro Sliders & Leaf Pack, 17 inch Black Rhino Sidewinder wheels, 33 inch Toyo tires, Rigid Lighting, SPod,
  13. Nov 26, 2015 at 4:37 PM
    #13
    3378jakesr5

    3378jakesr5 [OP] Owner of Adventure off road fabrication

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,576
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    Got the tracking number for the wet okole's!!

  14. Nov 27, 2015 at 7:14 AM
    #14
    3378jakesr5

    3378jakesr5 [OP] Owner of Adventure off road fabrication

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,576
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    how was every ones turkey day!!

  15. Nov 28, 2015 at 1:21 PM
    #15
    Tacoma SS

    Tacoma SS Well-Known Member

    Joined:
    Sep 3, 2015
    Member:
    #163341
    Messages:
    4,637
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    Supercharged 09 on 35s
    Boost and flex and 35s
  16. Nov 29, 2015 at 6:44 PM
    #16
    3378jakesr5

    3378jakesr5 [OP] Owner of Adventure off road fabrication

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,576
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    Well sense it was to cold out today to do out side things I did inside things. And thanks to @Tacoma SS idesided I wanted my bass again. And so I built a box to Put it behind the passenger seat and have a pioneer class d amp on its way to replace my five Chanel. image.jpgimage.jpg Got to test fit things! image.jpgFits like a glove!!image.jpgimage.jpg This is as close to a rapper as I will ever get :)
    image.jpg Sounds so good to have my bass back and it does not rattle at all!!! @Tacoma SS im going to have to hit you for making me want to buy some of that shok stuff now!!!!

    Pirhett, Tacoma SS and 303tacoma like this.
  17. Nov 29, 2015 at 8:06 PM
    #17
    Tacoma SS

    Tacoma SS Well-Known Member

    Joined:
    Sep 3, 2015
    Member:
    #163341
    Messages:
    4,637
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    Supercharged 09 on 35s
    Boost and flex and 35s
    Box looks great, did you get instructions from somewhere or just do it yourself?

    Explor likes this.
  18. Nov 29, 2015 at 8:20 PM
    #18
    3378jakesr5

    3378jakesr5 [OP] Owner of Adventure off road fabrication

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,576
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    Just built it my self. Not that bad it's like the 4th sub box I have built. The drawer system we built for my buddy's grand was harder.

    Last edited: Nov 30, 2015
    Tacoma SS likes this.
  19. Nov 30, 2015 at 5:58 AM
    #19
    3378jakesr5

    3378jakesr5 [OP] Owner of Adventure off road fabrication

    Joined:
    Oct 25, 2014
    Member:
    #141018
    Messages:
    13,576
    Gender:
    Male
    First Name:
    jake
    littleton colorado
    Vehicle:
    2006 DCLB silver taco. Soild axle swapped, Bumpers, armor, expo..... Money pit. Yata yata yata
    Better to ask what I have not done.
    Well it looks like I will see my iluminated 4 wheel drive switch today! Thanks @rcbs204 for it and thanks for doing more of these!

    And I should see some LED's for the dash today!

    Last edited: Mar 21, 2016
  20. Nov 30, 2015 at 5:59 AM
    #20
    manethon

    manethon TTAS

    Joined:
    Oct 9, 2013
    Member:
    #114161
    Messages:
    3,518
    Gender:
    Male
    First Name:
    John
    Toronto
    Many
To Top
