JBL Subwoofer Box Specs / Measurements

Discussion in 'Audio & Video' started by clenkeit, Dec 11, 2022.

  1. Dec 11, 2022 at 3:13 PM
    #1
    clenkeit

    clenkeit [OP] Well-Known Member

    Joined:
    Apr 30, 2019
    Member:
    #291841
    Messages:
    1,874
    First Name:
    Colin
    Lakewood, CA
    Vehicle:
    2010 White DCLB TRD Sport
    I've searched high and low for the box volume of these factor JBL boxes but have never seen it posted. So, I pulled mine out and filled it with water! I also took some depth measurements while I was in there. Just wanted to throw this post up so others can find it if they're also looking for this info. I think the box is a lot larger than anyone originally estimated.

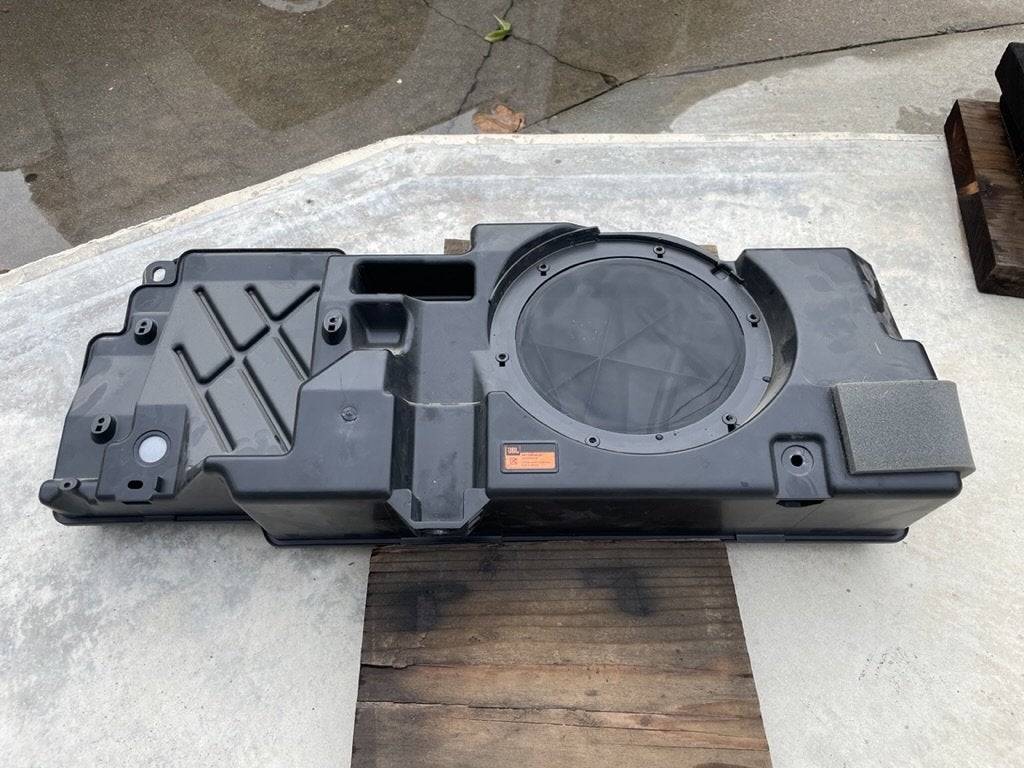

    Here you can see the box shape and design. In this pic it's filled to the brim with water. But, there's some additional volume that sits above the water level in this pic so there's definitely more volume than the 0.6185 cuft of water that's in the box in the picture. But it's not a lot more.

    [​IMG]

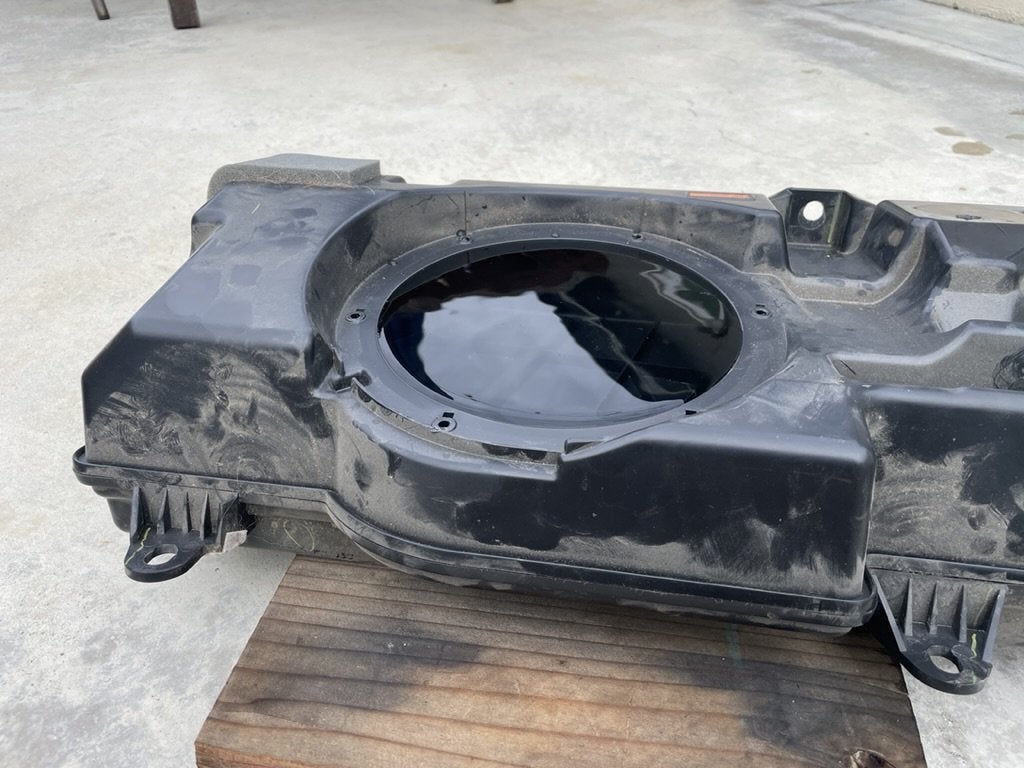

    Another angle. Still full of water. Here you can better see the areas that sit above the mounting hole and thus are filled with air, not water.
    [​IMG]

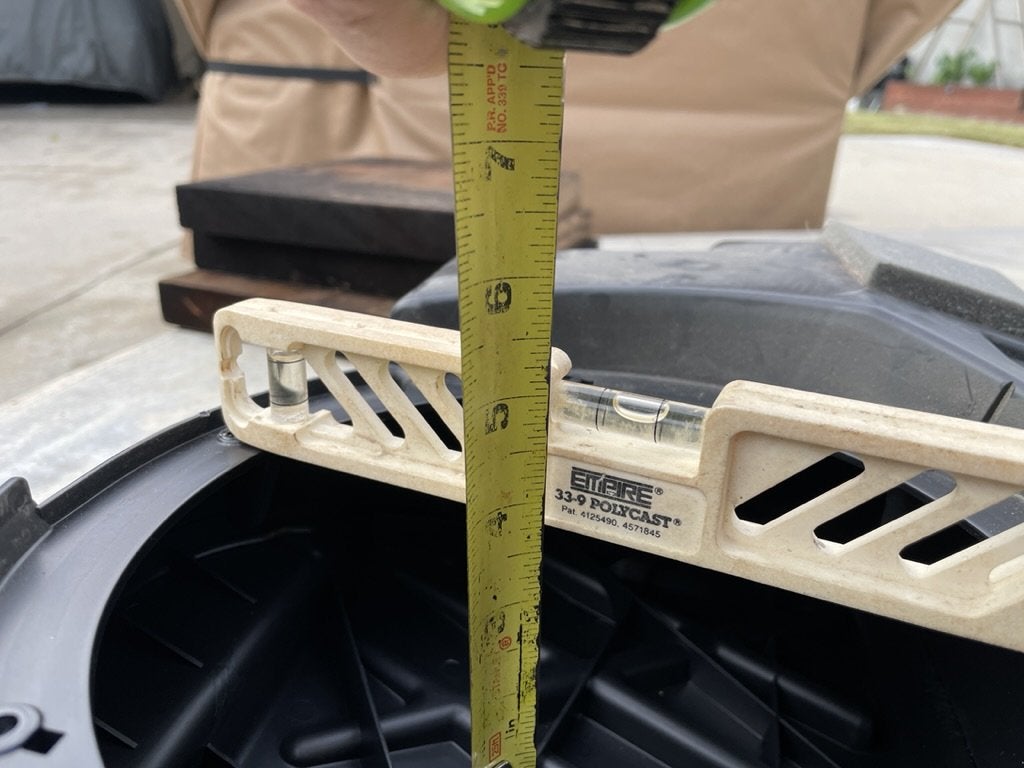

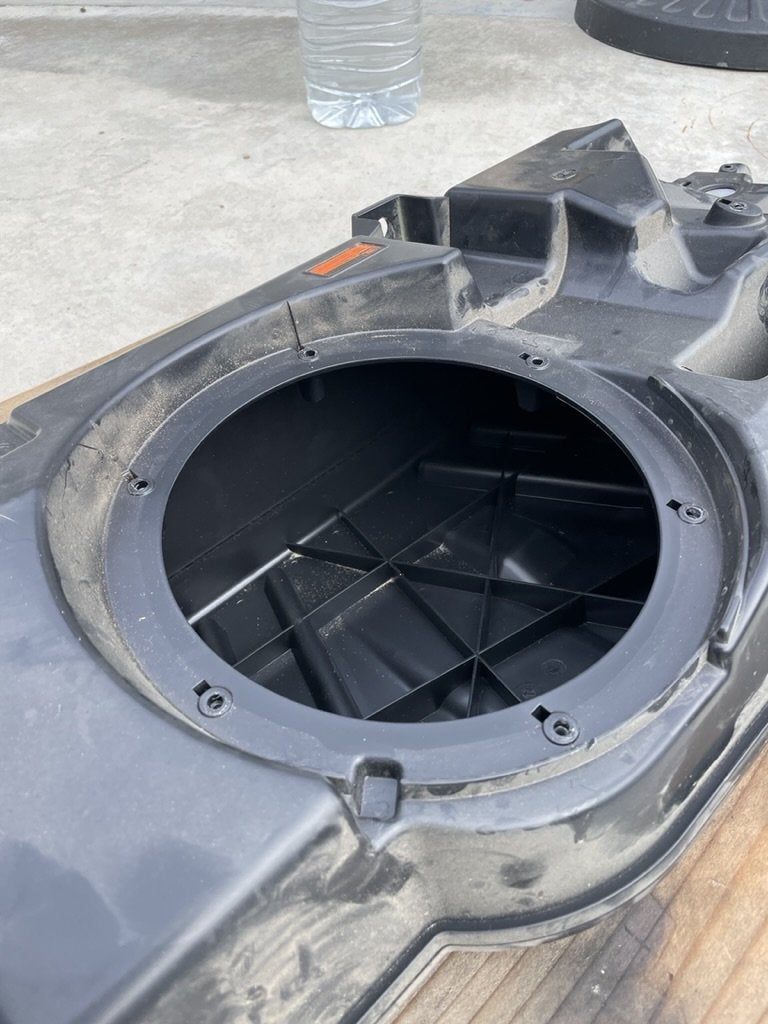

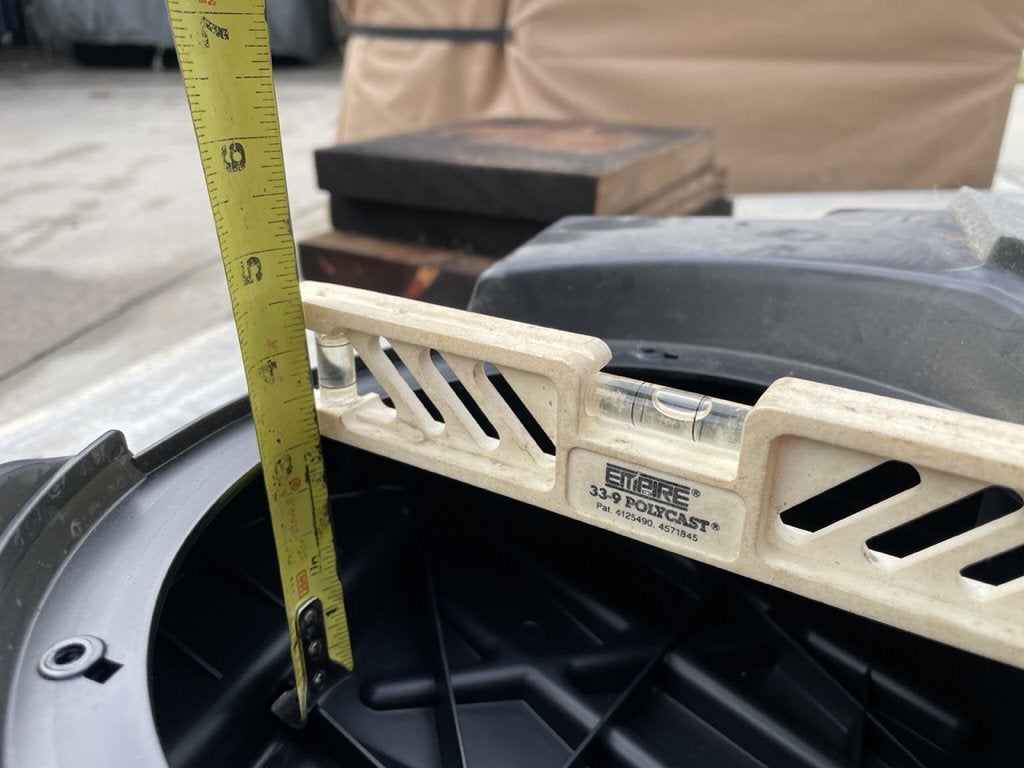

    Interior with webbing on backside. Hard to tell at first from these pics but the face where the sub mounts is not parallel with the back of the box. So, there is not a constant depth. At one side, close to the outer edge of the mounting hole there's a minimum of 3" depth. At the center it's ~3.75" and on the other side there's probably 4-5" of depth as the box just keeps getting deeper and deeper the further down you go due to the angle of the woofer compared to the back of the box itself.

    [​IMG]


    [​IMG]


    [​IMG]


    [​IMG]

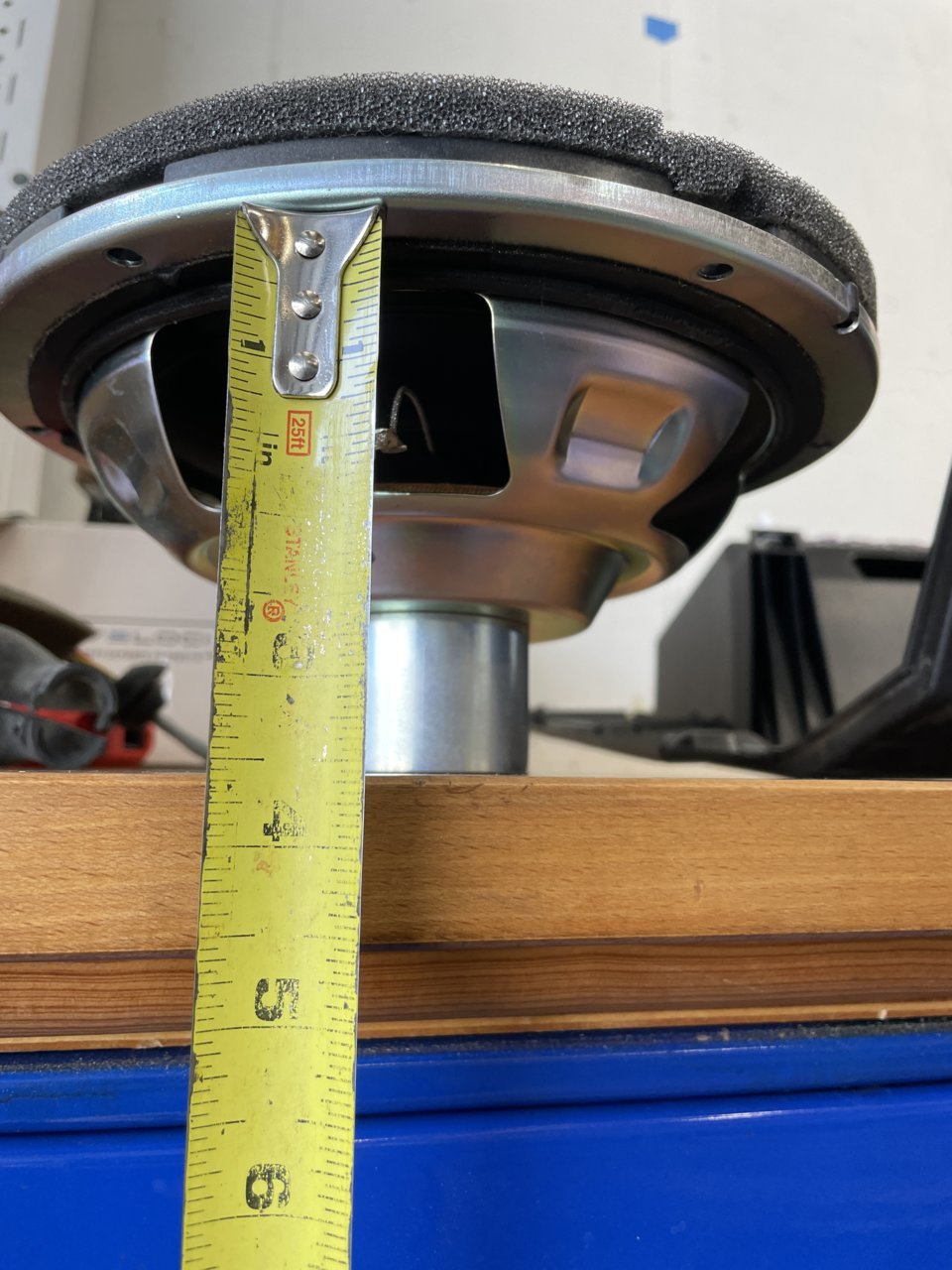

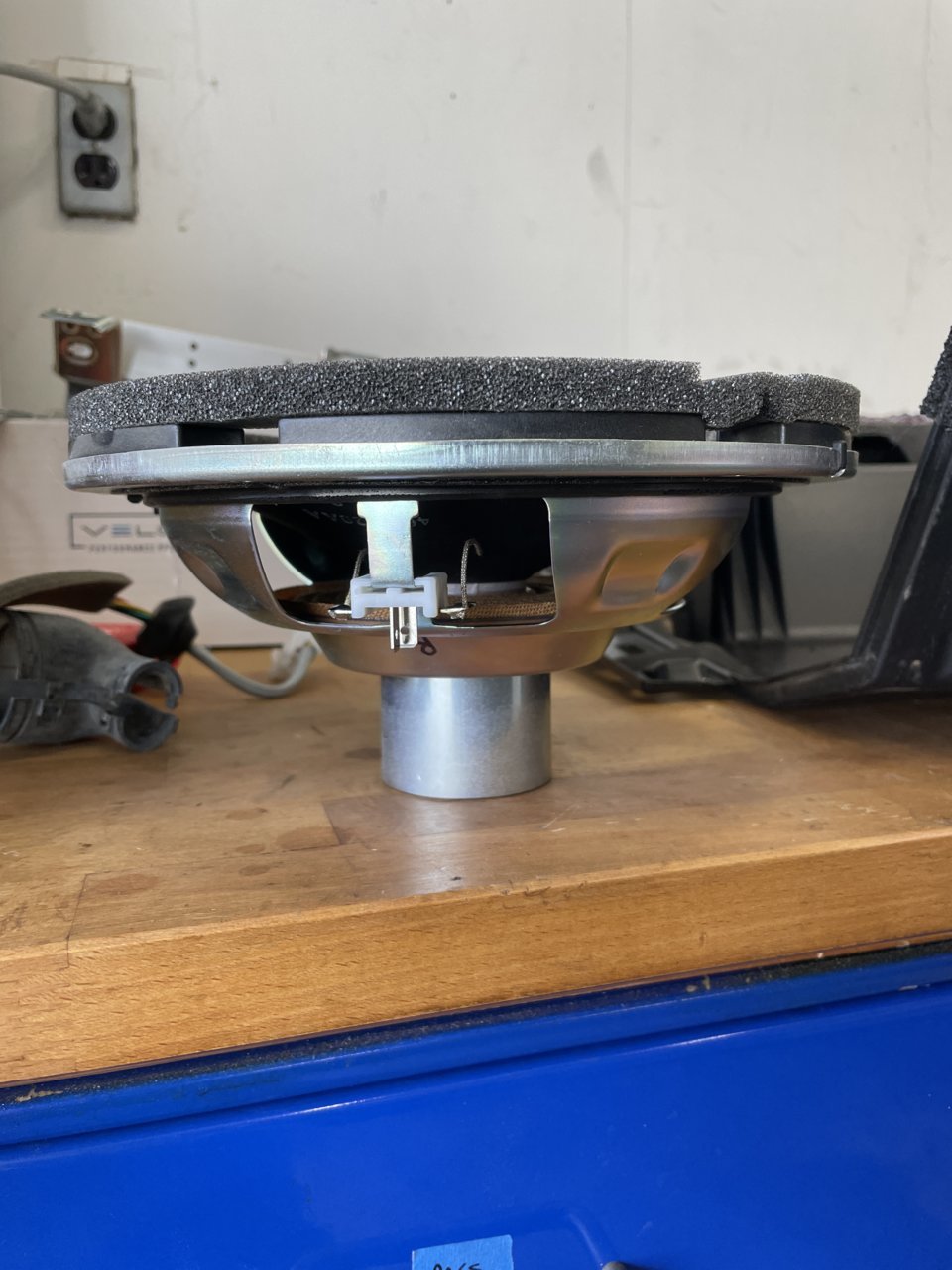

    The factory sub is 3.5625" deep but it has a very small magnet and is very narrow in the center. So the fact that the box is very shallow near the top isn't an issue since the thickest part of the sub is only in the center. Many shallow mount aftermarket subs have almost a uniform thickness from outside to inside so YMMV on what fits.




    If anyone wants any additional info/pics/measurements you've got a few days to hit me up and ask while this box sits here drying out before I reinstall.

    ZMan2k2 and D. Lengua like this.
  2. Dec 11, 2022 at 4:24 PM
    #2
    soundman98

    soundman98 Well-Known Member

    Joined:
    May 31, 2021
    Member:
    #367288
    Messages:
    1,672
    Gender:
    Male
    Indiana
    Vehicle:
    '18 Taco Sport, '14 Ranger
    what diameter is the sub(inside mounting hole and outside perimeter)?

    i'm wondering if a ford dvc 8" sub would be a simple upgrade for a lot of people. they're pretty easy to come by, and spec out reasonable.
    https://www.ebay.com/itm/114417862996

  3. Dec 11, 2022 at 4:42 PM
    #3
    clenkeit

    clenkeit [OP] Well-Known Member

    Joined:
    Apr 30, 2019
    Member:
    #291841
    Messages:
    1,874
    First Name:
    Colin
    Lakewood, CA
    Vehicle:
    2010 White DCLB TRD Sport
    That sub seems a bit expensive for what it is. For round about that same cost you can get a Rockford Fosgate P3SD2-8 which others have had decent luck using with the stock amp.

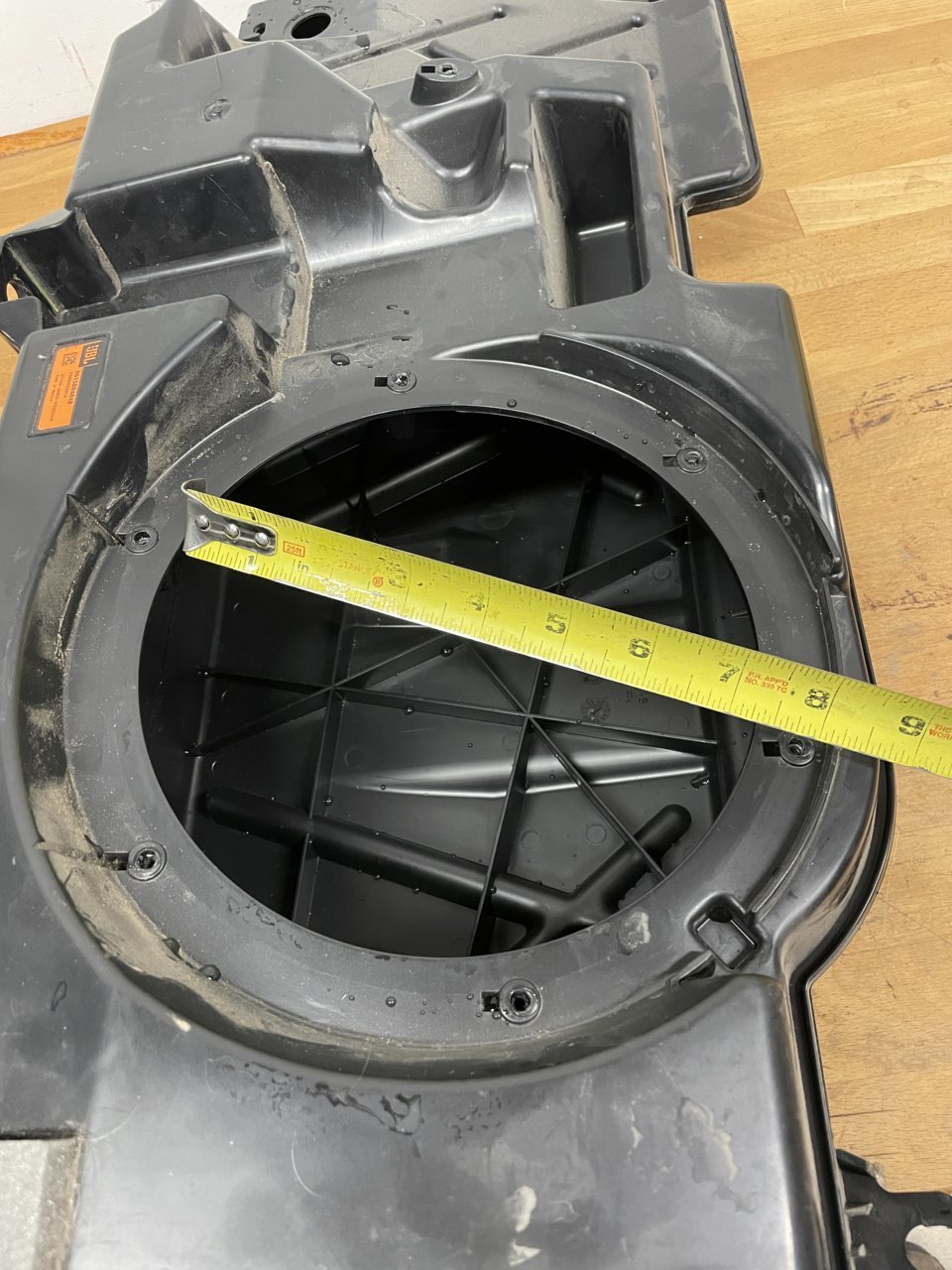

    The factory opening is 7.375" diameter.

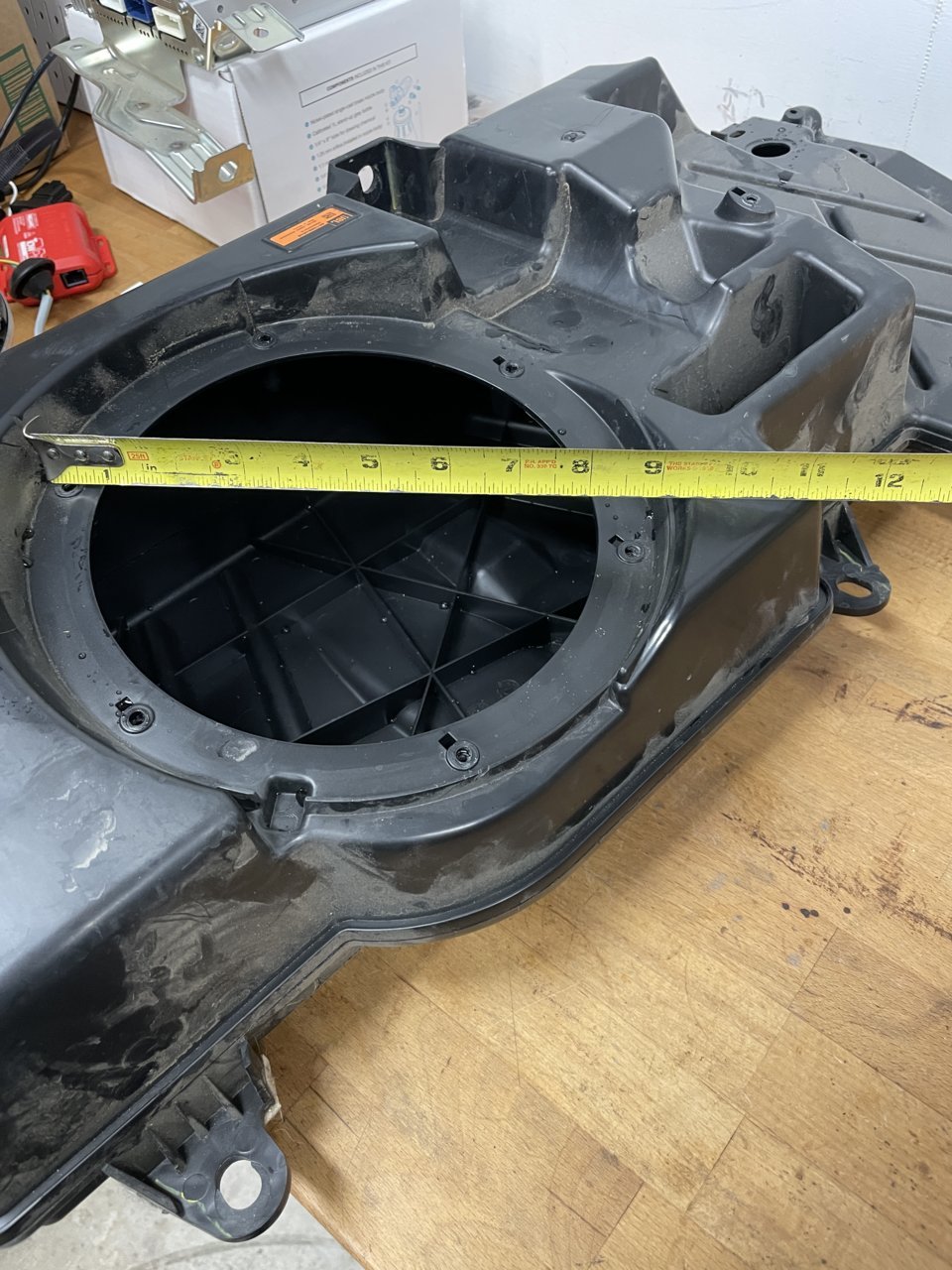

    Overall recess in the box (maximum overall diameter of outside of subwoofer) is 9.0" diameter.

    soundman98[QUOTED] likes this.
  4. Dec 11, 2022 at 4:55 PM
    #4
    soundman98

    soundman98 Well-Known Member

    Joined:
    May 31, 2021
    Member:
    #367288
    Messages:
    1,672
    Gender:
    Male
    Indiana
    Vehicle:
    '18 Taco Sport, '14 Ranger
    yeah i was trying to dig in my saved sites, there used to be a link i had somewhere they were selling for $25/ea.

    they're at least readily available from junk yards for scrap value, ford put them in a good part of their lineup '06-12. i got 3 of them through 2 different yards. 2 of mine were out of a 2010 mustang, 3rd was out of an explorer or excursion, i think.

    they're made really nice, bumped back plate, rubber surround, thick pressed pulp paper cone, even has coil venting. magnets a little small and the 1.6ohm per coil is odd, but series the coils, and it'd be close enough to 3 ohms most amps would be happy running it. with the jl system, a single coil might even be what the amp is needing, iirc, those were 1 ohm speakers in a lot of that setup.

    i just checked the dimensions-- 7-1/4" cutout, 8-3/4" overall, and 3-1/4" depth. they would work.

  5. Dec 11, 2022 at 5:10 PM
    #5
    clenkeit

    clenkeit [OP] Well-Known Member

    Joined:
    Apr 30, 2019
    Member:
    #291841
    Messages:
    1,874
    First Name:
    Colin
    Lakewood, CA
    Vehicle:
    2010 White DCLB TRD Sport
    Yeah, if you could get them cheap then it may be worth testing out. Cheap replacement if your stock JBL is blown but seems unlikely it'd be a huge upgrade - but who knows.

    Also, the stock JBL sub is a dual ohm unit. Not sure how picky the stock amp is about impedance but that Ford one is pretty close and just a little on the low side.

    ZMan2k2 and soundman98[QUOTED] like this.
  6. Dec 12, 2022 at 7:19 AM
    #6
    ZMan2k2

    ZMan2k2 “Hold my beer and watch this!”

    Joined:
    Aug 28, 2011
    Member:
    #62491
    Messages:
    1,705
    Gender:
    Male
    First Name:
    Richard
    ‘Berta
    Vehicle:
    06 Rad Red DCLB SR5
    Nicely done sir! This should answer a lot of questions for people in the future. :cheers:
