JeepAndrew's Jetski Trailer-to-Offroad RTT Hauler Build

Discussion in 'Other Builds' started by JeepAndrew, Apr 7, 2014.

  1. Apr 7, 2014 at 6:15 PM
    #1
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,232
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.

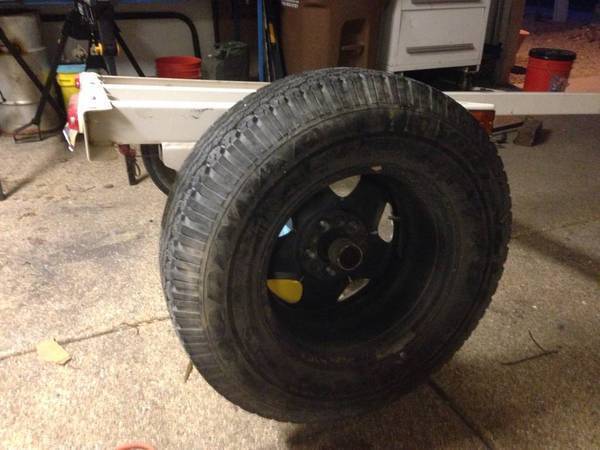

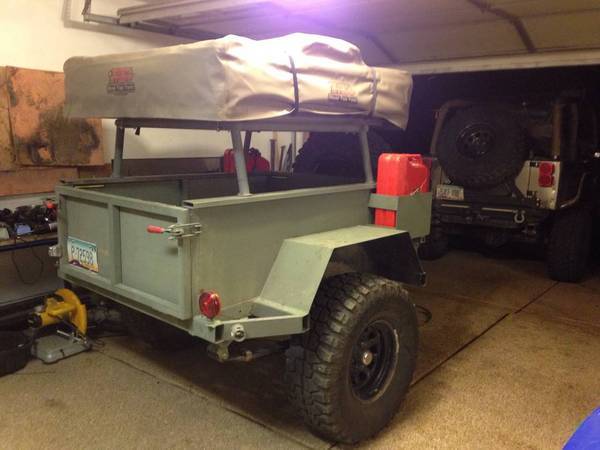

    Teaser pics:cool:

    [​IMG]

    [​IMG]

    Since camping out of a two door Jeep Wrangler sucks (lack of cargo space) and I'm in the market for a roof top tent, I made the long overdue decision that I needed an offroad/camping trailer. I wanted something Expo-style or similar to Boxrocket's trailer but didn't want to spend thousands of $$$ on a prebuilt trailer. I had a 3/4 ton single jetski/PWC trailer that I didn't use anymore, soo I put my building/fab skills to work!

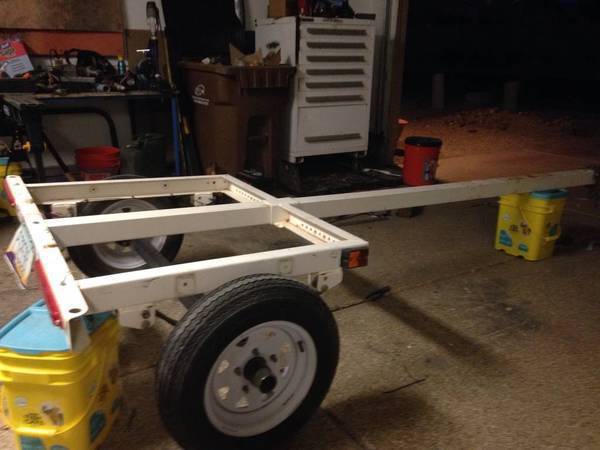

    This is how it looked when I rolled into the garage the night before I got started. The frame measured 46"x33" with a 10 foot total tongue bar length:

    [​IMG]

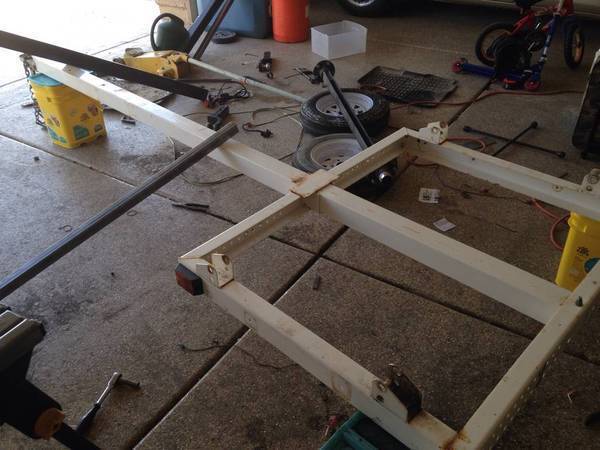

    The next day, I started by stripping the license plate and trailer lights, pulling the wheels, flipping the trailer over and stripping the old axle assembly.

    [​IMG]

    The original axle assembly wasn't wide enough to mount the 15x10 rims and 33" tires I wanted to run, so it was set aside to have the carrier/hub assemblies removed from the old axle bar. On the good side, I checked the lug pattern with my old stock spare jeep rim, and the hubs just happened to be 5x4.5 bolt pattern, same as my jeeps!

    [​IMG]

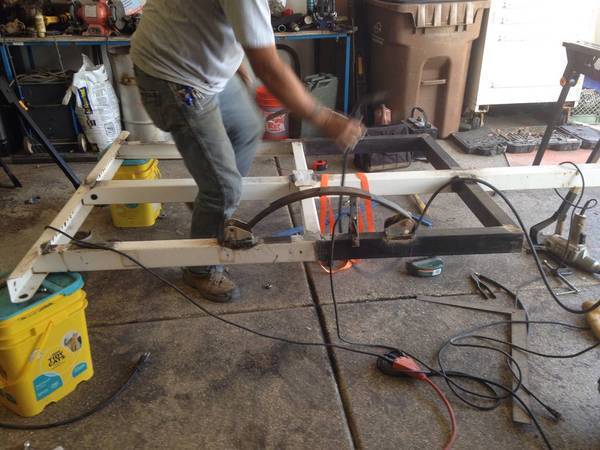

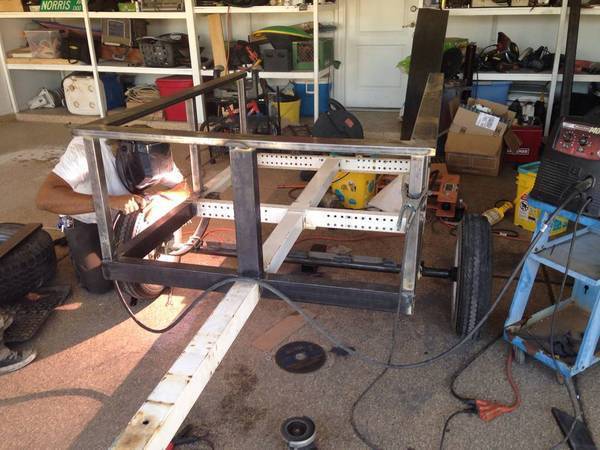

    I enlisted the help of CrawlinWJ and his welding skills to help me extend the trailer frame from the stock 33" to 62". This was done with 2"x3"x1/8" box steel. I used 1/8" to match the thickness of the stock C-channel frame. All weld joints were cleaned of paint beforehand of course.

    We determined the balance point on the trailer and set the axle centerline 4 inches behind that to give it a good tongue weight, then we set the spring perches in place, double-checked our measurements, and welded them on.

    [​IMG]

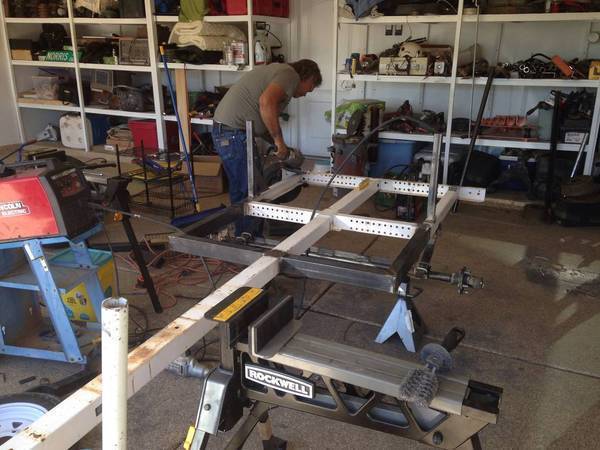

    I then measured the hub-to-hub width on the rear axle on my jeep (approx 58"). We cut a piece of 1.25x.250 round tube, 53" long. We then cut the old hub assemblies and spring mounts off of the old C-channel axle bar, cleaned off the round spindle bars with a flap wheel and slid them into the tube, then did 4 rosette welds on each end to secure them. End result was a hub-to-hub of 58". The spring mounts were then welded onto the new axle tube, and bolted to the springs. Next came the sides:

    [​IMG]

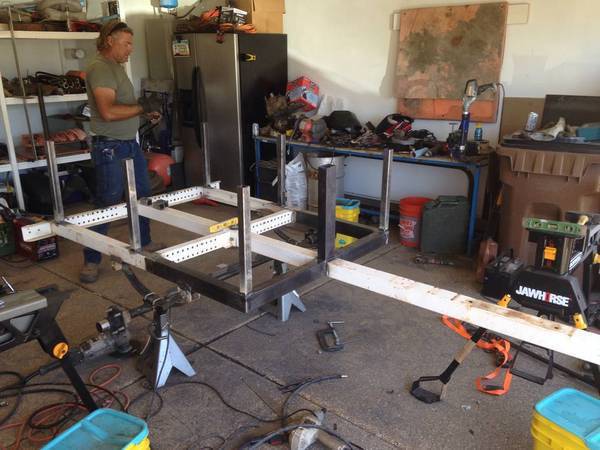

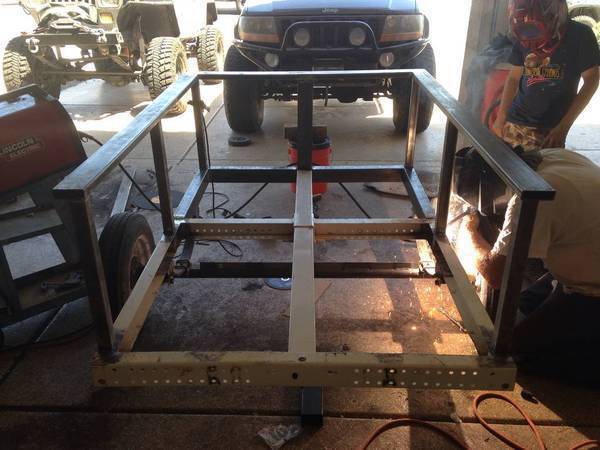

    I went with 6-1.5x1.5x1/8", 18" long for the siderail uprights, with a 2x3x1/8 at front-center above the tongue bar to support the spare rim and tire. Here it is with the axle mounted and side uprights done.

    [​IMG]

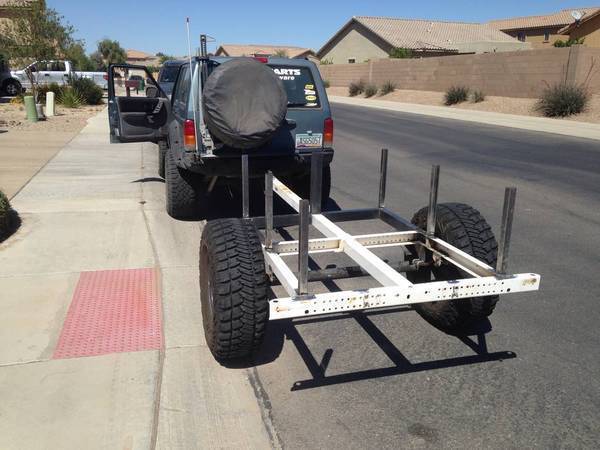

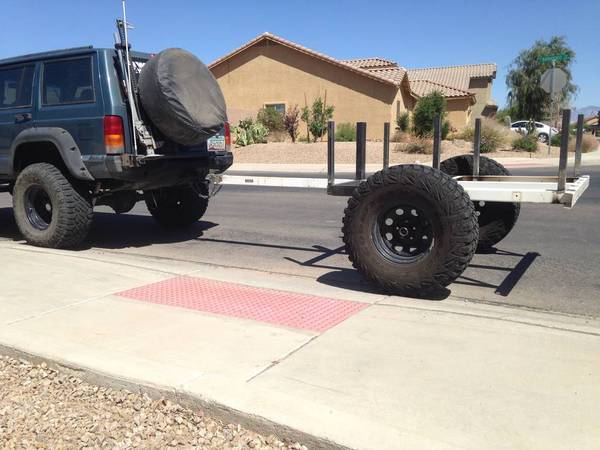

    At this point I wanted to test it out, so I borrowed two of the 33" MTRs off my wrangler and hooked it up to my Cherokee for a run around the neighborhood. It tracked straight and is very light!

    [​IMG]

    [​IMG]

    I used the stock 1-7/8 ball hitch for the test but will be getting either a Lock-n-roll or Max Coupler for permanent use. I'll also be reducing the tongue length later on (depending on which hitch I go with).

    The build continues!!:D

    http://www.tacomaworld.com/forum/ot...ler-offroad-rtt-hauler-build.html#post8508587

    http://www.tacomaworld.com/forum/ot...r-offroad-rtt-hauler-build-2.html#post8526839

    http://www.tacomaworld.com/forum/ot...r-offroad-rtt-hauler-build-3.html#post8532844

    http://www.tacomaworld.com/forum/ot...r-offroad-rtt-hauler-build-3.html#post8537152

    http://www.tacomaworld.com/forum/ot...r-offroad-rtt-hauler-build-3.html#post8544761

    http://www.tacomaworld.com/forum/ot...r-offroad-rtt-hauler-build-3.html#post8549156

    http://www.tacomaworld.com/forum/ot...r-offroad-rtt-hauler-build-5.html#post8890710

    Last edited: May 2, 2015
  2. Apr 7, 2014 at 6:26 PM
    #2
    POOLGUY

    POOLGUY Well-Known Member

    Joined:
    Feb 19, 2013
    Member:
    #97958
    Messages:
    363
    Gender:
    Male
    First Name:
    JEFF
    ALABAMA
    Vehicle:
    08 TRD SPORT 6 SPEED
    CUSTOM SAFARI RACK, CUSTOM TABLET MOUNT, REAR HELPER SPRINGS AND FRONT LEVELING KIT
    sub'd

  3. Apr 7, 2014 at 6:43 PM
    #3
    05Aztacoma

    05Aztacoma Well-Known Member

    Joined:
    Jul 5, 2012
    Member:
    #82006
    Messages:
    2,509
    Gender:
    Male
    First Name:
    Luis
    Tempe, Az
    Vehicle:
    05 Tacoma 4x4
    Almost Stock
  4. Apr 7, 2014 at 6:52 PM
    #4
    nfs257

    nfs257 Well-Known Member

    Joined:
    Jun 22, 2011
    Member:
    #58691
    Messages:
    5,871
    Gender:
    Male
    First Name:
    Chris
    San Diego
    Vehicle:
    09 DCLB PreRunner MGM SR5 Debadged
    Trac Performance built Prerunner
  5. Apr 7, 2014 at 6:56 PM
    #5
    MJonAgs32

    MJonAgs32 asphinctersayswhat?

    Joined:
    Apr 14, 2009
    Member:
    #15949
    Messages:
    9,211
    Gender:
    Male
    First Name:
    MJ
    Union City, CA (SF Bay Area)
    Vehicle:
    07 Mid-Travel 4x4 DCSB 6spd
    check out my build
  6. Apr 7, 2014 at 7:21 PM
    #6
    snowtank

    snowtank whys the rum gone

    Joined:
    Sep 14, 2012
    Member:
    #86930
    Messages:
    9,285
    Gender:
    Male
    First Name:
    Andrew
    Arizona
    Vehicle:
    11 txpro dcsb 08 trd sprt dcsb
    Some stuff here and there....
    Oh in for this!:popcorn: and cant wait to see this with us on the trail!

  7. Apr 7, 2014 at 7:35 PM
    #7
    Crawlin WJ

    Crawlin WJ Fuck that rock.

    Joined:
    Dec 5, 2013
    Member:
    #117957
    Messages:
    341
    Gender:
    Male
    First Name:
    Derrick
    Tucson Az.
    Vehicle:
    99 Jeep Wrangler
    gonna be a bad ass trailer. :)

  8. Apr 7, 2014 at 7:40 PM
    #8
    NewRider

    NewRider Well-Known Member

    Joined:
    Aug 15, 2012
    Member:
    #84801
    Messages:
    1,637
    Gender:
    Male
    First Name:
    Travis, Truck: Baja
    Harrisonburg, Va
    Vehicle:
    '06 AC TRD Sport, Indigo Ink
    1. bought it... 2. Mud flap delete 3. BHLM 4. AUX input on factory stereo 5....... Check the build
    subd... even if a heep is town it, I'm sure it'll be an awesome trailer!

  9. Apr 7, 2014 at 7:41 PM
    #9
    Li0nel1234

    Li0nel1234 Well-Known Member

    Joined:
    Dec 15, 2013
    Member:
    #118634
    Messages:
    397
    Gender:
    Male
    First Name:
    Lionel
    Denver
    Vehicle:
    14 TRD OR DCSB SSM
    I'm curious... subbed.

  10. Apr 7, 2014 at 7:44 PM
    #10
    Brian007Taco

    Brian007Taco 007Taco

    Joined:
    May 16, 2012
    Member:
    #78964
    Messages:
    14,974
    Gender:
    Male
    First Name:
    Don't ask!
    Mesa, Arizona
    Vehicle:
    06 TRD Off-road Prerunner
    OME 885 with 5100's in front, TSB and AAL with 5125's in back. 30" light bar in the valance.
  11. Apr 7, 2014 at 7:45 PM
    #11
    headhunter247

    headhunter247 Well-Known Member

    Joined:
    Oct 16, 2008
    Member:
    #10013
    Messages:
    1,303
    Gender:
    Male
    St. Louis, MO area
    Vehicle:
    13 Taco Double Cab TRD
    Bilstein 5100's all around, front set at 2.5", Toytec AAL, 265/75/16 Duratracs, Pro Comp 5001, Weathertech's, AVS In Channel Visors, Nokya Hyper Yellow fogs, CB Set up, Color matched grill surround and bumper, ATC Camper Shell with Yakima Racks.
  12. Apr 7, 2014 at 9:26 PM
    #12
    JTS2014TACO

    JTS2014TACO Well-Known Member

    Joined:
    May 1, 2013
    Member:
    #103303
    Messages:
    4,310
    Gender:
    Male
    First Name:
    Jamie
    Chandler, AZ
    Vehicle:
    2014 4x4 DCSB TRD O/R
    Bilstein 5100 at the highest setting on stock springs in the front, bilstein 5100 rear shocks, limo tint, antenna x short antenna
    Sub a dub dubbed :popcorn:

  13. Apr 8, 2014 at 9:21 AM
    #13
    Seabass

    Seabass I need to go return some videotapes...

    Joined:
    Apr 2, 2010
    Member:
    #34455
    Messages:
    5,096
    Gender:
    Male
    First Name:
    Adam
    AZ
    Vehicle:
    '06 Sport 4x4
    <insert thief bait here>
    three men in a tub'd

  14. Apr 10, 2014 at 12:20 PM
    #14
    Moose1988

    Moose1988 ____livevil____

    Joined:
    May 29, 2011
    Member:
    #57449
    Messages:
    14,523
    Gender:
    Male
    First Name:
    Josh
    Chandler, AZ
    Vehicle:
    THE BOOSTED STORMTROOPER
    Check Build >>>>
    :wave:

    Lookin good Buddy! :thumbsup:

  15. Apr 10, 2014 at 1:04 PM
    #15
    snowtank

    snowtank whys the rum gone

    Joined:
    Sep 14, 2012
    Member:
    #86930
    Messages:
    9,285
    Gender:
    Male
    First Name:
    Andrew
    Arizona
    Vehicle:
    11 txpro dcsb 08 trd sprt dcsb
    Some stuff here and there....
    Its been 3 days since new photos! Get back to work. And text inbound about the "super awesome cooking platform"

  16. Apr 10, 2014 at 1:47 PM
    #16
    Seabass

    Seabass I need to go return some videotapes...

    Joined:
    Apr 2, 2010
    Member:
    #34455
    Messages:
    5,096
    Gender:
    Male
    First Name:
    Adam
    AZ
    Vehicle:
    '06 Sport 4x4
    <insert thief bait here>
    Is this thing done yet?

  17. Apr 10, 2014 at 1:48 PM
    #17
    jberry813

    jberry813 The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    13,595
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    Resurrected LT TRD S/C 4x4
    TRD Supercharger, URD 7th Injector Kit, Total Chaos LT, King Coilov....too much shit to list.
  18. Apr 10, 2014 at 5:31 PM
    #18
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,232
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.
    Hey now fellas, ya can't rush perfection :cool: I'll be purchasing the additional needed materials tomorrow afternoon :)

  19. Apr 10, 2014 at 5:48 PM
    #19
    Toyanvil

    Toyanvil Well-Known Member

    Joined:
    Oct 11, 2012
    Member:
    #88807
    Messages:
    162
    Gender:
    Male
  20. Apr 13, 2014 at 3:20 PM
    #20
    JeepAndrew

    JeepAndrew [OP] Jeep driving High Voltage junkie

    Joined:
    Jan 28, 2013
    Member:
    #96314
    Messages:
    2,232
    Gender:
    Male
    First Name:
    Andrew
    Tucson, AZ
    Vehicle:
    '93 Jeep Wrangler YJ/'97 Jeep Cherokee XJ
    --(97 XJ) 6.5 inch Pro-comp front coils, 3 inch Pro-comp rear leaves, 2 inch shackles, custom Ballistic Fab trac bar w/ custom drop bracket, Rubicon Express control arms, 33-12.5-15 Goodyear Duratracs on steelies, bushwacker fender flares, custom rock sliders, XRC front winch bumper, XRC rear recovery bumper with custom swing-away tire carrier, custom hood vent, cobra CB/4 foot firestik --(93 YJ) custom all-around spring-over-axle swap with custom springs and shackles and body lift elimination, front shackle reversal, S.Y.E.'d crawl-boxed transfer case with double-cardan front and rear driveshafts, 33-12.5-15 Goodyear MTR Kevlars on 15x12 steelies, warn front recovery bumper w/10K XRC winch, rear XRC recovery bumper w/tire carrier, locking center console box, custom tube fenders/rock sliders, 50 inch LED lightbar, 20" lightbar on bumper, overhead console, Cobra CB w/ bluetooth wireless headset, 5 foot firestik, onboard 120volt power.

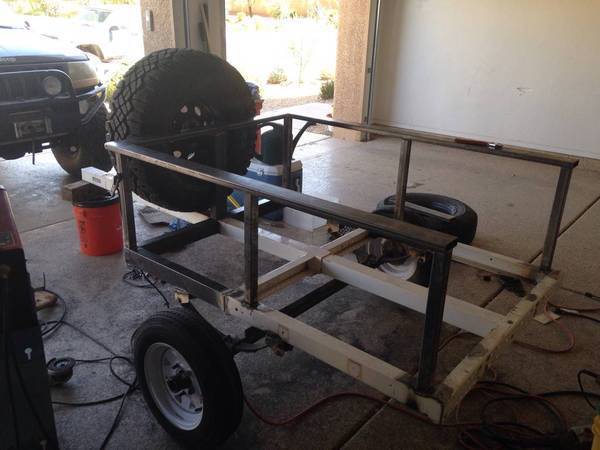

    Picked up the steel Friday to resume the trailer build. Today we got on it again, starting with the top rails on the sides. I went with 1'x3''x1/8 thick box for the top rails. The ends were cut to 45 degrees for the corners and welded on.

    I'm using the stock trailer wheels right now just for moveablility

    [​IMG]

    [​IMG]

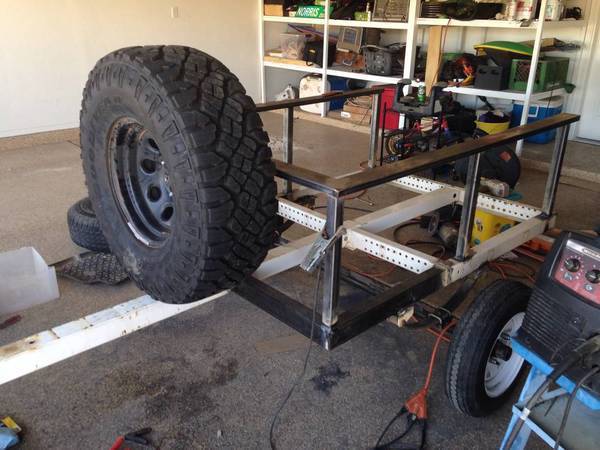

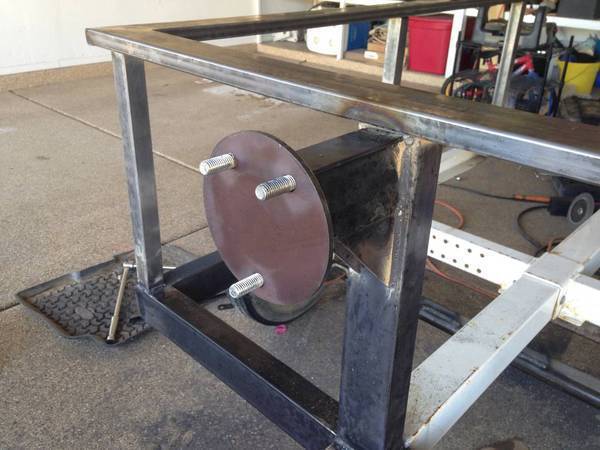

    Next came the spare tire carrier. For departure angle reasons, I wanted the carrier over the tongue bar. I used a 6" diameter, 3/16" round plate with three lug studs welded into it to mount the tire to. The round spare holder plate is welded to the center upright with a 6.5" piece of 2"x3"x1/8" with two precut 3/16" triangle gussetts for strength.

    [​IMG]

    I used the 33x12.50 spare off my Cherokee for a test fit. The tire just barely sits on the hitch bar, which should keep bouncing forces to a minimum.

    [​IMG]

    [​IMG]

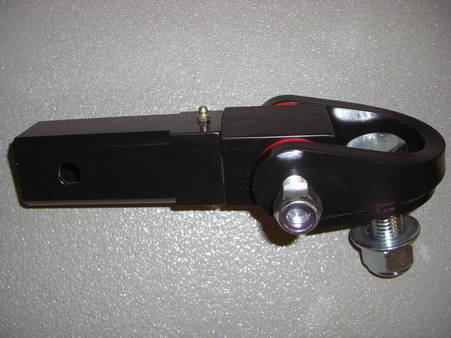

    Here's the trailer hitch system I went with; the Max Coupler :drool: Claimed to be the best offroad hitch system on the market. I ordered it yesterday afternoon so it should be here soon!

    [​IMG]

    I also picked up some 14 gauge sheet for the floor and sides and will be getting on that later today!
