    Seeing how this build is about to start "need to have it road worthy for MOAB" I figured I should start a build thread.
    This is going to be over the next 7 or 8 weekends as I don't have much time to spend on it. One day on the weekends is all I will be spending on it.

    Ive been collecting parts / materials for the last few weeks and im getting ready to start the build.

    Specs
    2" x 3" x .120 wall frame
    4' x 6' x 28.75" box
    Disk brakes with independent suspension & Air Ride Dominator D2500 Double Bellow Air Bags
    SCS stealth 6 wheels with 37"x 12.50 MTR's
    Custom made water tank
    BAMF built Swing out BBQ/smoker :cool:
    Tepui XL ruggedized tent
    On board power 200w solar panels Midnight solar the Kid MPPT controller and 125amp hour AMG battery
    Silver powder coat on the box with a dark grey texture powder coated frame and anodized blue powder coated suspension to match the truck.
    Lock N roll hitch

    Last edited: May 14, 2015
  2. Mar 18, 2014 at 9:31 PM
    #2
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    17,334
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

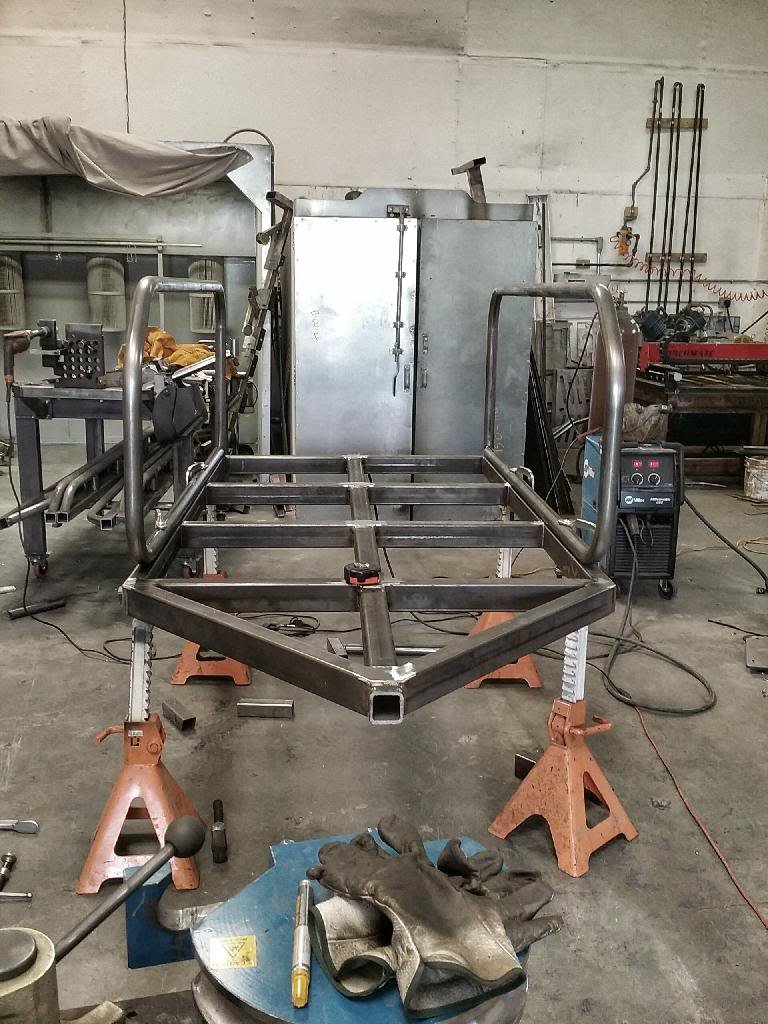

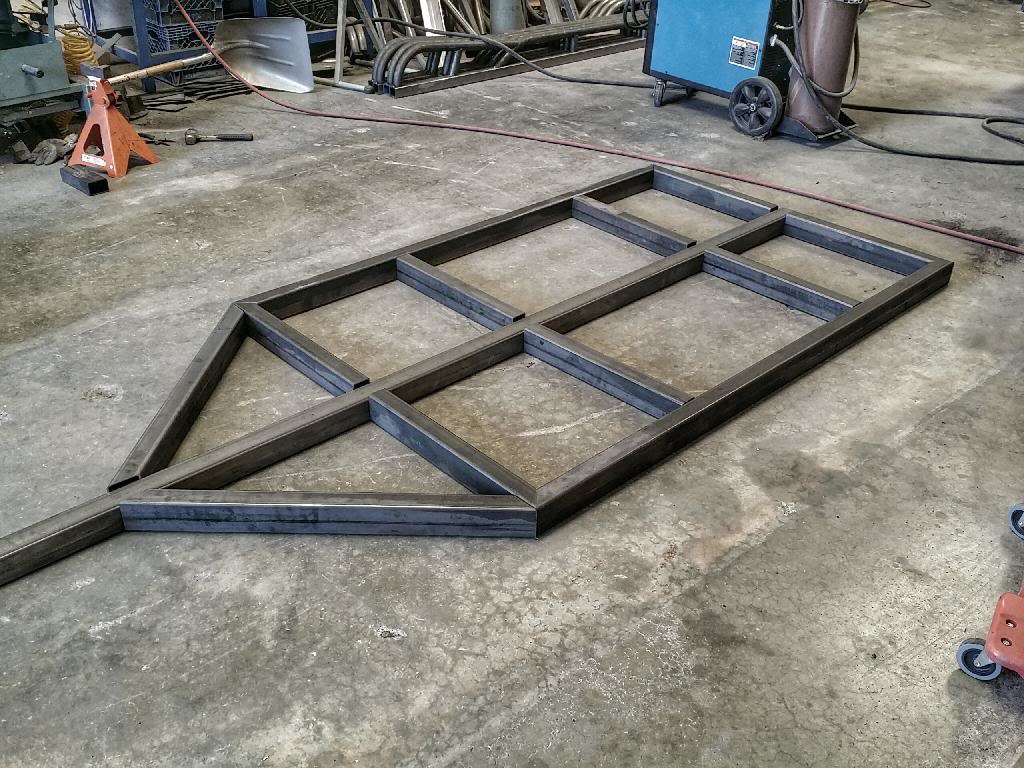

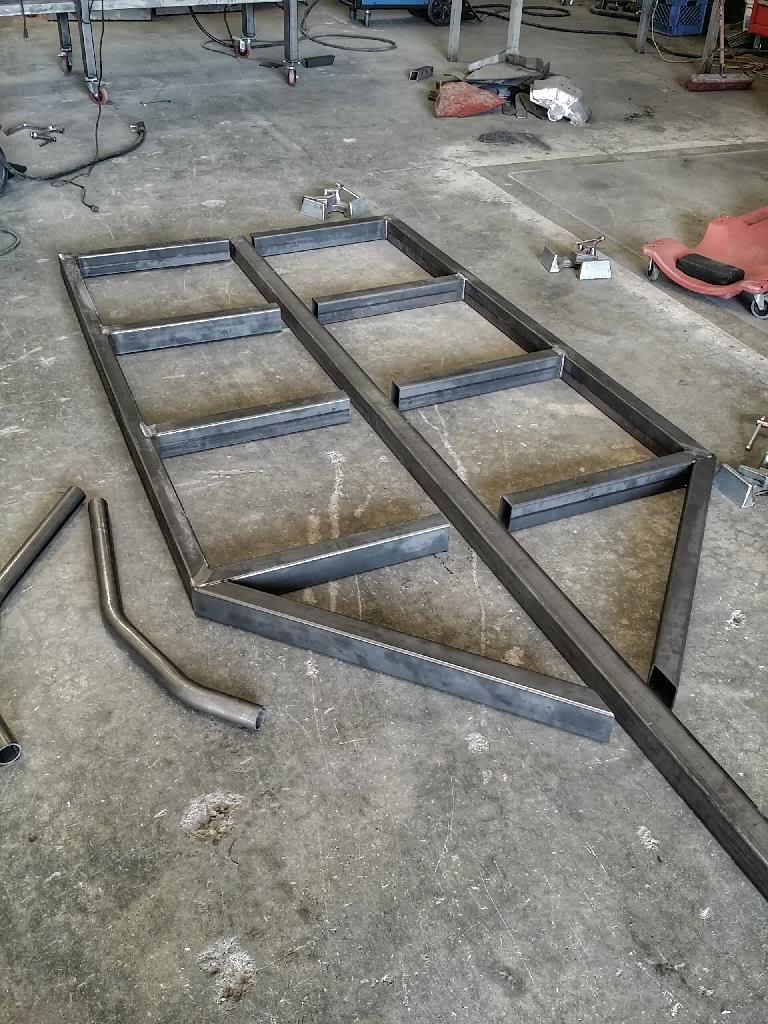

    Started the frame still waiting on the 2.5x2.5" x.250 wall tube for the receiver. This is just .120 wall.



    Last edited: Mar 23, 2014
  3. Mar 18, 2014 at 9:32 PM
    #3
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    17,334
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.

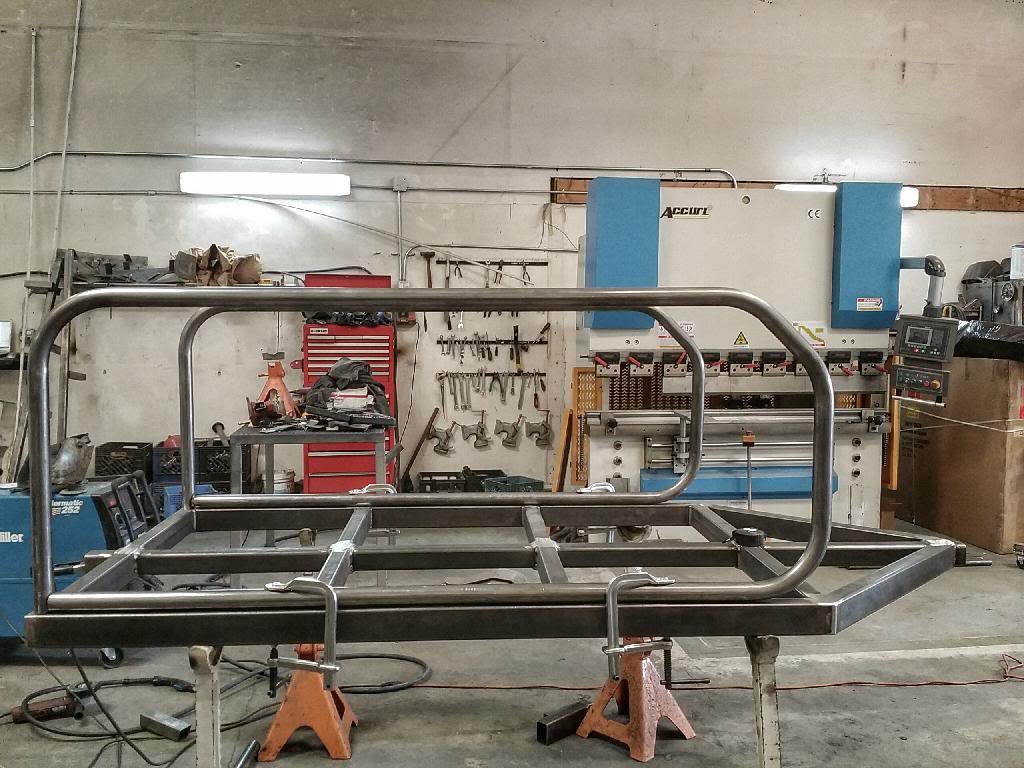

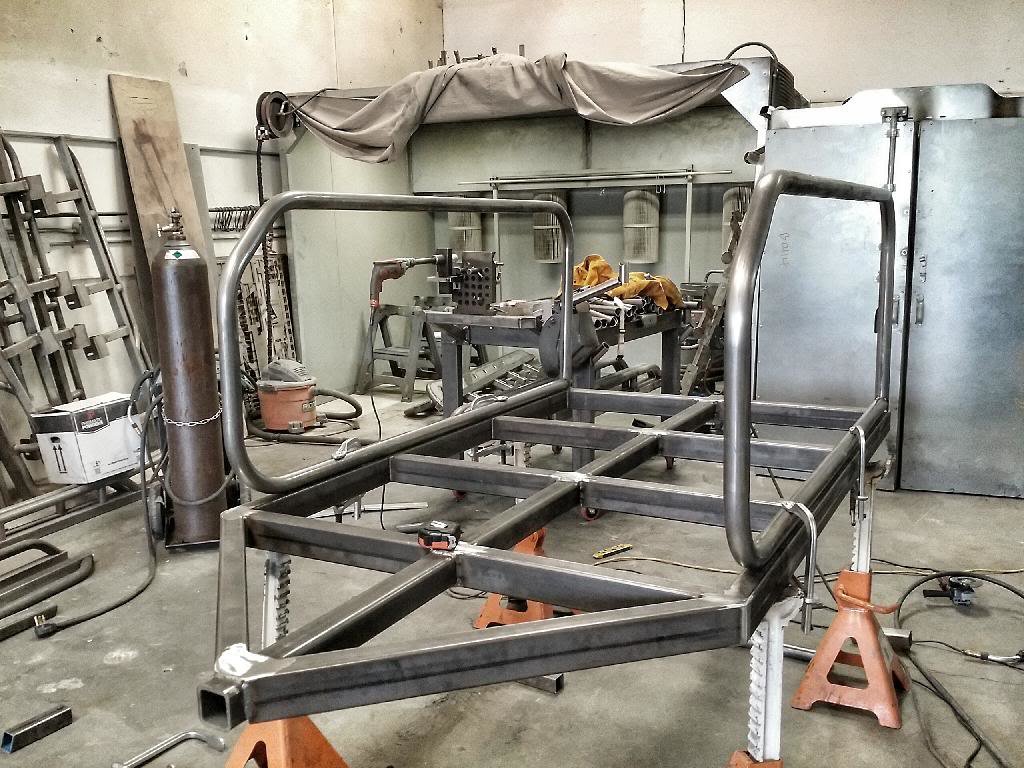

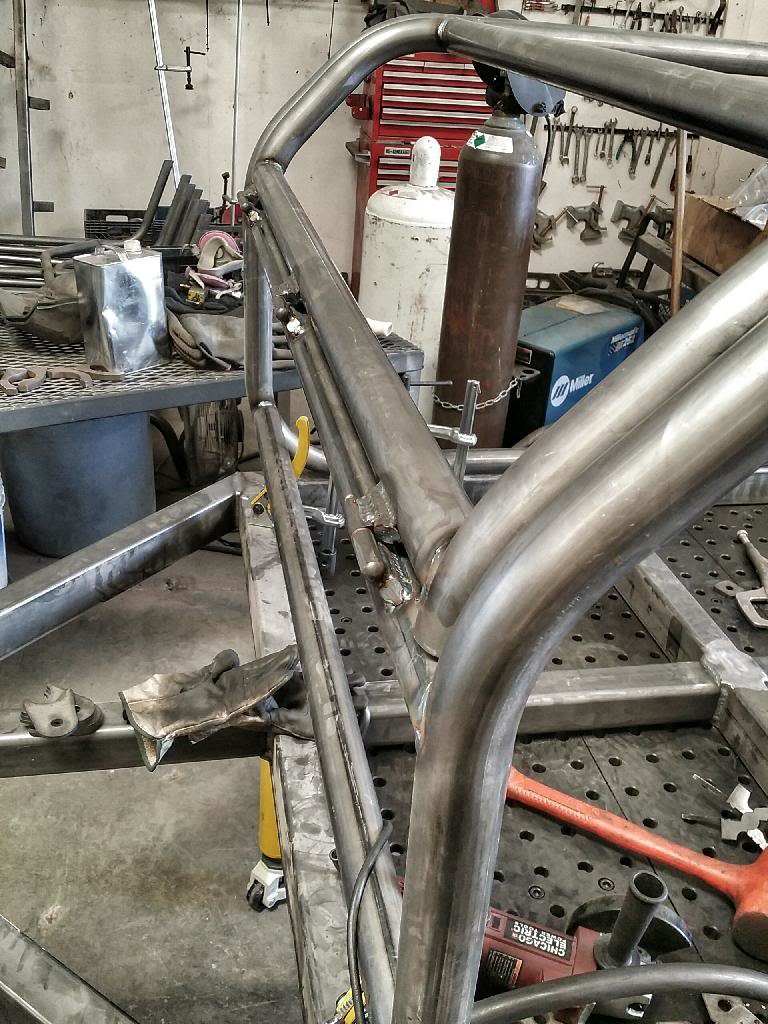

    I went with round tube for the box it's was a hell of a lot faster to just bend up 2 tubes and weld one joint then cutting and welding it all together. And It looks better :D the cross bars will be 1"x 1"x .065 wall square.I ended up lowering the box 1.25" to 28.75" just enough room for the 85Q fridge I'll be getting.






    4/12/14 i built the top lid.






    Last edited: Apr 12, 2014
    patbegley likes this.
  4. Mar 18, 2014 at 9:32 PM
    #4
    PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    21,922
    Gender:
    Male
    First Name:
    Brent
    Las Vegas, Nevada
    Vehicle:
    2003 Tacoma TRD 4X4
  5. Mar 18, 2014 at 9:32 PM
    #5
    JLee

    JLee [OP] The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    17,334
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    4/19/14

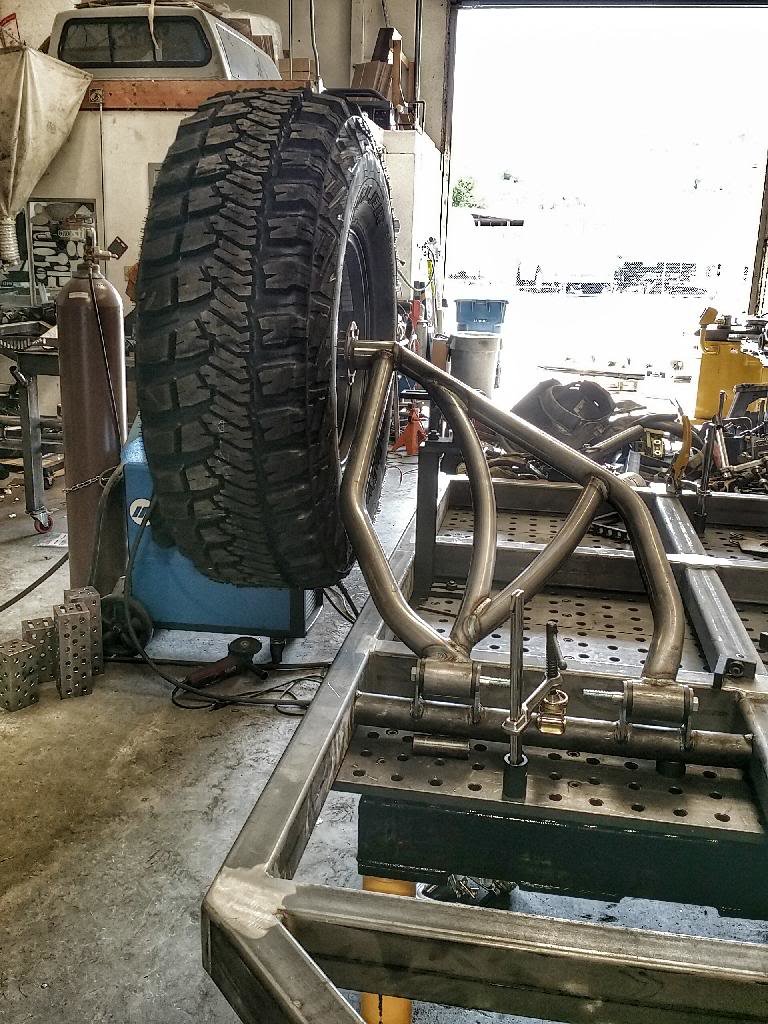

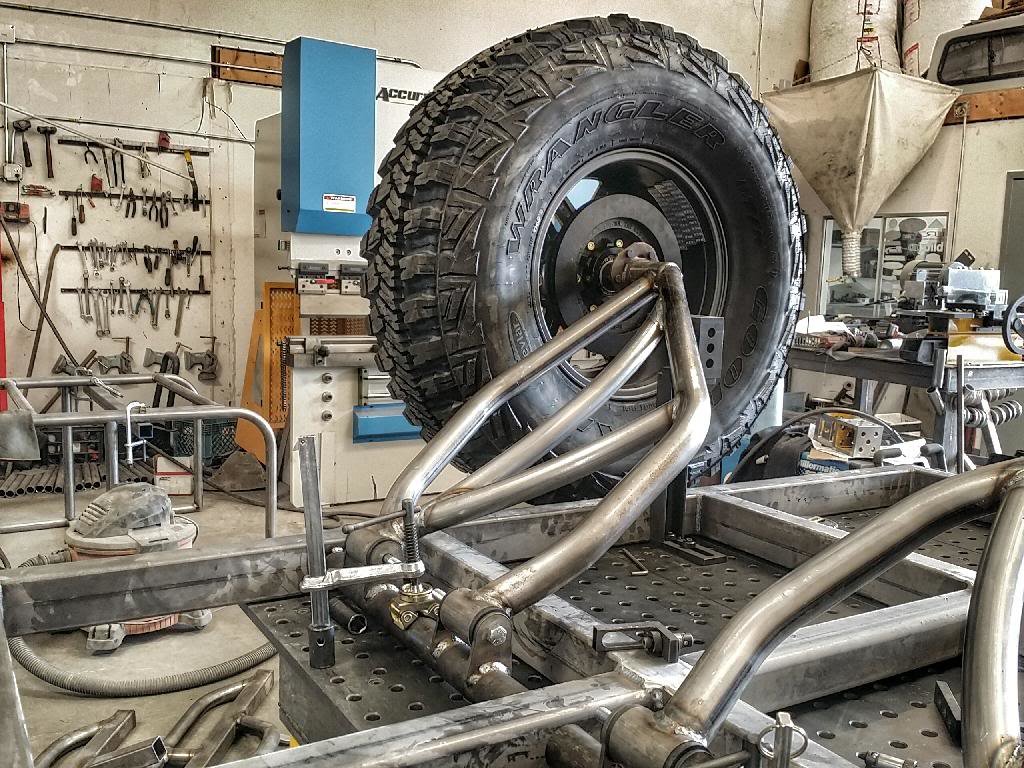

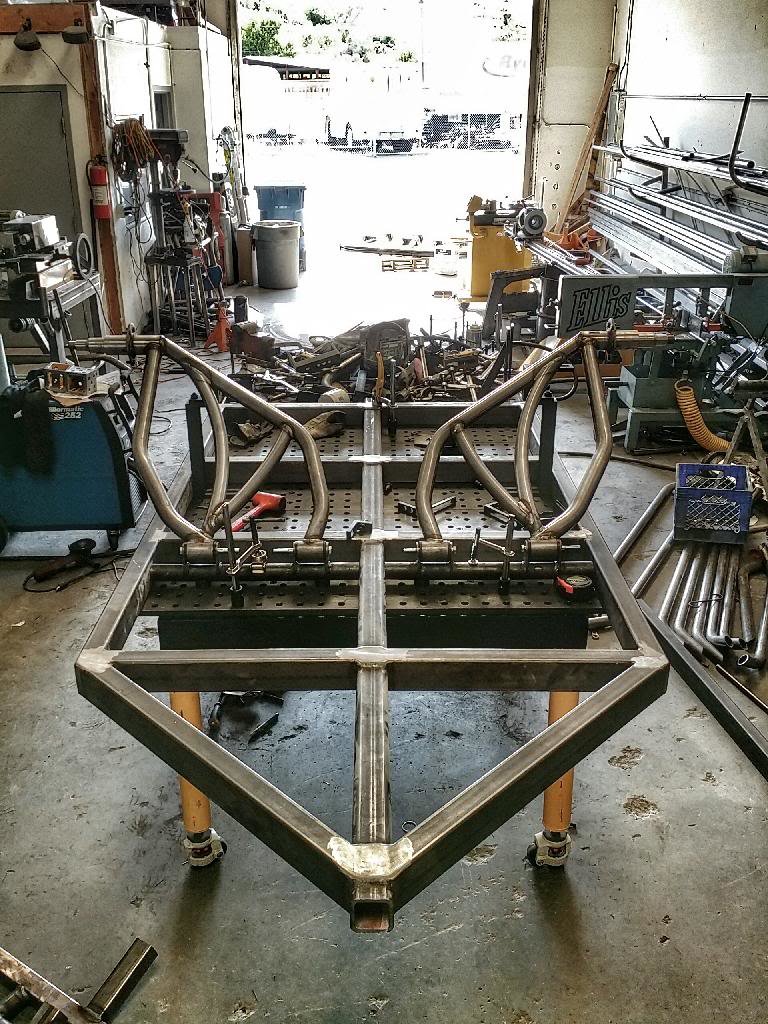

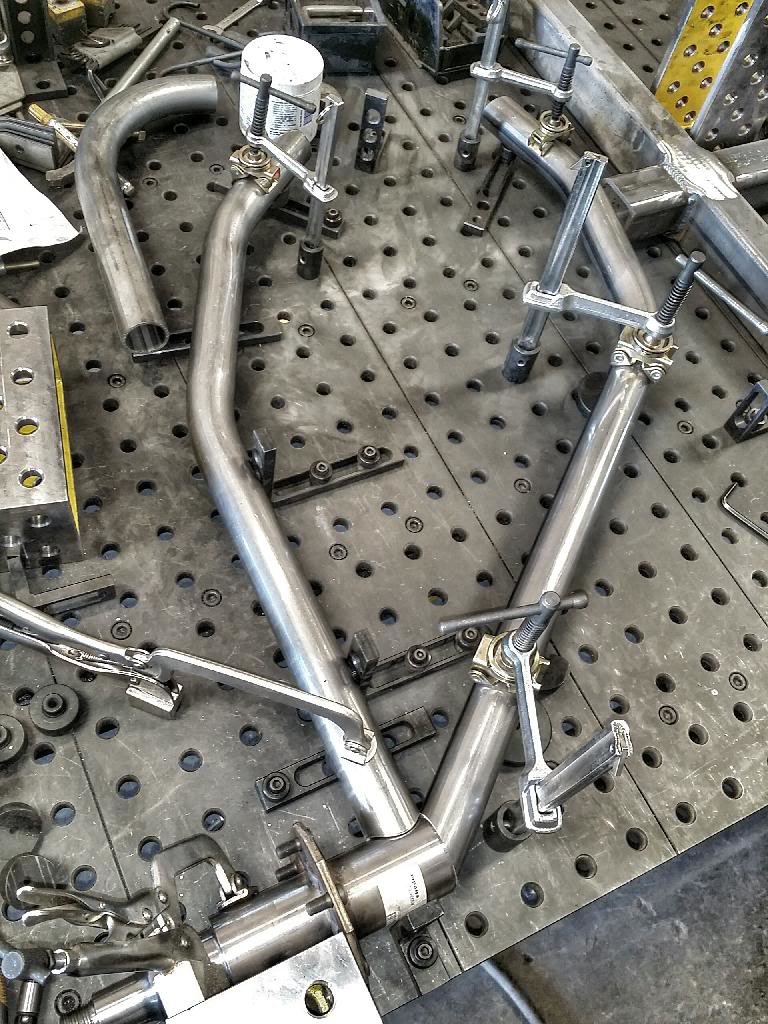

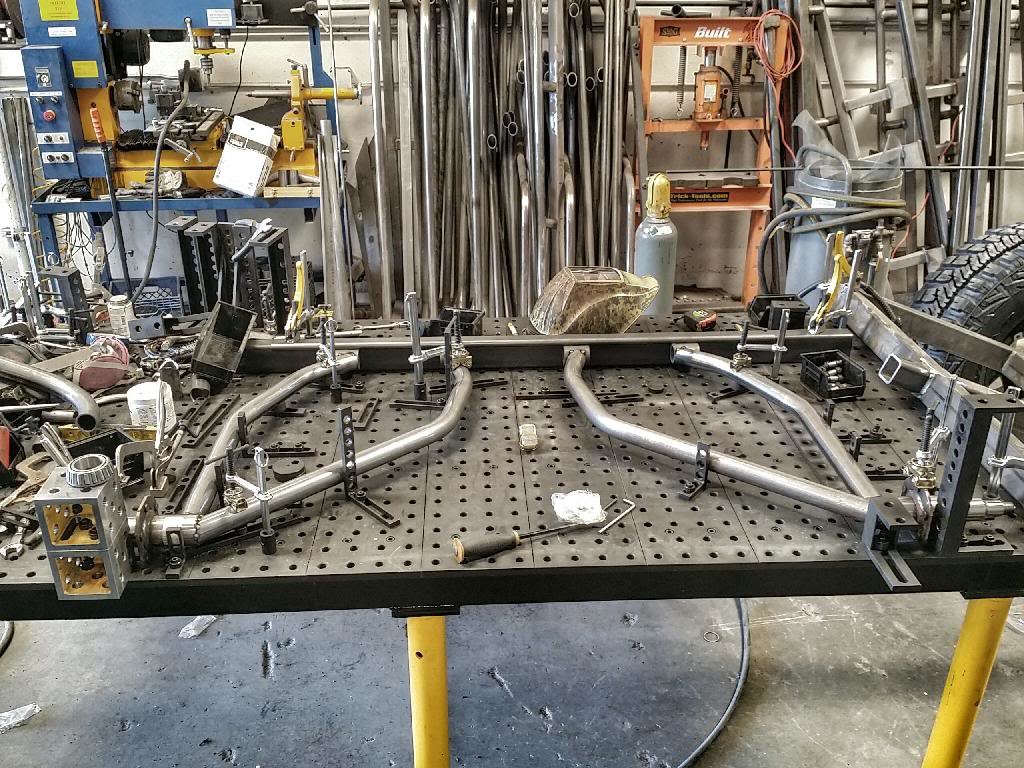

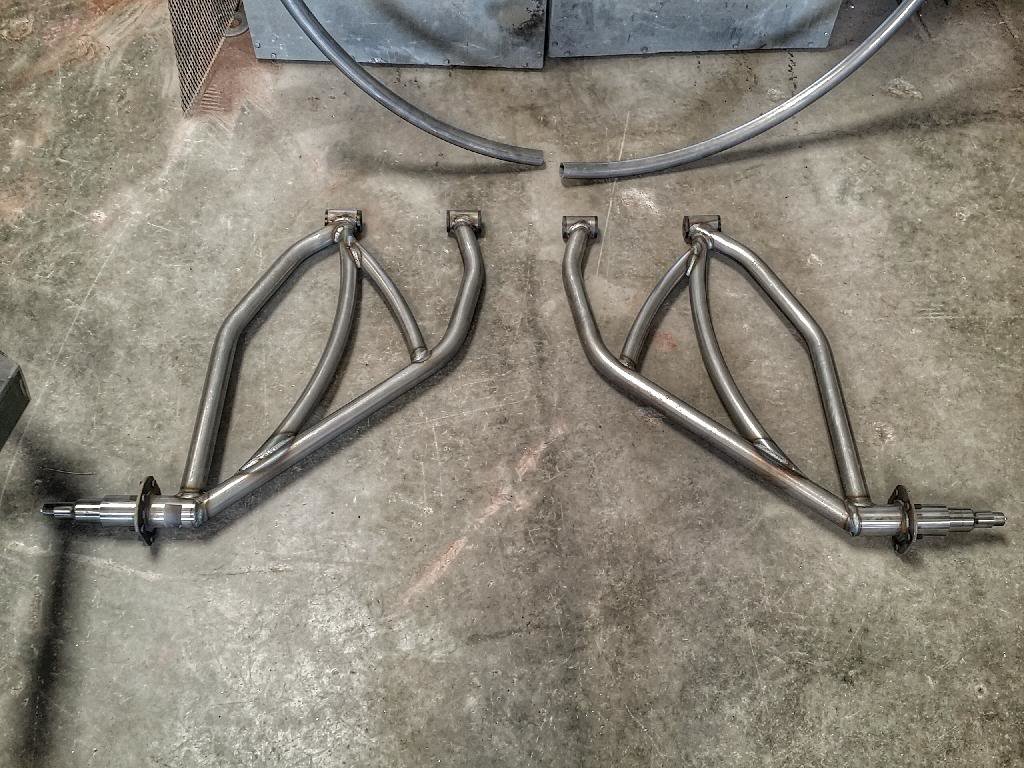

    I got the trailing arms built today It only took about 5 hours to get them designed and built Gota love the Build pro welding table :cool:

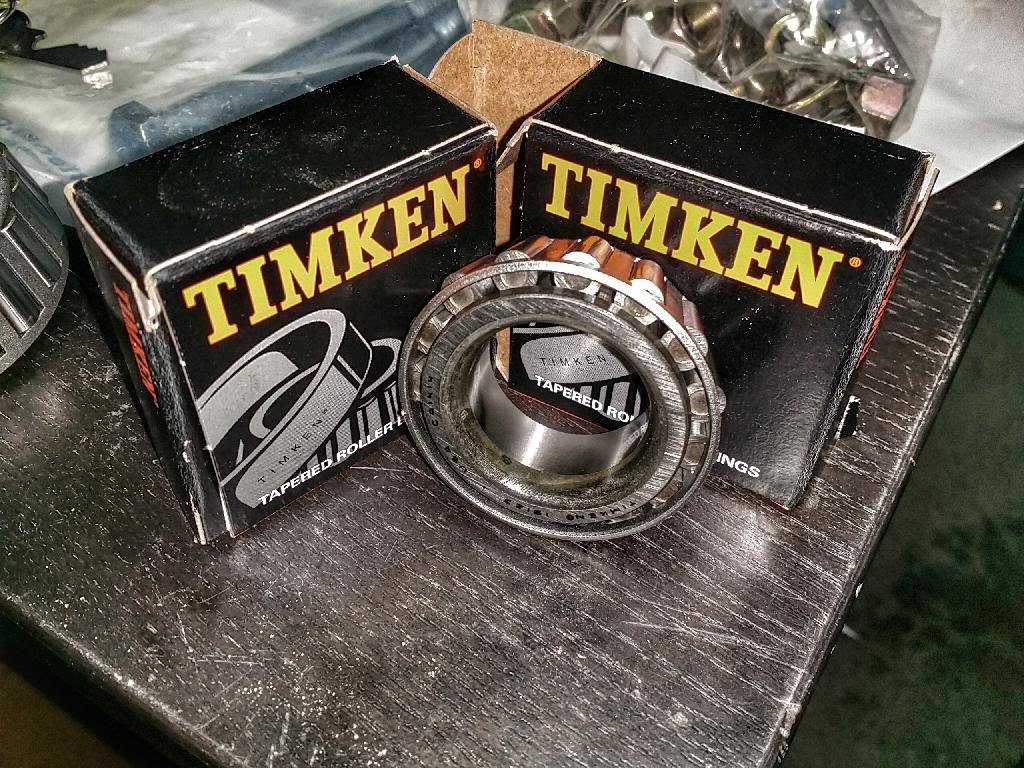

    I picked up the wheel bearings why not have the best :D

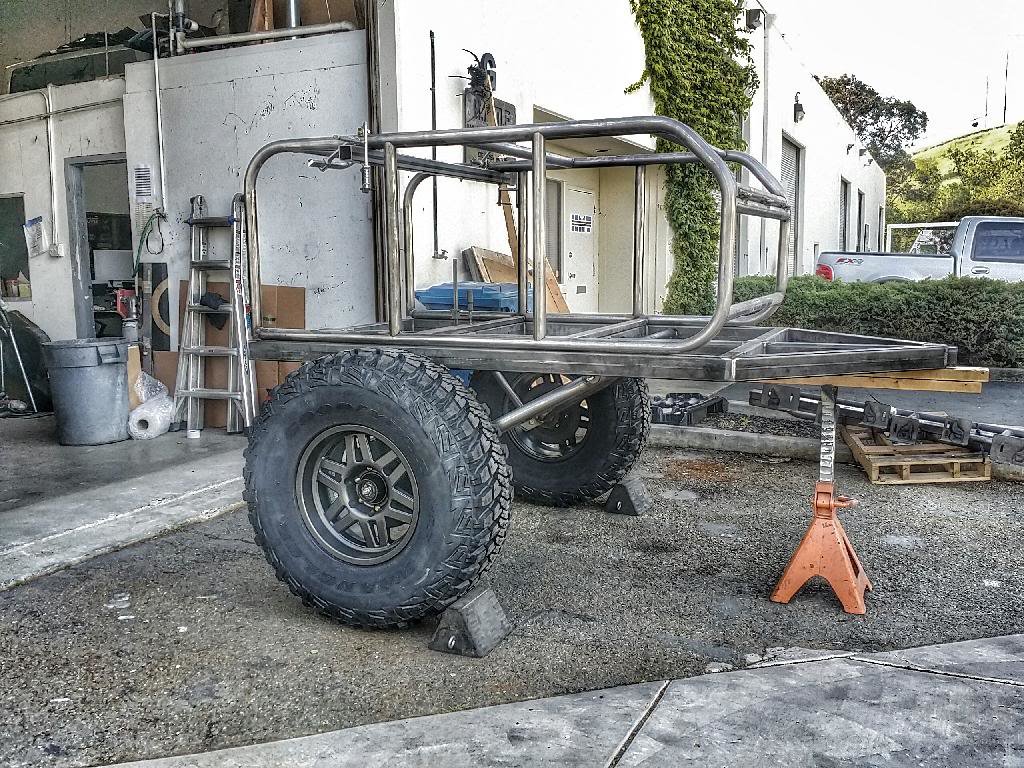

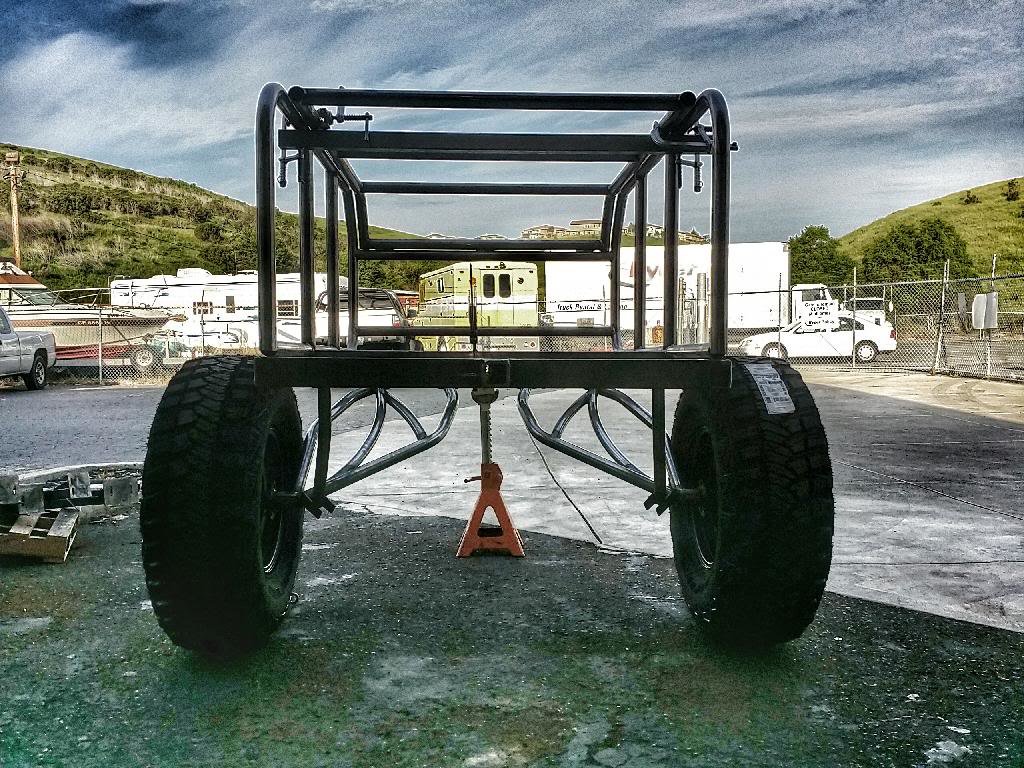

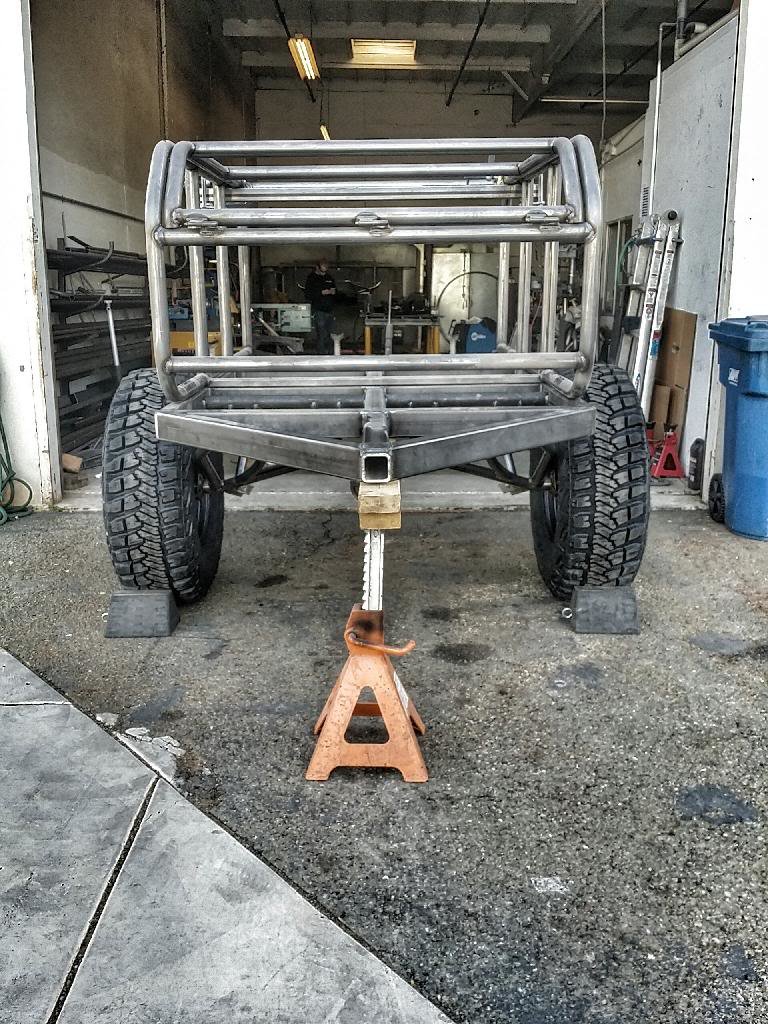

    So i flipped it over and installed the wheels so we can roll it out of the shop during the week. It's pretty damn sick if i do say so myself.


    Don't mind the lean I just have scrap tube in place of the struts so we can roll it around.



    4/26/14

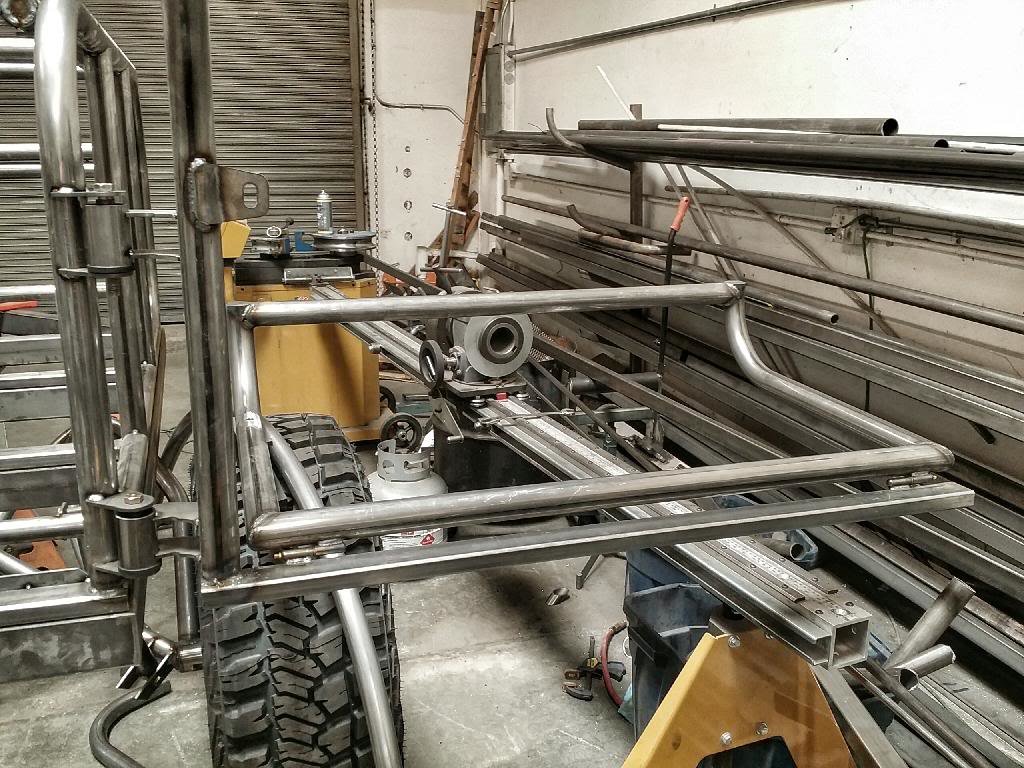

    I got the tailgate just about done today I really didnt think it would take 9 hours to build it but I had a wild idea to make a spot for my camp stove.

    It swings out and flips down my stove will be mounted on the gate for easy setup.

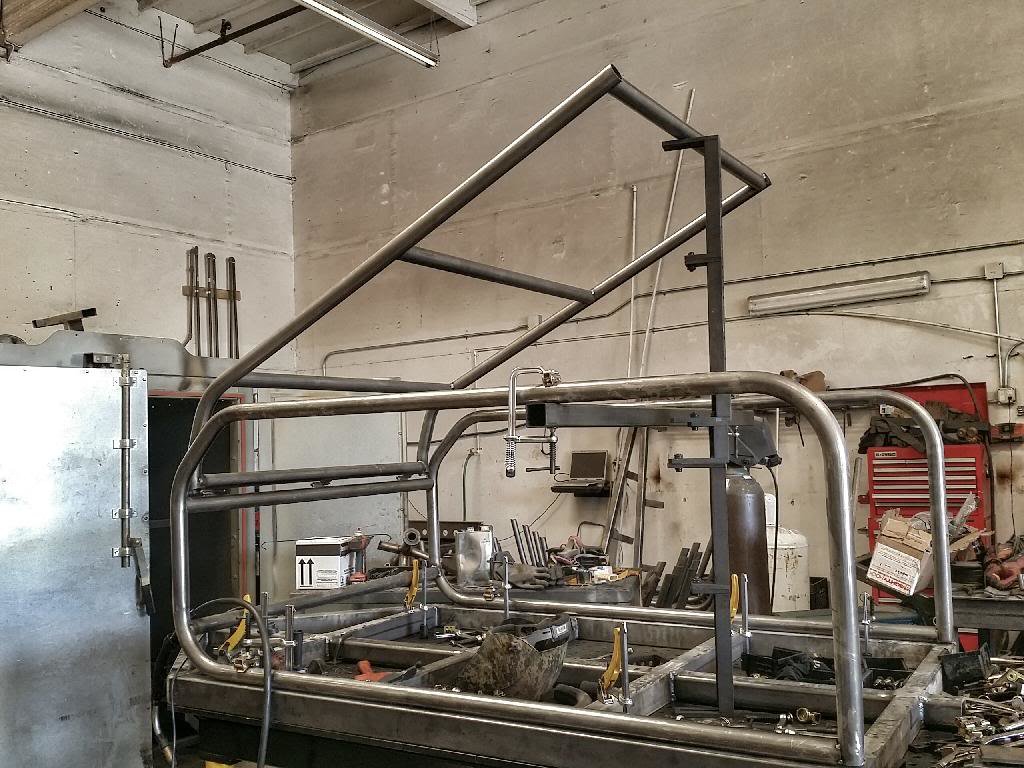

    I also got the bbq swing out started kinda. IMG_20140426_164056_1_zpsblfhygz9_9cebd4eb6be8bf71dd0531f6ae7fd968669e9b9c.jpg

    5/04/14

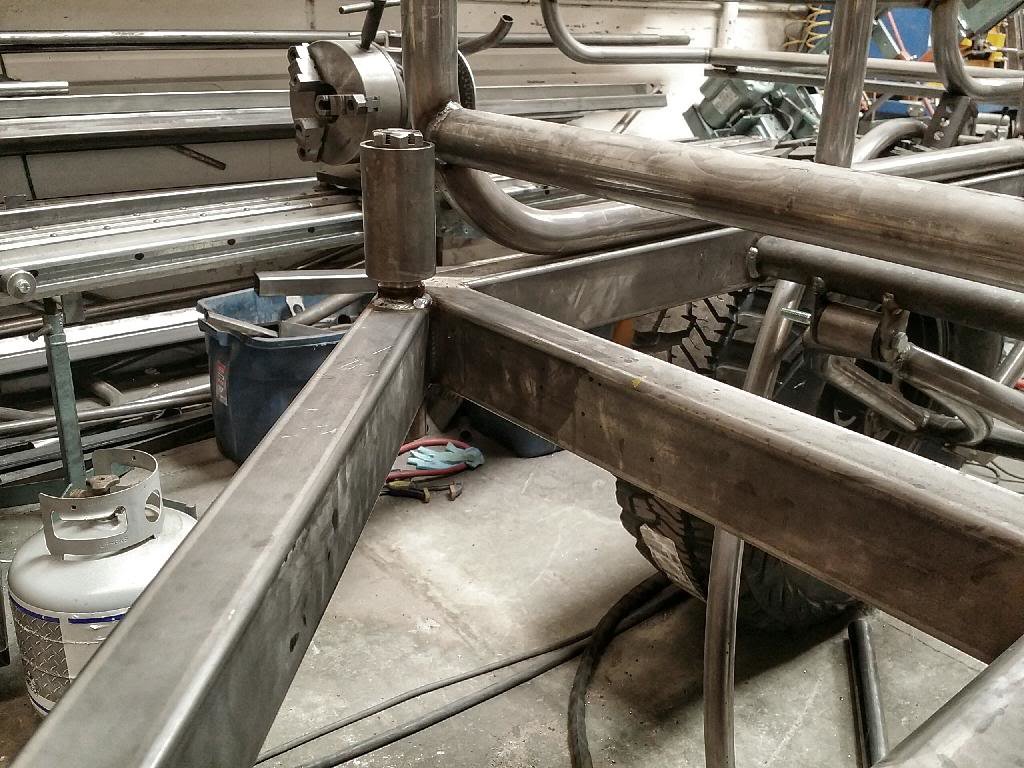

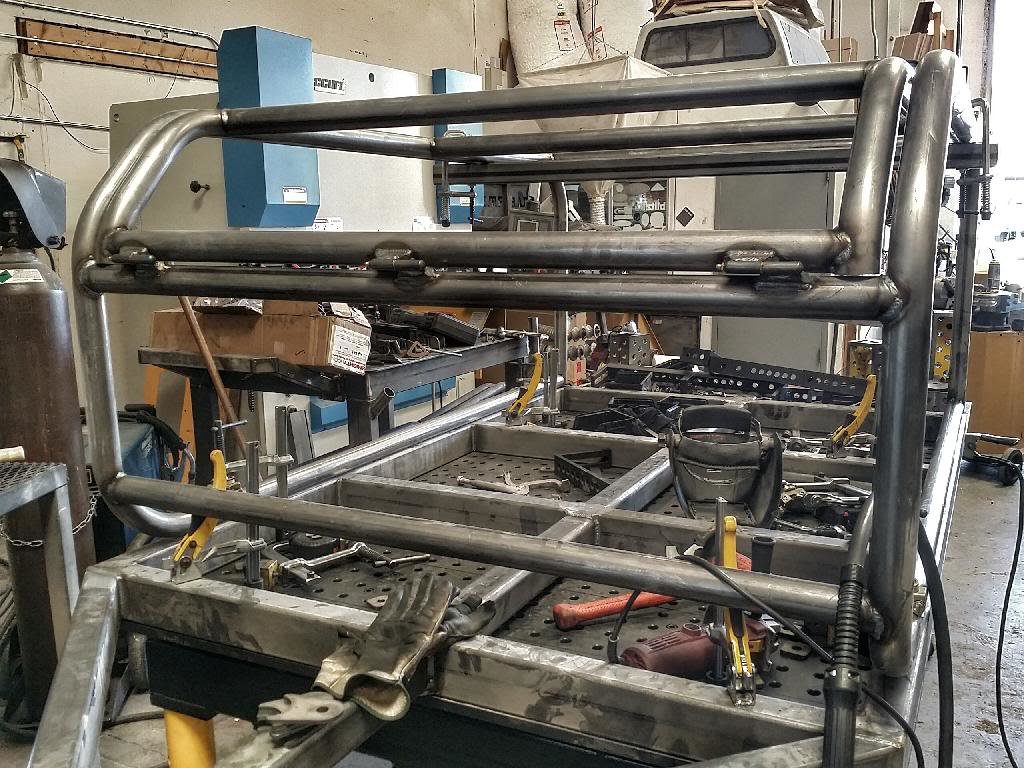

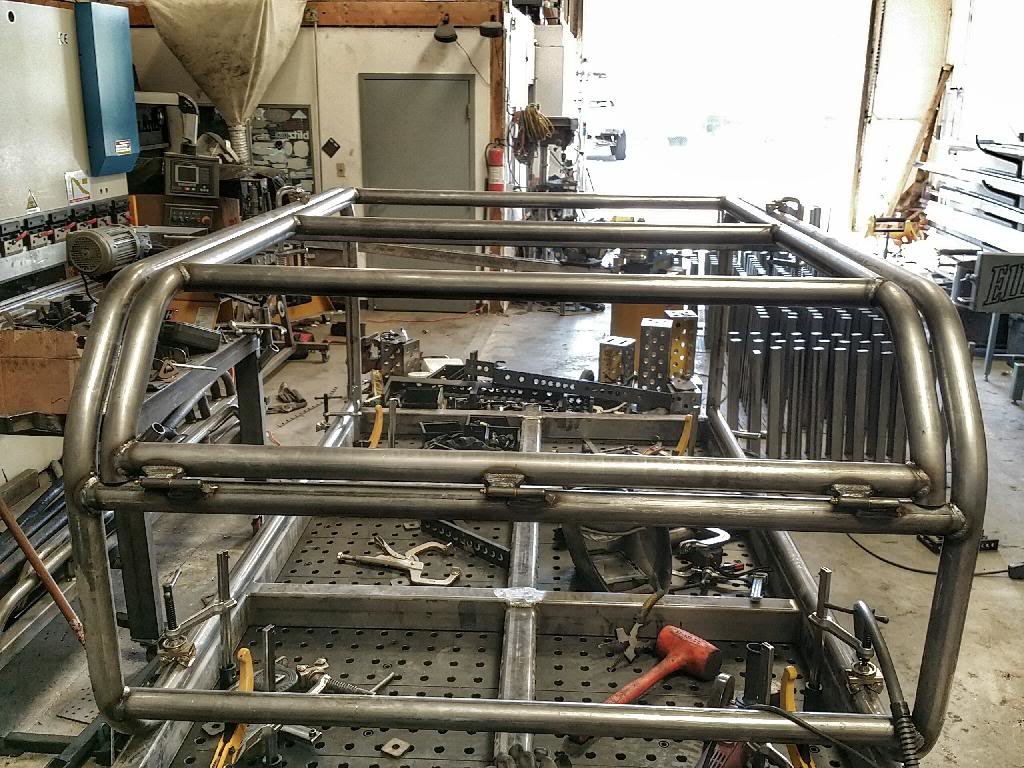

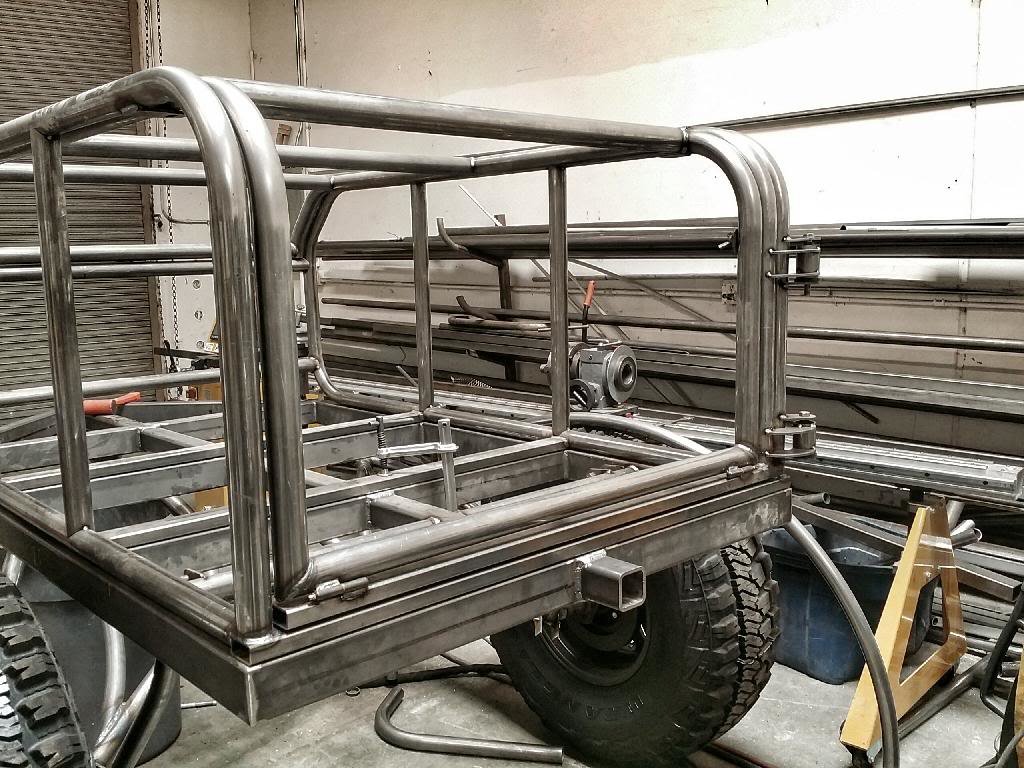

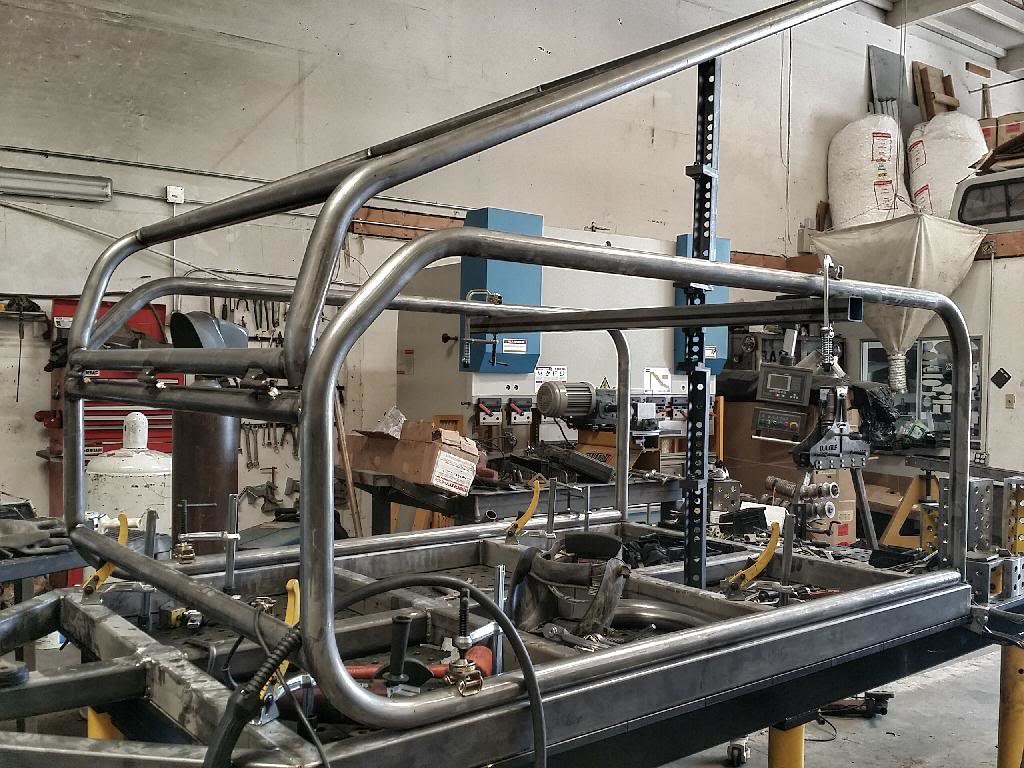

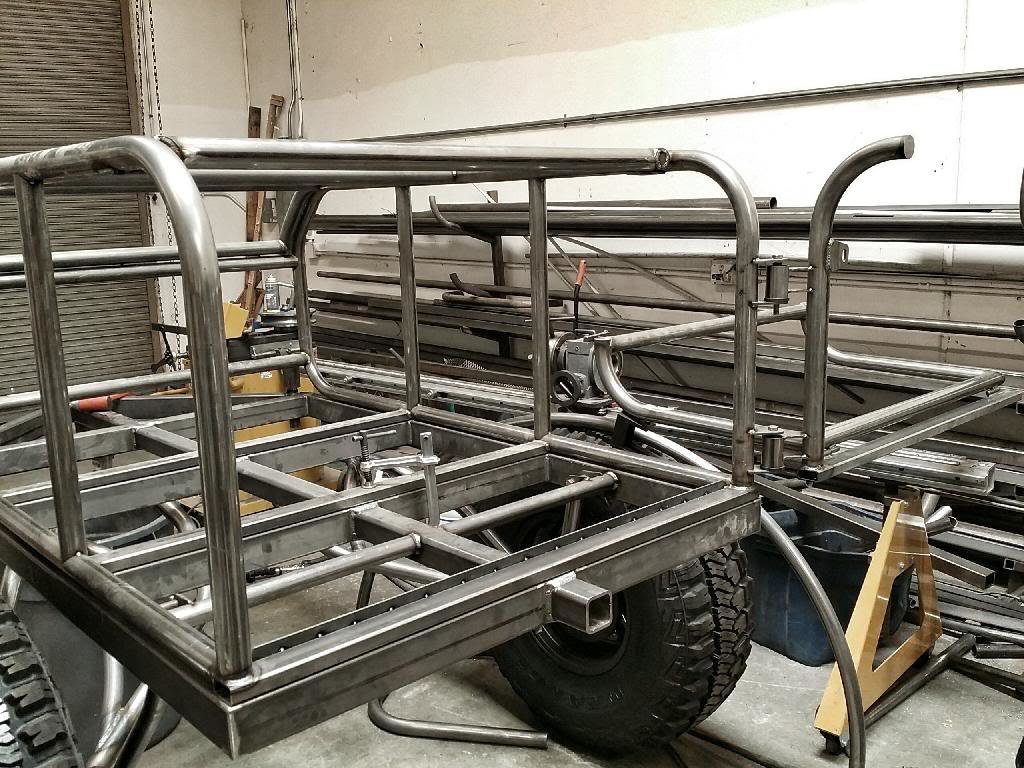

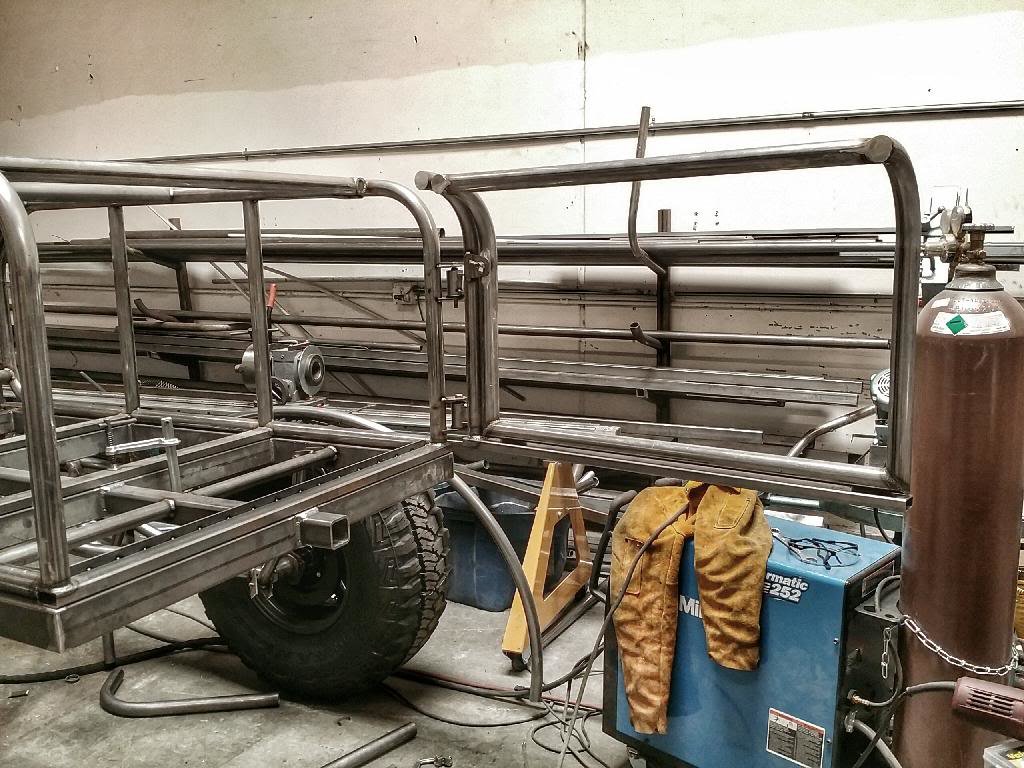

    I got it just about skinned today and the air bags tacked in place. The sides of the box warped in pretty bad from the welding and i was staggering tacks and it still warped. I'm going to try to pry it back out with the high lift it look good though :D

    [​IMG]


    [​IMG]




    [​IMG]

    Last edited: May 4, 2014
