Just wired lights they are not working.

Discussion in 'Lighting' started by Gabassman, Mar 2, 2012.

  1. Mar 2, 2012 at 9:24 PM
    #1
    Gabassman

    Gabassman [OP] Drive it like a 4WD

    Joined:
    Oct 2, 2011
    Member:
    #64537
    Messages:
    2,209
    Gender:
    Male
    First Name:
    Tyler
    Georgia
    Vehicle:
    05 Speedway Blue PreRunner TRD Off Road
    3 inch lift OME 885, 2in AAL, 5100's, Black Badges, Fog anytime, ABS on/off, window vents, Blacked grill and rear bumper, Afe pro s dry drop in filter.
    I just wired bed lights into the pockets of in the bed. The lights are the blazer off road lights from walmart(maybe the problem but I hope not). The lights will not light up after wiring them Ive checked all my connections and the inline fuse and all is good. Ive attached how i have ran my wiring. Maybe my thought process is wrong. Any help from those with more expertise would be very much appreciated.

    Light diagram.jpg

  2. Mar 2, 2012 at 9:38 PM
    #2
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,730
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    If you wired them as you say on that diagram.......then they should work.
    You have a volt meter to check n make sure there's voltage running thru?

  3. Mar 2, 2012 at 9:46 PM
    #3
    Gabassman

    Gabassman [OP] Drive it like a 4WD

    Joined:
    Oct 2, 2011
    Member:
    #64537
    Messages:
    2,209
    Gender:
    Male
    First Name:
    Tyler
    Georgia
    Vehicle:
    05 Speedway Blue PreRunner TRD Off Road
    3 inch lift OME 885, 2in AAL, 5100's, Black Badges, Fog anytime, ABS on/off, window vents, Blacked grill and rear bumper, Afe pro s dry drop in filter.
    I don't have a volt meter here with me right now. Ill have to check it tomorrow if its not raining. Just kinda aggravating. .

  4. Mar 3, 2012 at 5:52 AM
    #4
    Icepuck72

    Icepuck72 Well-Known Member

    Joined:
    Jul 9, 2011
    Member:
    #59563
    Messages:
    1,054
    Gender:
    Male
    First Name:
    Mark
    Richmond, VA
    Vehicle:
    2006 DC TRD
    OME 885's, Dakars, TRD Trail Edition Wheels, 285x75x16 Goodyear Duratracs, Magnaflow 12256 muffler, Fog Light mod, 2 Baby seats
    always check that you have a good ground....this is usually the culprit.

  5. Mar 3, 2012 at 1:43 PM
    #5
    Gabassman

    Gabassman [OP] Drive it like a 4WD

    Joined:
    Oct 2, 2011
    Member:
    #64537
    Messages:
    2,209
    Gender:
    Male
    First Name:
    Tyler
    Georgia
    Vehicle:
    05 Speedway Blue PreRunner TRD Off Road
    3 inch lift OME 885, 2in AAL, 5100's, Black Badges, Fog anytime, ABS on/off, window vents, Blacked grill and rear bumper, Afe pro s dry drop in filter.
    Got em working. Went to lowes and got a volt meter. My grounding point was fine. the t-tap on my ground wire was loose. fixed and now i have light now i need some bad ass off road lights for the front and some better back up lights.

  6. Mar 9, 2012 at 6:37 PM
    #6
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,493
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    T-Taps are the work of the devil.

    Strip, twist, solder, waterproof heat-shrink or heat-shrink and ScotchKote.

    All T-Taps will eventually fail.

  7. Mar 9, 2012 at 6:57 PM
    #7
    MonkeyProof

    MonkeyProof Power Top

    Joined:
    Oct 7, 2008
    Member:
    #9774
    Messages:
    9,447
    SoCal- SGV
    you should use a 30amp relay in your wiring as well, otherwise you risk a vehicle fire!
    [​IMG]

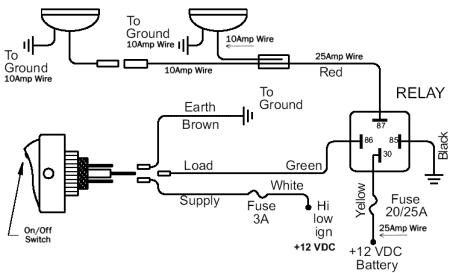

    here is how you should correctly wire your auxiliary lights using a 30amp relay!!!


    [​IMG]

  8. Mar 9, 2012 at 7:01 PM
    #8
    MonkeyProof

    MonkeyProof Power Top

    Joined:
    Oct 7, 2008
    Member:
    #9774
    Messages:
    9,447
    SoCal- SGV
    here is another diagram that is even easier to follow:D

    [​IMG]

  9. Mar 9, 2012 at 7:07 PM
    #9
    Boilermaker99

    Boilermaker99 555

    Joined:
    Dec 20, 2011
    Member:
    #69072
    Messages:
    185
    Gender:
    Male
    First Name:
    Andrew
    Atlantic beach
    Vehicle:
    1999 SR5 TRD 4x4 3.4 V6
    ARE cap, Rhino lined bed, Custom Advantage-Max seat covers, Kenwood stereo and speakers, Debadged all emblems, blackedout grill, Off road lights, engine bay LEDs, Uniden Cb, Bedlined rockers and rims, Custom front and rear bumper, Hilo jack and mounts, Yakima load warrior, Magnaflow 14" muffler, Intake/prefilter, rebuilt frontend after accident so sort of frankensteined!!
    So right on about the relay. I just had this discussion on another thread. They are lifesavers.

    Keep the voltage in the engine compartment not the cab (which a relay will do). If not you have all that amprage sitting on one side of the switch and they will melt and burn. By using a relay all the switch does is energize the relay to turn the lights on and off rather than make/break power. Super eassy to wire up and super safe.

  10. Mar 9, 2012 at 7:37 PM
    #10
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,493
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    A 30 amp fuse running through 18ga wire to the switch is also risking a vehicle fire, as would be (marginally) anything smaller than 12ga from the relay to the lights.

    80% rule.
    Continuous load no greater than 80% of the fuse value
    Fuse value no greater than 80% of the circuit design.

    30 amp relay is okay with 14ga wire (rated to 32a), but it should not be run with a fuse larger than 24a.

    The 18ga wire going to the switch should have it's own fuse (less than 13a)... or if the switch is only a 3a switch, then it should have a 2.5a fuse (regardless of the wire size). In this case, the 18ga wire is simply for durability.

  11. Mar 9, 2012 at 7:47 PM
    #11
    MonkeyProof

    MonkeyProof Power Top

    Joined:
    Oct 7, 2008
    Member:
    #9774
    Messages:
    9,447
    SoCal- SGV
    Nice ..great info to know!

  12. Mar 9, 2012 at 8:07 PM
    #12
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,493
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Just for reference:

    24ga = 3.5a = 2.8a fuse = 2.24a load continuous
    22ga = 7a = 5.6a fuse = 4.48a load
    20ga = 11a = 8.8a fuse = 7.04a load
    18ga = 16a = 12.8a fuse = 10.24a load continuous
    16ga = 22a = 17.6a fuse = 14.08a load continuous
    14ga = 32a = 25.6a fuse = 20.48a load continuous
    12ga = 41a = 32.8a fuse = 26.24a load continuous
    10ga = 55a = 44a fuse = 35.2a load continuous
    8ga = 73a = 58.4a fuse = 46.72a load continuous
    6ga = 101a = 80.8a fuse = 64.64a load continuous
    4ga = 135a = 108a fuse = 86.4a load continuous

    ;)

  13. Mar 10, 2012 at 10:53 AM
    #13
    caribe makaira

    caribe makaira Lurker No More

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    495
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    If all that info were 100% true we'd have to sue toyota to rewire the whoe vehicle.

  14. Mar 10, 2012 at 4:58 PM
    #14
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,493
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Why so?

    I've not looked into the details on my Tacoma, but I've never encountered a vehicle that did not follow that with the exception of the battery cables, but that is not a continuous load.

  15. Mar 10, 2012 at 5:33 PM
    #15
    Hunt89

    Hunt89 Active Member

    Joined:
    Feb 9, 2012
    Member:
    #72526
    Messages:
    28
    Gender:
    Male
    Nanaimo BC
    Vehicle:
    07 TRD
    Pro Comp Lift 6" 33inch bfg all terrains
    thanks rich. im a commercial electrician in canada and obviously know the ratings for building wiring but didnt know those specs for vehicles.

  16. Mar 10, 2012 at 5:45 PM
    #16
    grizquad

    grizquad Well-Known Member

    Joined:
    Feb 1, 2012
    Member:
    #71903
    Messages:
    64
    Gender:
    Male
    First Name:
    Steve
    Massachusetts
    Vehicle:
    12 Tacoma TRD sport
    Plasmaglow Firestorm lights, Westin Bull bar, Flyzeye interior console lights
    Very good info. Defiantly agree with the relay, as I work with them on refrigeration units and very rarely have I had a relay fail, its usually something else in the circuit. The info on the ga/ fuse /continuous load is very good info. Thanks

  17. Mar 10, 2012 at 6:22 PM
    #17
    Gabassman

    Gabassman [OP] Drive it like a 4WD

    Joined:
    Oct 2, 2011
    Member:
    #64537
    Messages:
    2,209
    Gender:
    Male
    First Name:
    Tyler
    Georgia
    Vehicle:
    05 Speedway Blue PreRunner TRD Off Road
    3 inch lift OME 885, 2in AAL, 5100's, Black Badges, Fog anytime, ABS on/off, window vents, Blacked grill and rear bumper, Afe pro s dry drop in filter.
    This is goin to have to take more looking at to understand everything. But i do need to clean up the wiring so i might as well redo it right like stated above.

  18. Mar 10, 2012 at 7:09 PM
    #18
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,493
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    Ya, NEC has no spec on anything smaller than 18.. and they aren't as liberal as my chart, BUT I'm pretty sure the NEC spec is for max breaker size and not 100% of the wire capacity. Looking at it that way, the NEC is just a bit more stringent than my chart, and still below my "load" column.

  19. Mar 10, 2012 at 7:12 PM
    #19
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,493
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    It's never going to hurt to go with a larger wire.
    Especially in a vehicle, it's going to be more durable, easier to "dress" into the harness, and less likely to be damaged from chaffing (sharp edges should still be avoided or padded).

    Personally, I'll try to go at least one wire gauge larger than the fuse would normally be good for, and it's rare that I use anything smaller than 14 for anything but speakers or a relay switching circuit.... I'll use 18 on those, but fuse the relay switching circuit at 3a

  20. Mar 10, 2012 at 8:17 PM
    #20
    Hunt89

    Hunt89 Active Member

    Joined:
    Feb 9, 2012
    Member:
    #72526
    Messages:
    28
    Gender:
    Male
    Nanaimo BC
    Vehicle:
    07 TRD
    Pro Comp Lift 6" 33inch bfg all terrains
    yah the NEC is over kill for sure but better safe then sorry
