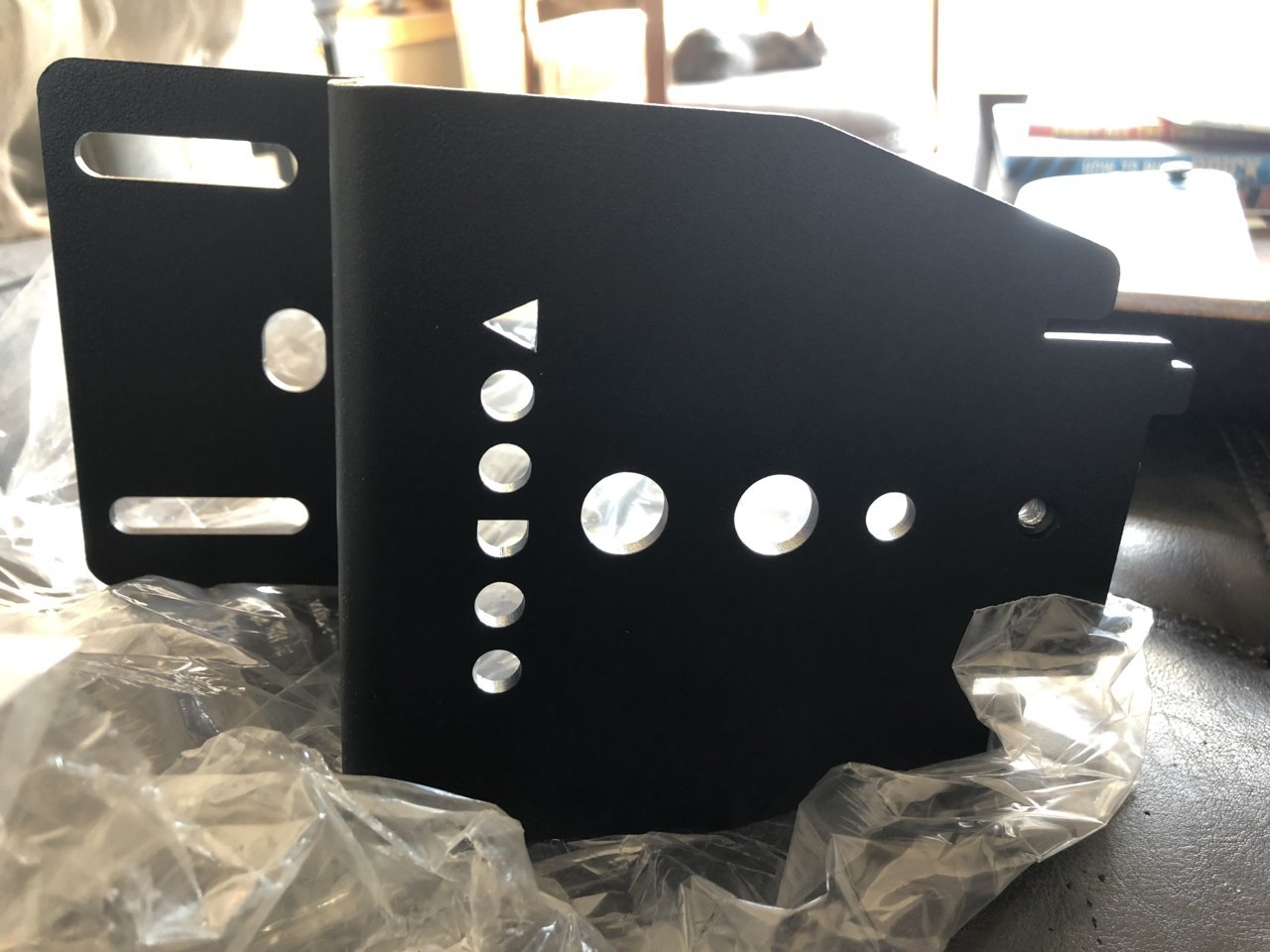

KB Voodoo Hi Rise Crossbars, for use with tonneau covers READY TO SHIP

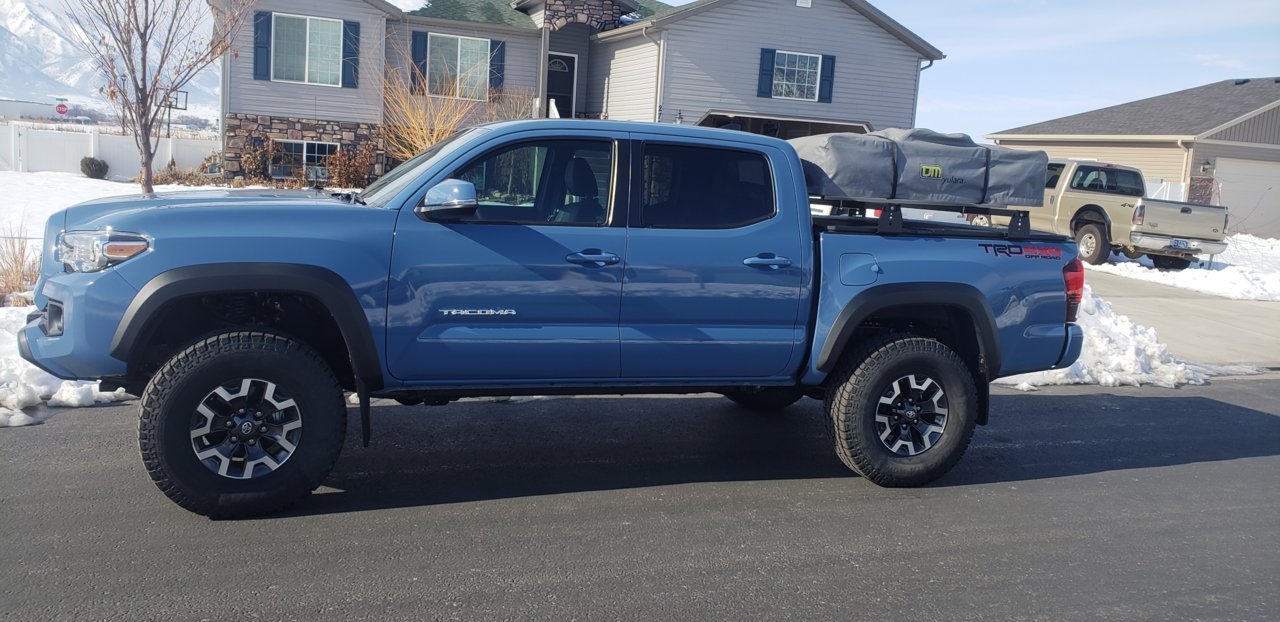

Sits about perfect

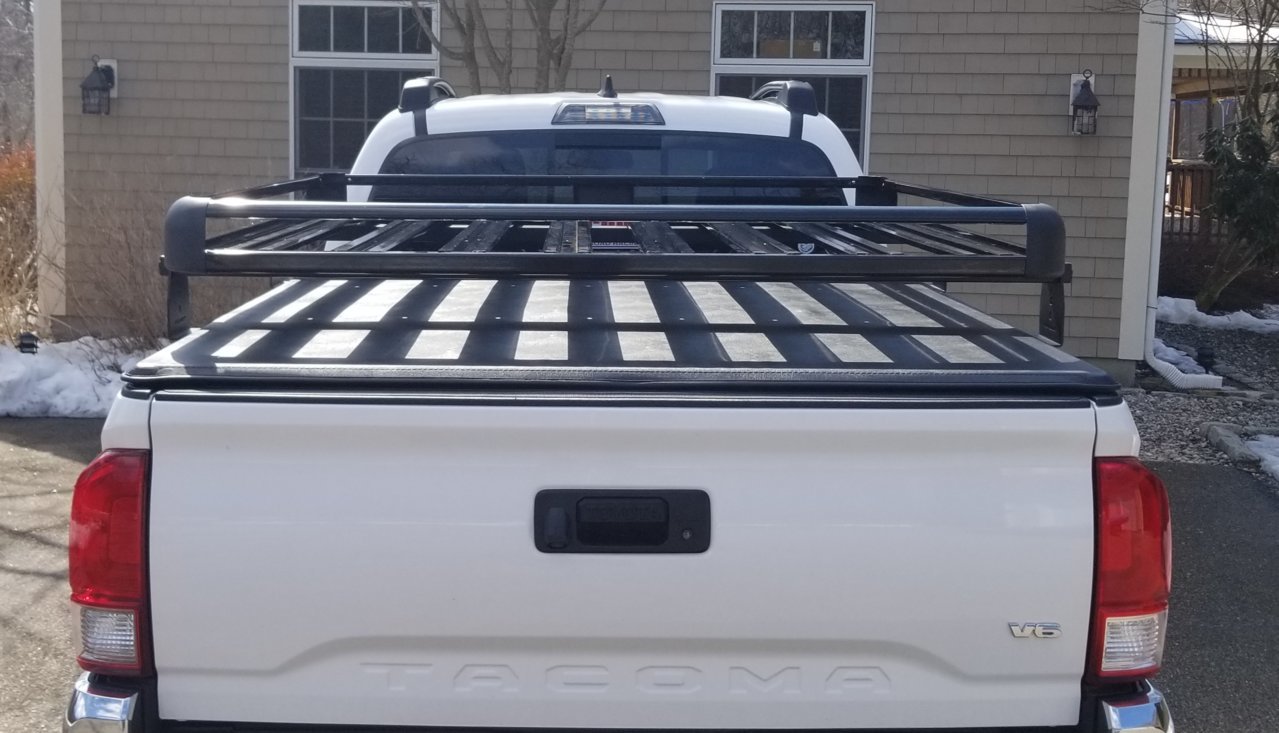

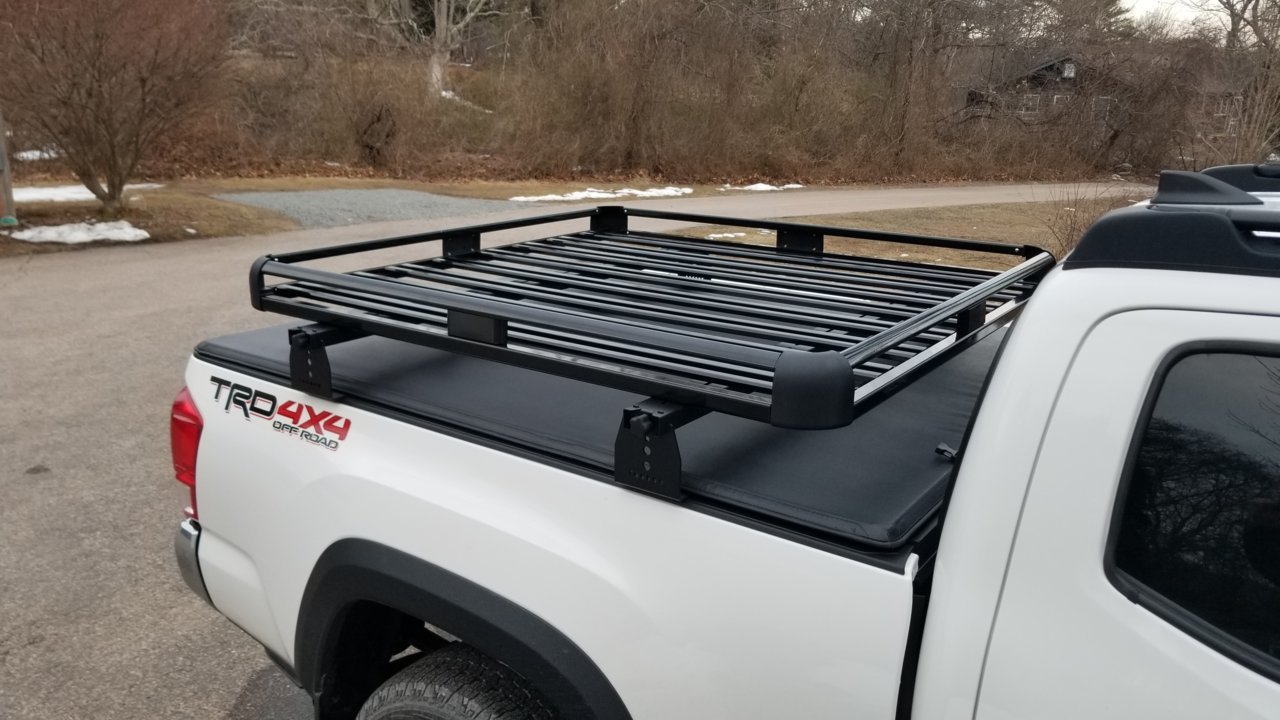

Got mine set up today with a nice aluminum basket on top. Perfect for wetsuits and camping gear when the bed is full of kayaks and surfboards.



@Surfguygriff which basket is that? Nice setup btw



Search "63 inch aluminum cargo basket" on Ebay. I bought 2, cut and chopped them together to make this one fit the bed properly. Under $200.00 for everything.



I see you have a long bed; I got a short. Probably don't need to fab two together like you did. Got a link for it? Is it this one:

https://www.ebay.com/itm/Universal-...m2ac202564b:g:syMAAOSwHSdcQy4U&frcectupt=true



Yes that's the one. The 63" length is perfect for a long bed. They also make a 50-inch version as well which might be perfect for a short bed . I actually took the long sides from 2 63's so the width would fit my bed better (63 wide and long now). Out of the box it was too narrow for what I needed. They'll take offers of $70 with free ship. They are not super duty stuff but I didn't need it to hold anything more than coolers, snow sports , MX , camping and Surf gear. + I really wanted aluminum so it wouldn't rust.



Thanks. I have a short bed but would like to get the one that is 63 inches long. I'm trying to figure out if it will overhang beyond my tail gate when closed. The truck bed internally is 60.5 inches long and then you have a few inches for the width of the front truck bed wall and tail gate width. I'm really wanting to go with the 63 inch one but don't want it to extend past the rear of the truck my much. What do you think?



Just buy it and try it, they have free returns. I would be willing to bet that the 63 in versions be flush with the outside dimension of your tailgate if it was right up against your window.



They will pay for the return shipping?

I think I would be fine with an inch or two of overhang which I think would end up happening. Is it all aluminum or is there some plastic parts too? Did it come in many pieces needing assembly?



Did you attach it to your bars with the clamps that came with the rack? I have the same voodoo bars as you.



The corners are plastic. Everything else is aluminum. I modified the mounting method to use the t slots (simaler to our bed rails) on the bottom side of the basket rails to put a threaded bolt and washer to mount it securely.



Sounds legit. Any photos of that mod by chance?



Any clue if these will work with a Revolver X2 tonneau? Vinyl over interlocking aluminum slats with rubber gaskets on rails to bed and cover to rails.



I have the hi rise bars and want to add a mount for:

1. Jack - I bought the Hi Lift 4xRac mounts but those won’t work.
2. Max Trax
3. Roto Pax

Any ideas on mounts for use with the kB uprights? I was looking at universal mounting plates but these uprights have single holes on top of each other.
