KC Cylclone Rock Lights

Discussion in '3rd Gen. Tacomas (2016+)' started by shacol, Jun 8, 2019.

  1. Jun 8, 2019 at 12:10 PM
    #1
    shacol

    shacol [OP] Well-Known Member

    Joined:
    Jan 12, 2018
    Member:
    #241070
    Messages:
    119
    Gender:
    Male
    Florida
    Vehicle:
    2018 Offroad DCSB

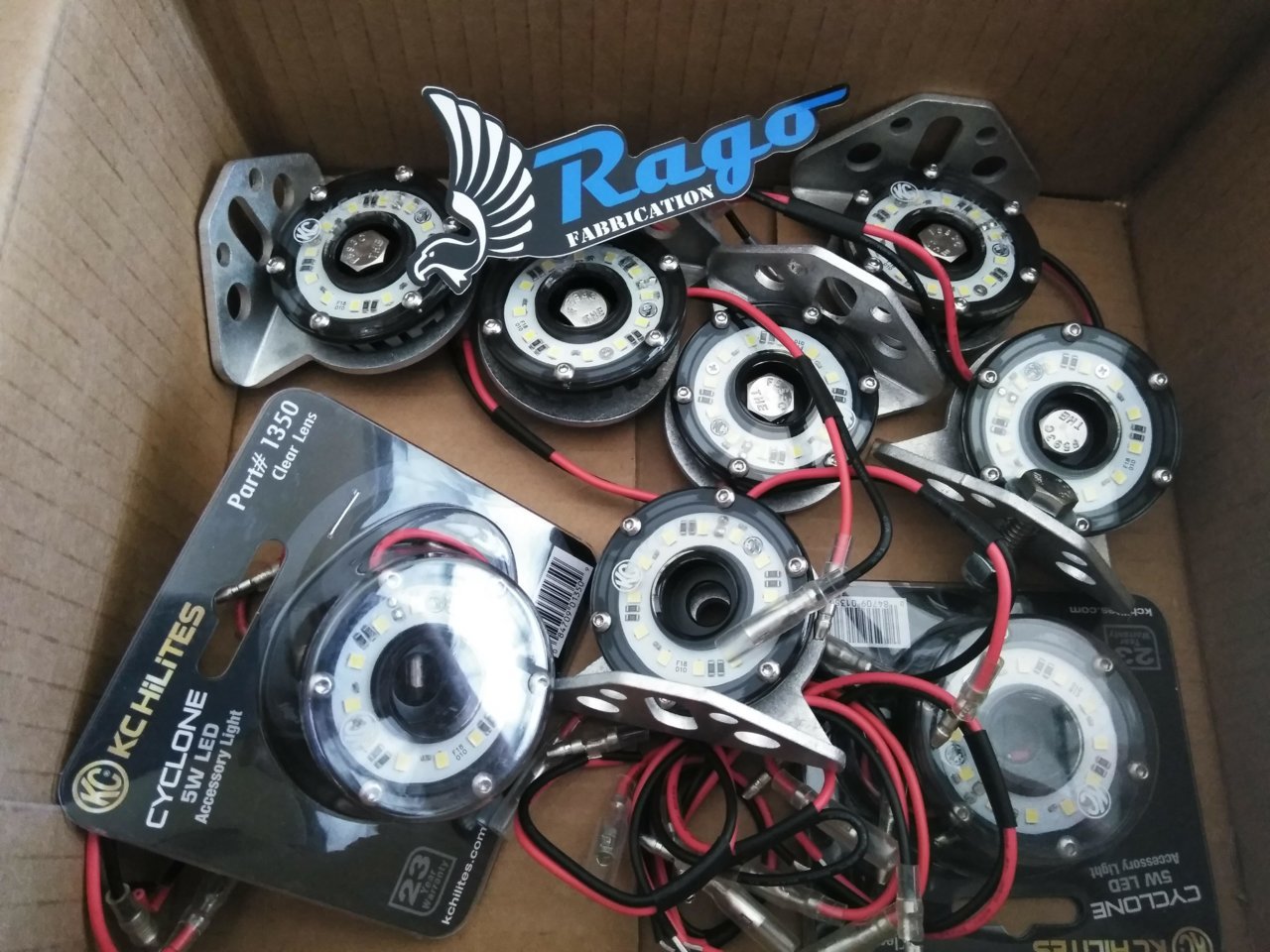

    I am planning on using 6 or 8 KC Cyclones as rock lights.

    I was wondering if anyone has some mouning pics or ideas for me. I have seen it mentioned that a few people have used magnets fitted onto the lights somehow and then just stick them to the frame, so I'd be interested in that ... if it works well, doesn't, etc.

    Finally, I'd be going with white, but they offer clear and diffused lenses. I'm guessing I'd want diffused, but any advice on that would be appreciated.

    Thanks very much!

  2. Jun 8, 2019 at 12:28 PM
    #2
    Siblue

    Siblue Well-Known Member

    Joined:
    Dec 2, 2014
    Member:
    #143489
    Messages:
    2,301
    Gender:
    Male
    First Name:
    Ryan
    So Cal
    Vehicle:
    18 4Runner TRD Off-Road, 19 Tacoma TRD Off-Road, FK8
  3. Jun 8, 2019 at 12:36 PM
    #3
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,745
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!
  4. Jun 8, 2019 at 12:41 PM
    #4
    Clocktower

    Clocktower Recovering Jeep Owner

    Joined:
    Jan 23, 2019
    Member:
    #280362
    Messages:
    53
    Gender:
    Male
    San Diego, CA
    Vehicle:
    2019 Tacoma TRD OR DCSB / Auto 4X4
    I'm running 2X diffused white cyclone lights as underhood lights. For the rock light application, I definitely recommend diffused over the clear lens offering.

    shacol [OP] likes this.
  5. Jun 8, 2019 at 12:42 PM
    #5
    shacol

    shacol [OP] Well-Known Member

    Joined:
    Jan 12, 2018
    Member:
    #241070
    Messages:
    119
    Gender:
    Male
    Florida
    Vehicle:
    2018 Offroad DCSB
    Thanks for the link, I hadn't seen those.

    I do like the magnet idea if they stick well enough and mount well to the light. Regarding the magnet link you sent, what are you using for the 'male' side? A bolt with a large enough washer to keep it from sliding through the cyclone?

  6. Jun 8, 2019 at 1:02 PM
    #6
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    7,745
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2015 DCSB TRD OR MGM
    Go Hawks!

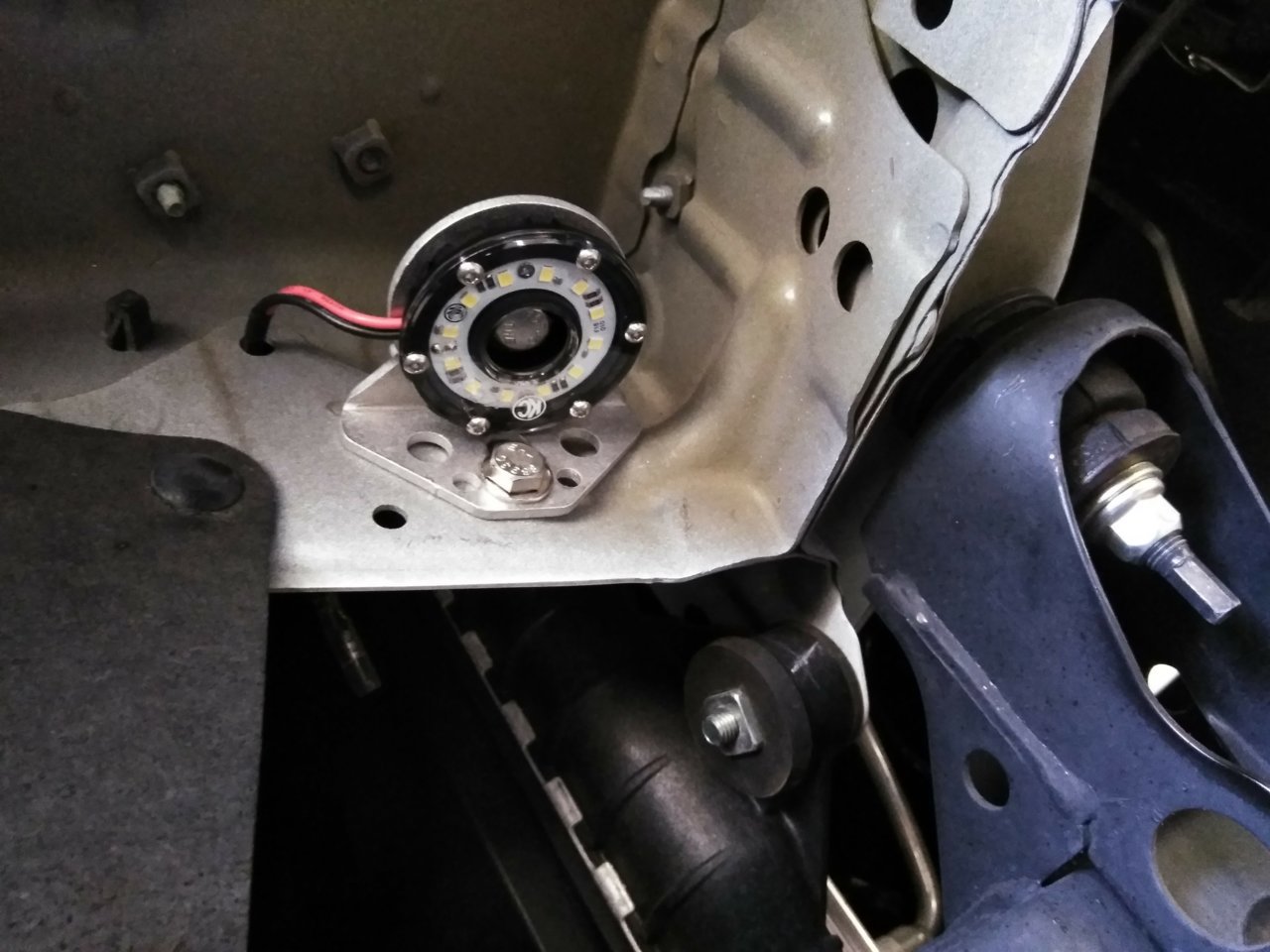

    Neodymium magnets are very strong, those are rated to hold 75lbs, they should have no problem holding a rock light in place. I haven’t tried them yet though, I’m currently using Cyclones for a tent lighting project where there is no steel, probably be a while before I get to mounting rock lights for under vehicle lighting. I came up with the idea when doing this thread and saw that other lights have a magnetic mount option, but I would want to use the KCs and was thinking about how to mount them:
    https://www.tacomaworld.com/threads/the-led-rock-light-showdown.612253/

    Yes, an appropriate sized washer with a nut to secure the Cyclone to the magnet.

  7. Jun 8, 2019 at 7:27 PM
    #7
    shacol

    shacol [OP] Well-Known Member

    Joined:
    Jan 12, 2018
    Member:
    #241070
    Messages:
    119
    Gender:
    Male
    Florida
    Vehicle:
    2018 Offroad DCSB
    That sounds good, thanks for the info!

    Is everyone using standard butt and bullet connectors for underneath the truck, or waterproof connectors of some kind?

    Last edited: Jun 8, 2019
