Keyless entry on SR

I had no idea this resource existed! This is awesome. I'll see what I can do. I might have to hold-off on the project for a bit (work is picking up), but will loop you in with my rough draft. I'm not very good at reading circuits, but will give it a shot.

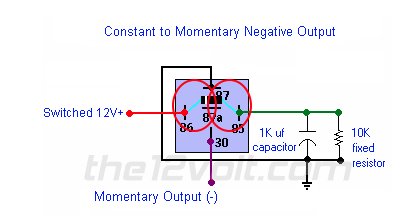

I am assuming these blue lines mean to bridge these connections (circled in red):



What is the black bar those blue lines are connected to?



You are correct. Diode between the relay pins.(Black bars)



So a diode between each bridge? One diode between my bridge of 85 to 87 and then the same for the other side?



PM ya...it's not what's required...



After knowing the HORN tap only allows for a brief honk, the sane n cheap solution is to use same tap for flashing the turn signals tapping the Hazard switch.
Edit: The brief honk is NOT enough time to activate the hazards...and especially if the headlights are aftermarket...
I think that having the rear illuminated for as long as the low beams (30 sec) are isn't that bad.



Thanks for helping me hash it out! I’ll give it a shot tomorrow.



No problem...there might be others with same issue...



Perhaps we would want to use a diode to prevent the hazards from turning on when honking the horn and vice versa?



Yes indeed...
