KickerCS Upgrade with Kicker Key amp Install Assistance

Discussion in 'Audio & Video' started by siKjiTz, Sep 18, 2018.

  1. Dec 16, 2018 at 5:05 PM
    #21
    LVLAaron

    LVLAaron Well-Known Member

    Joined:
    Dec 13, 2018
    Member:
    #275732
    Messages:
    54
    Gender:
    Male
    First Name:
    Aaron
    Vehicle:
    2018 TRD Off Road
    Isn't that where an airbag is?

  2. Dec 16, 2018 at 6:06 PM
    #22
    Bach88

    Bach88 Well-Known Member

    Joined:
    Feb 8, 2018
    Member:
    #243814
    Messages:
    61
    Gender:
    Male
    Florida
    Vehicle:
    2016 Tacoma OR DC
    Yes and no. It is behind where the amp is but there is a steel tube in front of it so it does not come out from that panel when deployed. I was also concerned about this till I found the video below. At 2 min you can see it comes out of the upper dash be hind the amp an metal tubing.

    https://m.youtube.com/watch?v=GIkPjOFC_sk

    siKjiTz [OP] and LVLAaron like this.
  3. Dec 23, 2018 at 1:12 AM
    #23
    siKjiTz

    siKjiTz [OP] Game of Chokes

    Joined:
    Nov 21, 2014
    Member:
    #142795
    Messages:
    242
    Gender:
    Male
    First Name:
    E
    Vehicle:
    2017 DCSB TRD Sport Inferno
    OV TUNED 2.0 Beta 87 Eibach Pro Truck Lift Kit(Coming soon) Wheelers 1.5” Progressive AAL (Coming soon) Level 8 MK6 17x8 (Coming soon) Falken Wildpeaks 265/70/17” (Coming soon)
    I have Kicker CS 6x9 in the front doors, 6.5” in the back doors, and Subaru Kicker tweeters.

    Rockoma5 likes this.
  4. Jan 10, 2019 at 1:17 PM
    #24
    TacoTruckNotFood

    TacoTruckNotFood Member

    Joined:
    Dec 14, 2018
    Member:
    #275817
    Messages:
    8
    Gender:
    Male
    Illinois
    Vehicle:
    2017 TRD Sport
    None yet... that's why I'm here.
    @siKjiTz I've got essentially the same setup. I'm working on installing the Key this weekend (still waiting on a harness to arrive) Where did you ground your amp?

  5. Jan 10, 2019 at 10:42 PM
    #25
    siKjiTz

    siKjiTz [OP] Game of Chokes

    Joined:
    Nov 21, 2014
    Member:
    #142795
    Messages:
    242
    Gender:
    Male
    First Name:
    E
    Vehicle:
    2017 DCSB TRD Sport Inferno
    OV TUNED 2.0 Beta 87 Eibach Pro Truck Lift Kit(Coming soon) Wheelers 1.5” Progressive AAL (Coming soon) Level 8 MK6 17x8 (Coming soon) Falken Wildpeaks 265/70/17” (Coming soon)
    These harness will take care of that.

  6. Jan 26, 2019 at 3:59 PM
    #26
    edro

    edro Member

    Joined:
    Jan 25, 2016
    Member:
    #175994
    Messages:
    11
    Gender:
    Male
    Cincinnati
    Vehicle:
    19ORAC 01XJ88K
    Could anyone direct me to a more detailed wiring setup for using the metra harnesses, Kicker Key and OEM head unit? Want to use to OEM power and ground setups via the harness. I'm getting no power to the amp and no volume control available on the head unit.

  7. Jan 26, 2019 at 4:21 PM
    #27
    Bach88

    Bach88 Well-Known Member

    Joined:
    Feb 8, 2018
    Member:
    #243814
    Messages:
    61
    Gender:
    Male
    Florida
    Vehicle:
    2016 Tacoma OR DC

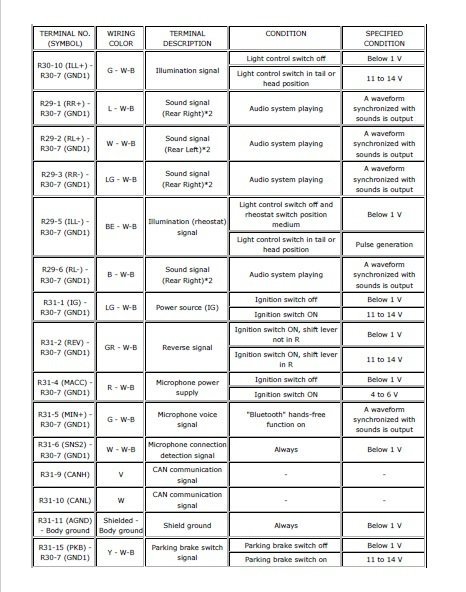

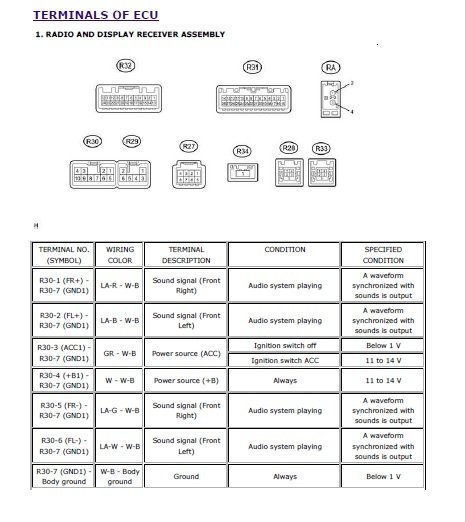

    This may help. There is a couple of other threads already on how to wire the harness. Try googling it.


    Steve_nm likes this.
  8. Jan 26, 2019 at 5:55 PM
    #28
    edro

    edro Member

    Joined:
    Jan 25, 2016
    Member:
    #175994
    Messages:
    11
    Gender:
    Male
    Cincinnati
    Vehicle:
    19ORAC 01XJ88K
    Looks like my problem was the purple remote turn on wire.

  9. Feb 16, 2019 at 10:57 AM
    #29
    grubburg

    grubburg Well-Known Member

    Joined:
    Jan 13, 2014
    Member:
    #120579
    Messages:
    1,360
    Gender:
    Male
    Vehicle:
    2019 TRD OR MT
    K & N Intake, Gibson Catback (chopped), Weathertechs, 285/70/17 Ridge Grapplers, Black Rhino Glamis wheels, Kicker Key, Kicker Hideaway, Infiniti Speakers, OV Tune, 888's, 5100s X 4, HS 3-leaf, LR SPC UCAs, Diff Drop, Carrier Bearing Drop, Extended Brake Lines, OEM Bed Mat.
    Any issues with heat wince your last post?

    I'm going for the glove box and crutchfield cautioned me to find a place with more air flow.

    I dont see how under a seat would get much airflow though.

  10. Feb 16, 2019 at 1:31 PM
    #30
    Bach88

    Bach88 Well-Known Member

    Joined:
    Feb 8, 2018
    Member:
    #243814
    Messages:
    61
    Gender:
    Male
    Florida
    Vehicle:
    2016 Tacoma OR DC
    I ended up just putting it under the radio and haven’t had any issues. My harness was a little shorter than I liked so I decided not to put it over the glove box.
    I drove around with the dash open for a couple days to check how hot the amp gets before mounting and it only gets slightly warm so you should be ok. I also put the mic in the glove box so I can show people how it sounds before and after the auto eq. Hope this helps.

    grubburg likes this.
  11. Feb 16, 2019 at 4:03 PM
    #31
    grubburg

    grubburg Well-Known Member

    Joined:
    Jan 13, 2014
    Member:
    #120579
    Messages:
    1,360
    Gender:
    Male
    Vehicle:
    2019 TRD OR MT
    K & N Intake, Gibson Catback (chopped), Weathertechs, 285/70/17 Ridge Grapplers, Black Rhino Glamis wheels, Kicker Key, Kicker Hideaway, Infiniti Speakers, OV Tune, 888's, 5100s X 4, HS 3-leaf, LR SPC UCAs, Diff Drop, Carrier Bearing Drop, Extended Brake Lines, OEM Bed Mat.
    Yeah I drilled a hole btweennhead unit and glove box. No problems so far...

  12. Feb 17, 2019 at 6:24 AM
    #32
    Bach88

    Bach88 Well-Known Member

    Joined:
    Feb 8, 2018
    Member:
    #243814
    Messages:
    61
    Gender:
    Male
    Florida
    Vehicle:
    2016 Tacoma OR DC
    There is actually a notch in the panel you remove to change the air filter and the wire fits nicely in it so you don’t have to drill anything.

  13. Feb 17, 2019 at 12:53 PM
    #33
    grubburg

    grubburg Well-Known Member

    Joined:
    Jan 13, 2014
    Member:
    #120579
    Messages:
    1,360
    Gender:
    Male
    Vehicle:
    2019 TRD OR MT
    K & N Intake, Gibson Catback (chopped), Weathertechs, 285/70/17 Ridge Grapplers, Black Rhino Glamis wheels, Kicker Key, Kicker Hideaway, Infiniti Speakers, OV Tune, 888's, 5100s X 4, HS 3-leaf, LR SPC UCAs, Diff Drop, Carrier Bearing Drop, Extended Brake Lines, OEM Bed Mat.
    But then you dont get to use your drill :muscleflexing:

    Bastek likes this.
  14. Feb 17, 2019 at 1:25 PM
    #34
    Bach88

    Bach88 Well-Known Member

    Joined:
    Feb 8, 2018
    Member:
    #243814
    Messages:
    61
    Gender:
    Male
    Florida
    Vehicle:
    2016 Tacoma OR DC
    Good point.

  15. Feb 17, 2019 at 2:47 PM
    #35
    grubburg

    grubburg Well-Known Member

    Joined:
    Jan 13, 2014
    Member:
    #120579
    Messages:
    1,360
    Gender:
    Male
    Vehicle:
    2019 TRD OR MT
    K & N Intake, Gibson Catback (chopped), Weathertechs, 285/70/17 Ridge Grapplers, Black Rhino Glamis wheels, Kicker Key, Kicker Hideaway, Infiniti Speakers, OV Tune, 888's, 5100s X 4, HS 3-leaf, LR SPC UCAs, Diff Drop, Carrier Bearing Drop, Extended Brake Lines, OEM Bed Mat.
    Did anyone get a slight white noise hissing from their tweeters after installing the kicker key?

  16. Feb 17, 2019 at 3:20 PM
    #36
    destin_meeks

    destin_meeks I fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    1,530
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Yep. Nearly everyone. Cut the gains down till it goes away. You’ll still get plenty of volume from it

  17. Feb 17, 2019 at 8:59 PM
    #37
    grubburg

    grubburg Well-Known Member

    Joined:
    Jan 13, 2014
    Member:
    #120579
    Messages:
    1,360
    Gender:
    Male
    Vehicle:
    2019 TRD OR MT
    K & N Intake, Gibson Catback (chopped), Weathertechs, 285/70/17 Ridge Grapplers, Black Rhino Glamis wheels, Kicker Key, Kicker Hideaway, Infiniti Speakers, OV Tune, 888's, 5100s X 4, HS 3-leaf, LR SPC UCAs, Diff Drop, Carrier Bearing Drop, Extended Brake Lines, OEM Bed Mat.
    That means gains like 4 or 5 or less?

    And yeah, that's how i set it and it still is loud AF.

    What causes that?

  18. Feb 17, 2019 at 10:00 PM
    #38
    grubburg

    grubburg Well-Known Member

    Joined:
    Jan 13, 2014
    Member:
    #120579
    Messages:
    1,360
    Gender:
    Male
    Vehicle:
    2019 TRD OR MT
    K & N Intake, Gibson Catback (chopped), Weathertechs, 285/70/17 Ridge Grapplers, Black Rhino Glamis wheels, Kicker Key, Kicker Hideaway, Infiniti Speakers, OV Tune, 888's, 5100s X 4, HS 3-leaf, LR SPC UCAs, Diff Drop, Carrier Bearing Drop, Extended Brake Lines, OEM Bed Mat.
    I've been running mine in the glove box. It's almost too hot to touch after a 20 min drive.

  19. Feb 18, 2019 at 5:04 AM
    #39
    destin_meeks

    destin_meeks I fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    1,530
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    The inputs are super sensitive because they can be used with clean low-level sources or less clean high level sources (like our radios)
    Sometimes there is just noise in a system. It’s a cheap amp when compared to JL and Focal and Hertz and so on, so we deal with a bit of hiss and higher gains.
    Most people just turn the gains down till they can’t hear it anymore, and still report plenty of volume level, so no worries!

  20. Feb 18, 2019 at 5:10 AM
    #40
    Bach88

    Bach88 Well-Known Member

    Joined:
    Feb 8, 2018
    Member:
    #243814
    Messages:
    61
    Gender:
    Male
    Florida
    Vehicle:
    2016 Tacoma OR DC
    What volume are listening at? I had the gains all the way down and 40 volume for my testing.
